PG-1-66

House kit cost:
$22 695
*The indicated price is not a public offer. Please check the current price with our managers.

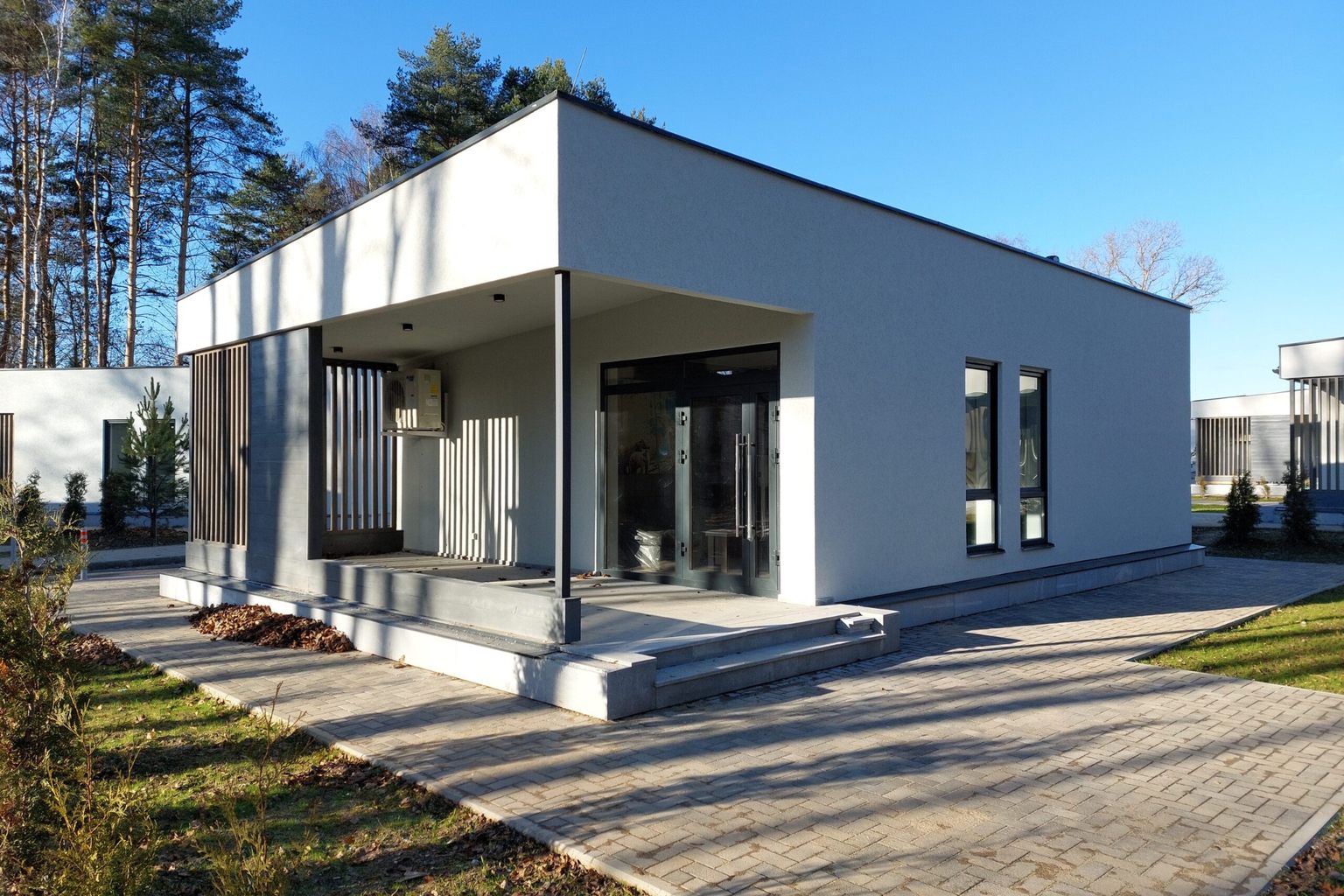

Визуализация
PG-1-66
PG-1-66
PG-1-66
PG-1-66
PG-1-66
PG-1-66
PG-1-66

Individual design of a guest house made from SIP panels PG-1-66 and a floor plan for placing 12 guest houses on a land plot.
The guest house layout includes a spacious kitchen-living room of 21 m2 with access to a terrace of 21 m2. The house has two rooms of 12 m2 each, a bathroom 4.7 m2, a hall 2.5 m2, an entryway 2.6 m2, a utility room 2 m2 and a porch 6 m2. The entrance to the utility room is designed from the outside so that maintenance or repair of engineering equipment can be carried out without disturbing guests, which is very important for their accommodation and rest in the house.

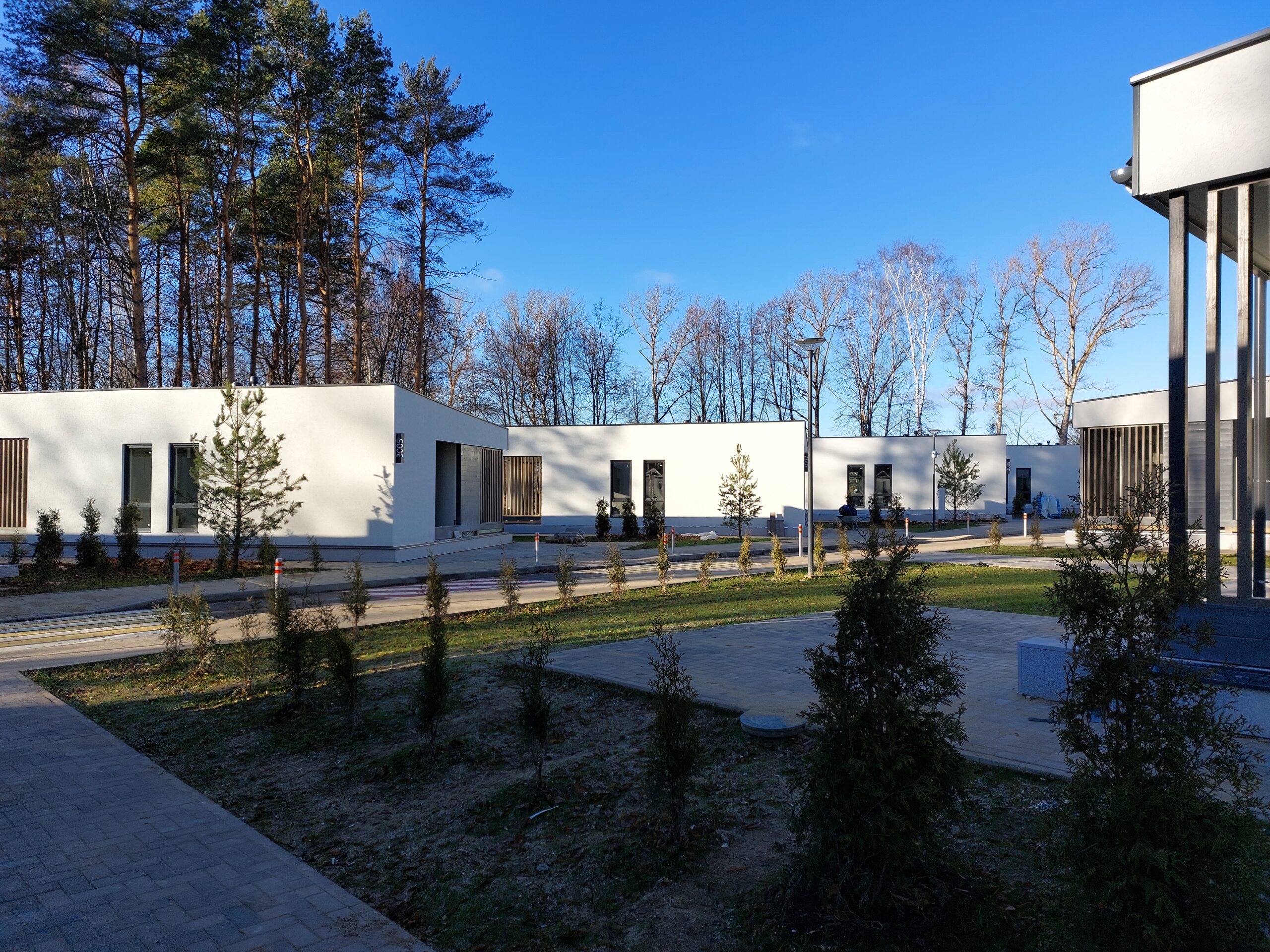

The placement plan for 12 guest houses on a land plot of 0.72 ha (72 ares) includes built-up area of 0.11 ha (11 ares), landscaping 0.33 ha (33 ares), and roads/sidewalks/areas/parking 0.28 ha (28 ares).
When preparing the site development plan, features such as fire safety requirements for the materials used were taken into account — SIP with cement-bonded particleboard (CBPB) and quartz-based mineral wool Isover (completely non-combustible materials), from which the load-bearing frames of the guest houses were constructed — spacing between houses, accessibility for people with reduced mobility (PRM), and, finally, comfort and privacy for residents as the main components of a successful commercial project aimed at 100% occupancy of the houses and rapid payback.

Object Specifications:
  • Number of Floors
    1
  • Building Area, m²
    66
  • Length, m
    9.8
  • Width, m
    7.4
  • House height, m
    3.9
  • Total Area, m²
    57
  • Ceiling height (floor to ceiling), m
    2.7
  • Number of Rooms
    3
  • Number of Bathrooms
    1
  • Number of windows, pcs
    6
  • Glazing area, m2
    15
  • Facade area, m2
    119
  • Roof pitch angle, °
    4
  • Roof type
    Flat
  • Roof area, m2
    74
  • Number of entrance doors, pcs
    2
  • Production time, days
    from 25
  • Volume, m3
    46
  • Weight, tons
    14
  • Delivery terms
    Pickup from warehouse (EXW)
  • Loading and packaging
    Included
Architectural elements
  • Porch
    6.3 m²
  • Terrace
    21.4 m²

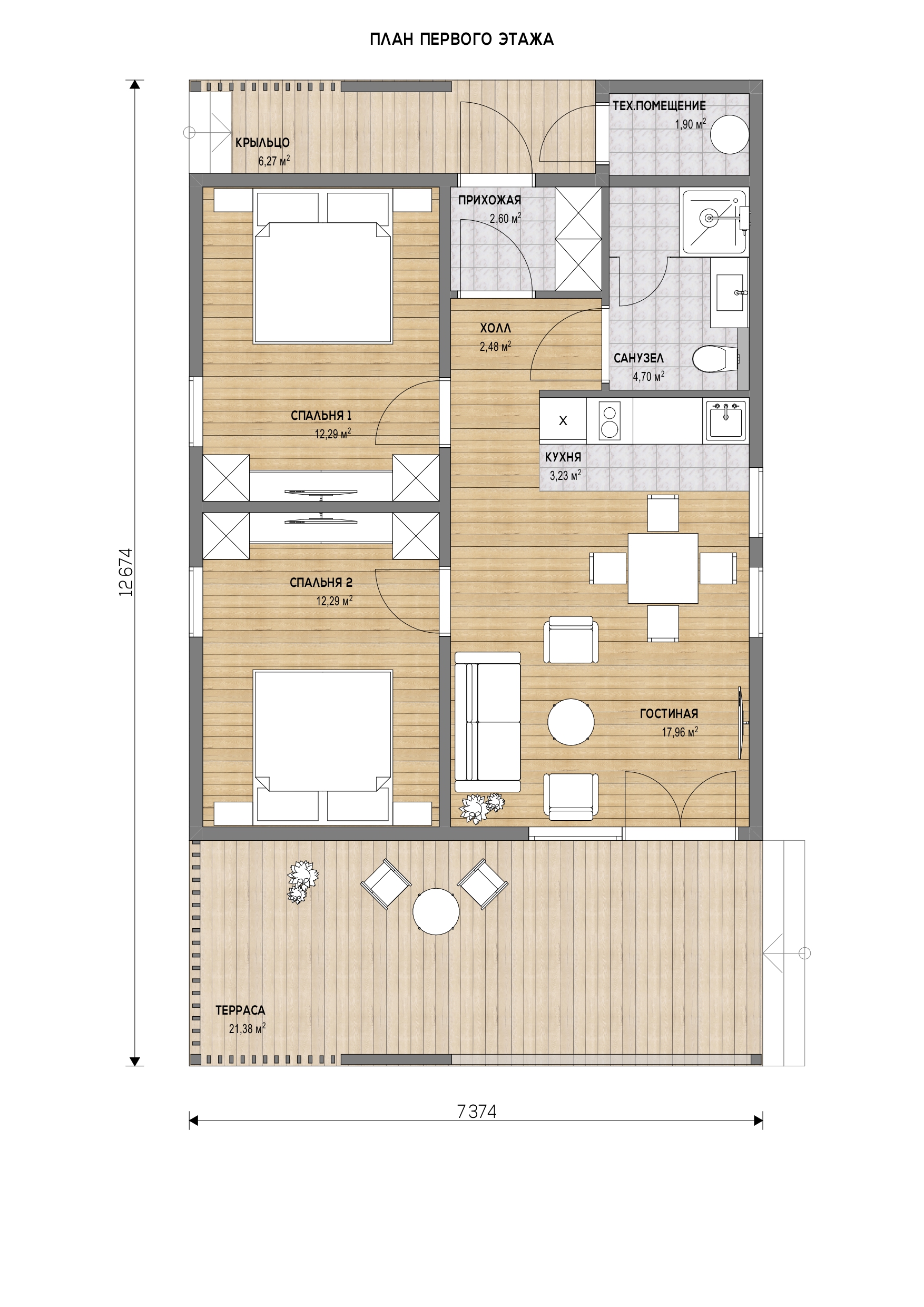

Layout solutions
1st Floor
Проект одноэтажного дома из сип панелей
1.
Living Room 18 m²
2.
Kitchen 3 m²
3.
Bedroom 12 m²
4.
Bedroom 12 m²
5.
Bathroom 4.7 m²
6.
Entrance Hall 2.6 m²
7.
Hall 2.5 m²
8.
Technical Room 2 m²
9.
Porch 6.3 m²
10.
Terrace 21.4 m²

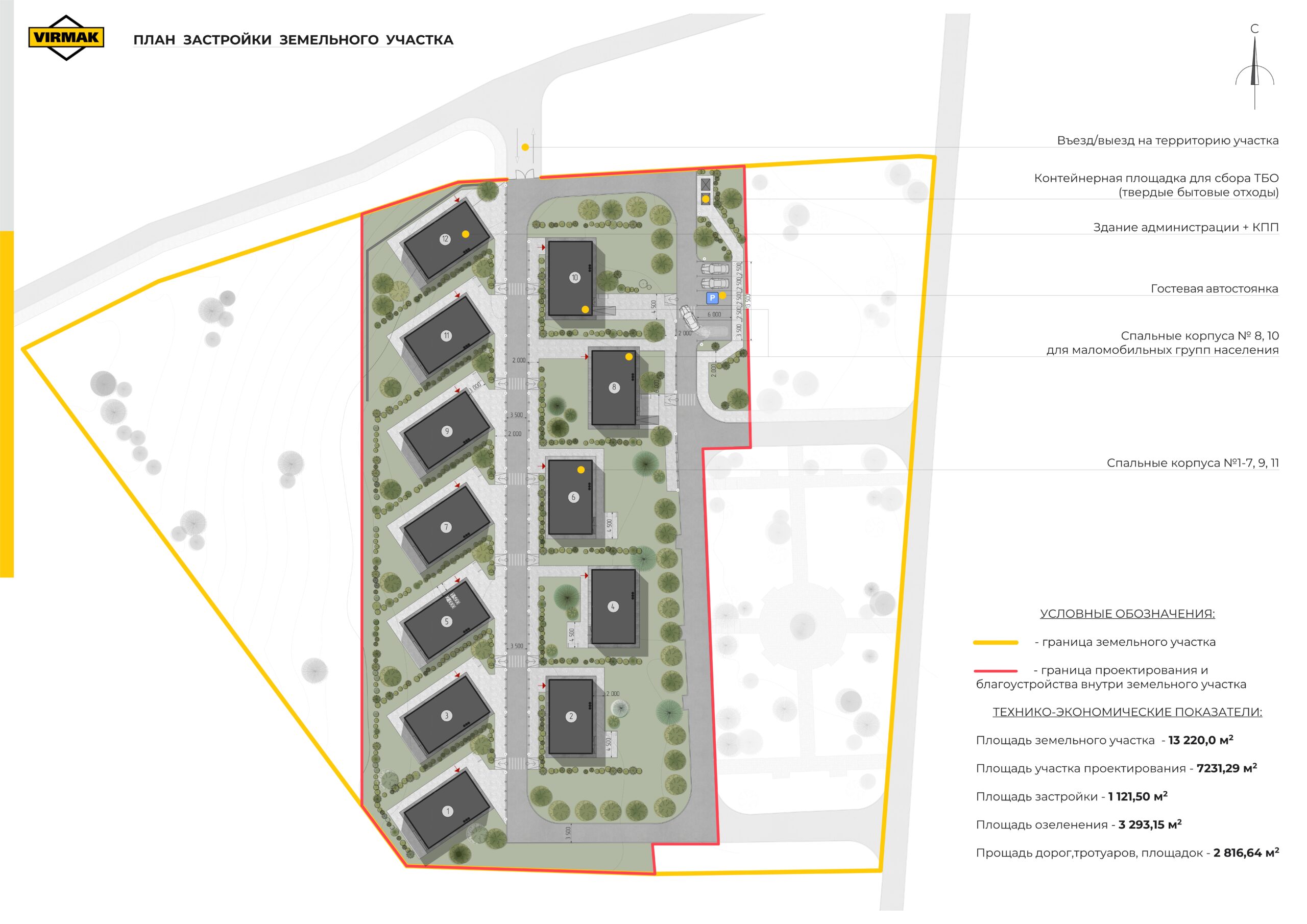

Land Plot Development Plan
План застройки земельного участка
1.
Designed area 7,231 m²
2.
12 guest houses 1,122 m²
3.
Landscaping 3,293 m²
4.
Roads/sidewalks/areas 2,816 m²
Order a panel-frame SIP house kit based on a ready-made standard design
Place an Order
Something does not fit? No problem. Contact us, and we will create a project for you absolutely free! Any changes can be made to the house configuration and layout with the corresponding budget adjustment.
Modify the Project
House kit
Standard project
$722
Grillage made of kiln-dried planed timber. Ground floor structure made of VIRMAK SIP panels with CSP and EPS.
$8 687
Exterior walls made of VIRMAK® SIP panels with cement-bonded particle board and EPS. Interior partitions are frame structures made of kiln-dried planed timber.
$13 286
Total for the house kit
$22 695
Additional materials and work (estimated prices for planning and understanding the construction budget)
bs_object_specs
Foundation
SVSN screw pile (blade Ø300 mm, shaft Ø108 mm, length 2500 mm)
$1 278
House kit installation
Assembly of house kit 73 m²
$7 154

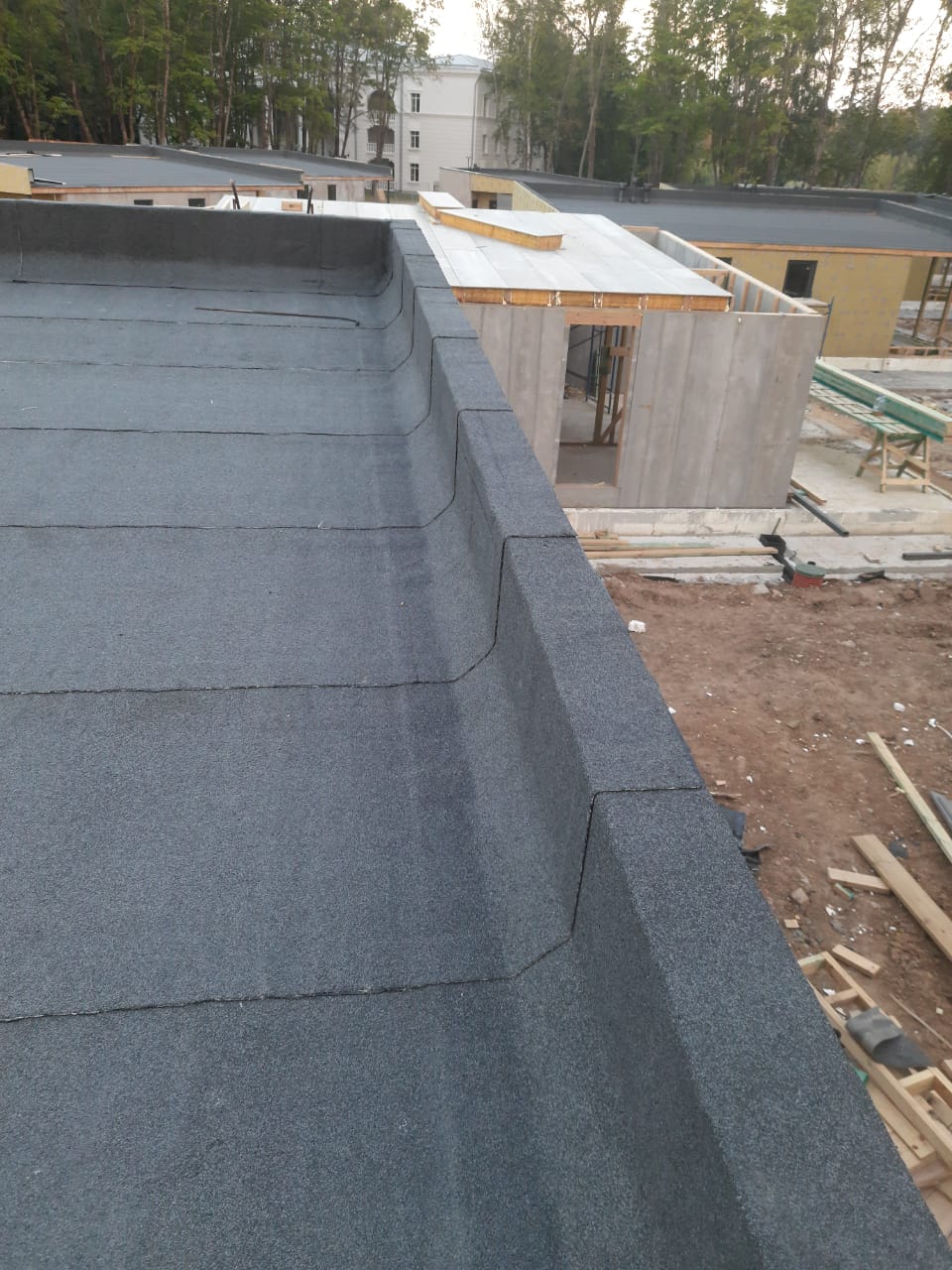

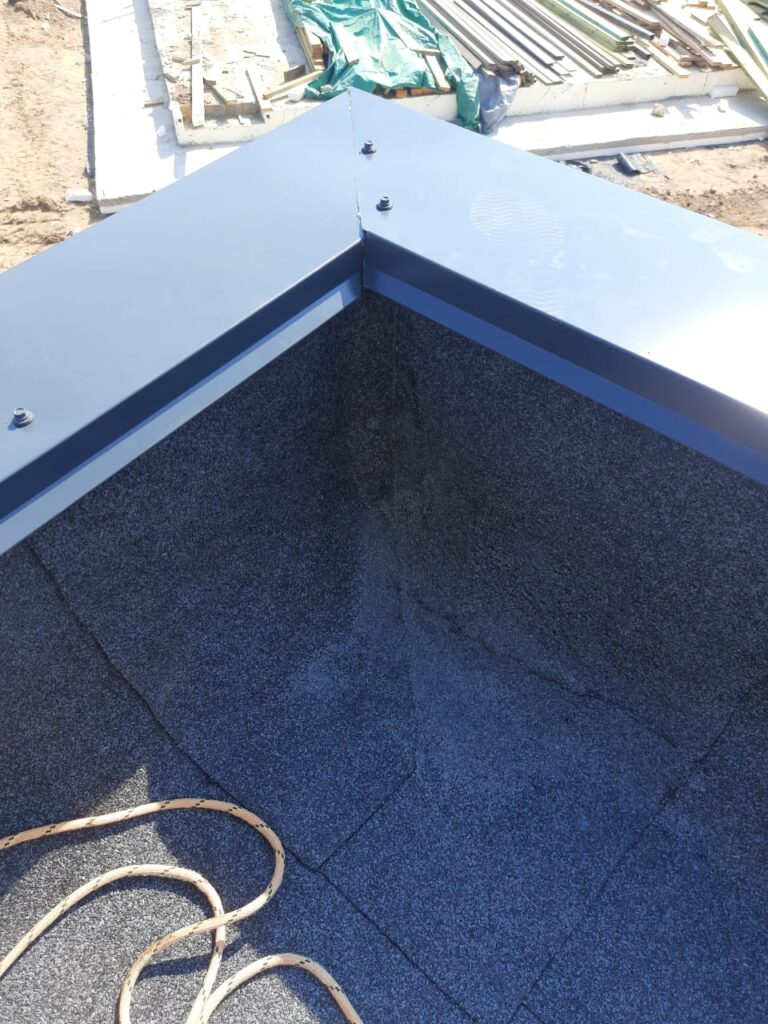

Roof and roofing with installation
Стропильная система из пиломатериала
$7 770
Roofing - metal tile 0.5 mm, polyester 25 µm, Zn 100-140 g/m² and installation. Soft shingles plus 8%
$2 331
PVC windows and doors (if included in the project)
PVC windows and doors (if included in the project)
$1 575
Total for the house kit with installation*
$42 803
What can you save money on?
You should not save on the house kit
0%
Order foundation installation directly from a specialized contractor
20%-40%
Purchase a house kit and install it on your own with the help of our remote author’s (technical) supervision or with installation supervision from a VIRMAK representative
30%-40%
Purchase the house kit, and we will provide a certified crew
15%-20%
Purchase the house kit based on a standard design rather than a custom design
30%-40%

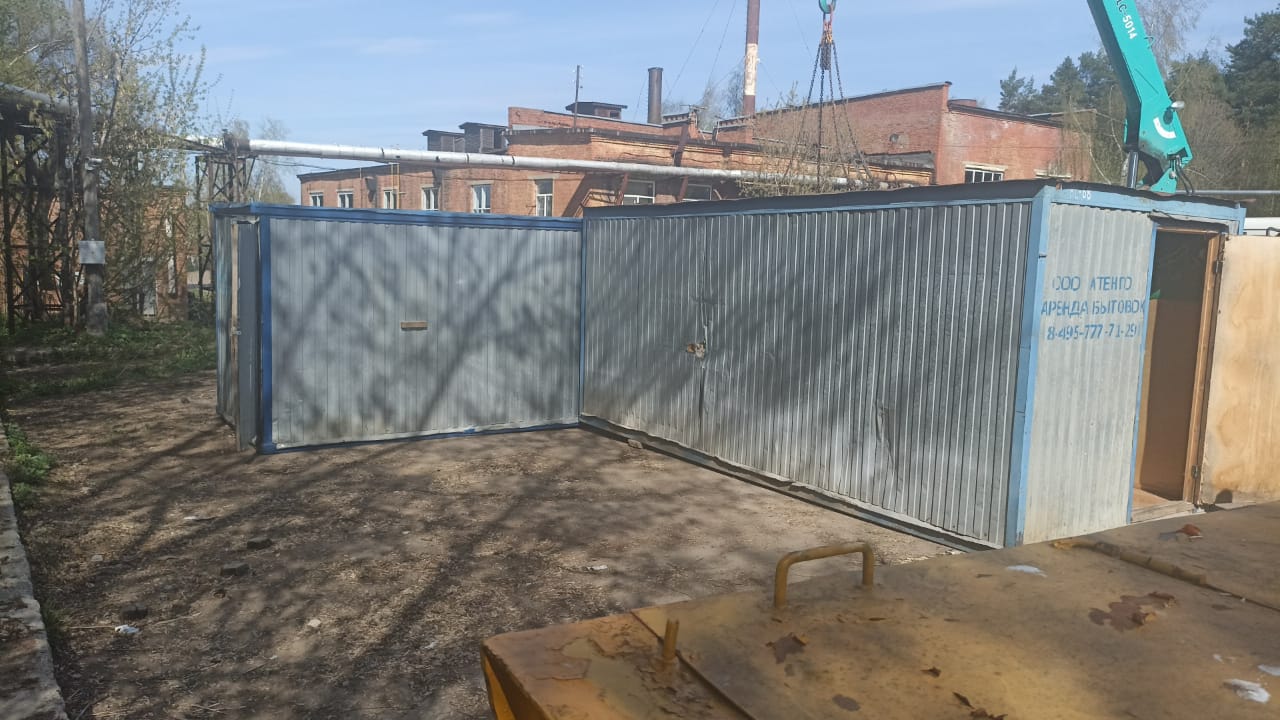

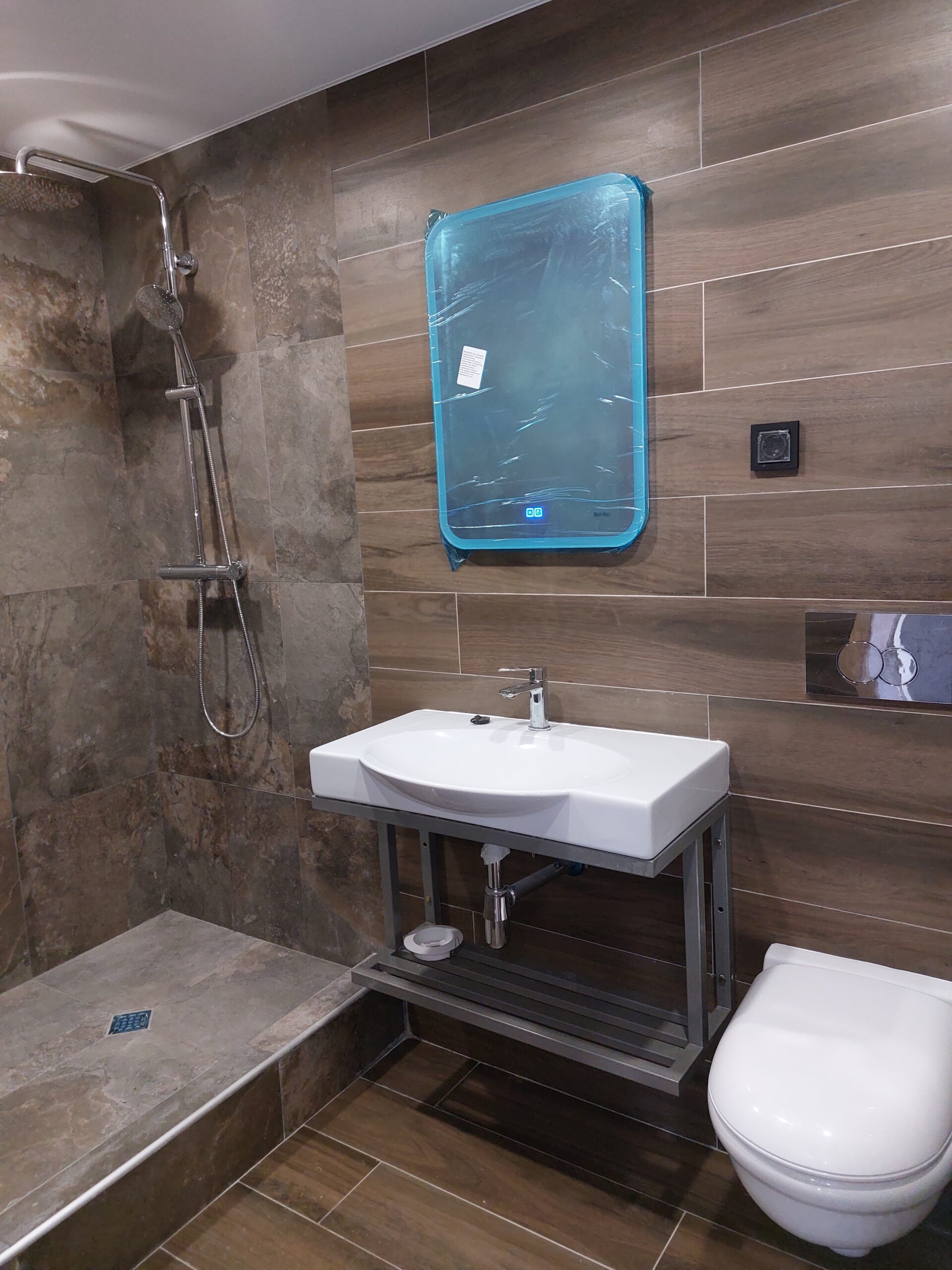

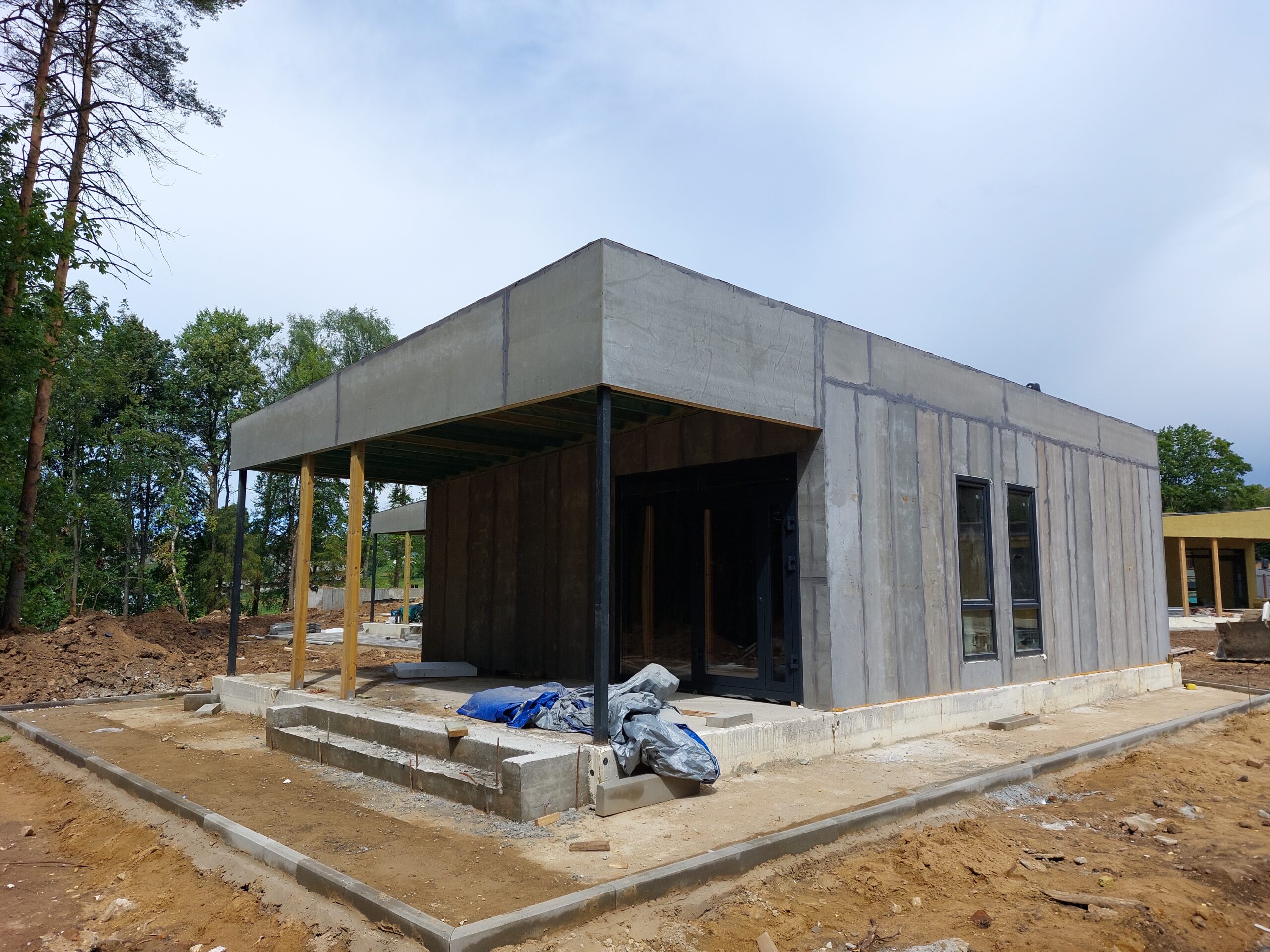

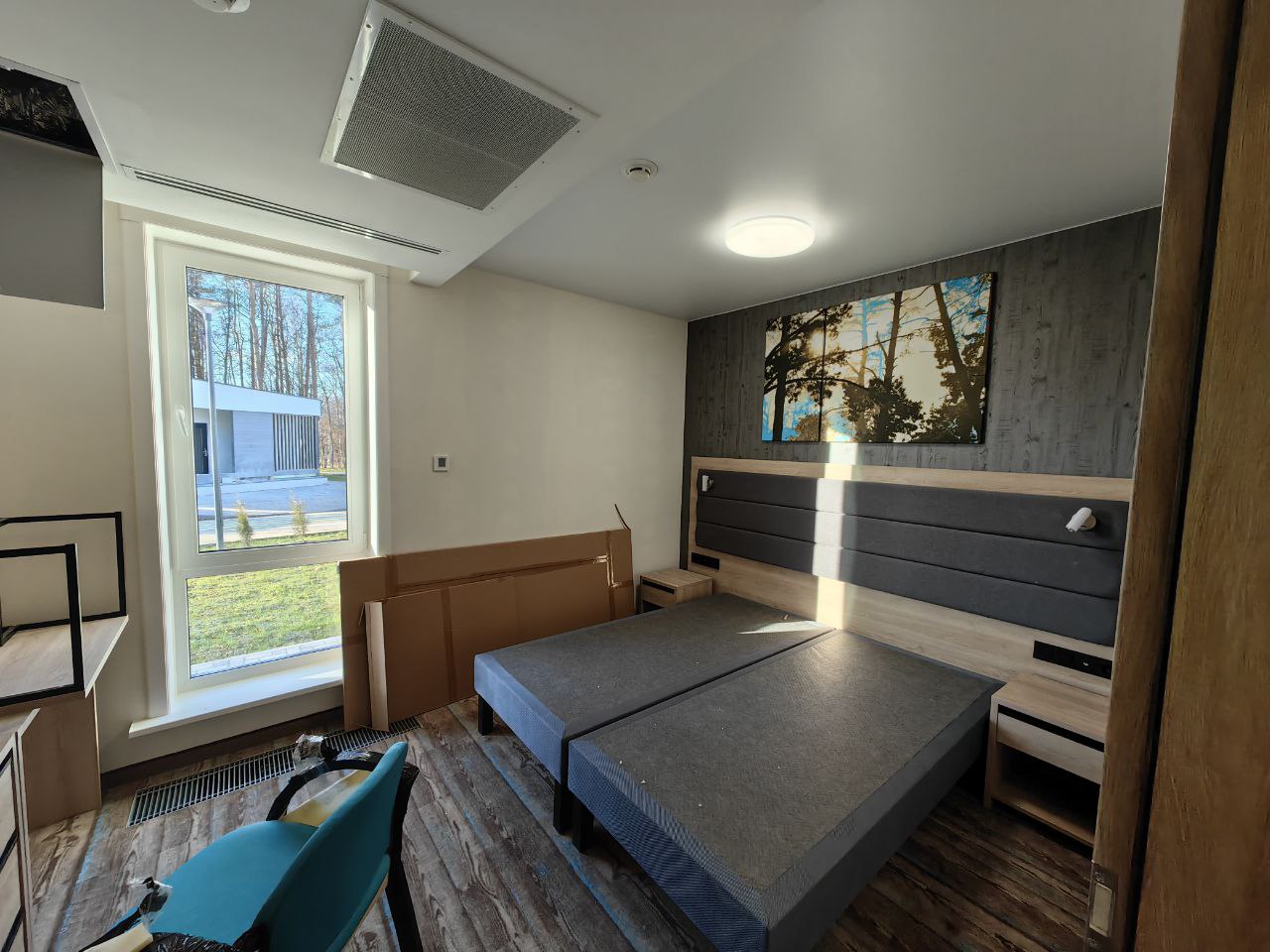

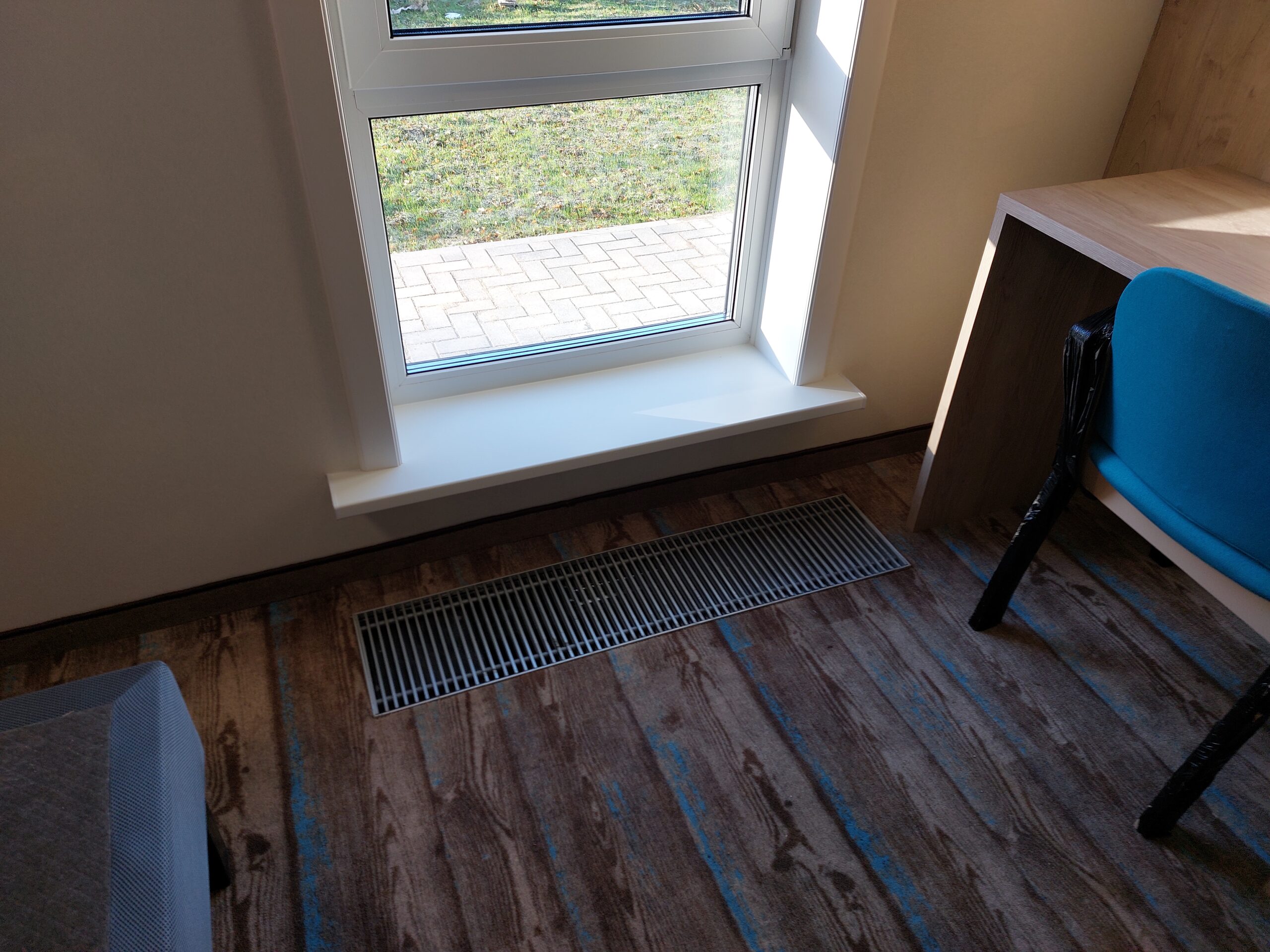

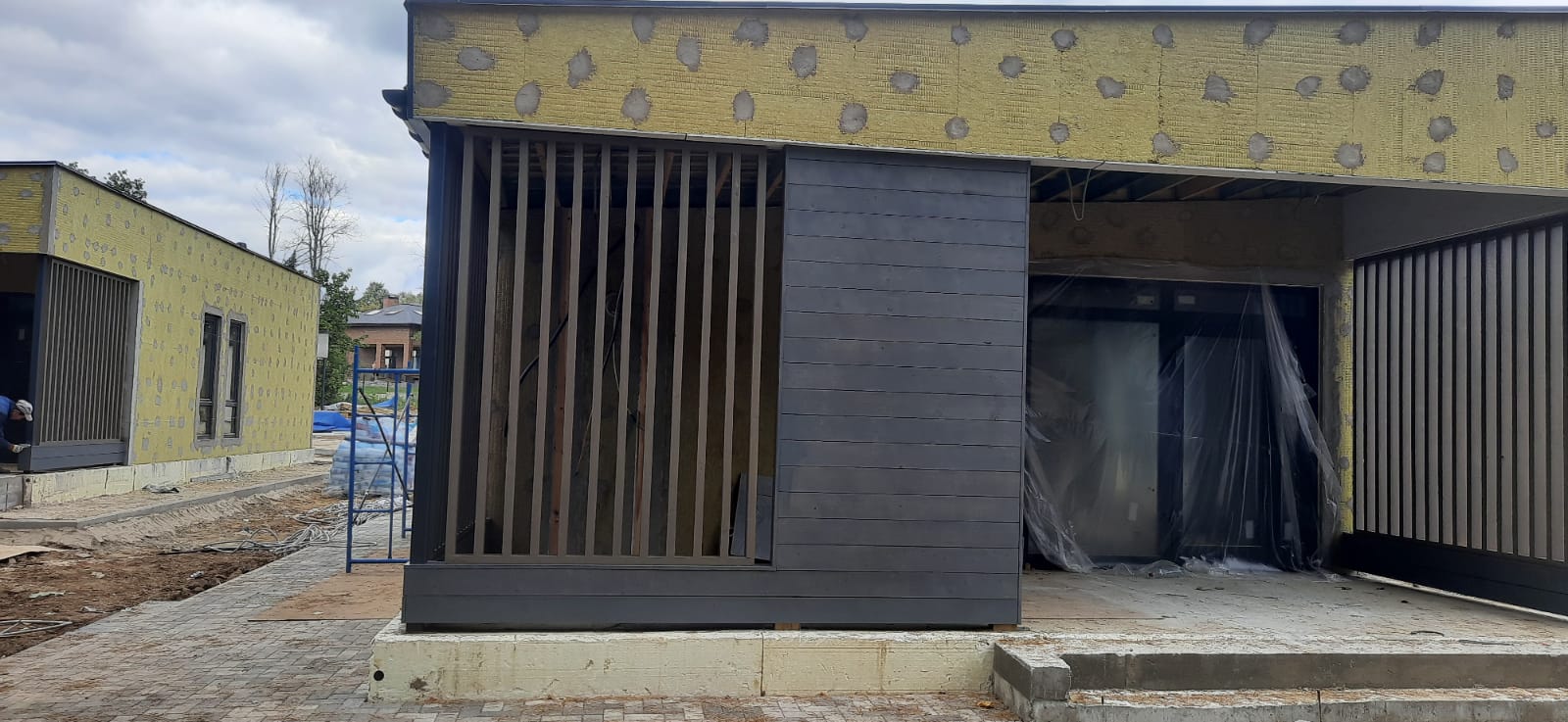

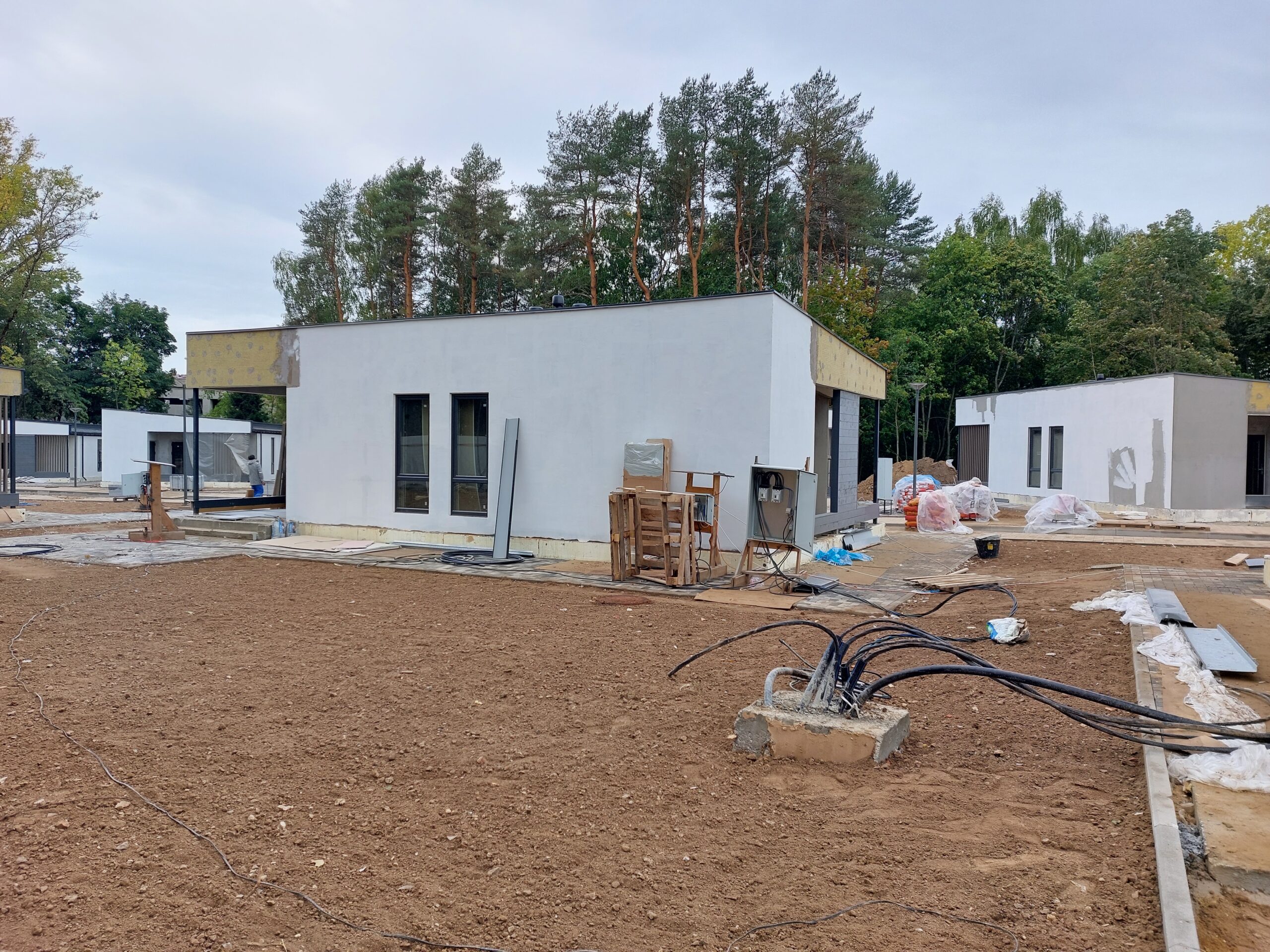

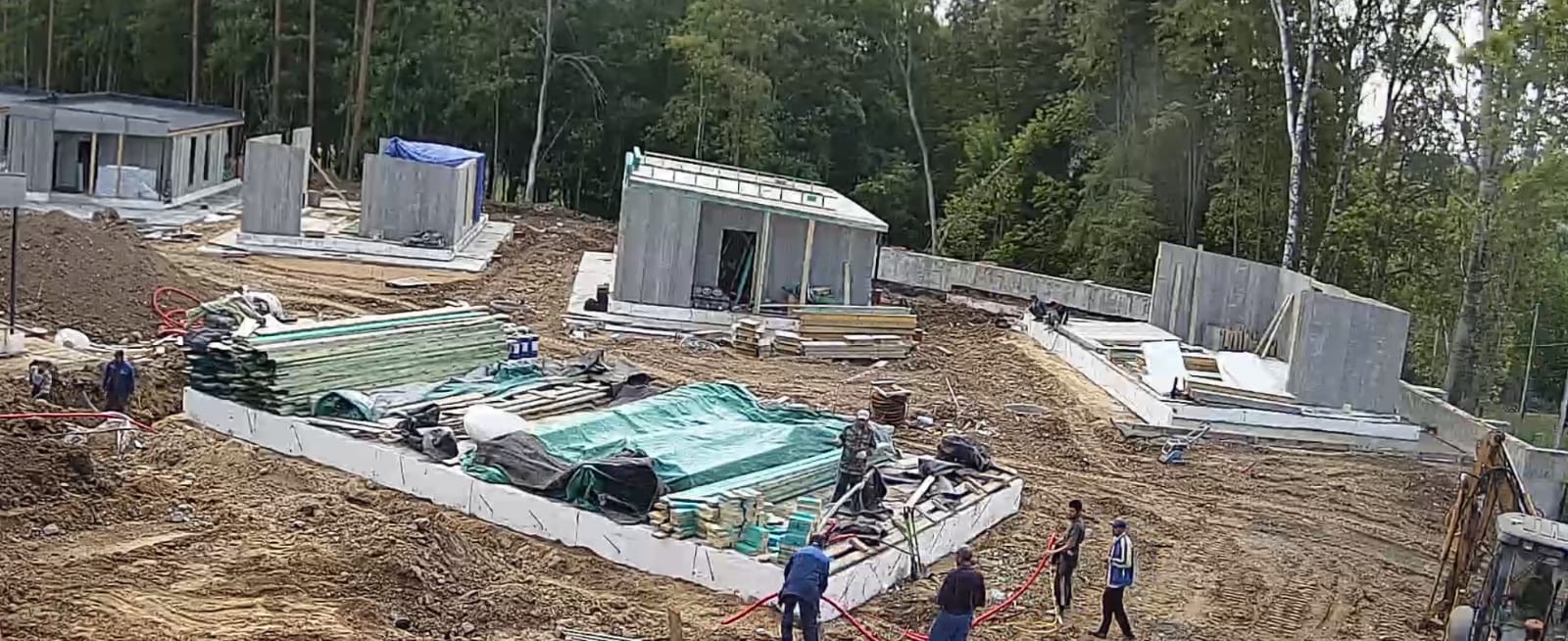

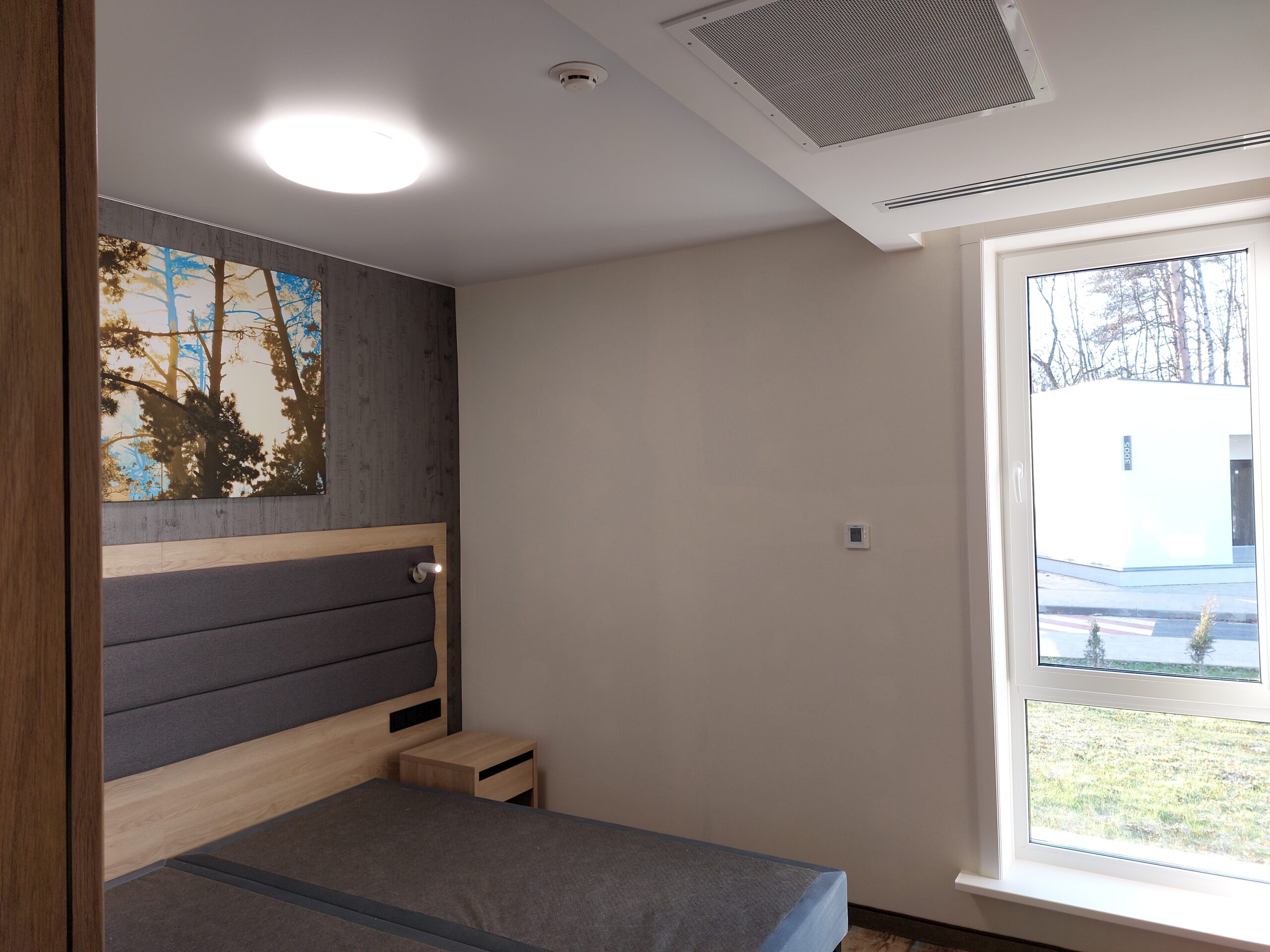

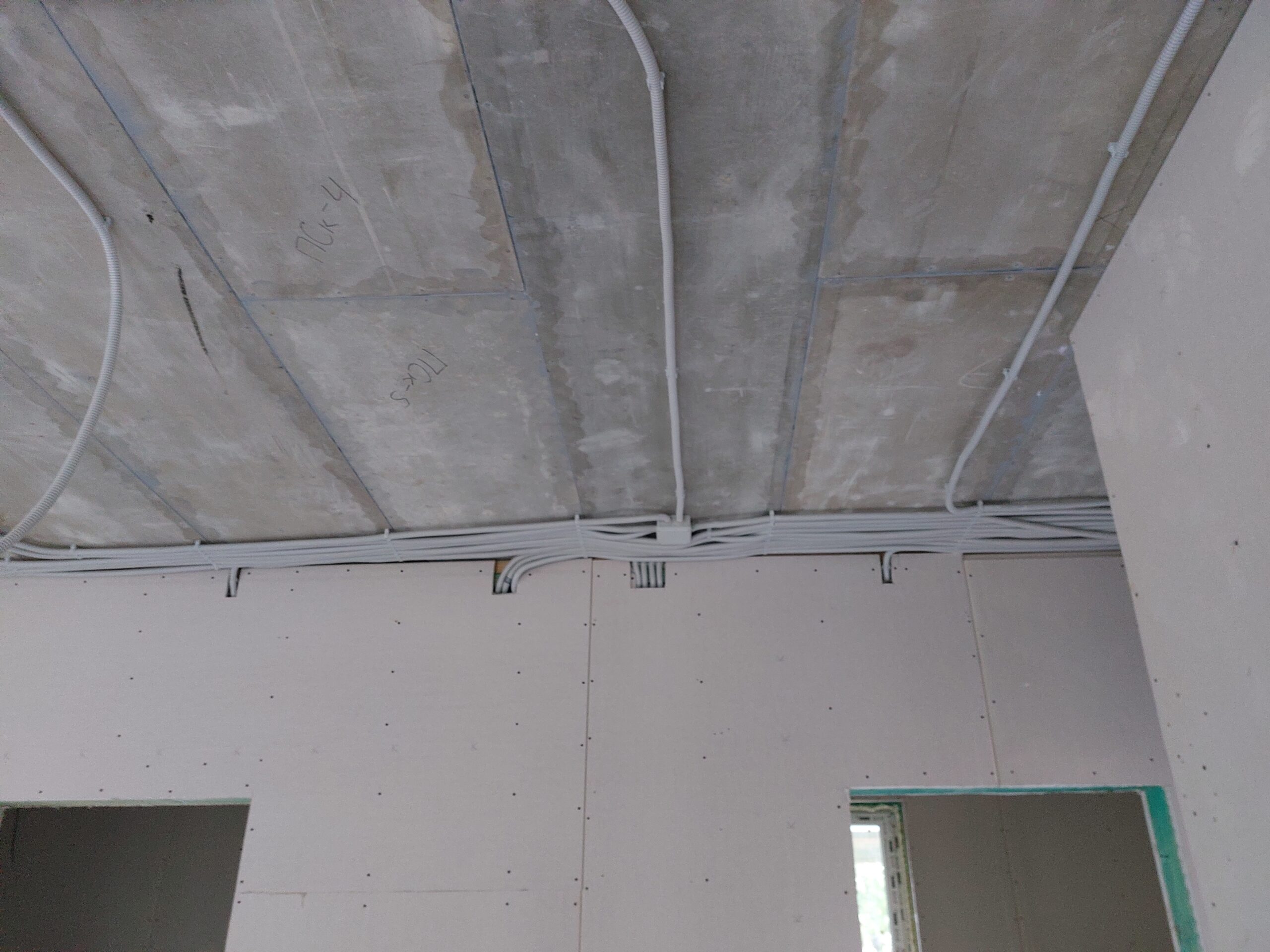

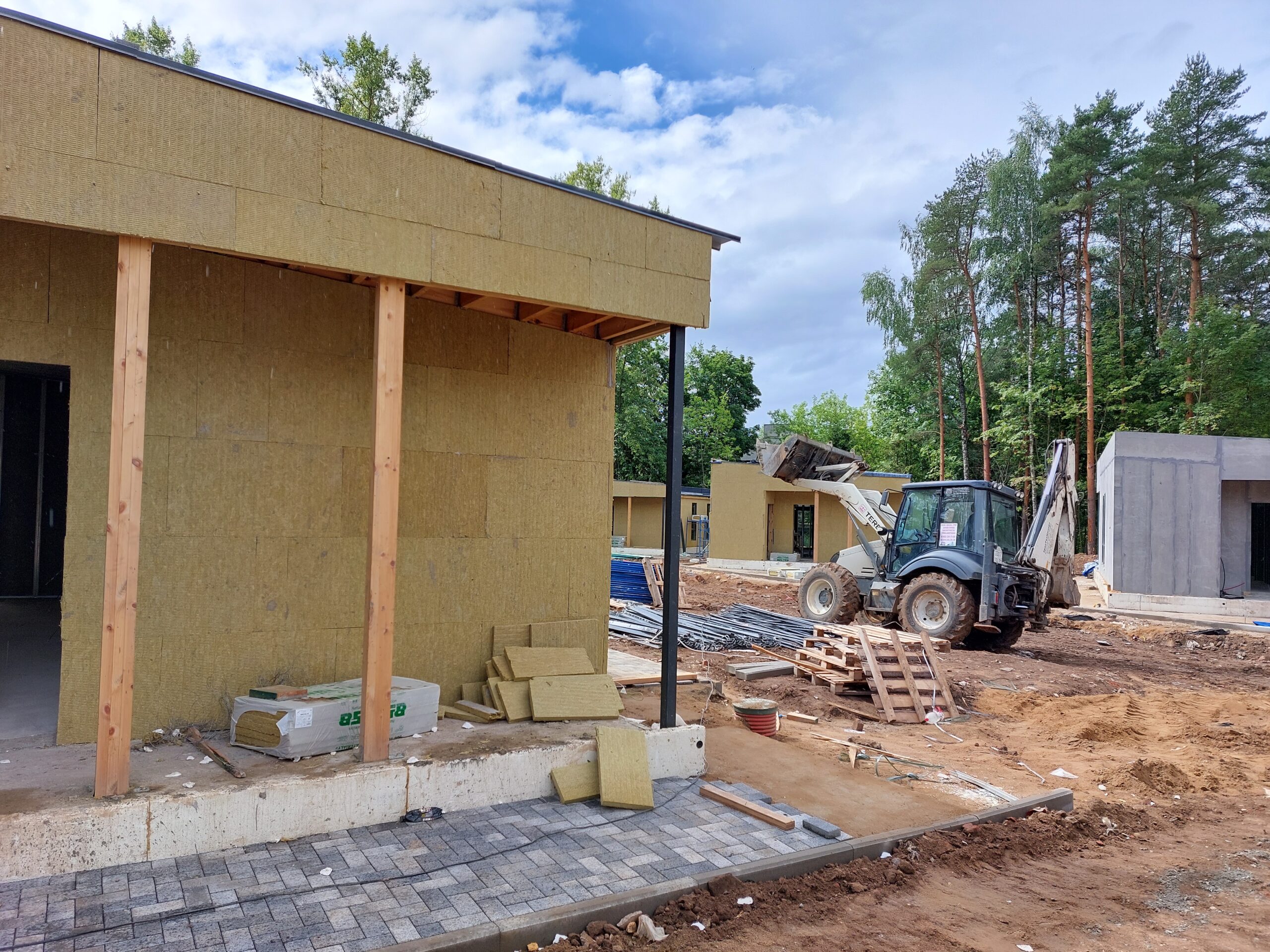

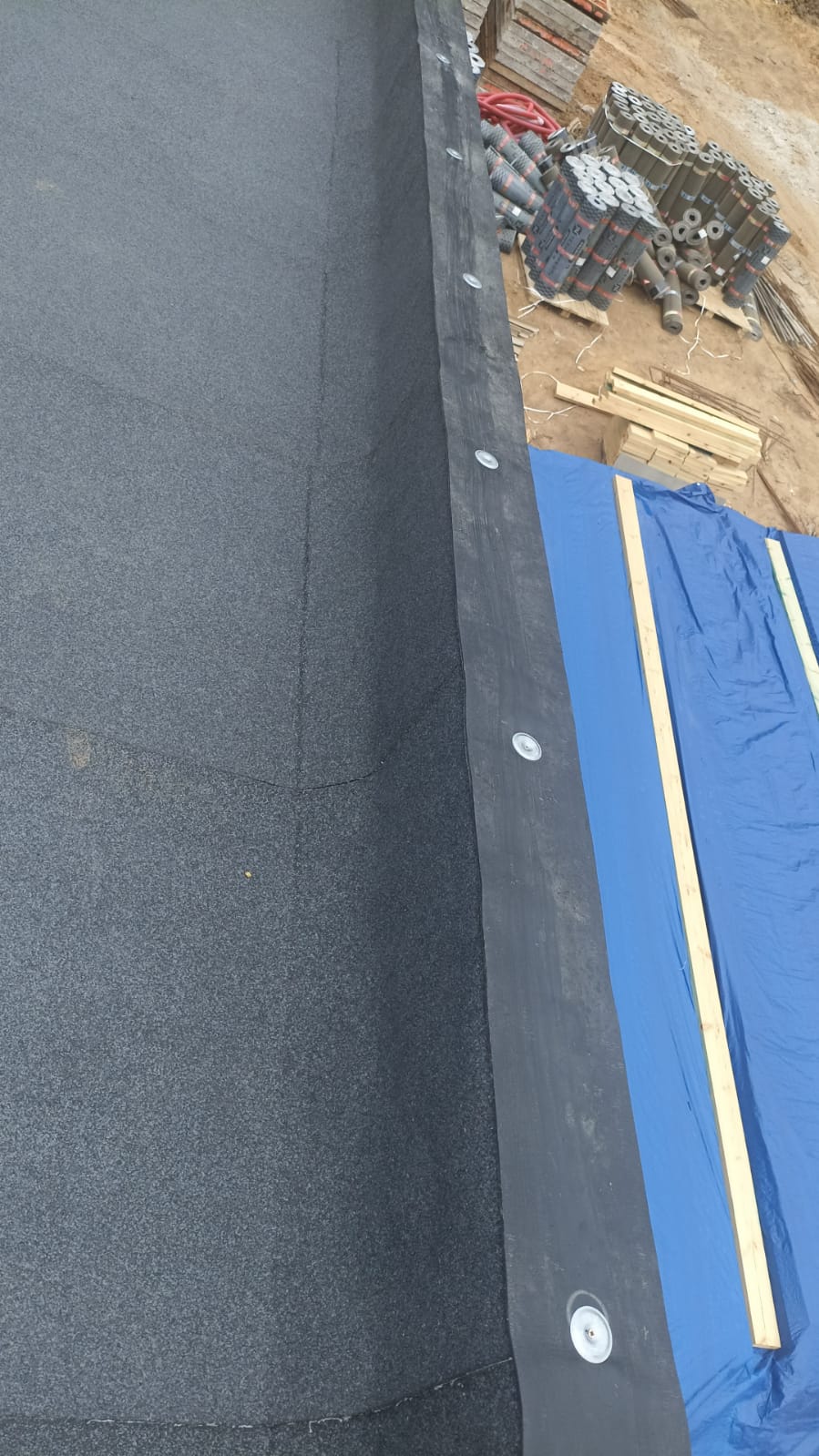

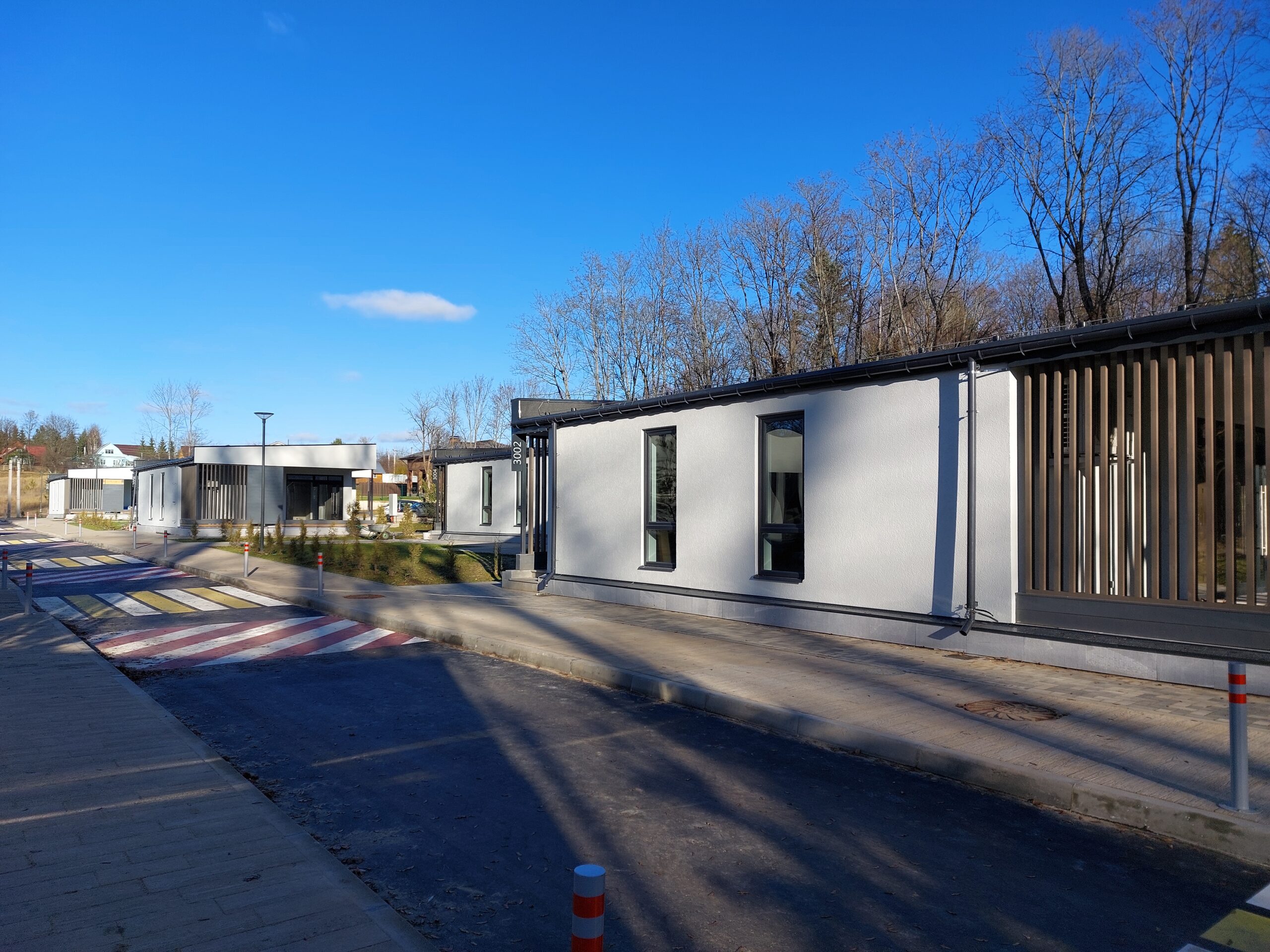

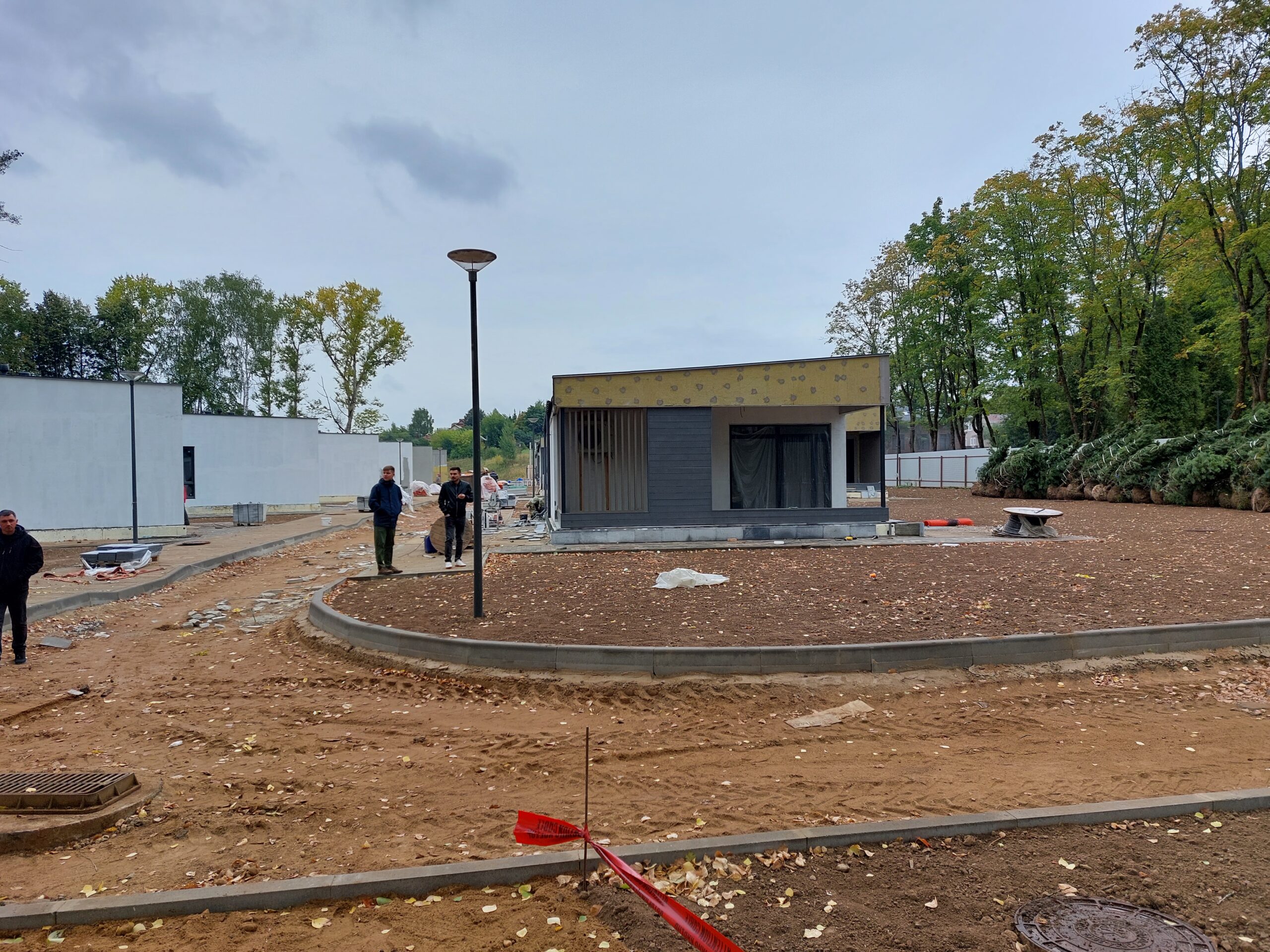

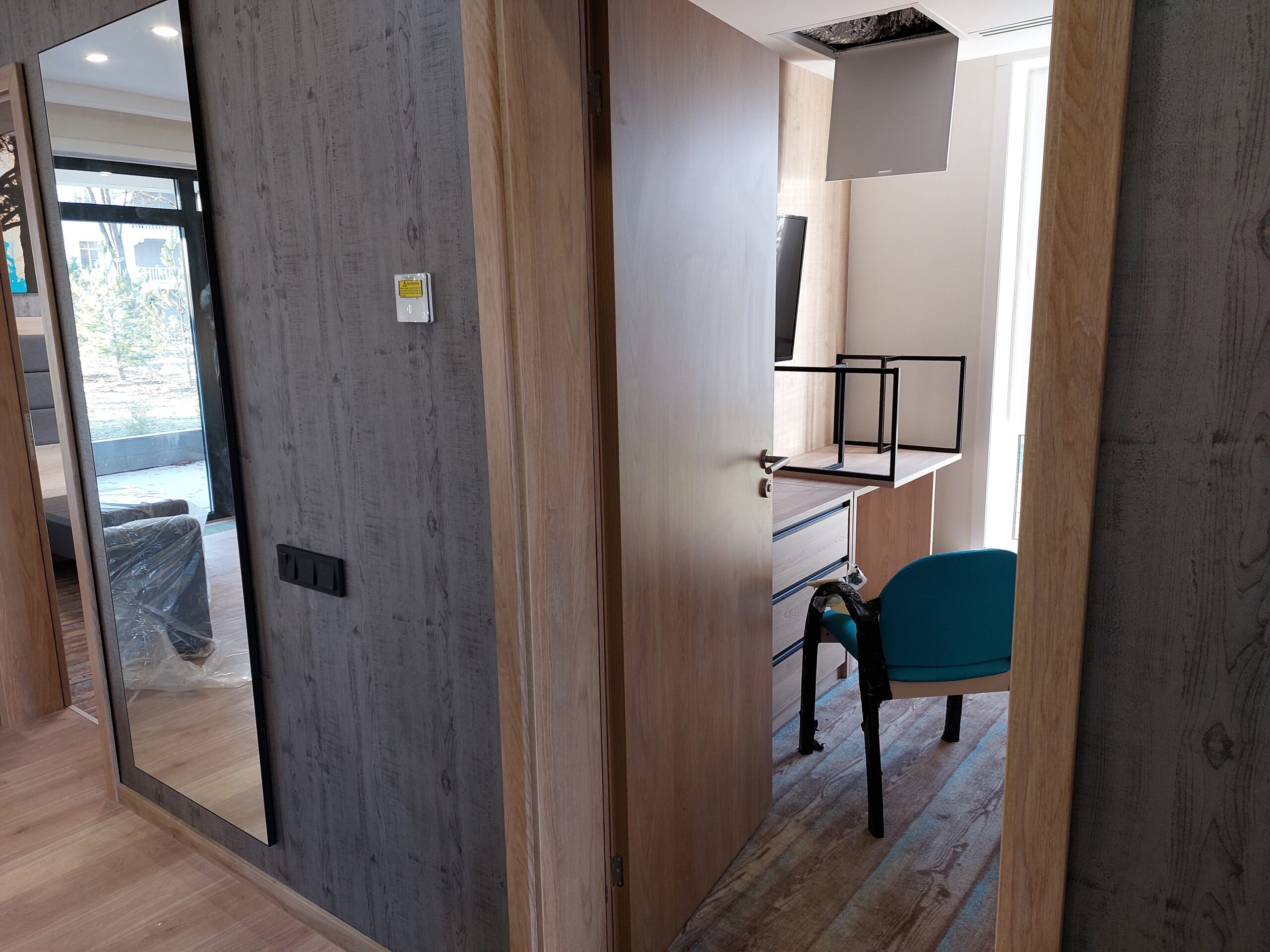

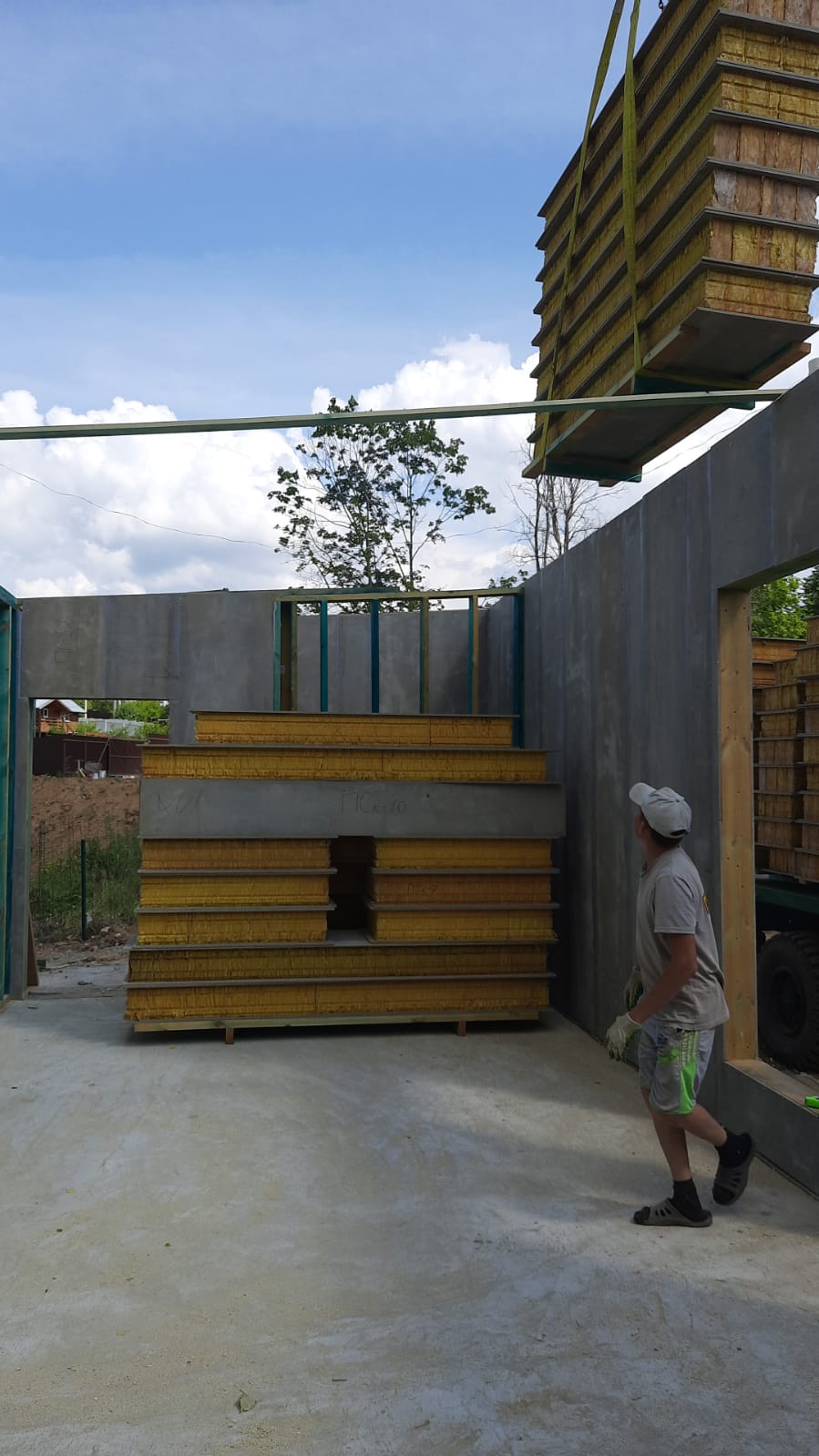

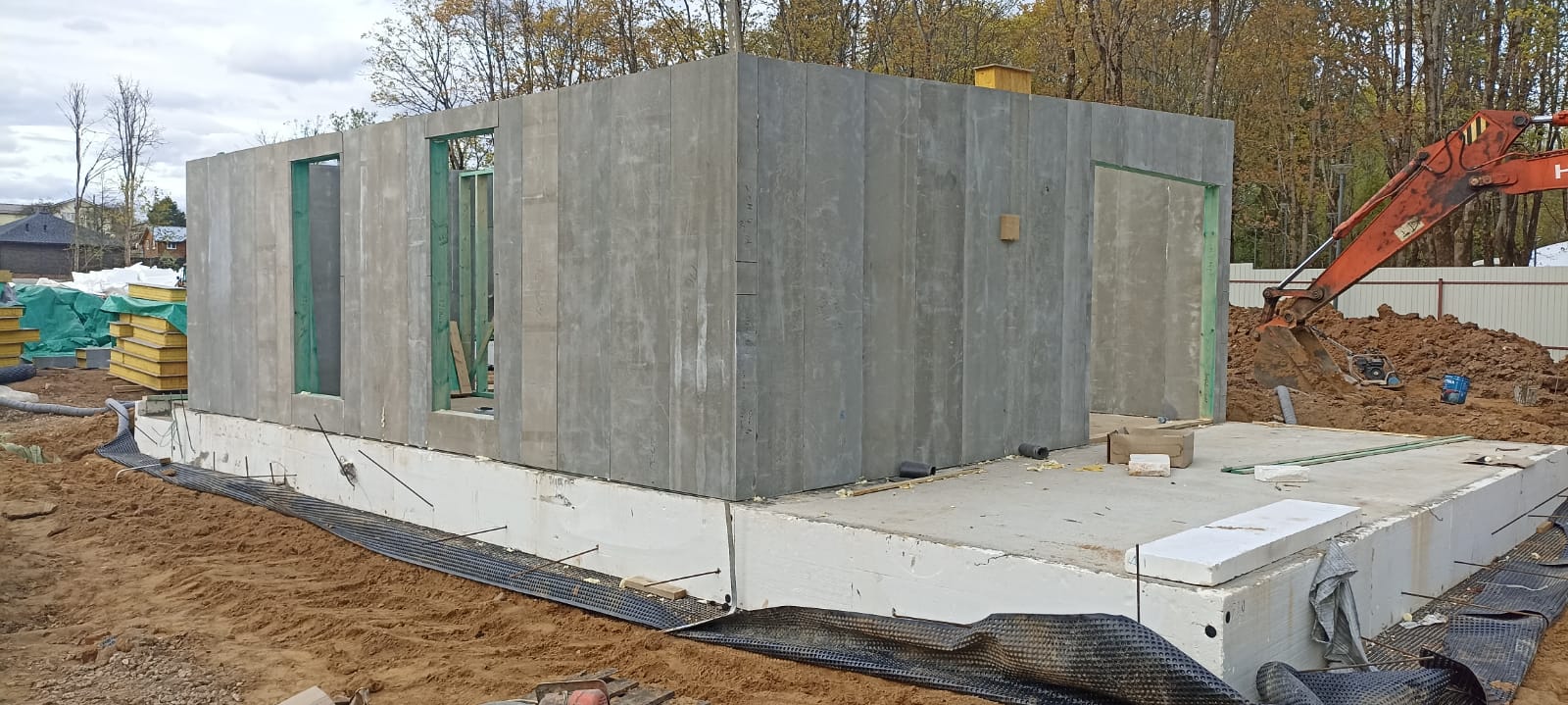

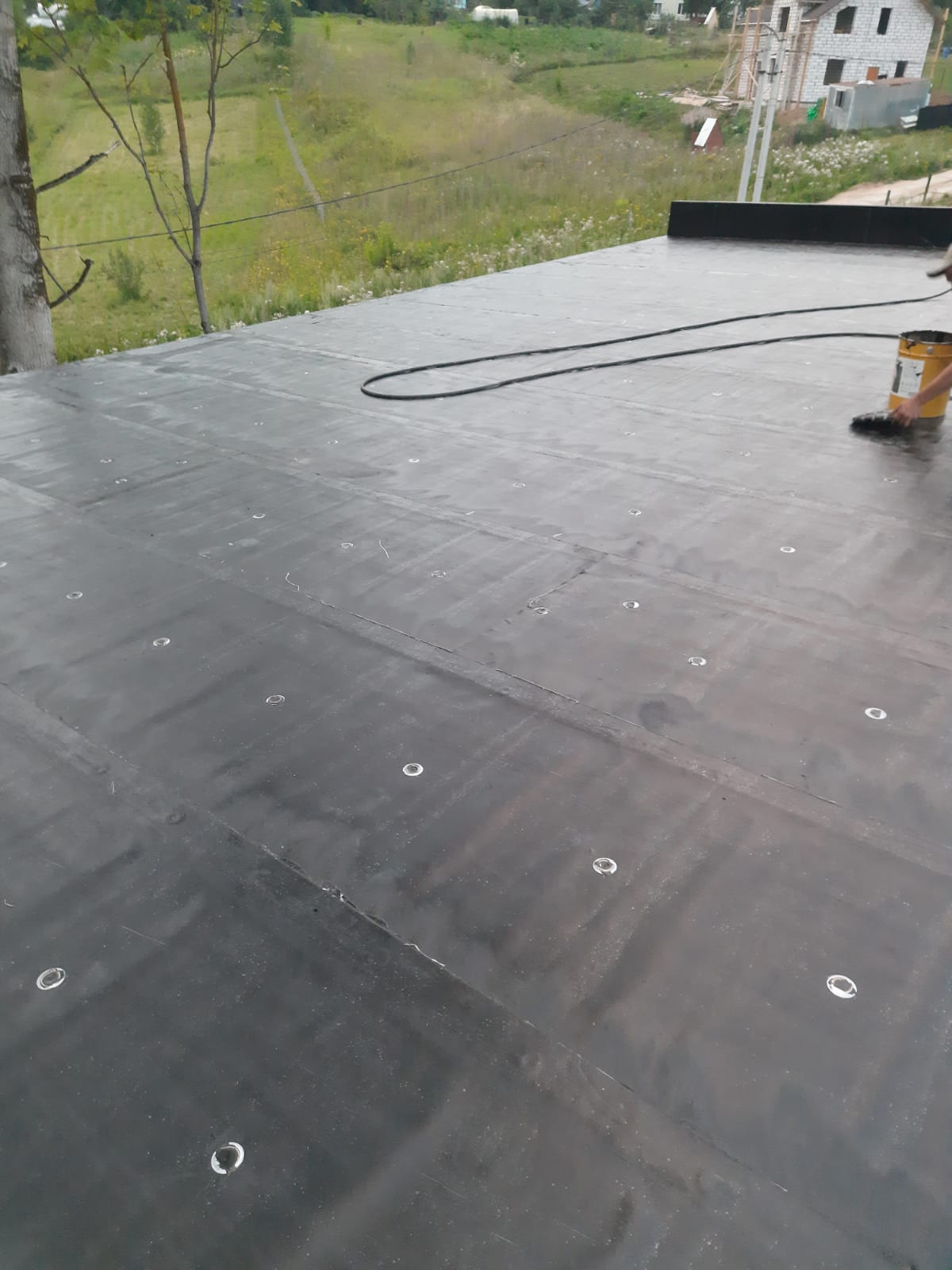

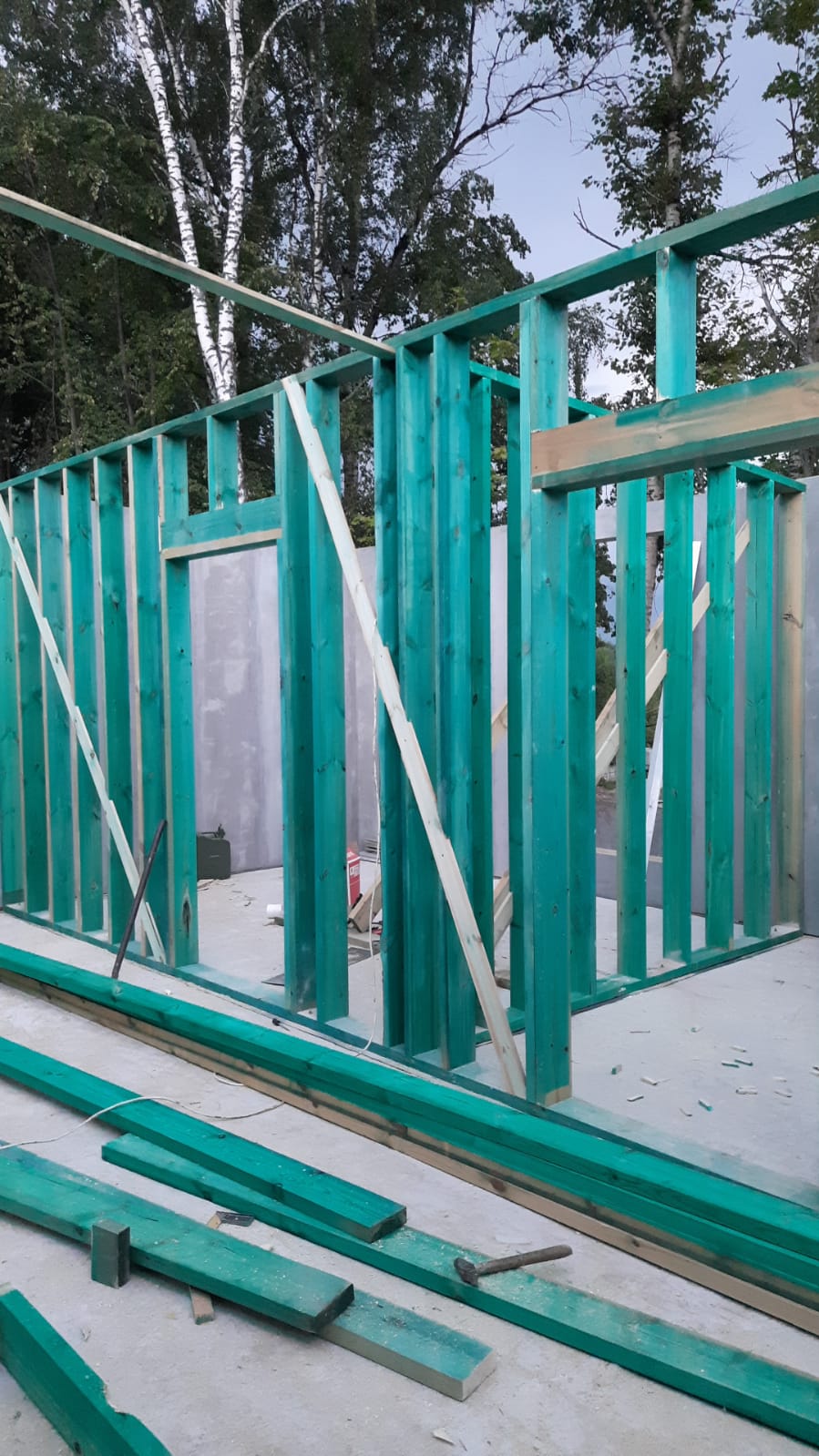

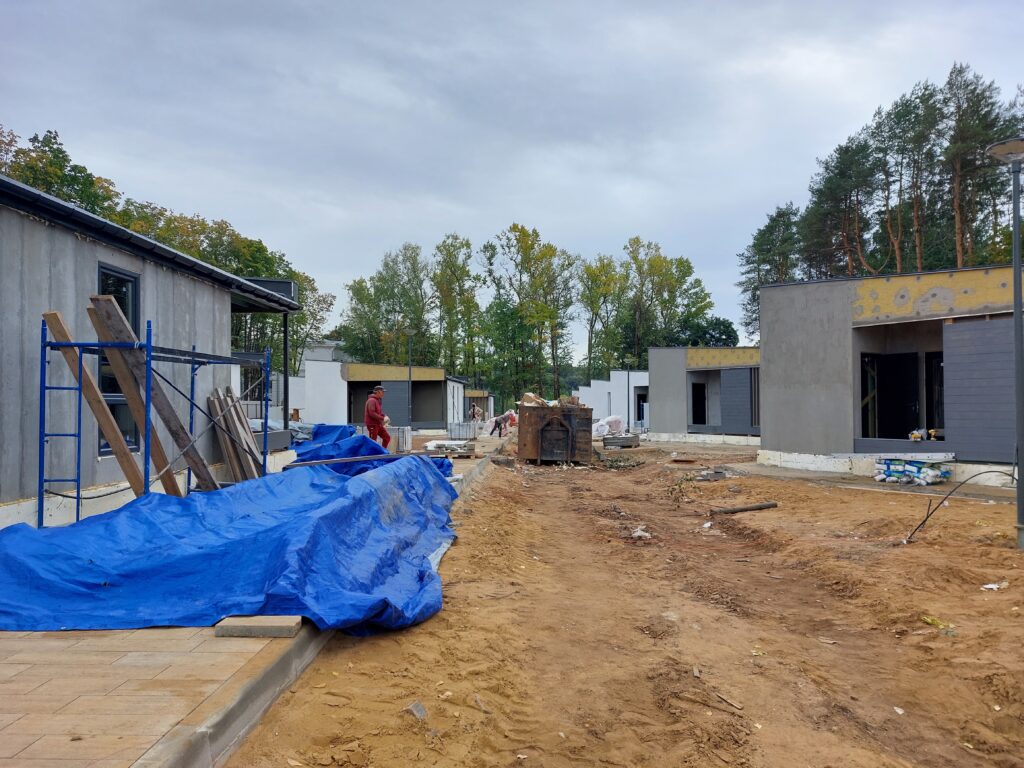

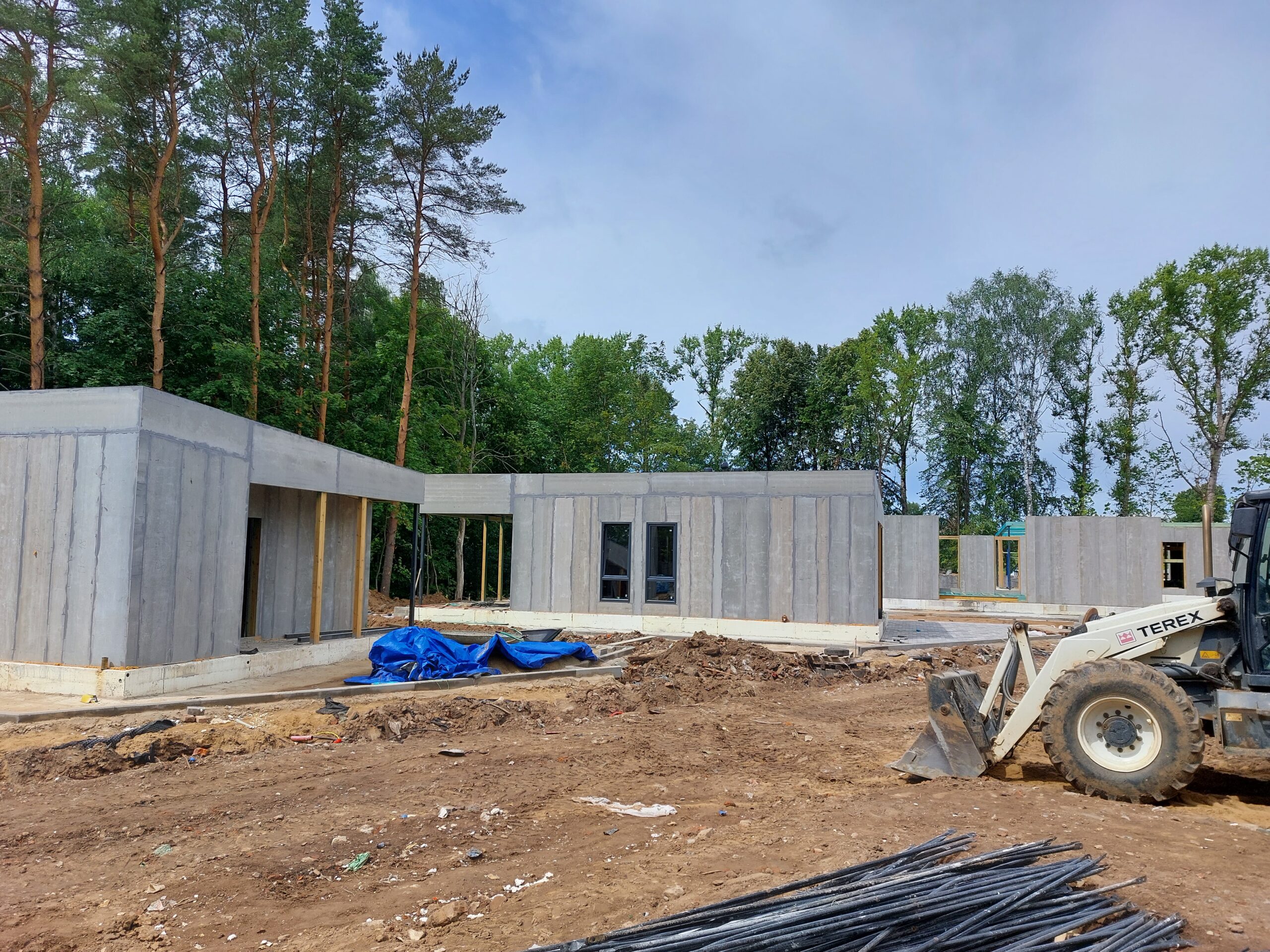

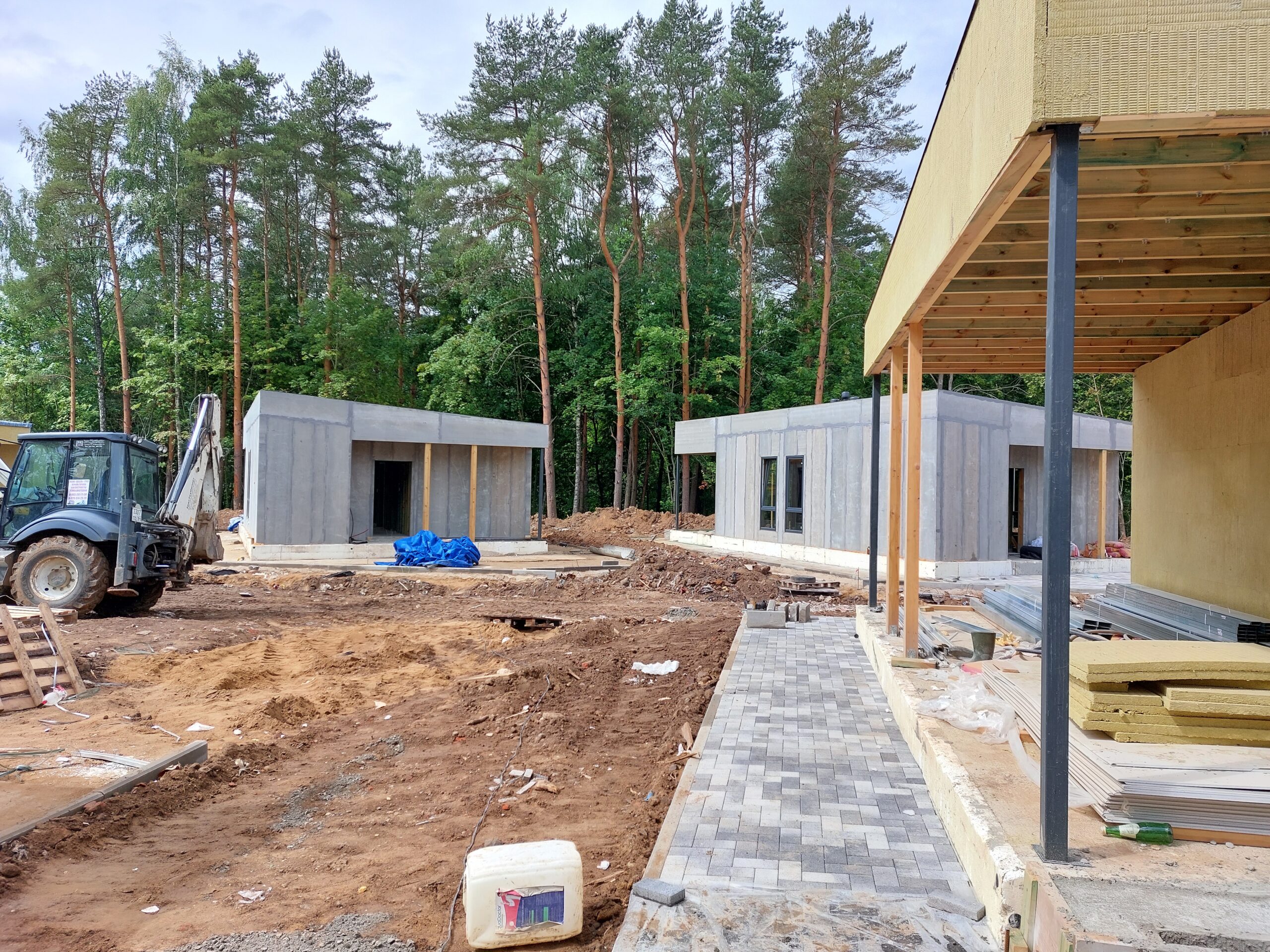

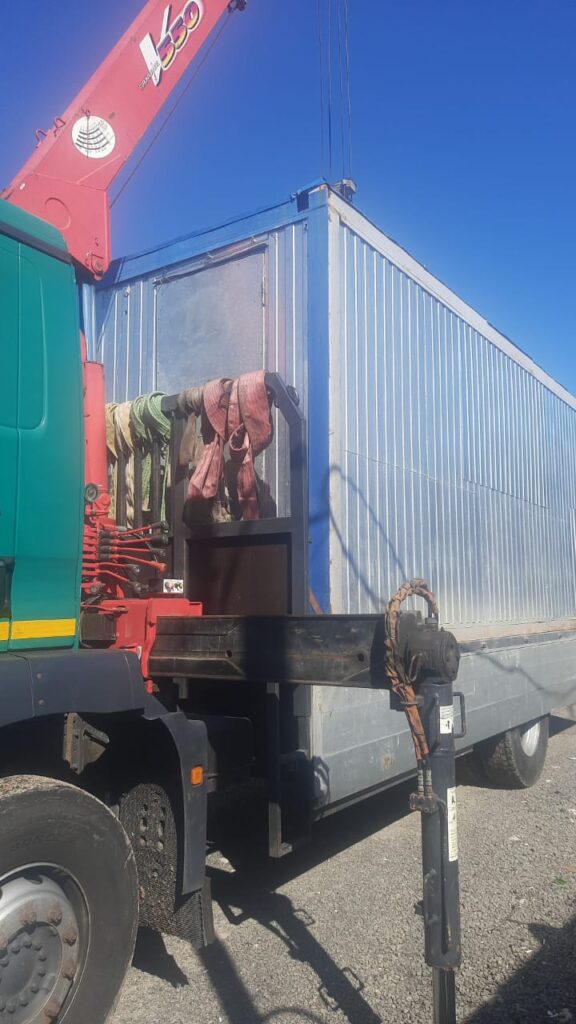

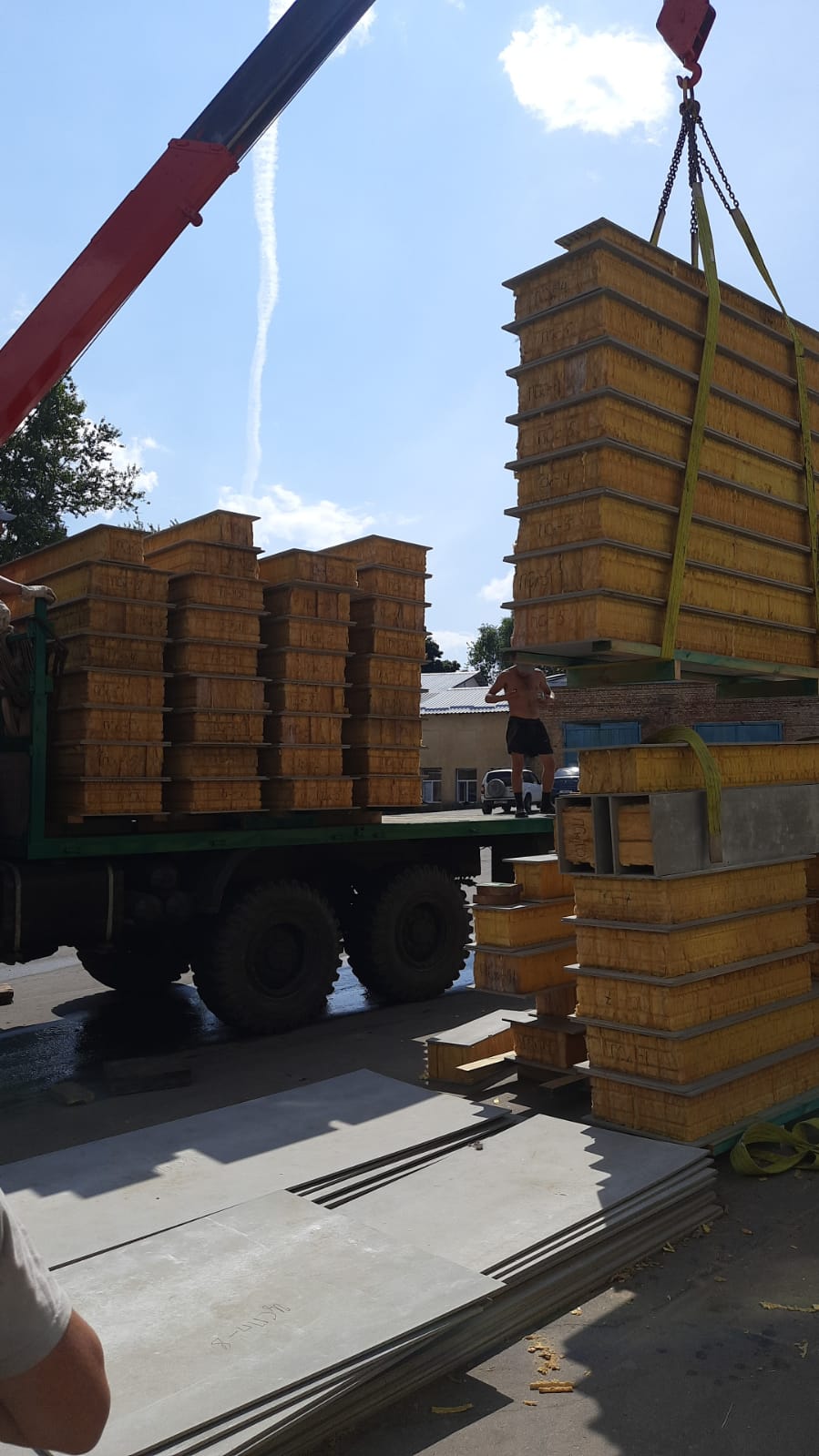

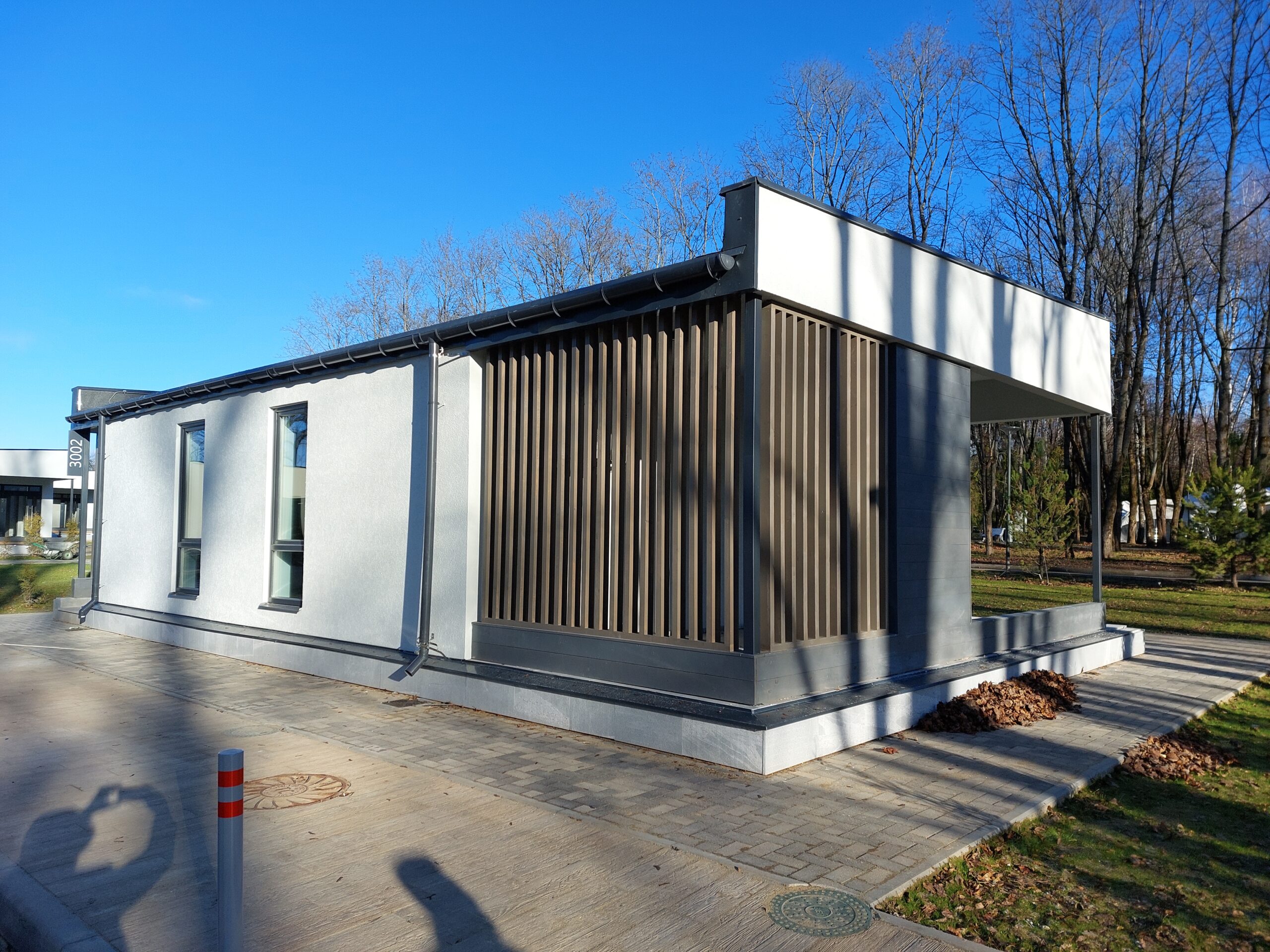

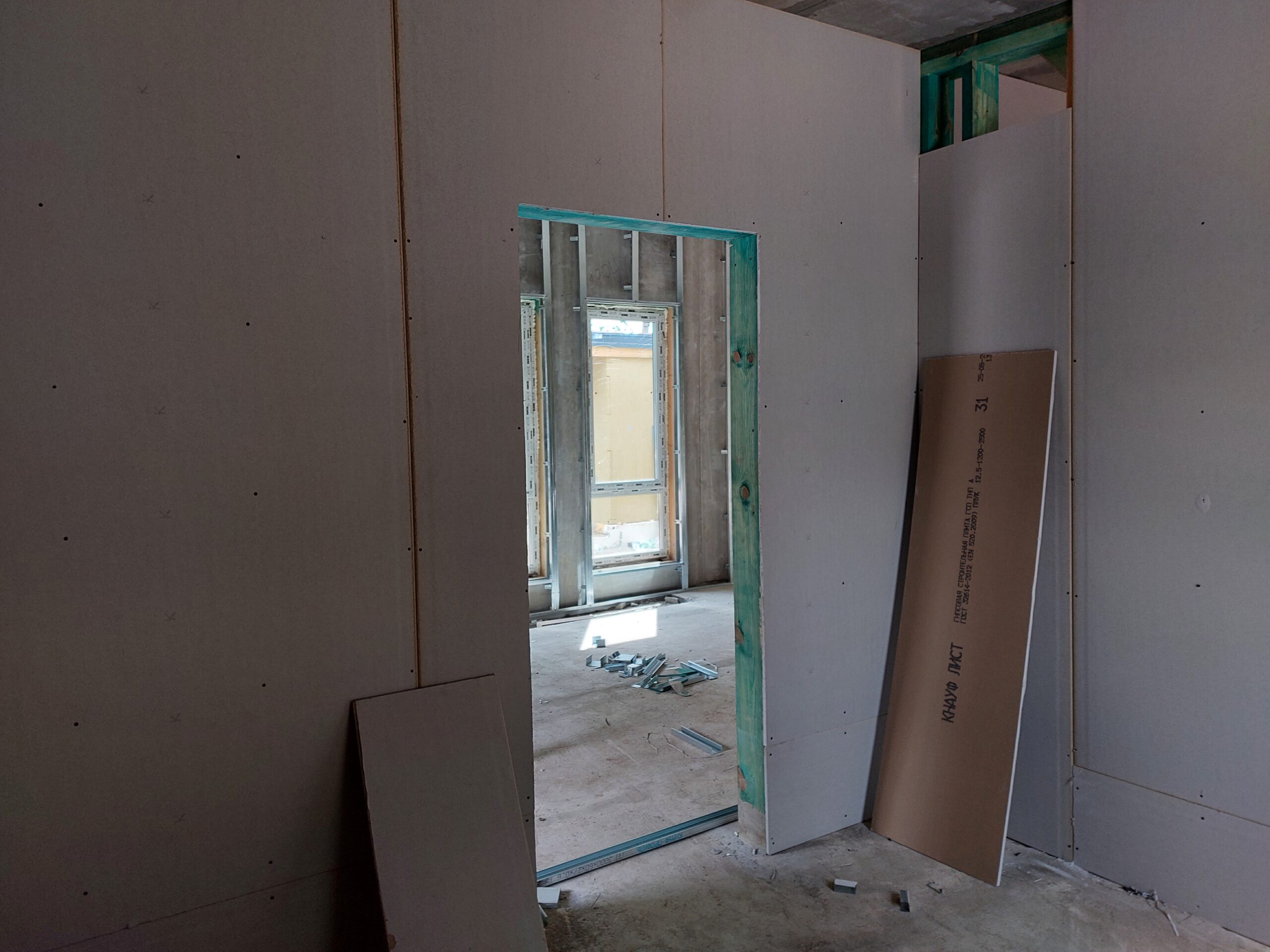

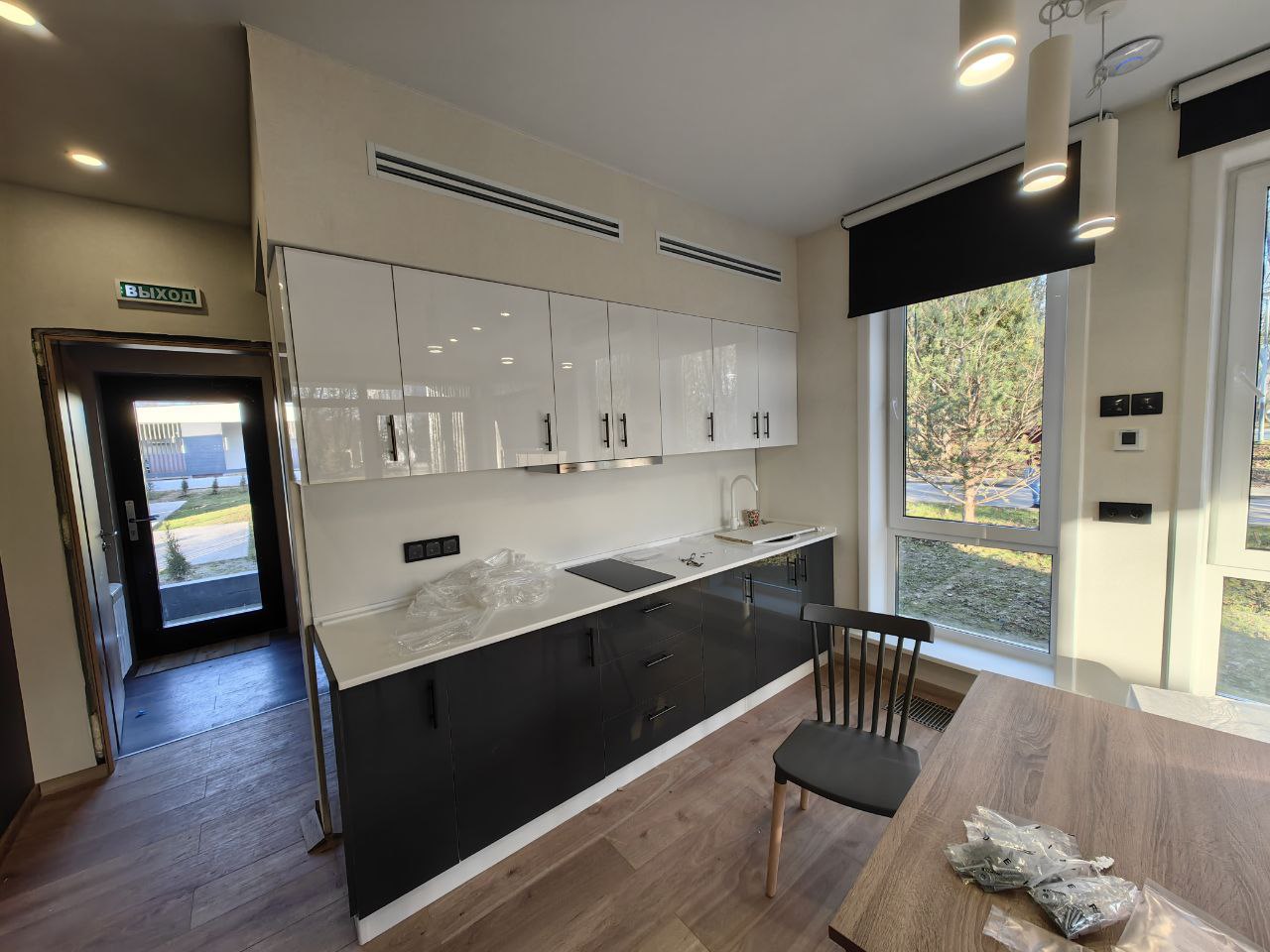

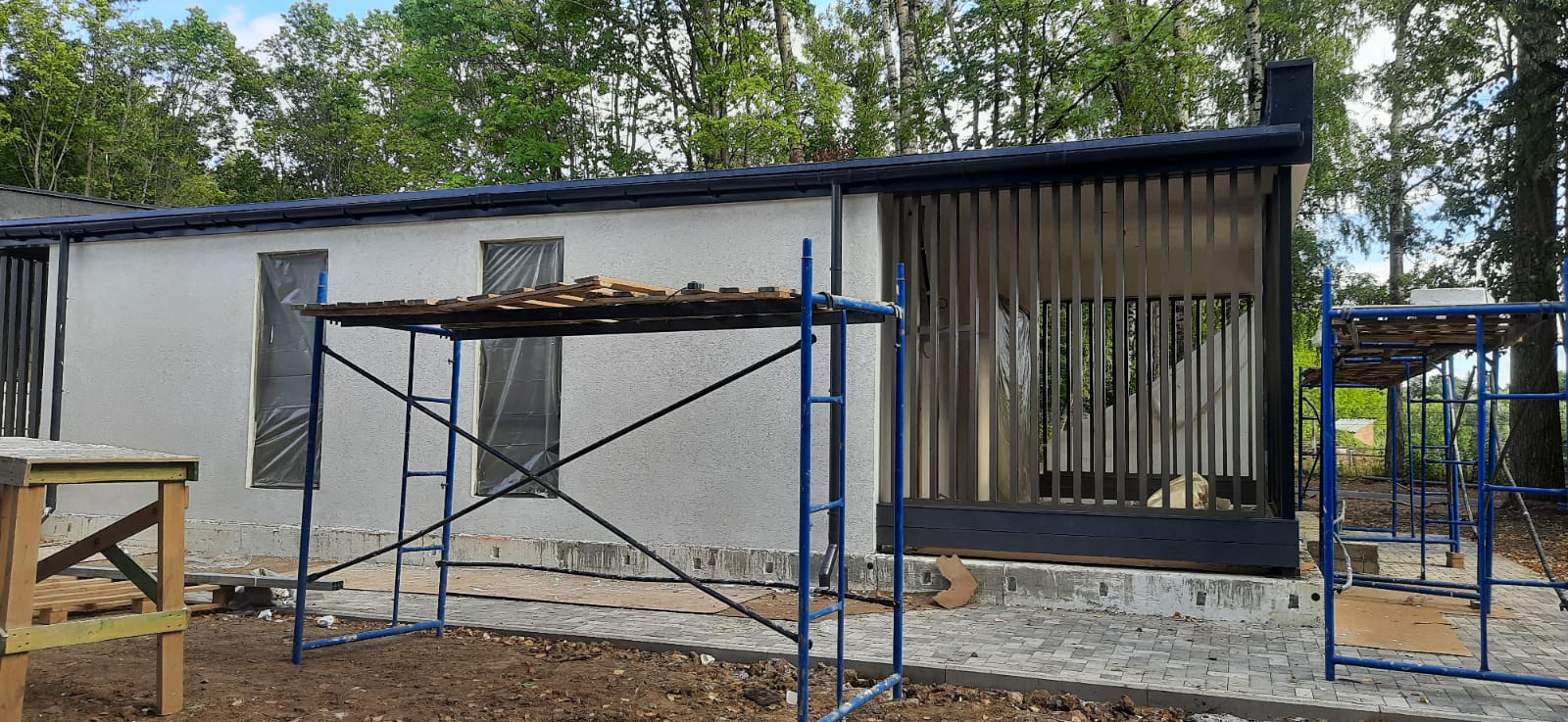

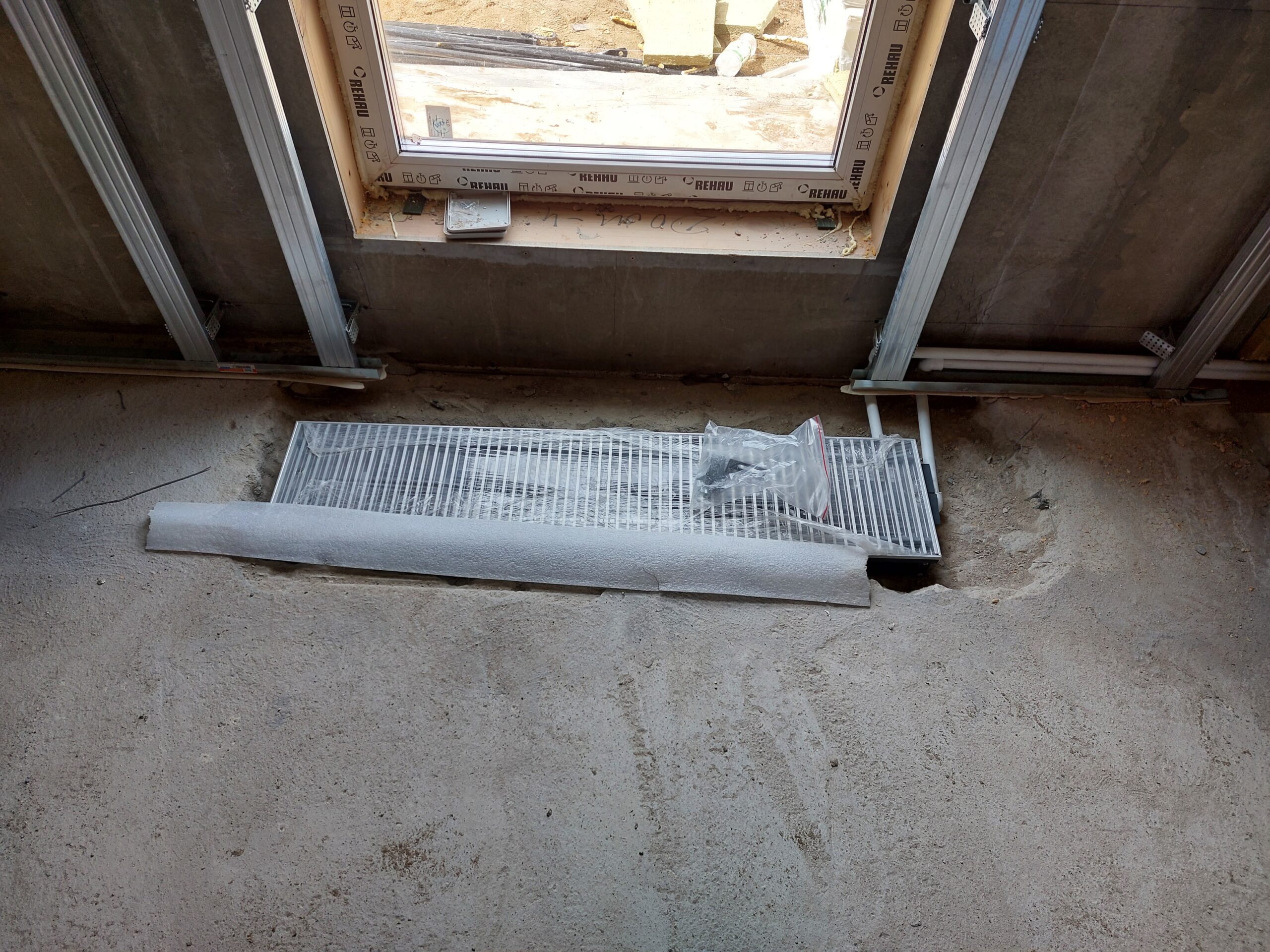

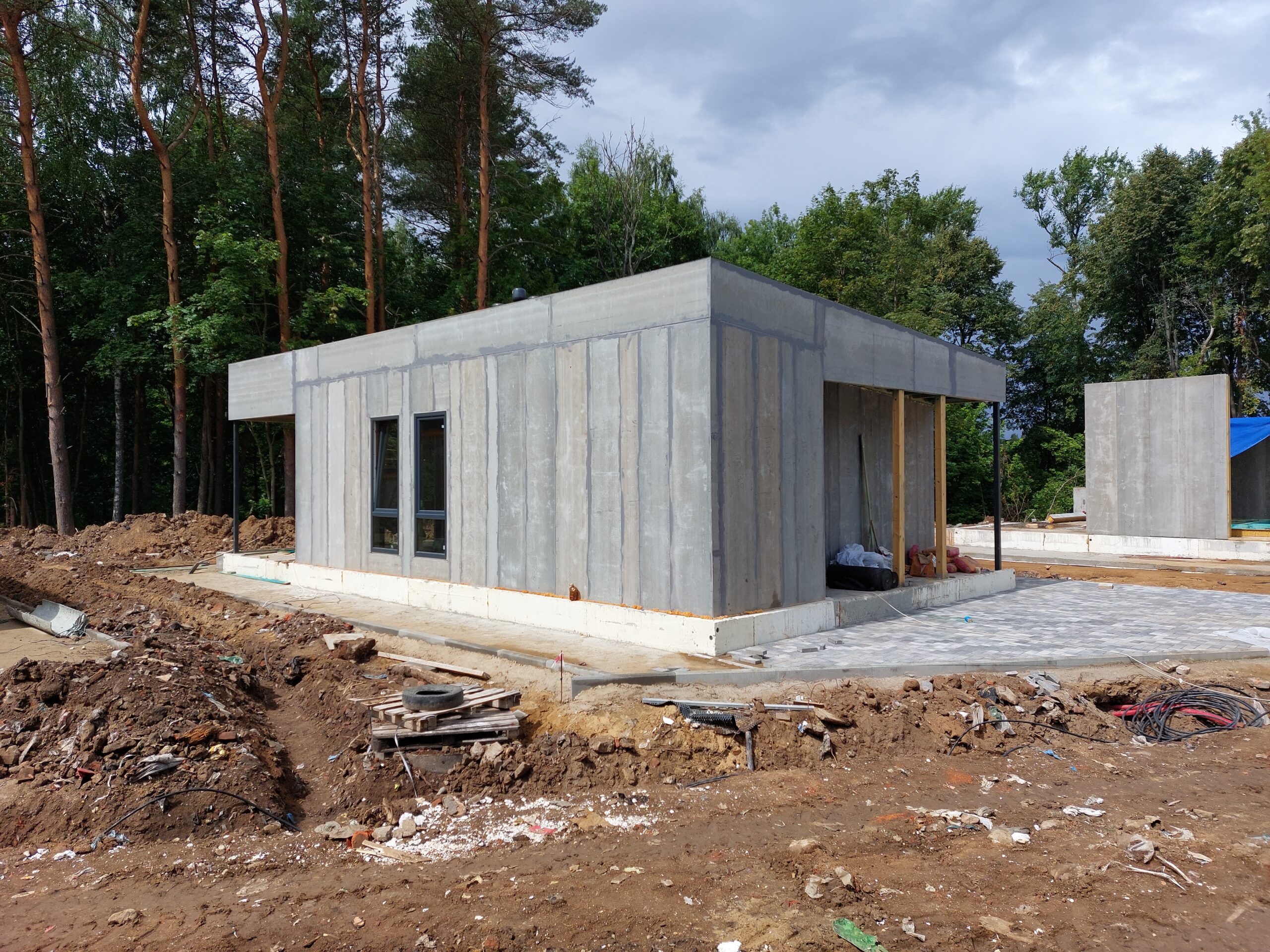

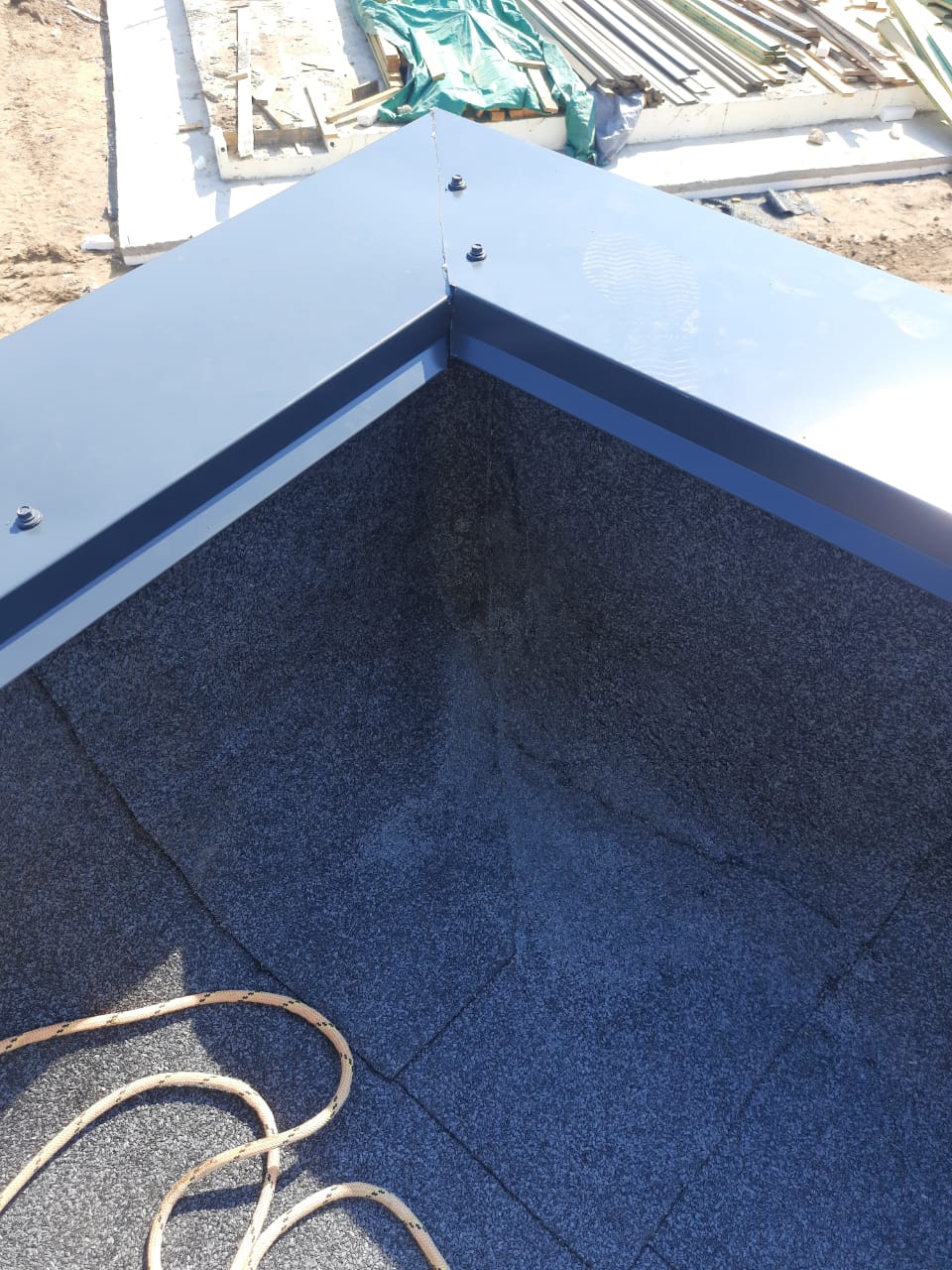

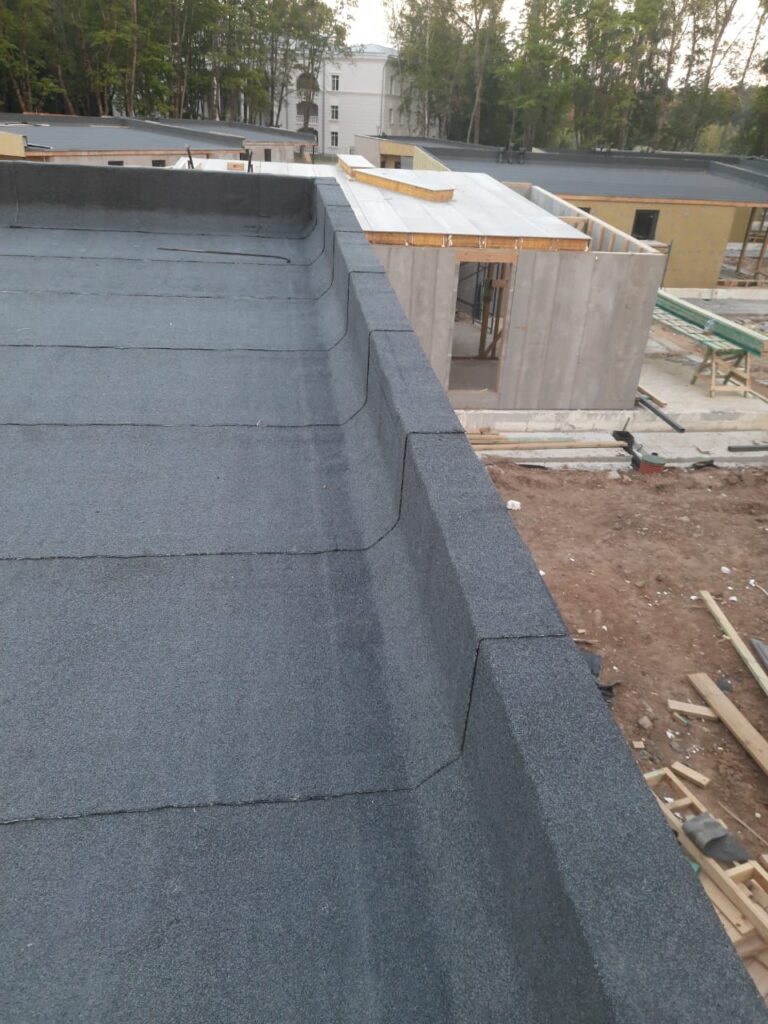

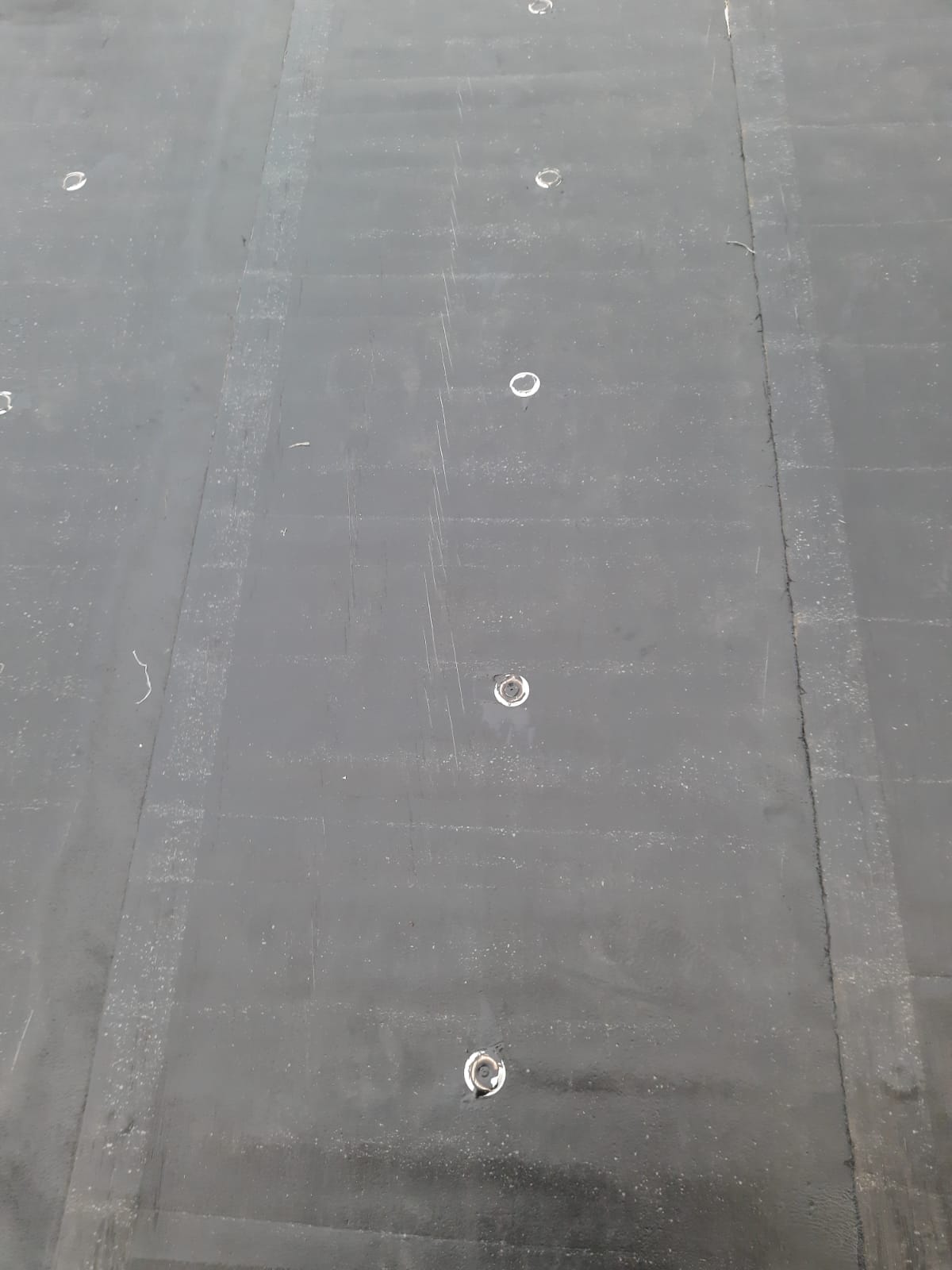

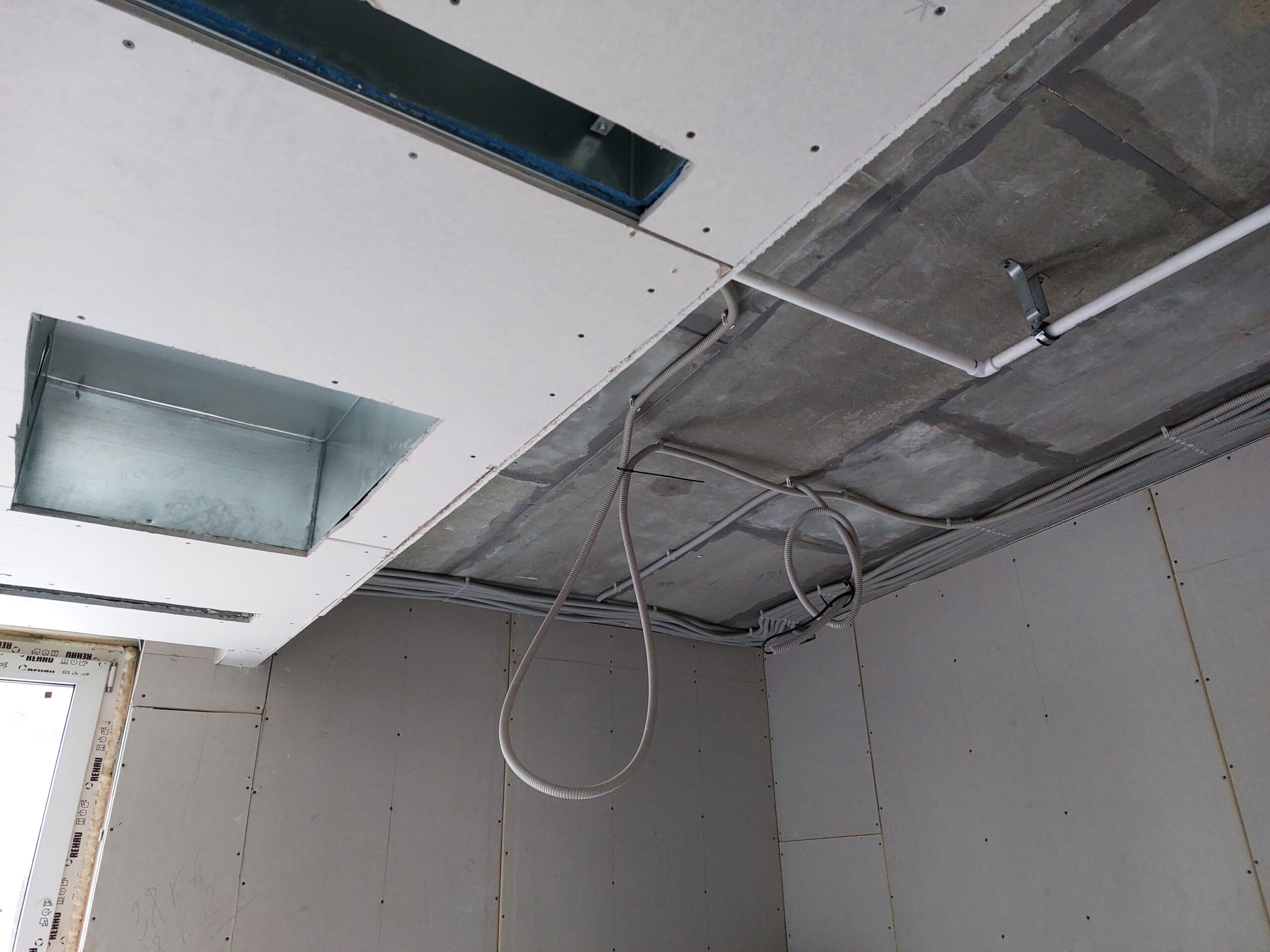

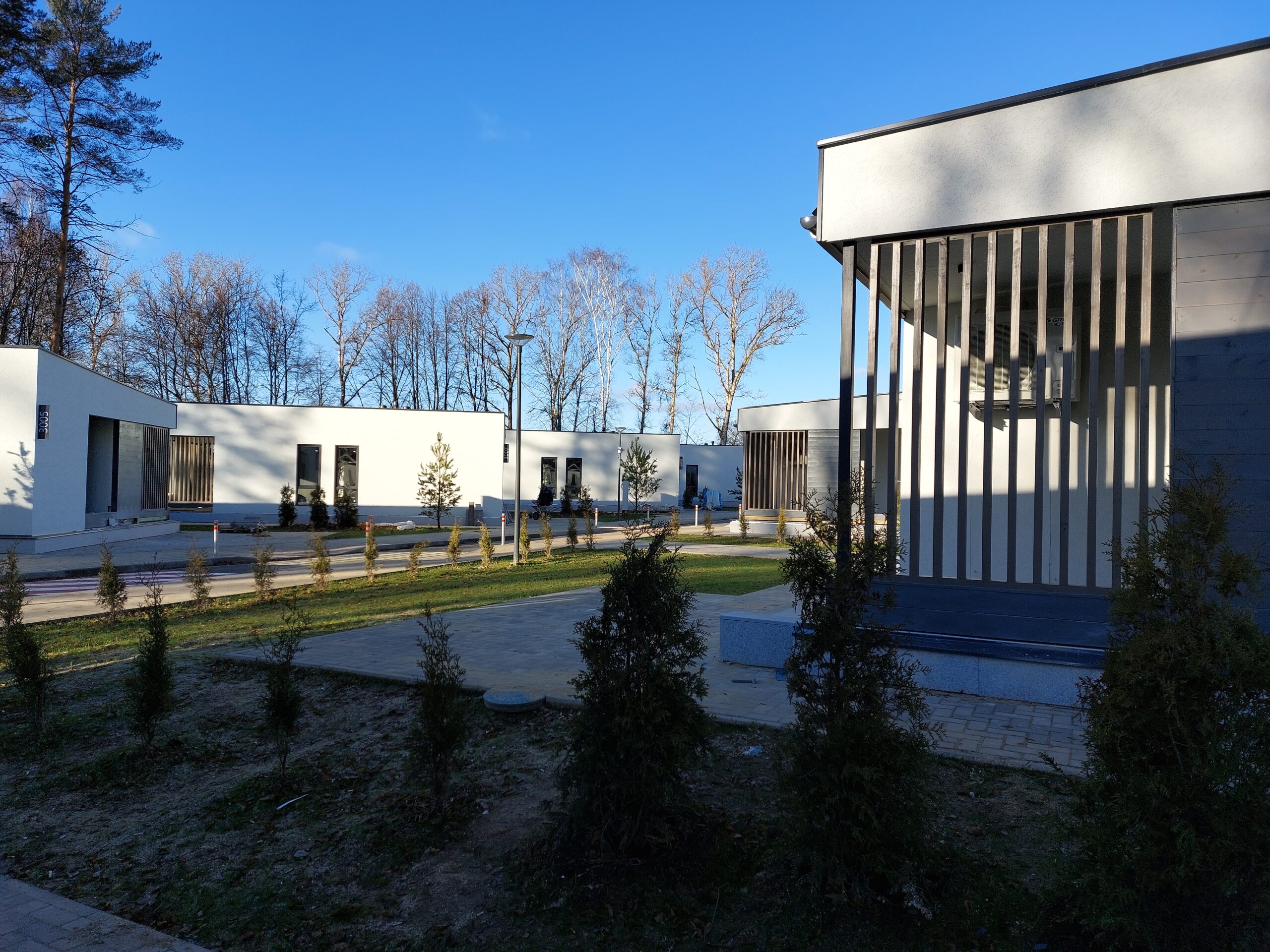

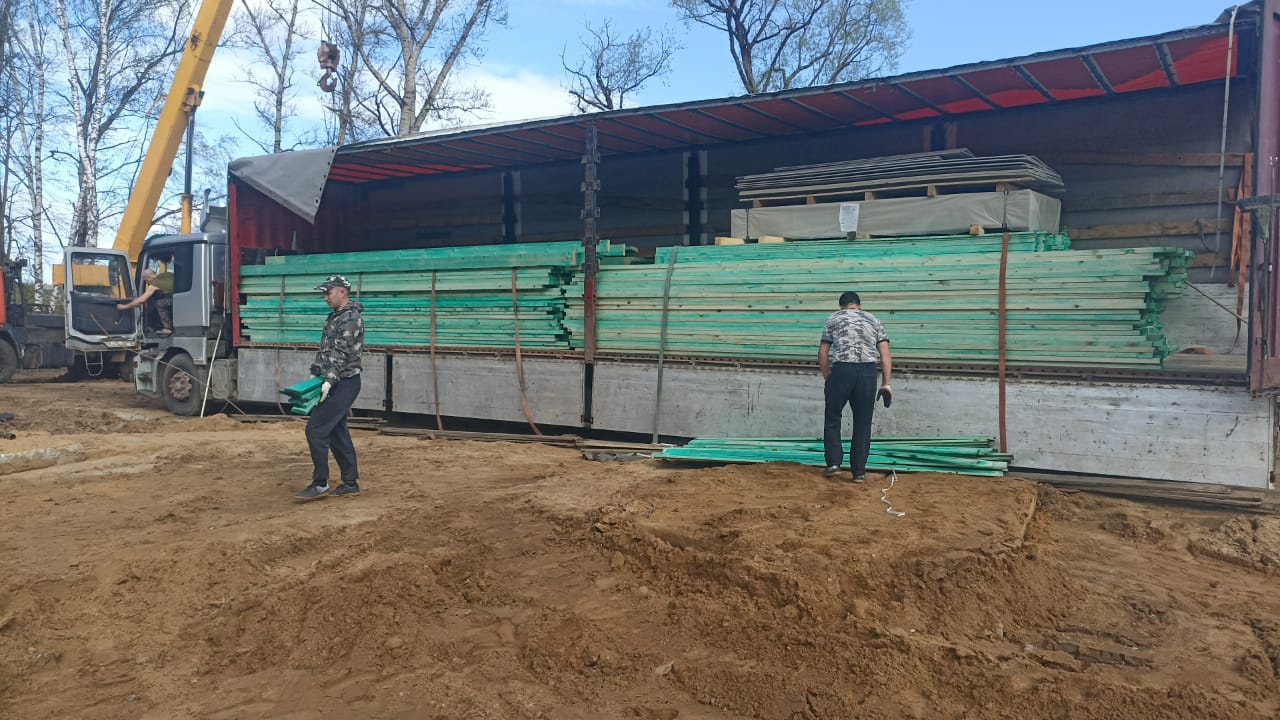

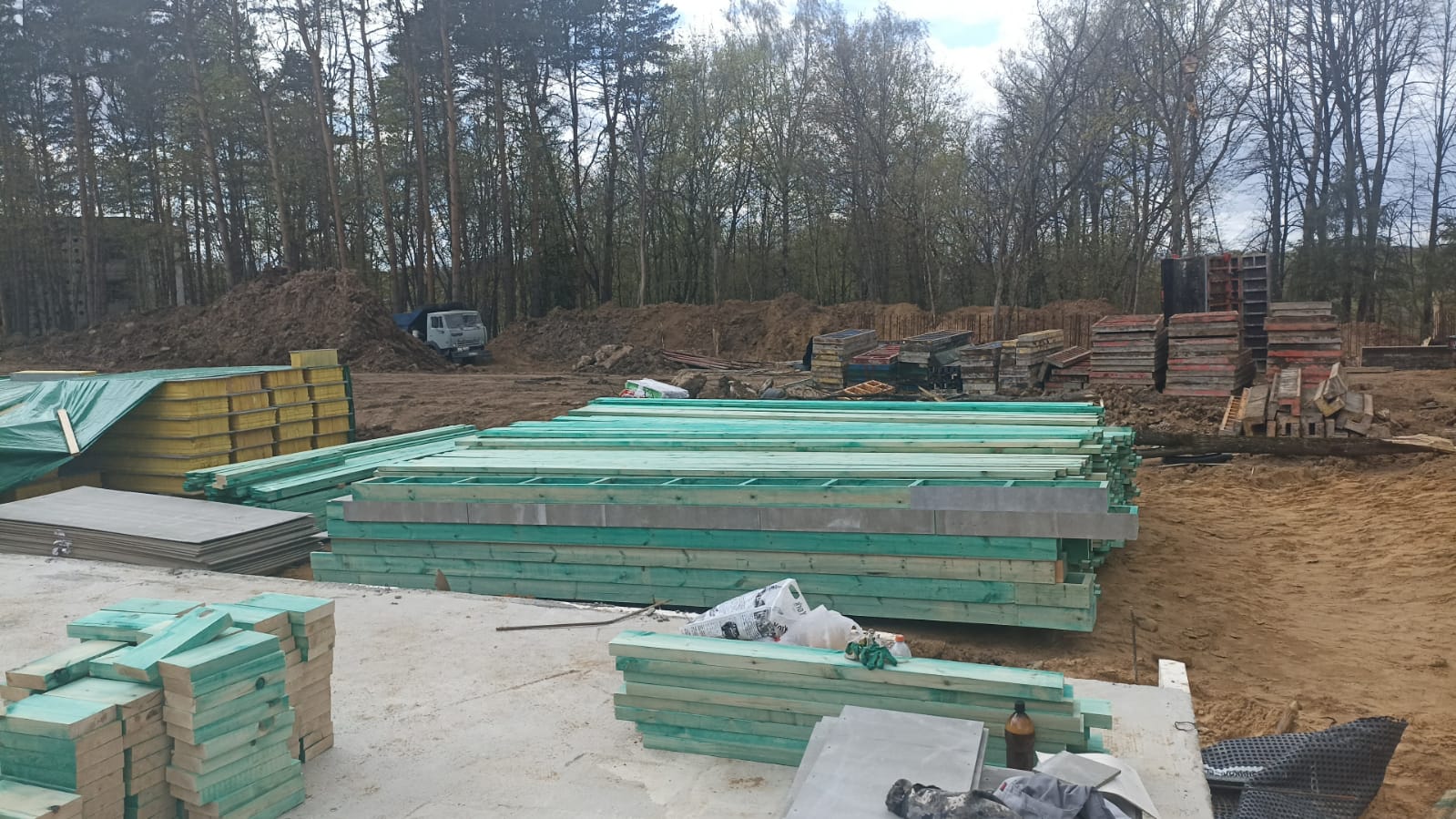

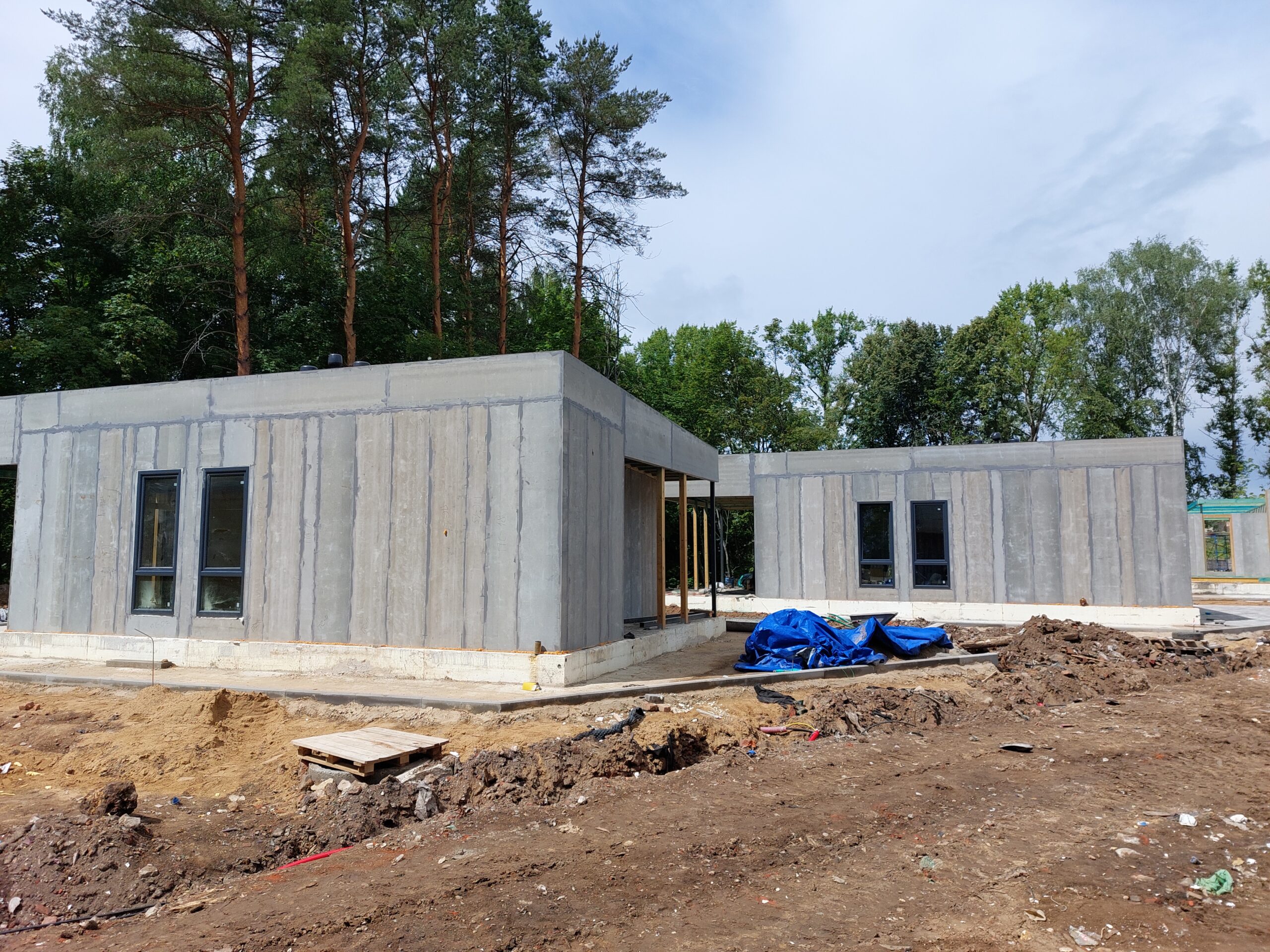

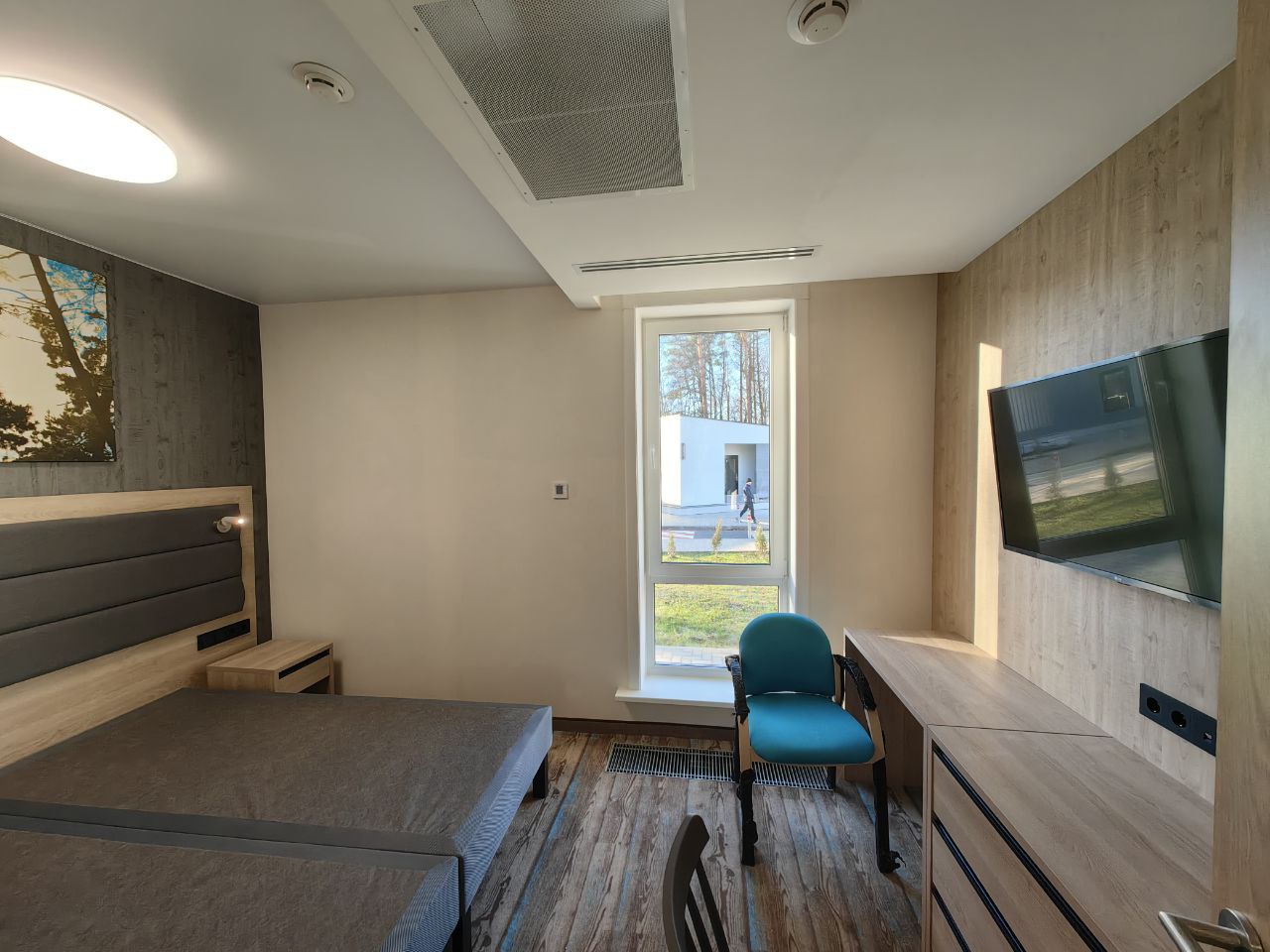

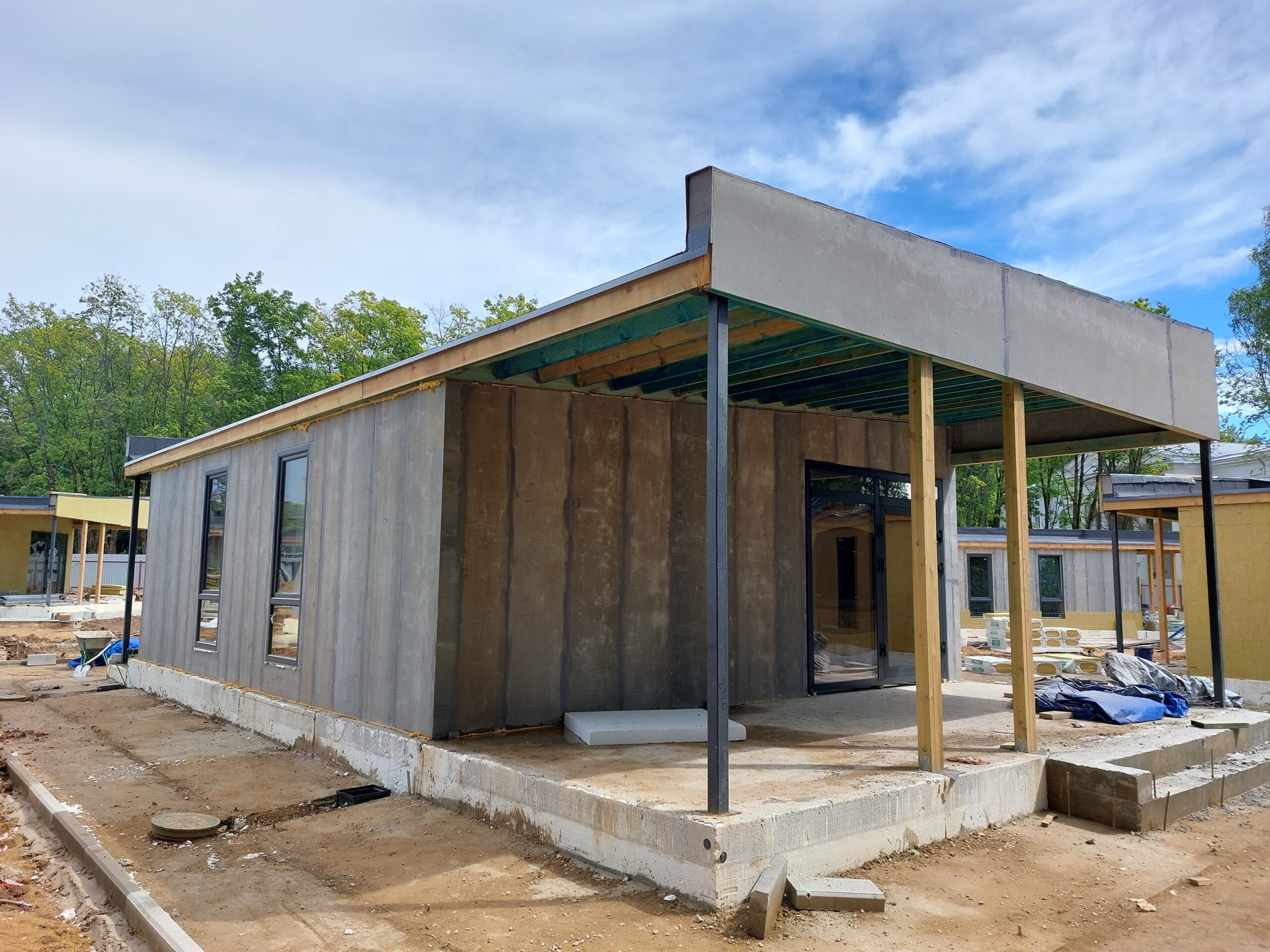

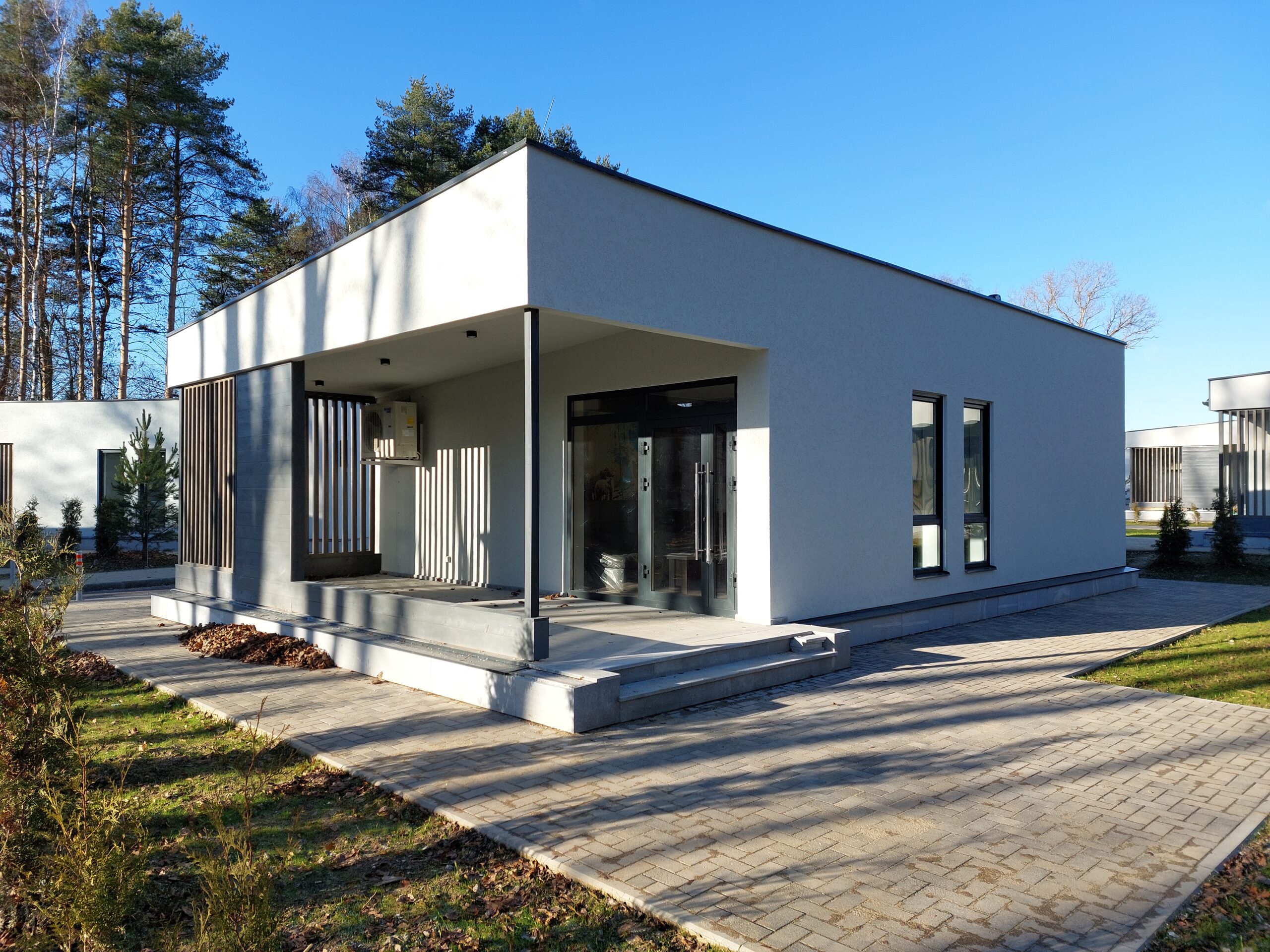

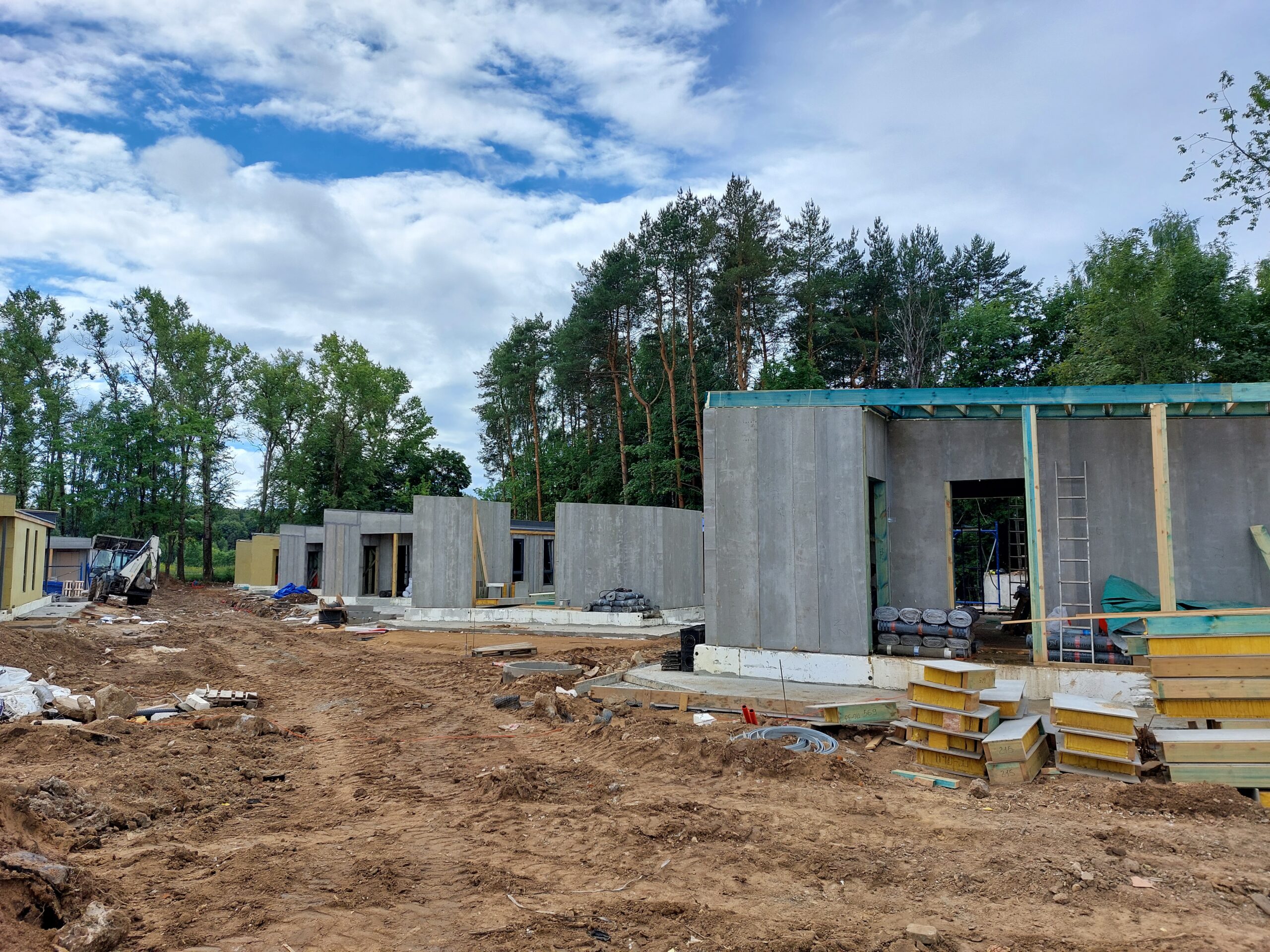

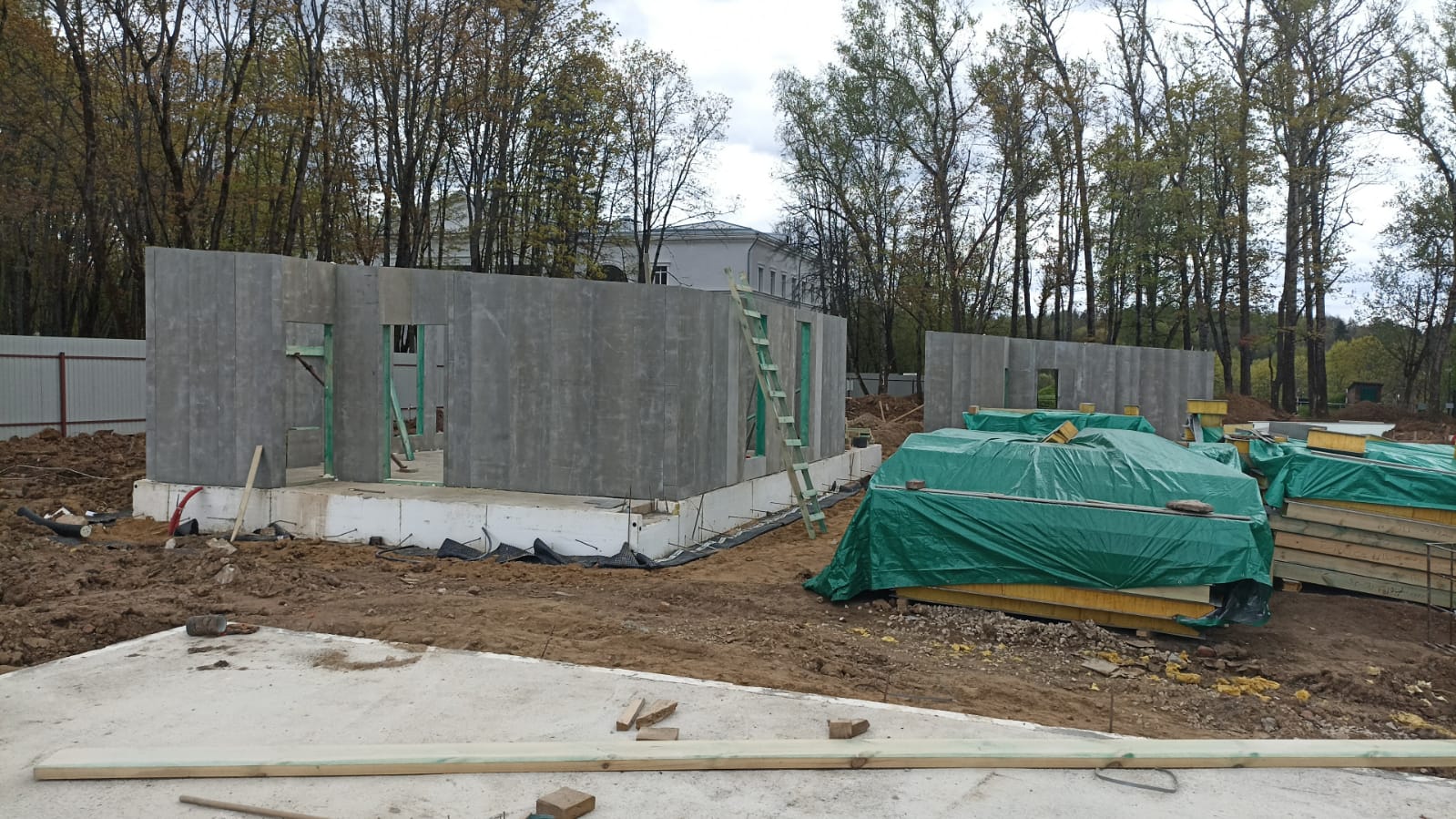

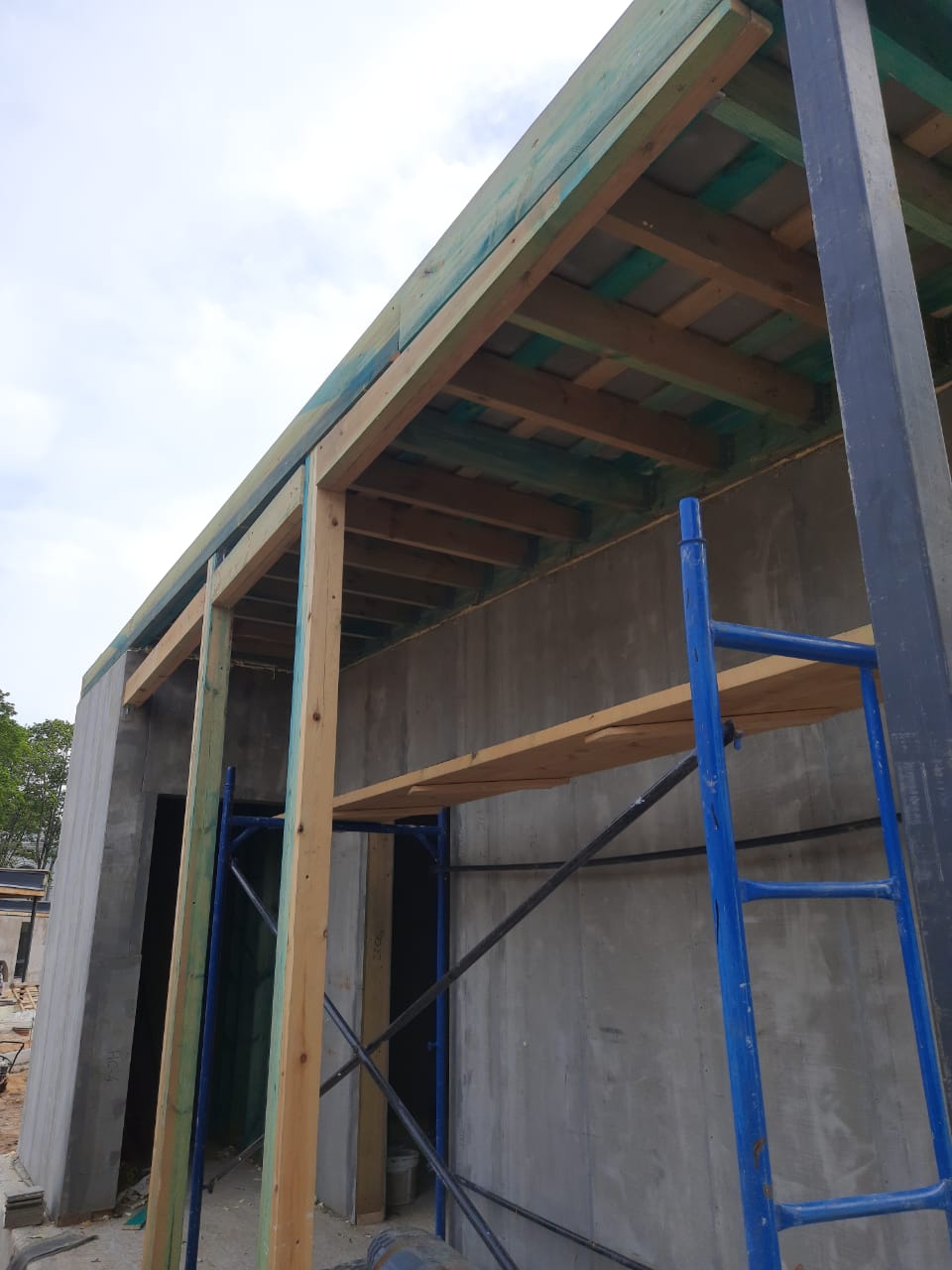

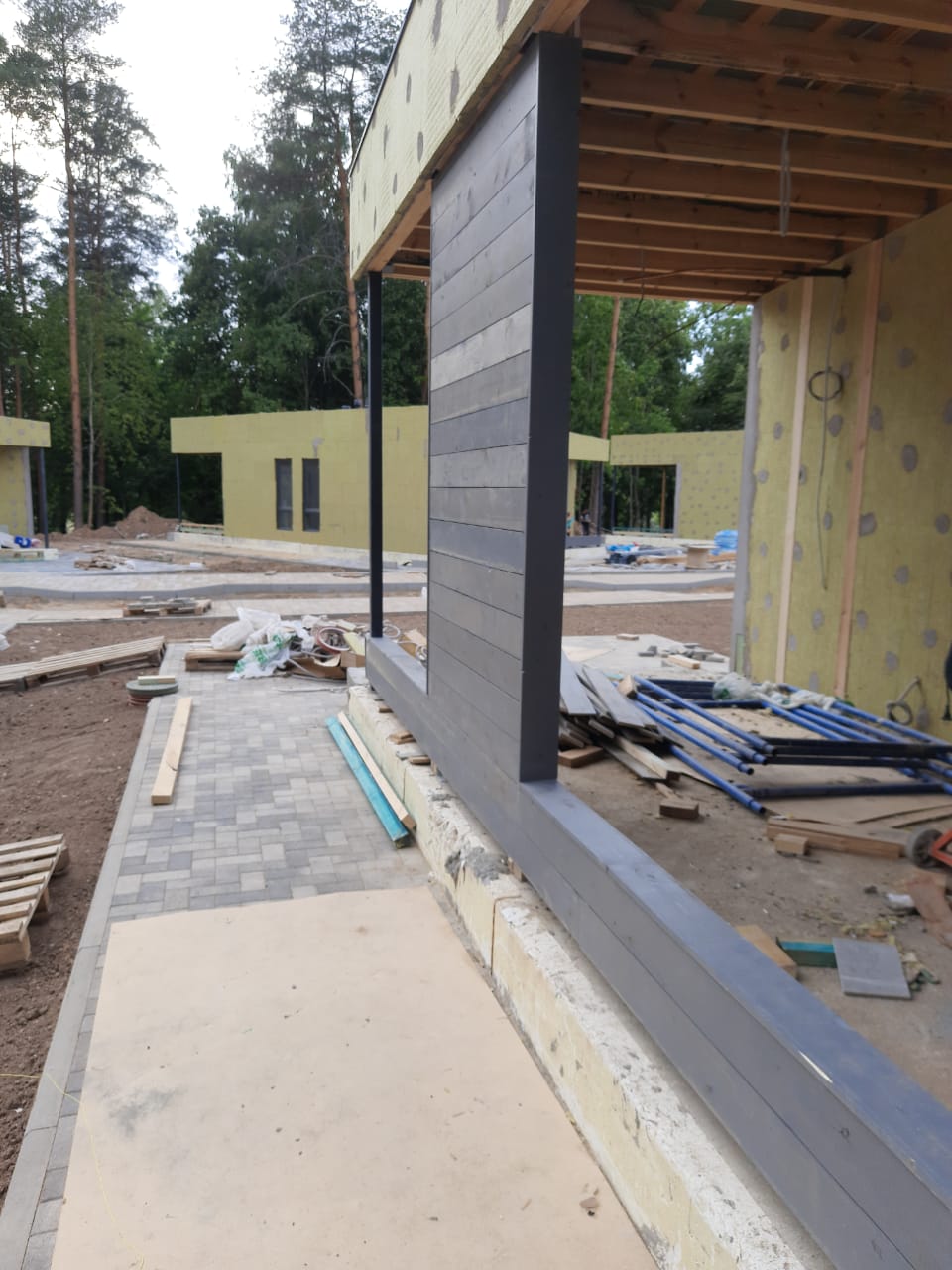

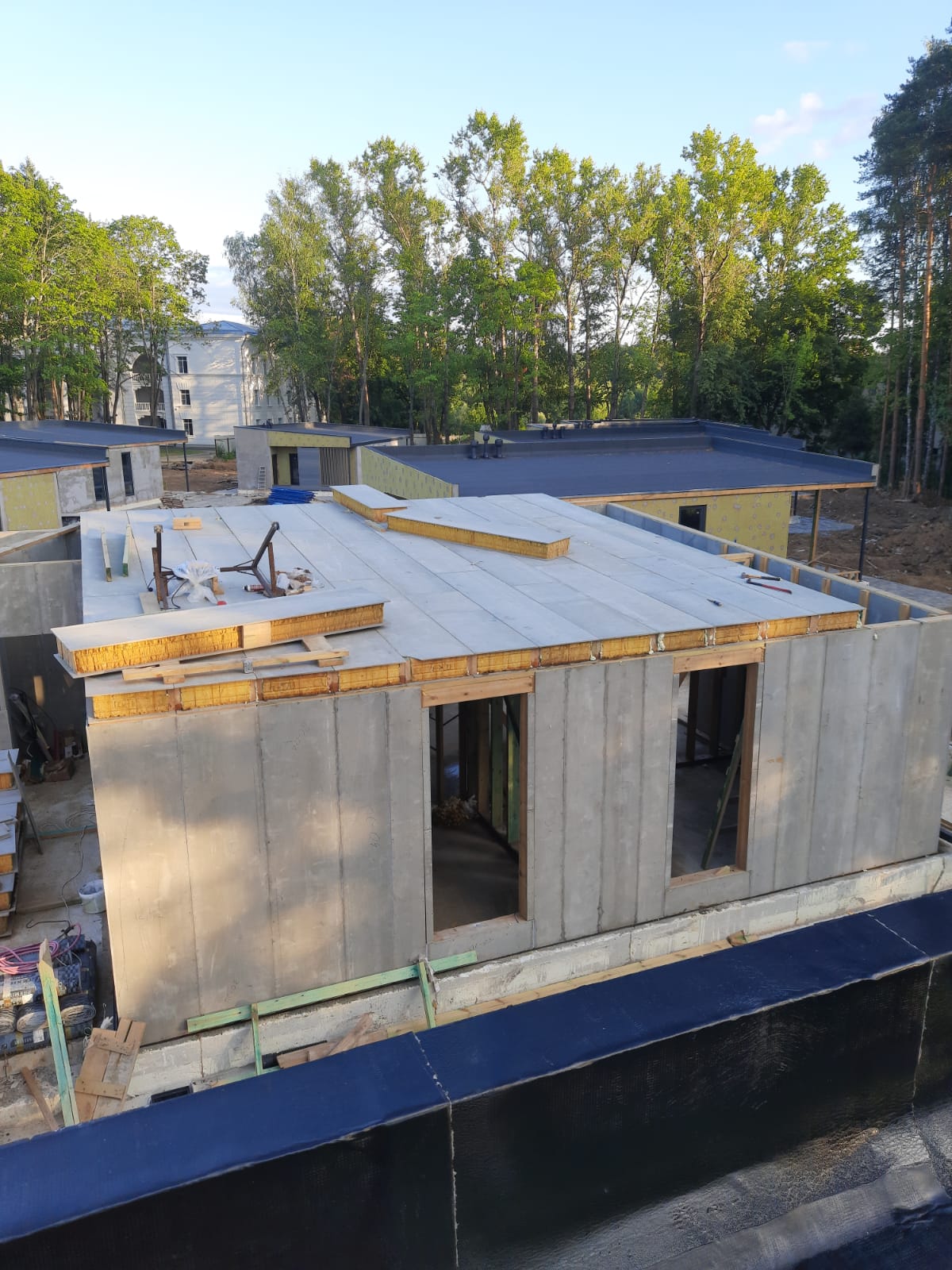

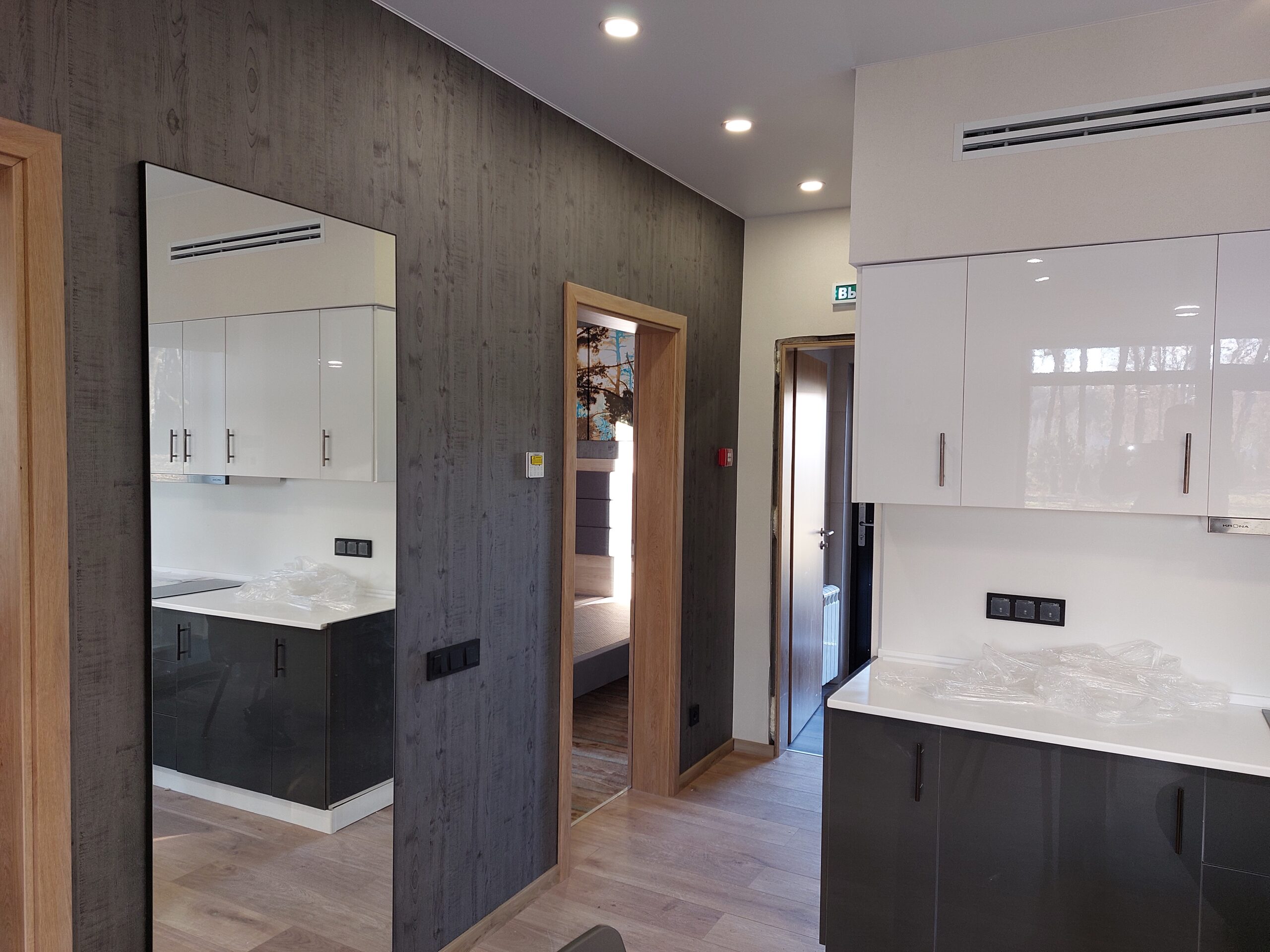

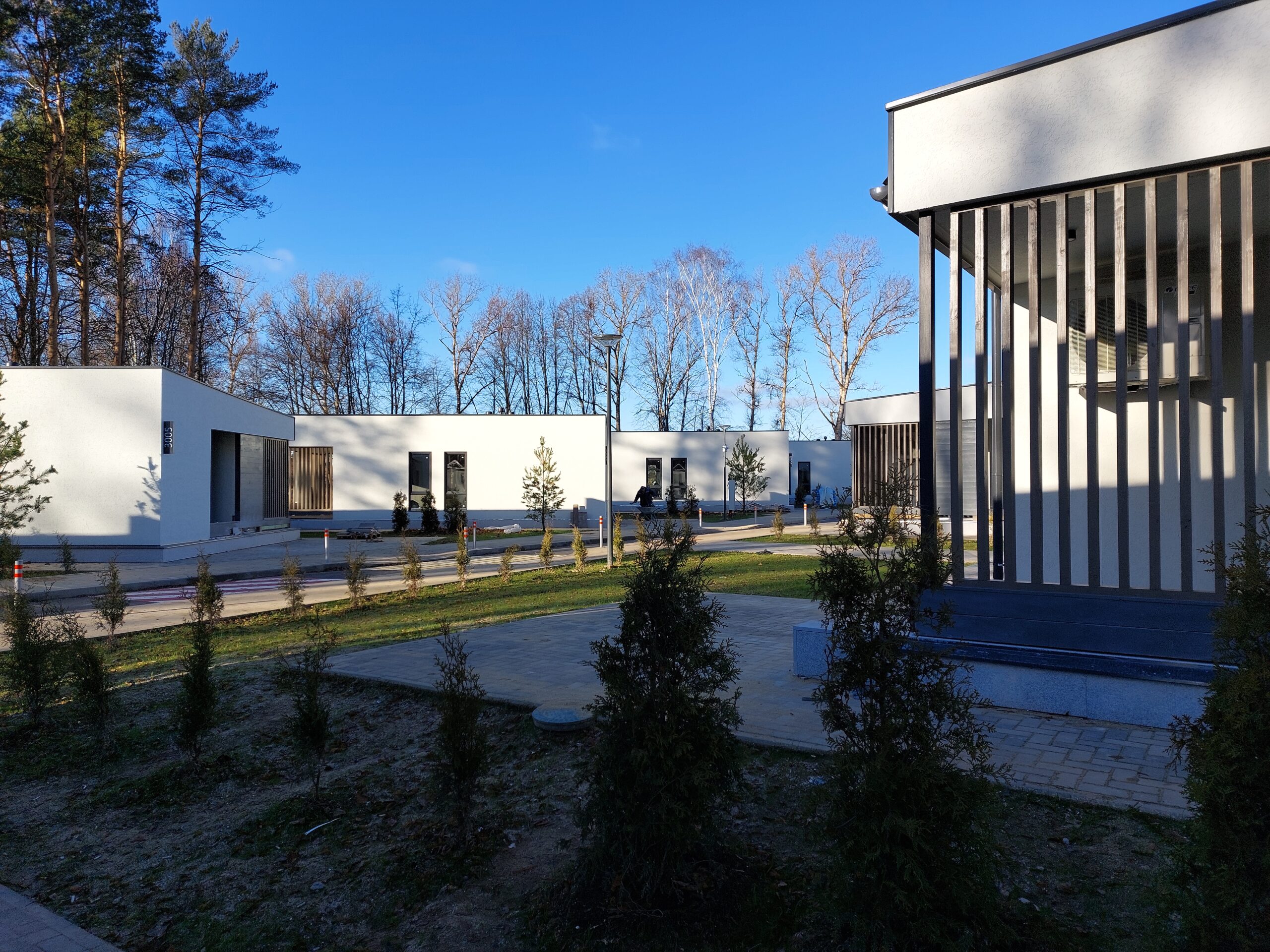

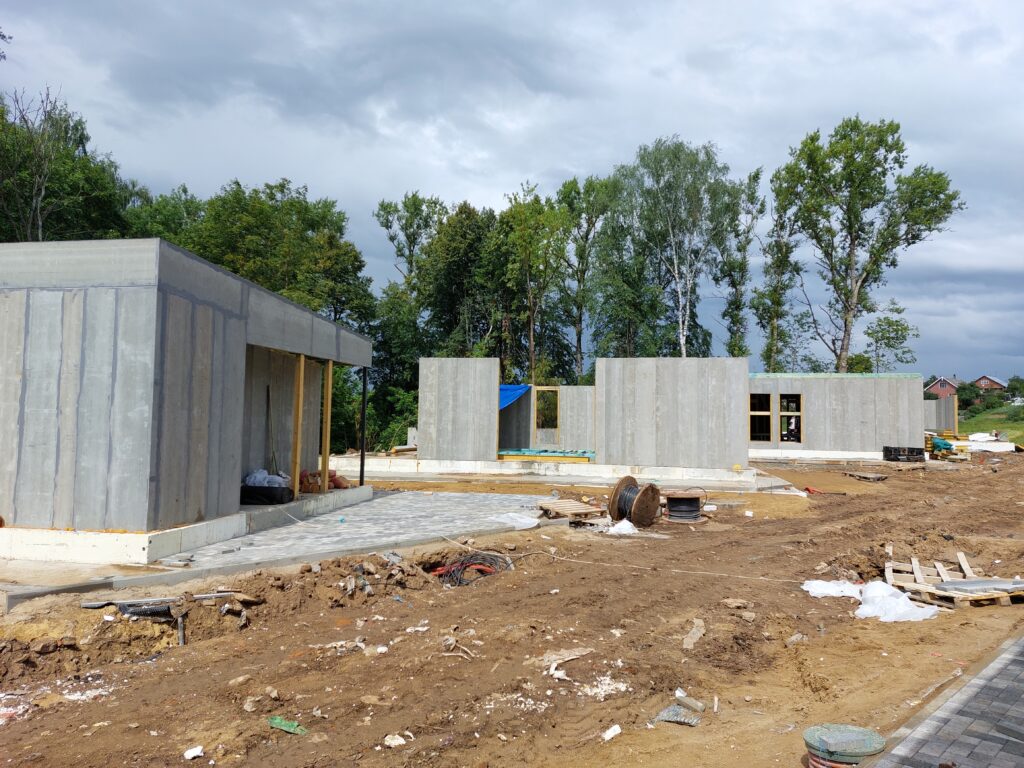

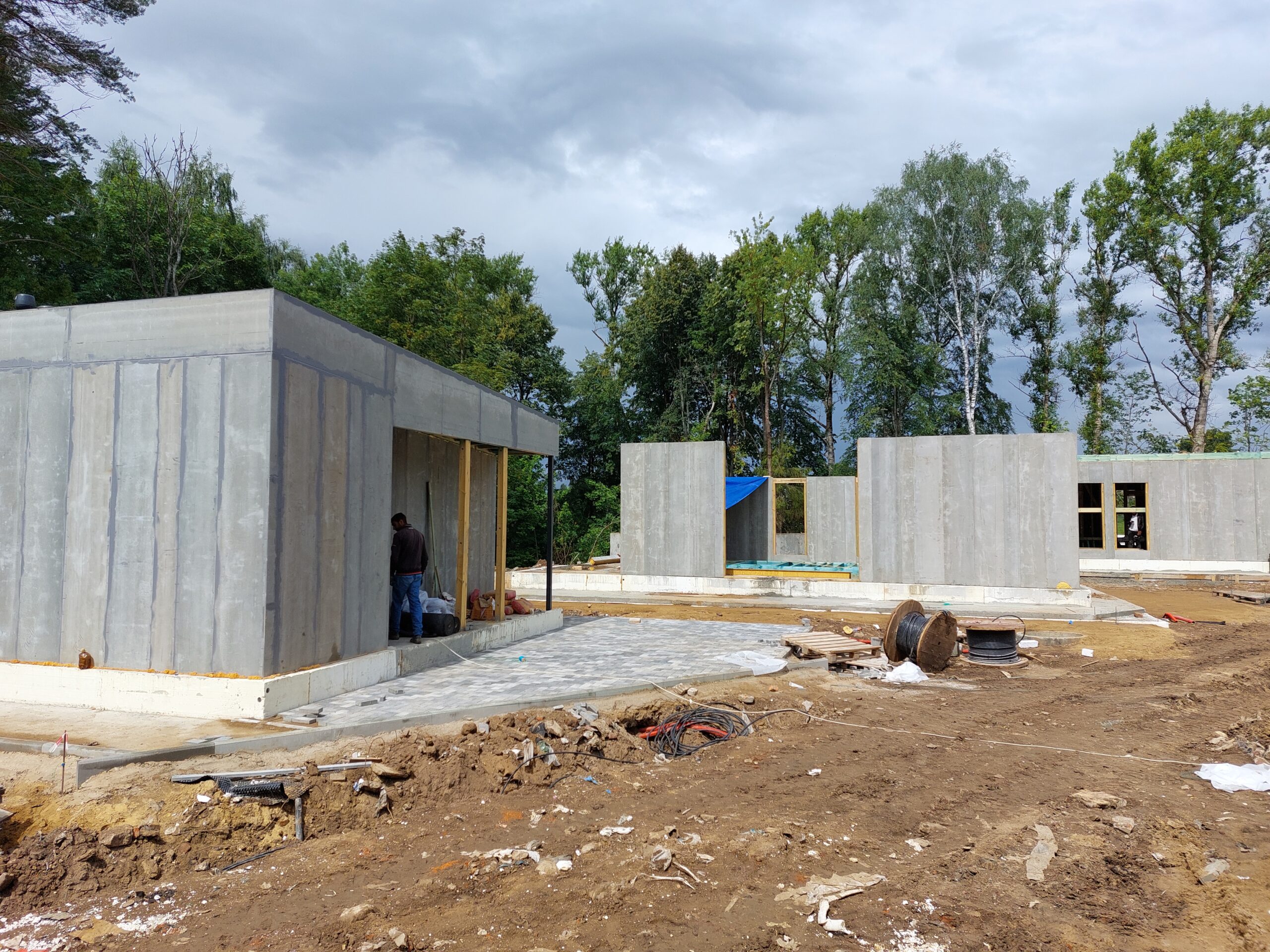

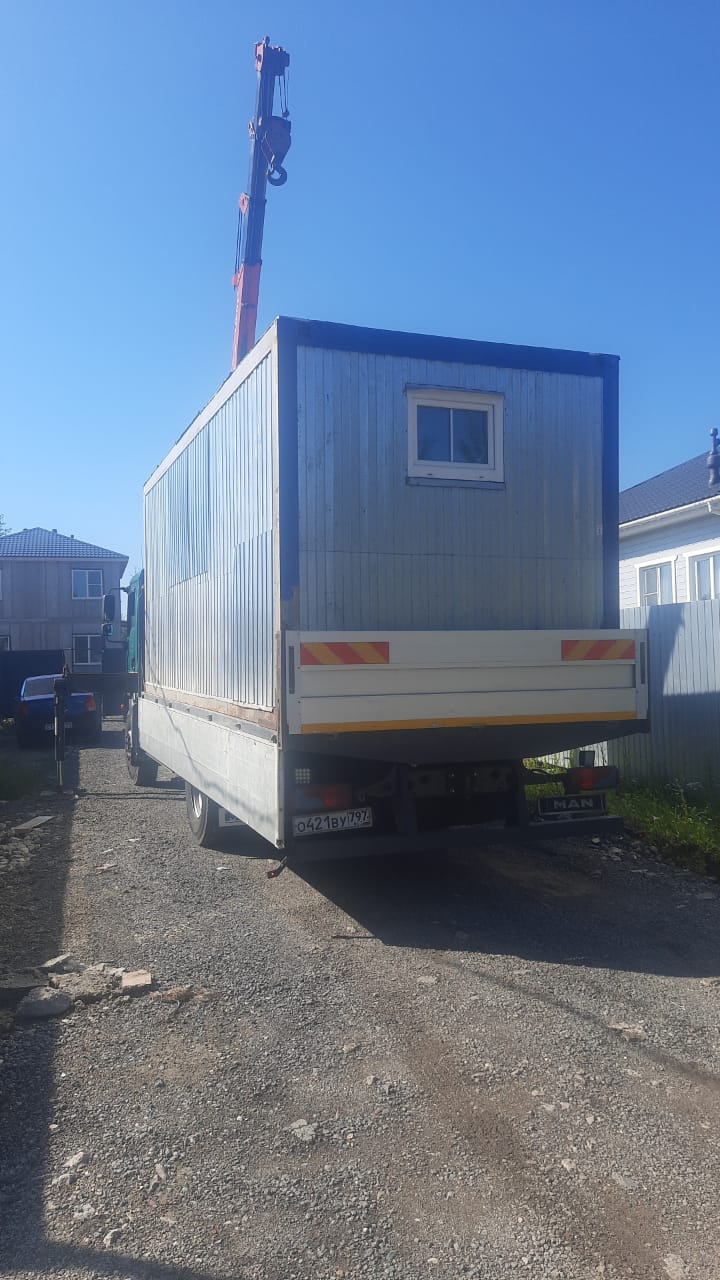

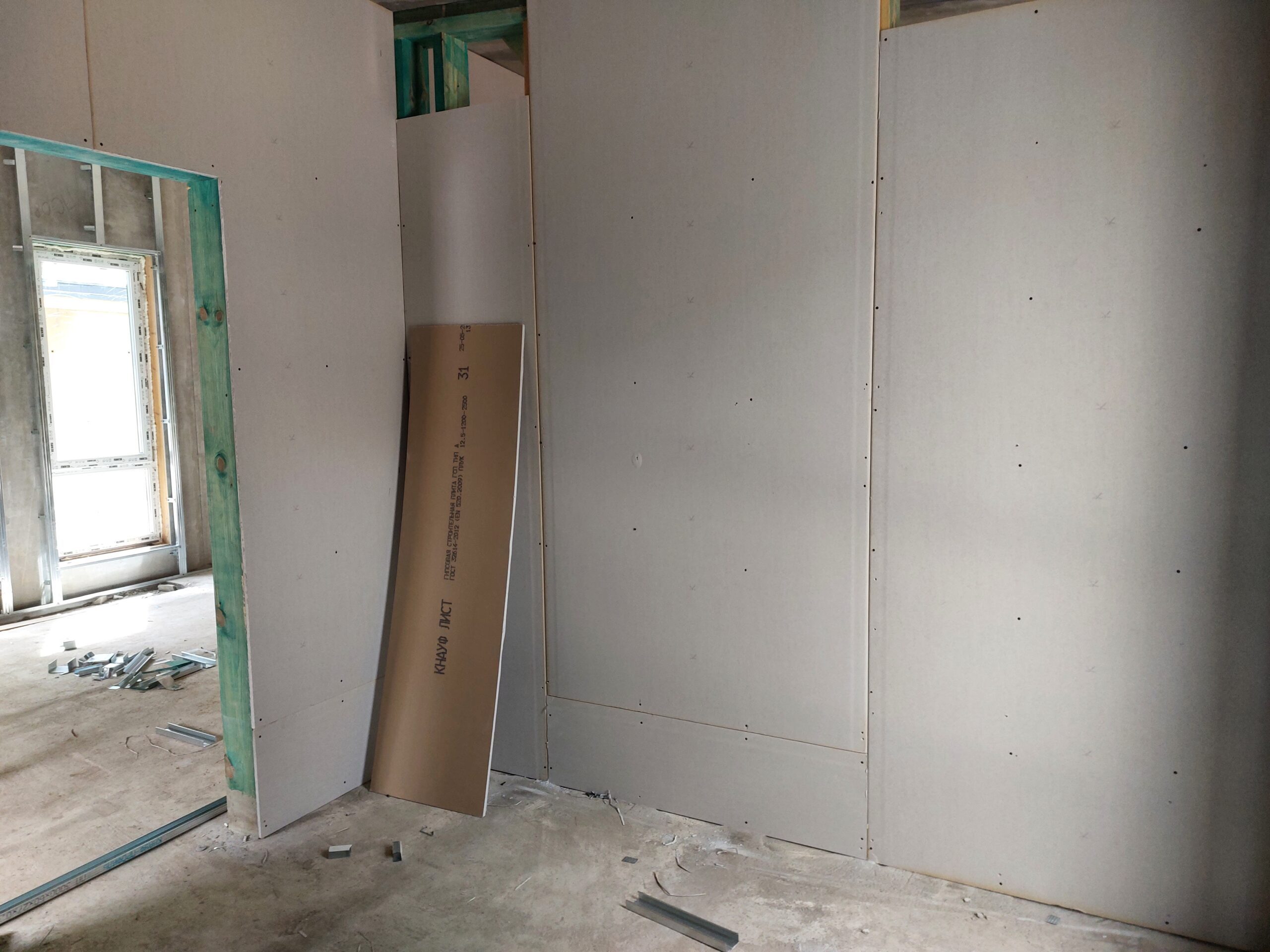

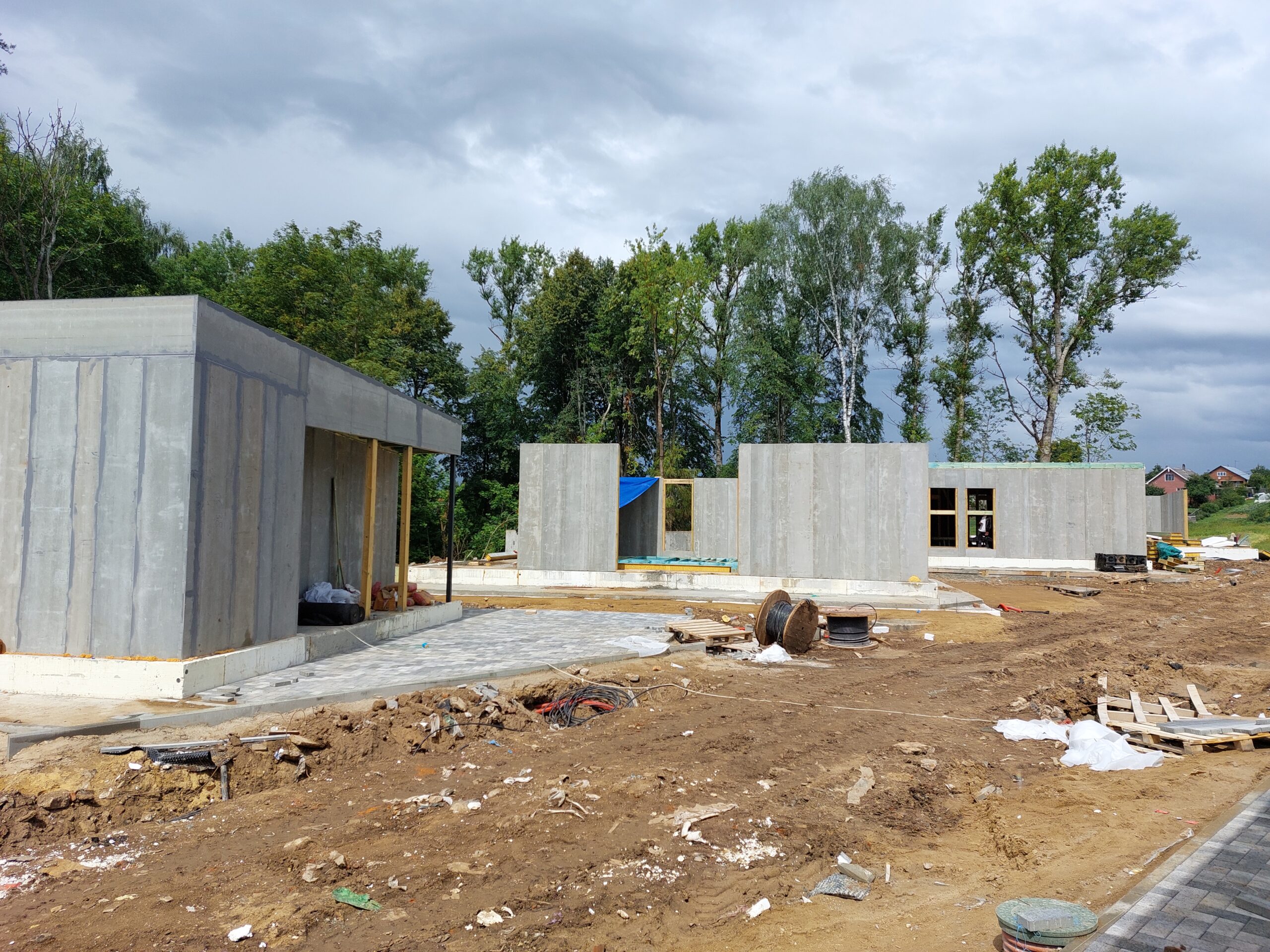

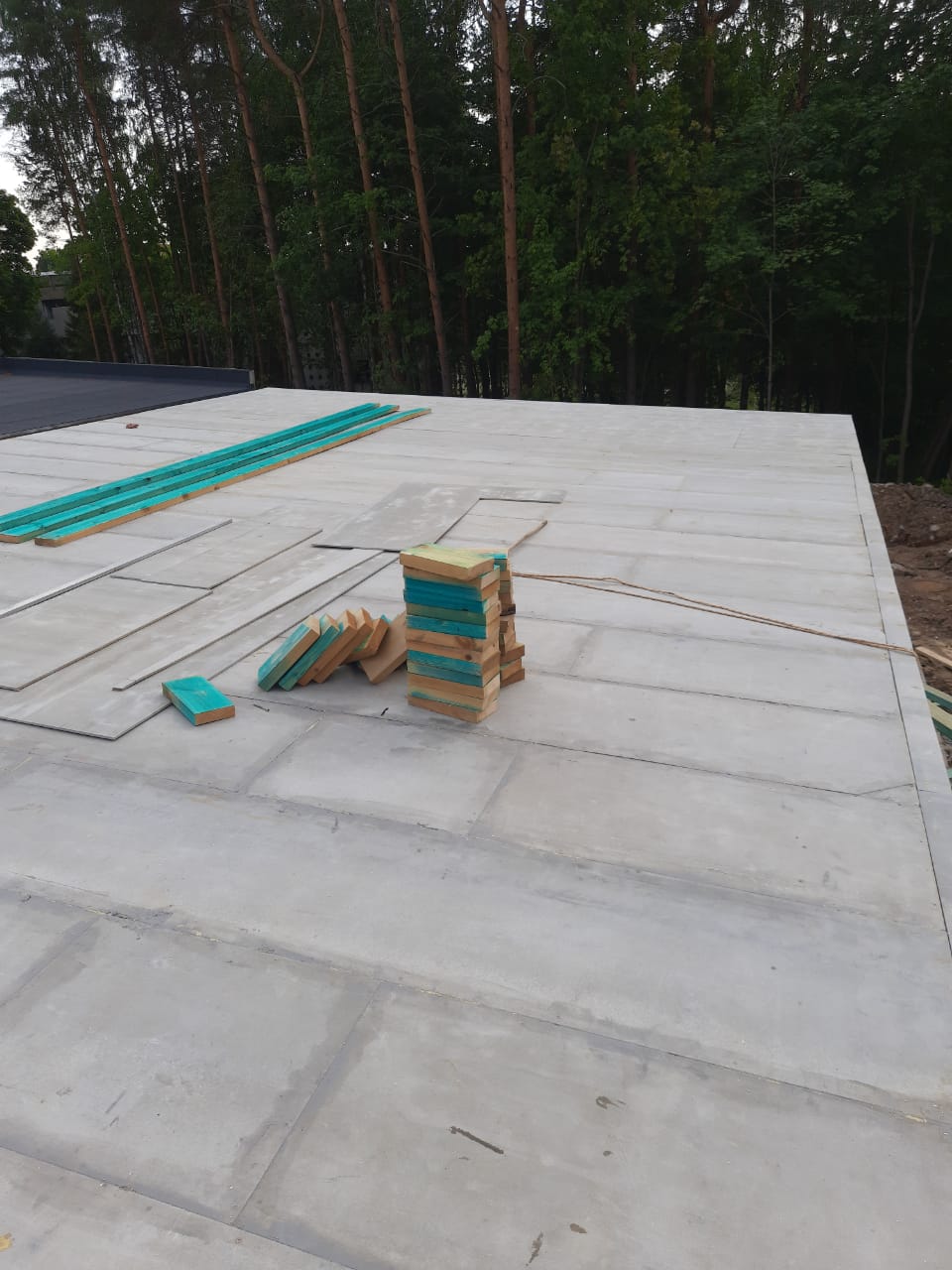

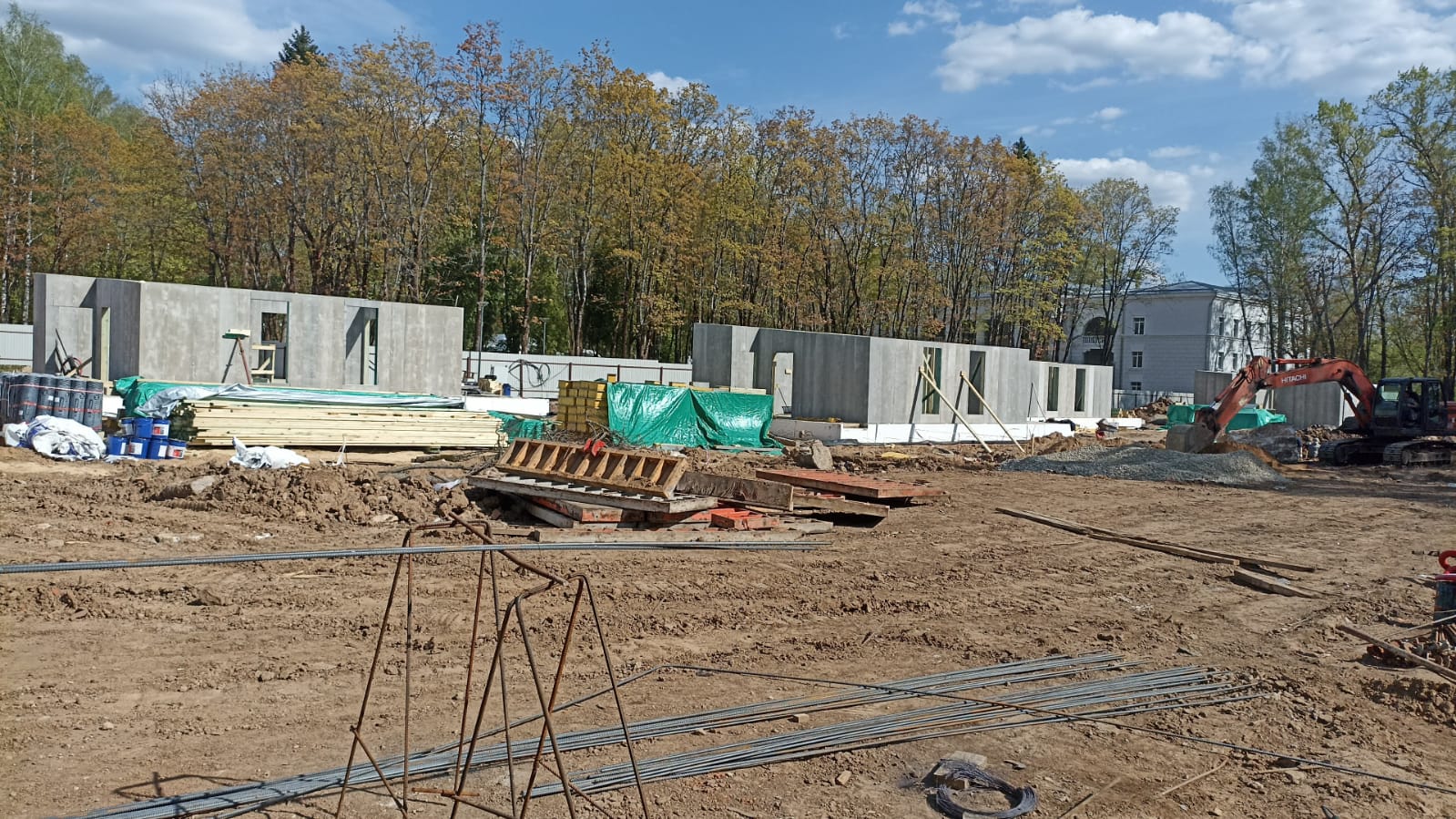

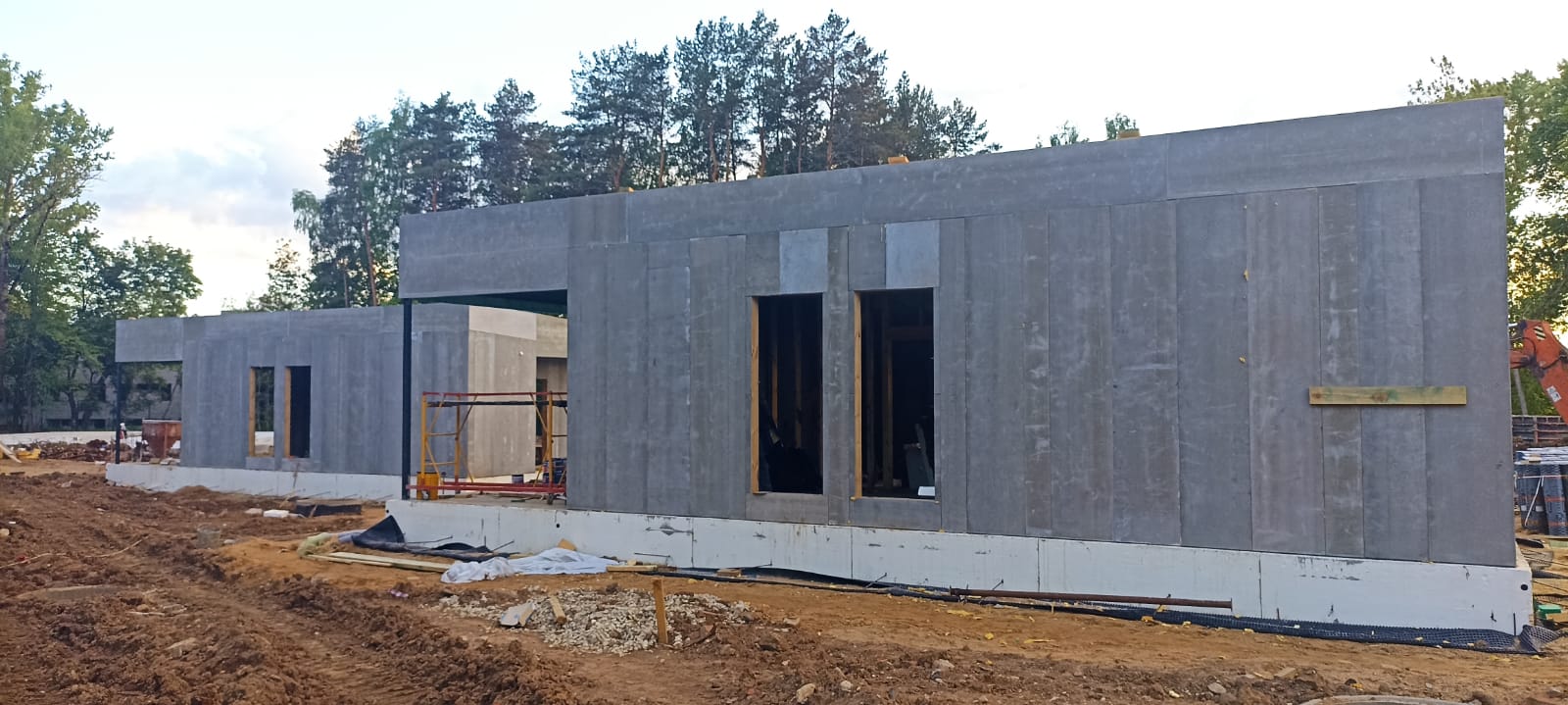

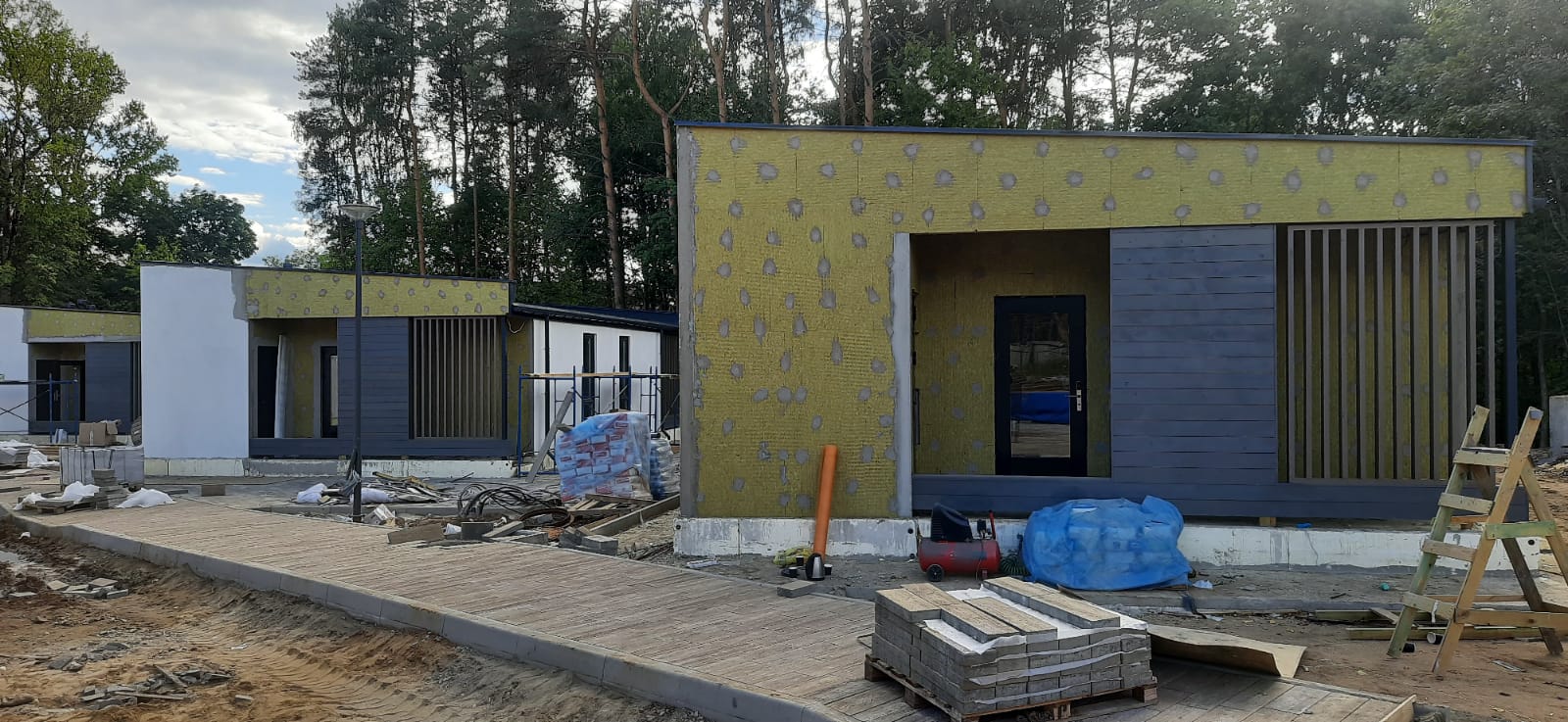

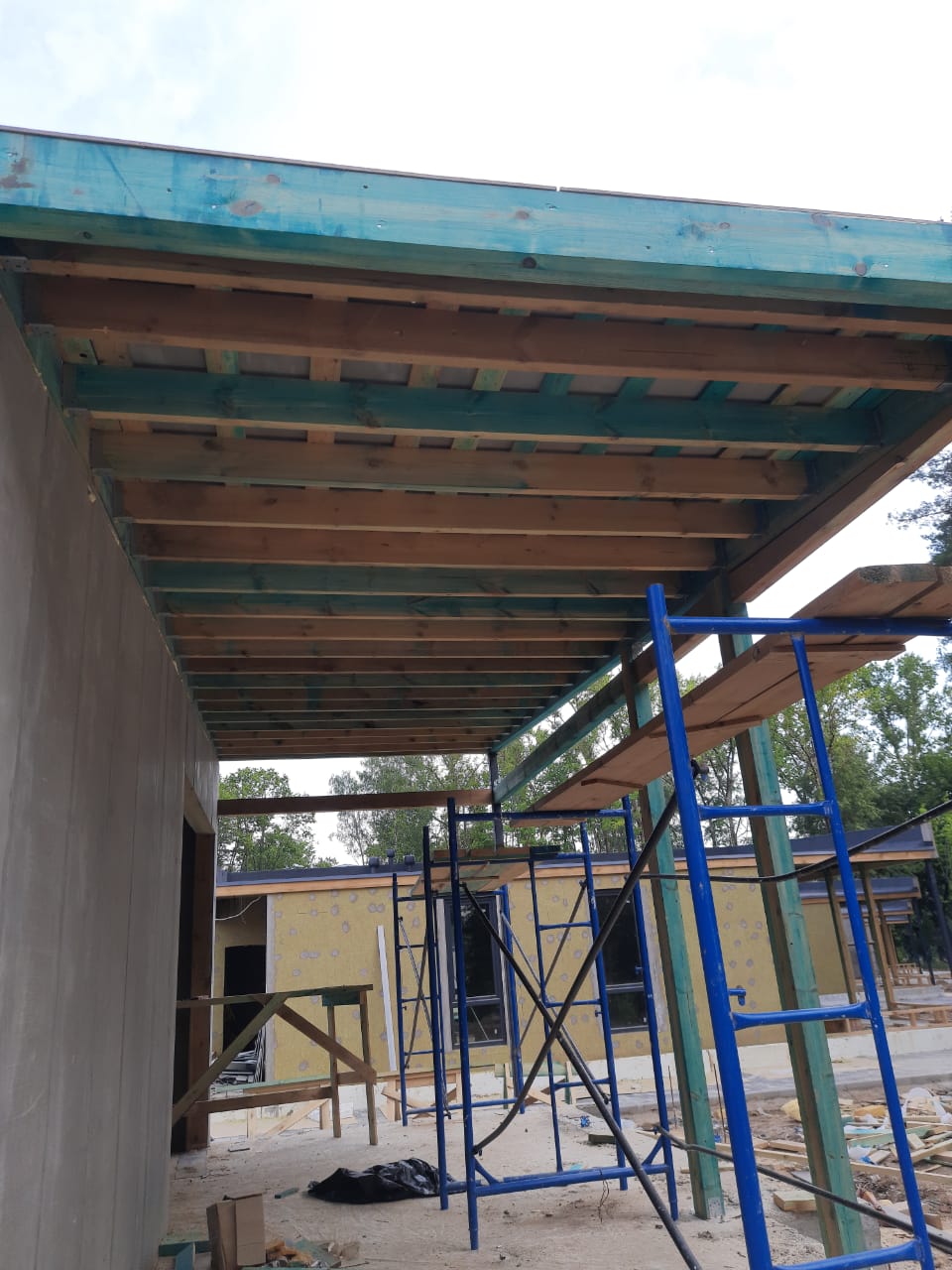

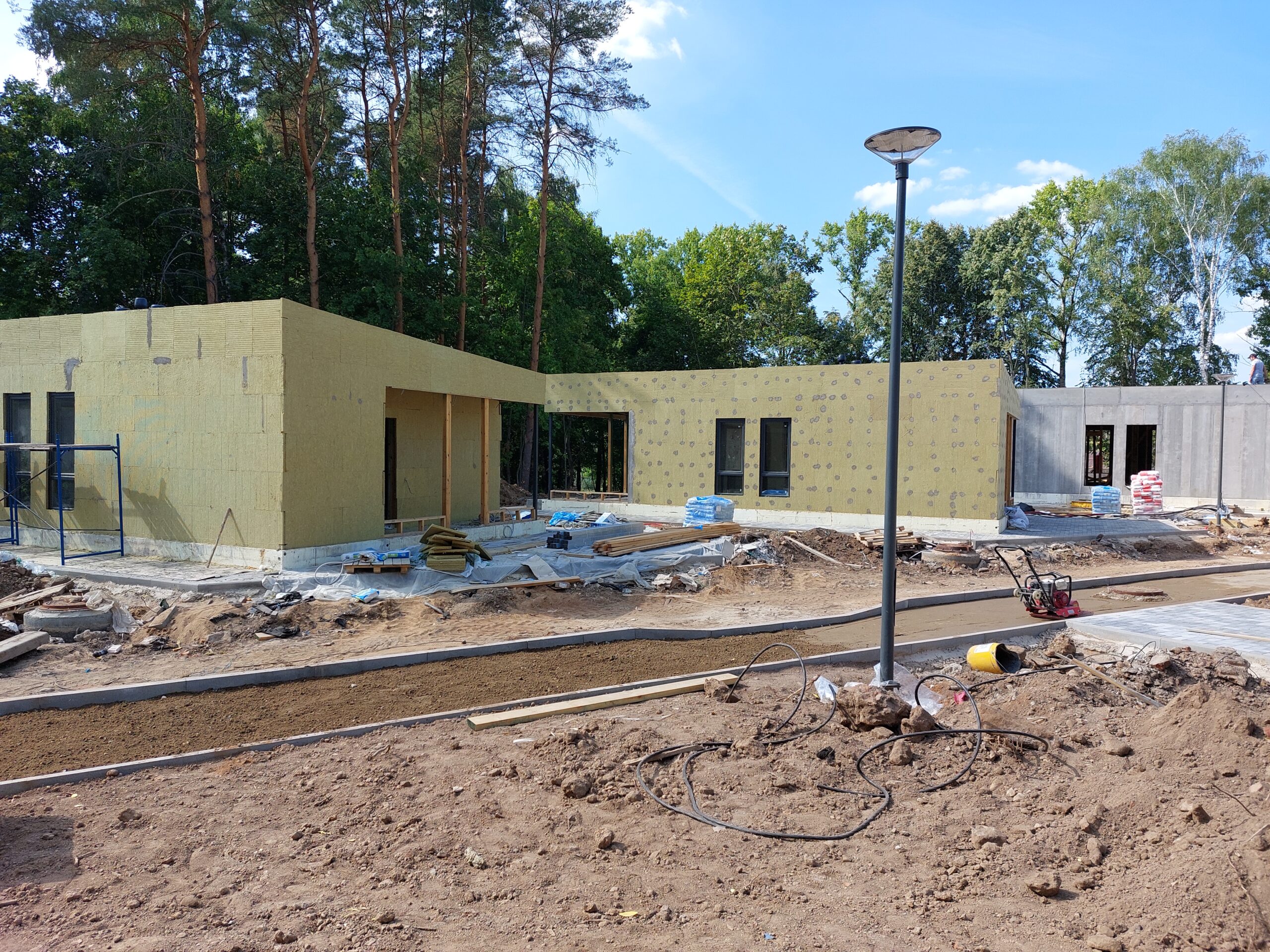

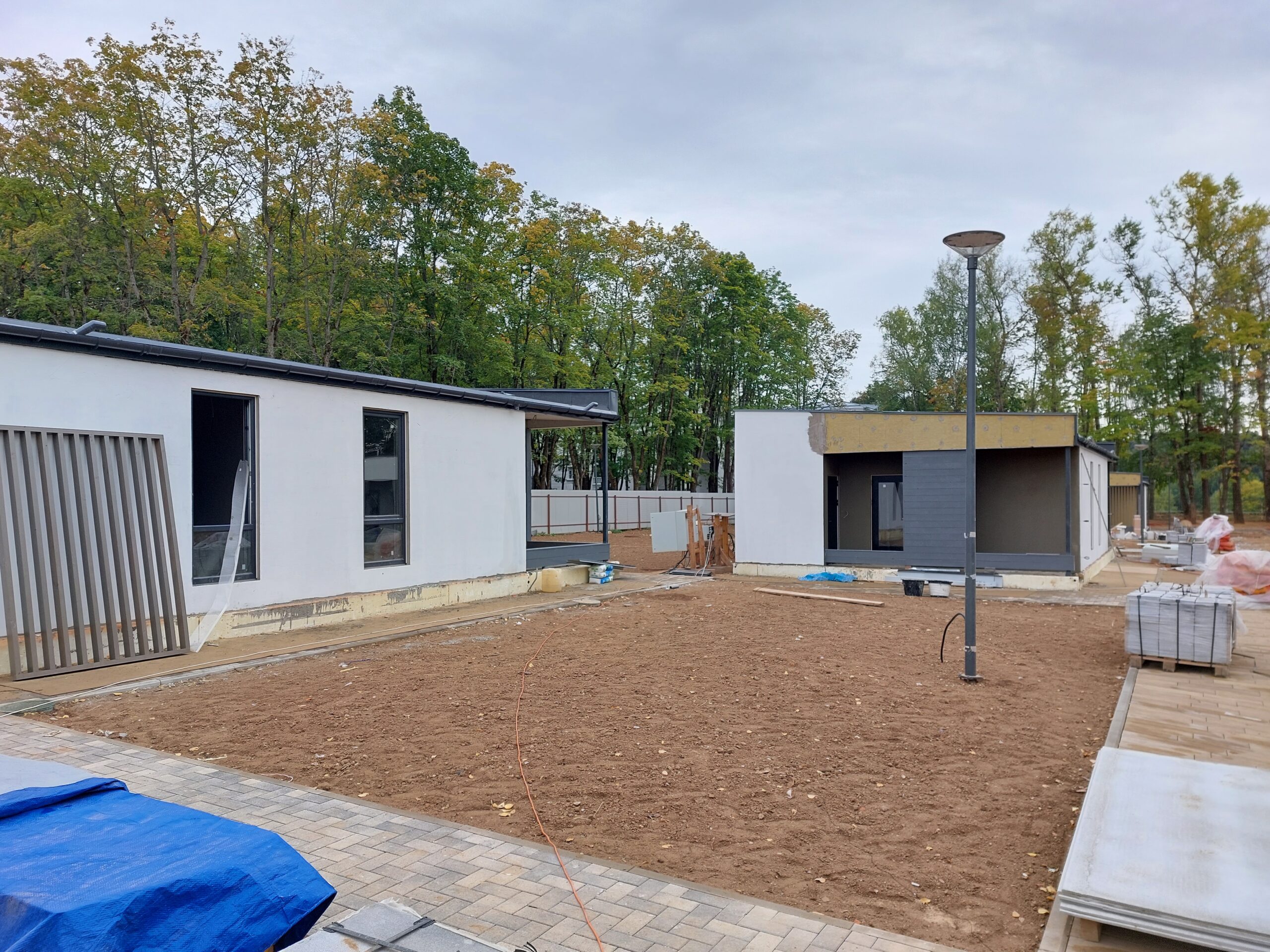

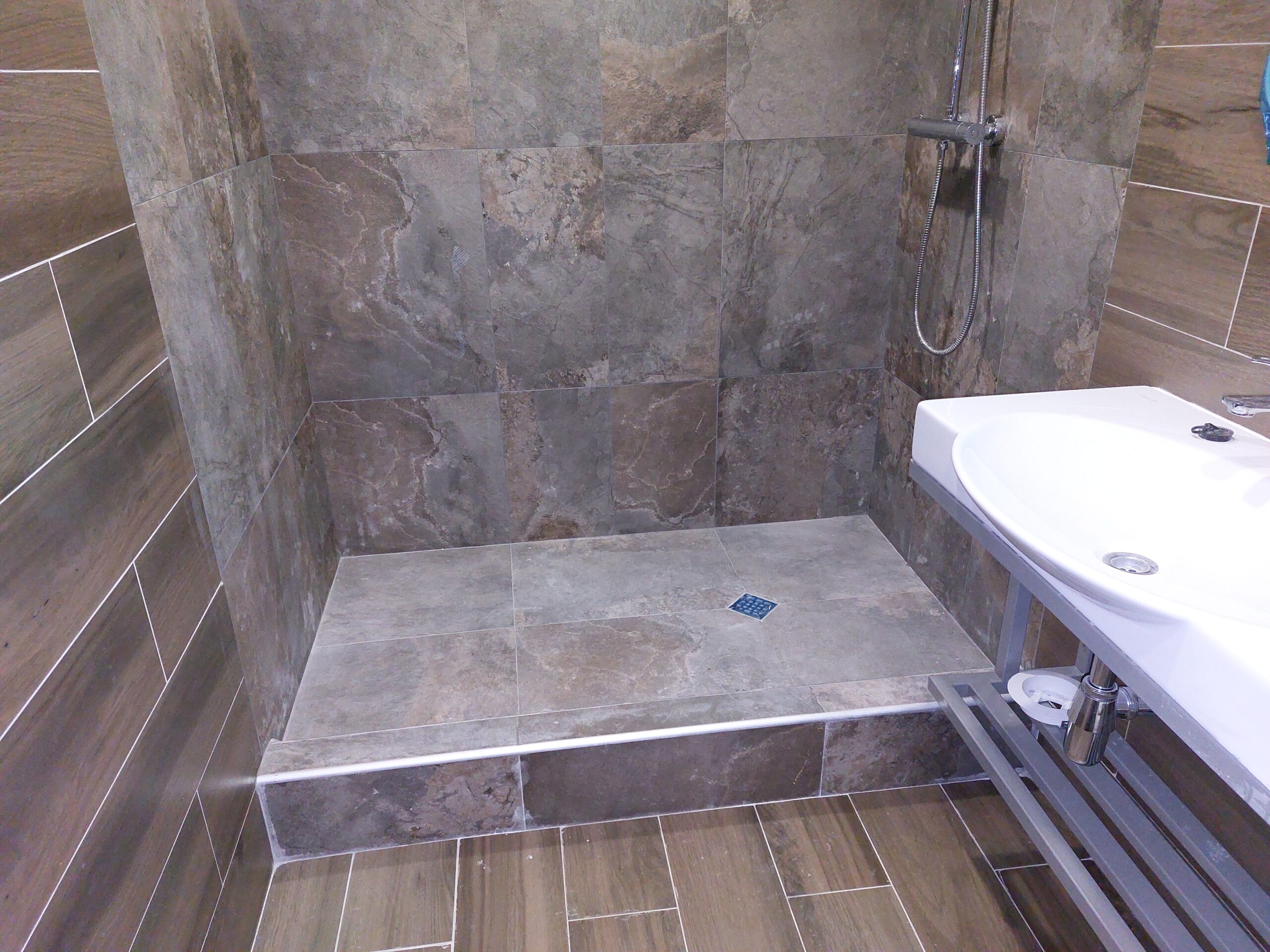

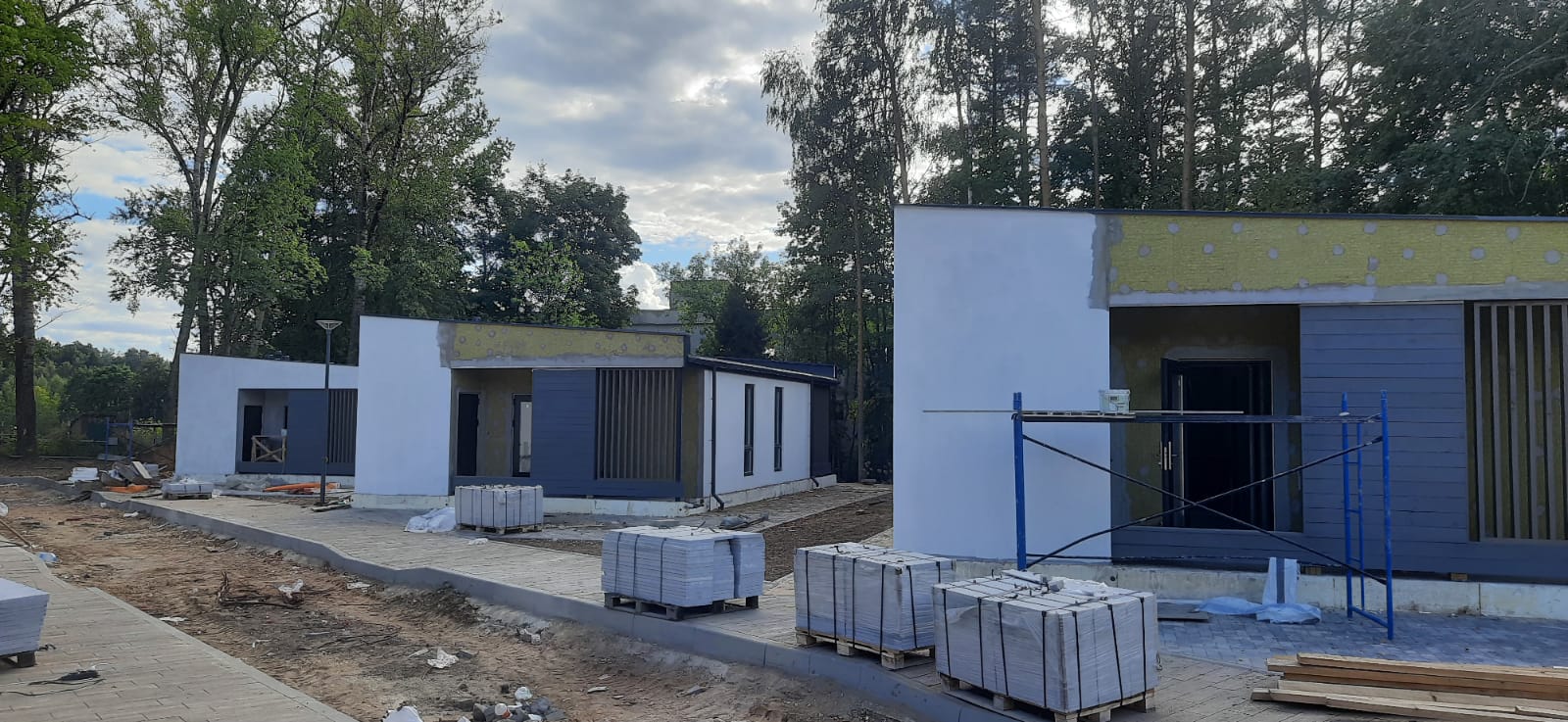

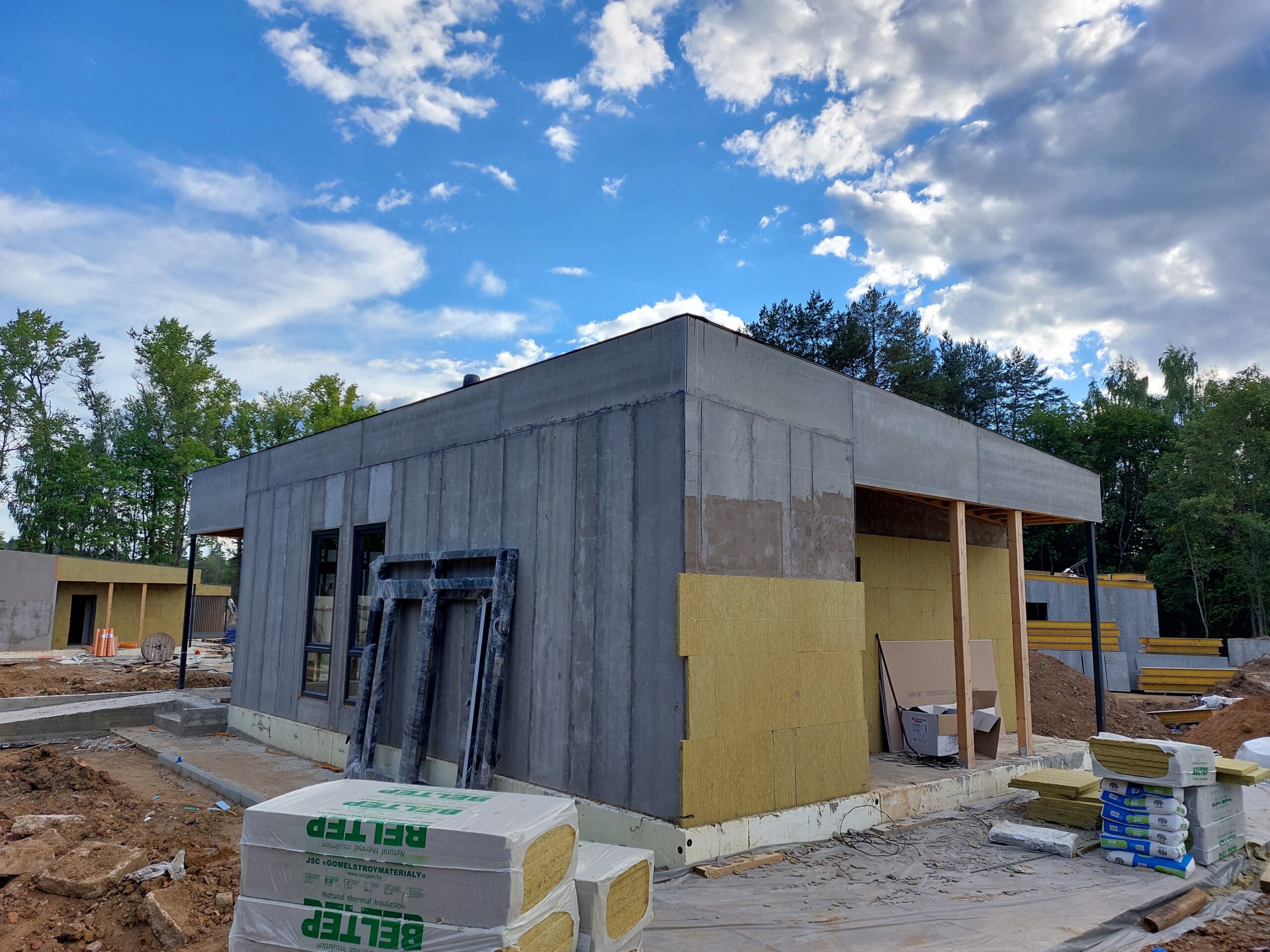

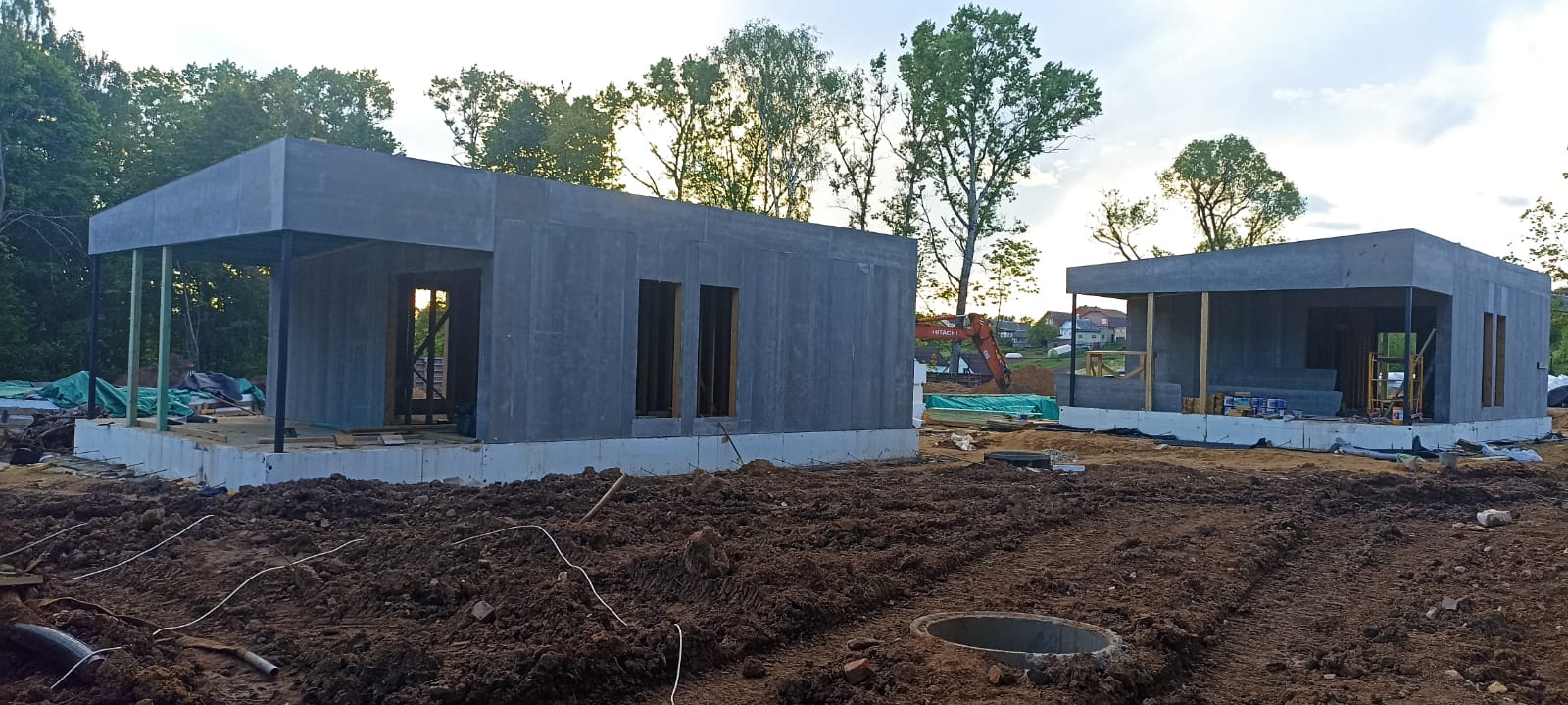

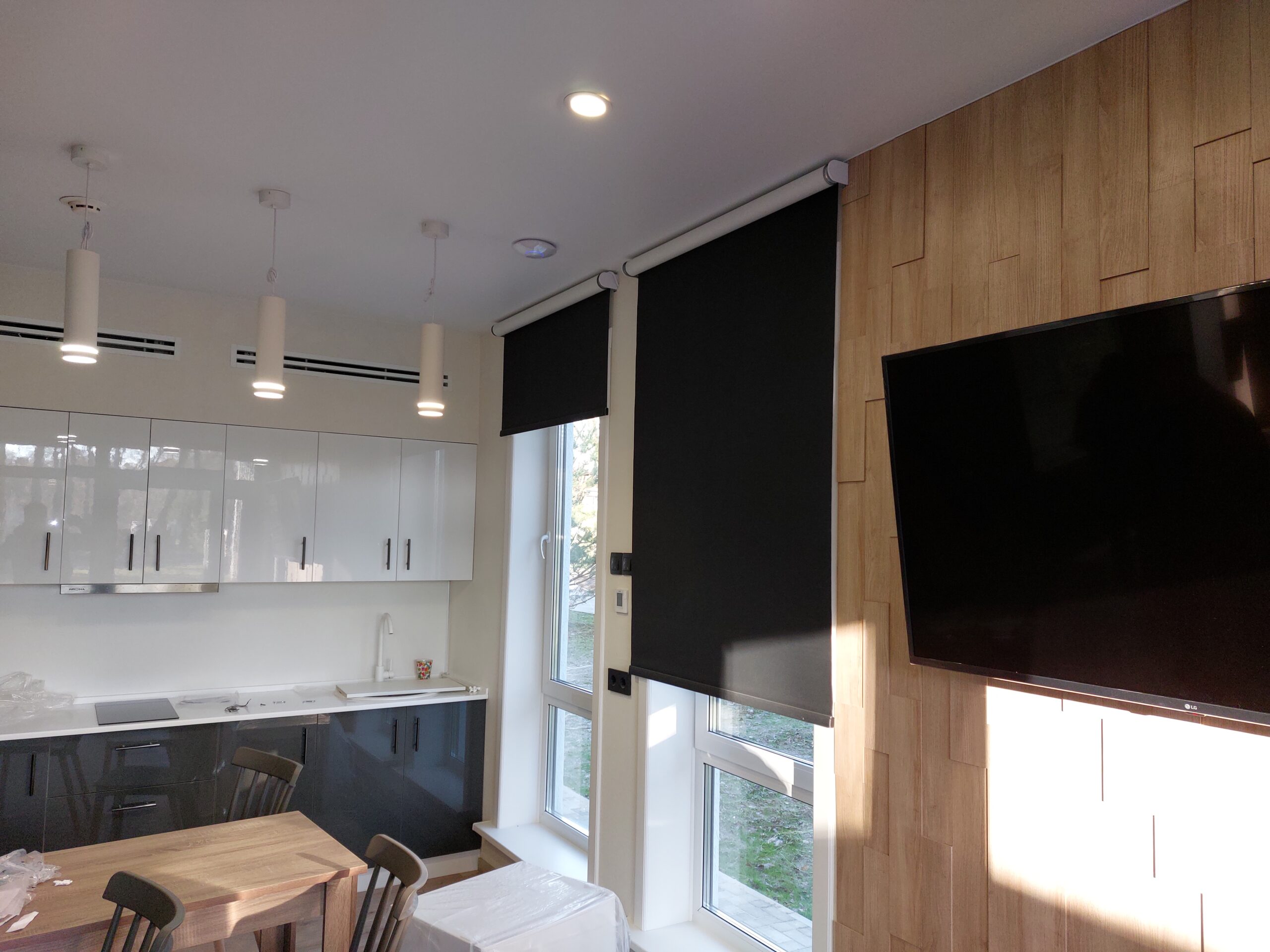

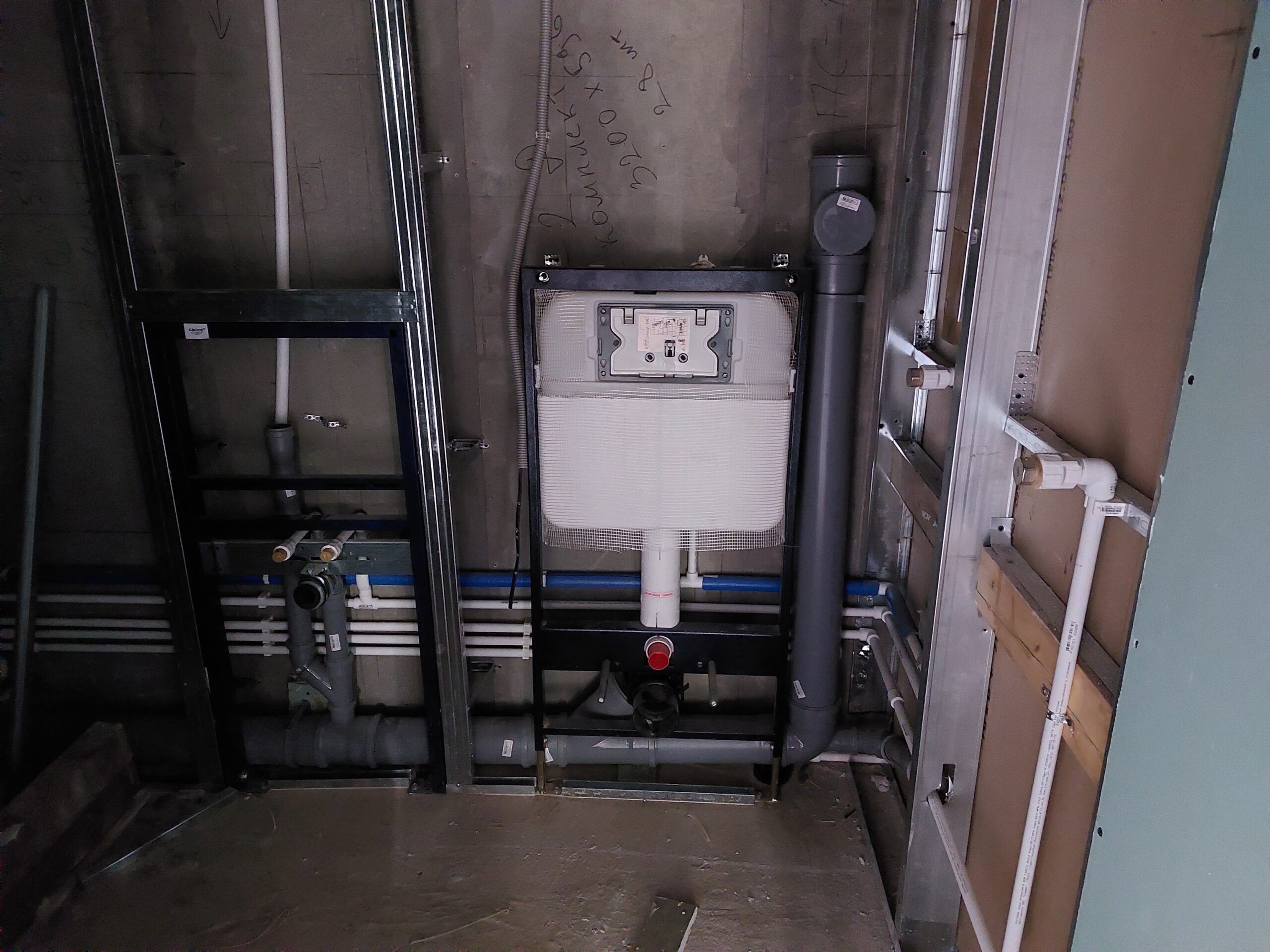

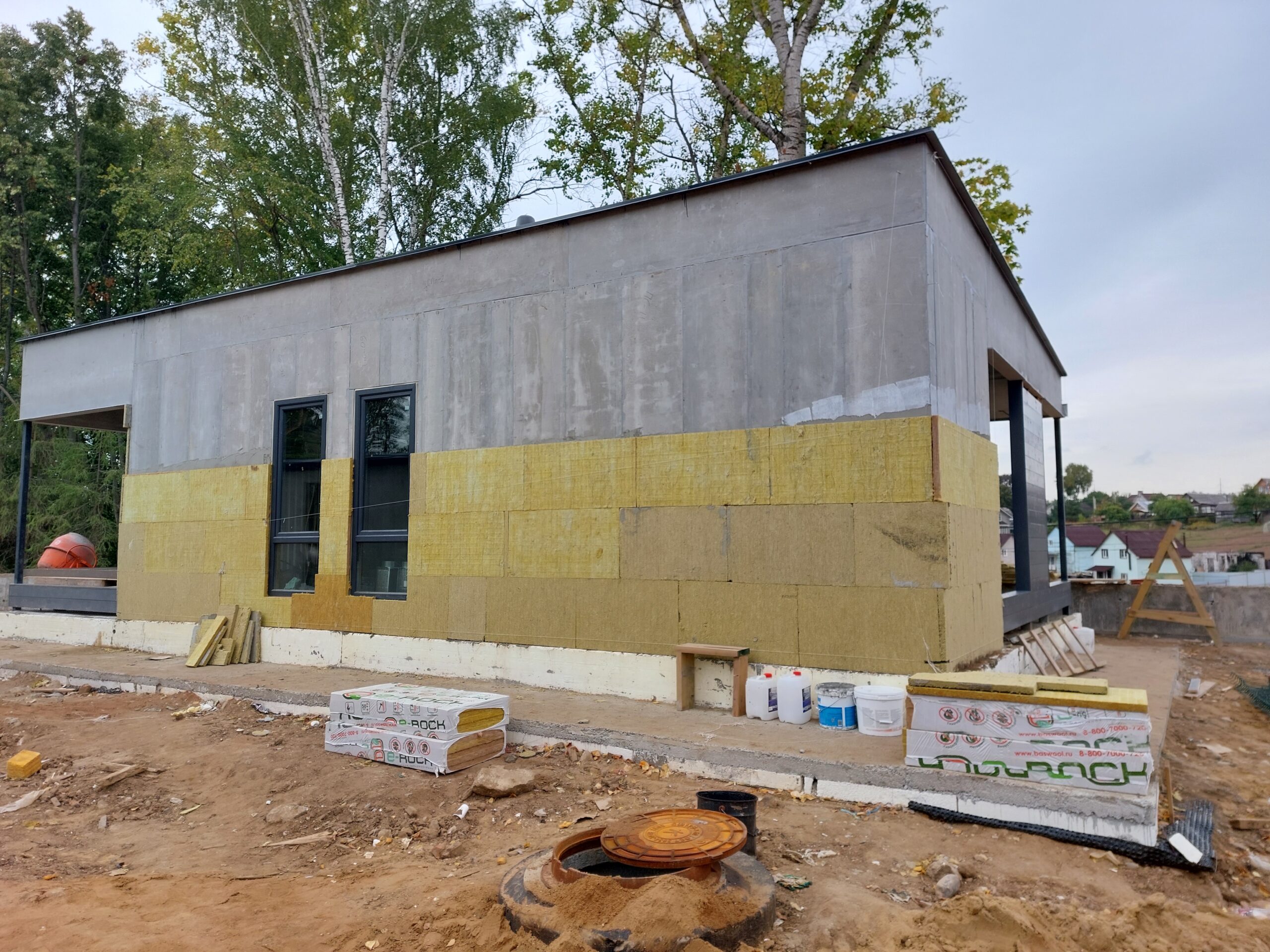

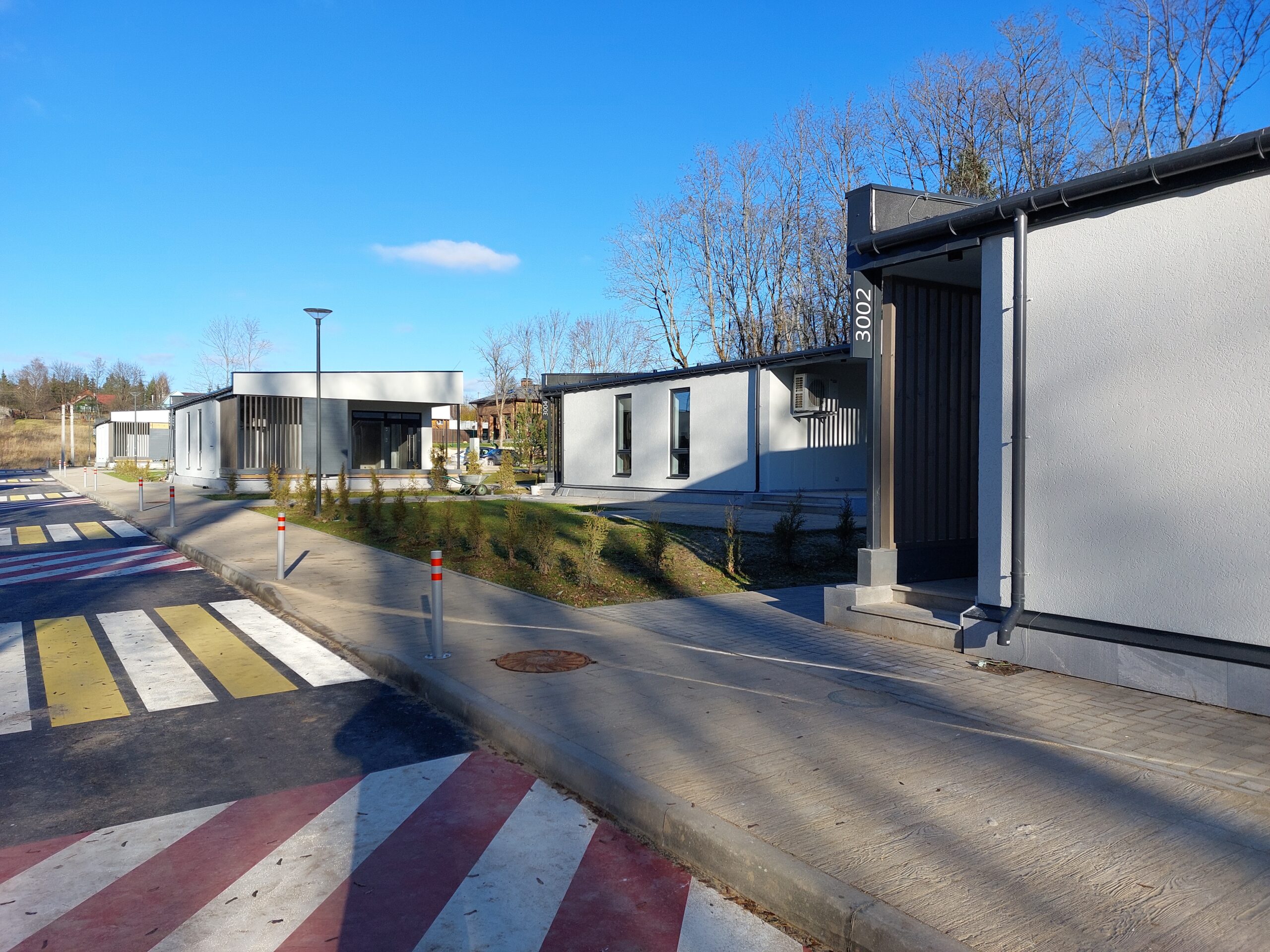

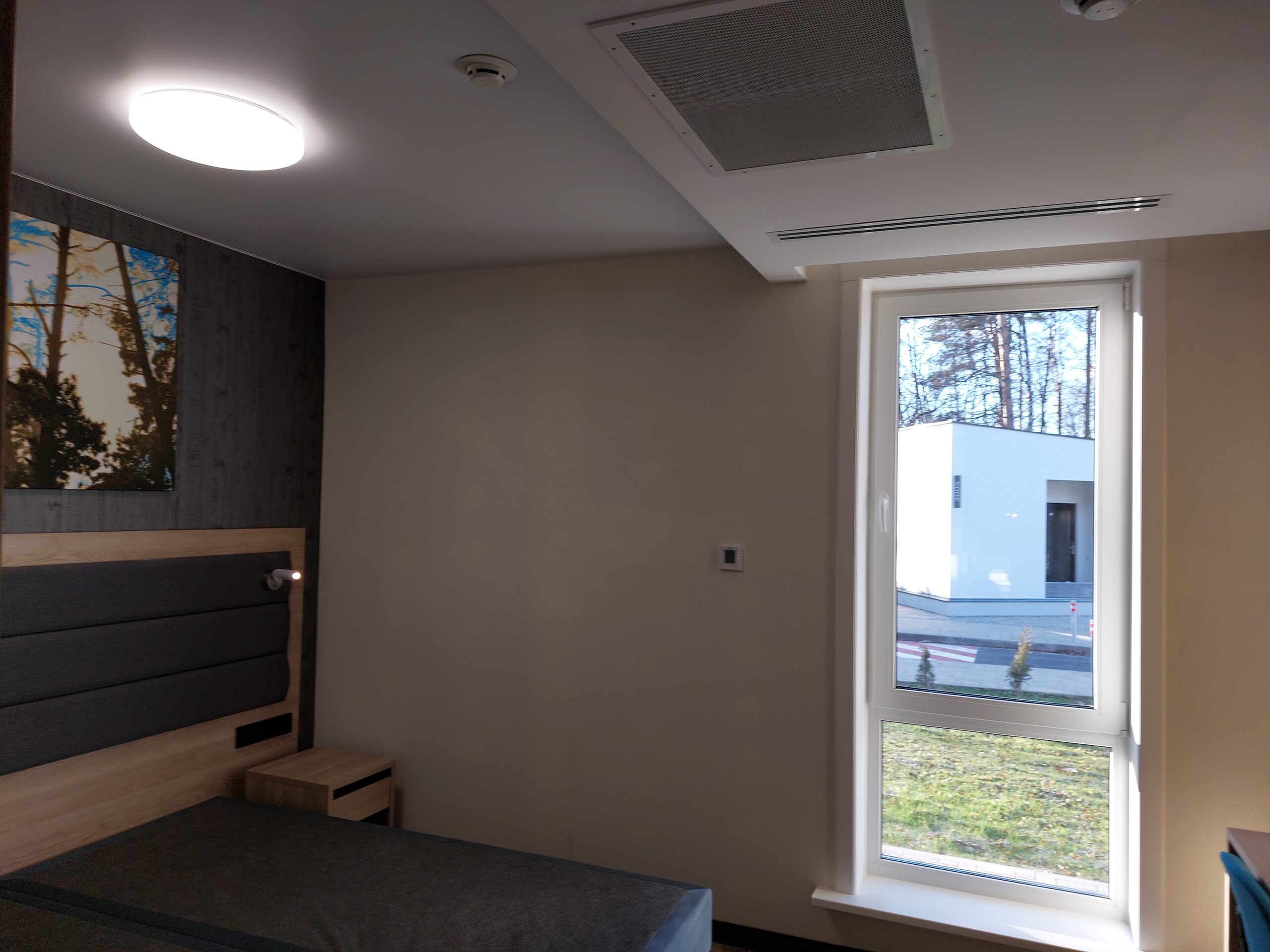

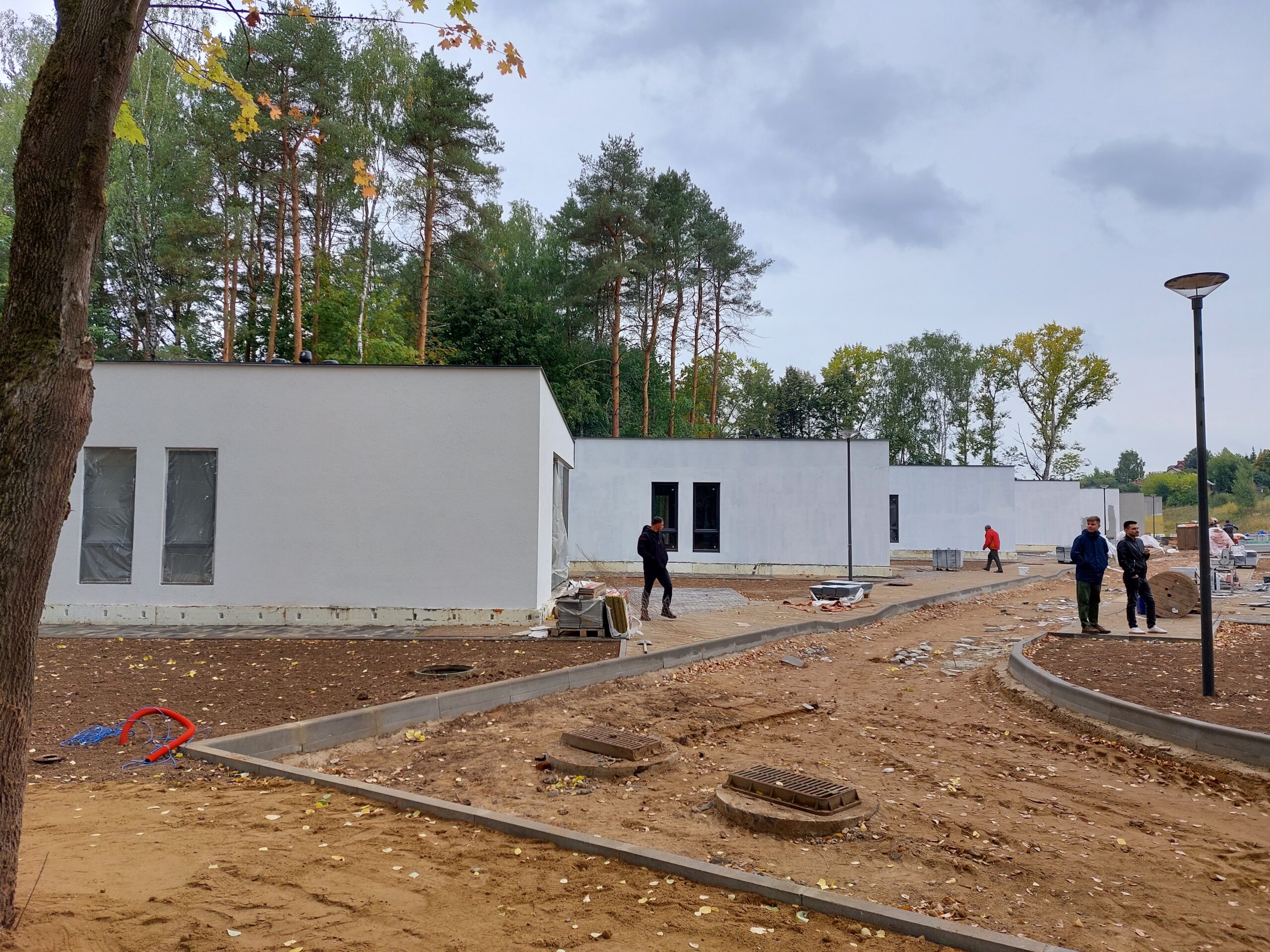

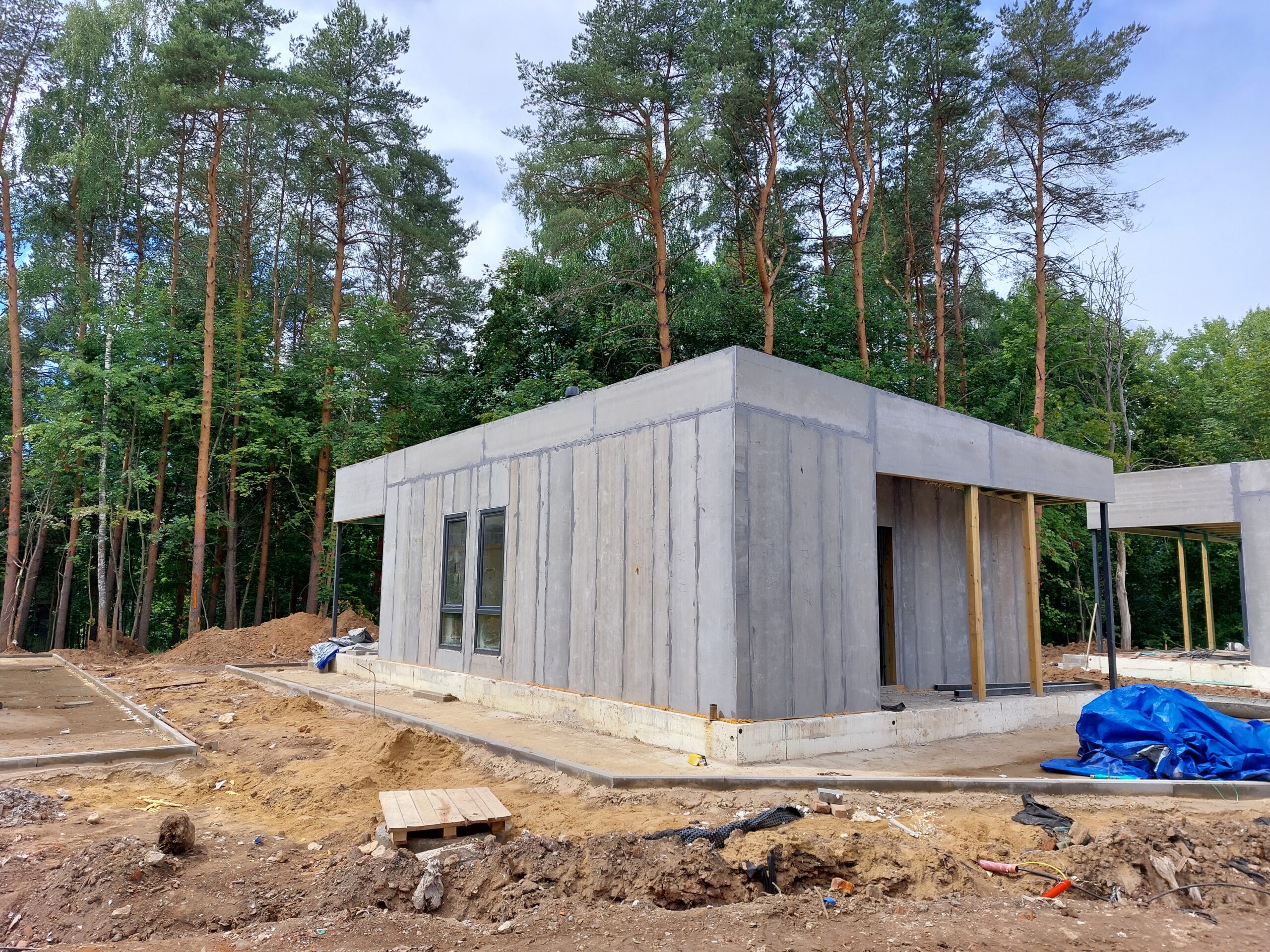

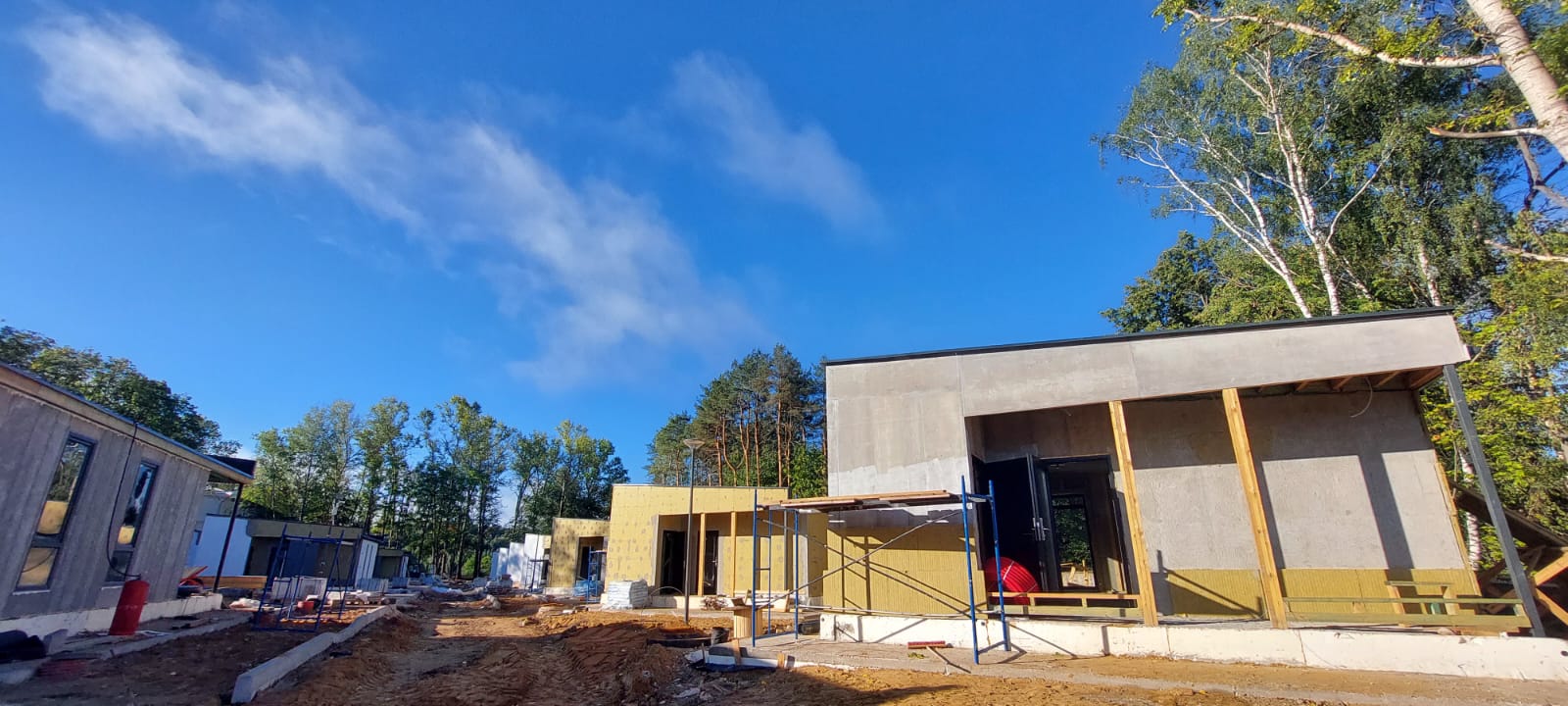

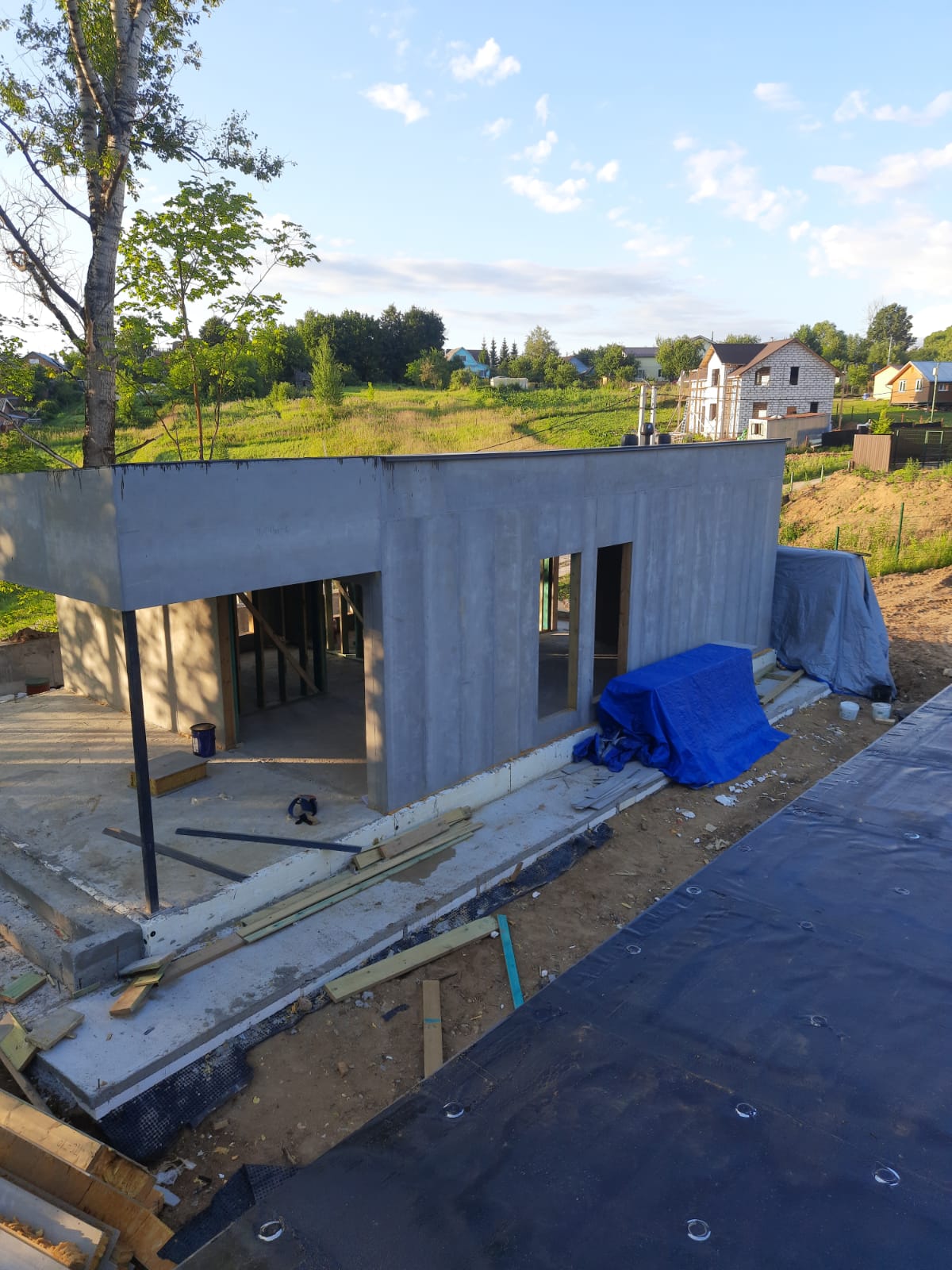

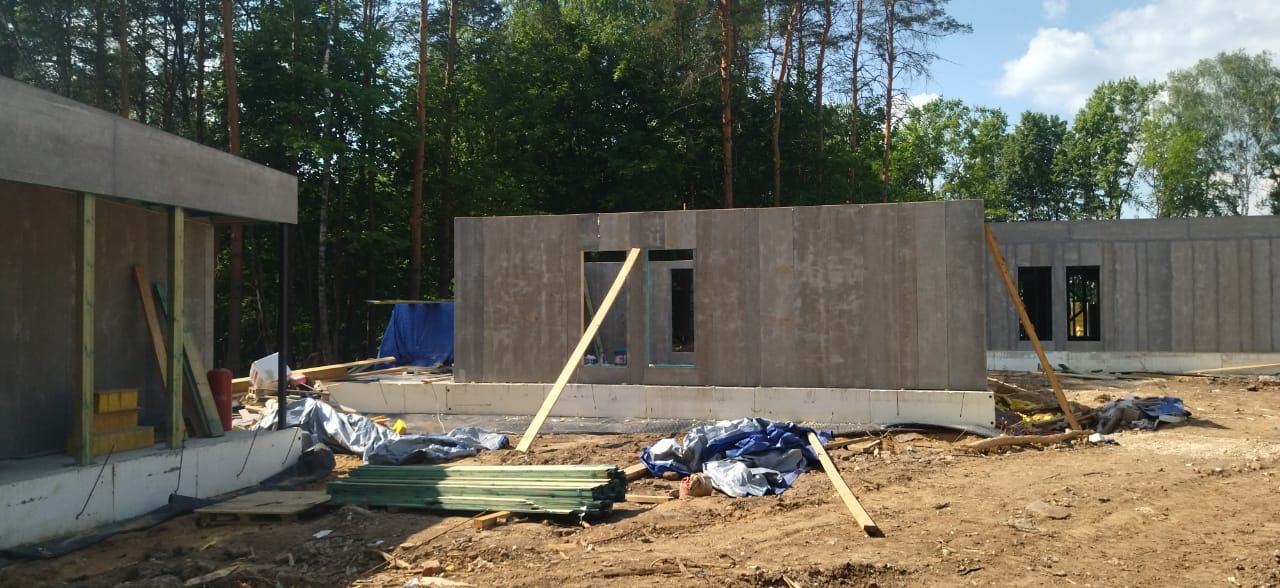

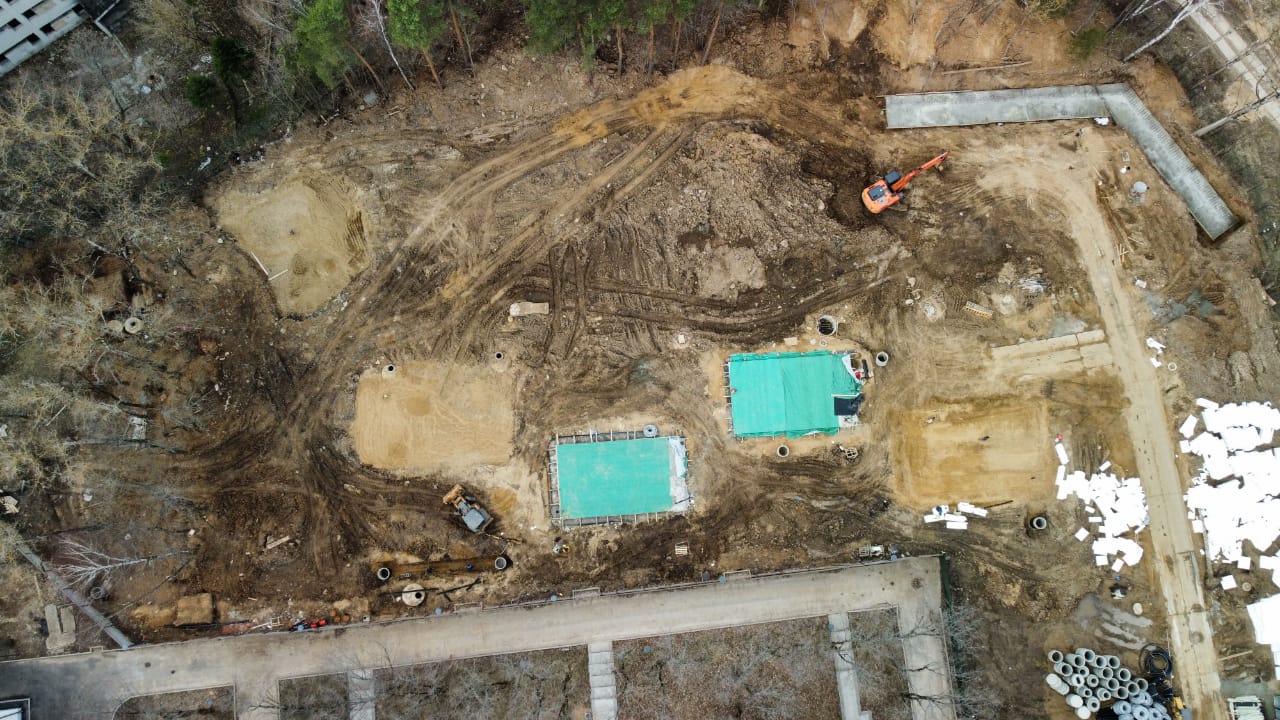

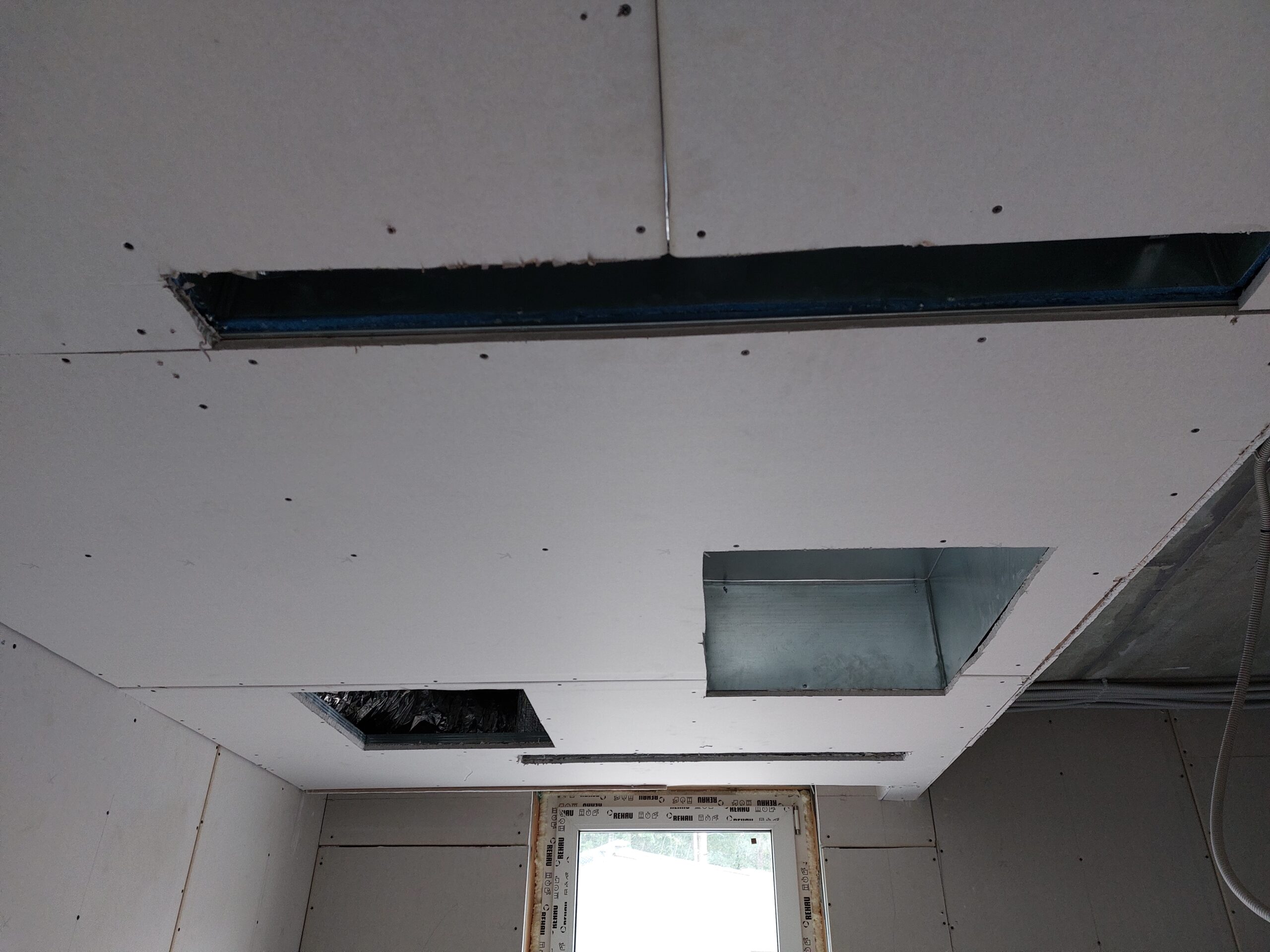

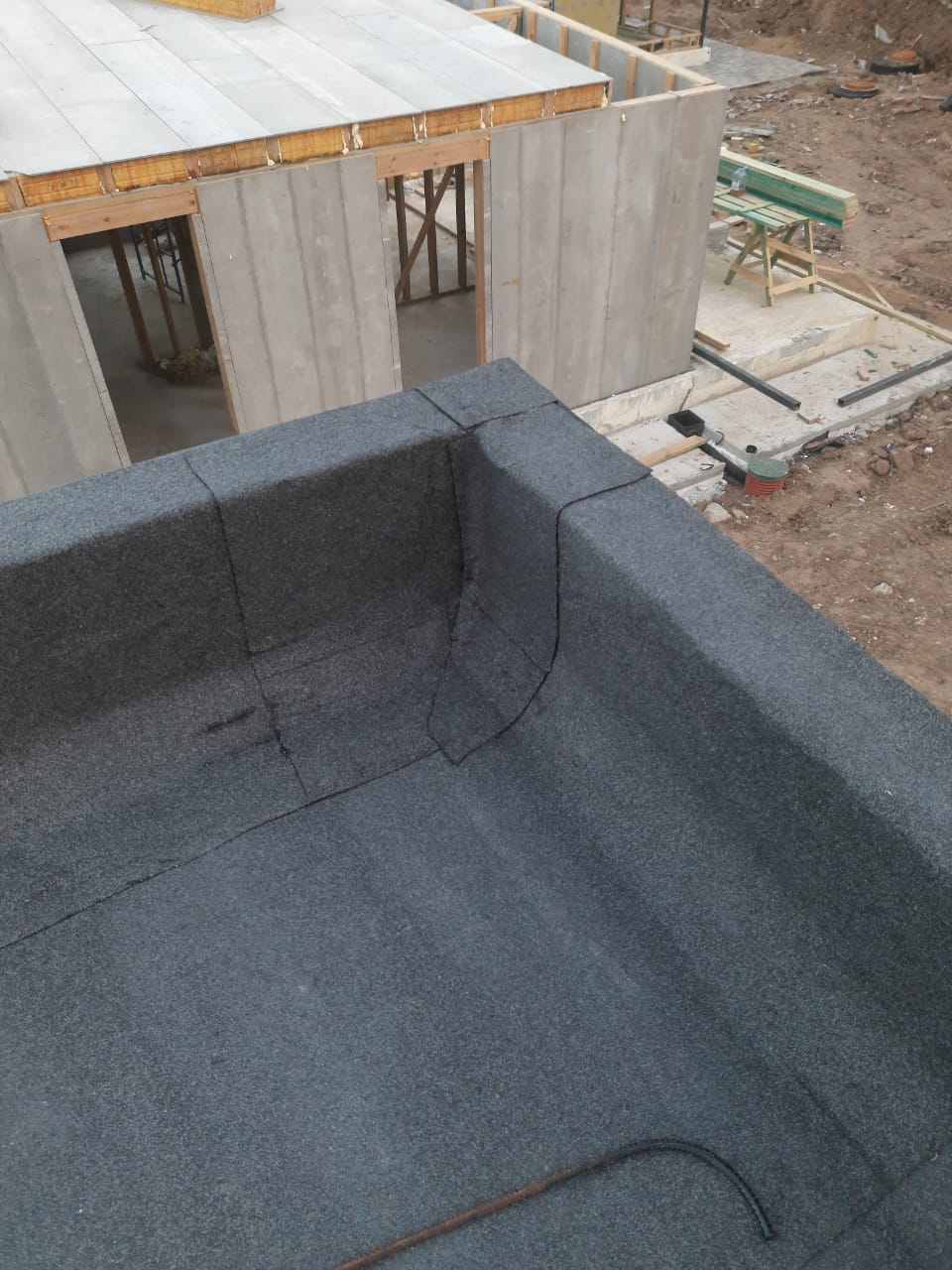

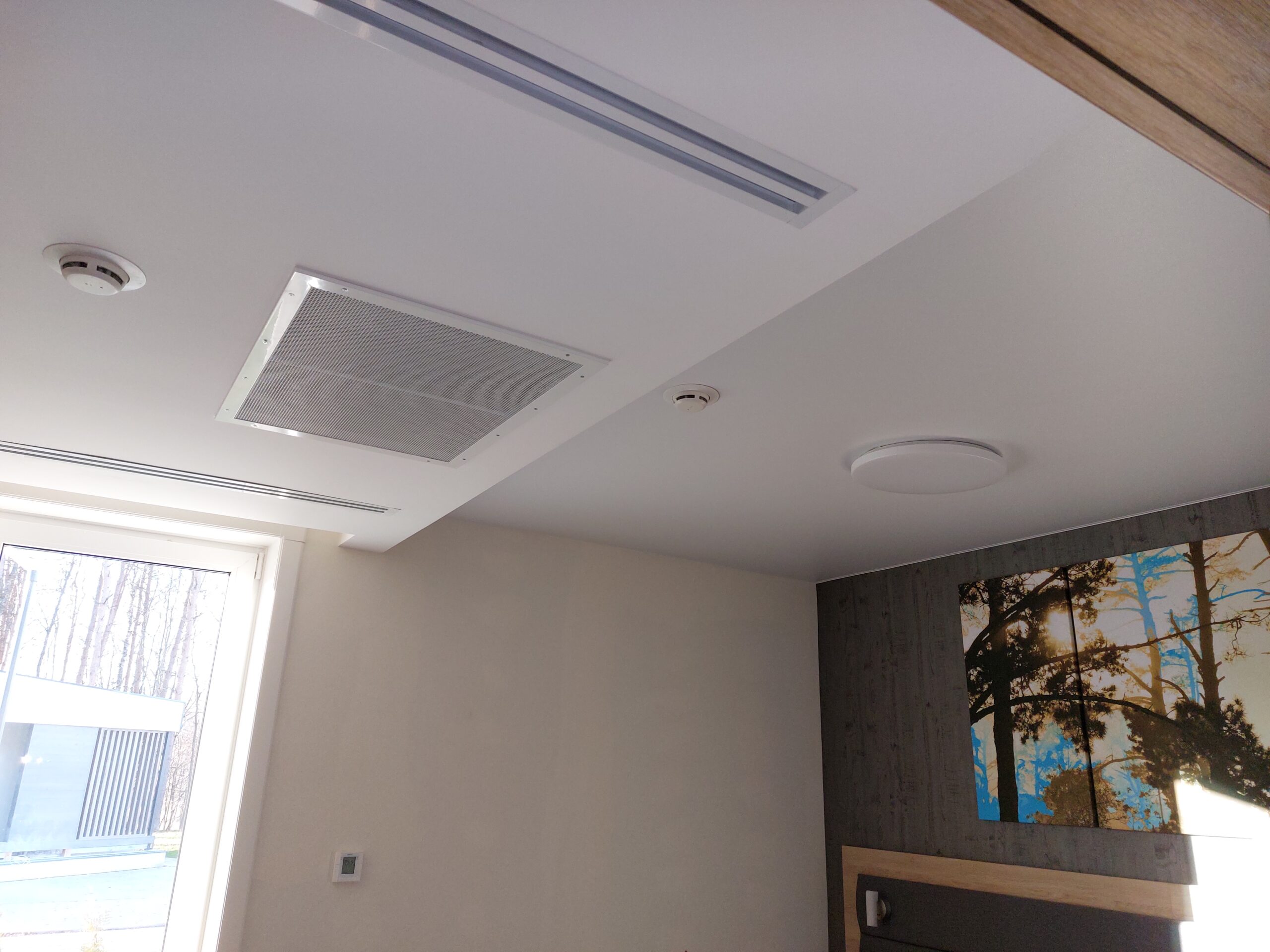

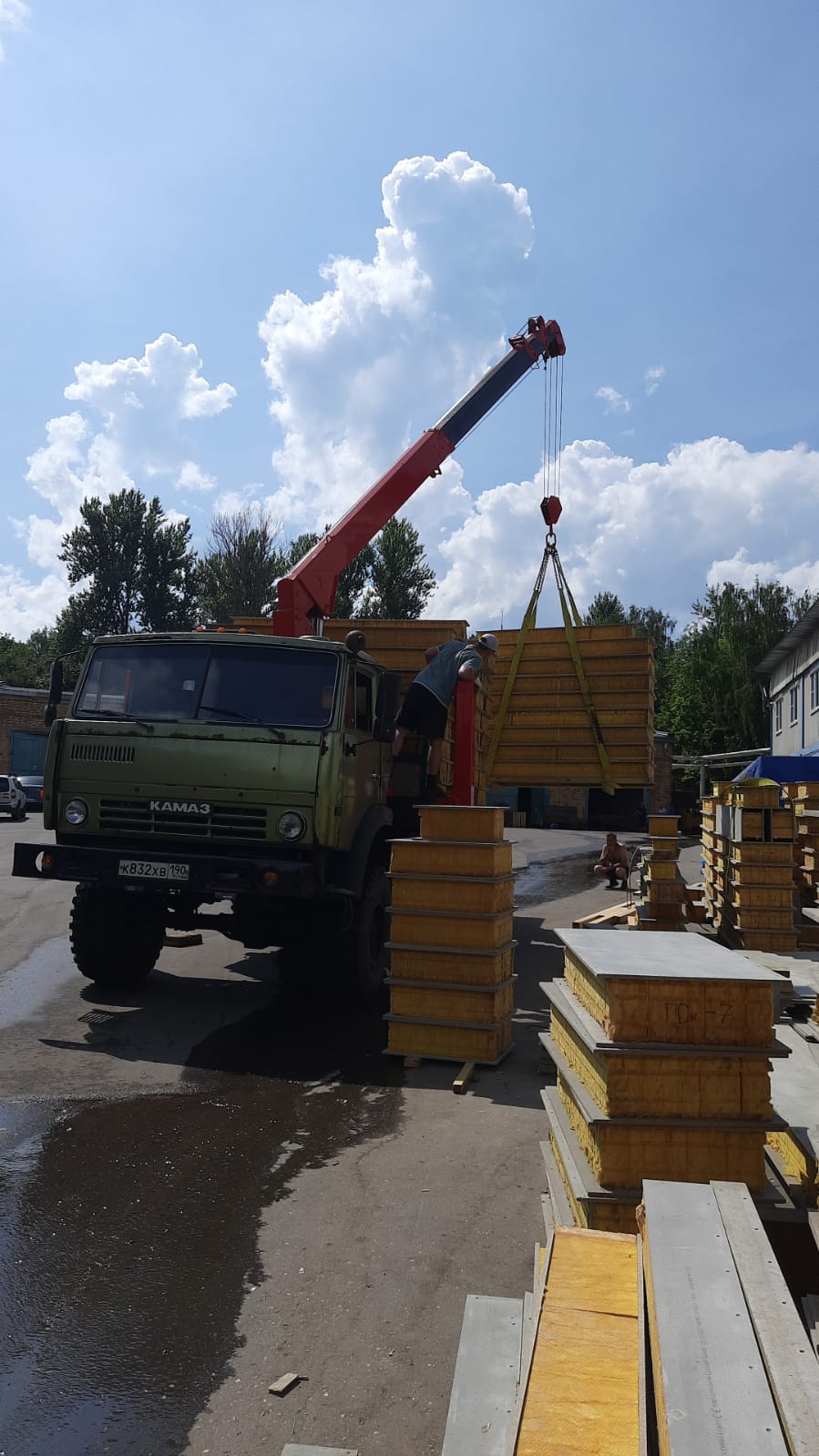

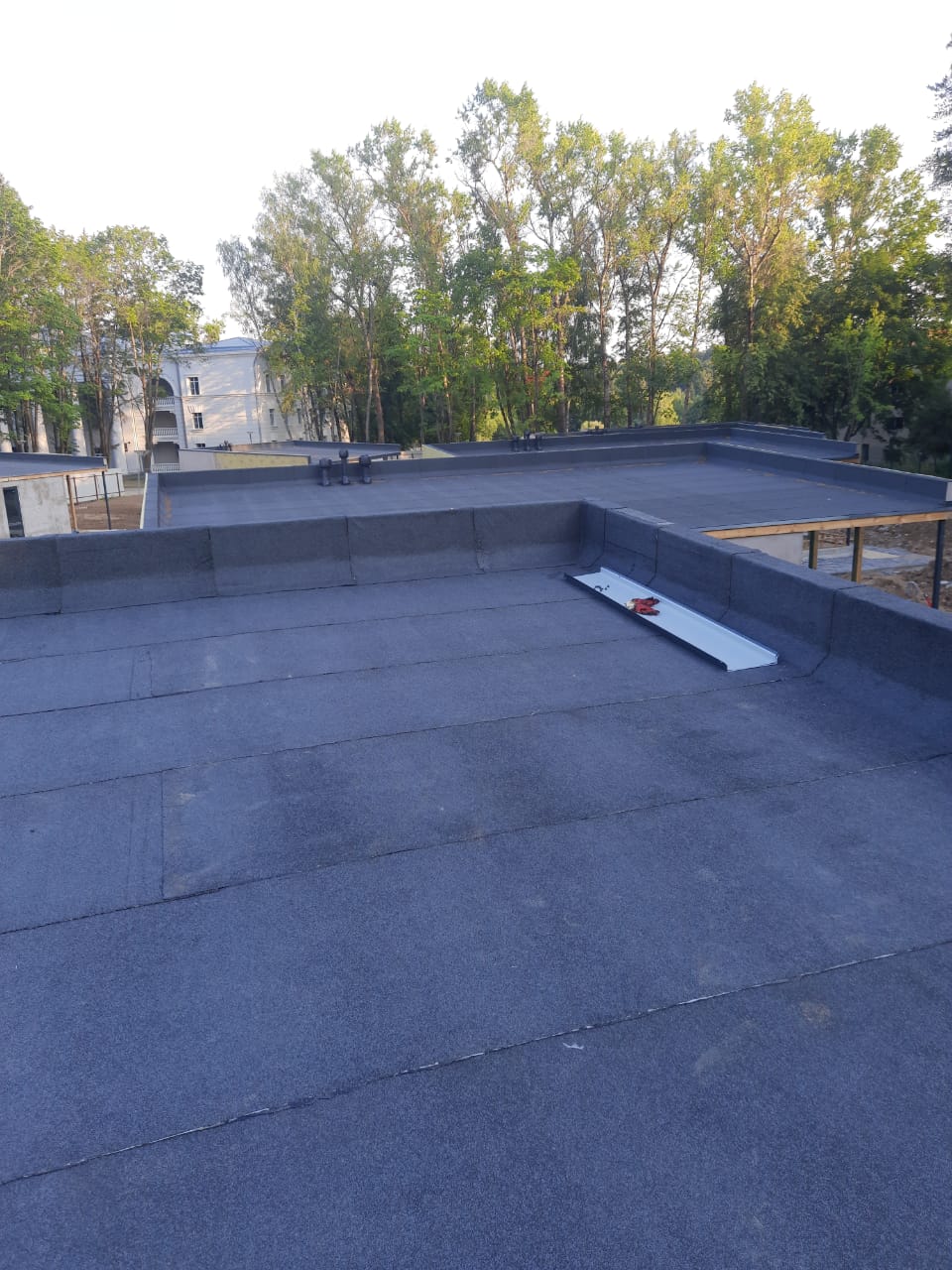

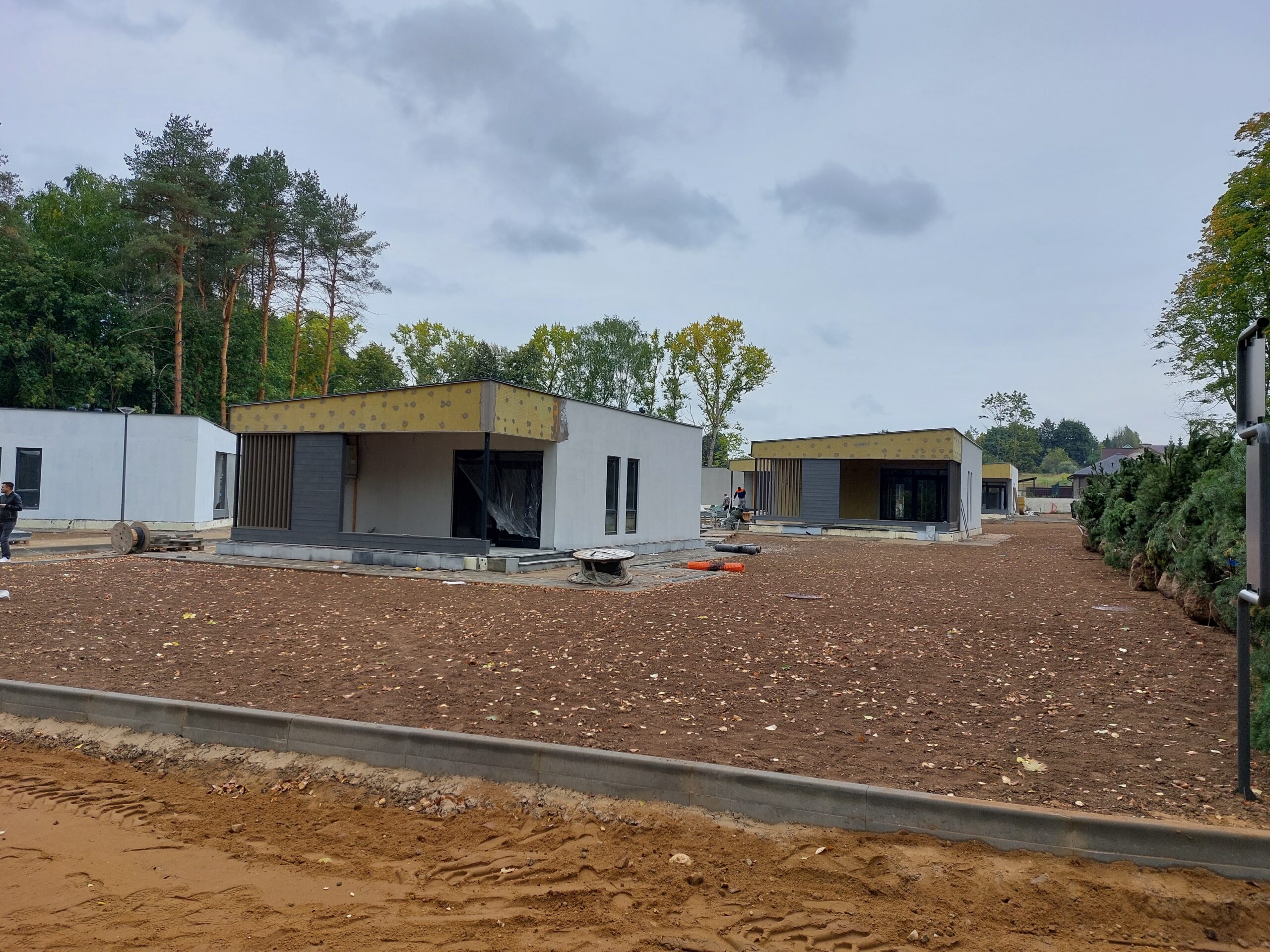

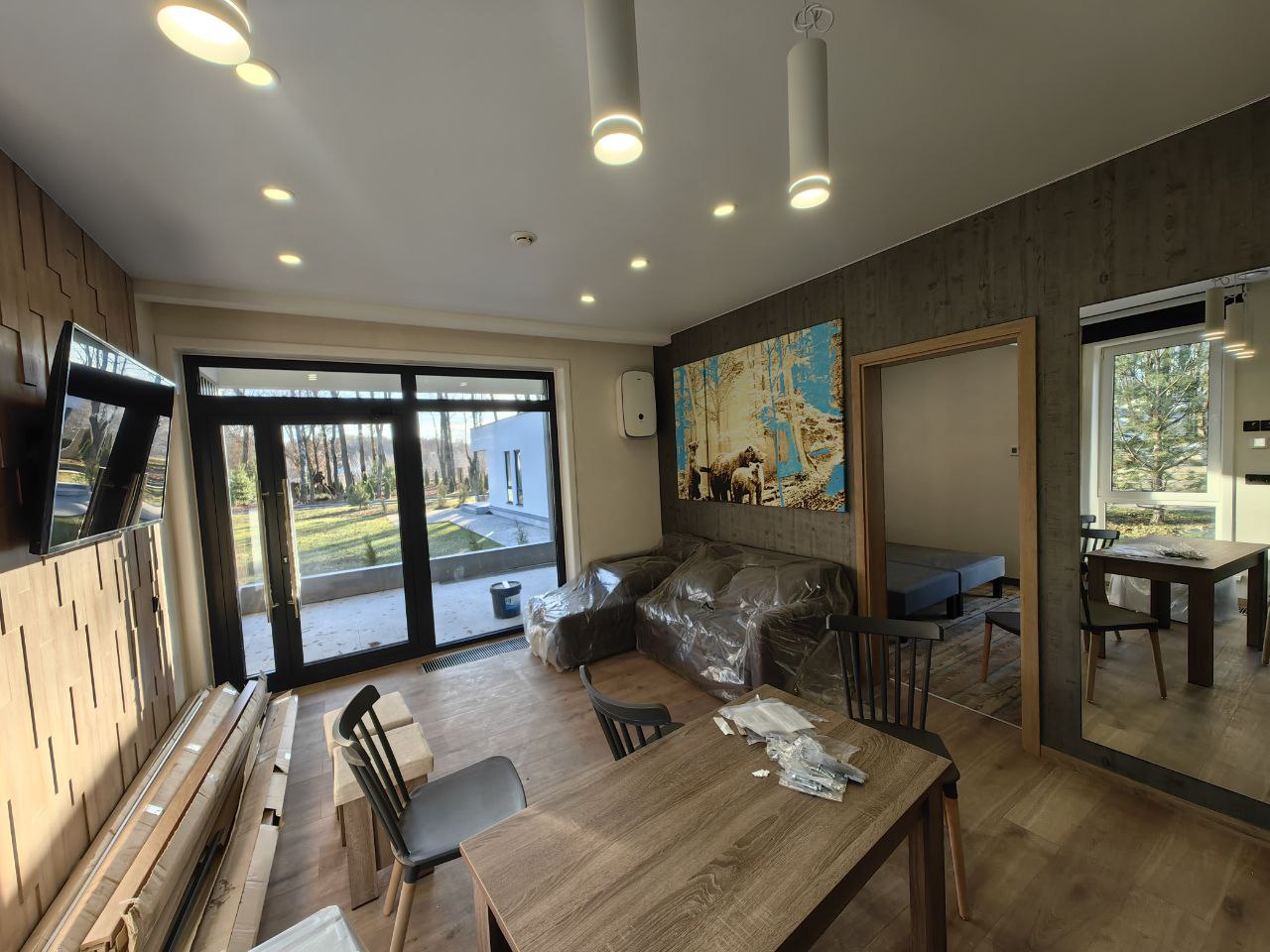

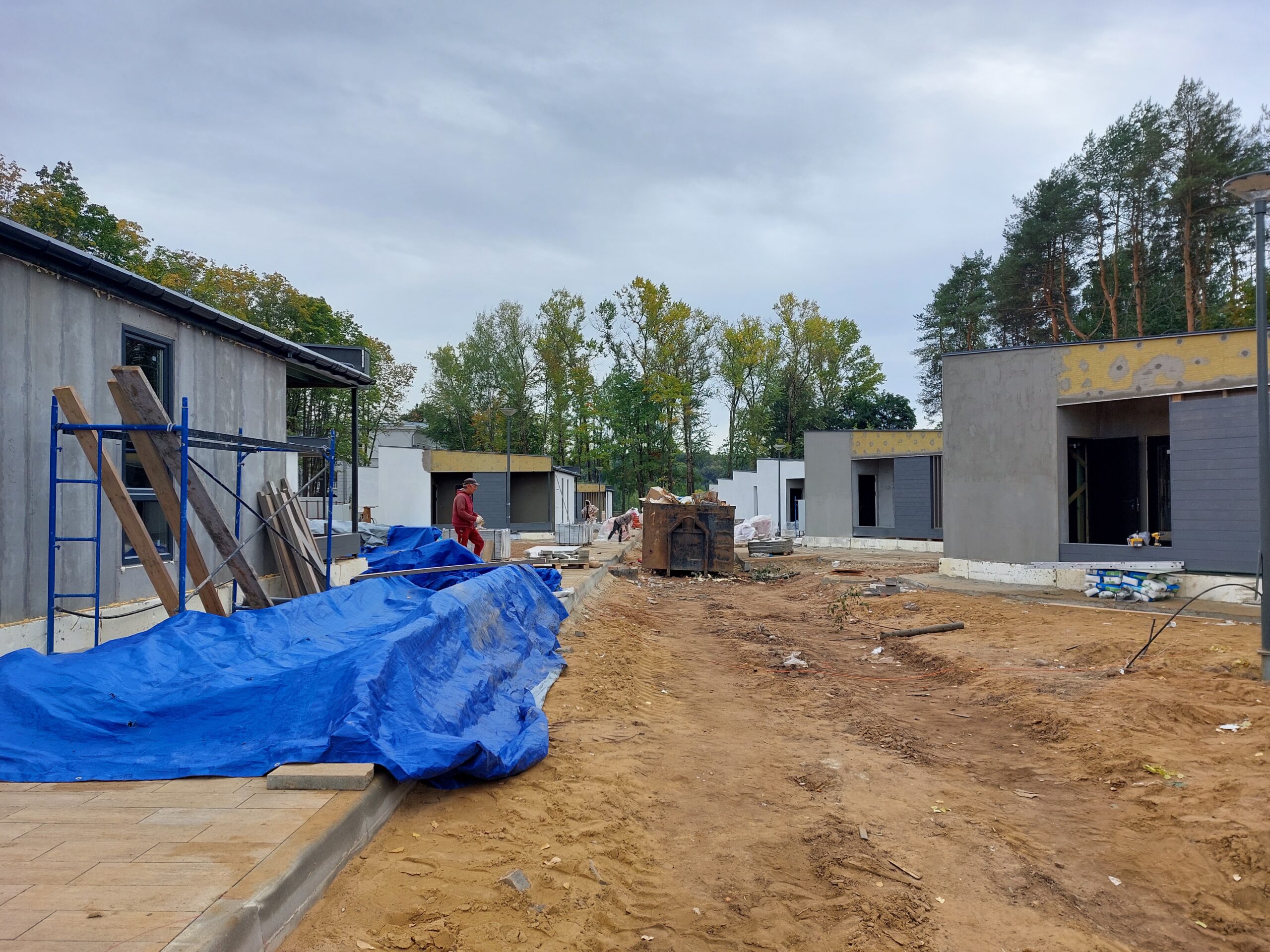

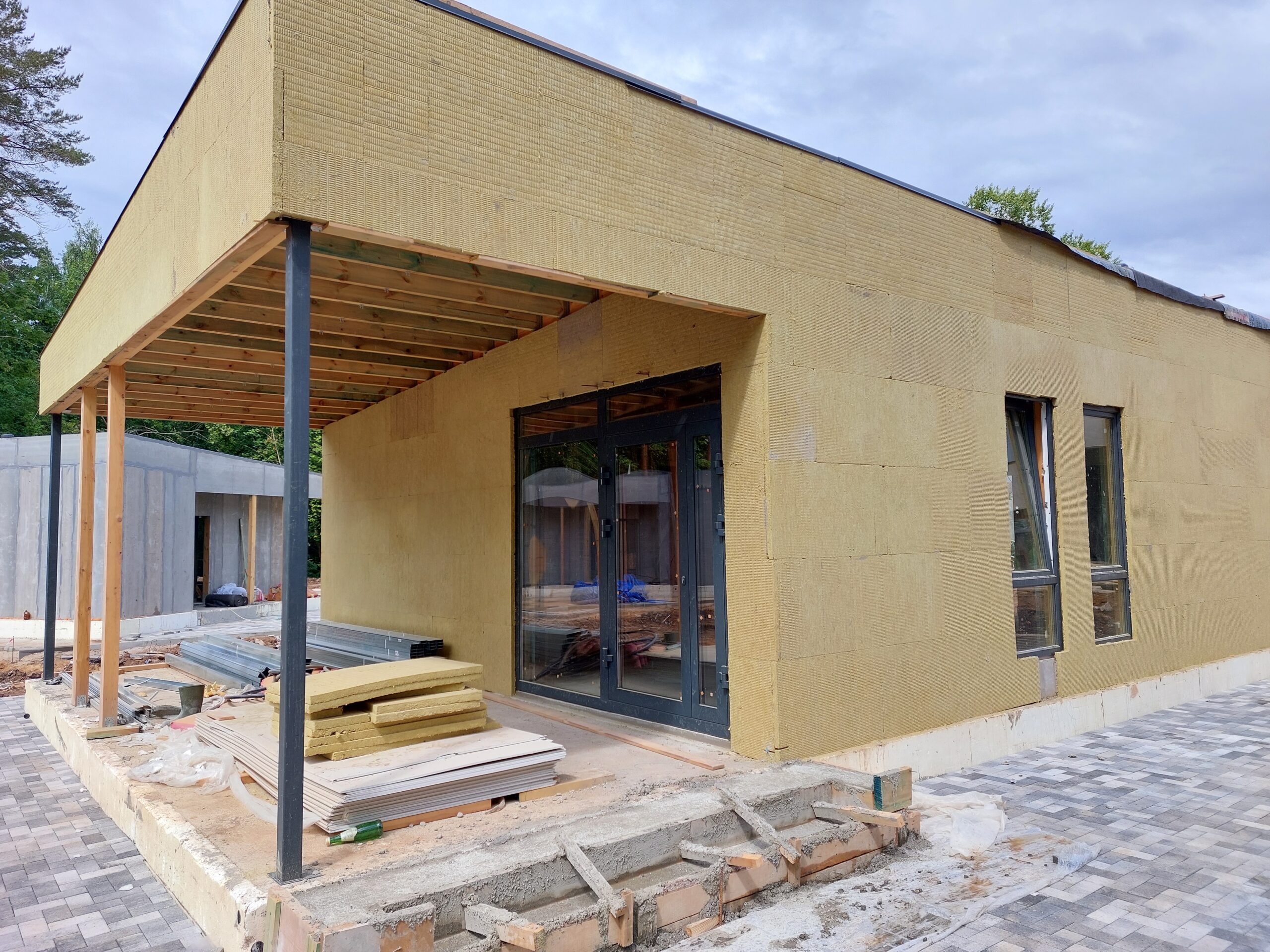

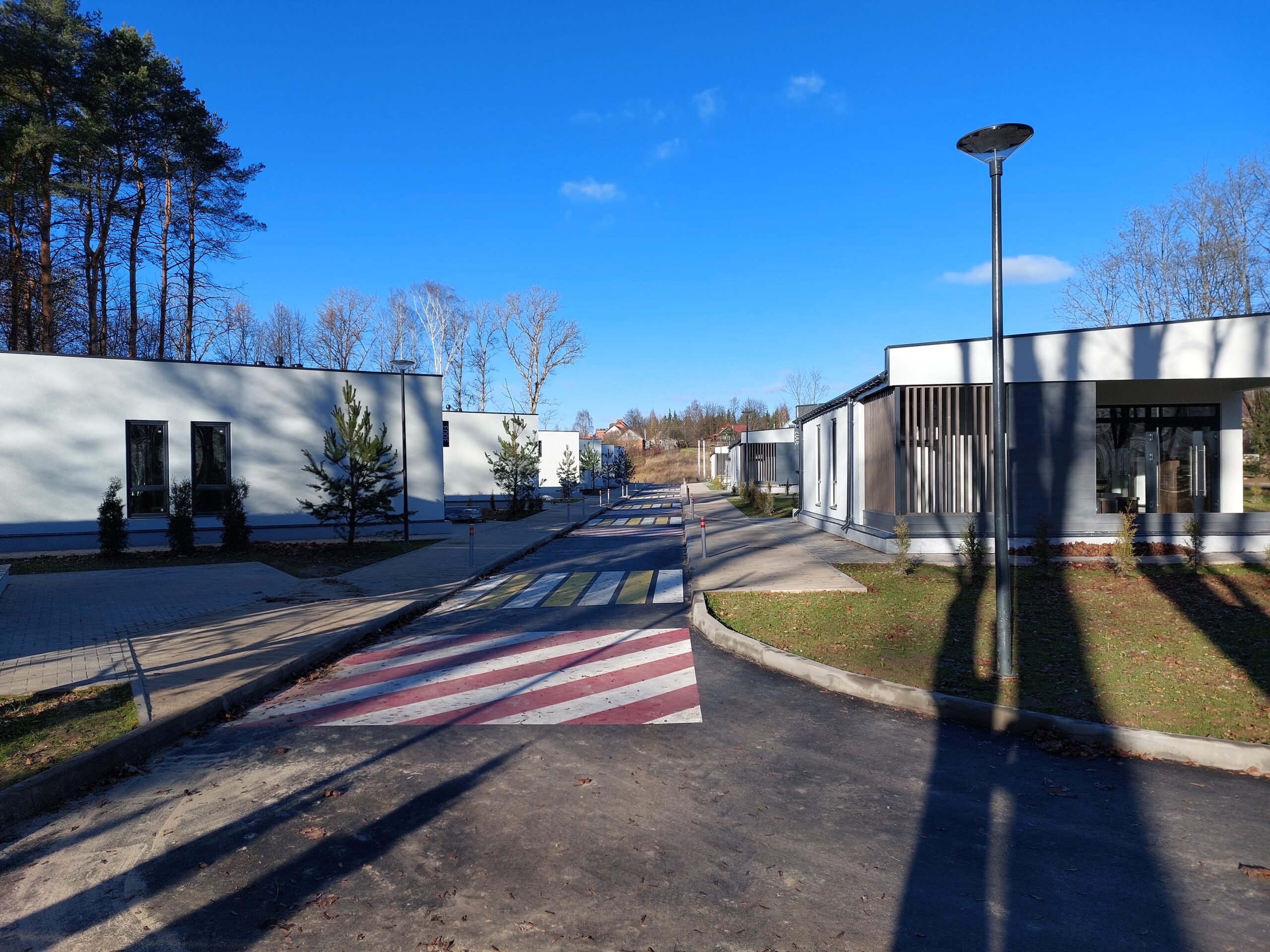

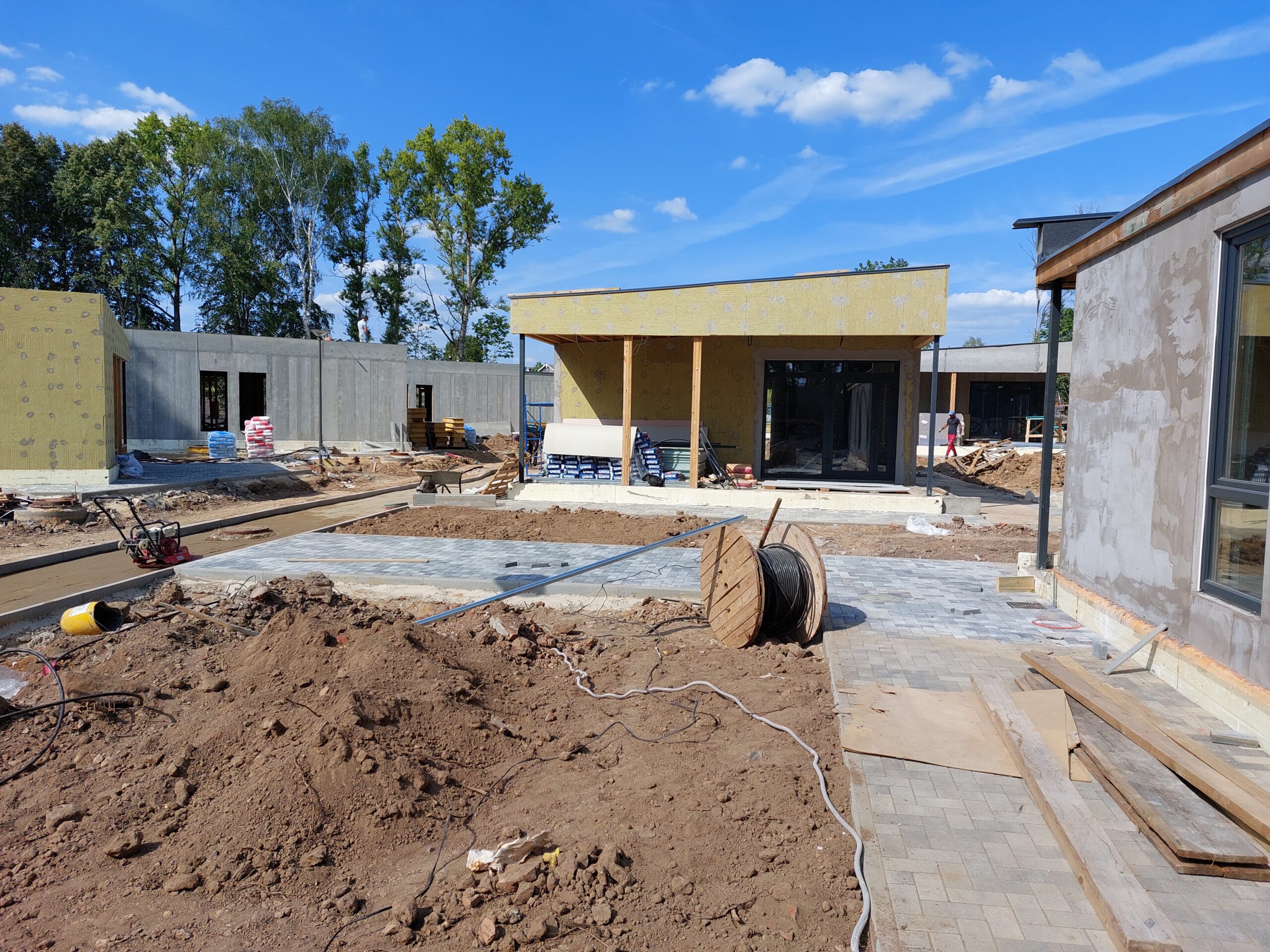

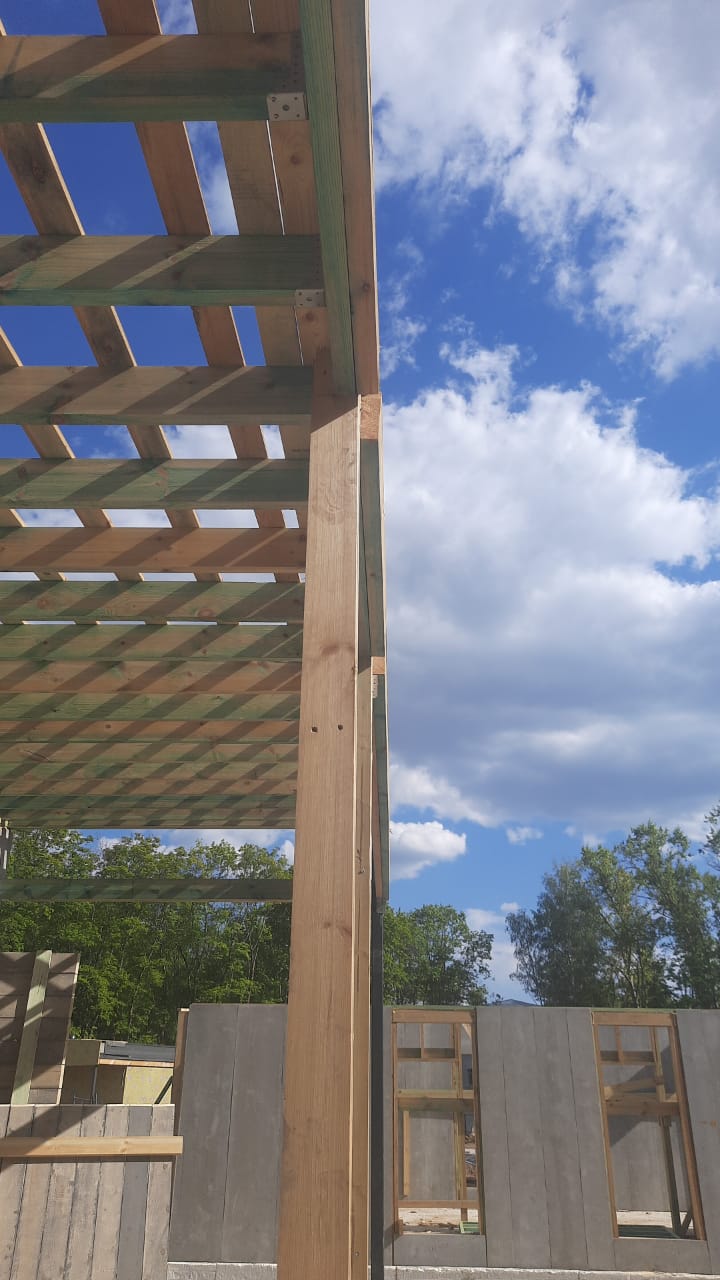

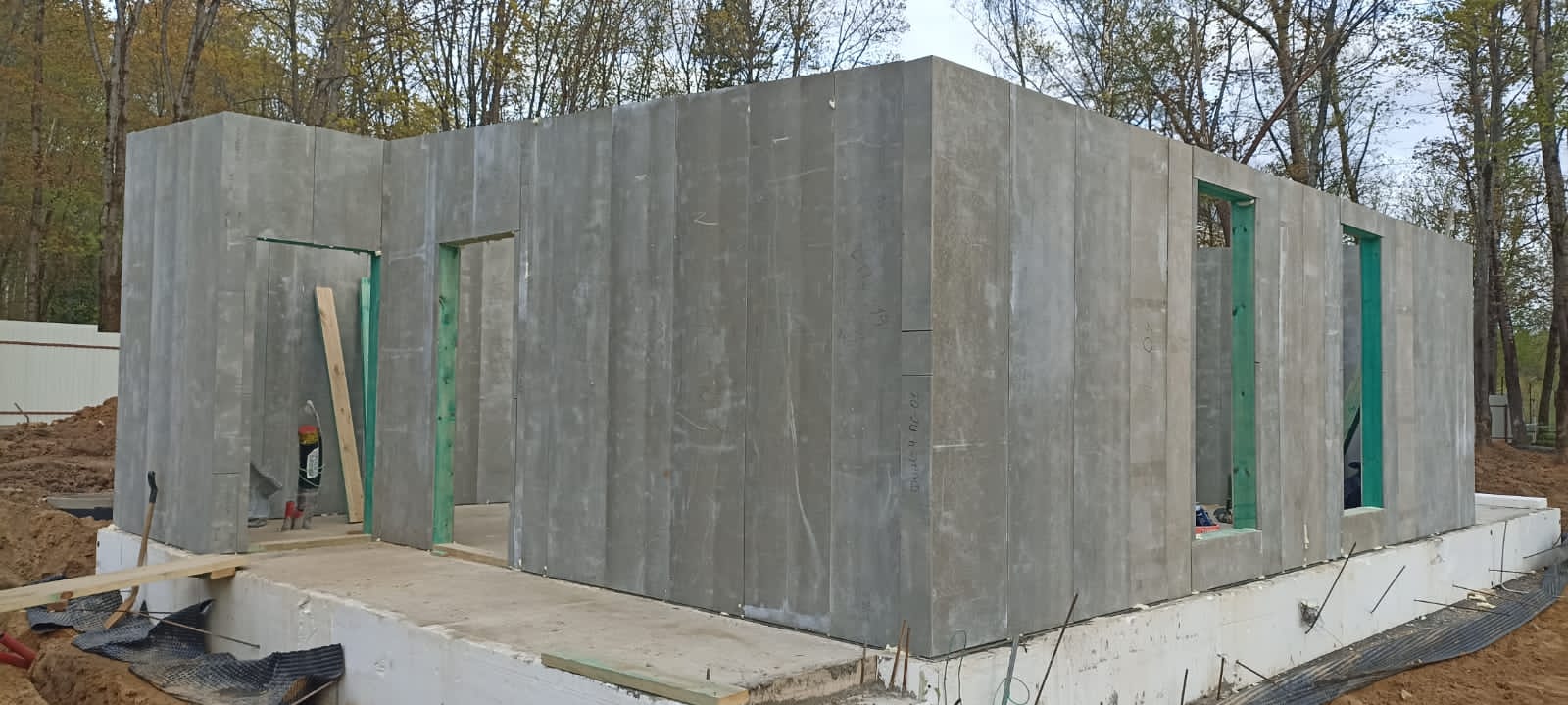

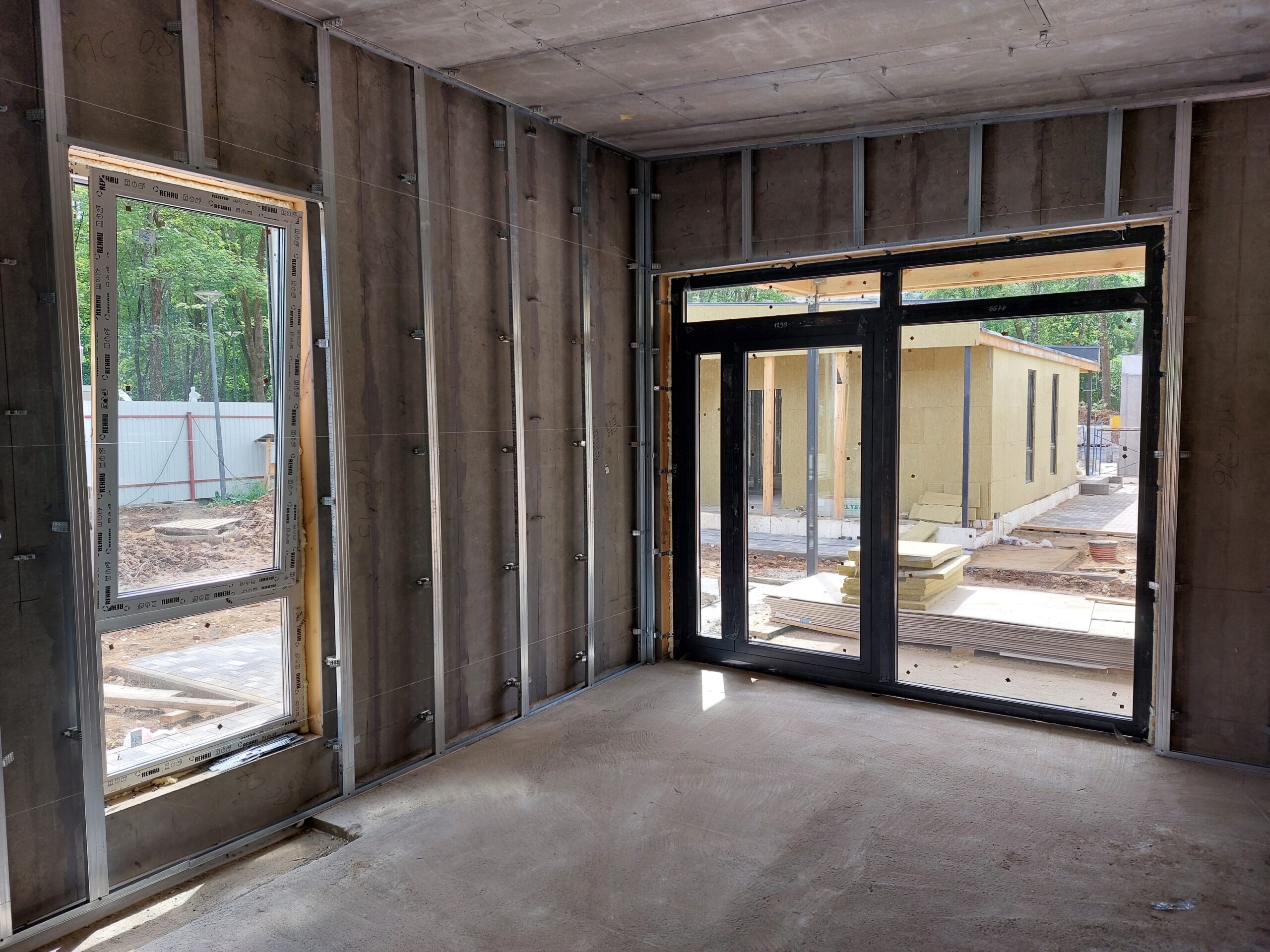

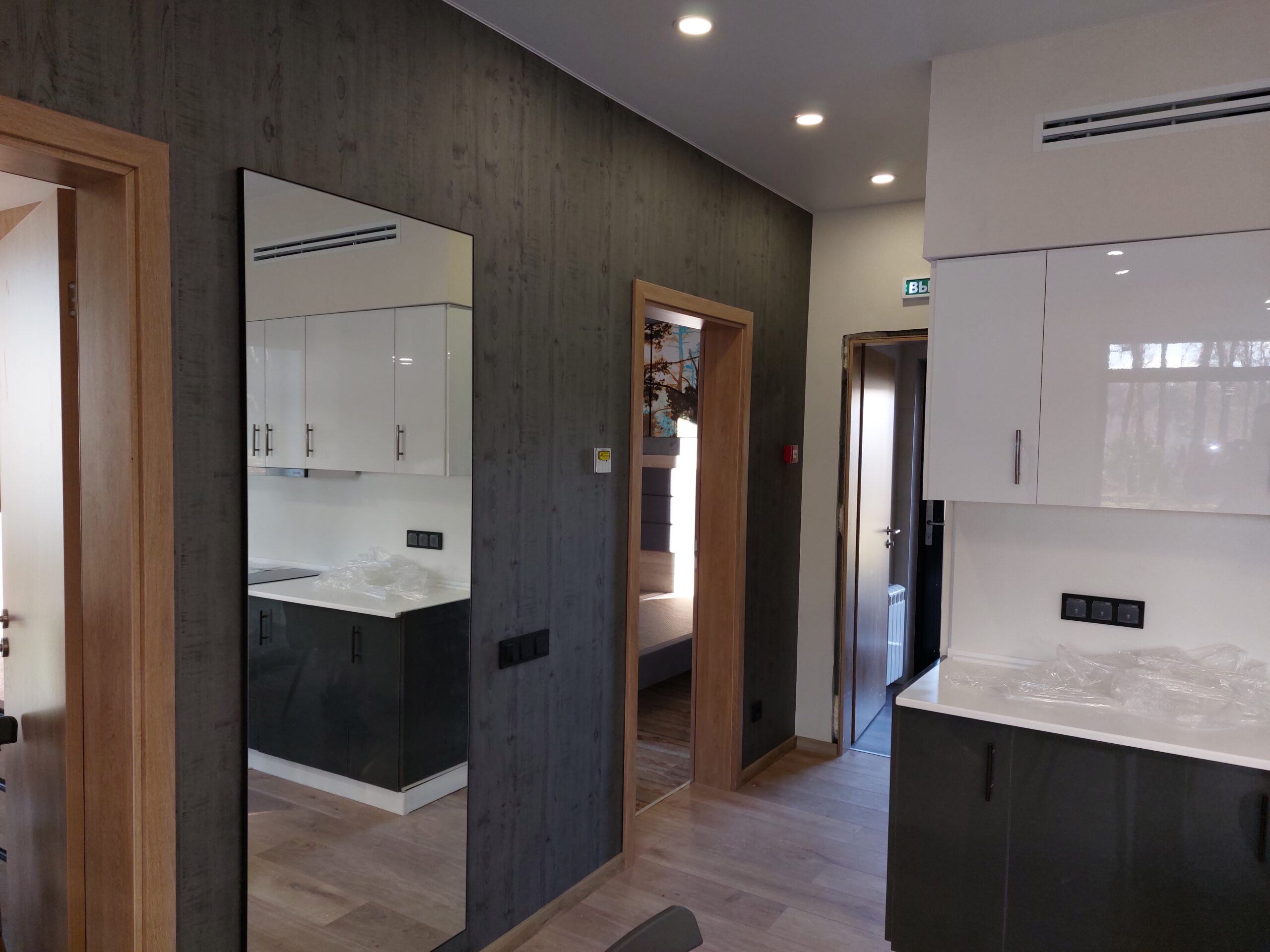

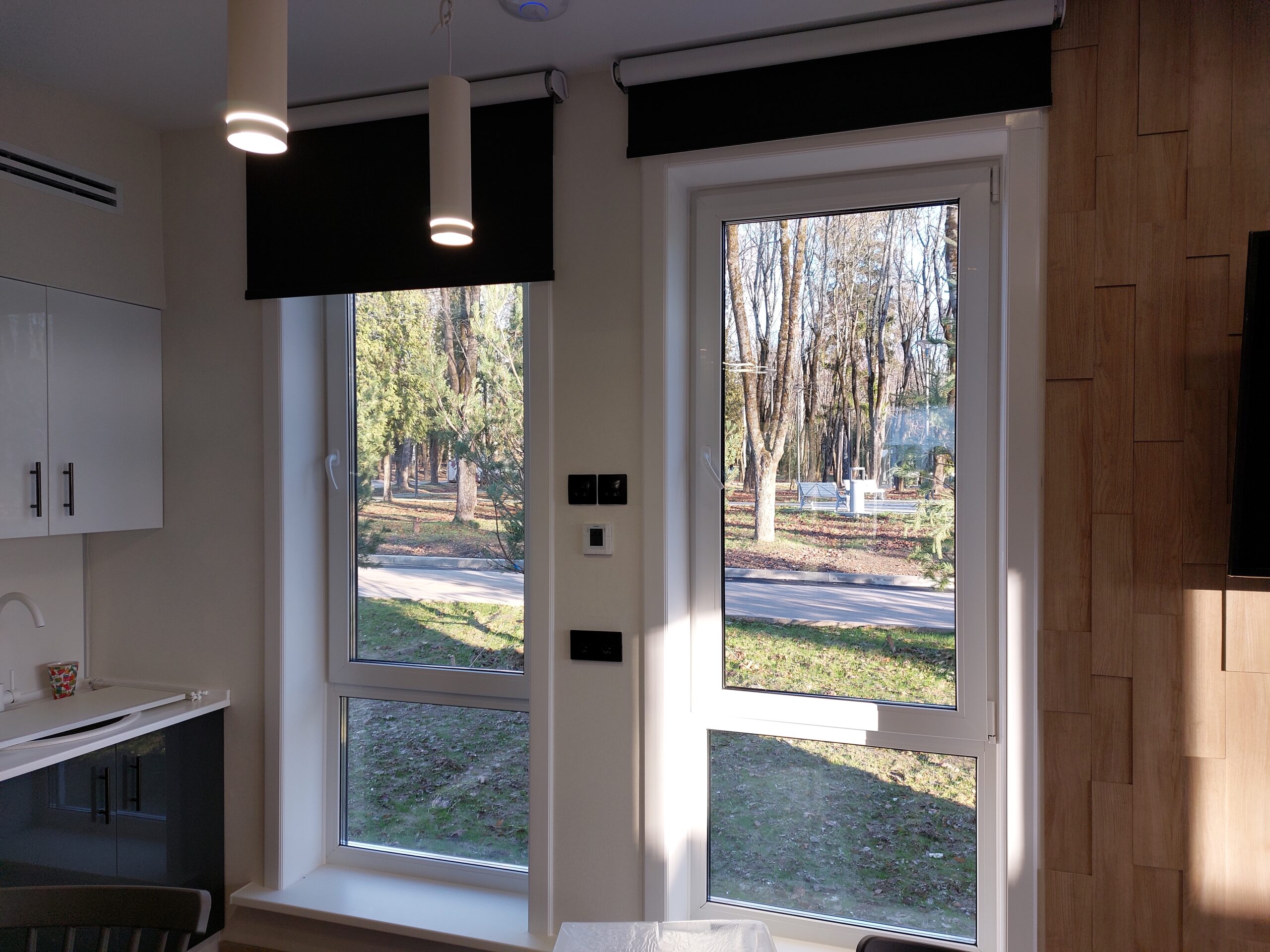

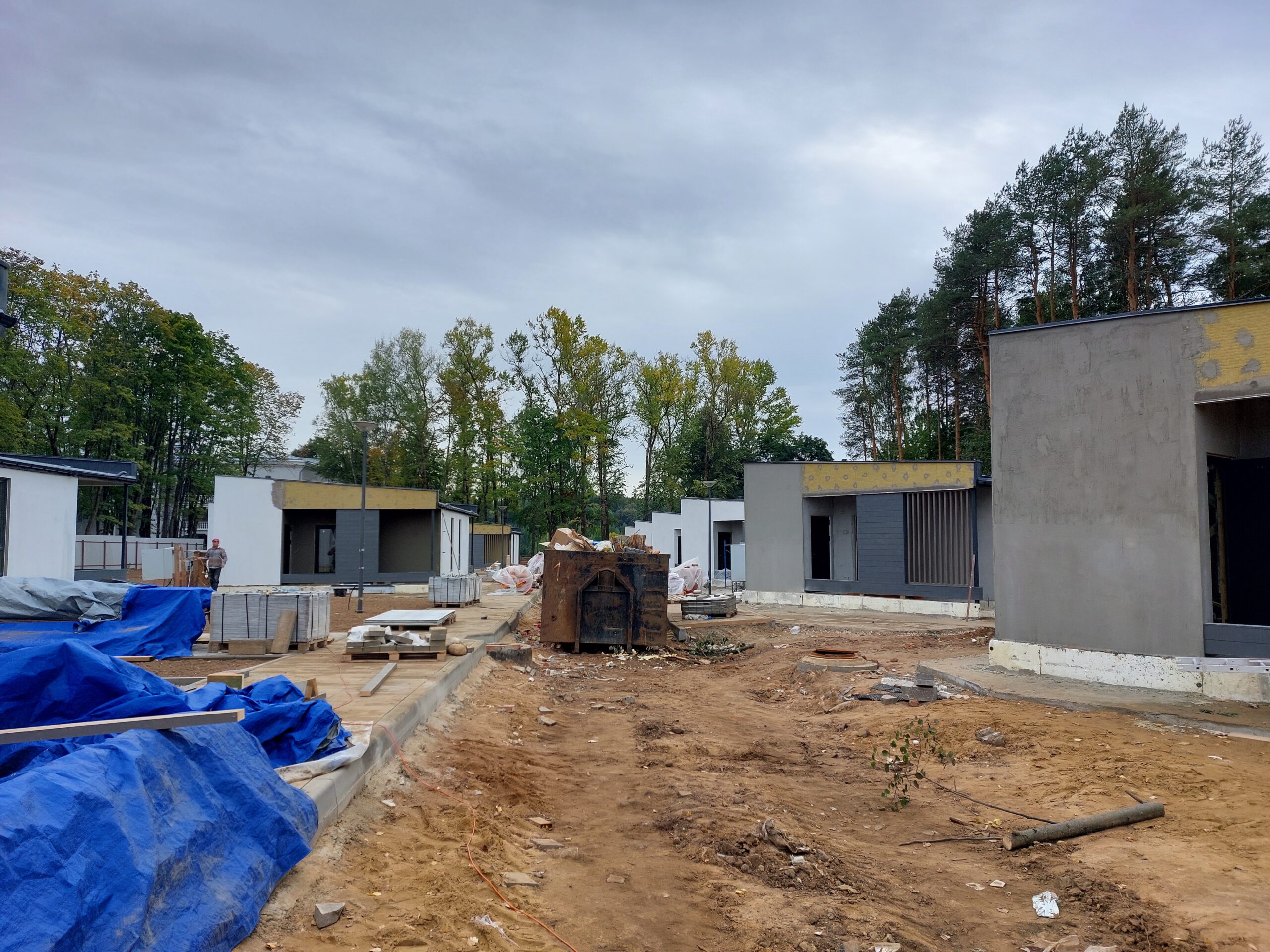

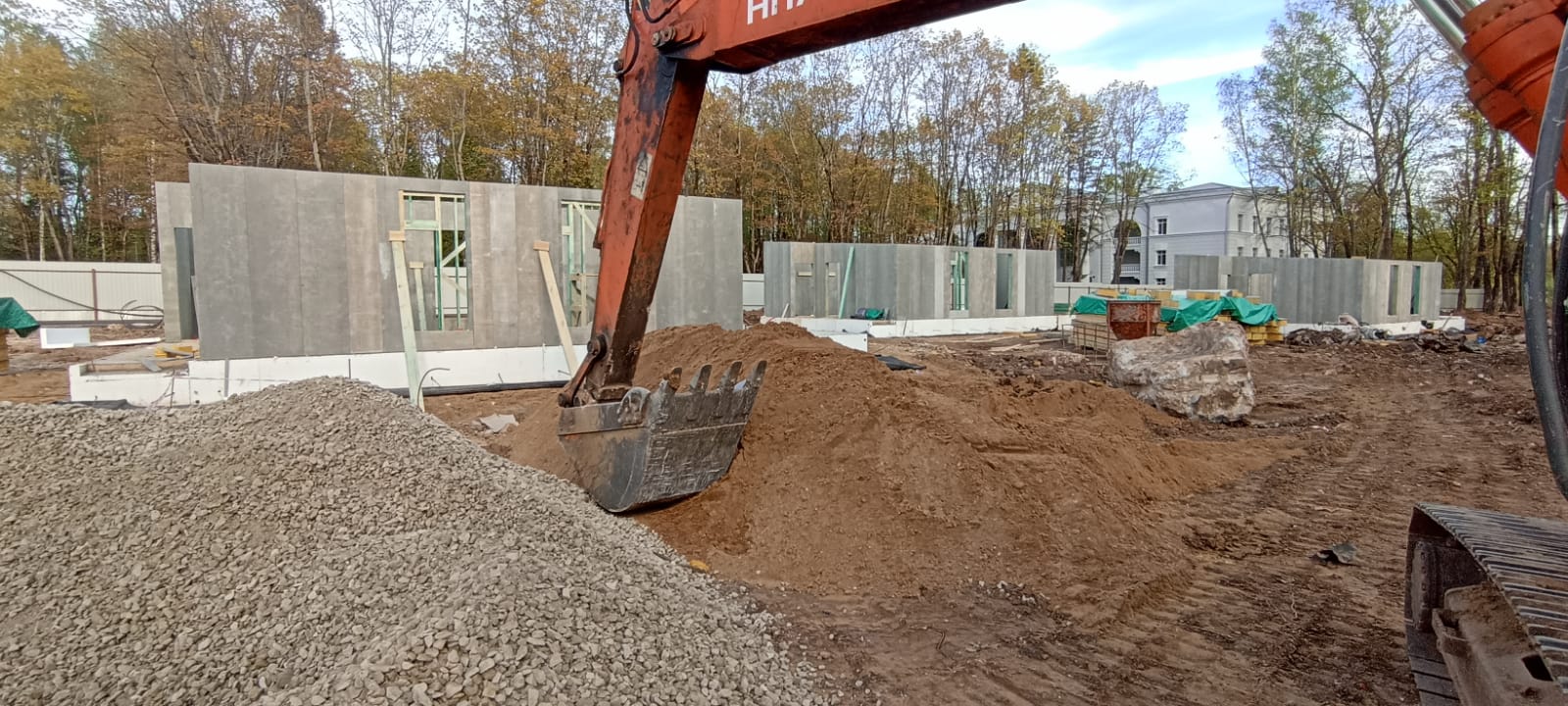

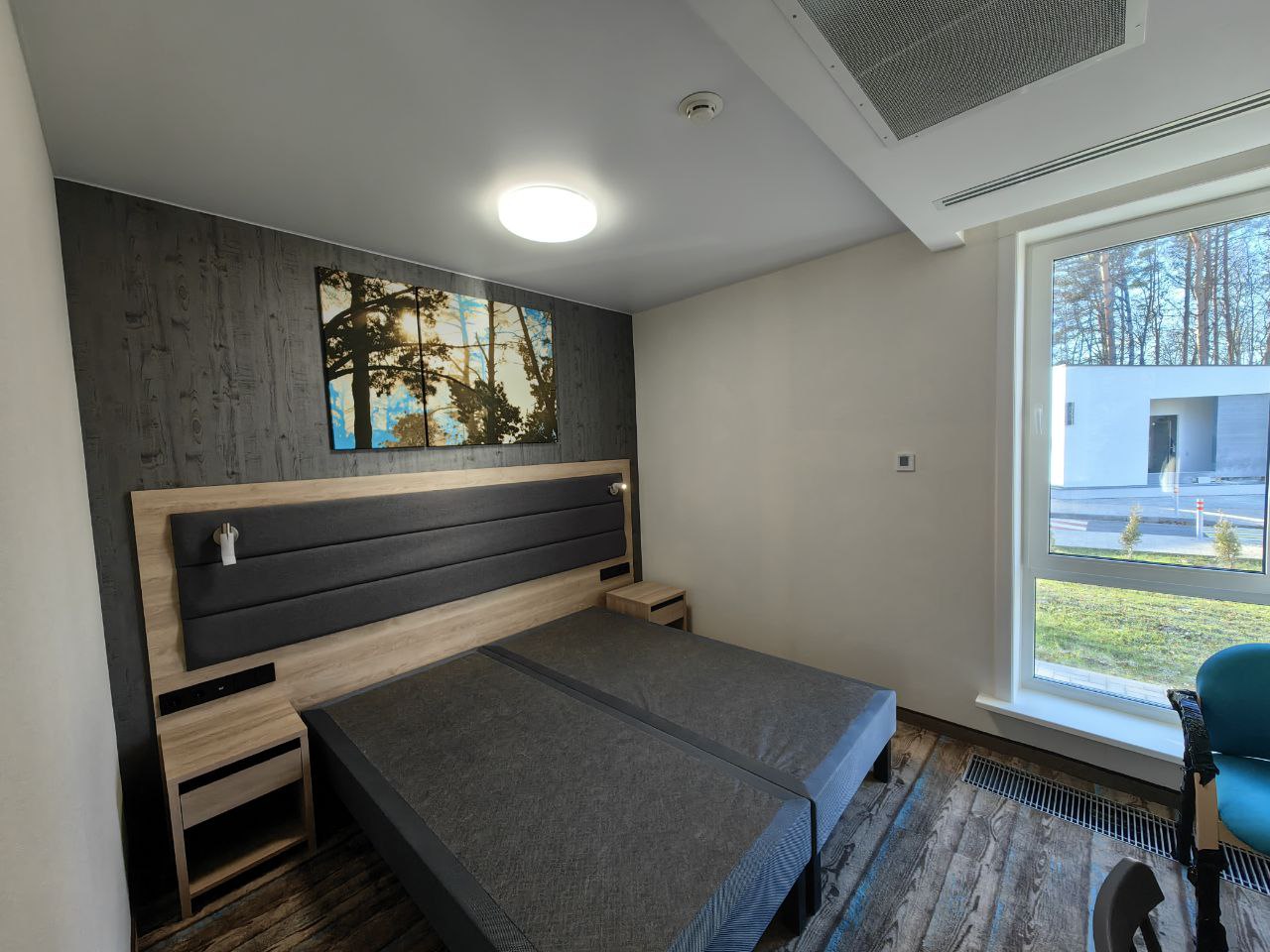

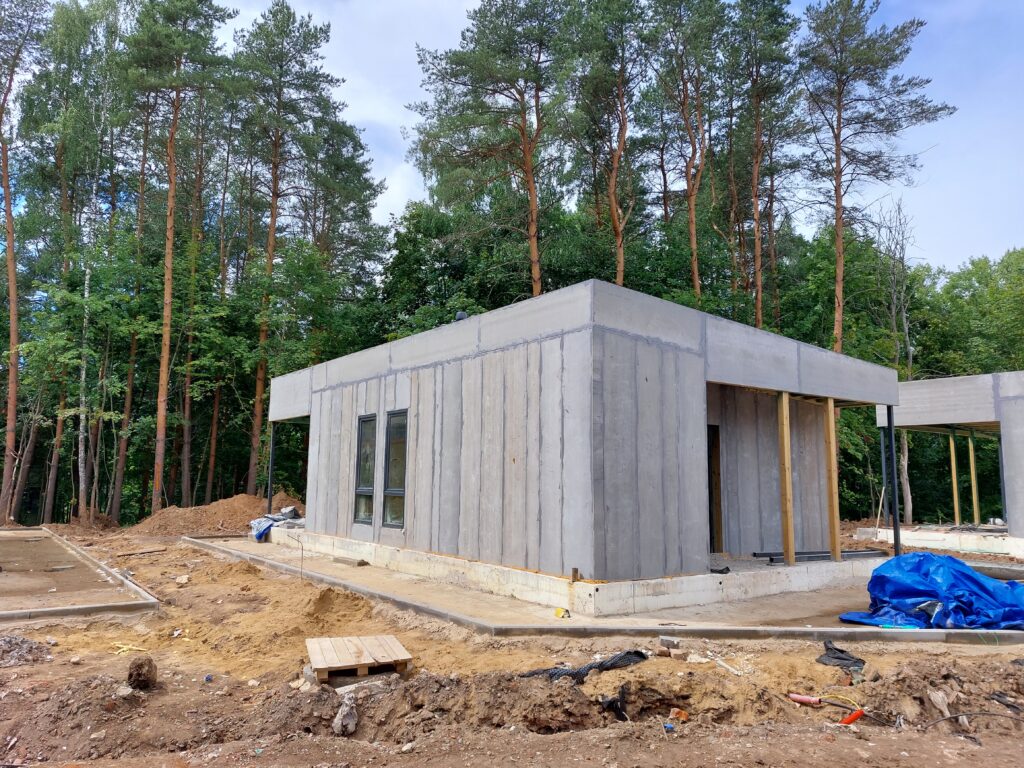

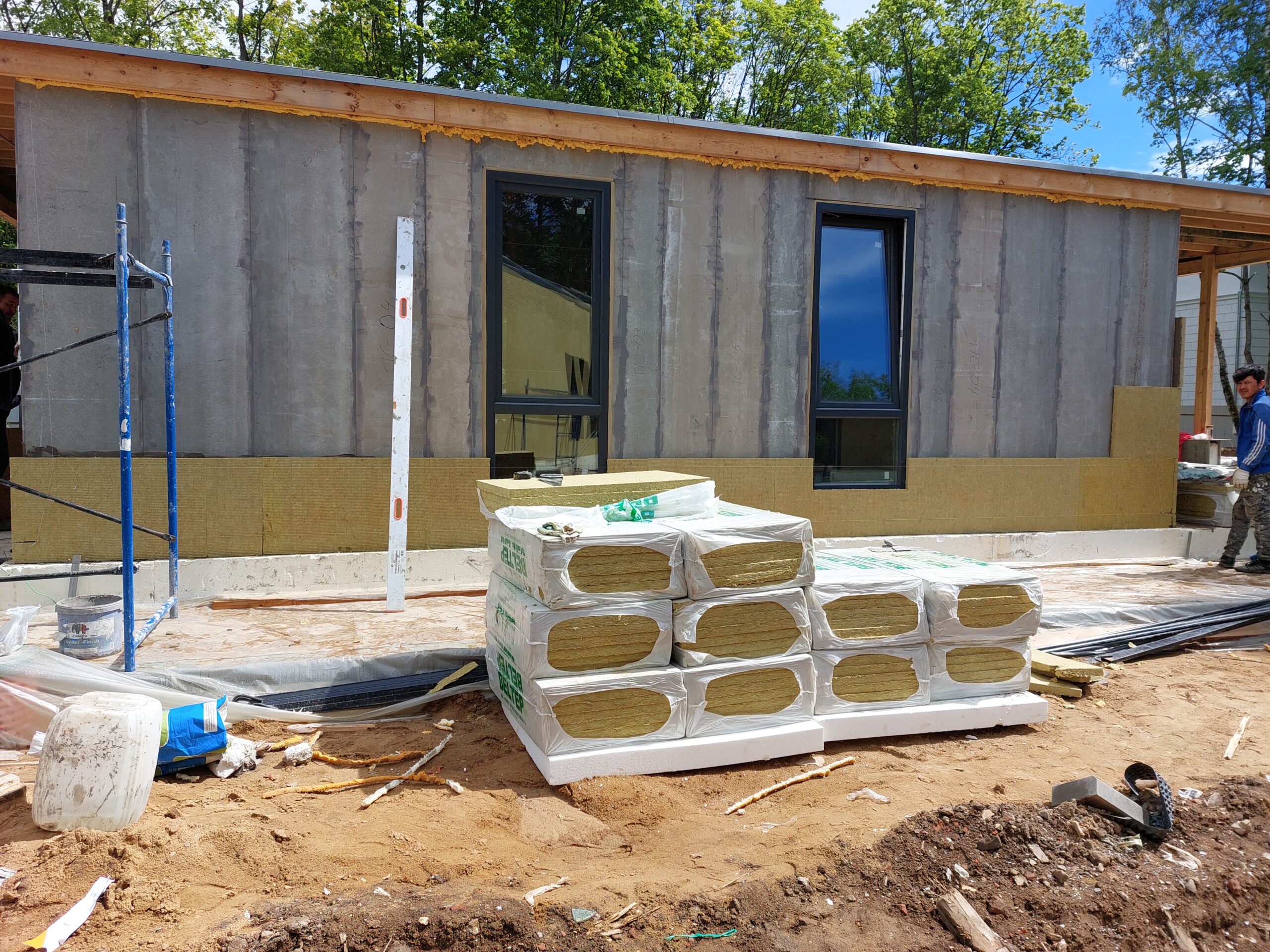

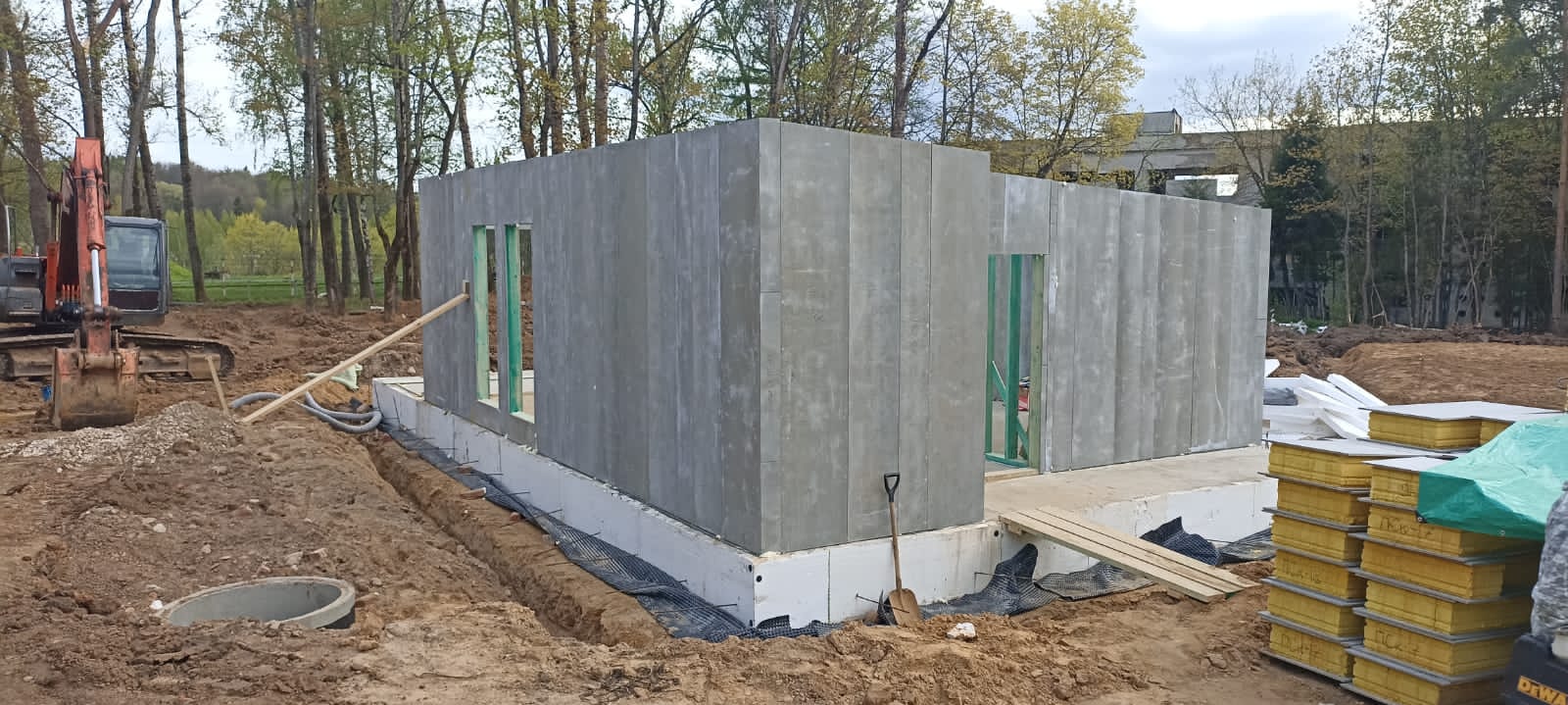

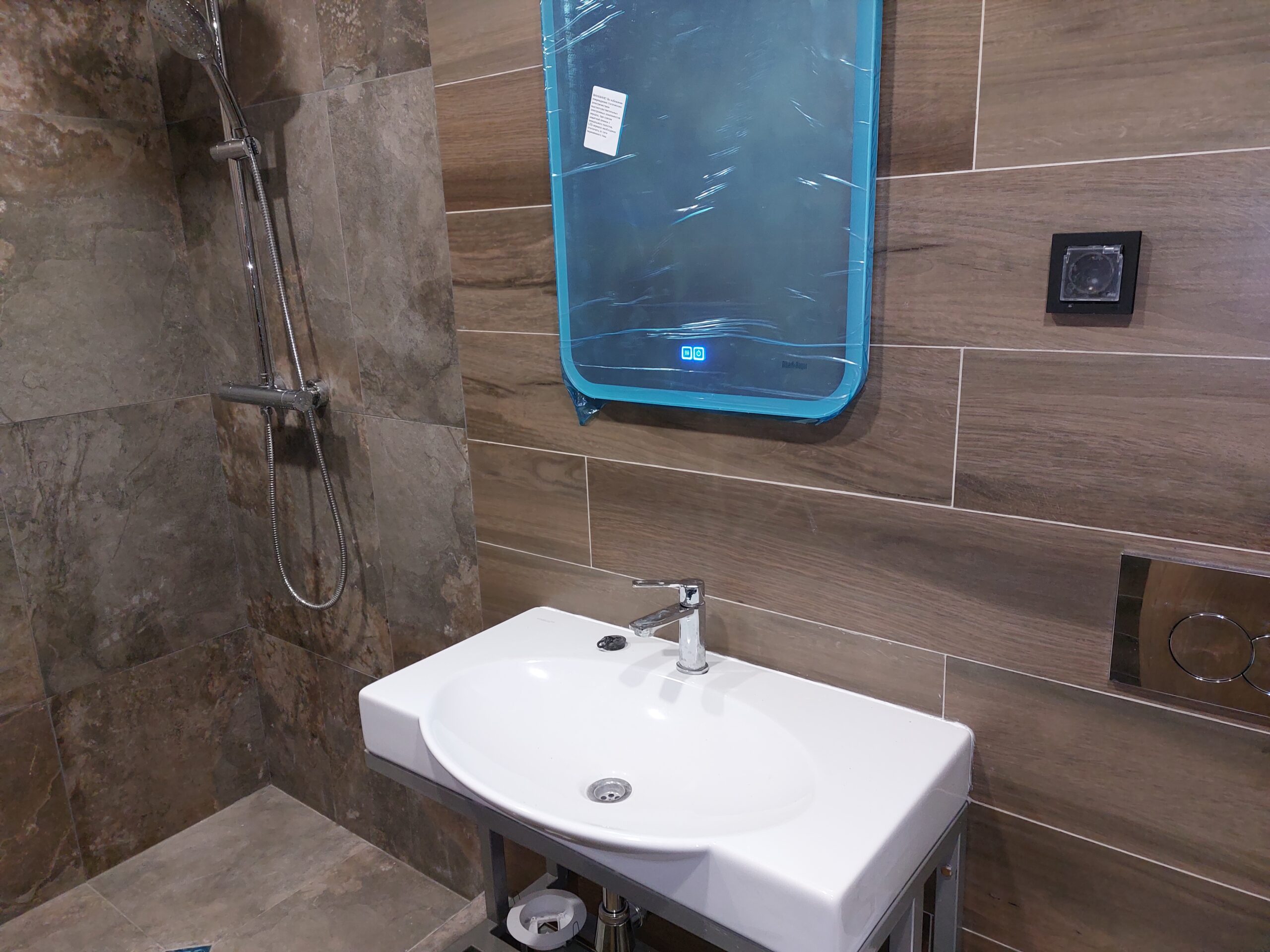

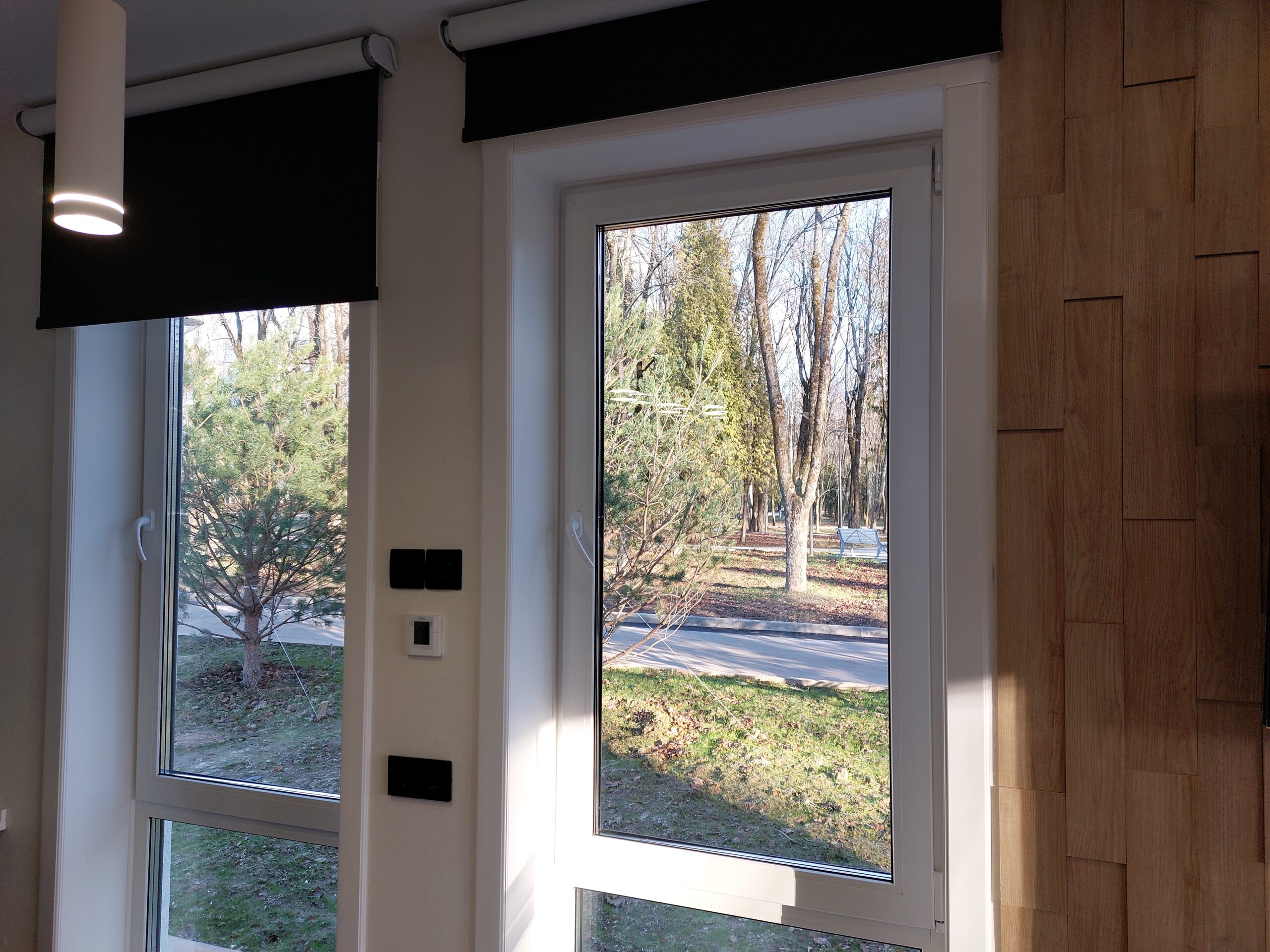

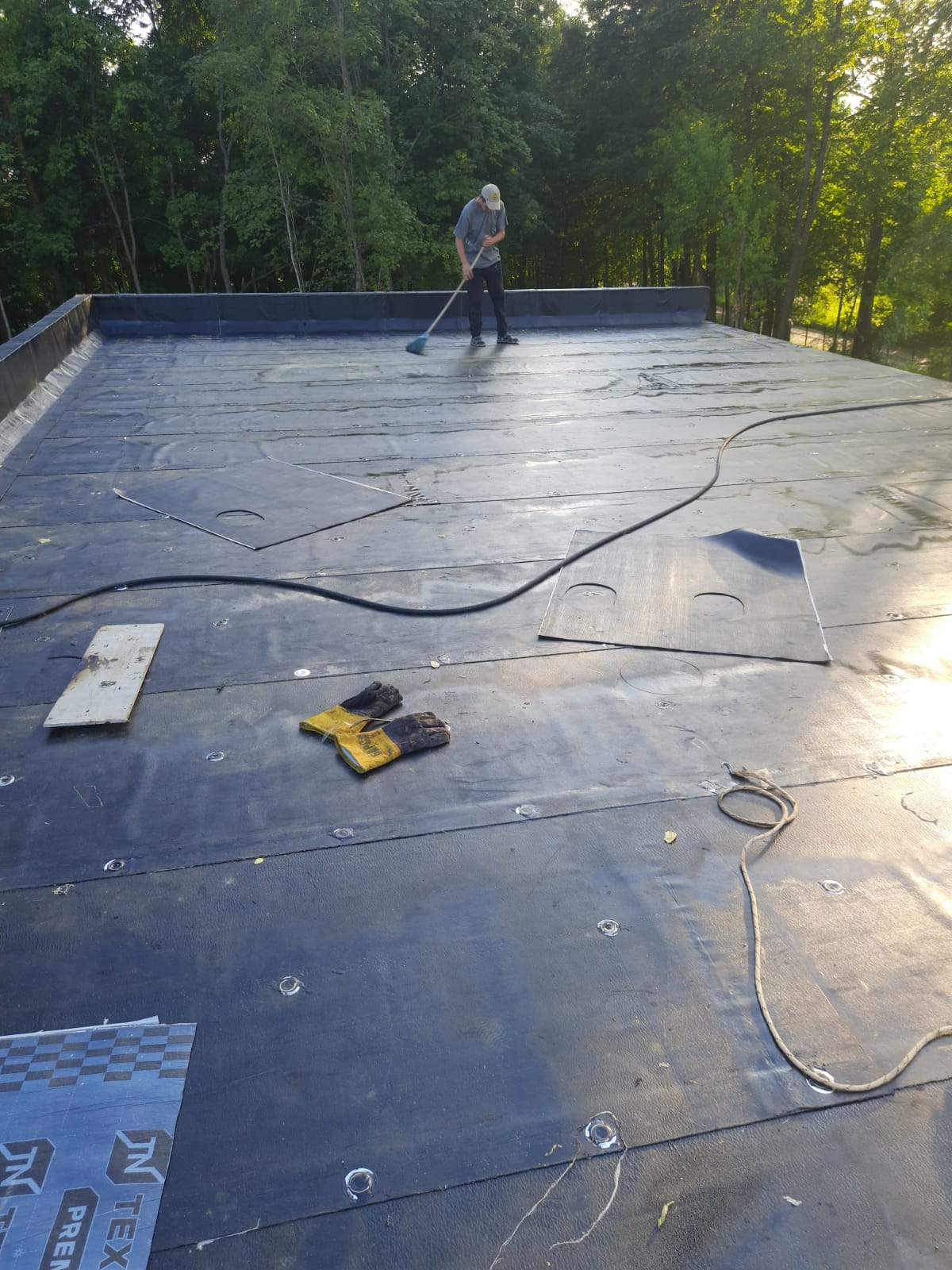

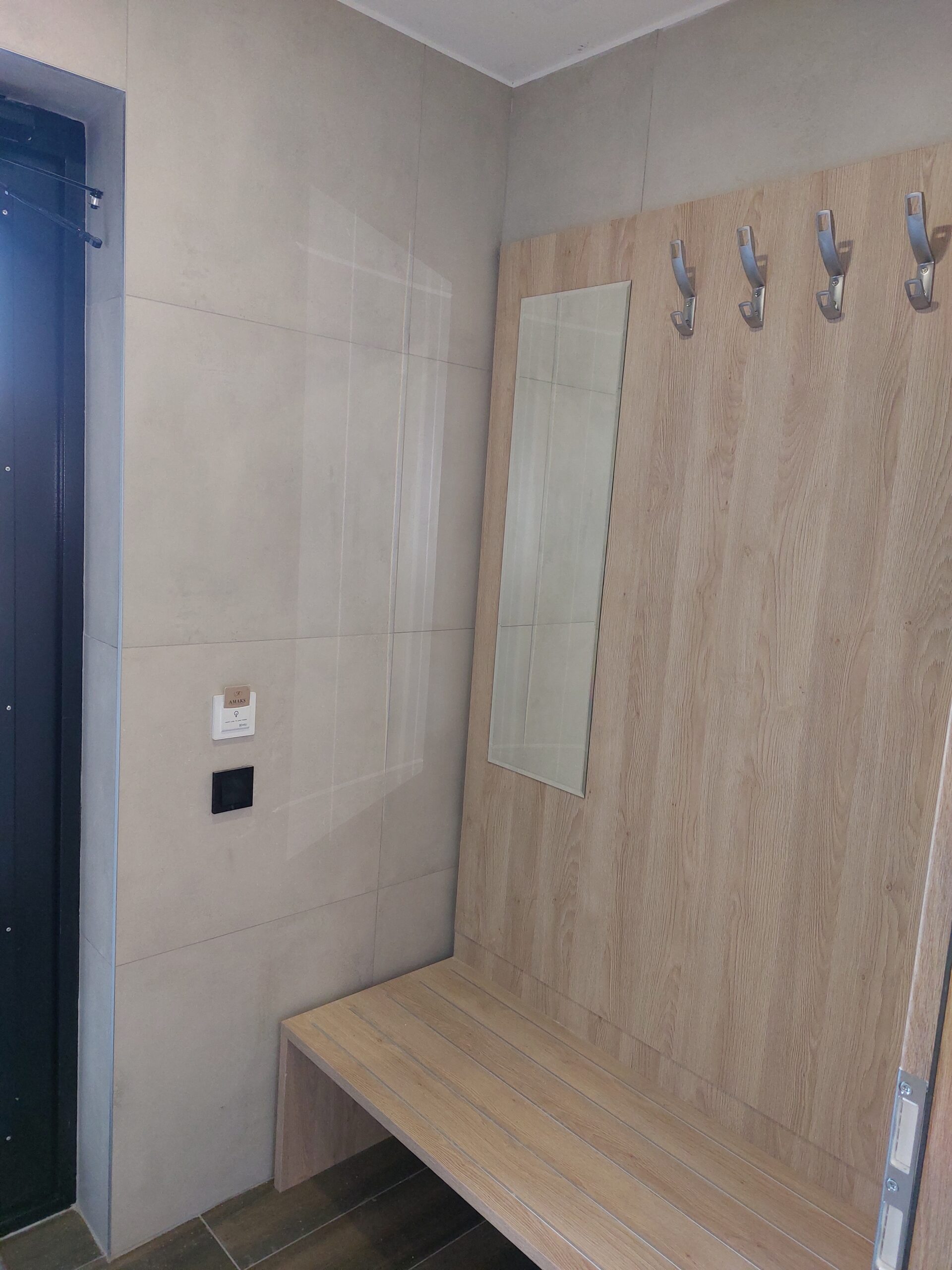

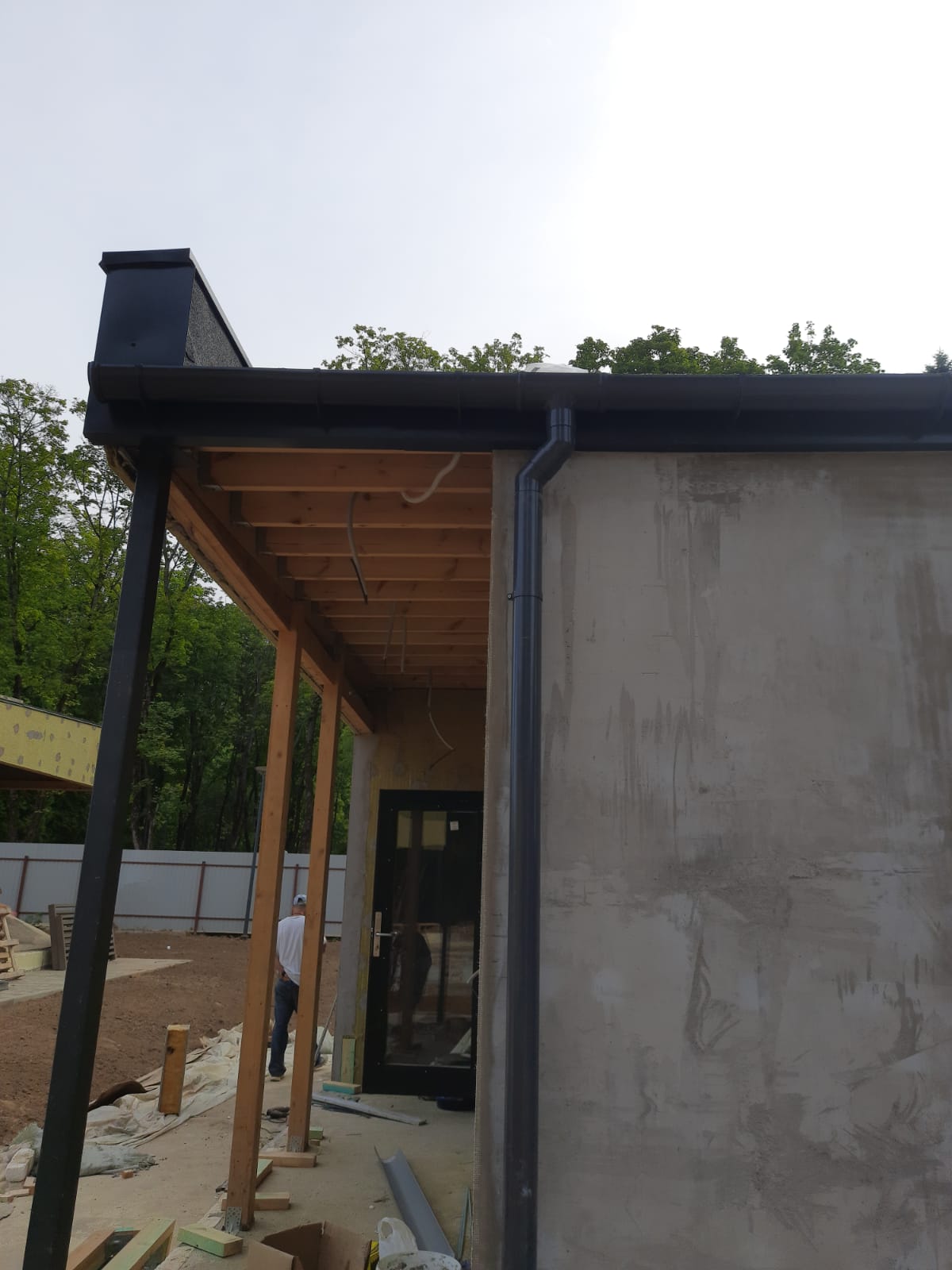

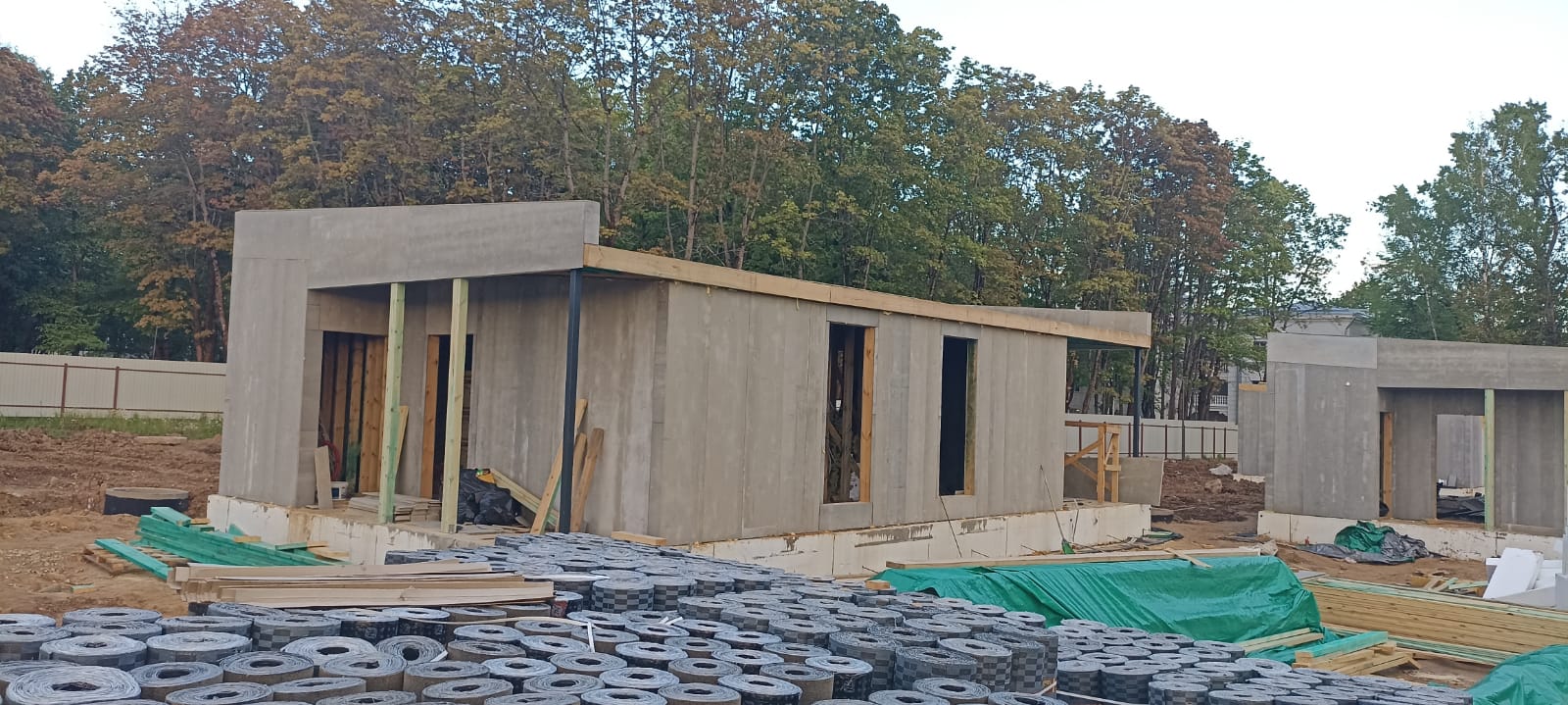

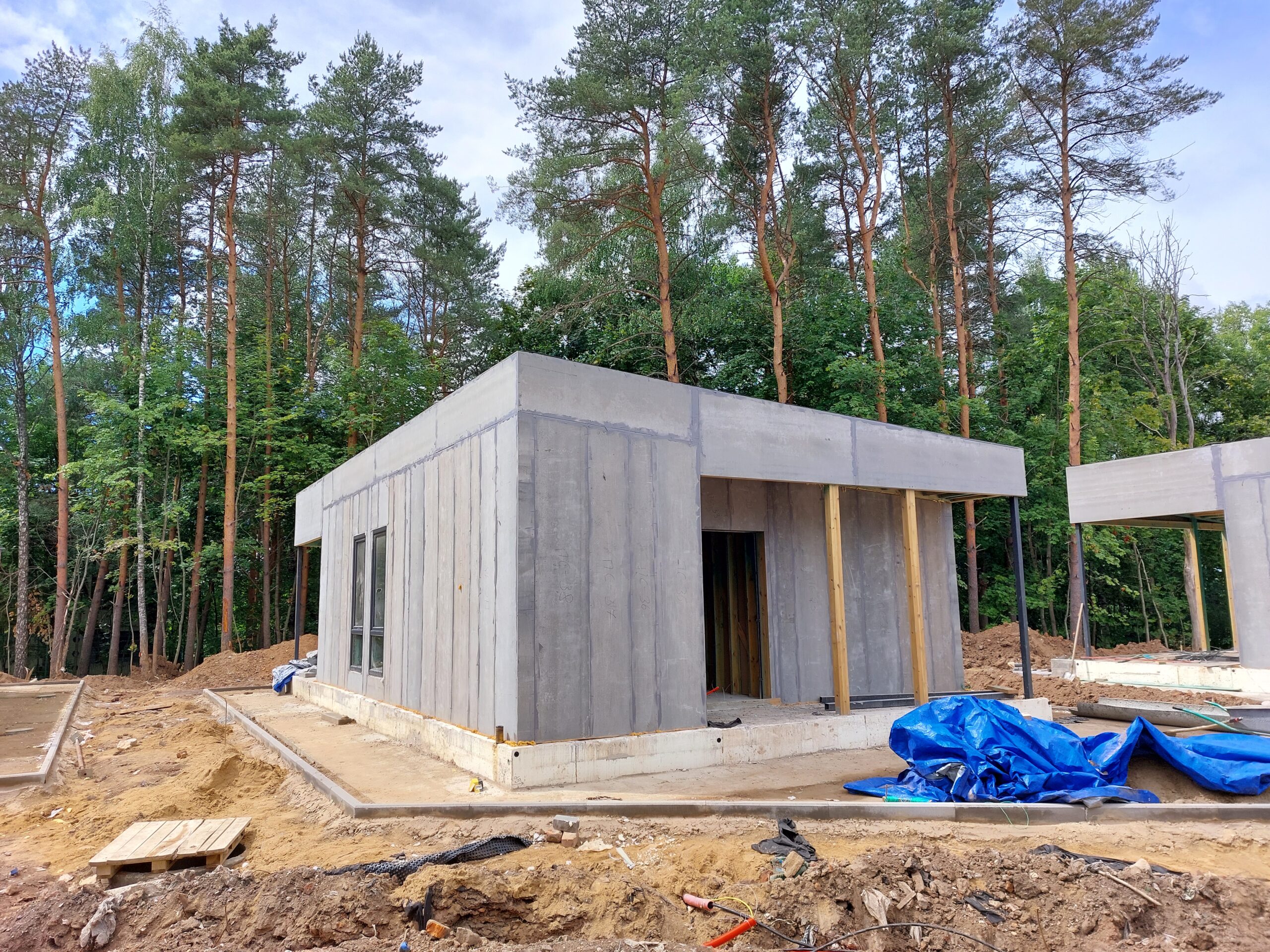

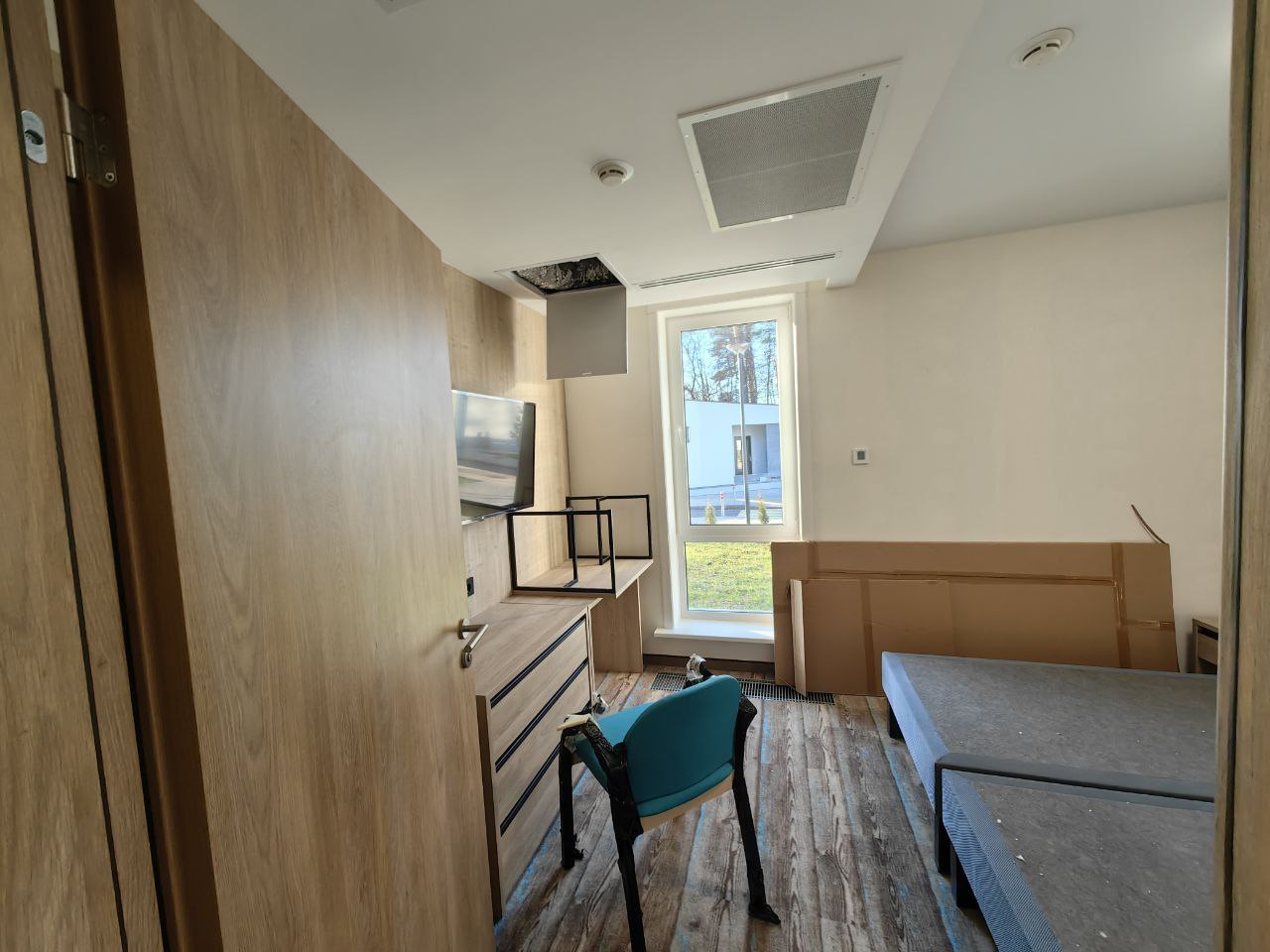

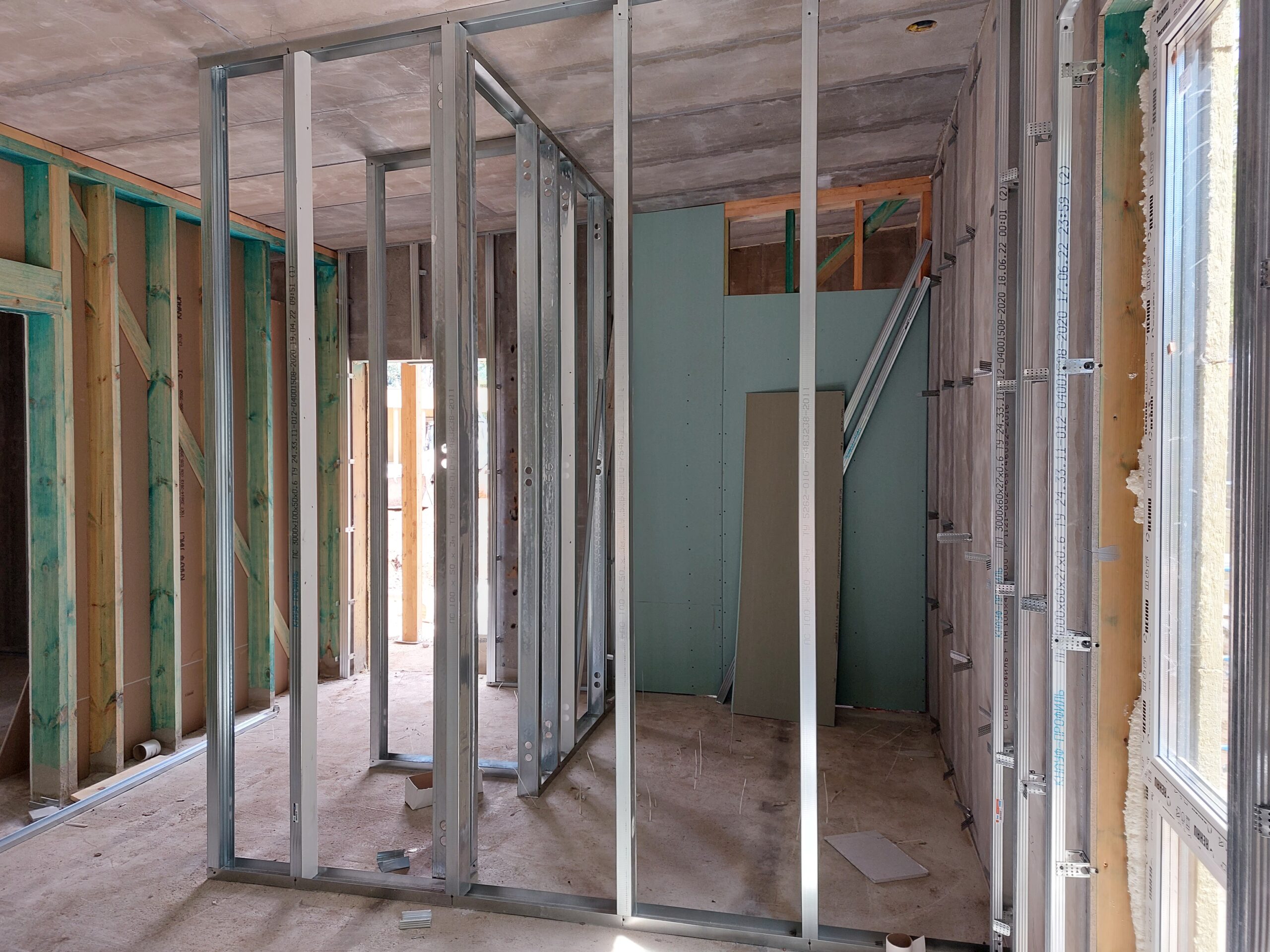

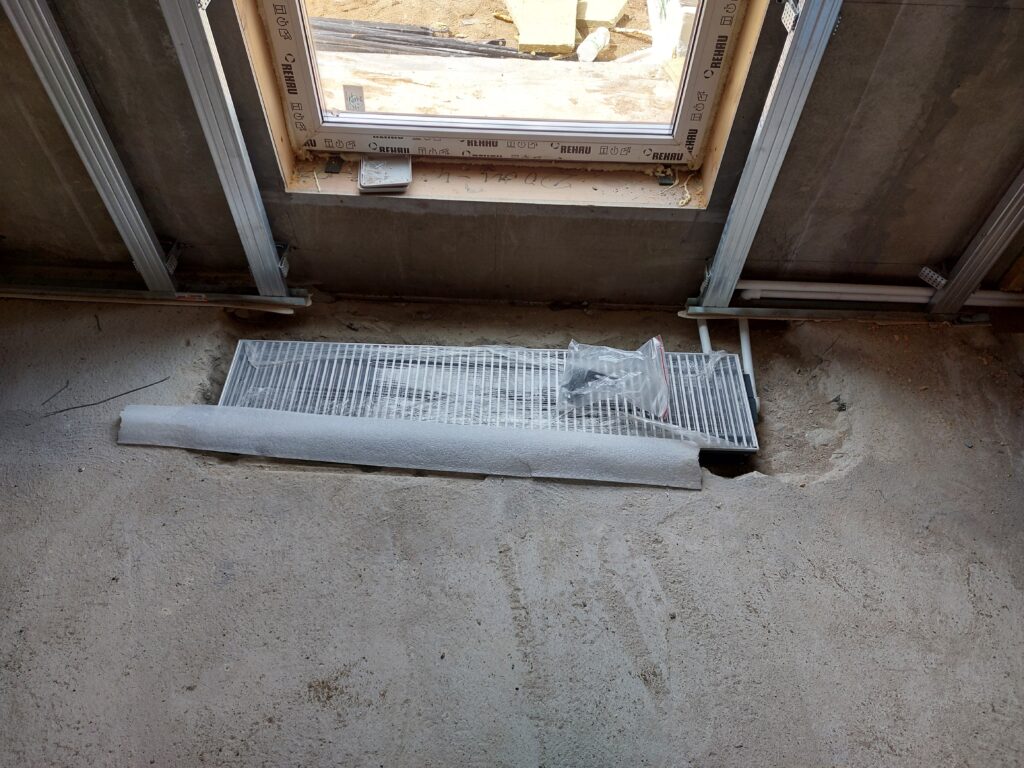

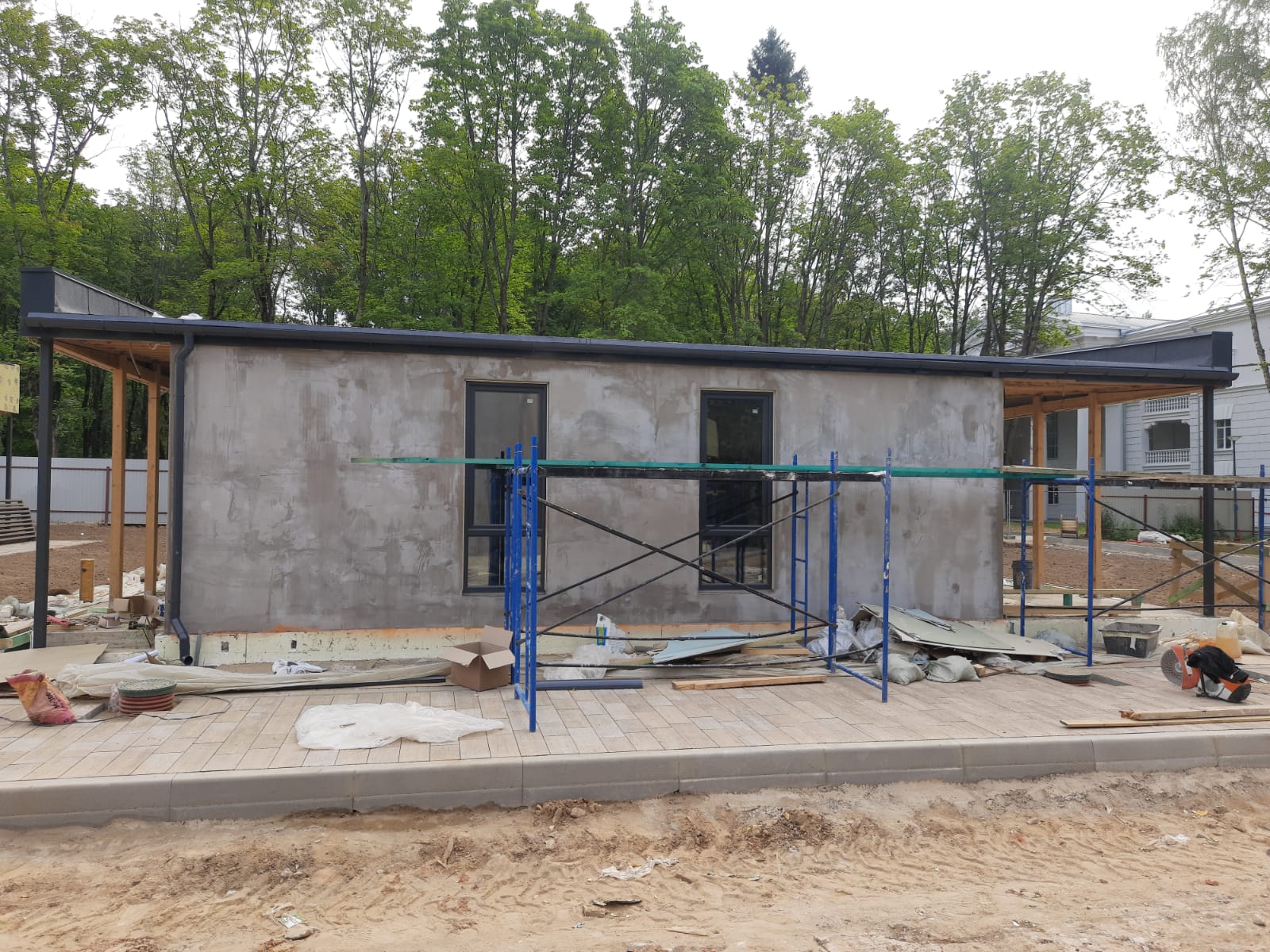

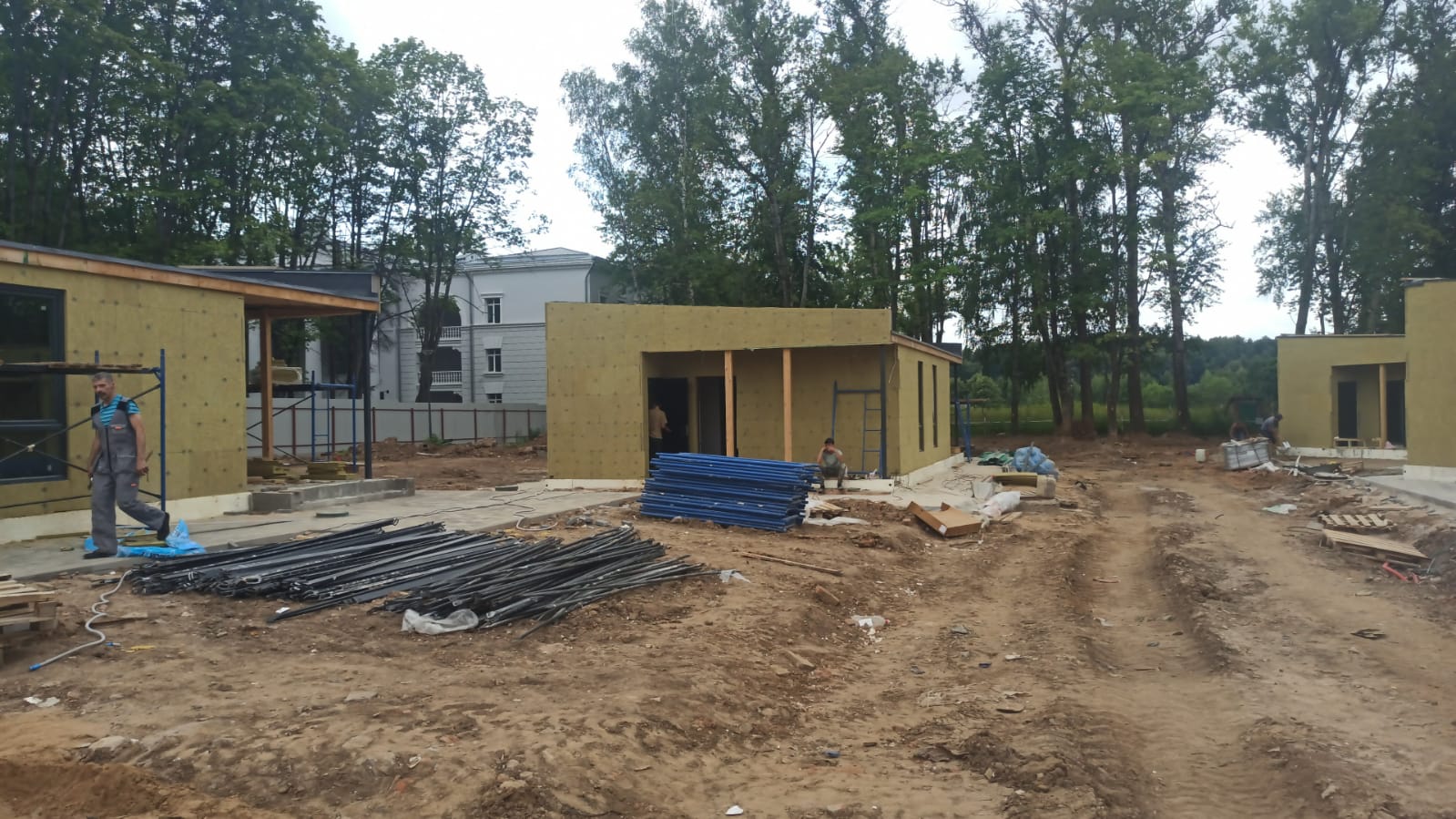

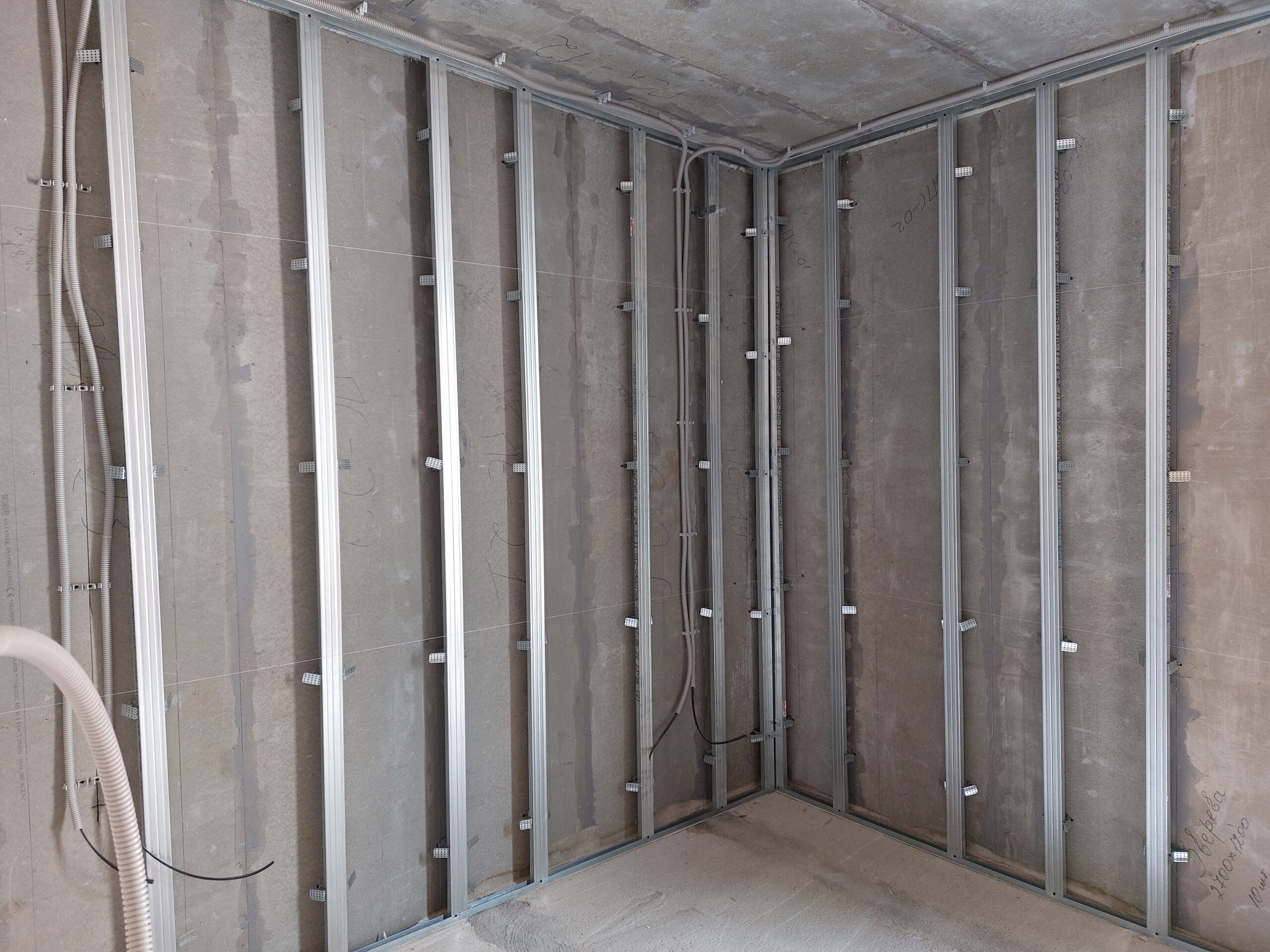

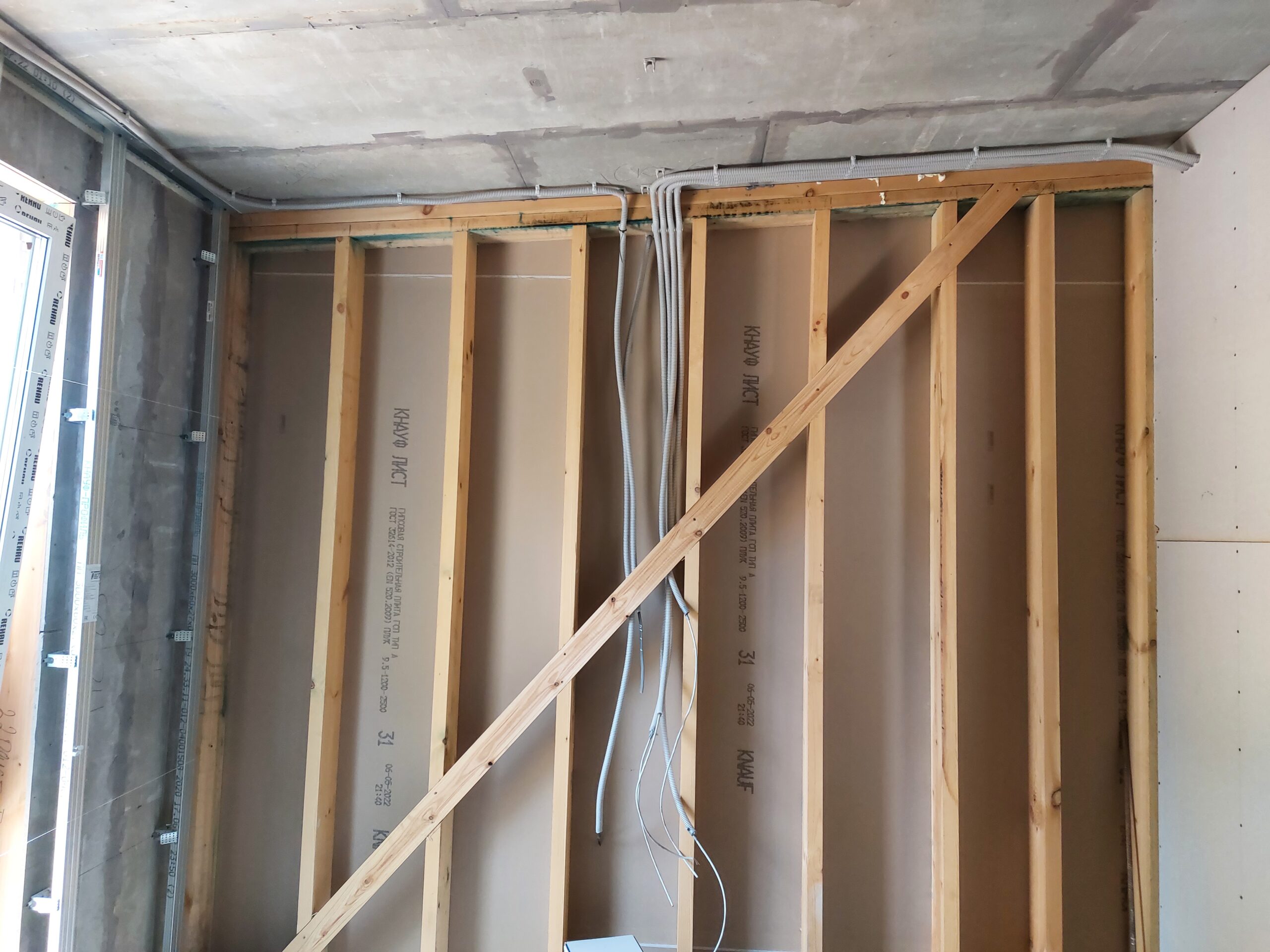

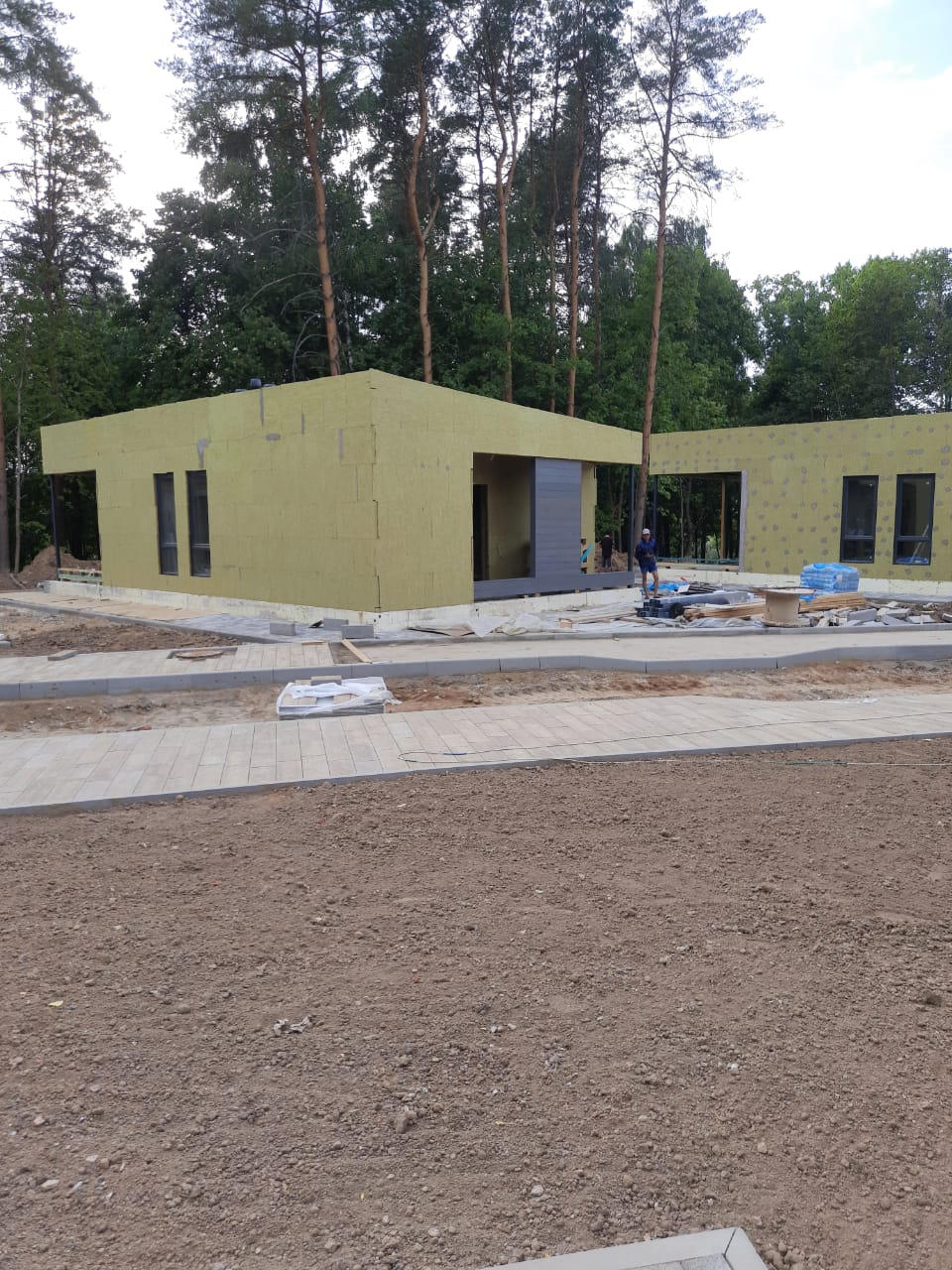

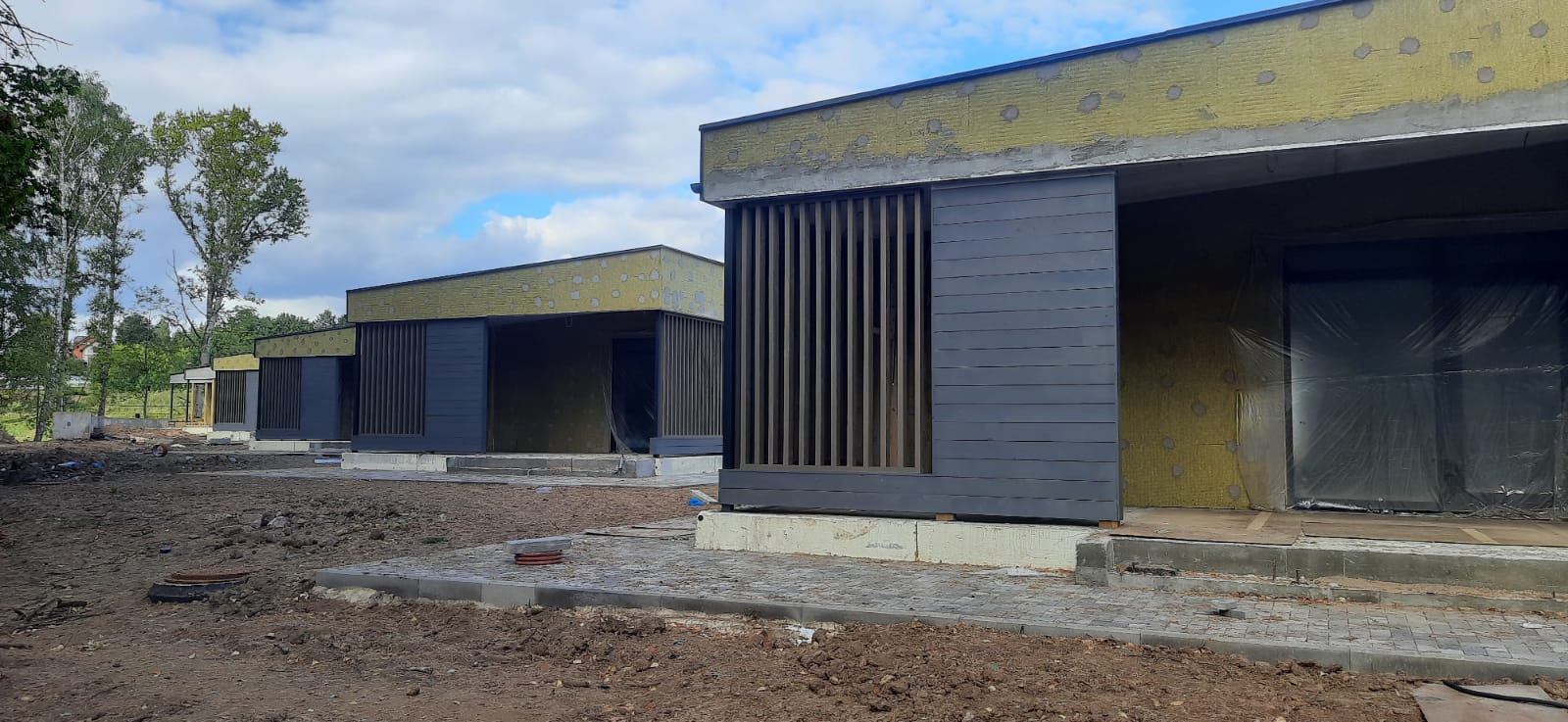

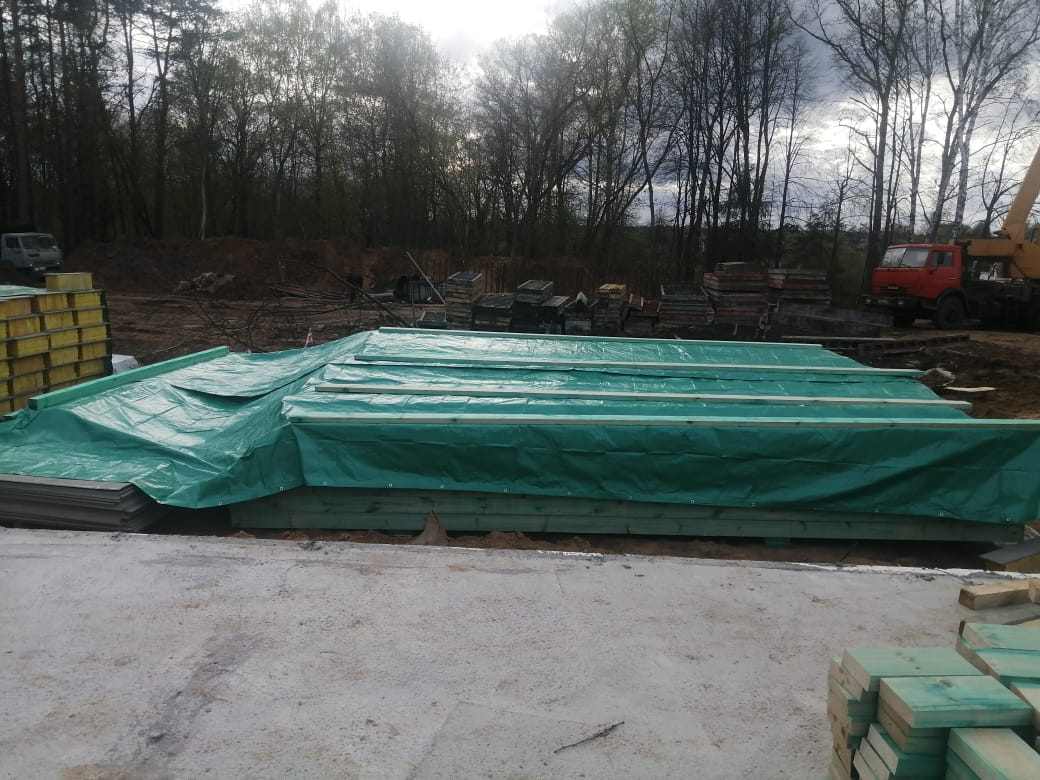

Project Implementation Examples

Important:

The price of the house kit does not include the porch and terrace. Please check the price with our managers.
The information in this project and the list of materials used are relevant for Krasnodar Krai.

Please check the construction cost for other regions of the Russian Federation.

 For any questions, please contact us using the contact details listed on the website (phone numbers, email, etc.).

For a more accurate preliminary estimate, indicate the district (address) of the future construction.

Need a consultation? Call right now or leave a request using the «contact button».

Minor price changes may be caused by: slopes on the site, difficult access roads, lack of electrical power, etc.

All projects posted on the website are schematic and can serve as initial material for creating a project according to your wishes and recommendations.

Our hotel facilities are located from the far north to the south.
