TG-2-289

House kit cost:
$65 237
*The indicated price is not a public offer. Please check the current price with our managers.
Визуализация
Визуализация
Визуализация
Визуализация

Standard project of a two-story hotel made of SIP panels TG-2-289.
The design of a modern mini-hotel with 12 rooms, built from SIP panels, combines functionality, comfort, and cost-effectiveness through the efficient use of every square meter.
FIRST FLOOR
The first floor houses six standard double rooms of 12 m2 each, each with a private bathroom and shower of 3.3 m2, providing extra comfort. Each room has everything necessary for a pleasant stay. Special attention was paid to convenience: the floor includes a kitchen of 17 m2, which allows for full meal service for guests, a laundry room of 3 m2, and a technical room of 2.5 m2, convenient for storing supplies.
A spacious terrace of 43 m2 is perfect for guests’ evening gatherings.
SECOND FLOOR
The second floor offers another six standard double rooms of 12 m2 each, each with a private bathroom and shower of 3.3 m2. To ensure maximum guest comfort, the second floor has a balcony of 40 m2 with picturesque views — an ideal place for relaxation and enjoying the surrounding nature — and a spacious kitchen of 23 m2, where meals can be prepared or the refrigerator used.
PROJECT ADVANTAGES:
✓ each room has a private bathroom
✓ Terrace + balcony with a total area of over 83 m² — additional recreation areas for guests
✓ SIP technology — fast construction, excellent thermal insulation, savings on heating
✓ Thoughtful layout — maximum area utilization while maintaining comfort
The project is ideal for organizing a profitable hospitality business with minimal operating costs!

Object Specifications:
  • Number of Floors
    2
  • Building Area, m²
    190
  • Length, m
    28,8
  • Width, m
    6,32
  • Height of the house, m
    8
  • Total Area, m²
    289
  • Height from floor to ceiling, m
    2.7
  • Number of Rooms
    12
  • Number of Bathrooms
    12
  • Number of windows, pcs
    28
  • Glazing area, m2
    33
  • Facade area, m2
    378
  • Roof pitch angle, °
    25
  • Roof type
    gable
  • Roof area, m2
    241
  • Number of entrance doors, pcs
    16
  • Production time, days
    from 25
  • Volume, m3
    0
  • Weight, tons
    0
  • Delivery terms
    Pickup from warehouse (EXW)
  • Loading and packaging
    Included
Architectural elements
  • Terrace area, m²
    43
  • Balcony area, m²
    40
Layout solutions
1st Floor
1st Floor
1.
Room 1 12 m2
2.
Room 2 12 m2
3.
Room 3 12 m2
4.
Room 4 12 m2
5.
Room 5 12 m2
6.
Room 6 12 m2
7.
Bathroom 3,3 m²
8.
Bathroom 3,3 m²
9.
Bathroom 3,3 m²
10.
Bathroom 3,3 m²
11.
Bathroom 3,3 m²
12.
Bathroom 3,3 m²
13.
Technical room 2.5 m2
14.
Technical Room 3 m²
15.
Kitchen 17 m²
2nd Floor
2nd Floor
1.
Room 7 12 m2
2.
Room 8 12 m2
3.
Room 9 12 m2
4.
Room 10 12 m2
5.
Room 11 12 m2
6.
Room 12 12 m2
7.
Bathroom 3,3 m²
8.
Bathroom 3,3 m²
9.
Bathroom 3,3 m²
10.
Bathroom 3,3 m²
11.
Bathroom 3,3 m²
12.
Bathroom 3,3 m²
13.
Kitchen 23 m²
Order a panel-frame SIP house kit based on a ready-made standard design
Place an Order
Something does not fit? No problem. Contact us, and we will create a project for you absolutely free! Any changes can be made to the house configuration and layout with the corresponding budget adjustment.
Modify the Project
House kit
Standard project
$1 512
Grillage made of kiln-dried planed timber. Ground floor structure made of VIRMAK SIP panels with CSP and EPS.
$15 375
Exterior walls made of VIRMAK® SIP panels with cement-bonded particle board and EPS. Interior partitions are frame structures made of kiln-dried planed timber.
$37 223

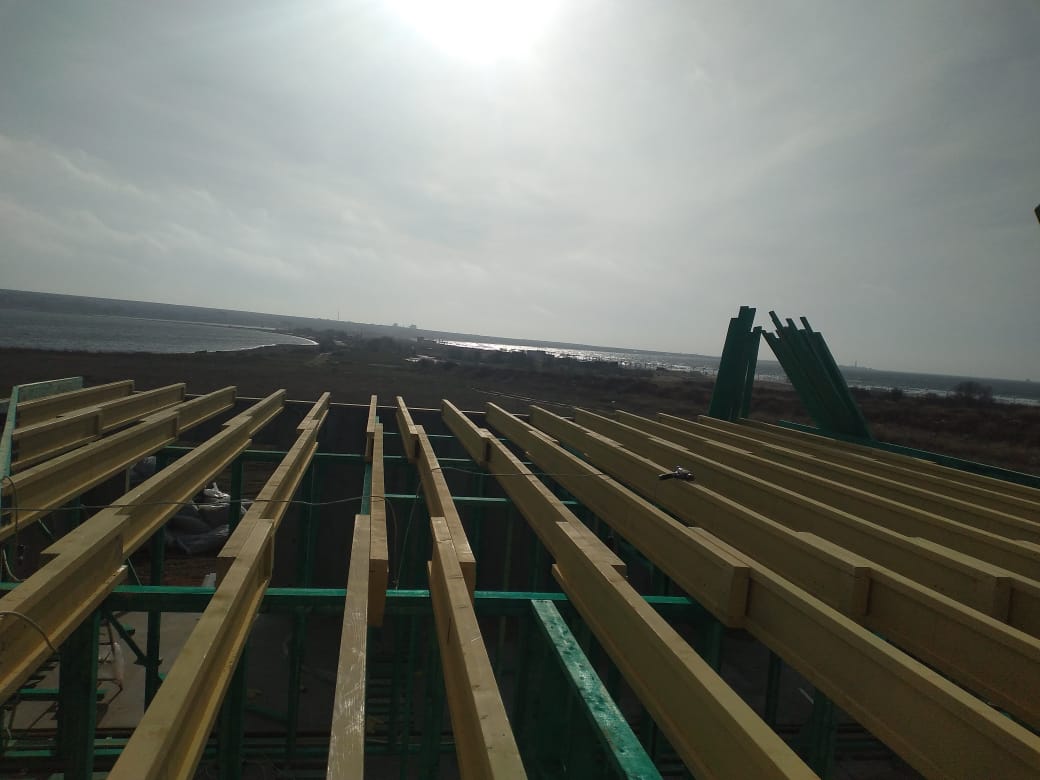

Intermediate floor slab made of I-beams (or joists)
$11 127
Total for the house kit
$65 237
Additional materials and work (estimated prices for planning and understanding the construction budget)
bs_object_specs

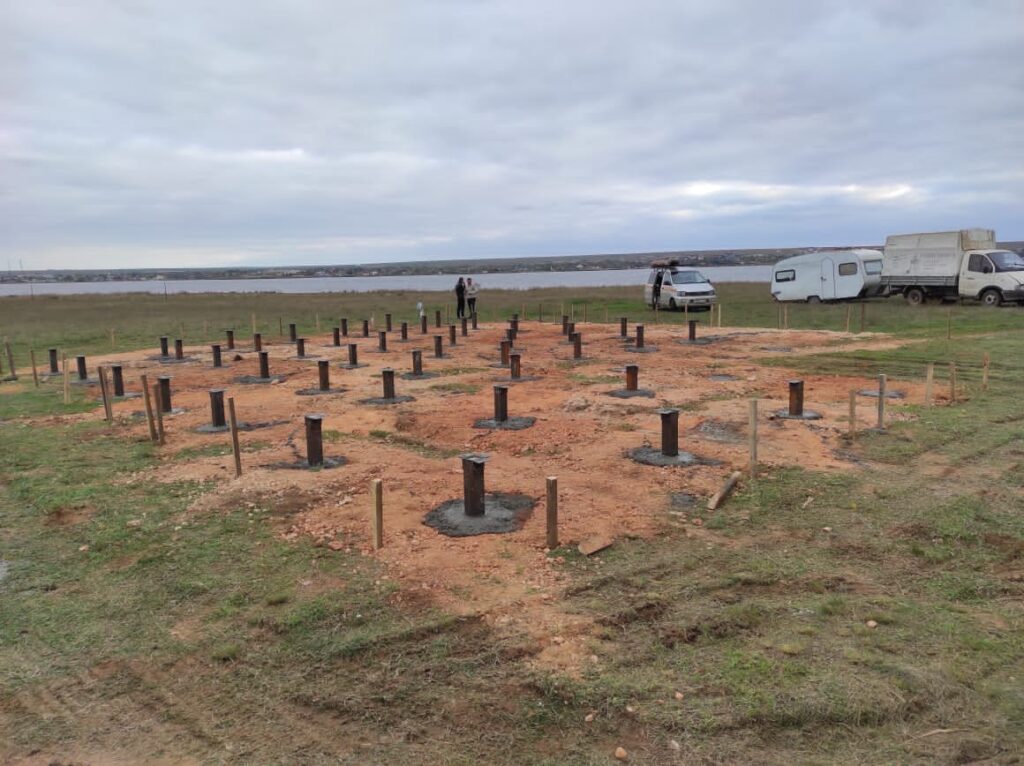

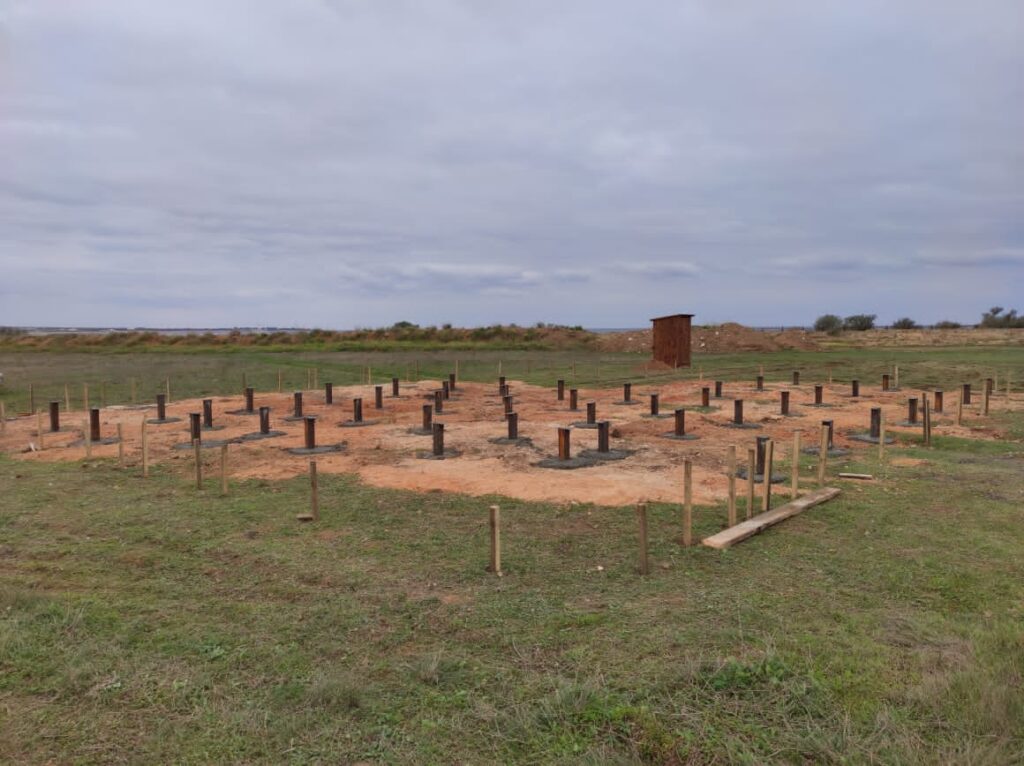

Foundation
SVSN screw pile (blade Ø300 mm, shaft Ø108 mm, length 2500 mm)
$2 529
House kit installation
House kit installation
$28 322
Roof and roofing with installation
Стропильная система из пиломатериала
$9 110
Roofing - metal tile 0.5 mm, polyester 25 µm, Zn 100-140 g/m² and installation
$8 435
PVC windows and doors (if included in the project)
PVC windows and doors (if included in the project)
$4 620
Total for the house kit with installation*
$118 252
What can you save money on?
You should not save on the house kit
0%
Order foundation installation directly from a specialized contractor
30%-40%
Purchase a house kit and install it on your own with the help of our remote author’s (technical) supervision or with installation supervision from a VIRMAK representative
30%-40%
Purchase the house kit, and we will provide a certified crew
30%-40%
Purchase the house kit based on a standard design rather than a custom design
30%-40%

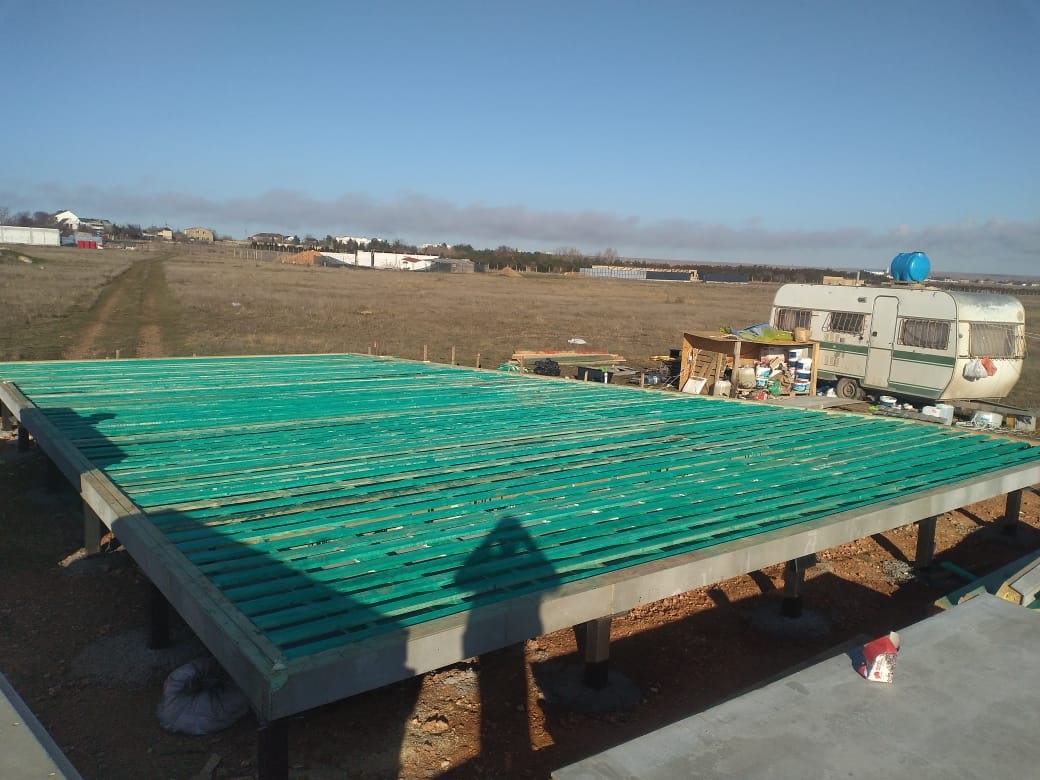

Project Implementation Examples

Important:

The price of the house kit does not include the porch and terrace. Please check the price with our managers.
The information in this project and the list of materials used are relevant for Krasnodar Krai.

Please check the construction cost for other regions of the Russian Federation.

 For any questions, please contact us using the contact details listed on the website (phone numbers, email, etc.).

For a more accurate preliminary estimate, indicate the district (address) of the future construction.

Need a consultation? Call right now or leave a request using the «contact button».

Minor price changes may be caused by: slopes on the site, difficult access roads, lack of electrical power, etc.

All projects posted on the website are schematic and can serve as initial material for creating a project according to your wishes and recommendations.

Our hotel facilities are located from the far north to the south.
