TP-1-137

House kit cost:
$37 932
*The indicated price is not a public offer. Please check the current price with our managers.
Визуализация
Визуализация

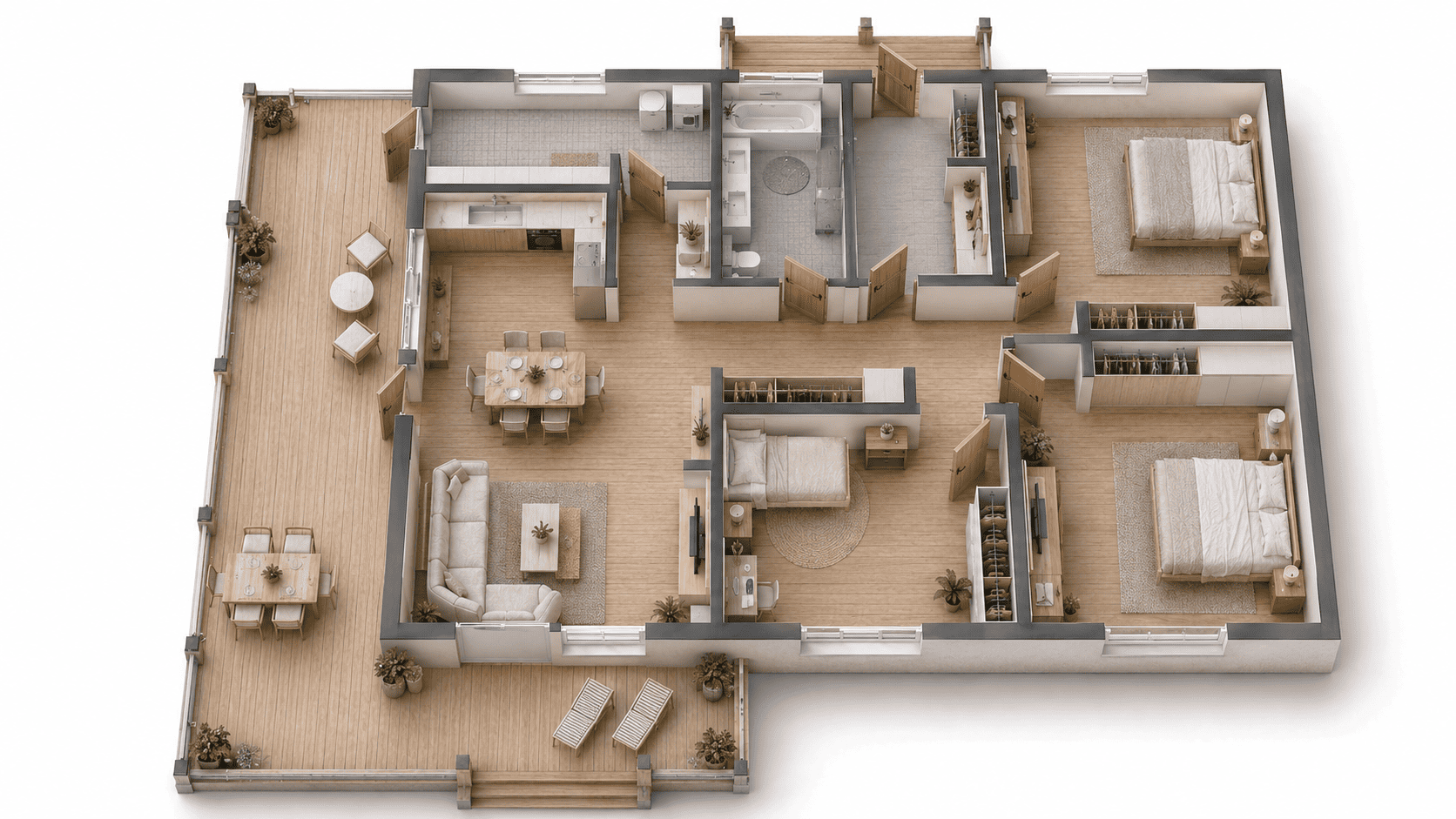

План

The standard one-story house project TP-1-137 includes three bedrooms of 18, 17, and 15 m², and a spacious kitchen-living room with an area of 34 m². The kitchen has its own exit to a covered terrace of 45 m². The house also has a utility room for locating engineering equipment of 9 m², where a gas boiler room can be arranged in accordance with the requirements of Russian Federation legislation. This utility room also has its own exit to the covered terrace and is combined with a 3 m² storage room; the entrance to the storage room is through the kitchen, which allows convenient and comfortable storage of food and kitchenware in a separate room. The house also has a spacious bathroom of 8 m². The entrance hall area is 8 m², which allows up to six occupants to enter the house comfortably at the same time. The small corridor area for such a house is only 10 m², but it still provides comfortable movement throughout the house. All bedrooms have a partition forming a niche for installing a built-in wardrobe, which significantly reduces future furniture costs. The well-thought-out layout allows organizing comfortable living in the house in strict accordance with modern requirements for planning, ergonomics, and increased comfort.

Object Specifications:
  • Number of Floors
    1
  • Building Area, m²
    137
  • Length, m
    13.13
  • Width, m
    10.4
  • House height, m
    5.4
  • Total Area, m²
    123
  • Floor-to-ceiling height, m
    2.7
  • Number of Rooms
    3
  • Number of Bathrooms
    1
  • Number of windows, pcs
    8
  • Glazing area, m²
    33
  • Facade area, m²
    119
  • Roof pitch angle, °
    22
  • Roof type
    Multi-pitched
  • Roofing area, m²
    228
  • Number of entrance doors, pcs
    2
  • Production lead time, days
    from 25
  • Volume, m³
    75
  • Weight, tonnes
    23
  • Delivery terms
    Pickup from warehouse (EXW)
  • Loading and packing
    Included
Architectural elements
  • Porch area, m²
    8
  • Terrace area, m²
    45

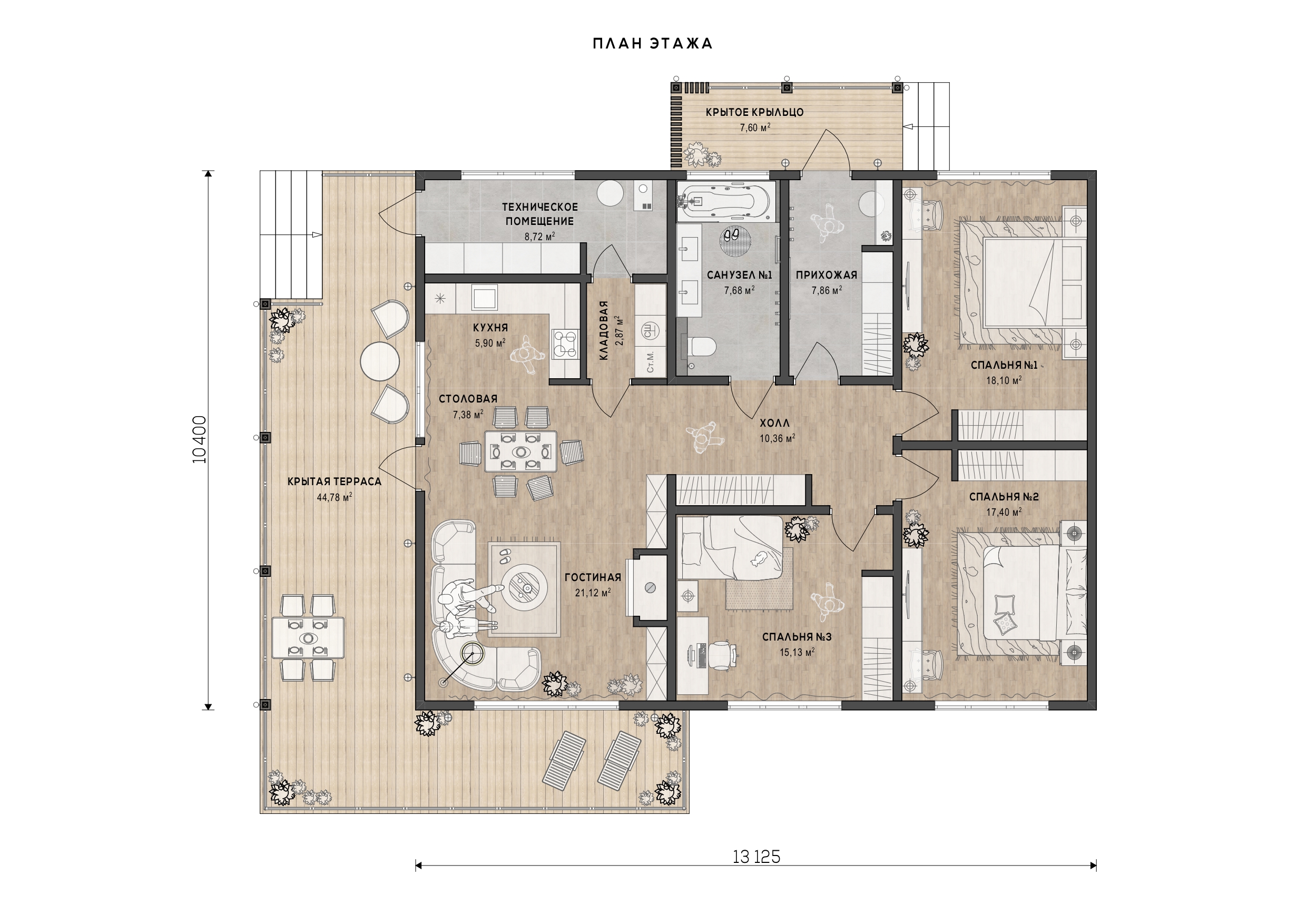

Layout solutions
1st Floor
1st Floor
1.
Living Room 21 m²
2.
Kitchen 13 m²
3.
Bedroom 18 m²
4.
Bedroom 17 m²
5.
Bedroom 15 m²
6.
Bathroom 8 m²
7.
Entrance Hall 8 m²
8.
Technical Room 9 m²
9.
Storage room 3 m²
10.
Hall 10 m²
11.
Porch 8 m²
12.
Terrace 45 m²
Order a panel-frame SIP house kit based on a ready-made standard design
Place an Order
Something does not fit? No problem. Contact us, and we will create a project for you absolutely free! Any changes can be made to the house configuration and layout with the corresponding budget adjustment.
Modify the Project
House kit
Standard project
$722
Grillage made of kiln-dried planed timber. Ground floor structure made of VIRMAK SIP panels with CSP and EPS.
$15 728
Exterior walls made of VIRMAK® SIP panels with cement-bonded particle board and EPS. Interior partitions are frame structures made of kiln-dried planed timber.
$21 482
Total for the house kit
$37 932
Additional materials and work (estimated prices for planning and understanding the construction budget)
bs_object_specs
Foundation
SVSN screw pile (blade Ø300 mm, shaft Ø108 mm, length 2500 mm)
$2 398
House kit installation
Assembly of house kit 137 m²
$13 426
Roof and roofing with installation
Стропильная система из пиломатериала
$15 960
Roofing - metal tile 0.5 mm, polyester 25 µm, Zn 100-140 g/m² and installation. Soft shingles plus 8%
$7 980
PVC windows and doors (if included in the project)
PVC windows and doors (if included in the project)
$4 620
Total for the house kit with installation*
$82 315
What can you save money on?
You should not save on the house kit
0%
Order foundation installation directly from a specialized contractor
20%-40%
Purchase a house kit and install it on your own with the help of our remote author’s (technical) supervision or with installation supervision from a VIRMAK representative
30%-40%
Purchase the house kit, and we will provide a certified crew
15%-20%
Purchase the house kit based on a standard design rather than a custom design
30%-40%

Project Implementation Examples

Important:

The price of the house kit does not include the porch and terrace. Please check the price with our managers.
The information in this project and the list of materials used are relevant for Krasnodar Krai.

Please check the construction cost for other regions of the Russian Federation.

 For any questions, please contact us using the contact details listed on the website (phone numbers, email, etc.).

For a more accurate preliminary estimate, indicate the district (address) of the future construction.

Need a consultation? Call right now or leave a request using the «contact button».

Minor price changes may be caused by: slopes on the site, difficult access roads, lack of electrical power, etc.

All projects posted on the website are schematic and can serve as initial material for creating a project according to your wishes and recommendations.
