Barn №3

House kit cost:
$26 355
*The indicated price is not a public offer. Please check the current price with our managers.

The standard Barn No. 3 project is a compact single-storey house with a total area of 60 m² (excluding the terrace). The layout includes a spacious kitchen-living room of 22 m², combining cooking and relaxation functions to create a single comfortable space for the whole family.
The house provides two bedrooms of 10 m² each, which is optimal for a small family or a couple. The bathroom of 5 m² is equipped with all necessary fixtures. A hall of 4 m² ensures convenient movement around the house and flow distribution.
Project feature: The house comes with a spacious terrace of 16.52 m², which is included with the house. The terrace gives the house an aesthetic completeness and creates additional outdoor relaxation space.
Expansion potential: If necessary, the terrace can be easily converted into an additional living room. It is sufficient to insulate the terrace and relocate the panoramic glazing. This solution will increase the total living area of the house by 16.52 m², resulting in a full extra room or enlarged existing rooms. Insulating the terrace from the outside creates a reliable barrier against cold, wind and moisture, ensuring comfortable use of the space year-round.
Construction feature: Thanks to the use of sandwich panels, the roof is assembled very simply and quickly. The lower metal cladding of our roofing sandwich panels serves as a finished ceiling, and the use of click-seam cladding in the wall sandwich panels provides the finished facade finish, reducing labor costs. Only Virmak company can produce such thoughtful and technological projects.

Object Specifications:
  • Number of Floors
    1
  • Building Area, m²
    78
  • Length, m
    11,5
  • Width, m
    6,8
  • House height, m
    3,1
  • Total Area, m²
    61
  • Floor-to-ceiling height, m
    2.7
  • Number of Rooms
    3
  • Number of Bathrooms
    1
  • Number of windows, pcs
    9
  • Glazing area, m2
    16,6
  • Facade area, m2
    103
  • Roof pitch angle, °
    15
  • Roof type
    gable
  • Roofing area, m2
    81
  • Number of entrance doors, pcs
    1
  • Production time, days
    from 25
  • Volume, m3
    0
  • Weight, tonnes
    0
  • Delivery terms
    Pickup from warehouse (EXW)
  • Loading and packaging
    Included
Architectural elements
  • Porch area, m²
    2
  • Terrace area, m²
    16.5

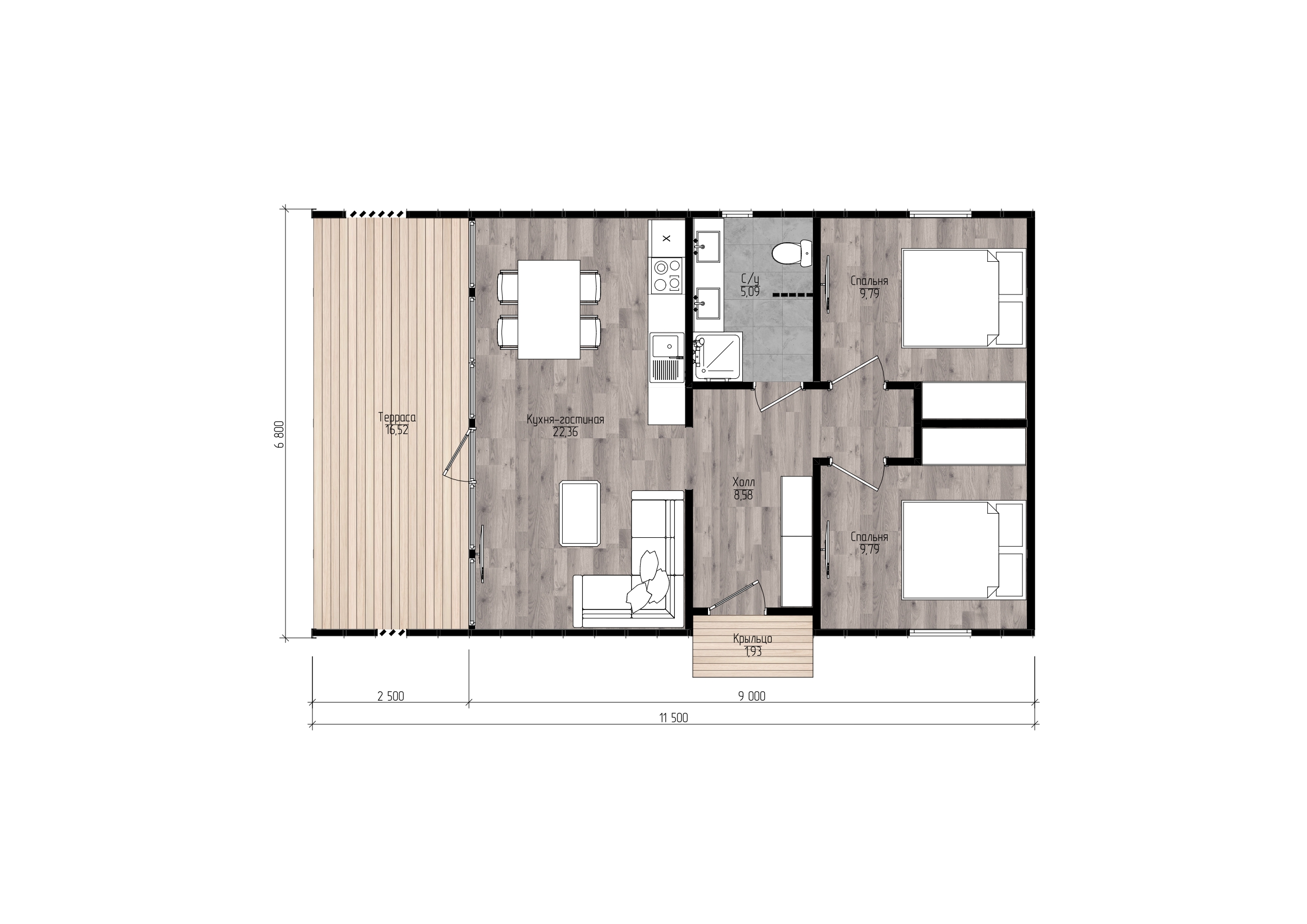

Layout solutions
1st Floor
1.
Living room 11 m²
2.
Kitchen 11 m2
3.
Bedroom 10 m2
4.
Bedroom 10 m2
5.
Bathroom 5 m2
6.
Hall 4 m²
7.
Porch 2 m2
8.
Terrace 16.5 m2
Order a panel-frame SIP house kit based on a ready-made standard design
Something does not fit? No problem. Contact us, and we will create a project for you absolutely free! Any changes can be made to the house configuration and layout with the corresponding budget adjustment.
House kit
Standard project
$420
Grillage made of kiln-dried planed timber. Ground floor structure made of VIRMAK SIP panels with CSP and EPS.
$7 097
Exterior walls made of VIRMAK® SIP panels with cement-bonded particle board and EPS. Interior partitions are frame structures made of kiln-dried planed timber.
$9 482
Roof and roofing made of sandwich panels with click-seam cladding
$9 356
Total for the house kit
$26 355
Additional materials and work (estimated prices for planning and understanding the construction budget)
Foundation
SVSN screw pile (blade Ø300 mm, shaft Ø108 mm, length 2500 mm)
$2 730
House kit installation
House kit installation
$7 378
PVC windows and doors (if included in the project)
PVC windows and doors (if included in the project)
$2 324
Total for the house kit with installation*
$38 787
What can you save money on?
You should not save on the house kit
0%
Order foundation installation directly from a specialized contractor
30%-40%
Purchase a house kit and install it on your own with the help of our remote author’s (technical) supervision or with installation supervision from a VIRMAK representative
30%-40%
Purchase the house kit, and we will provide a certified crew
30%-40%
Purchase the house kit based on a standard design rather than a custom design
30%-40%

Project Implementation Examples

Important:

The price of the house kit does not include the porch and terrace. Please check the price with our managers.
The information in this project and the list of materials used are relevant for Krasnodar Krai.

Please check the construction cost for other regions of the Russian Federation.

 For any questions, please contact us using the contact details listed on the website (phone numbers, email, etc.).

For a more accurate preliminary estimate, indicate the district (address) of the future construction.

Need a consultation? Call right now or leave a request using the «contact button».

Minor price changes may be caused by: slopes on the site, difficult access roads, lack of electrical power, etc.

All projects posted on the website are schematic and can serve as initial material for creating a project according to your wishes and recommendations.
