TP-1-85

House kit cost:
$25 831
*The indicated price is not a public offer. Please check the current price with our managers.
Дом из сип панелей

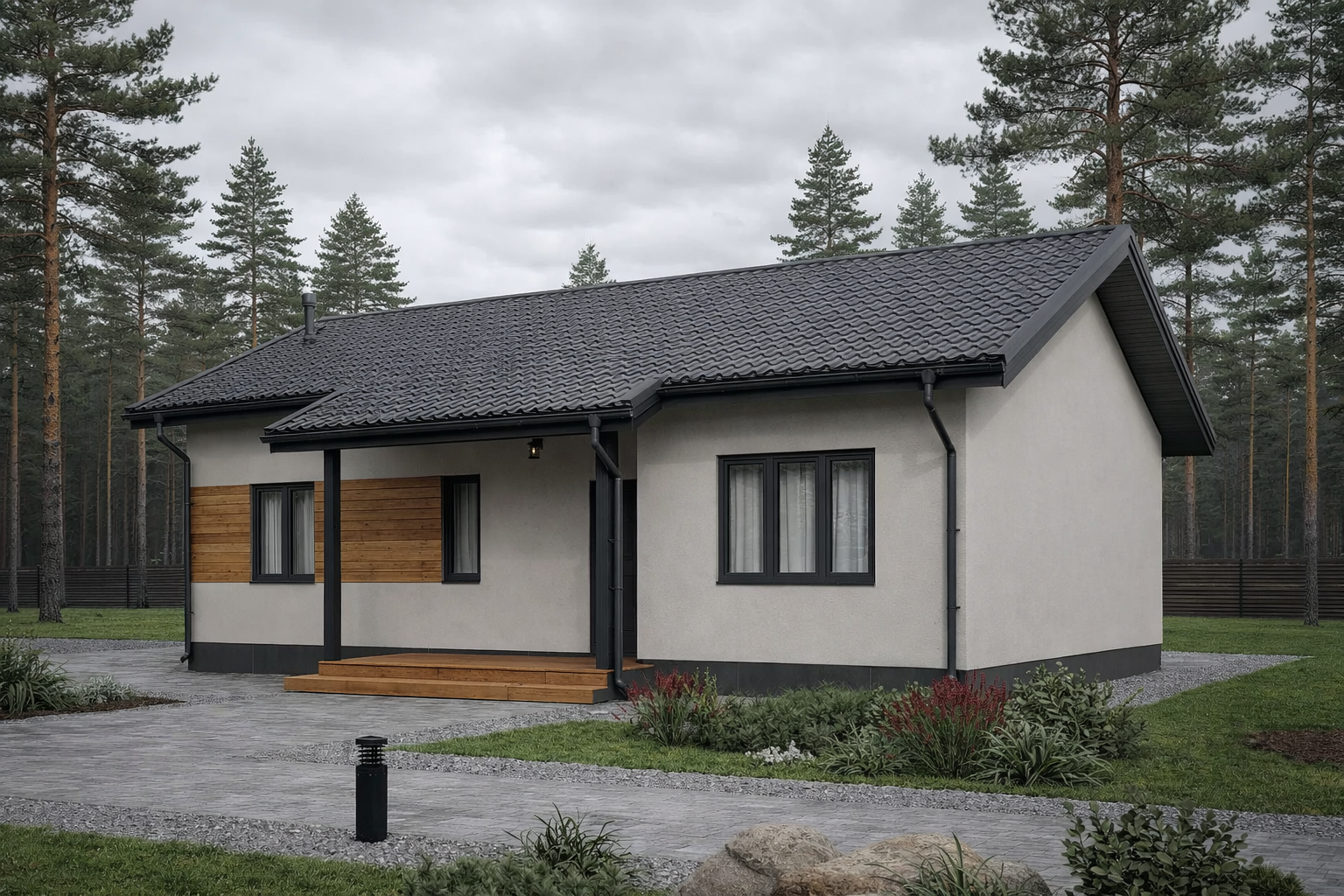

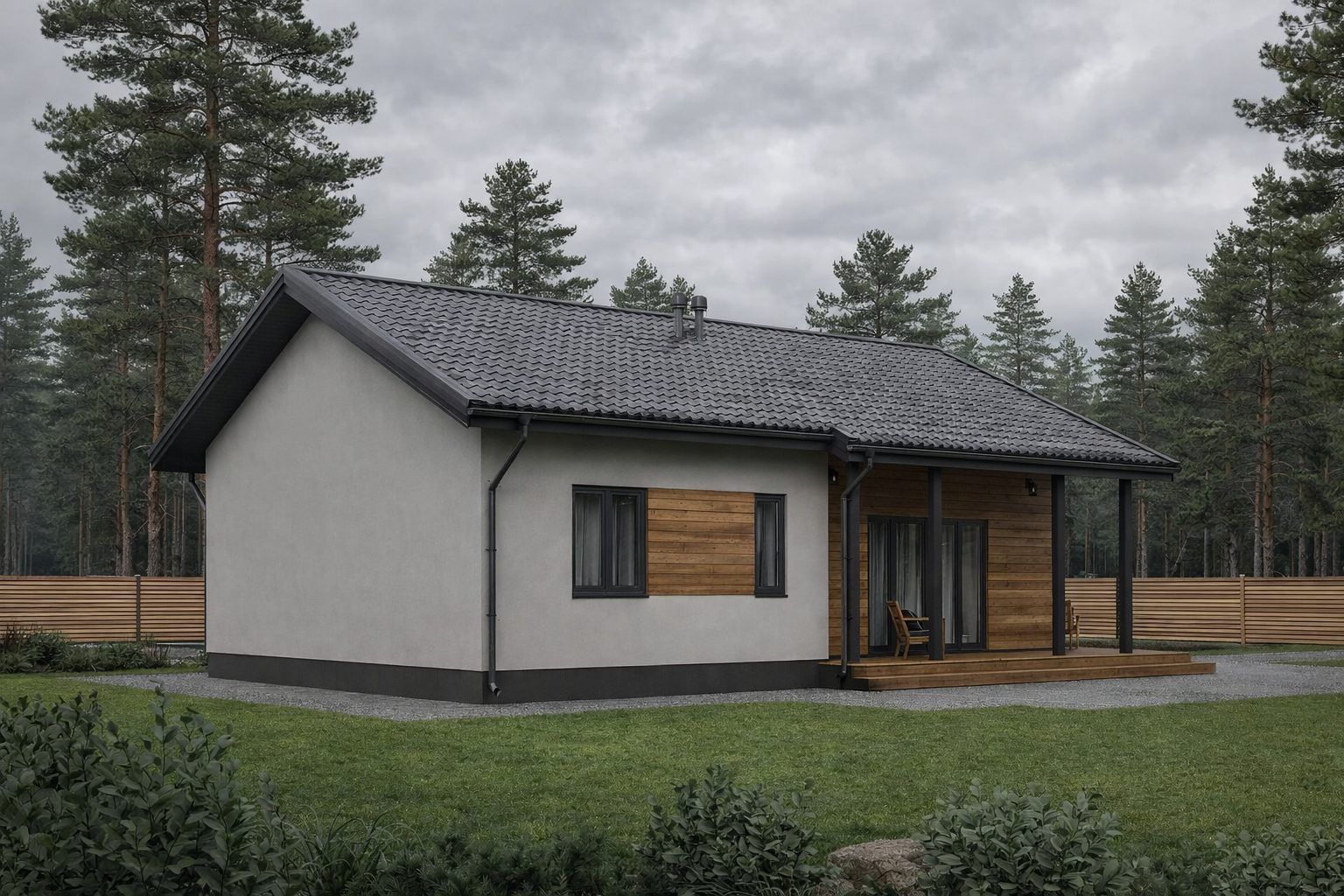

Визуализация

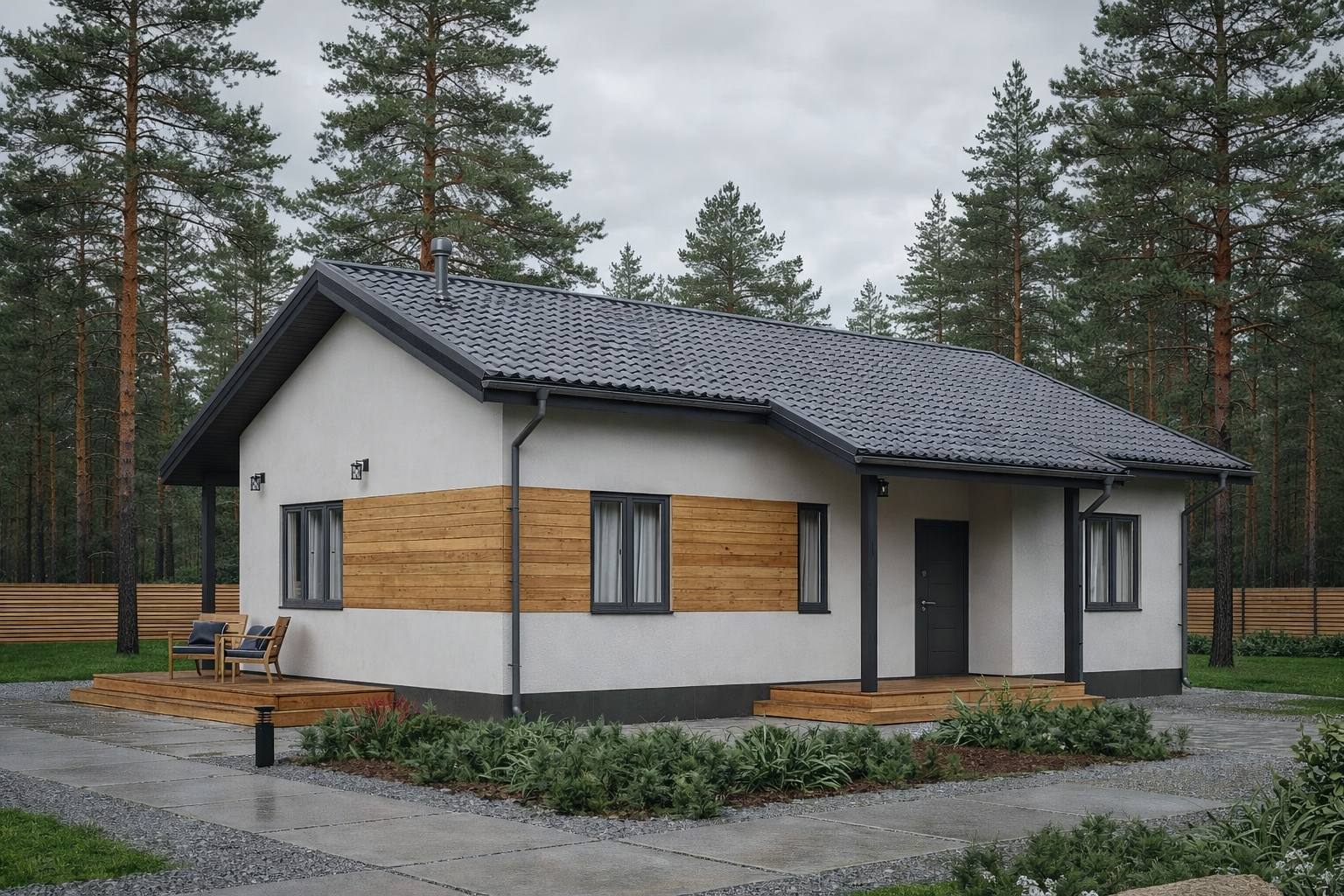

Визуализация

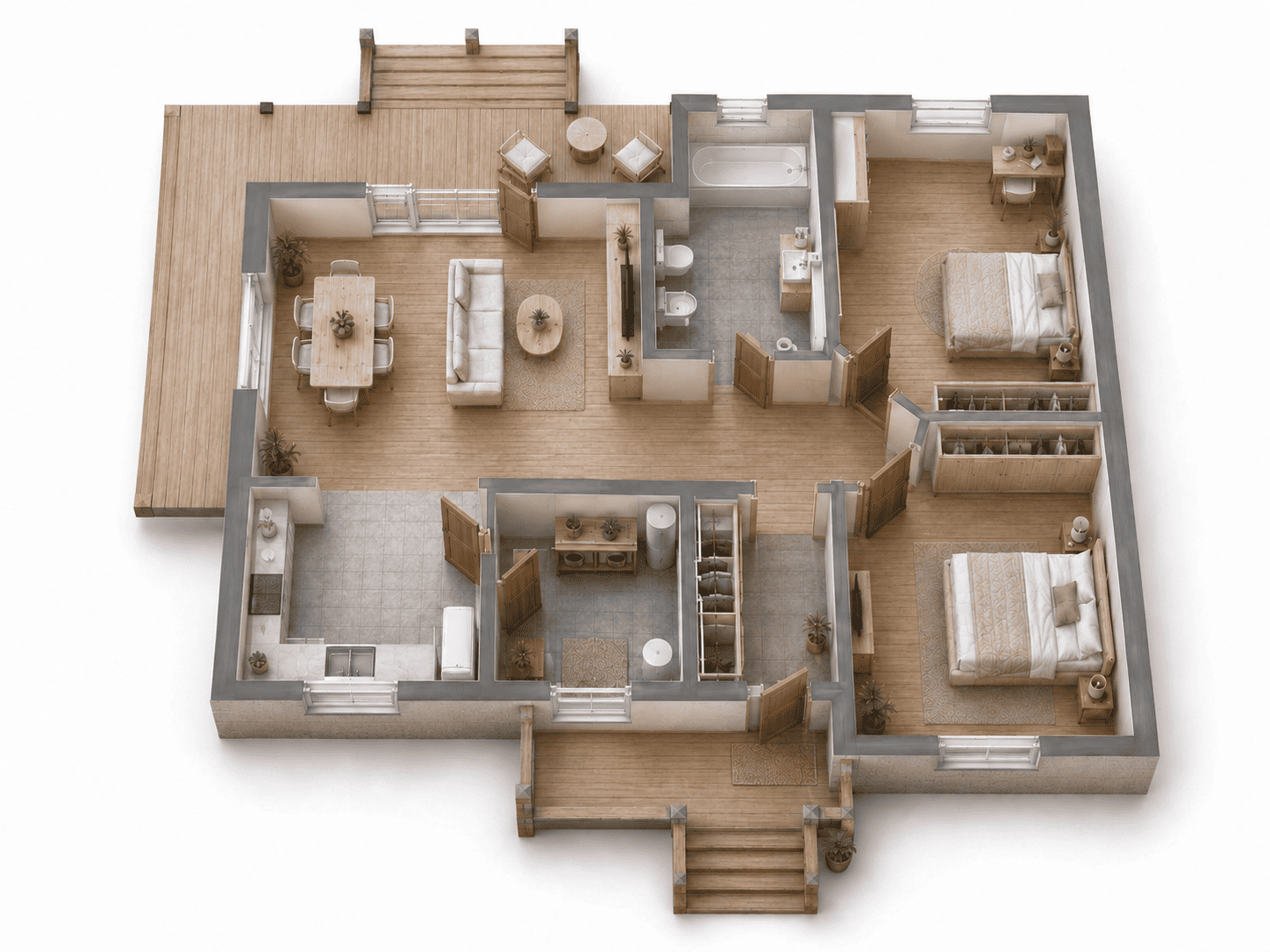

План

The standard single-story house design TP-1-85 includes a spacious living room of 21 m2, which creates a large volume, incredible openness and increased comfort. The kitchen is combined with the living room and has an area of 8 m2. From the kitchen there is an entrance to a utility room of 5.8 m2, where a gas boiler room can be installed in accordance with the requirements of the legislation of the Russian Federation and used as a pantry for the kitchen. The house has two bedrooms of 13 m2 each, and a bathroom of 6.5 m2 for these two bedrooms. The hallway area is 4.0 m2, which allows four residents to comfortably enter the house at the same time. The small corridor area for such a house is only 4.0 m2, but it still provides comfortable movement throughout the house. All bedrooms have a partition forming a niche for installing a built-in wardrobe, which will significantly reduce future furniture costs. The thoughtful layout allows for comfortable living in the house despite its small area.

Object Specifications:
  • Number of Floors
    1
  • Building Area, m²
    85
  • Length, m
    11
  • Width, m
    8
  • House height, m
    5,3
  • Total Area, m²
    75
  • Number of Rooms
    3
  • Number of Bathrooms
    1
  • Number of windows, pcs
    6
  • Glazed area, m2
    17
  • Facade area, m2
    124
  • Roof pitch angle, °
    25
  • Roof type
    Gable
  • Roof area, m2
    138
  • Number of entrance doors, pcs
    1
  • Production time, days
    from 25
  • Volume, m3
    60
  • Weight, tonnes
    14
  • Delivery terms
    Pickup from warehouse (EXW)
  • Loading and packaging
    Included
Architectural elements
  • Porch 1
    7 m²
  • Terrace
    18 m²
Layout solutions
1st Floor
1st Floor
1.
Living Room-Dining Room 21 m²
2.
Kitchen 7 m²
3.
Bedroom 13 m²
4.
Bedroom 13 m²
5.
Bathroom 6 m²
6.
Hall 4 m²
7.
Technical Room 6 m²
8.
Vestibule 4 m²
9.
Porch 7 m²
10.
Terrace 18 m²
Order a panel-frame SIP house kit based on a ready-made standard design
Place an Order
Something does not fit? No problem. Contact us, and we will create a project for you absolutely free! Any changes can be made to the house configuration and layout with the corresponding budget adjustment.
Modify the Project
House kit
Standard project
$722
Grillage made of kiln-dried planed timber. Ground floor structure made of VIRMAK SIP panels with CSP and EPS.
$9 996
Exterior walls made of VIRMAK® SIP panels with cement-bonded particle board and EPS. Interior partitions are frame structures made of kiln-dried planed timber.
$15 113
Total for the house kit
$25 831
Additional materials and work (estimated prices for planning and understanding the construction budget)
bs_object_specs
Foundation
SVSN screw pile (blade Ø300 mm, shaft Ø108 mm, length 2500 mm)
$1 488
House kit installation
Assembly of house kit 85 m²
$8 330
Roof and roofing with installation
Стропильная система из пиломатериала
$5 216
Roofing - metal tile 0.5 mm, polyester 25 µm, Zn 100-140 g/m² and installation. Soft shingles plus 8%
$4 830
PVC windows and doors (if included in the project)
PVC windows and doors (if included in the project)
$2 380
Total for the house kit with installation*
$48 075
What can you save money on?
You should not save on the house kit
0%
Order foundation installation directly from a specialized contractor
30%-40%
Purchase a house kit and install it on your own with the help of our remote author’s (technical) supervision or with installation supervision from a VIRMAK representative
30%-40%
Purchase the house kit, and we will provide a certified crew
30%-40%
Purchase the house kit based on a standard design rather than a custom design
30%-40%

Project Implementation Examples

Important:

The price of the house kit does not include the porch and terrace. Please check the price with our managers.
The information in this project and the list of materials used are relevant for Krasnodar Krai.

Please check the construction cost for other regions of the Russian Federation.

 For any questions, please contact us using the contact details listed on the website (phone numbers, email, etc.).

For a more accurate preliminary estimate, indicate the district (address) of the future construction.

Need a consultation? Call right now or leave a request using the «contact button».

Minor price changes may be caused by: slopes on the site, difficult access roads, lack of electrical power, etc.

All projects posted on the website are schematic and can serve as initial material for creating a project according to your wishes and recommendations.
