TP-2-108

House kit cost:
$33 230
*The indicated price is not a public offer. Please check the current price with our managers.
Визуализация
Визуализация

The standard design of a two-story house made of SIP panels TP-2-108 includes a spacious kitchen-living room of 24 m2, which creates a large volume, incredible spaciousness and increased comfort. The kitchen has access to a 22 m2 terrace. The house has four bedrooms of 12 m2, 12 m2, 10 m2 and 9 m2, as well as two bathrooms of 4.0 m2 and 5.0 m2. The hallway area is 2.5 m2, but despite this size it can accommodate a wardrobe. All bedrooms have niches for built-in wardrobes to be installed later, which will significantly reduce future furniture costs. The well-thought-out layout allows comfortable living in the house and placement of four bedrooms despite its small area.

Object Specifications:
  • Number of Floors
    2
  • Building Area, m²
    108
  • Length, m
    7.5
  • Width, m
    7.2
  • House height, m
    7.5
  • Total Area, m²
    90
  • Floor-to-ceiling height, m
    2.7
  • Number of Rooms
    5
  • Number of Bathrooms
    2
  • Number of windows, pcs
    10
  • Glazing area, m2
    16
  • Facade area, m2
    168
  • Roof pitch angle, °
    25
  • Roof type
    Multi-pitched
  • Roofing area, m2
    84
  • Number of entrance doors, pcs
    1
  • Production lead time, days
    from 25
  • Volume, m3
    66
  • Weight, tonnes
    17
  • Delivery terms
    Pickup from warehouse (EXW)
  • Loading and packaging
    Included
Architectural elements
  • Porch area, m²
    3
  • Terrace area, m²
    22
Layout solutions

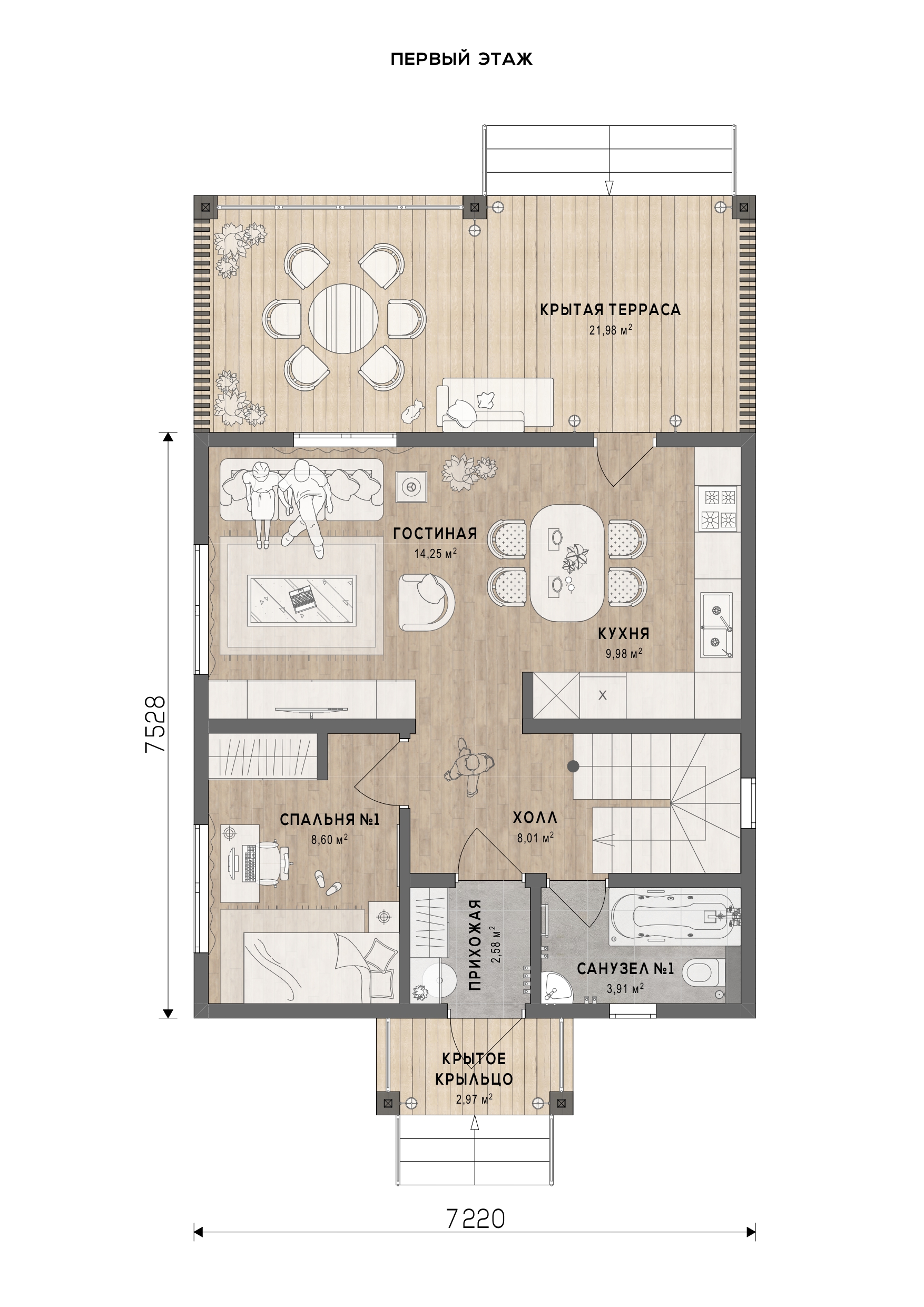

1st Floor
план двухэтажного дома из сип панелей
1.
Living Room 14 m²
2.
Kitchen 10 m²
3.
Bedroom 9 m²
4.
Hall 8 m²
5.
Bathroom 4 m²
6.
Entrance Hall 2.5 m²
7.
Porch 3 m²
8.
Terrace 22 m²

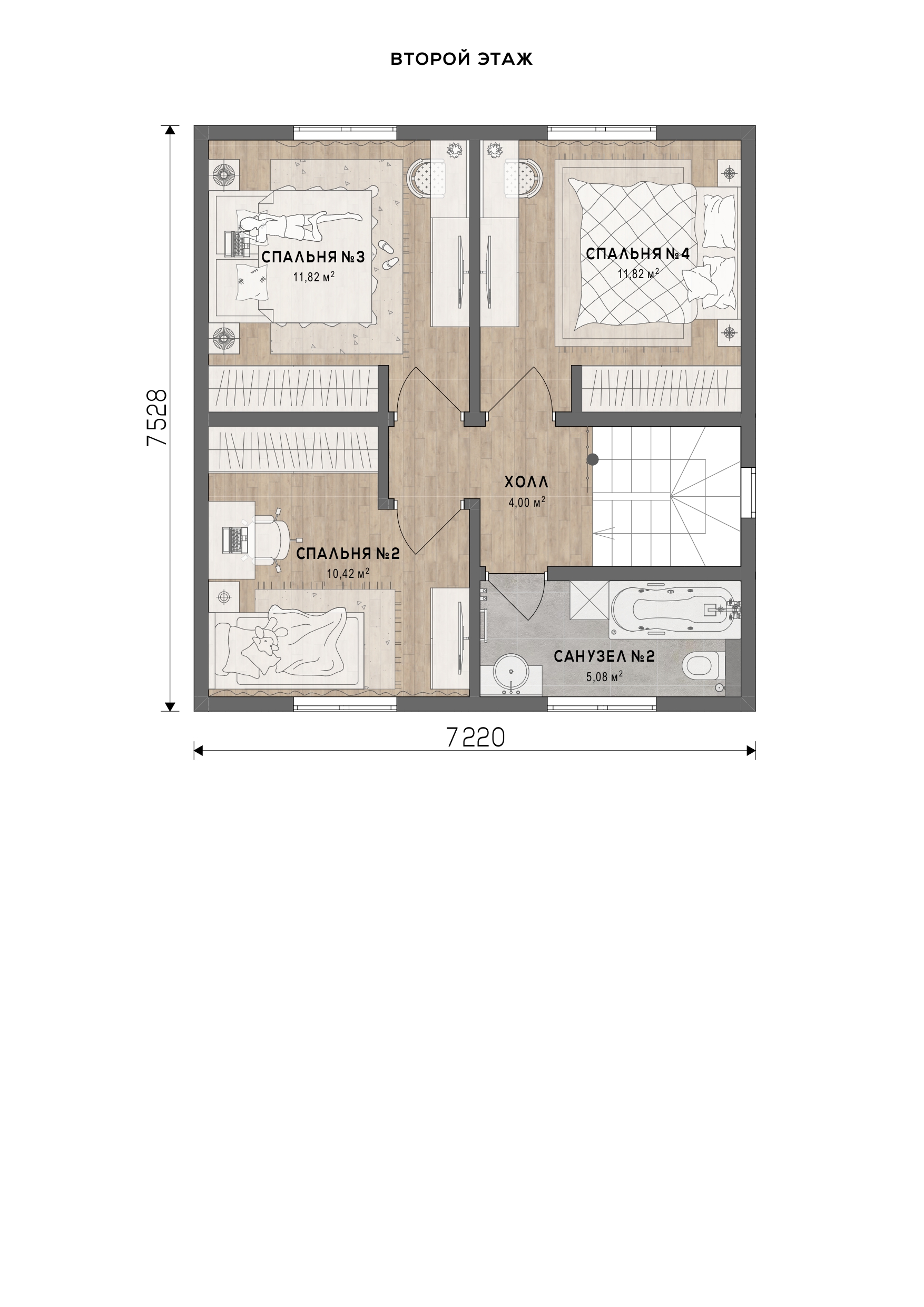

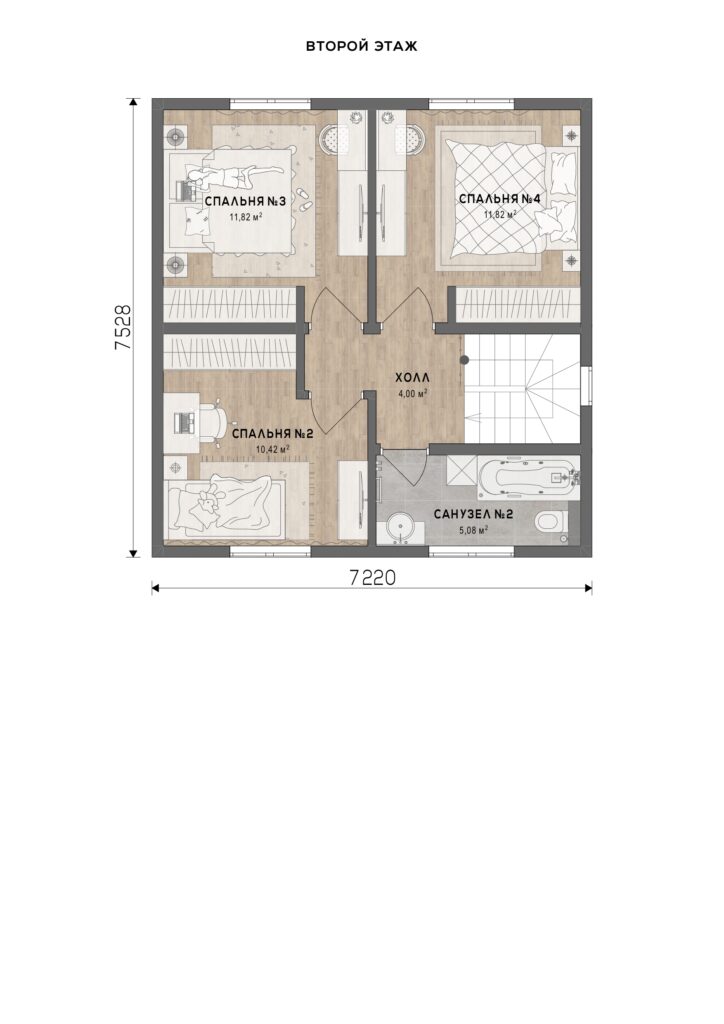

2nd Floor
план двухэтажного дома из сип панелей
1.
Bedroom 12 m²
2.
Bedroom 12 m²
3.
Bedroom 10 m2
4.
Bathroom 5 m2
5.
Hall 4 m²
Order a panel-frame SIP house kit based on a ready-made standard design
Place an Order
Something does not fit? No problem. Contact us, and we will create a project for you absolutely free! Any changes can be made to the house configuration and layout with the corresponding budget adjustment.
Modify the Project
House kit
Standard project
$722

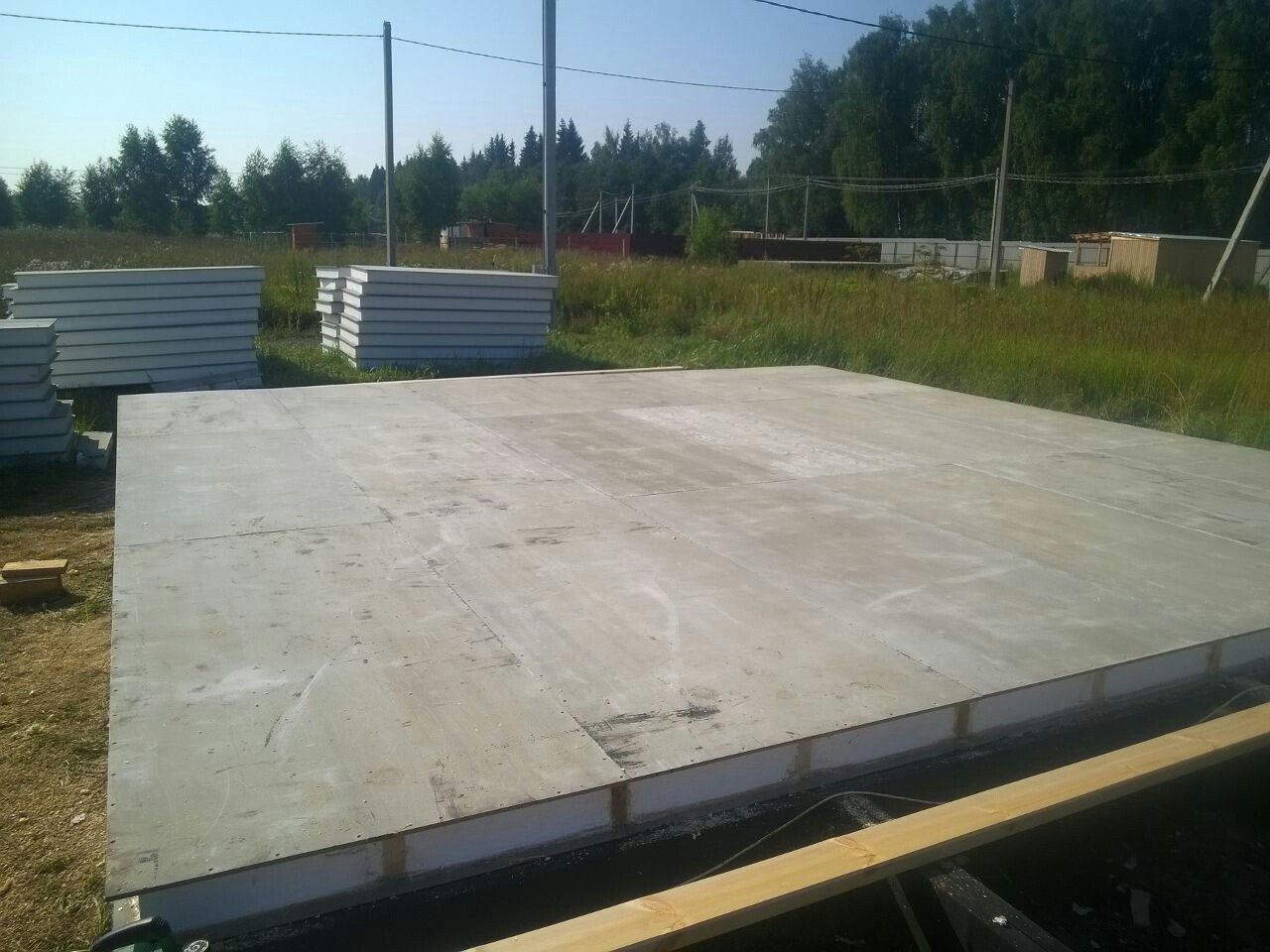

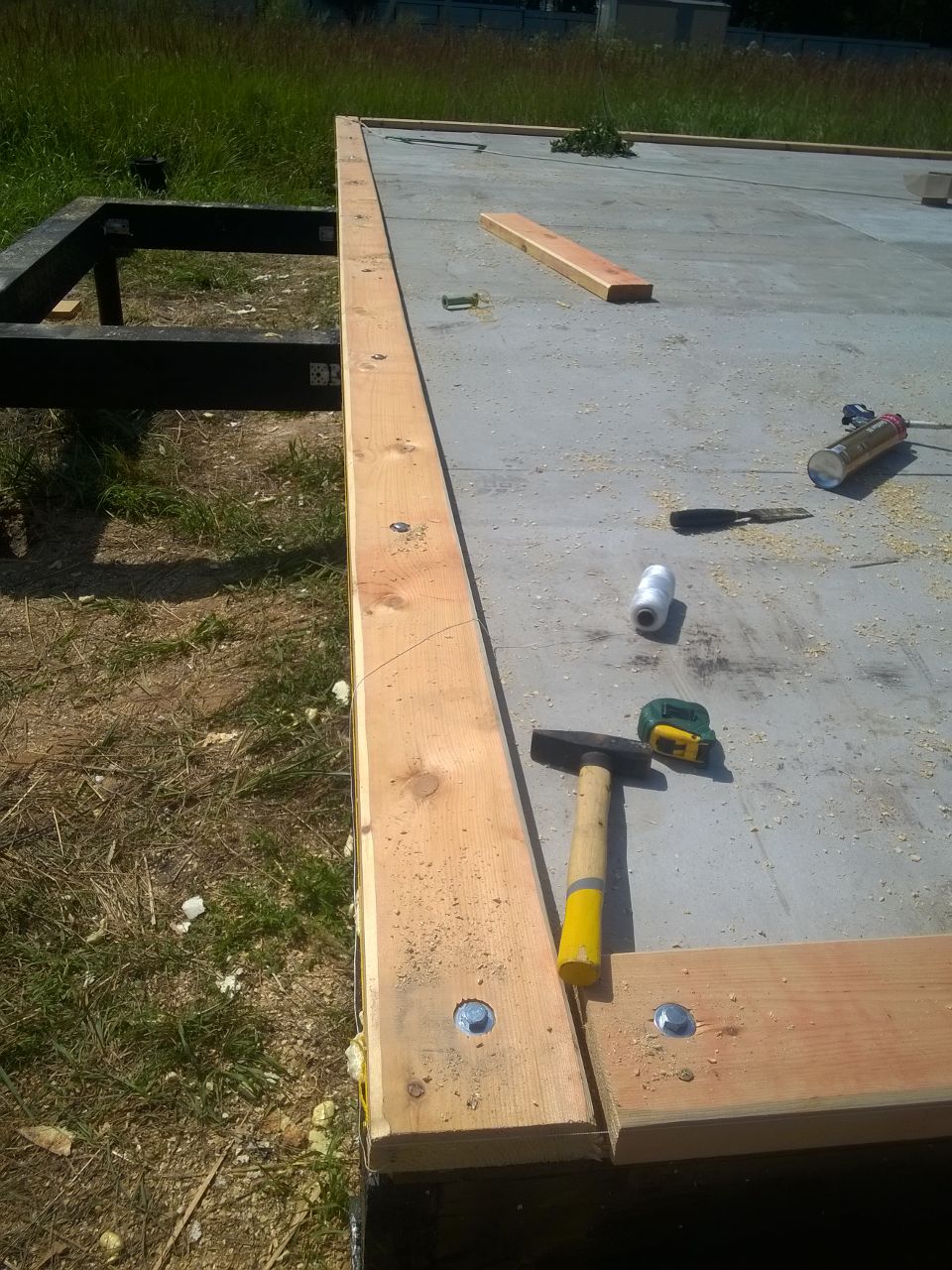

Grillage made of kiln-dried planed timber. Ground floor structure made of VIRMAK SIP panels with CSP and EPS.
$6 502
Exterior walls made of VIRMAK® SIP panels with cement-bonded particle board and EPS. Interior partitions are frame structures made of kiln-dried planed timber.
$21 168

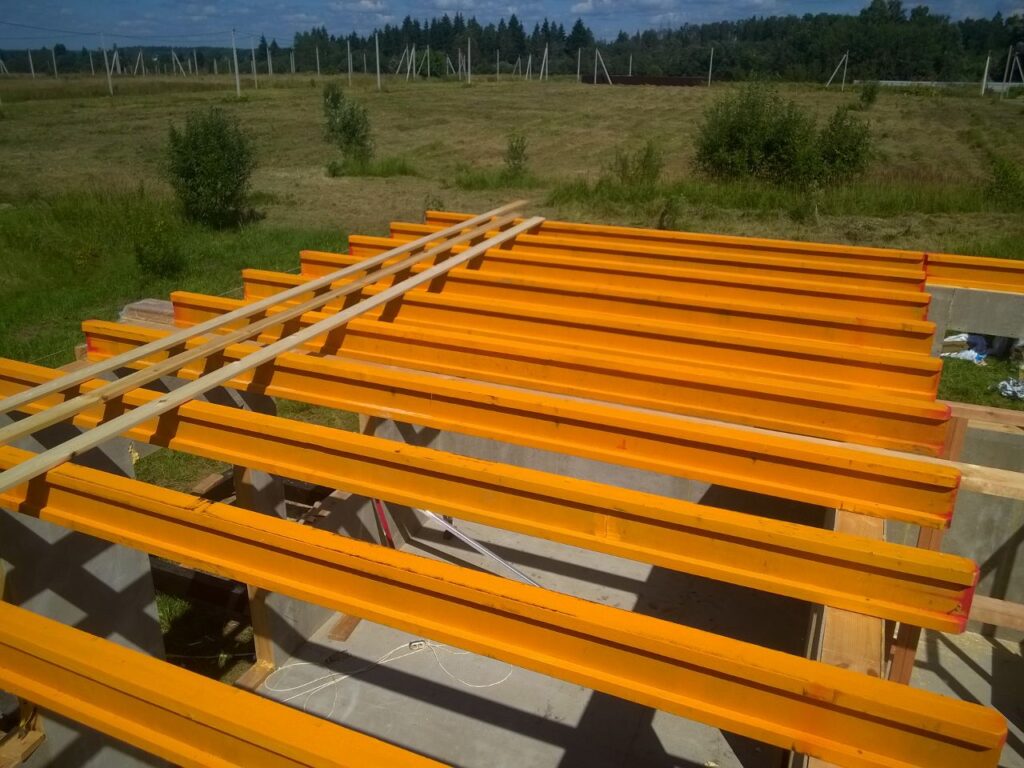

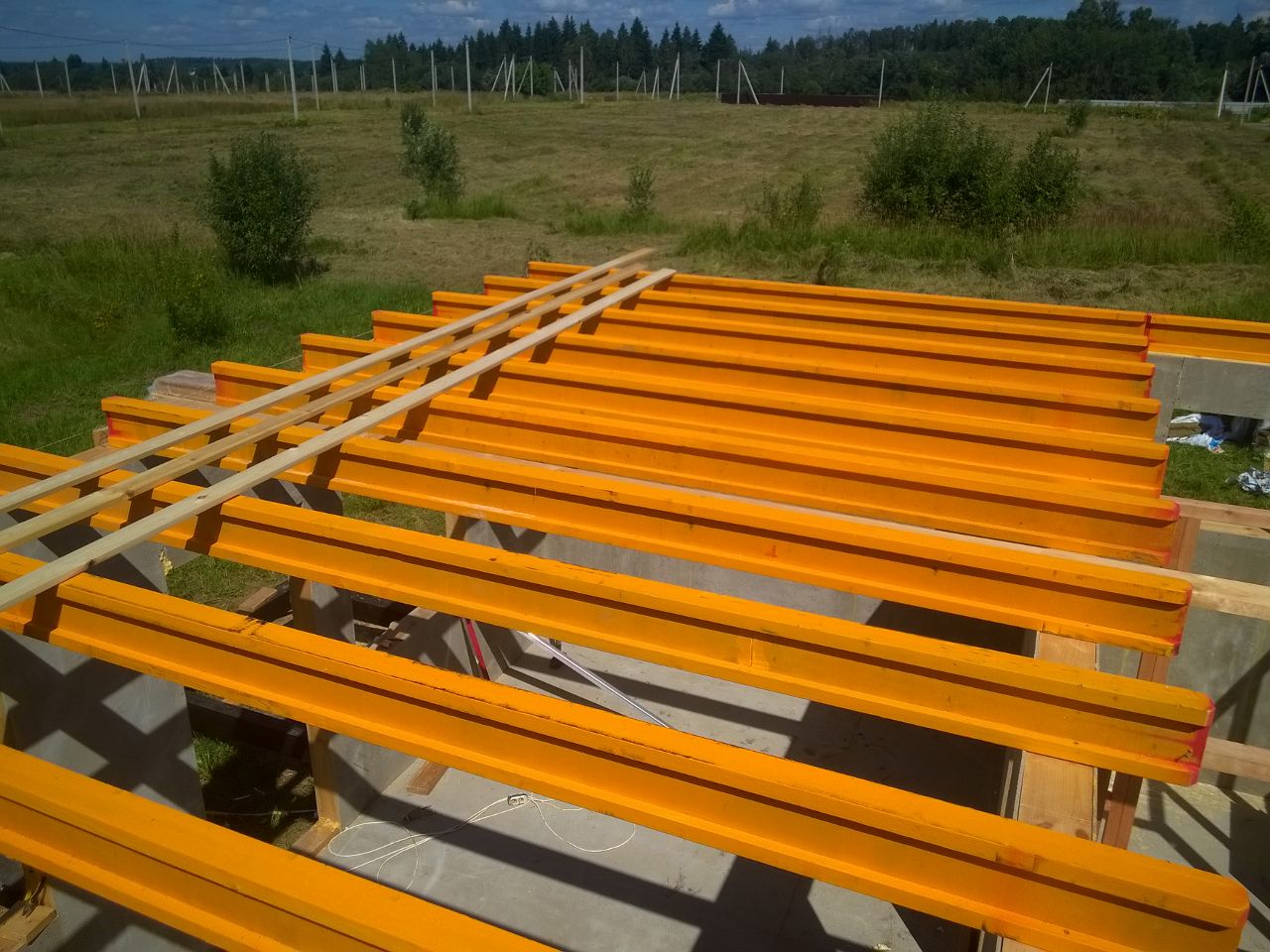

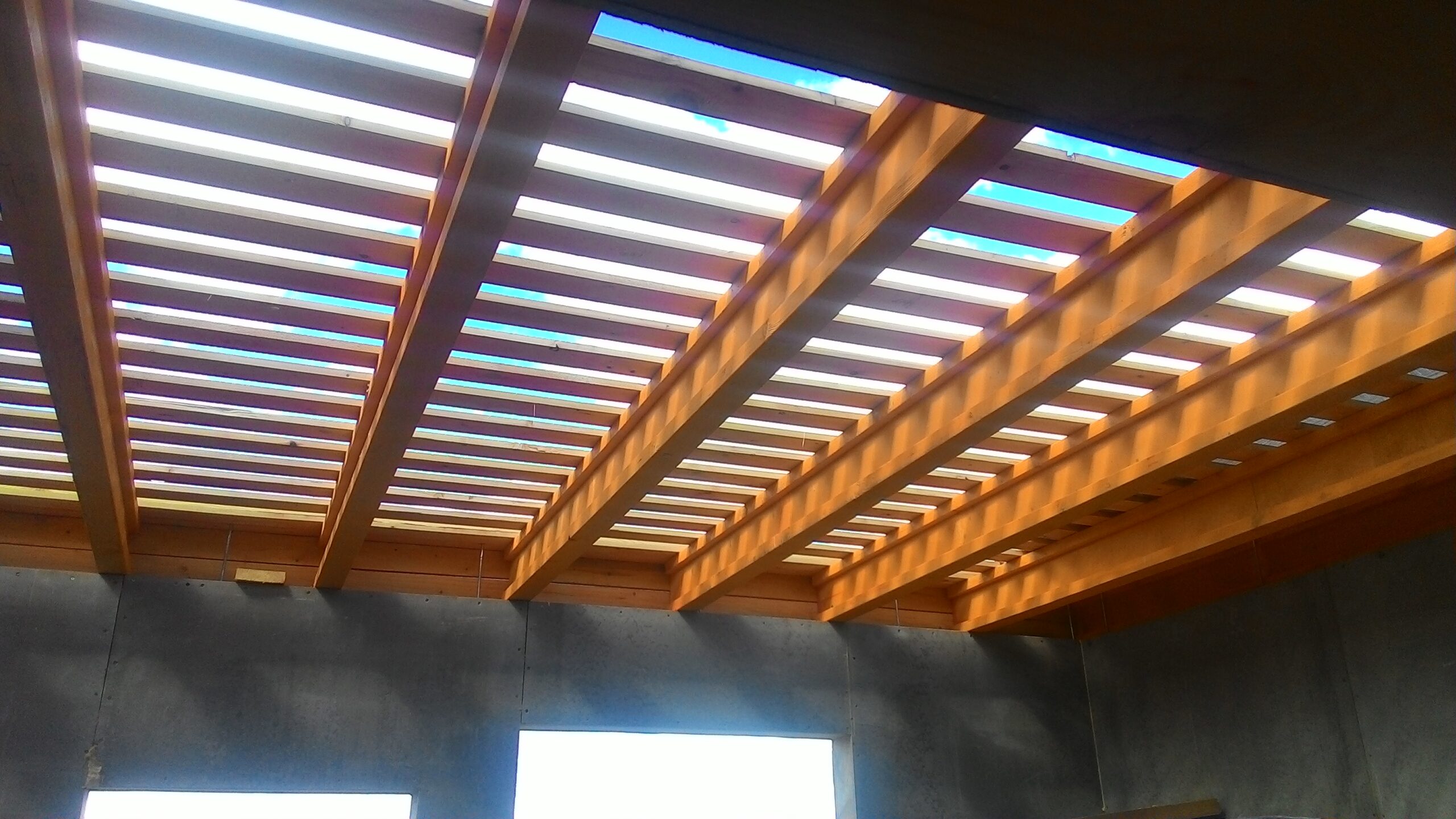

Intermediate floor slab made of I-beams (or joists)
$4 838
Total for the house kit
$33 230
Additional materials and work (estimated prices for planning and understanding the construction budget)
bs_object_specs
Foundation

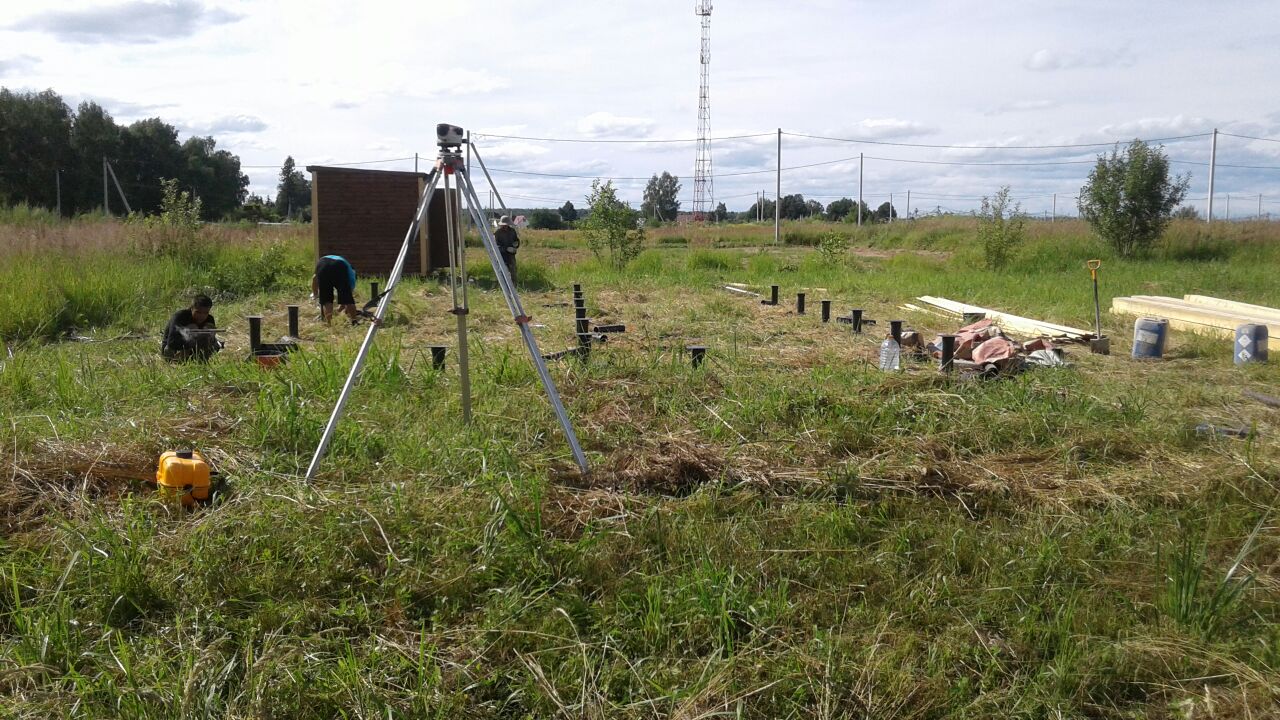

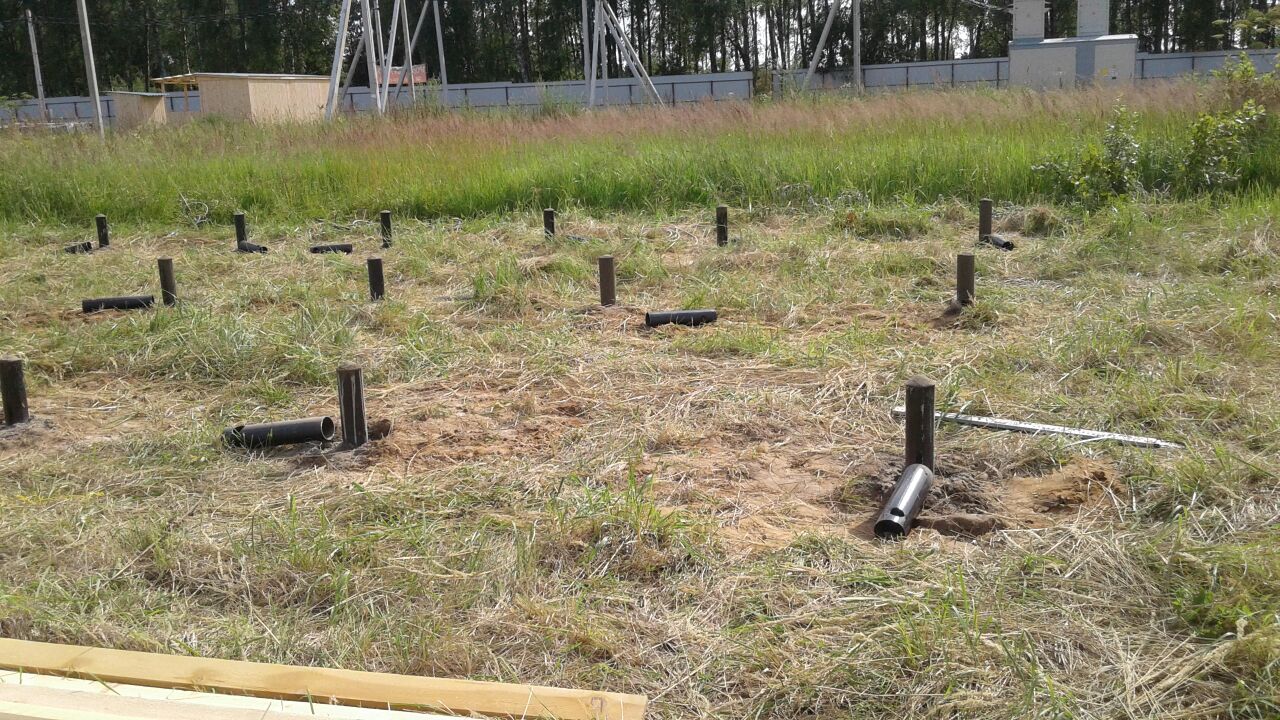

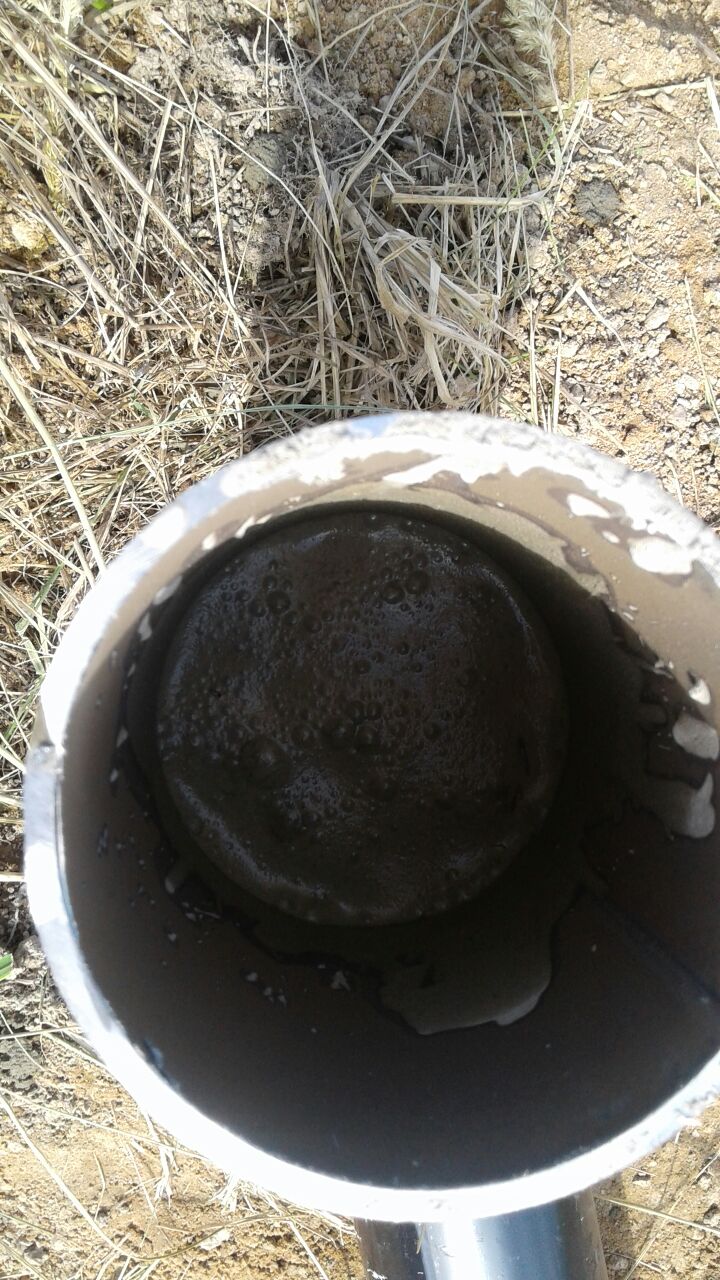

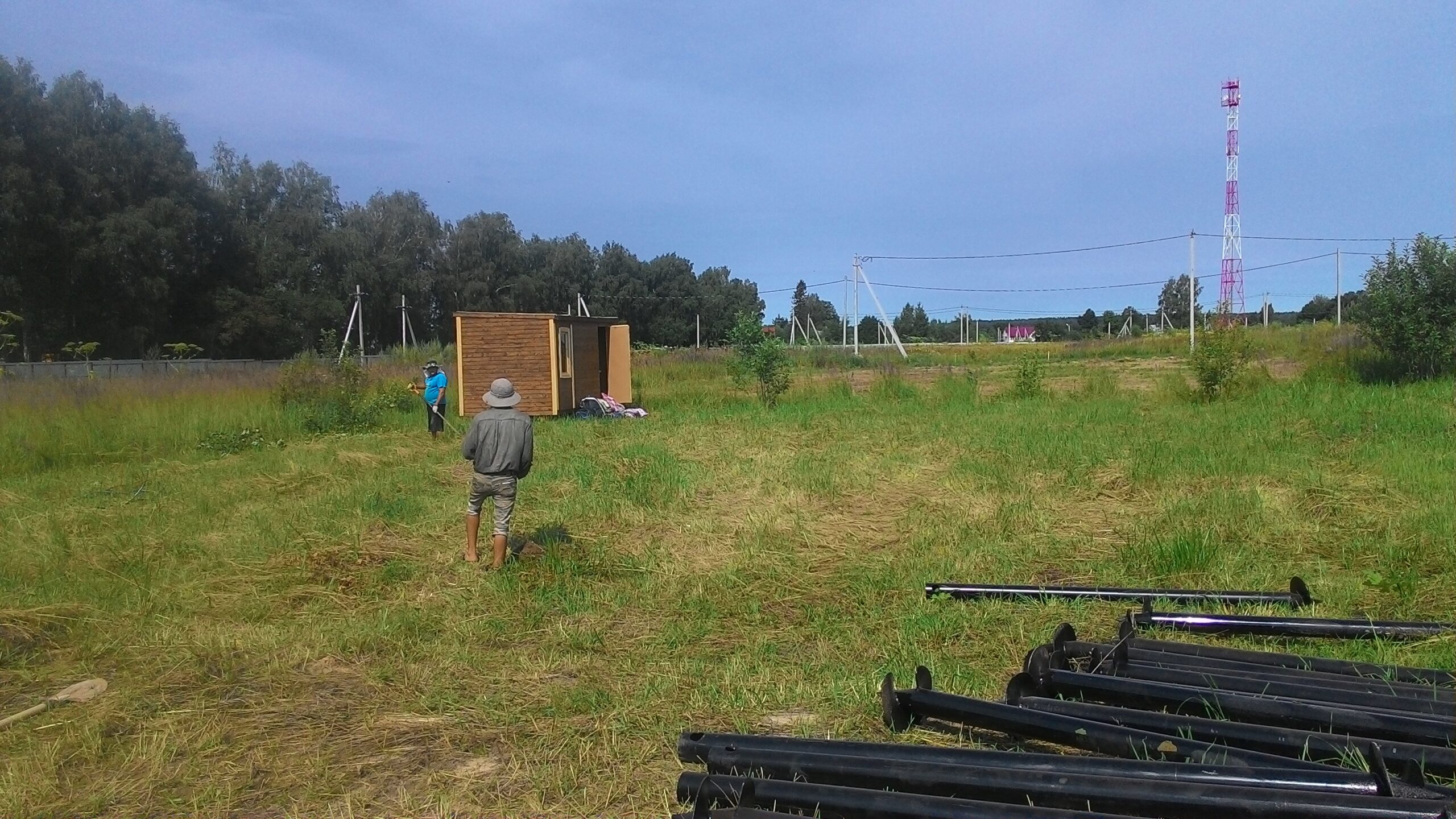

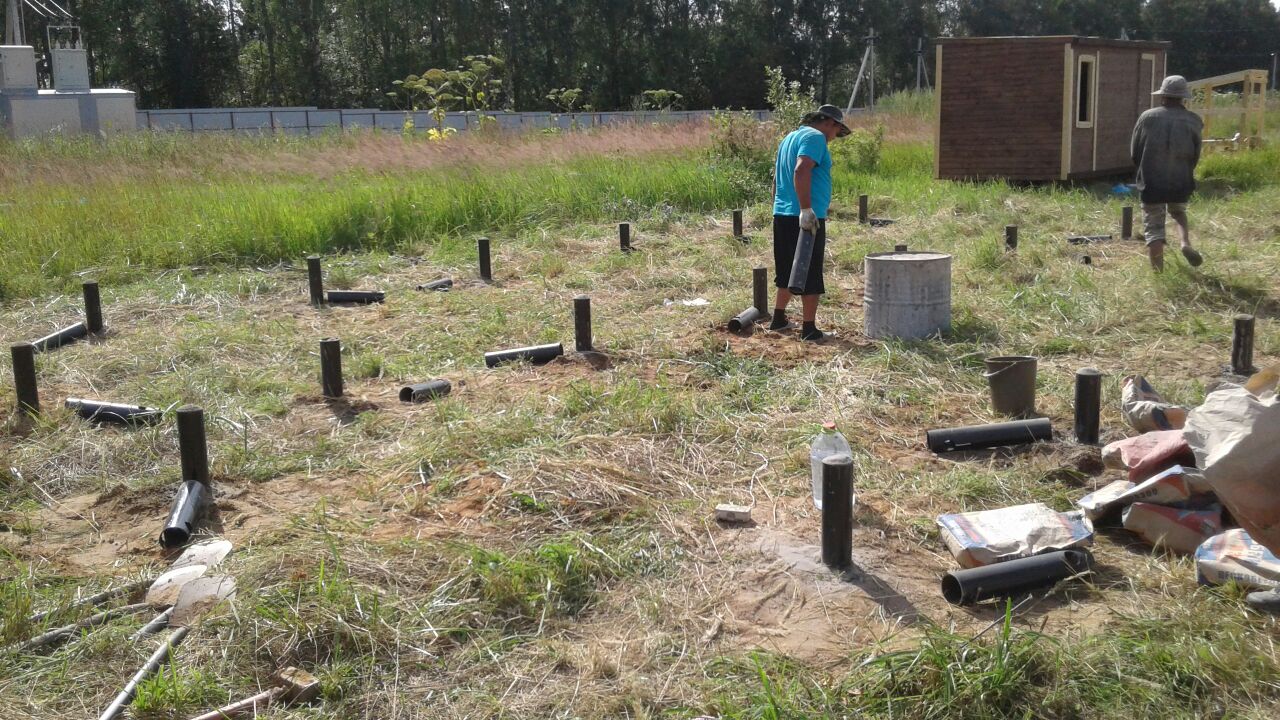

SVSN screw pile (blade Ø300 mm, shaft Ø108 mm, length 2500 mm)
$945
House kit installation
House kit installation
$10 584
Roof and roofing with installation
Стропильная система из пиломатериала
$5 880
Roofing - metal tile 0.5 mm, polyester 25 µm, Zn 100-140 g/m² and installation. Soft shingles plus 8%
$2 940
PVC windows and doors (if included in the project)
PVC windows and doors (if included in the project)
$2 240
Total for the house kit with installation*
$55 819
What can you save money on?
You should not save on the house kit
0%
Order foundation installation directly from a specialized contractor
30%-40%
Purchase a house kit and install it on your own with the help of our remote author’s (technical) supervision or with installation supervision from a VIRMAK representative
30%-40%
Purchase the house kit, and we will provide a certified crew
30%-40%
Purchase the house kit based on a standard design rather than a custom design
30%-40%

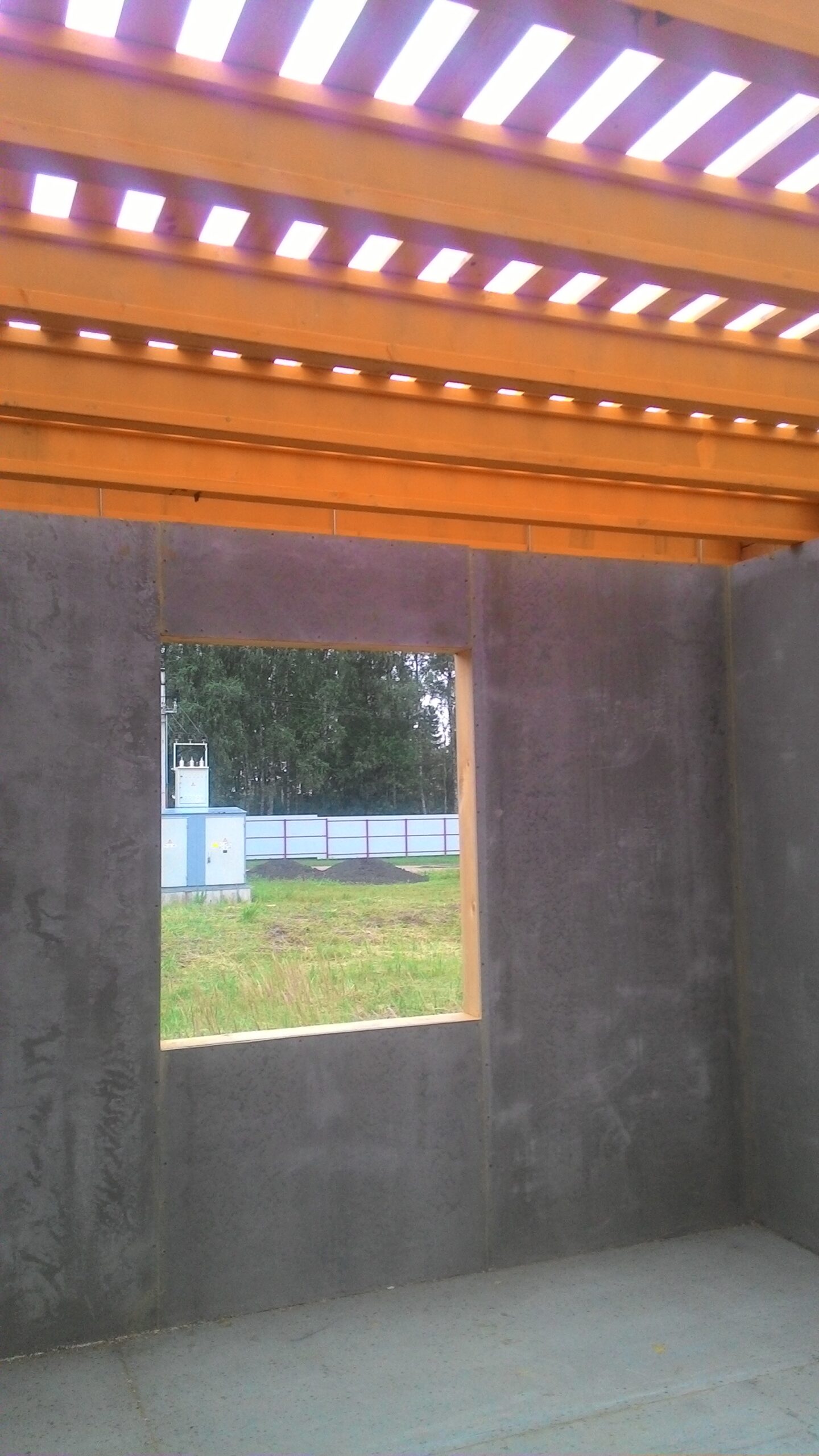

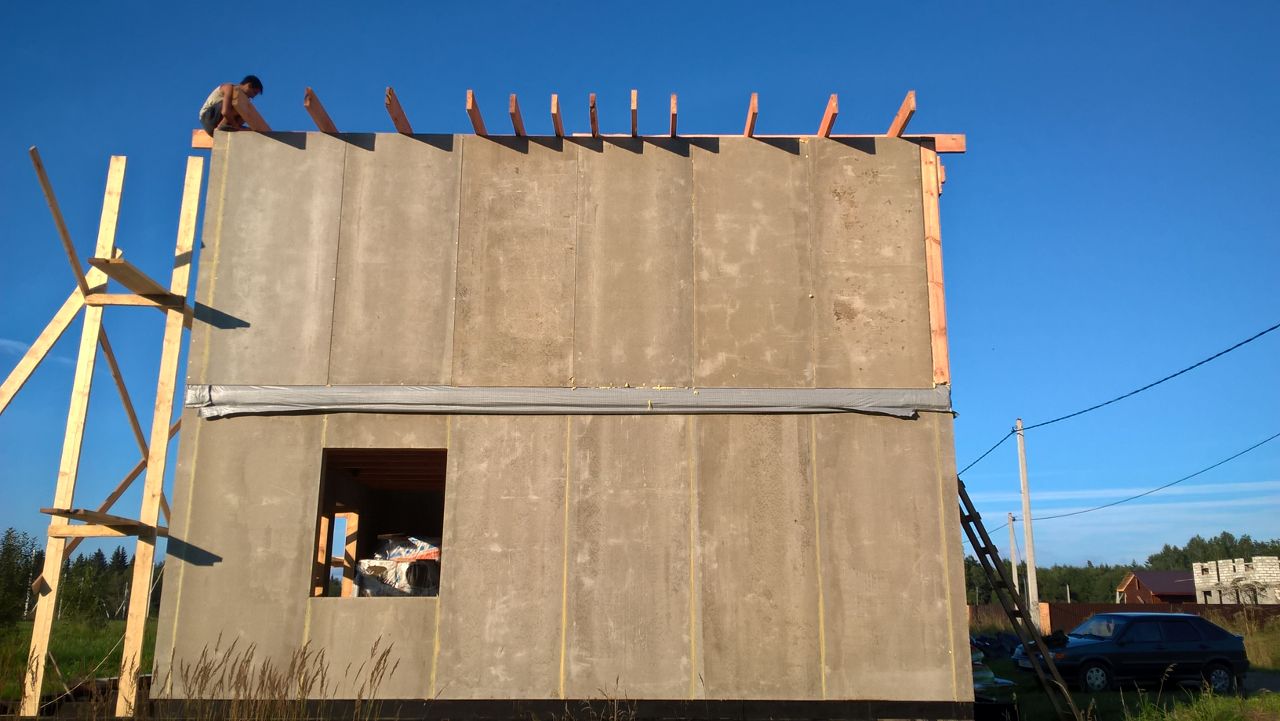

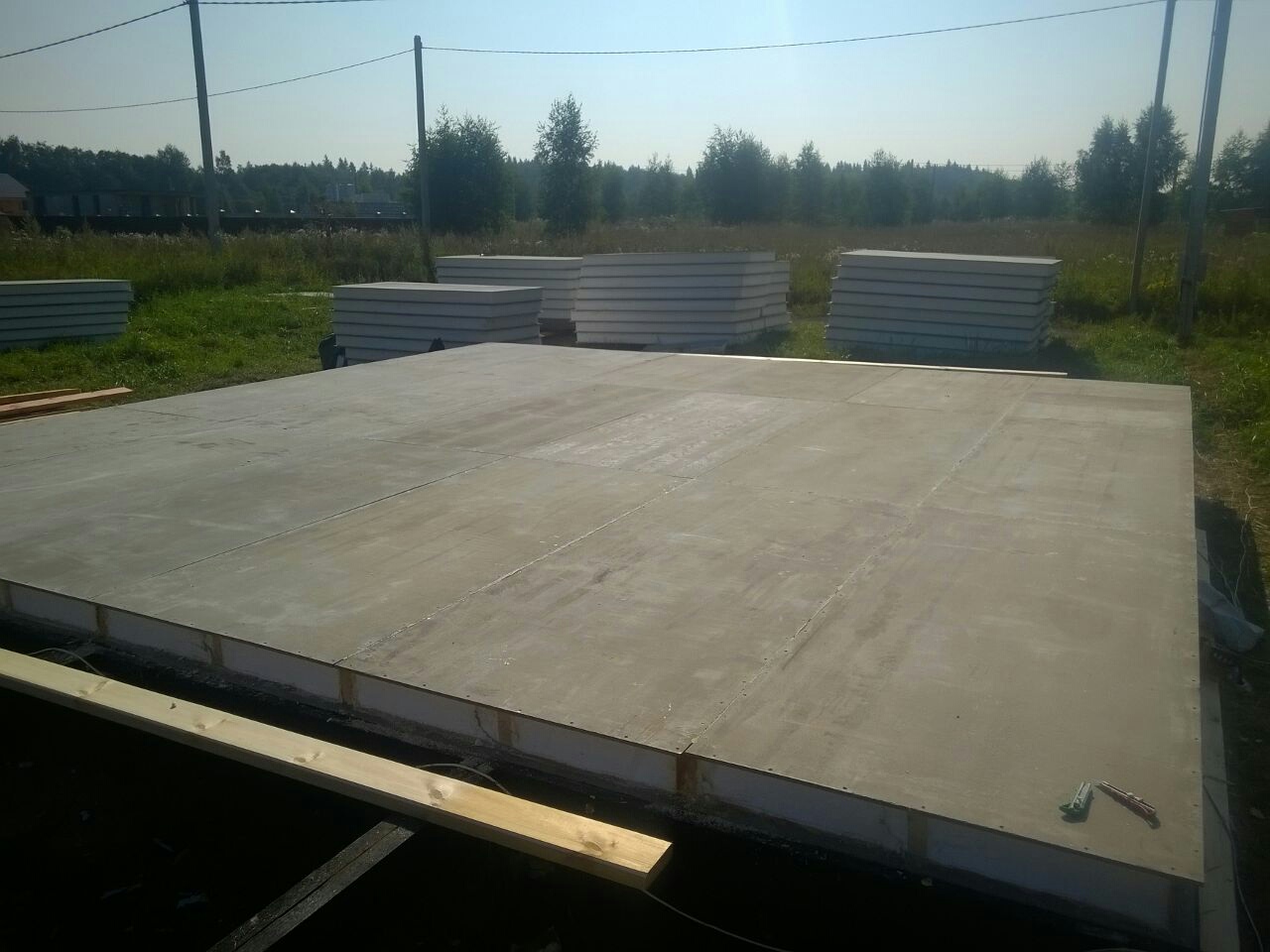

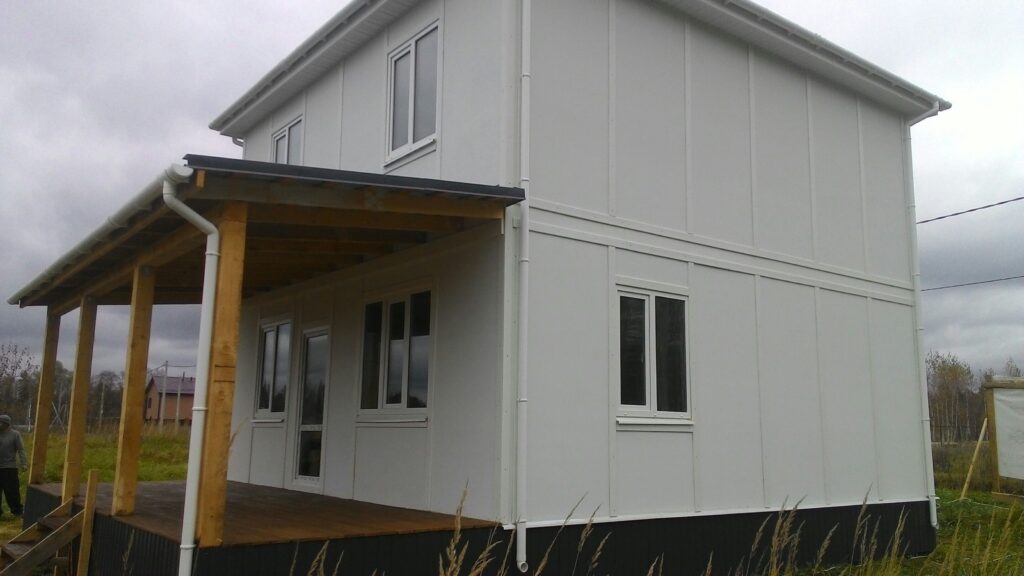

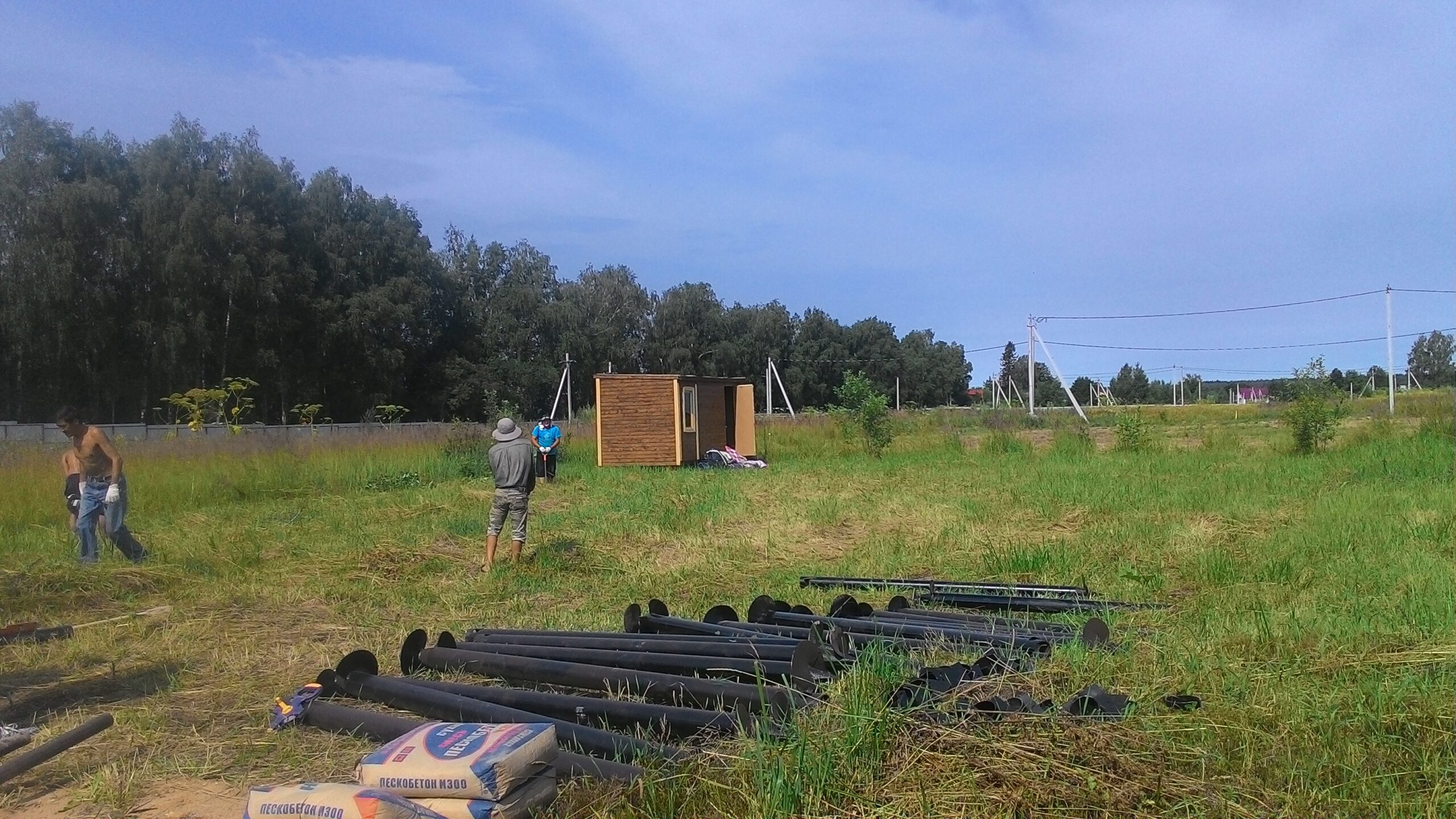

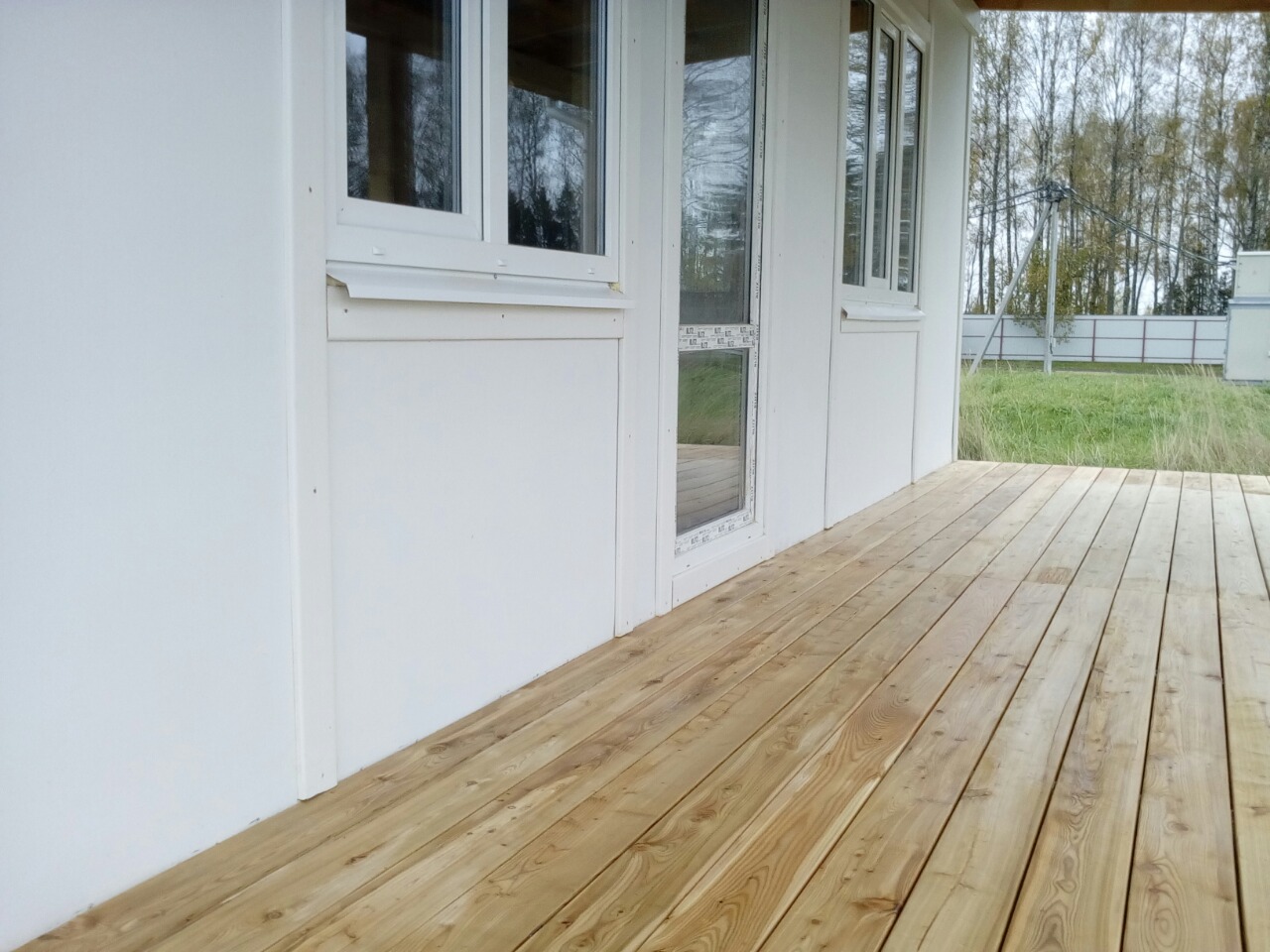

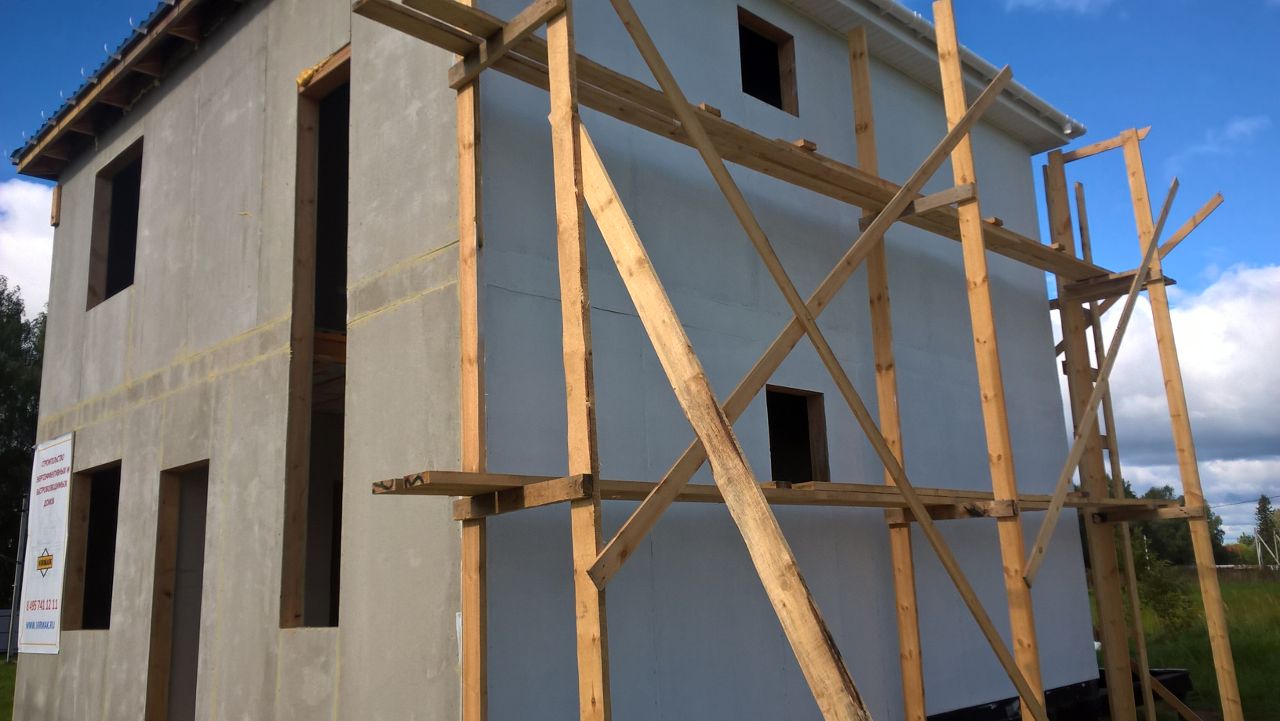

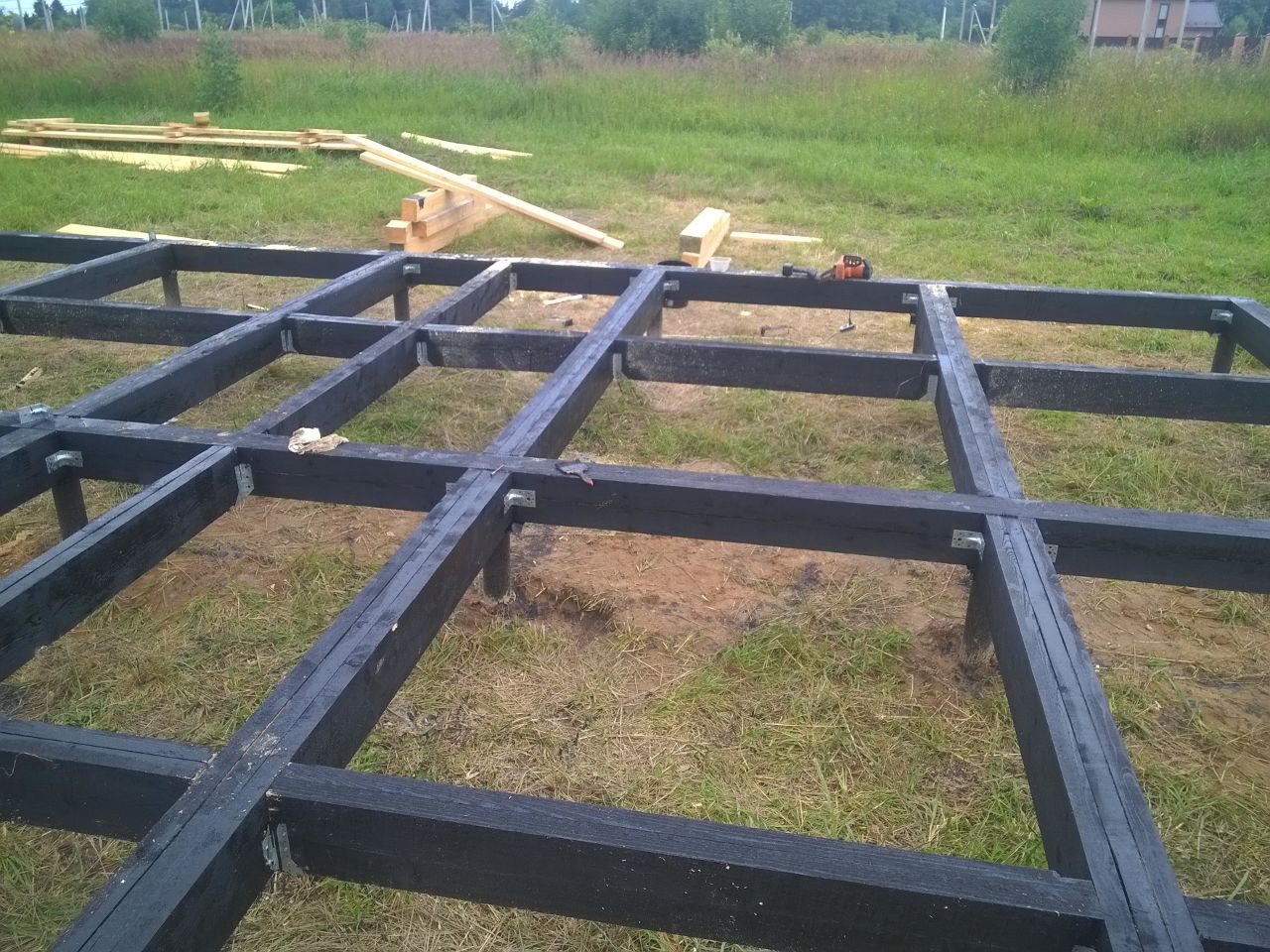

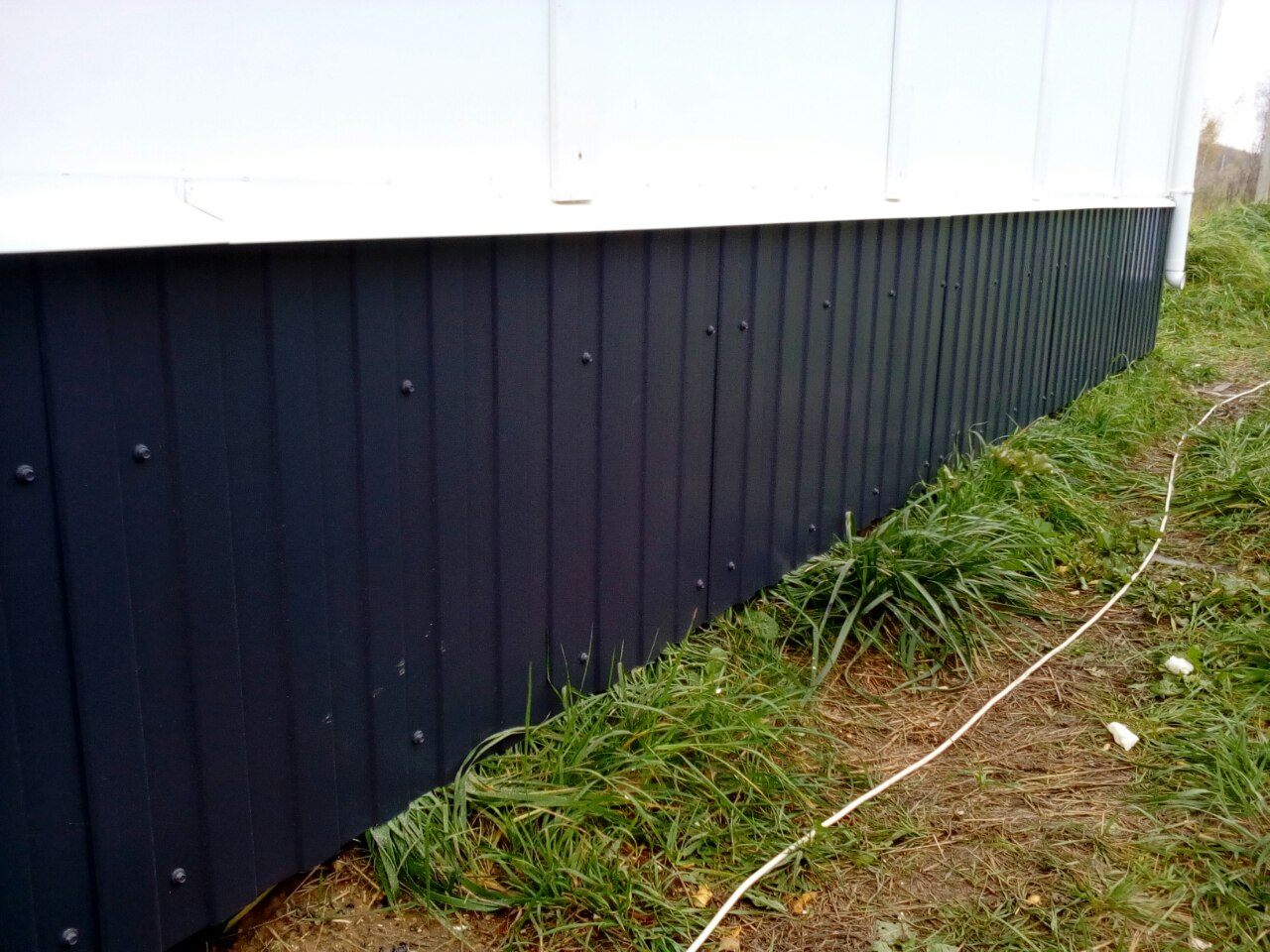

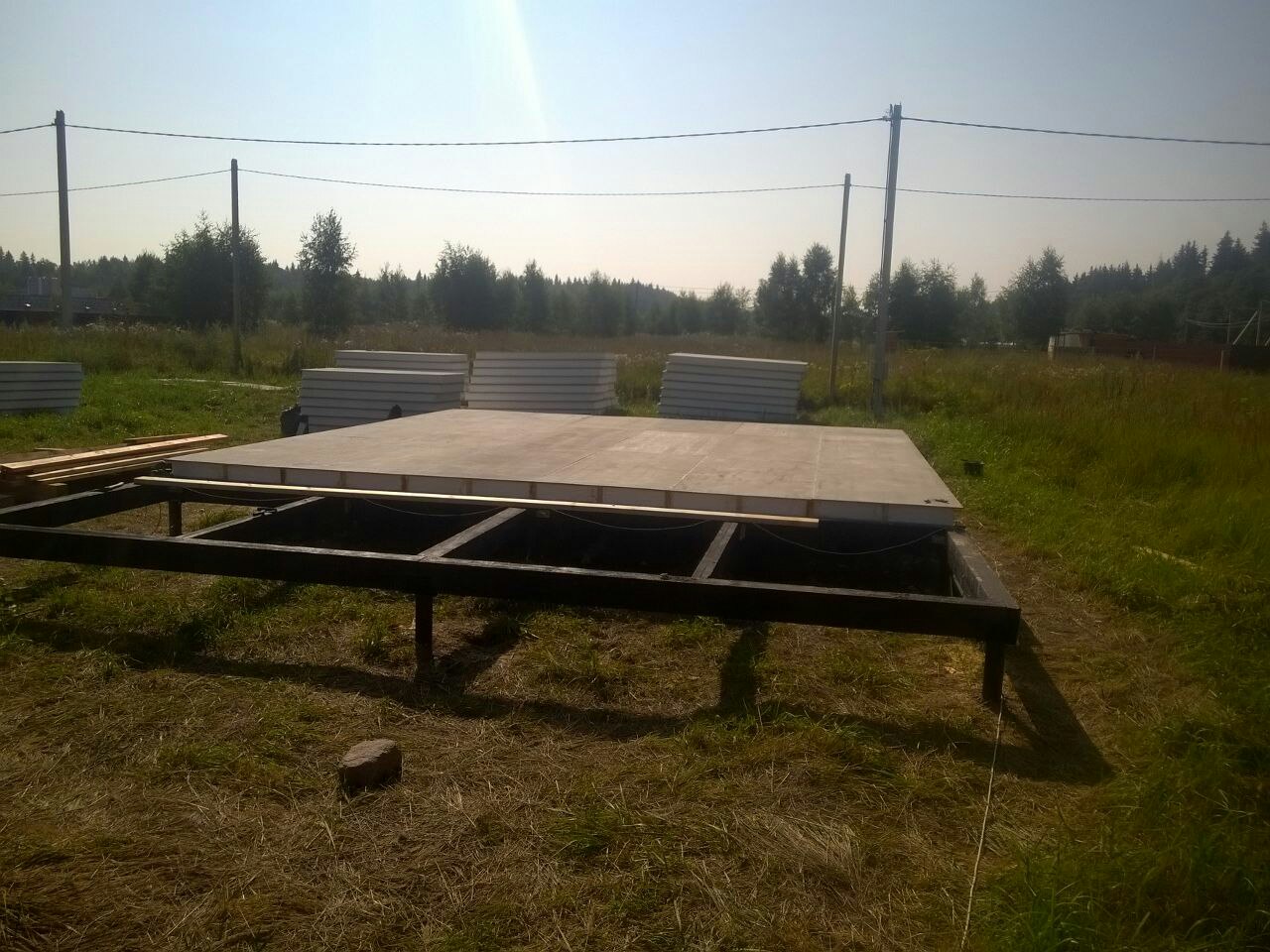

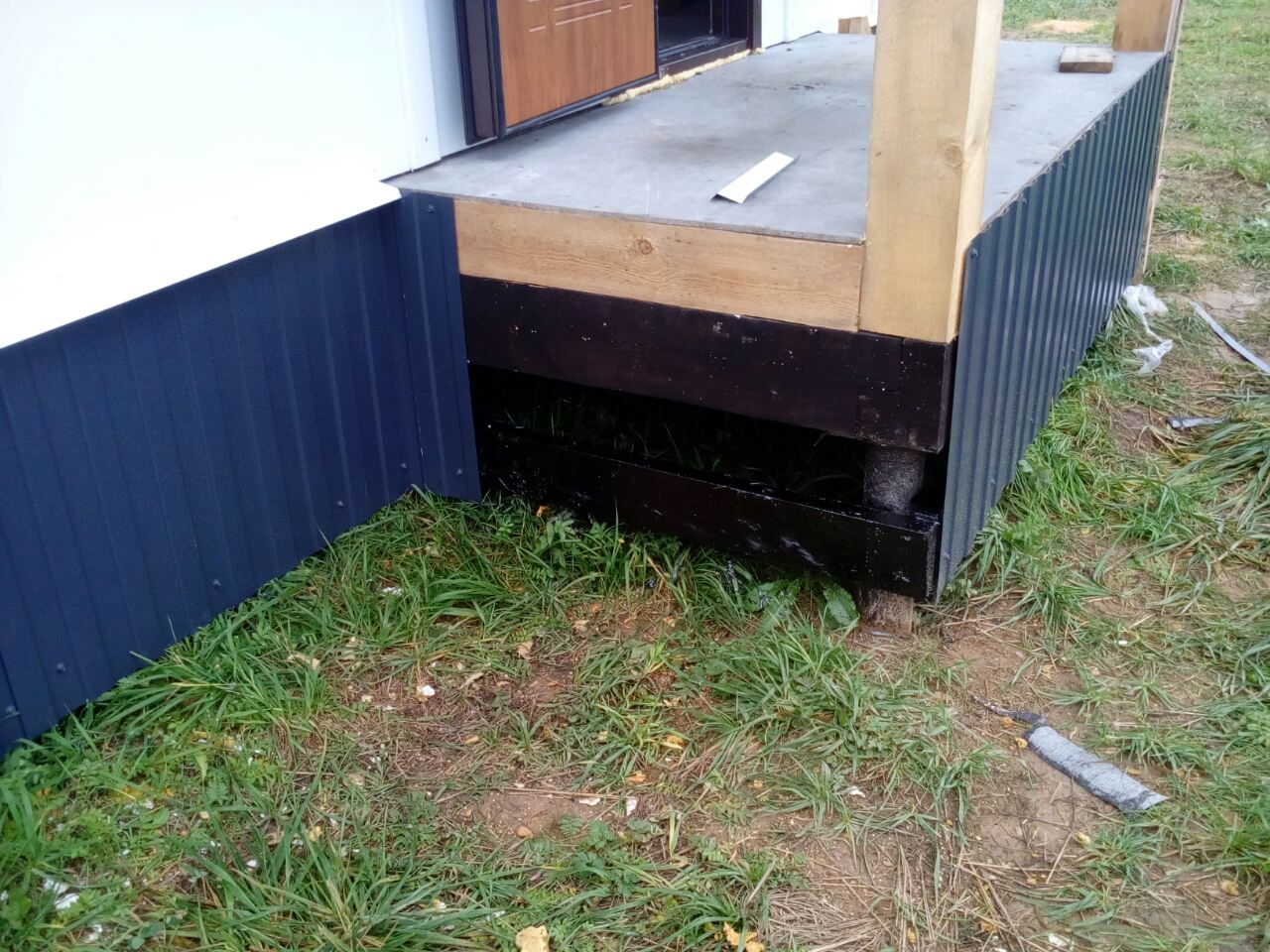

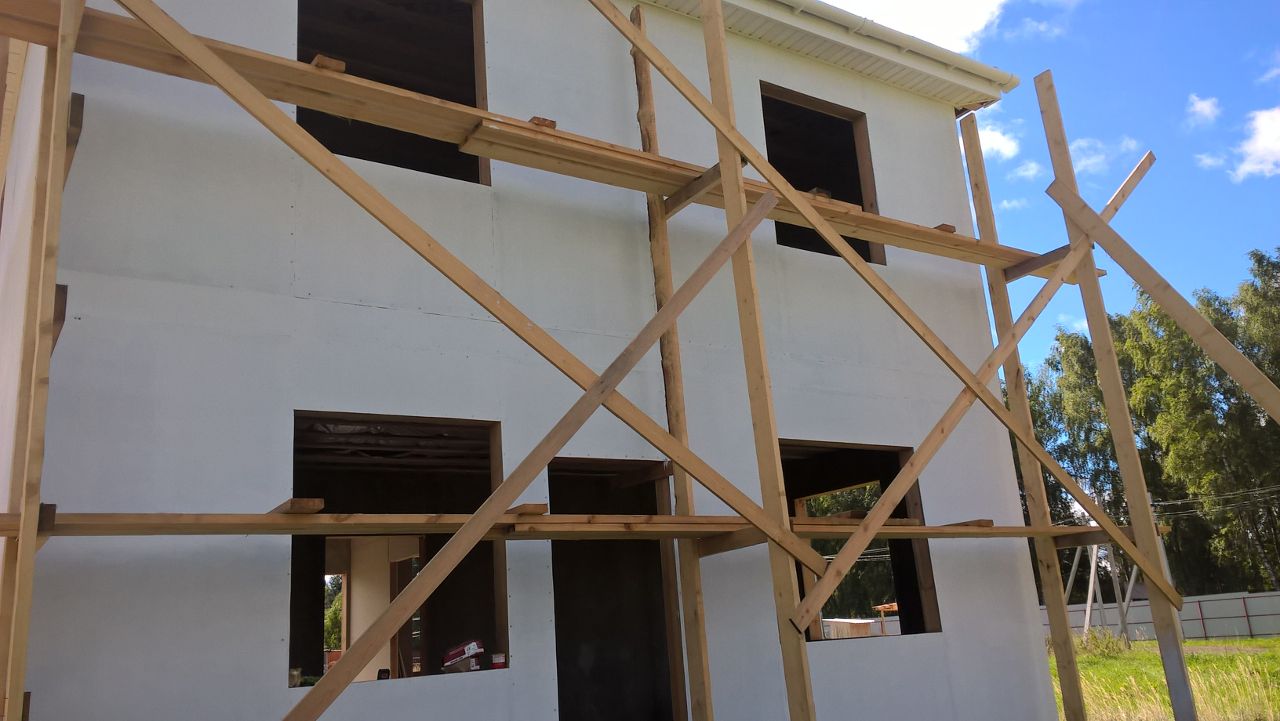

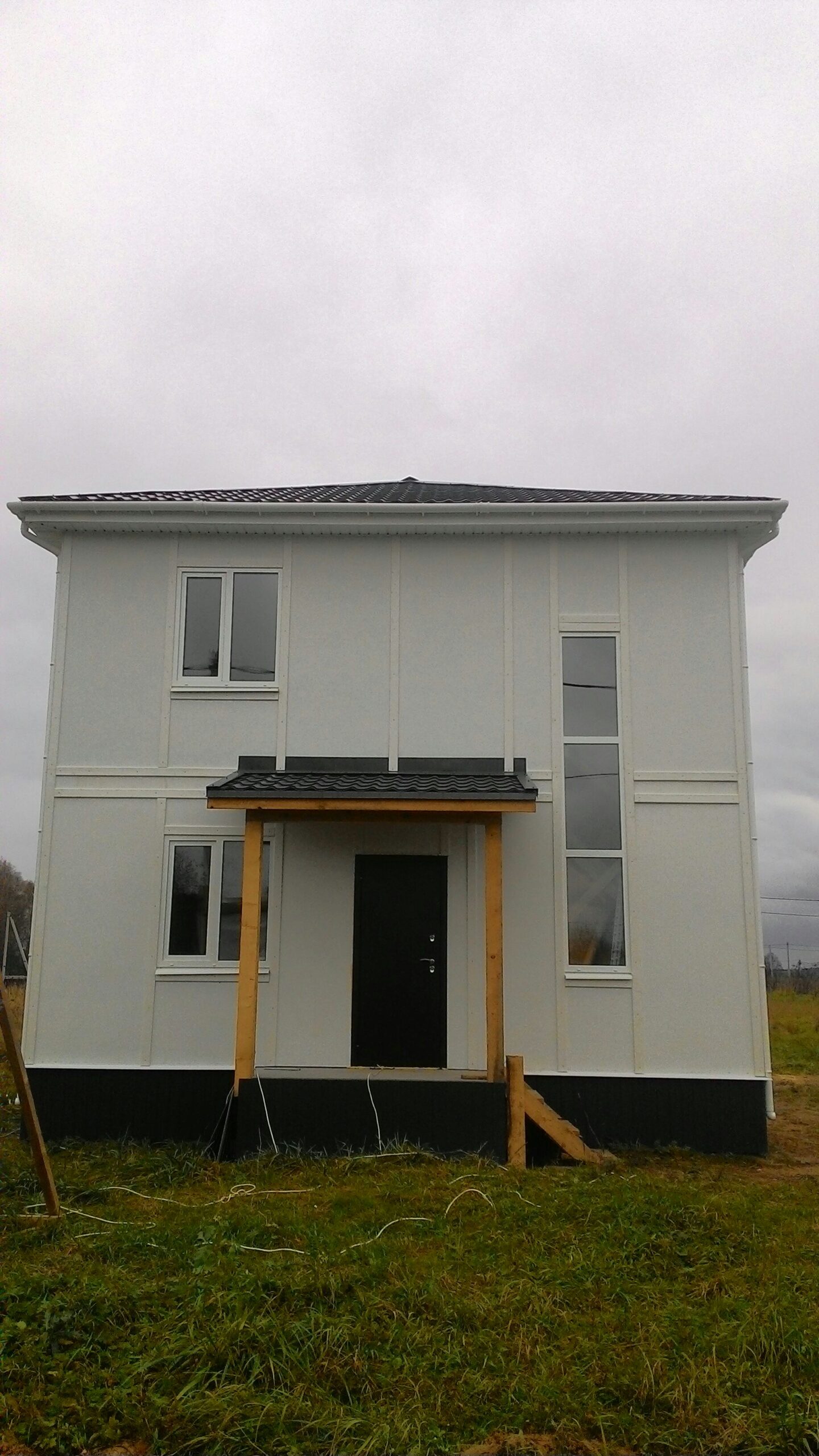

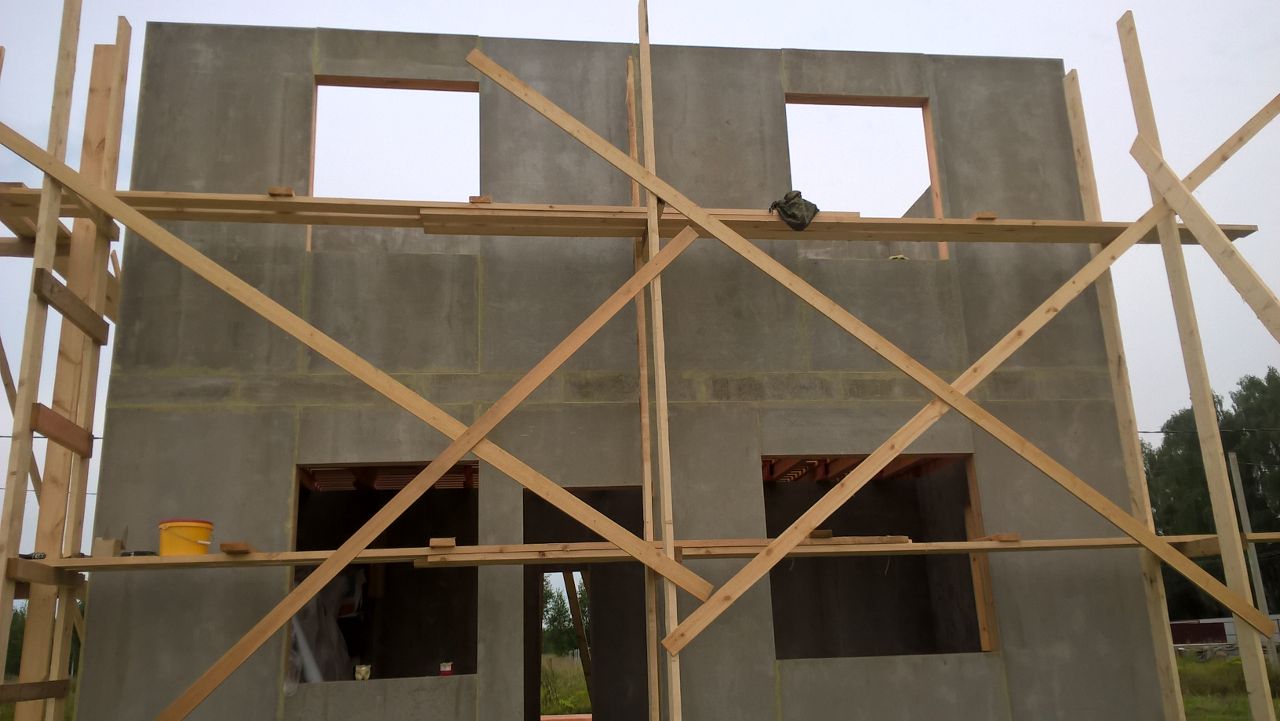

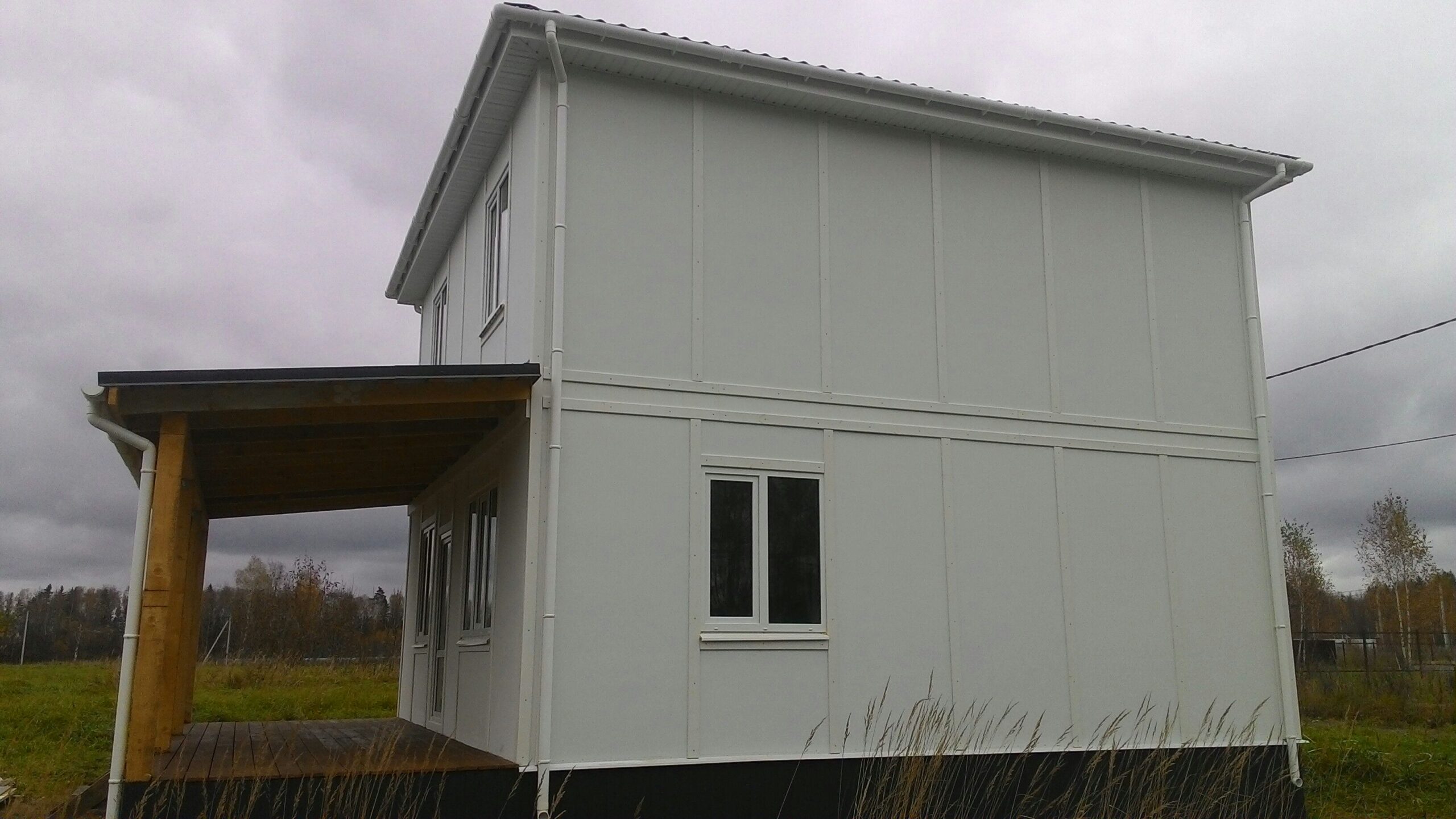

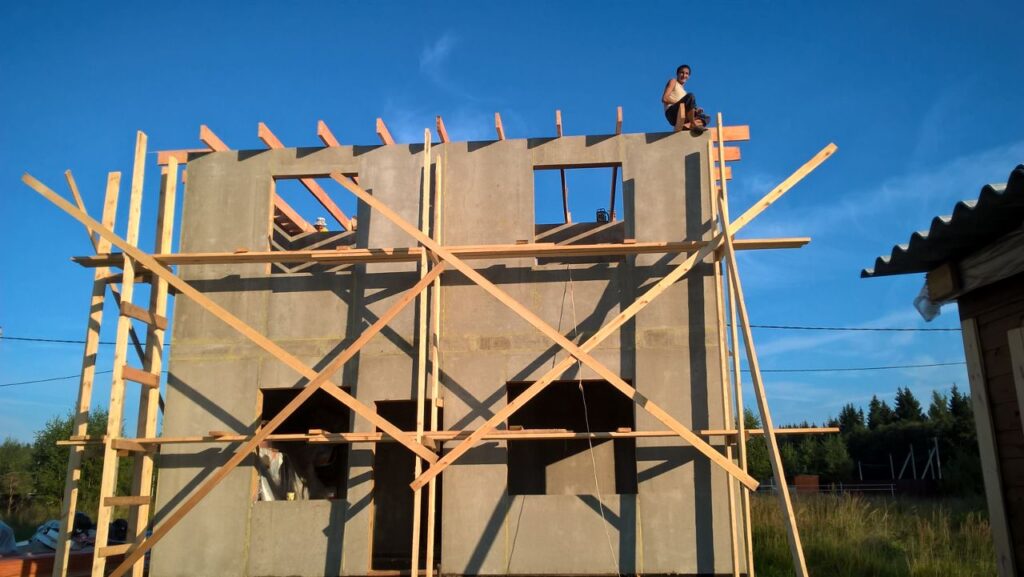

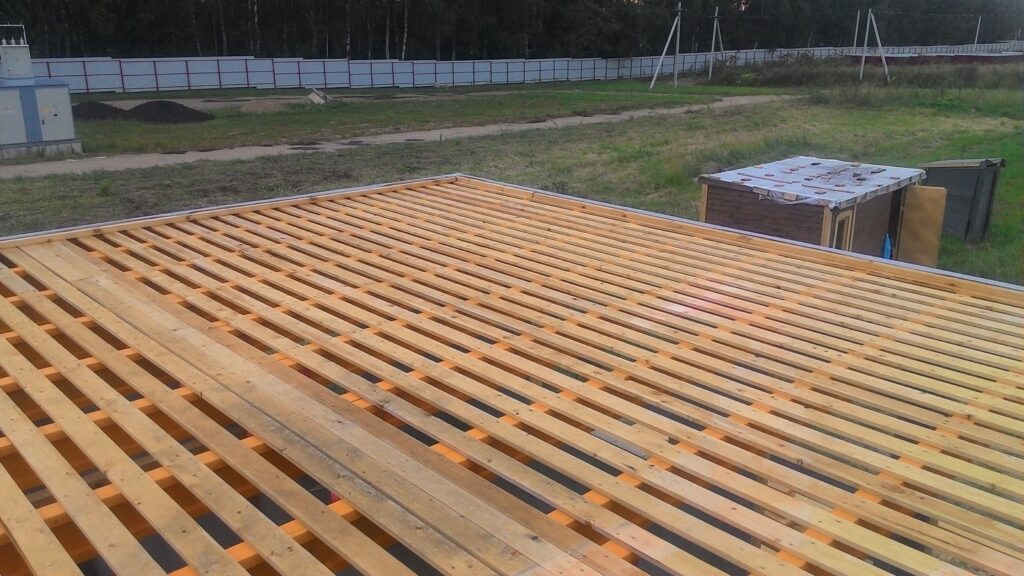

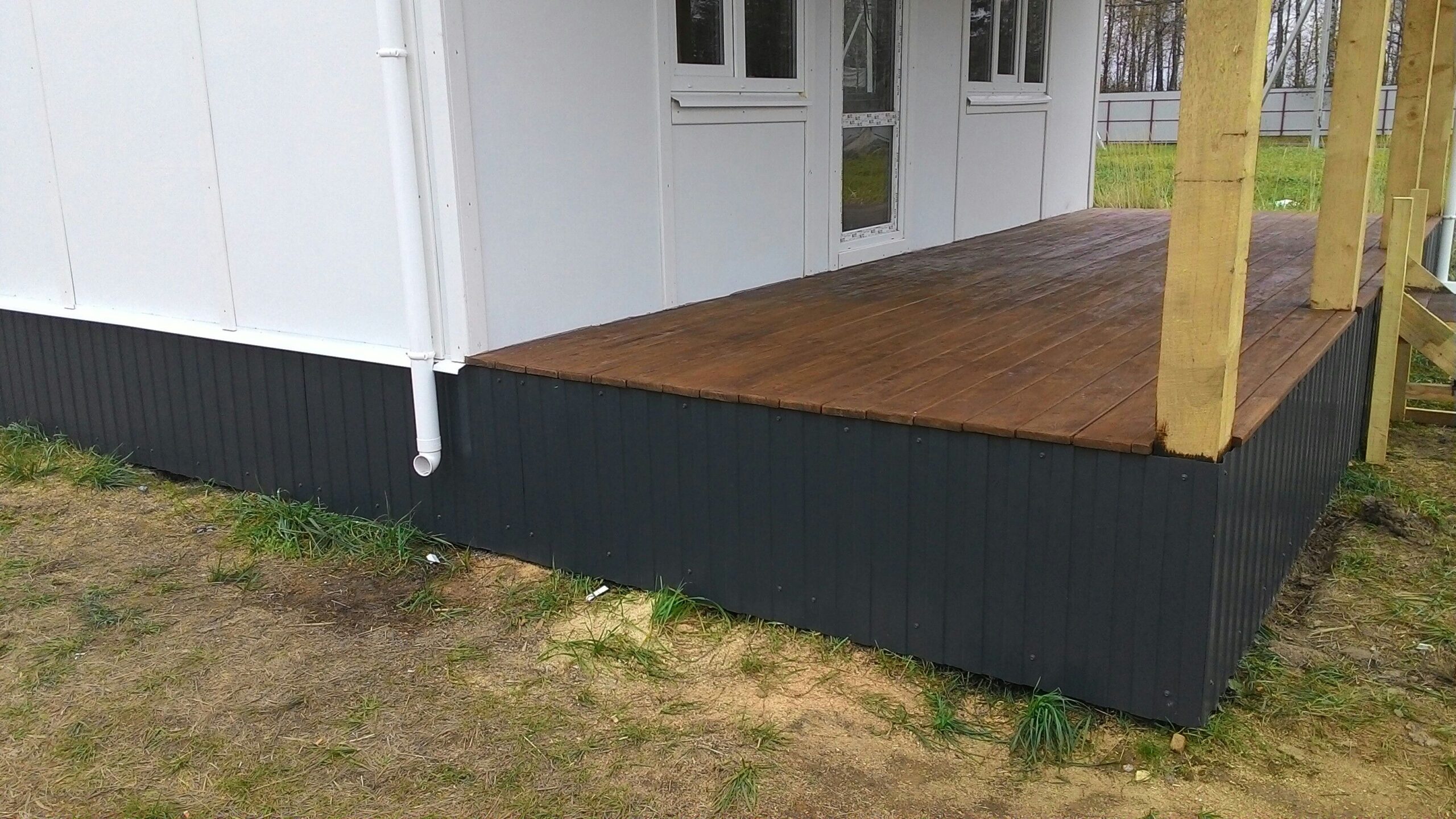

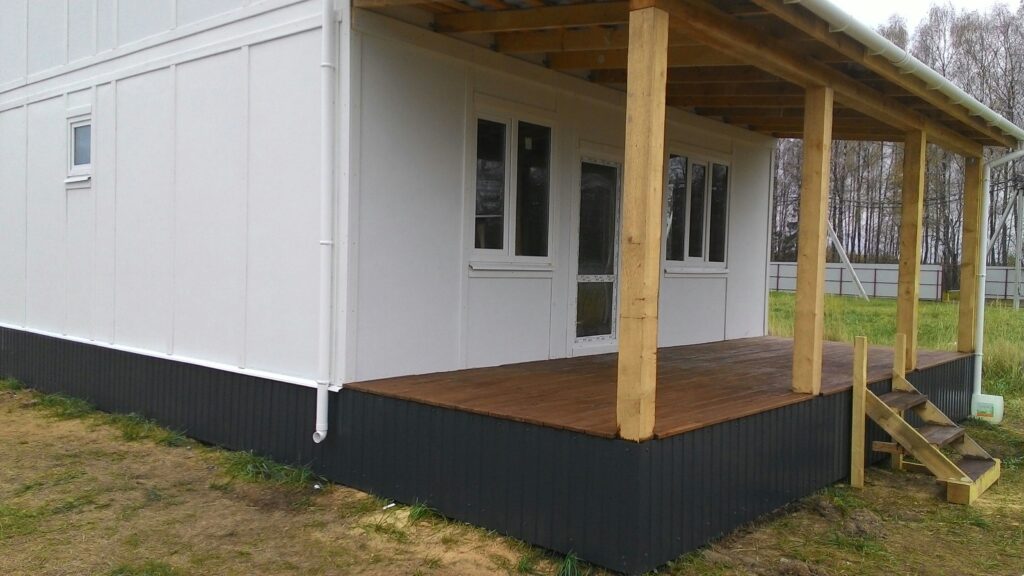

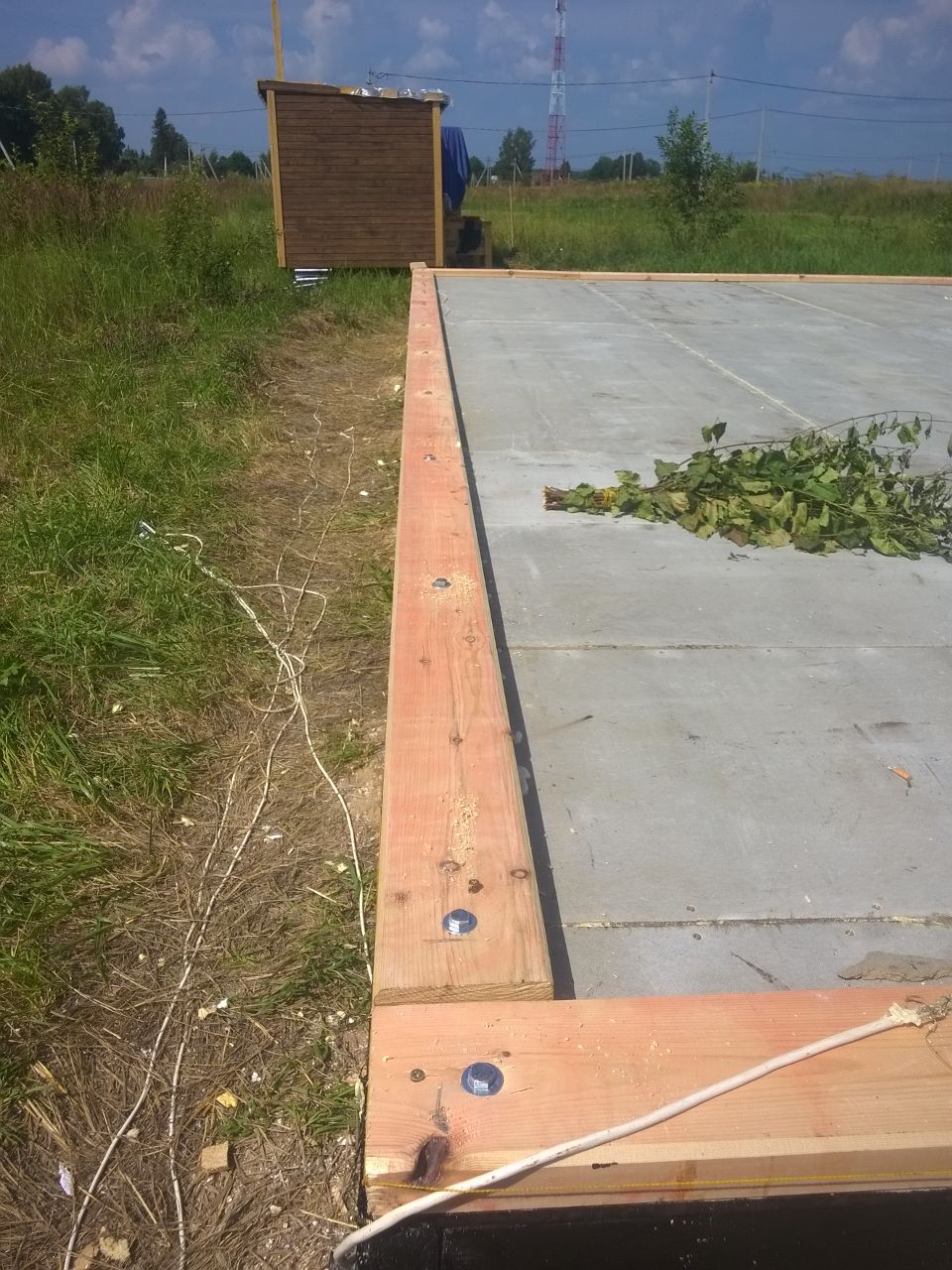

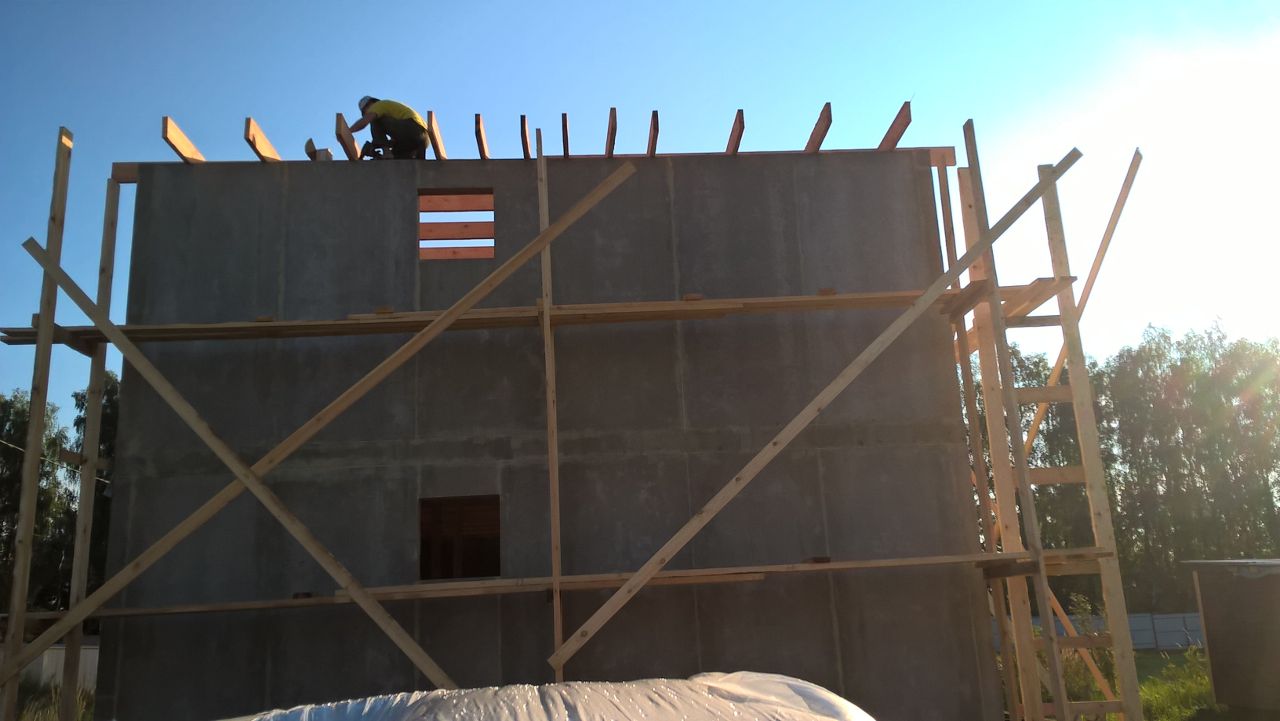

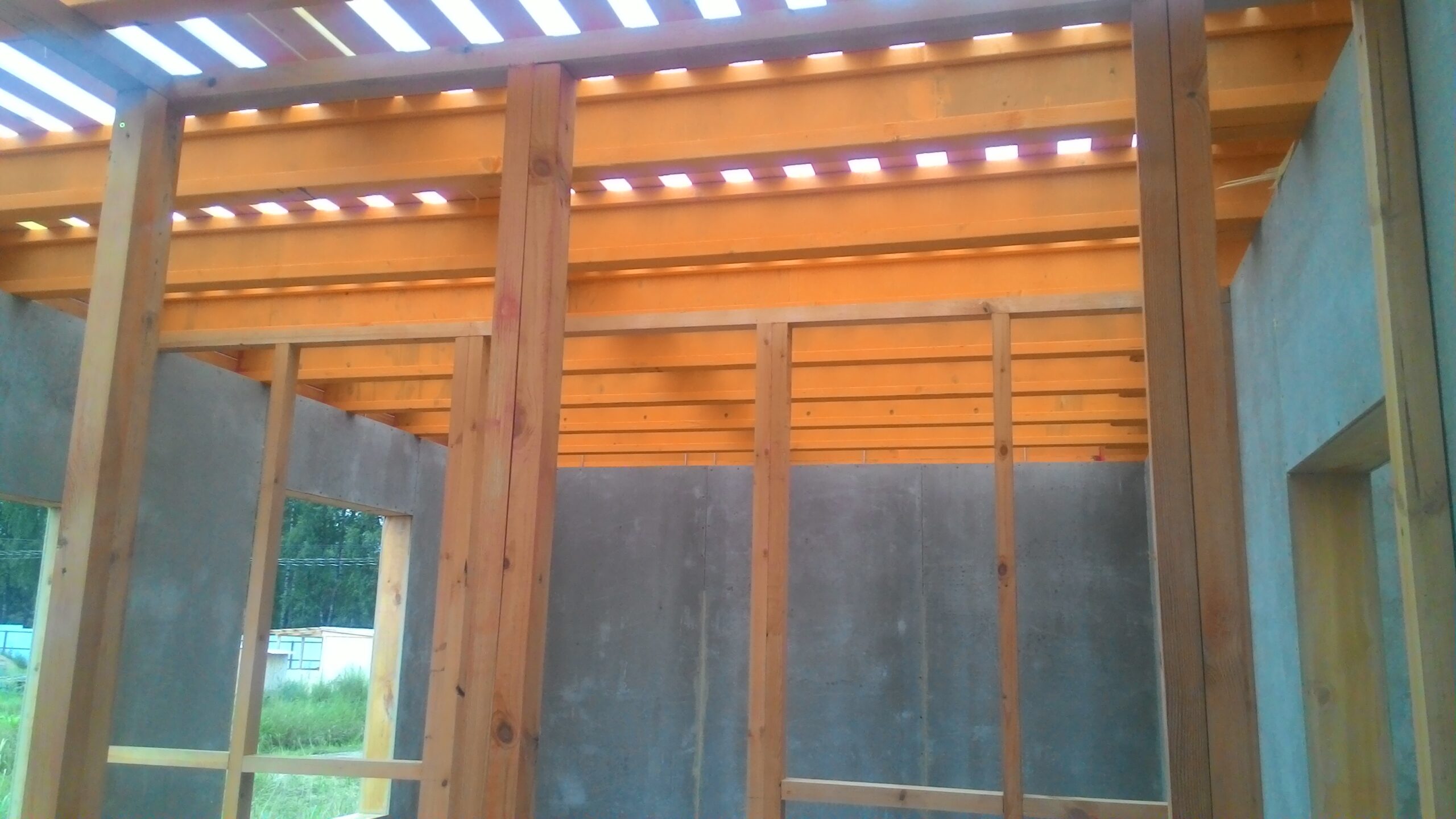

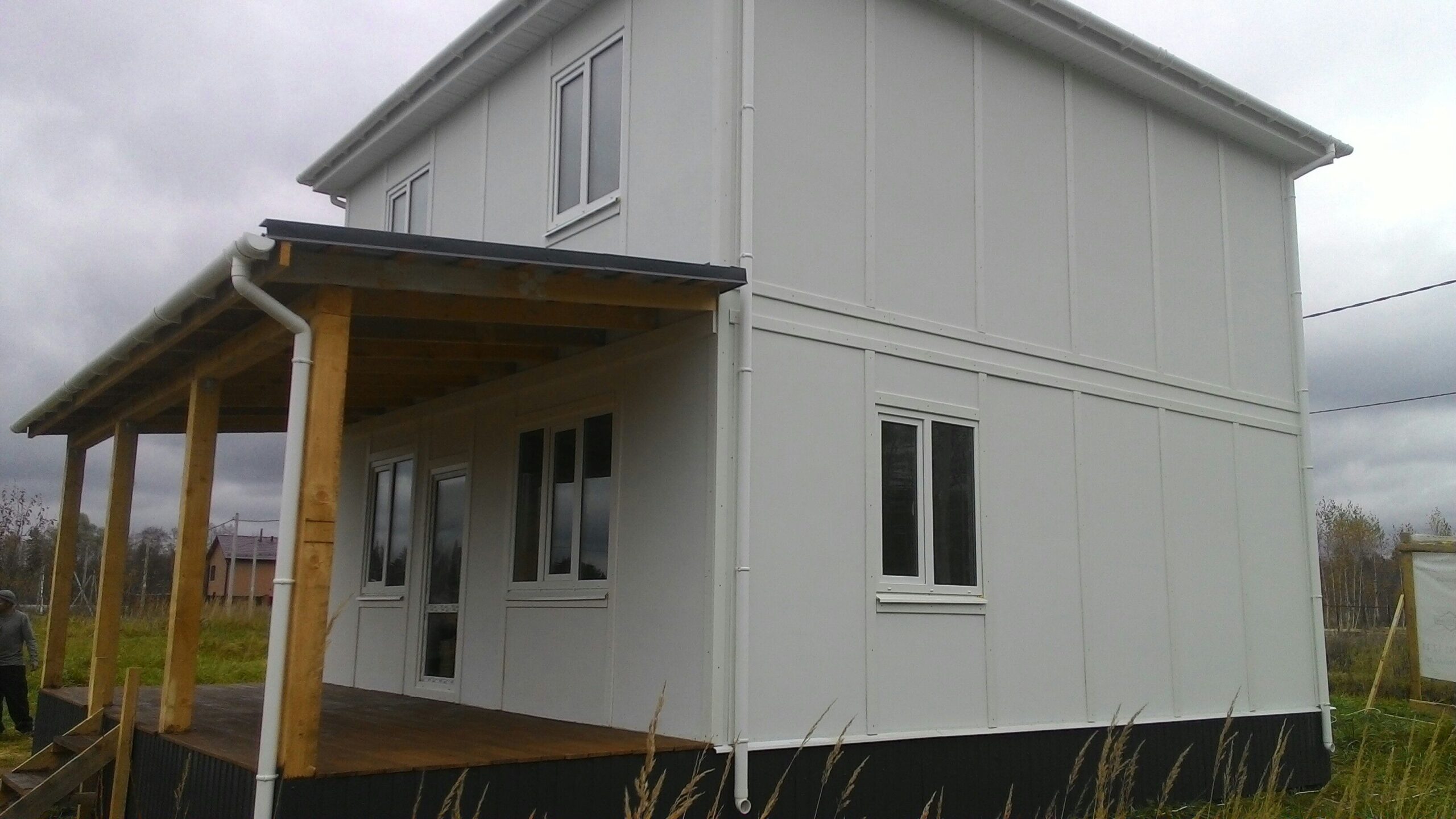

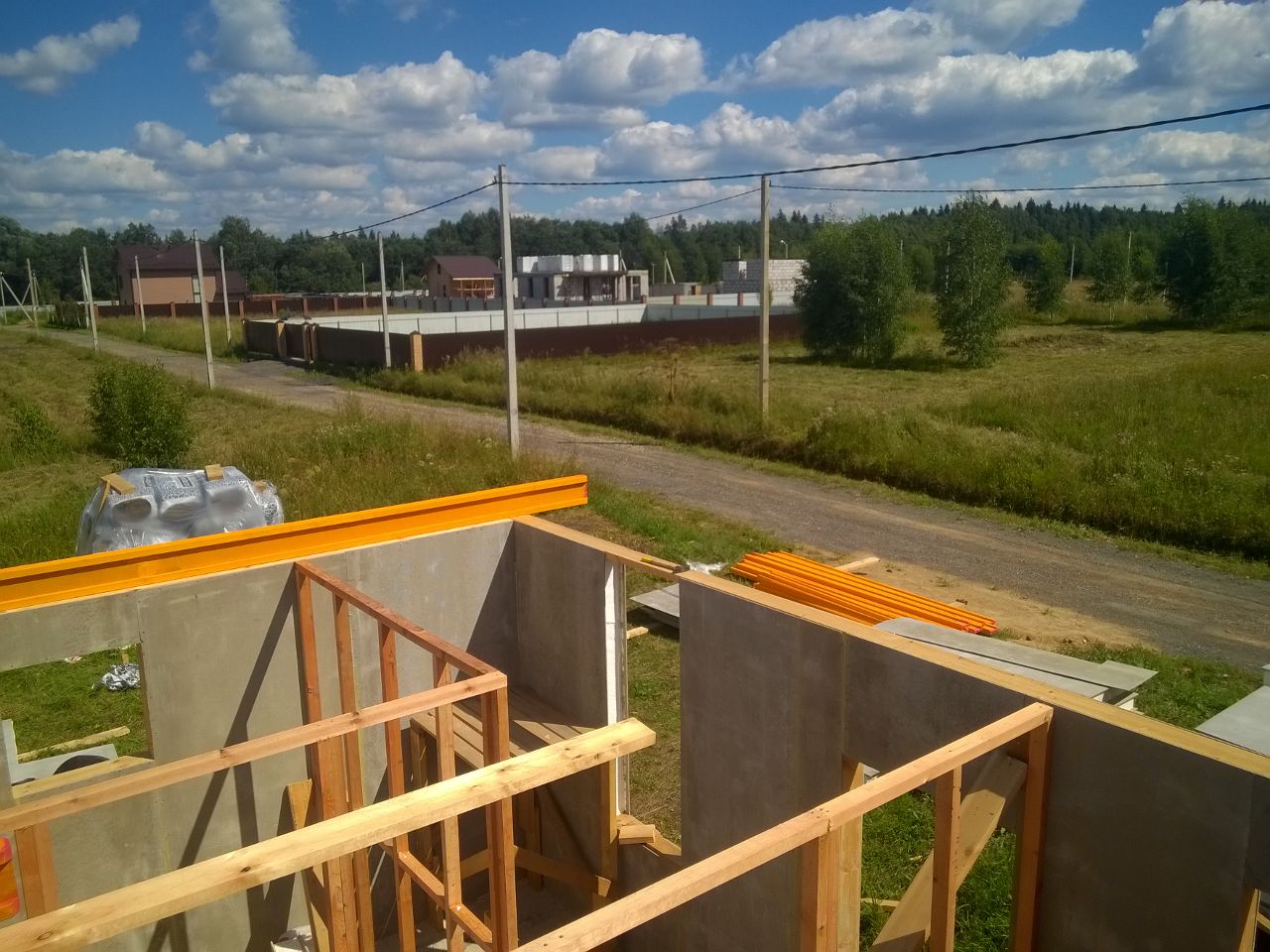

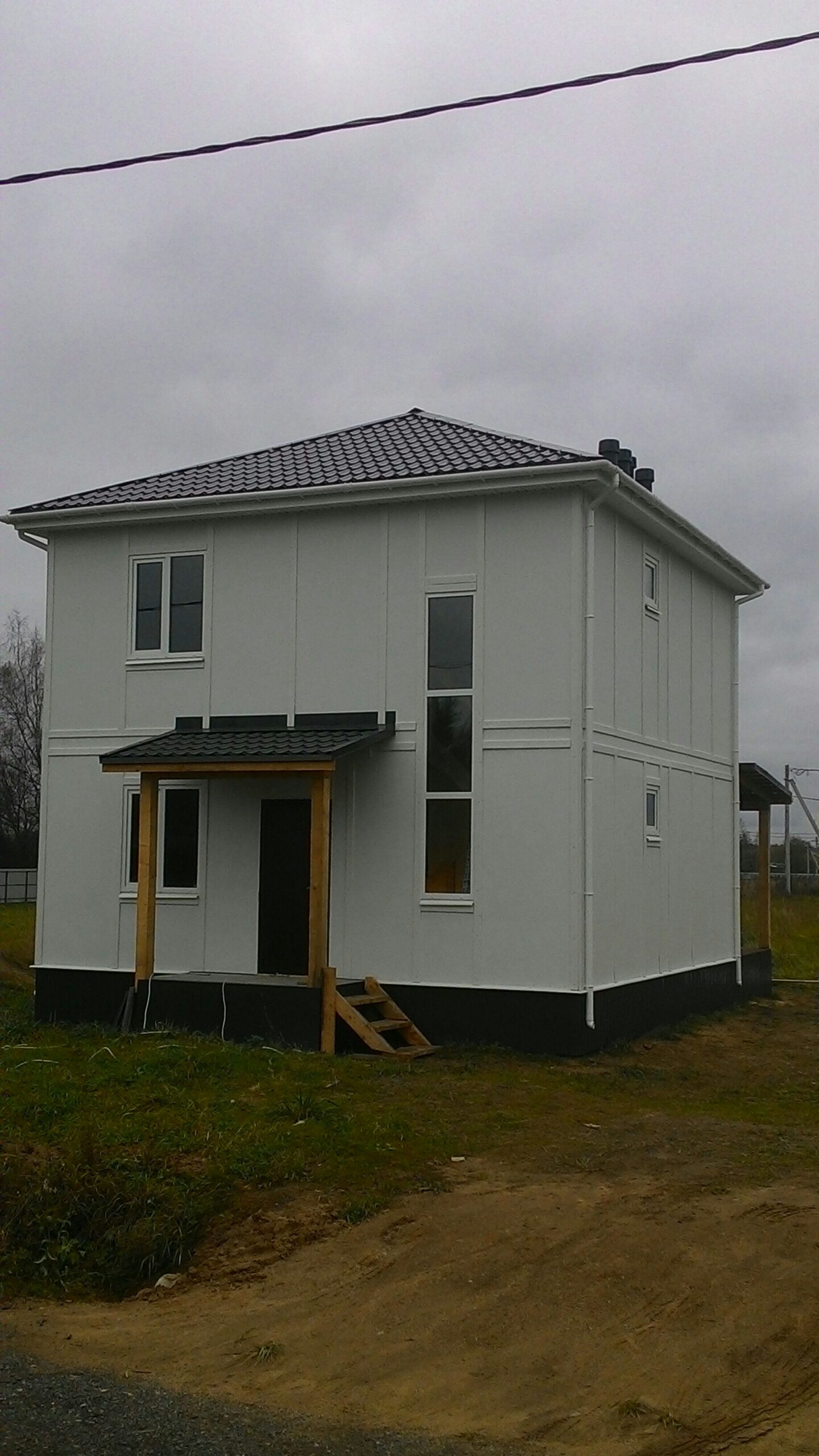

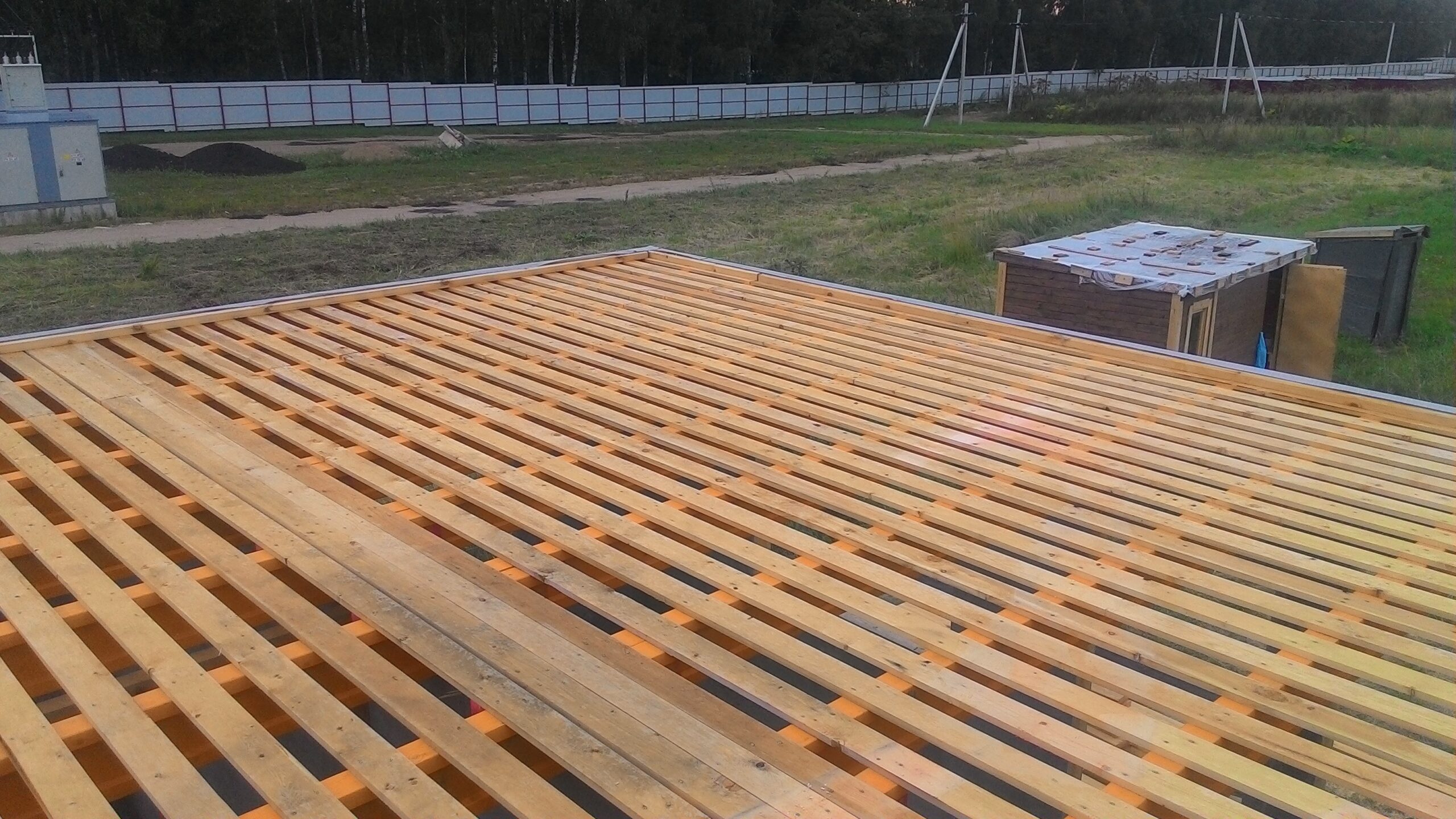

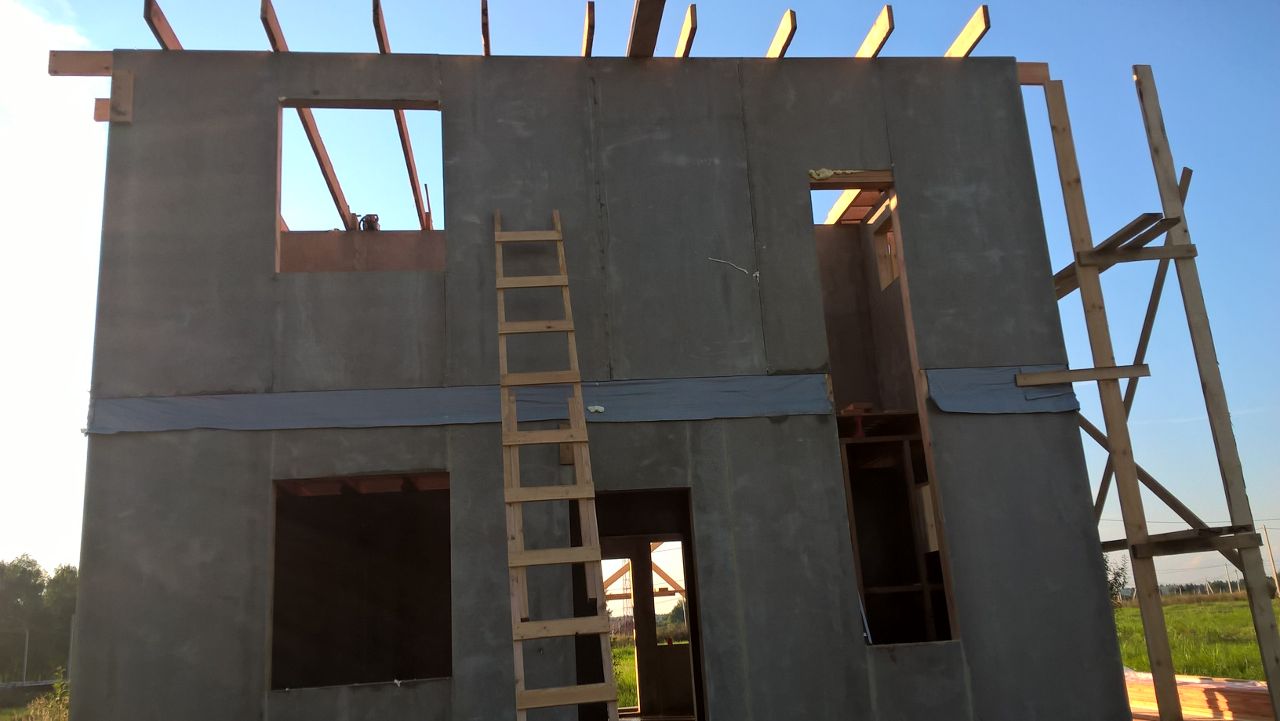

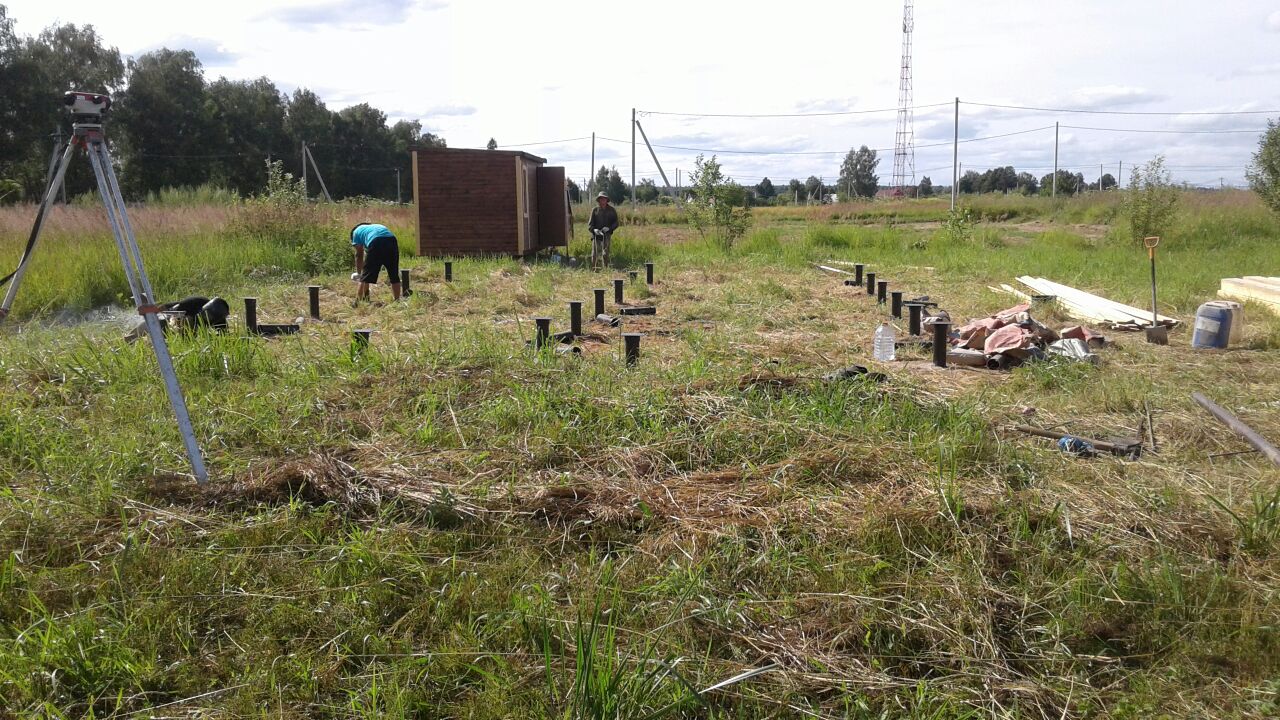

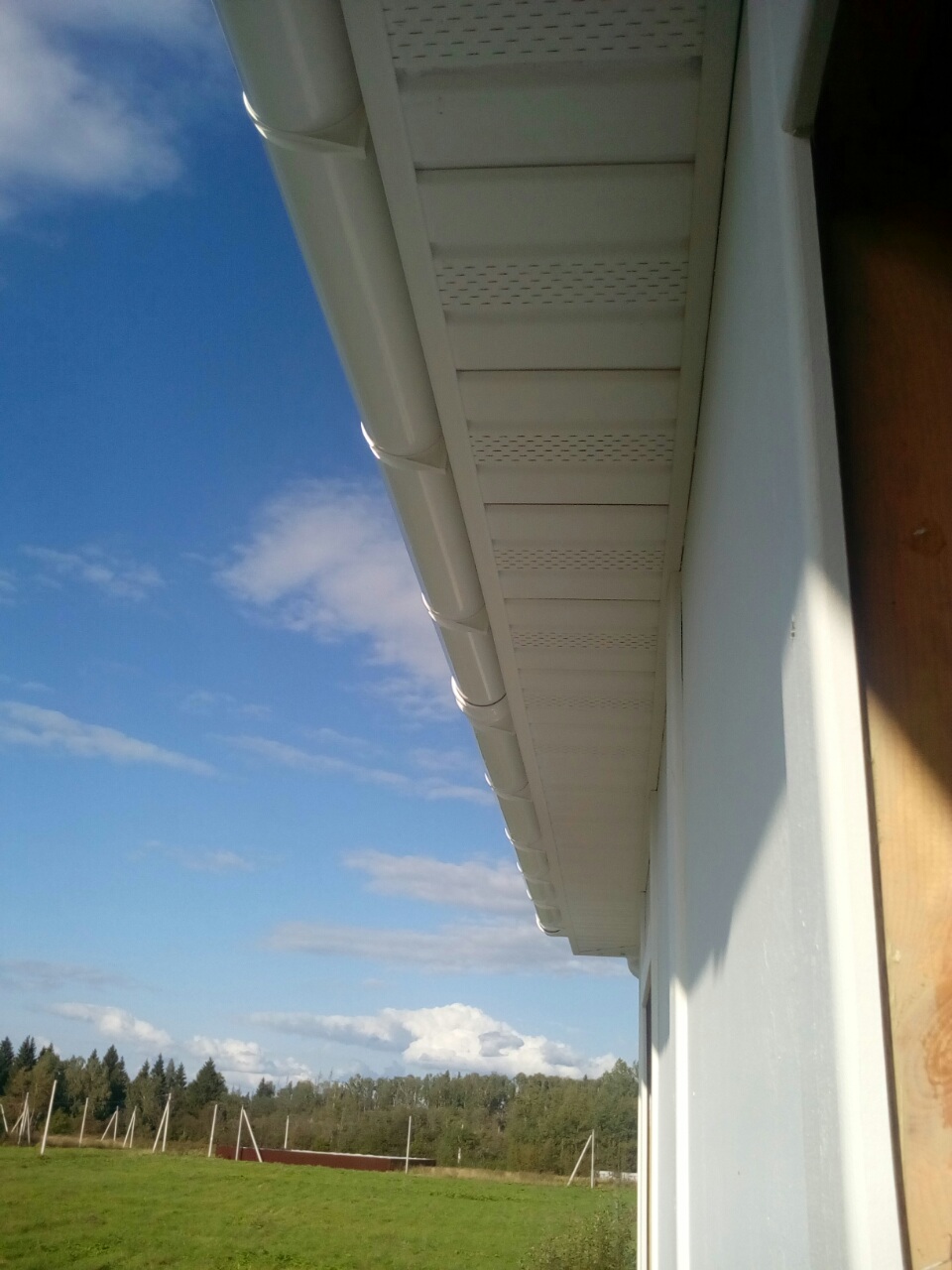

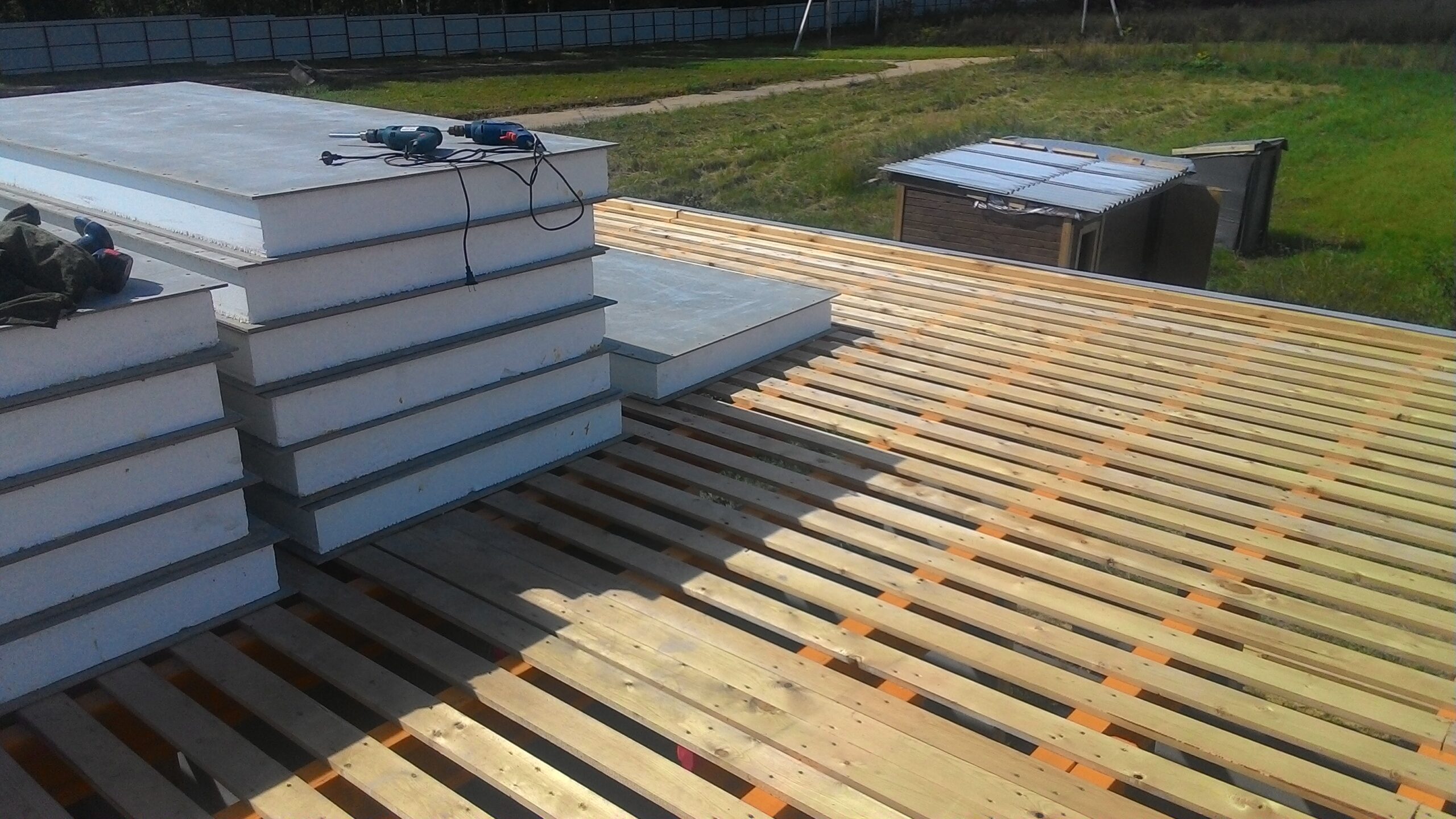

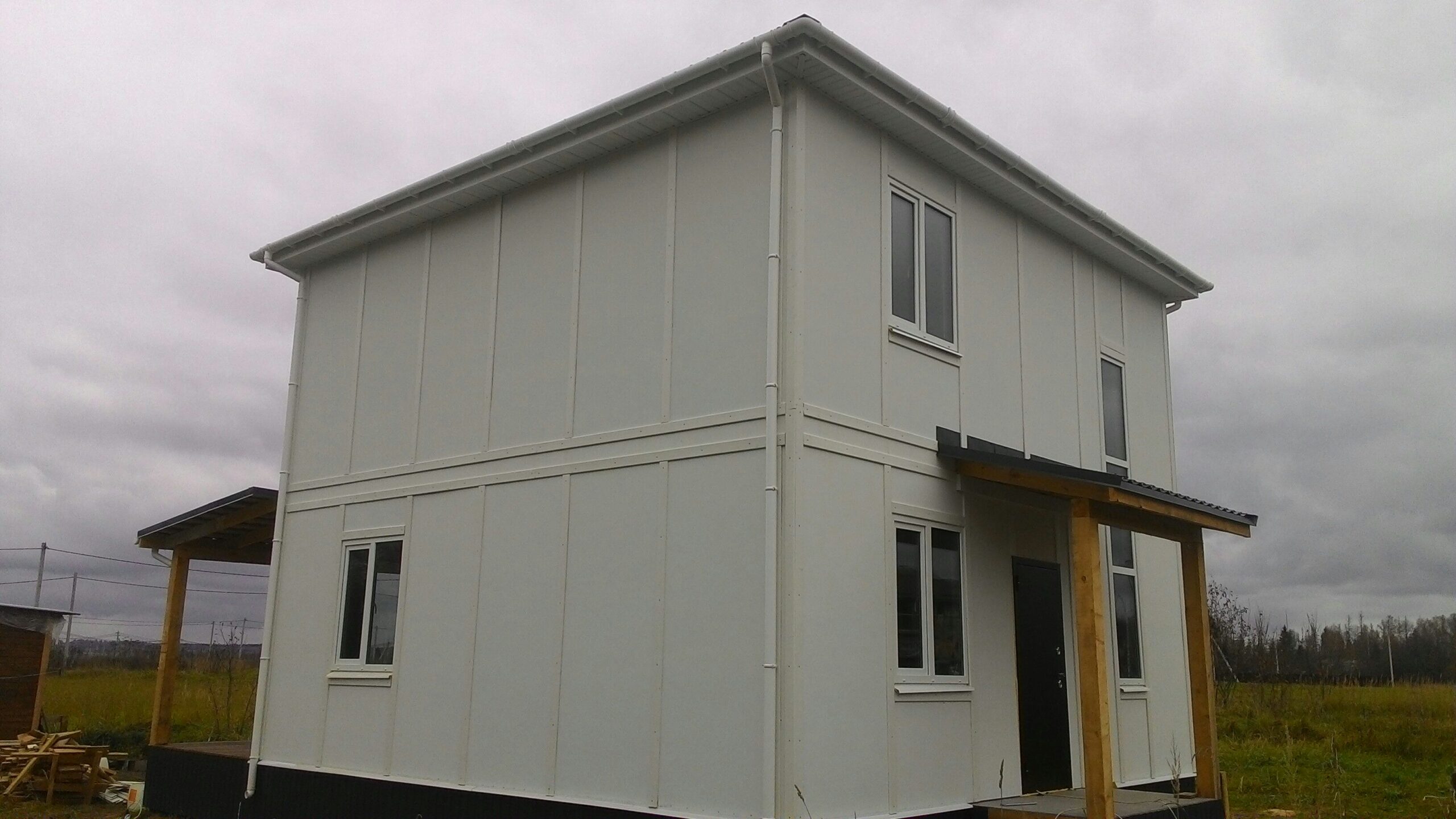

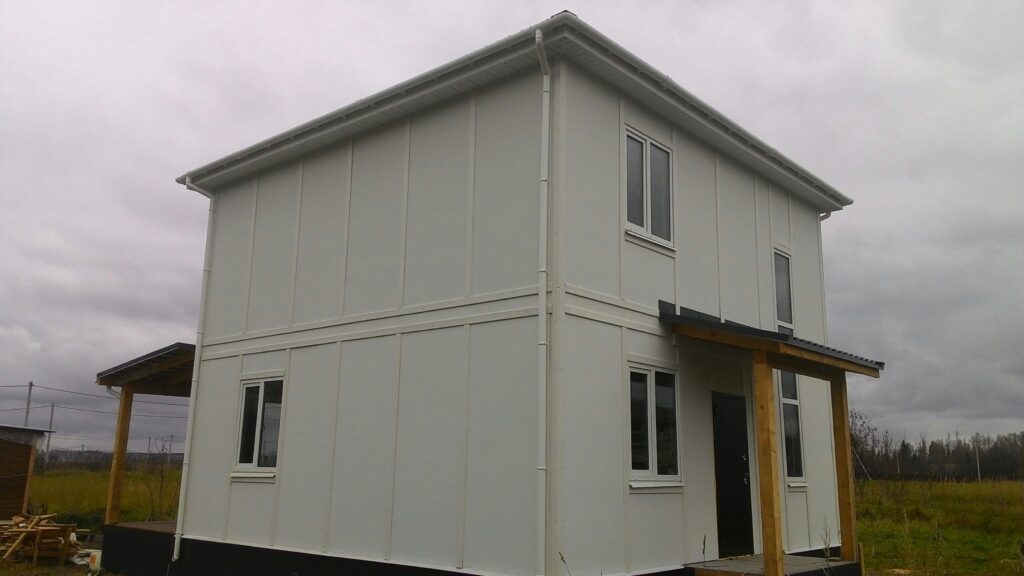

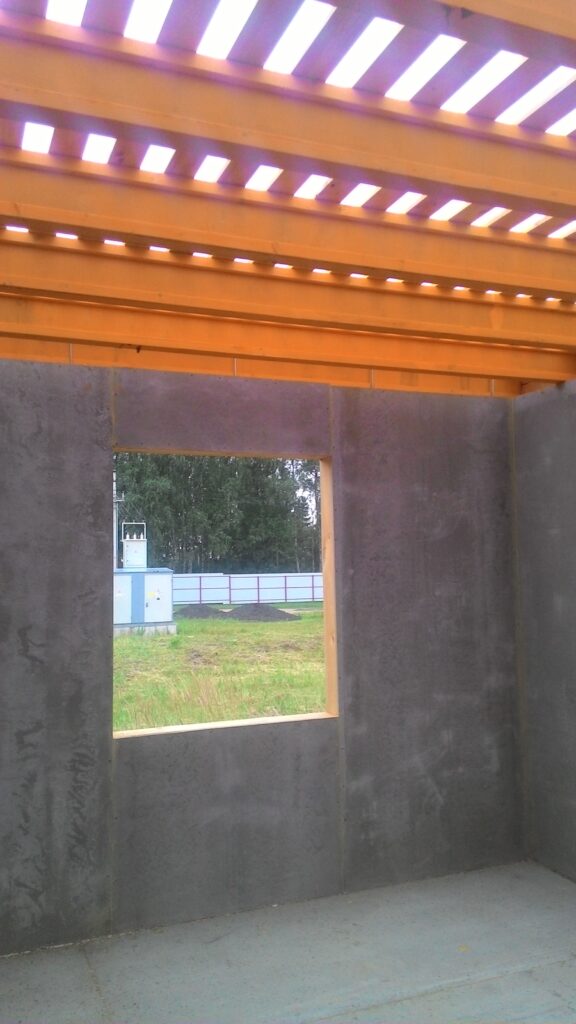

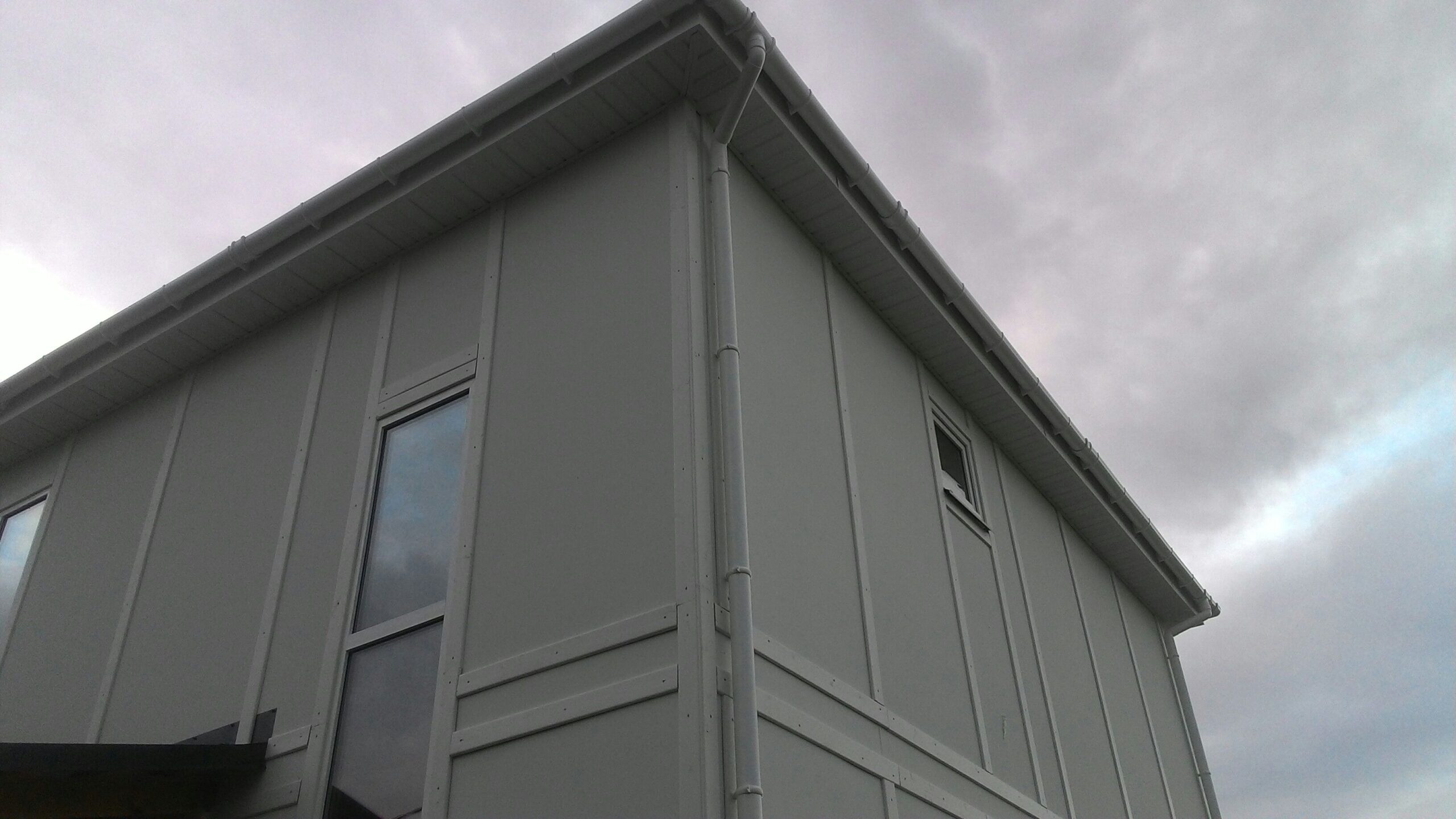

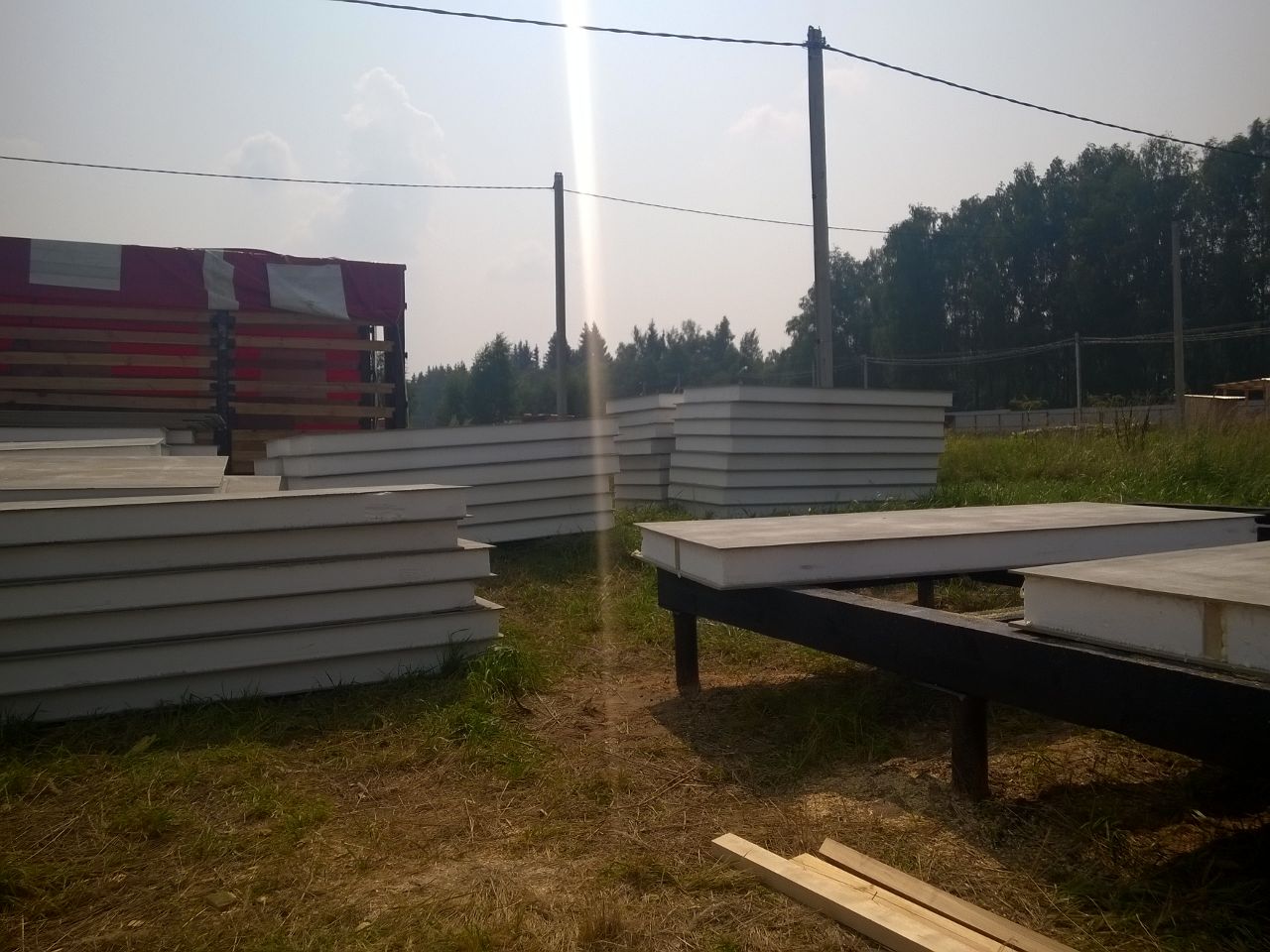

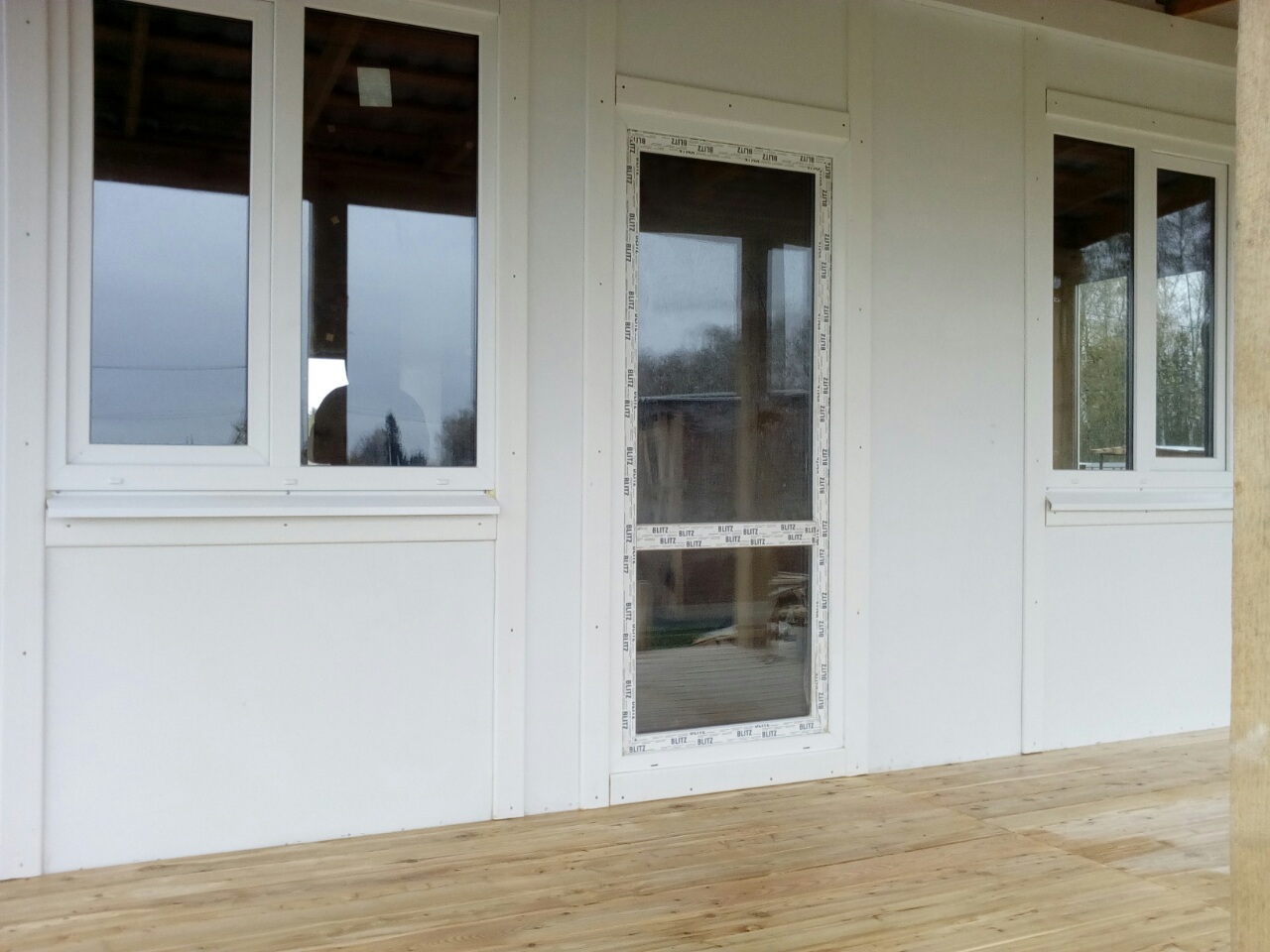

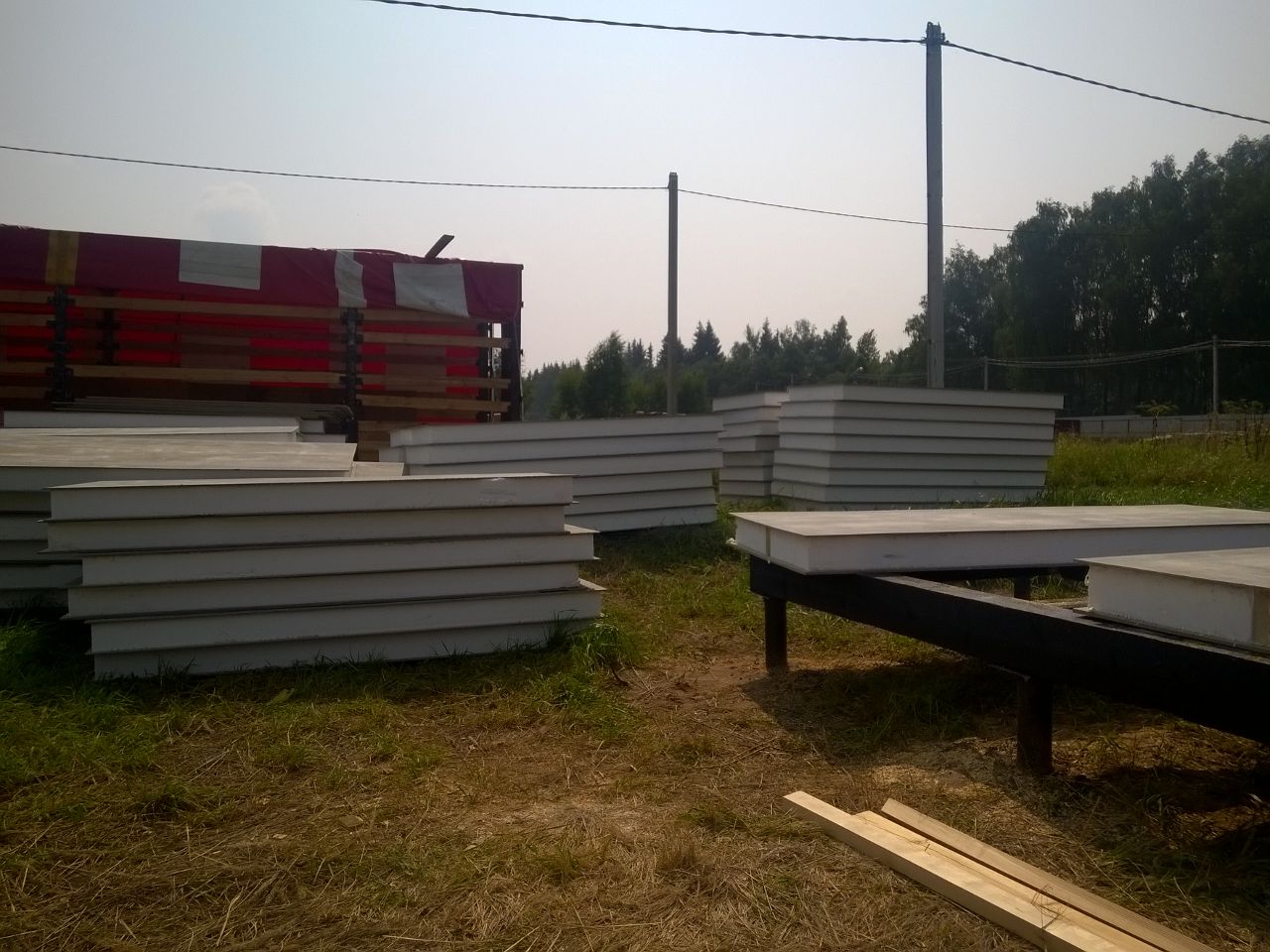

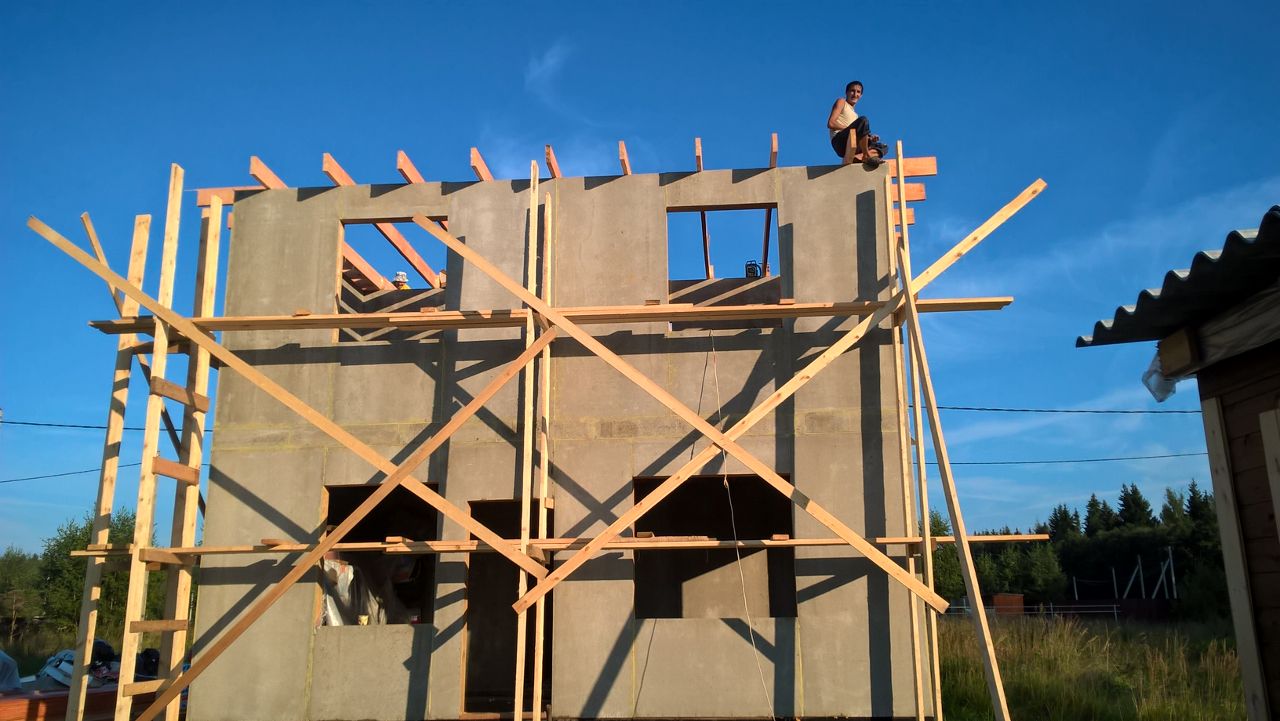

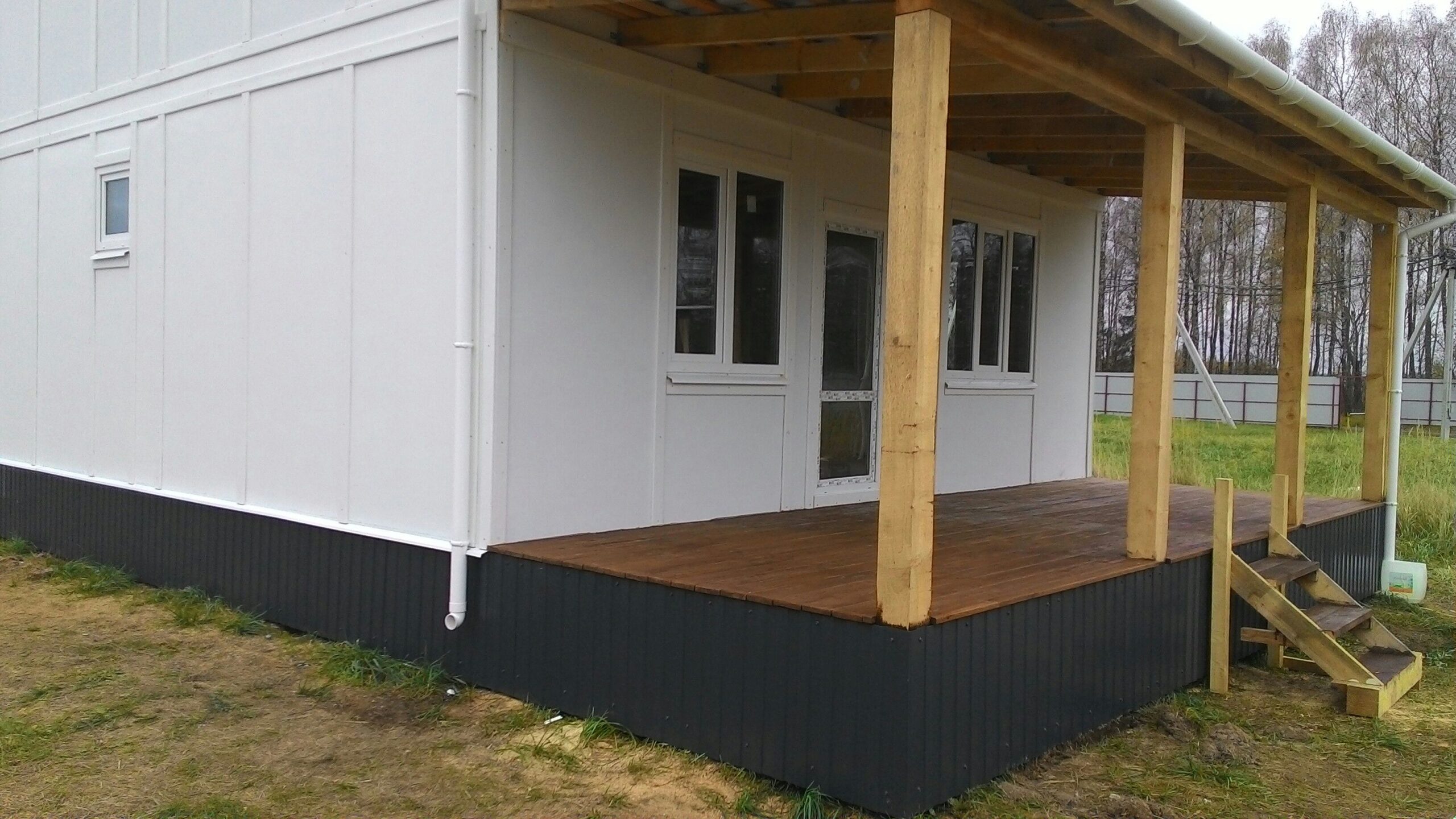

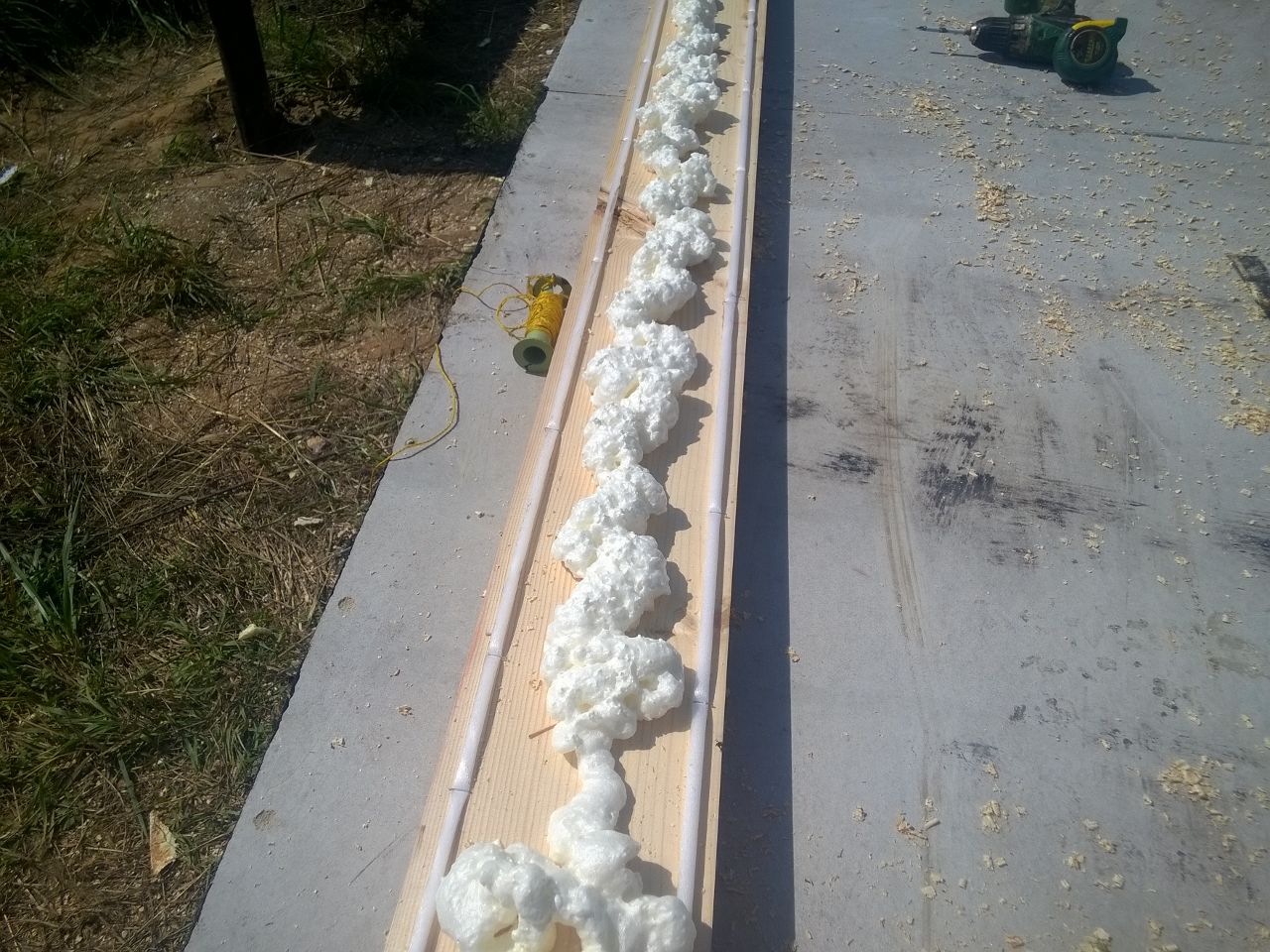

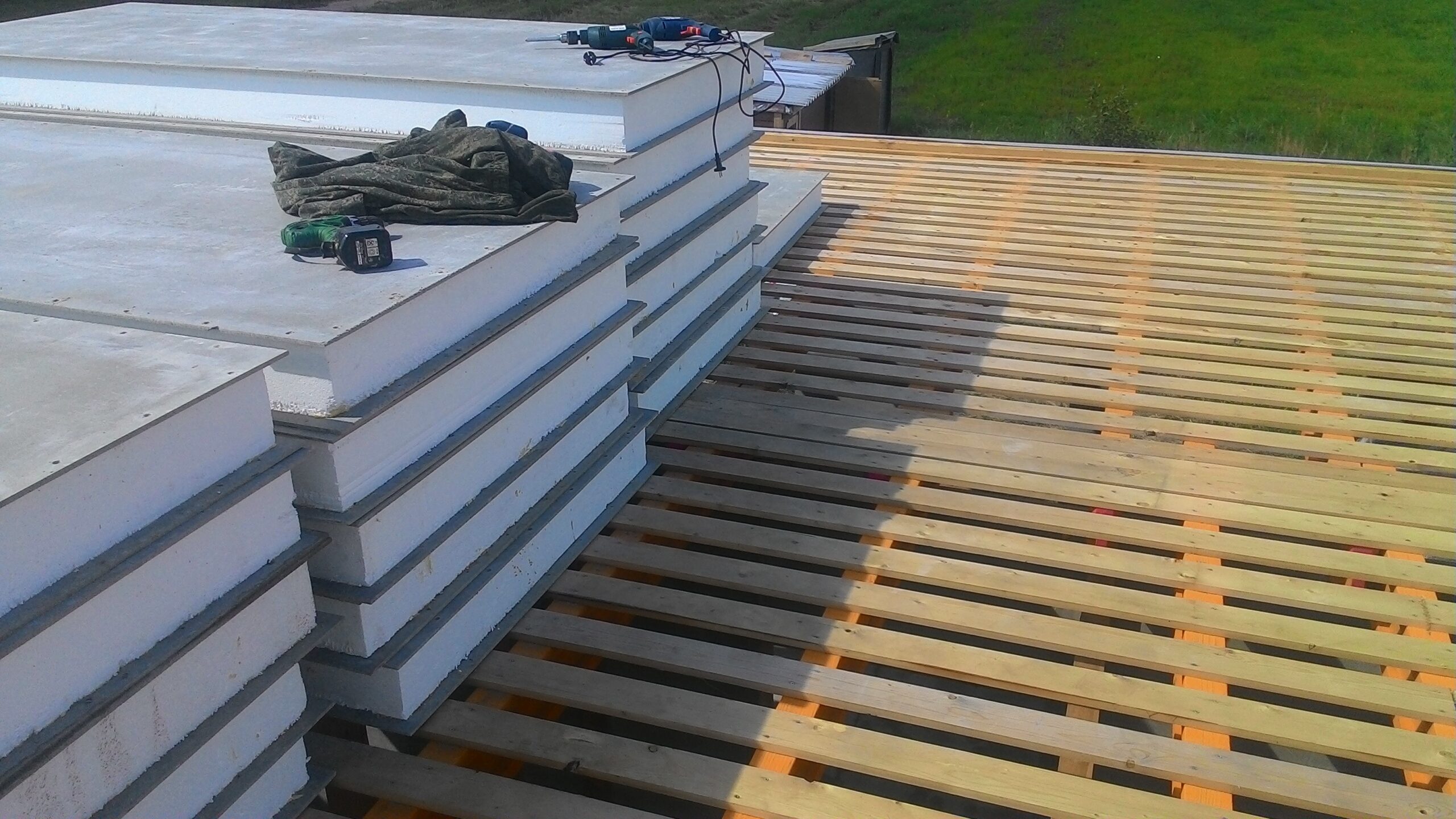

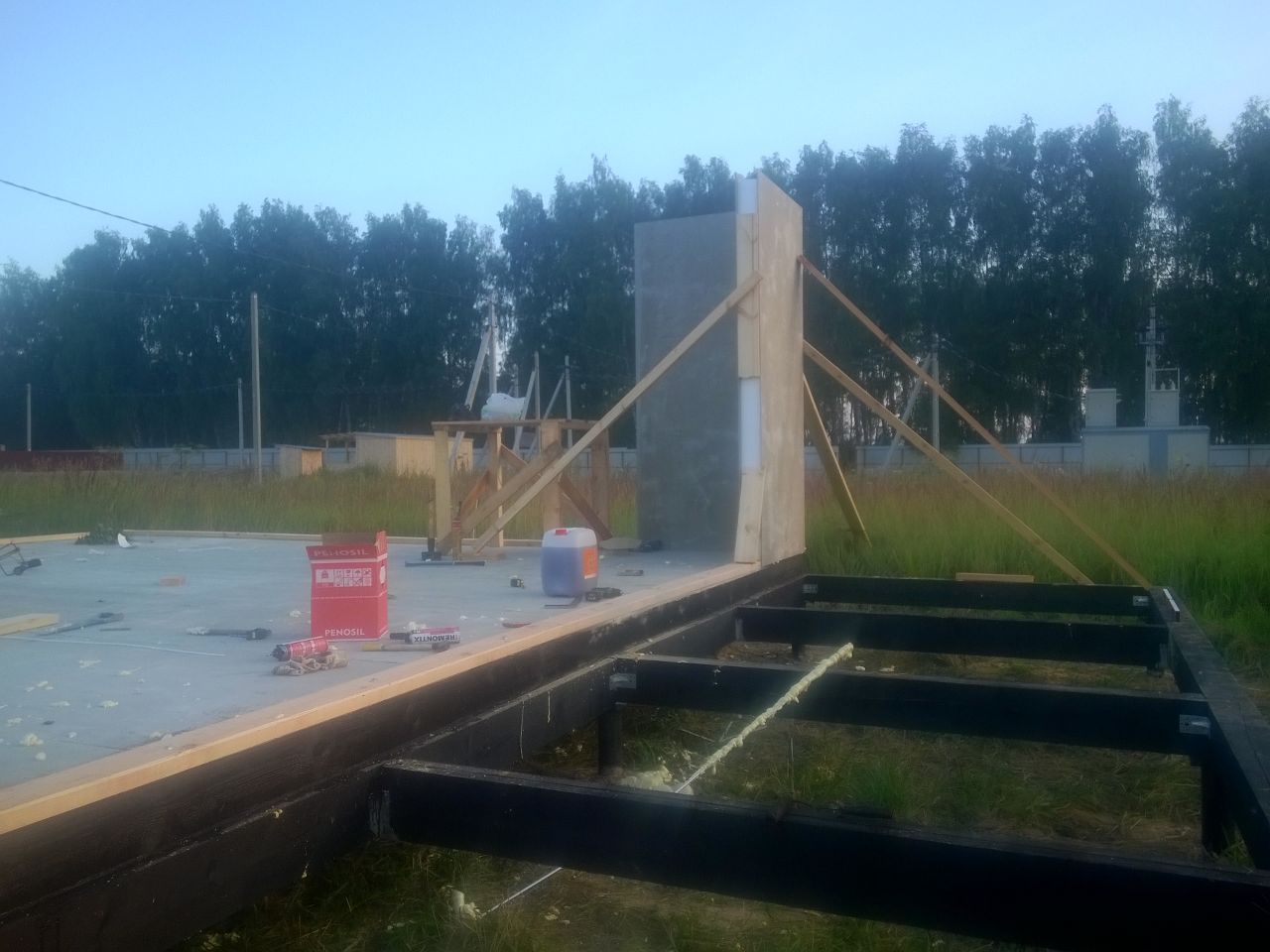

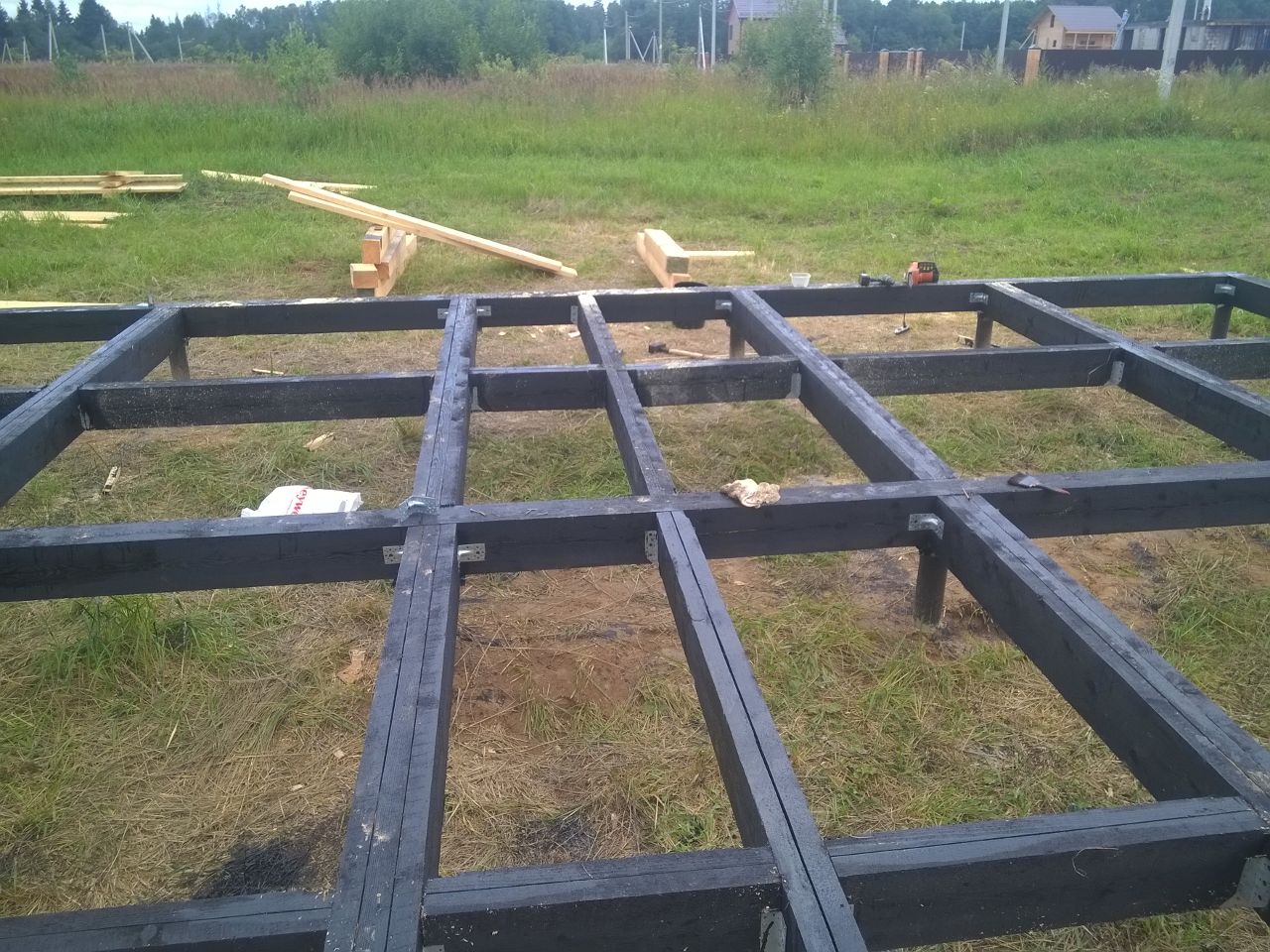

Project Implementation Examples

Important:

The price of the house kit does not include the porch and terrace. Please check the price with our managers.
The information in this project and the list of materials used are relevant for Krasnodar Krai.

Please check the construction cost for other regions of the Russian Federation.

 For any questions, please contact us using the contact details listed on the website (phone numbers, email, etc.).

For a more accurate preliminary estimate, indicate the district (address) of the future construction.

Need a consultation? Call right now or leave a request using the «contact button».

Minor price changes may be caused by: slopes on the site, difficult access roads, lack of electrical power, etc.

All projects posted on the website are schematic and can serve as initial material for creating a project according to your wishes and recommendations.
