TP-2-138

House kit cost:
$39 942
*The indicated price is not a public offer. Please check the current price with our managers.

A standard project of a two-story house made of SIP panels TP-2-138 includes a master bedroom of 13 m2 with its own separate bathroom of 3.5 m2, a spacious kitchen-living room of 36 m2, which creates a large volume, incredible space and increased comfort. The living room has its own access to a covered terrace of 19.5 m2. In addition to the master bedroom, the house also has three more bedrooms of 13 m2, 12 m2 and 11 m2, as well as two more bathrooms of 4 m2 and 3 m2. The hallway area is 3.5 m2, which allows four residents to comfortably enter the house at the same time. At the entrance to the house there is a utility room of 4 m2 for placing engineering equipment. Each bedroom has a partition for later installation of a built-in wardrobe, which significantly reduces future furniture costs. The thoughtful layout allows comfortable living in the house and accommodates four bedrooms, one of which is a master bedroom with its own bathroom, despite its small area.

Object Specifications:
  • Number of Floors
    2
  • Building Area, m²
    138
  • Length, m
    10.7
  • Width, m
    8.7
  • House height, m
    6.6
  • Total Area, m²
    115
  • Floor-to-ceiling height, m
    2.7
  • Number of Rooms
    5
  • Number of Bathrooms
    3
  • Number of windows, pcs
    9
  • Glazing area, m2
    23
  • Facade area, m2
    213
  • Roof pitch angle, °
    2
  • Roof type
    flat
  • Roofing area, m2
    99
  • Number of entrance doors, pcs
    1
  • Production time, days
    from 25
  • Volume, m3
    80
  • Weight, tonnes
    25
  • Delivery terms
    Pickup from warehouse (EXW)
  • Loading and packaging
    Included
  • Master Bedroom
    Yes
Architectural elements
  • Porch area, m²
    3
  • Terrace area, m²
    19.5
  • Balcony area, m²
    4.6
Layout solutions

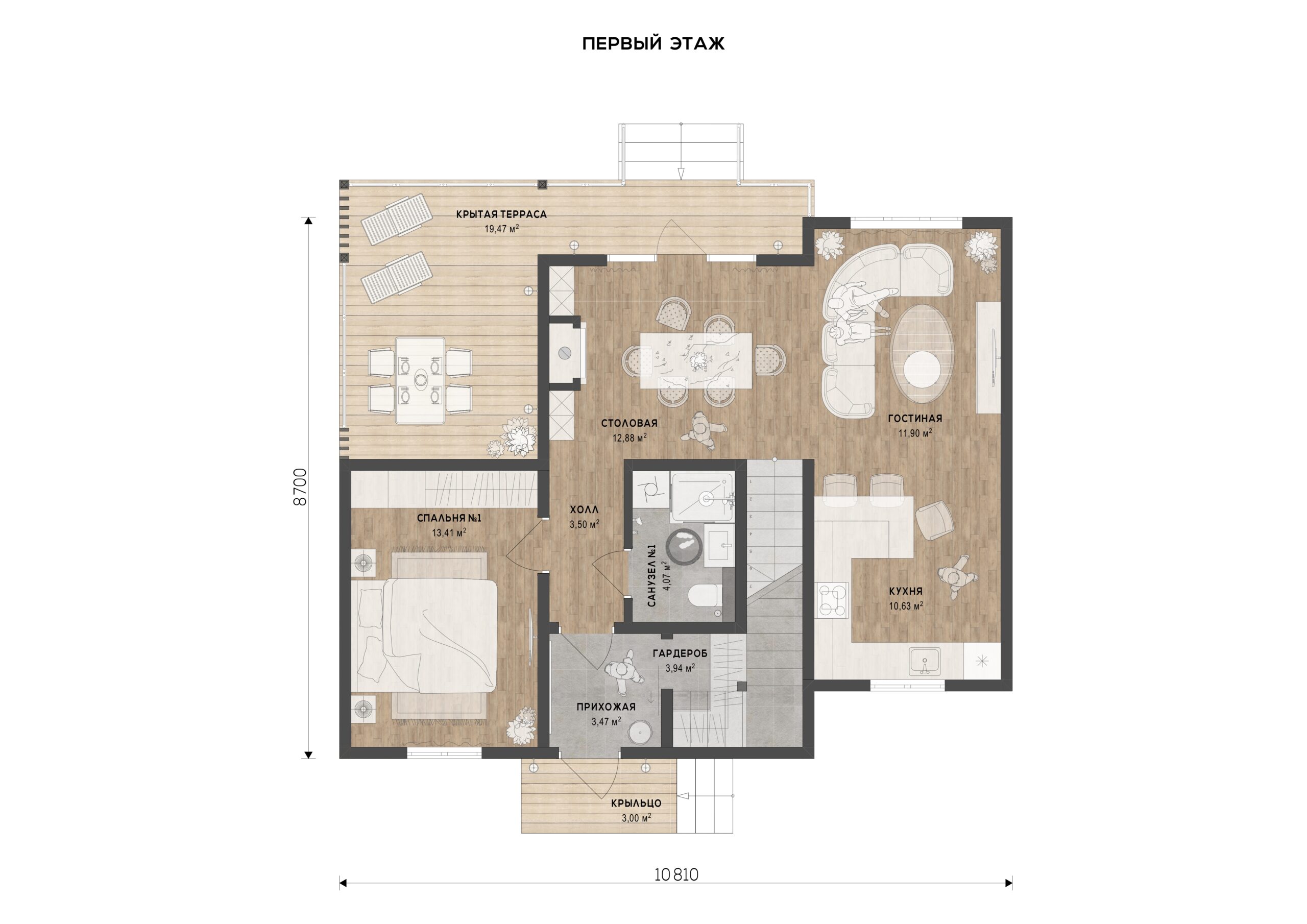

1st Floor
1.
Living Room 25 m²
2.
Kitchen 11 m2
3.
Bedroom 13 m²
4.
Technical Room 4 m²
5.
Bathroom 4 m²
6.
Entrance Hall 3 m²
7.
Hall 4 m²
8.
Porch 3 m²
9.
Terrace 19.5 m²

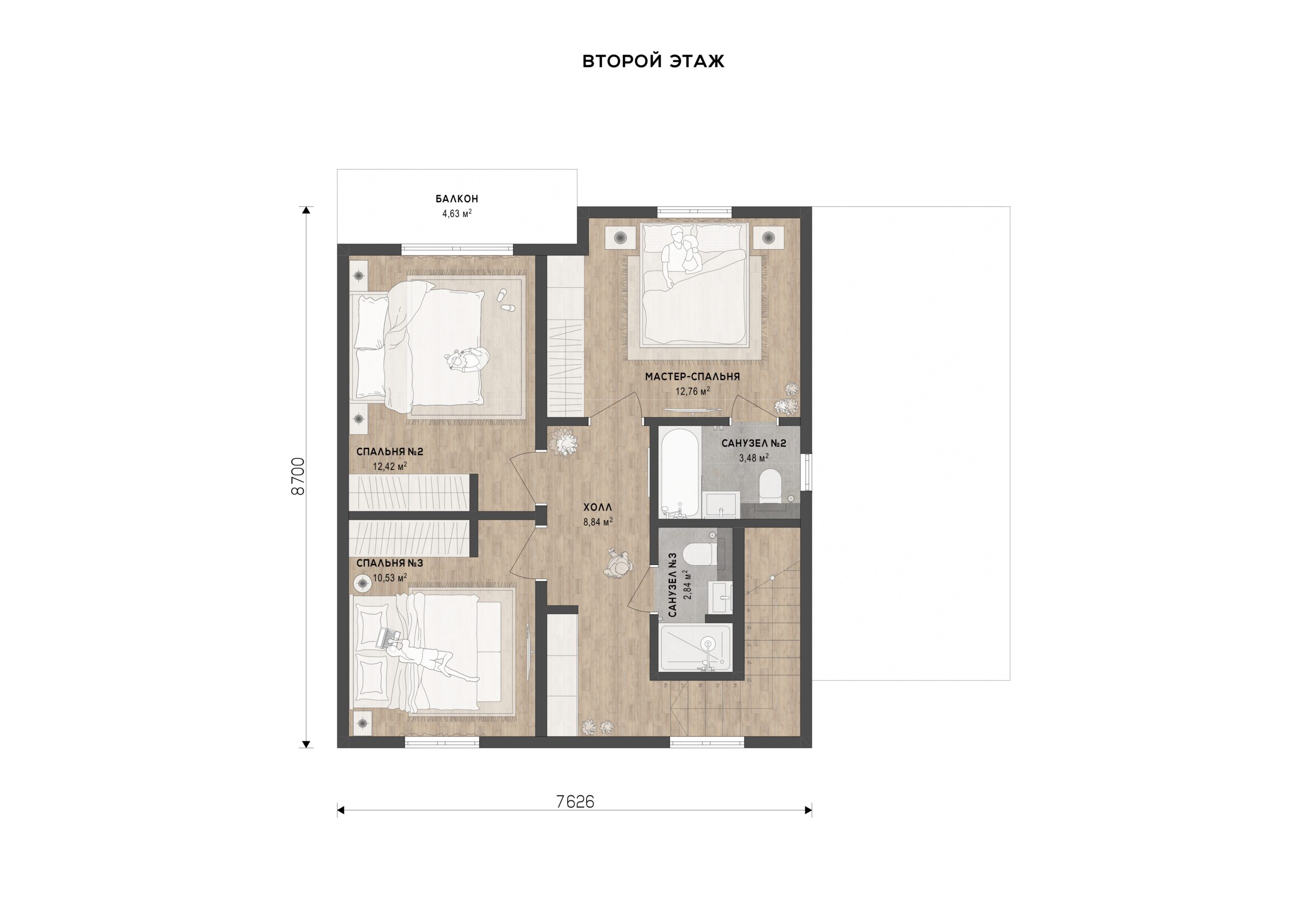

2nd Floor
1.
Master Bedroom 13 m²
2.
Master Bathroom 3.5 m²
3.
Bedroom 12 m²
4.
Bedroom 11 m2
5.
Bathroom 3 m²
6.
Hall 9 m²
7.
Balcony 4.6 m²
Order a panel-frame SIP house kit based on a ready-made standard design
Something does not fit? No problem. Contact us, and we will create a project for you absolutely free! Any changes can be made to the house configuration and layout with the corresponding budget adjustment.
House kit
Standard project
$722
Grillage made of kiln-dried planed timber. Ground floor structure made of VIRMAK SIP panels with CSP and EPS.
$7 825
Exterior walls made of VIRMAK® SIP panels with cement-bonded particle board and EPS. Interior partitions are frame structures made of kiln-dried planed timber.
$25 599
Intermediate floor slab made of I-beams (or joists)
$5 796
Total for the house kit
$39 942
Additional materials and work (estimated prices for planning and understanding the construction budget)
Foundation
SVSN screw pile (blade Ø300 mm, shaft Ø108 mm, length 2500 mm)
$1 208
House kit installation
House kit installation
$13 524
Roof and roofing with installation
Flat roof construction
$3 742
Roof covering
$3 465
PVC windows and doors (if included in the project)
PVC windows and doors (if included in the project)
$3 220
Total for the house kit with installation*
$65 101
What can you save money on?
You should not save on the house kit
0%
Order foundation installation directly from a specialized contractor
30%-40%
Purchase a house kit and install it on your own with the help of our remote author’s (technical) supervision or with installation supervision from a VIRMAK representative
30%-40%
Purchase the house kit, and we will provide a certified crew
30%-40%
Purchase the house kit based on a standard design rather than a custom design
30%-40%

Project Implementation Examples

Important:

The price of the house kit does not include the porch and terrace. Please check the price with our managers.
The information in this project and the list of materials used are relevant for Krasnodar Krai.

Please check the construction cost for other regions of the Russian Federation.

 For any questions, please contact us using the contact details listed on the website (phone numbers, email, etc.).

For a more accurate preliminary estimate, indicate the district (address) of the future construction.

Need a consultation? Call right now or leave a request using the «contact button».

Minor price changes may be caused by: slopes on the site, difficult access roads, lack of electrical power, etc.

All projects posted on the website are schematic and can serve as initial material for creating a project according to your wishes and recommendations.
