TP-2-182

House kit cost:
$42 510
*The indicated price is not a public offer. Please check the current price with our managers.

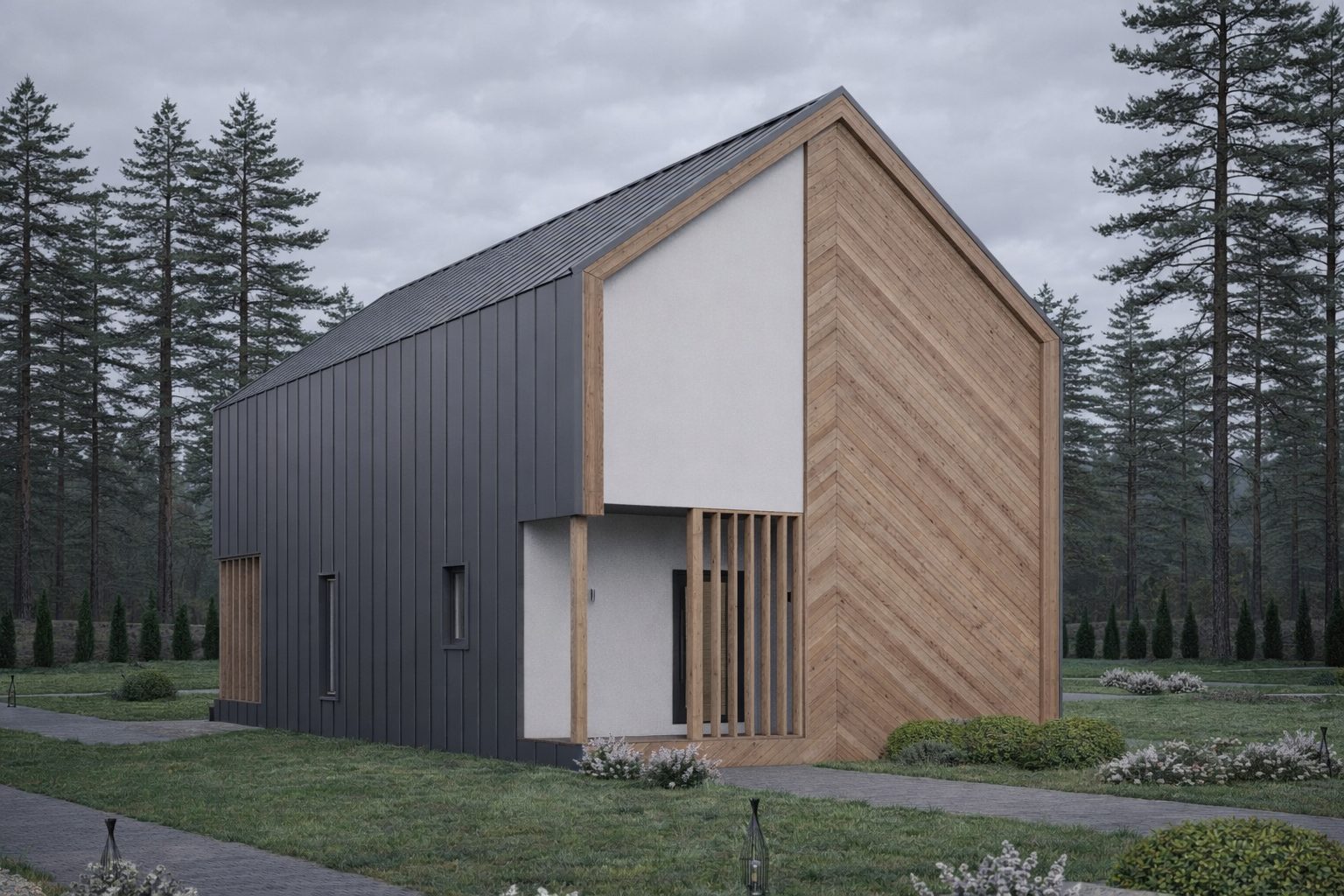

Визуализация
Визуализация
Визуализация
Визуализация

The standard design of a two-story house made of SIP panels TP-2-182 includes a spacious kitchen-living room of 40 m2, which creates a large volume, incredible openness and increased comfort. The house also has a master bedroom of 12 m2 with its own separate walk-in closet of 6 m2 and a bathroom of 6 m2. In addition to the master bedroom, the house also has three bedrooms: two bedrooms of 15 m2 each with their own separate walk-in closets of 6 m2, and a third bedroom of 12 m2. For these three bedrooms, two bathrooms of 4 m2 and 2 m2 are provided. The house also has a utility room for housing engineering equipment of 5.6 m2, where a gas boiler room can be arranged in accordance with the requirements of Russian Federation legislation. The entrance hall area is 8 m2, which allows at least six residents to enter the house comfortably at the same time, and a large wardrobe can also be placed there. Two spacious halls — 12 m2 on the first floor and 9 m2 on the second — provide comfortable movement throughout the house. The thoughtful layout and ergonomics allow for comfortable living in the house and meet all modern requirements.

Object Specifications:
  • Number of Floors
    2
  • Building Area, m²
    182
  • Length, m
    11.5
  • Width, m
    8.2
  • House height, m
    8.7
  • Total Area, m²
    158
  • Floor-to-ceiling height, m
    2.7
  • Number of Rooms
    5
  • Number of Bathrooms
    3
  • Number of windows, pcs
    10
  • Glazing area, m2
    26
  • Facade area, m2
    240
  • Roof pitch angle, °
    35
  • Roof type
    gable
  • Roofing area, m2
    117
  • Number of entrance doors, pcs
    1
  • Production lead time, days
    from 25
  • Volume, m3
    94
  • Weight, tonnes
    32
  • Delivery terms
    Pickup from warehouse (EXW)
  • Loading and packaging
    Included
  • Master Bedroom
    Yes
Architectural elements
  • Porch area, m²
    5
  • Terrace area, m²
    23
Layout solutions

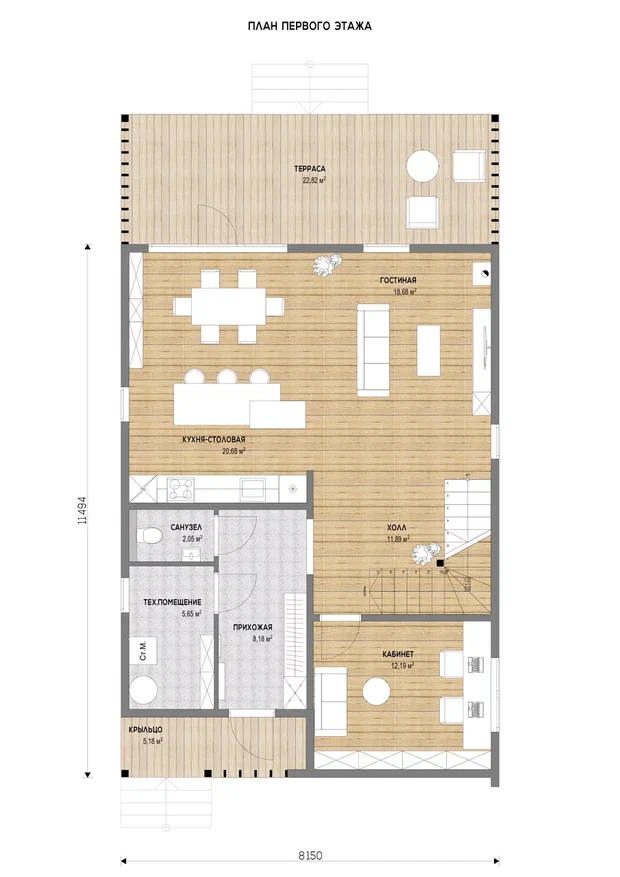

1st Floor
план двухэтажного дома из сип панелей
1.
Living Room 19 m²
2.
Kitchen 21 m²
3.
Bedroom 12 m²
4.
Hall 12 m²
5.
Bathroom 2 m²
6.
Entrance Hall 8 m²
7.
Technical Room 5.6 m²
8.
Porch 5 m²
9.
Terrace 23 m²

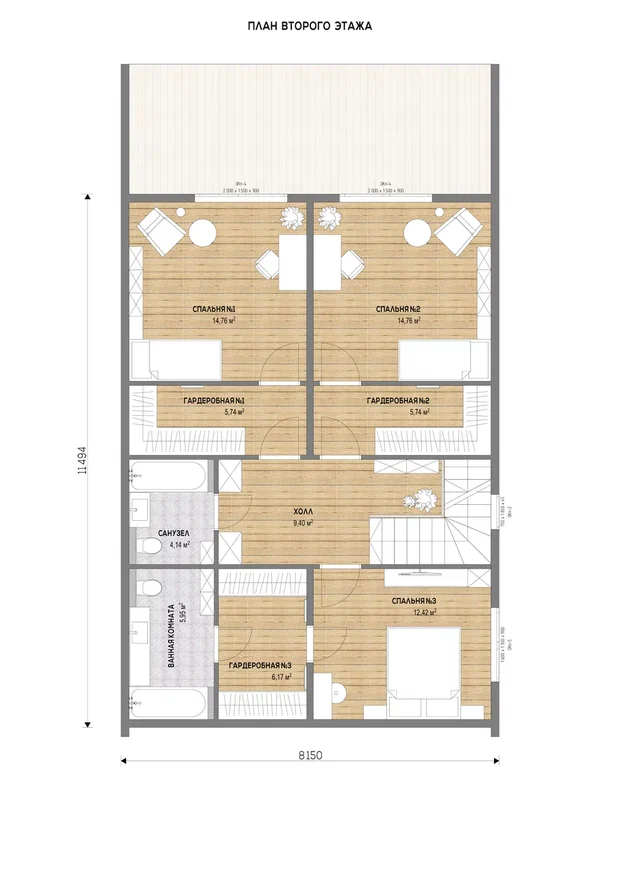

2nd Floor
план двухэтажного дома из сип панелей
1.
Master Bedroom 12 m²
2.
Master walk-in closet 6 m²
3.
Master Bathroom 6 m²
4.
Bedroom 15 m²
5.
Walk-in Closet 6 m²
6.
Bedroom 15 m²
7.
Walk-in Closet 6 m²
8.
Bathroom 4 m²
9.
Hall 9 m²
Order a panel-frame SIP house kit based on a ready-made standard design
Place an Order
Something does not fit? No problem. Contact us, and we will create a project for you absolutely free! Any changes can be made to the house configuration and layout with the corresponding budget adjustment.
Modify the Project
House kit
Standard project
$722

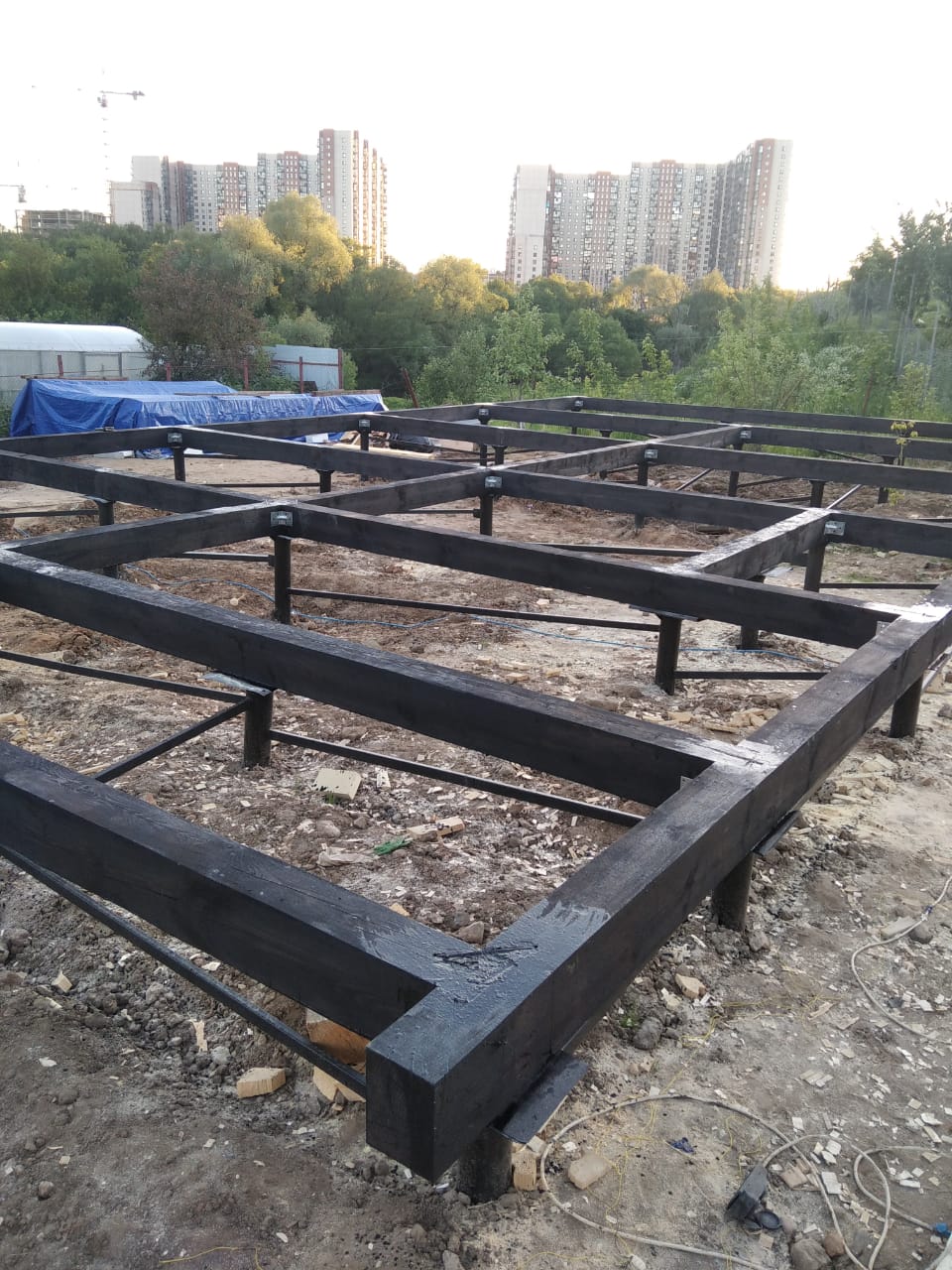

Grillage made of kiln-dried planed timber. Ground floor structure made of VIRMAK SIP panels with CSP and EPS.
$9 937

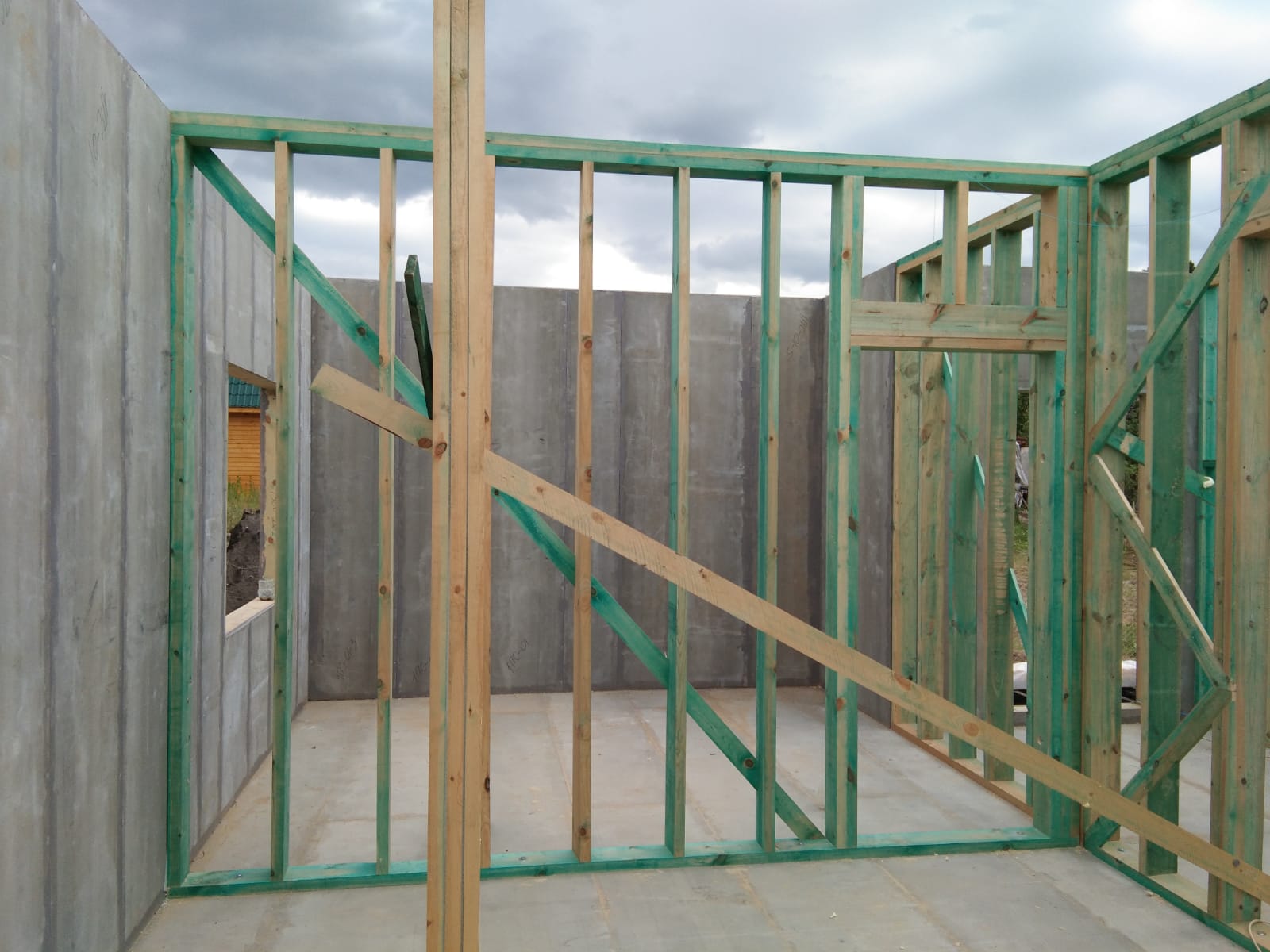

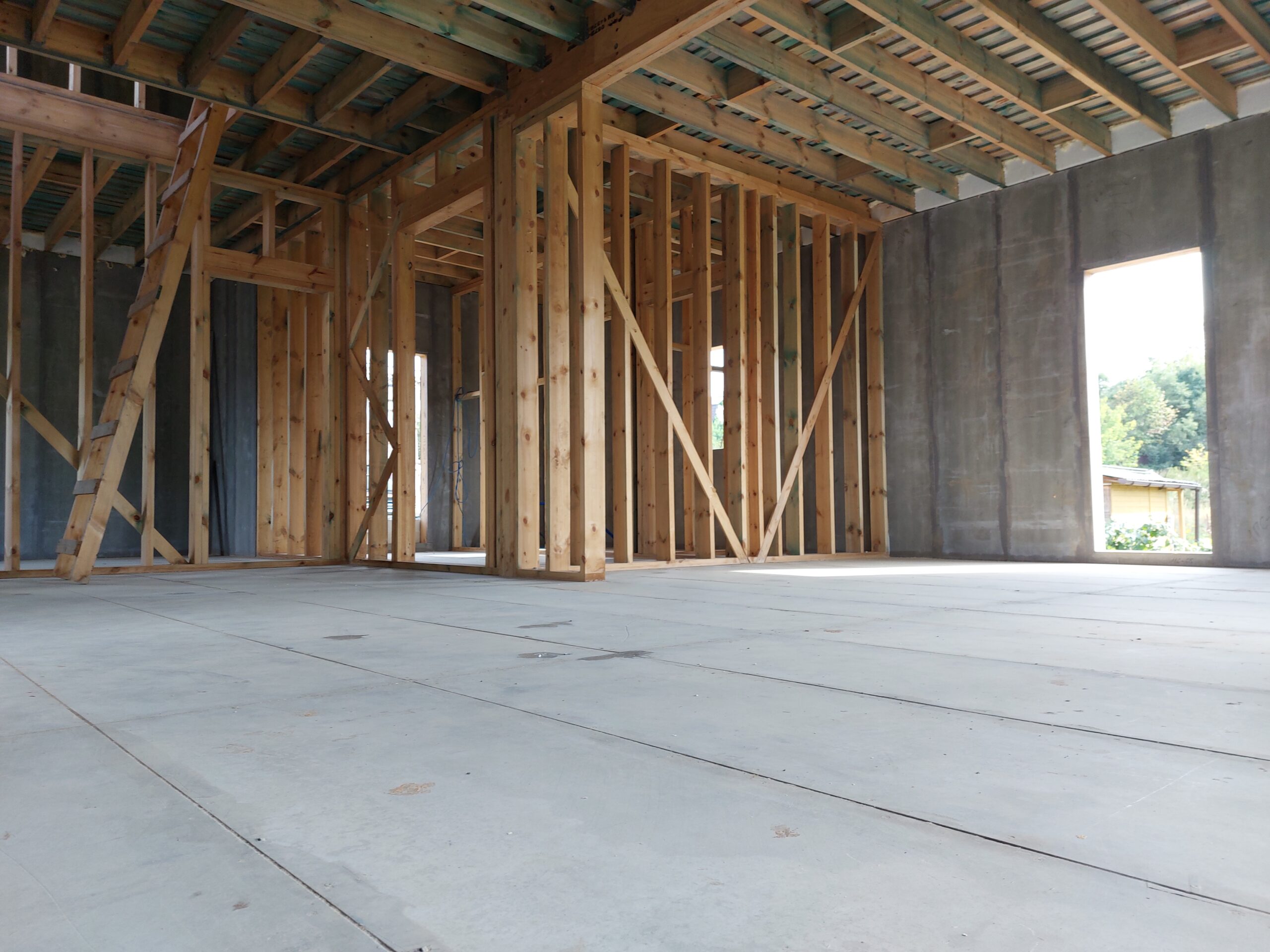

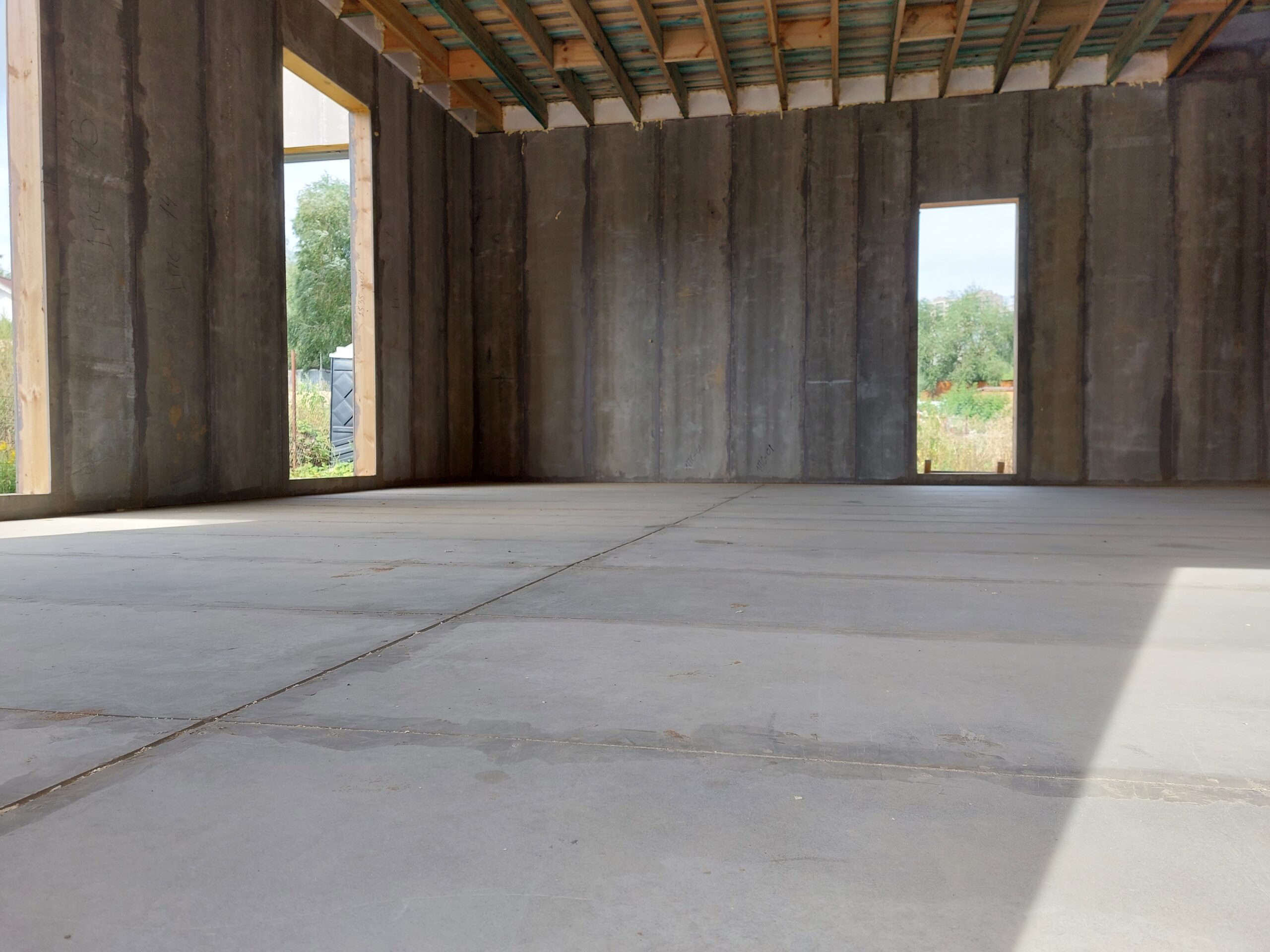

Exterior walls made of VIRMAK® SIP panels with cement-bonded particle board and EPS. Interior partitions are frame structures made of kiln-dried planed timber.
$24 461

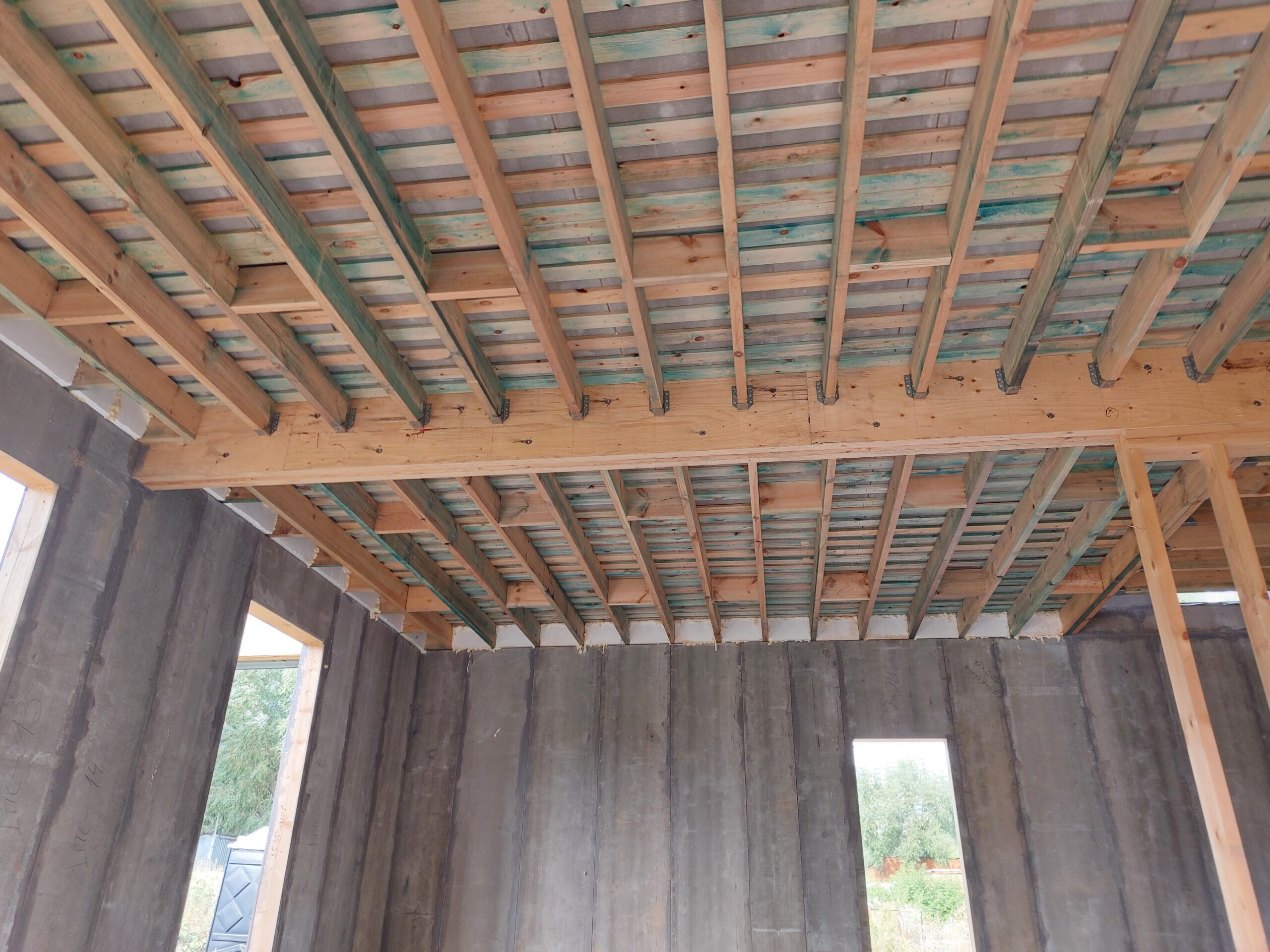

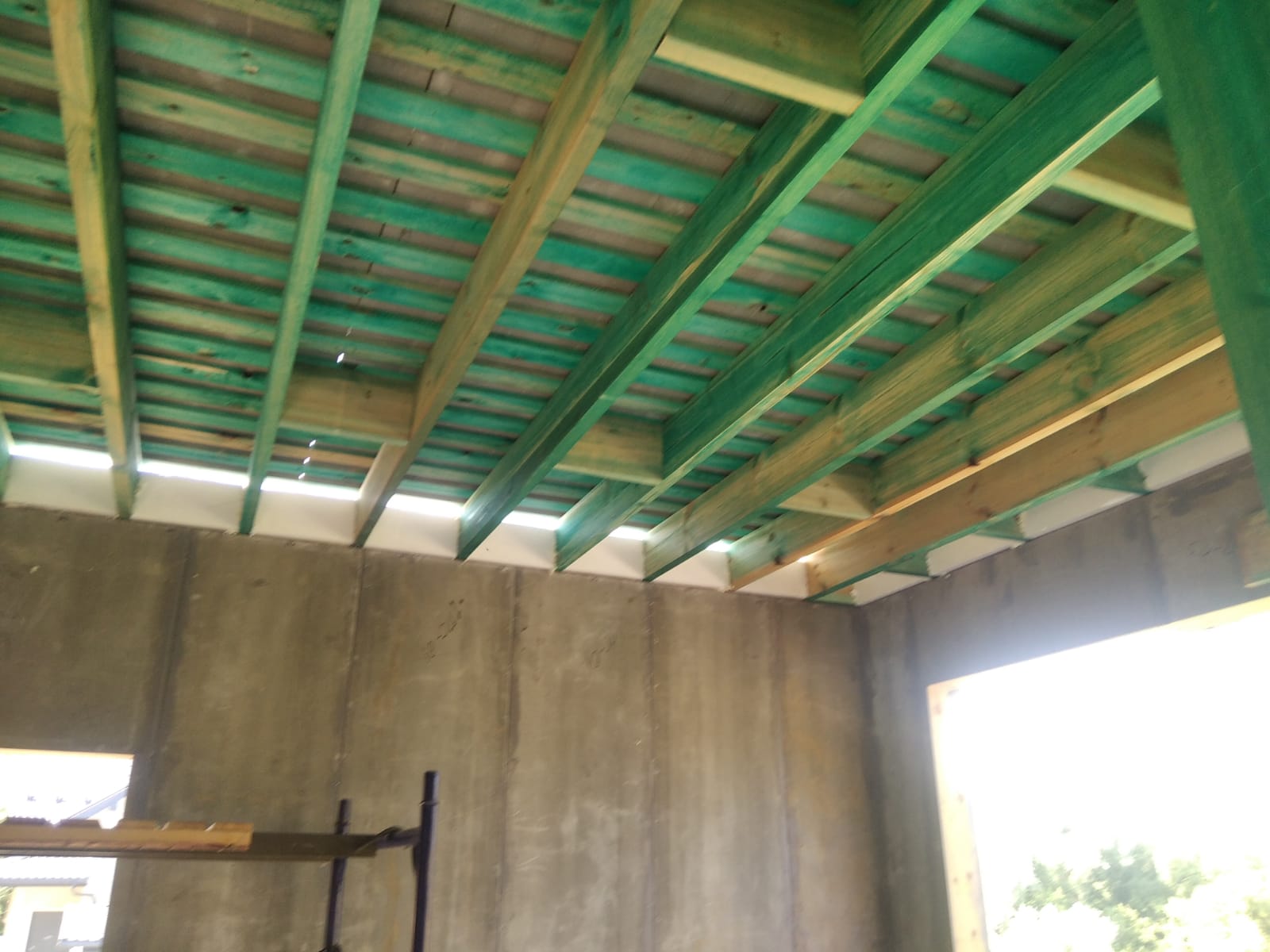

Intermediate floor slab made of I-beams (or joists)
$7 389
Total for the house kit
$42 510
Additional materials and work (estimated prices for planning and understanding the construction budget)
bs_object_specs
Foundation
SVSN screw pile (blade Ø300 mm, shaft Ø108 mm, length 2500 mm)
$1 593
House kit installation
House kit installation
$17 836

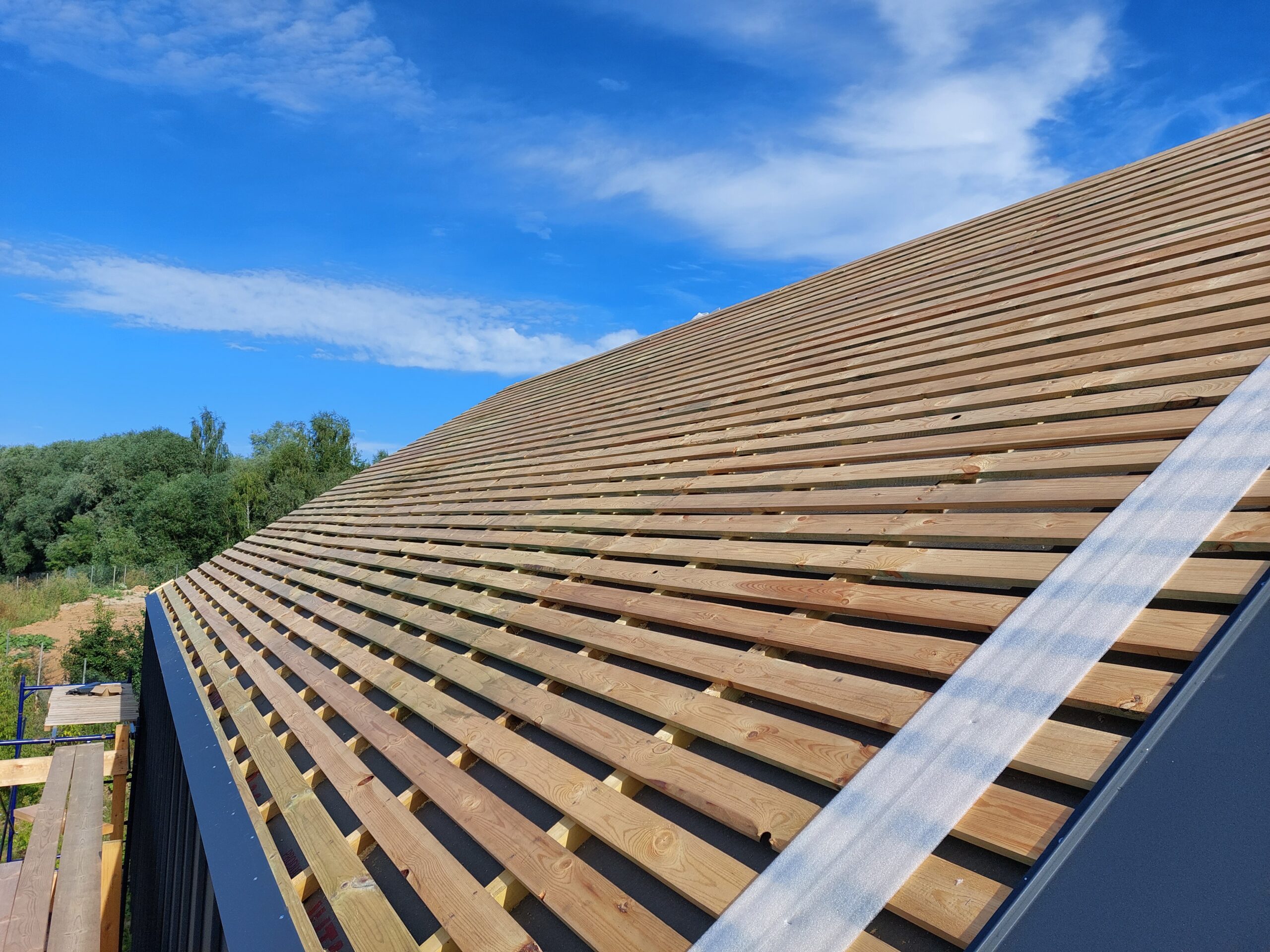

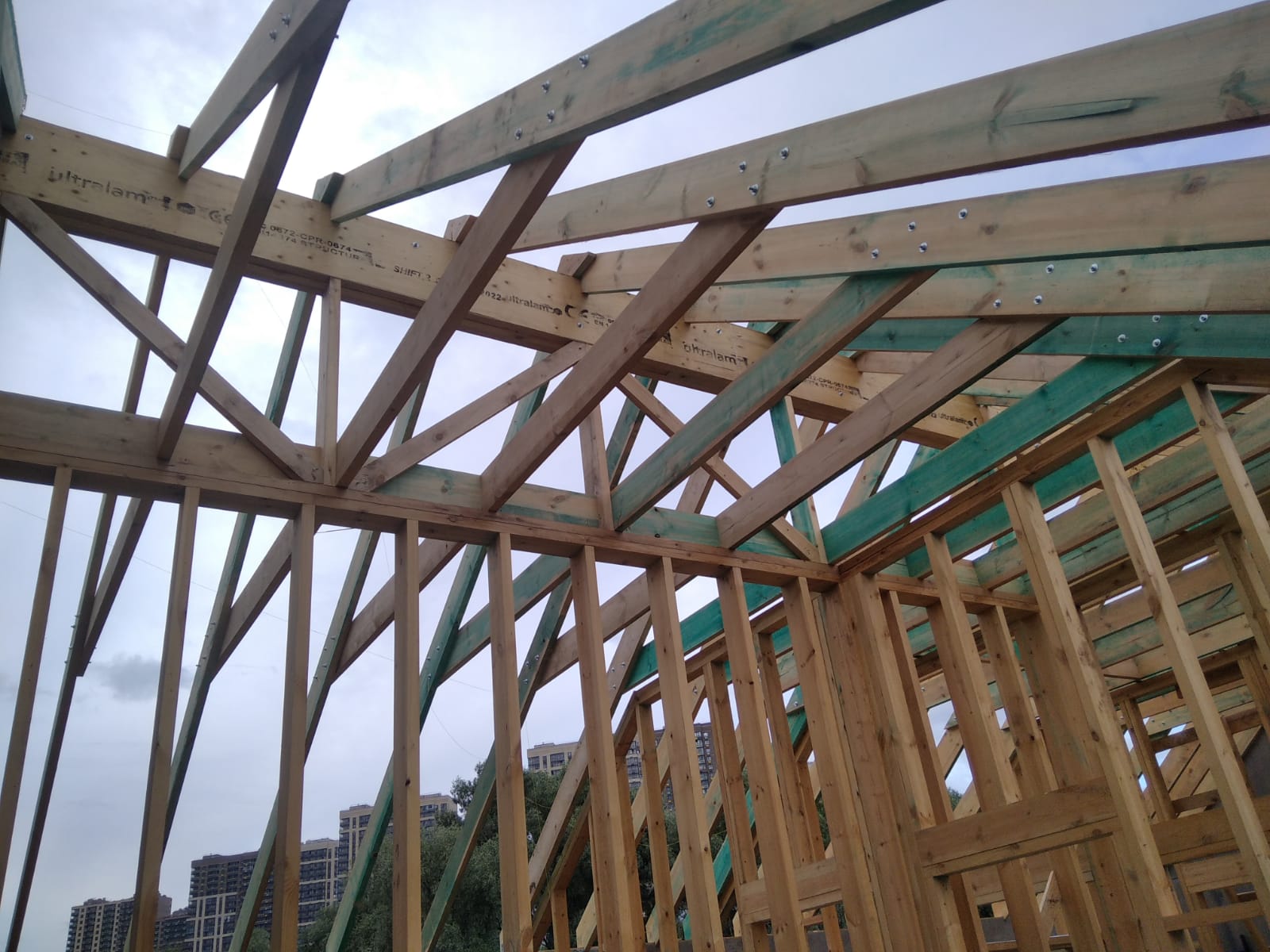

Roof and roofing with installation

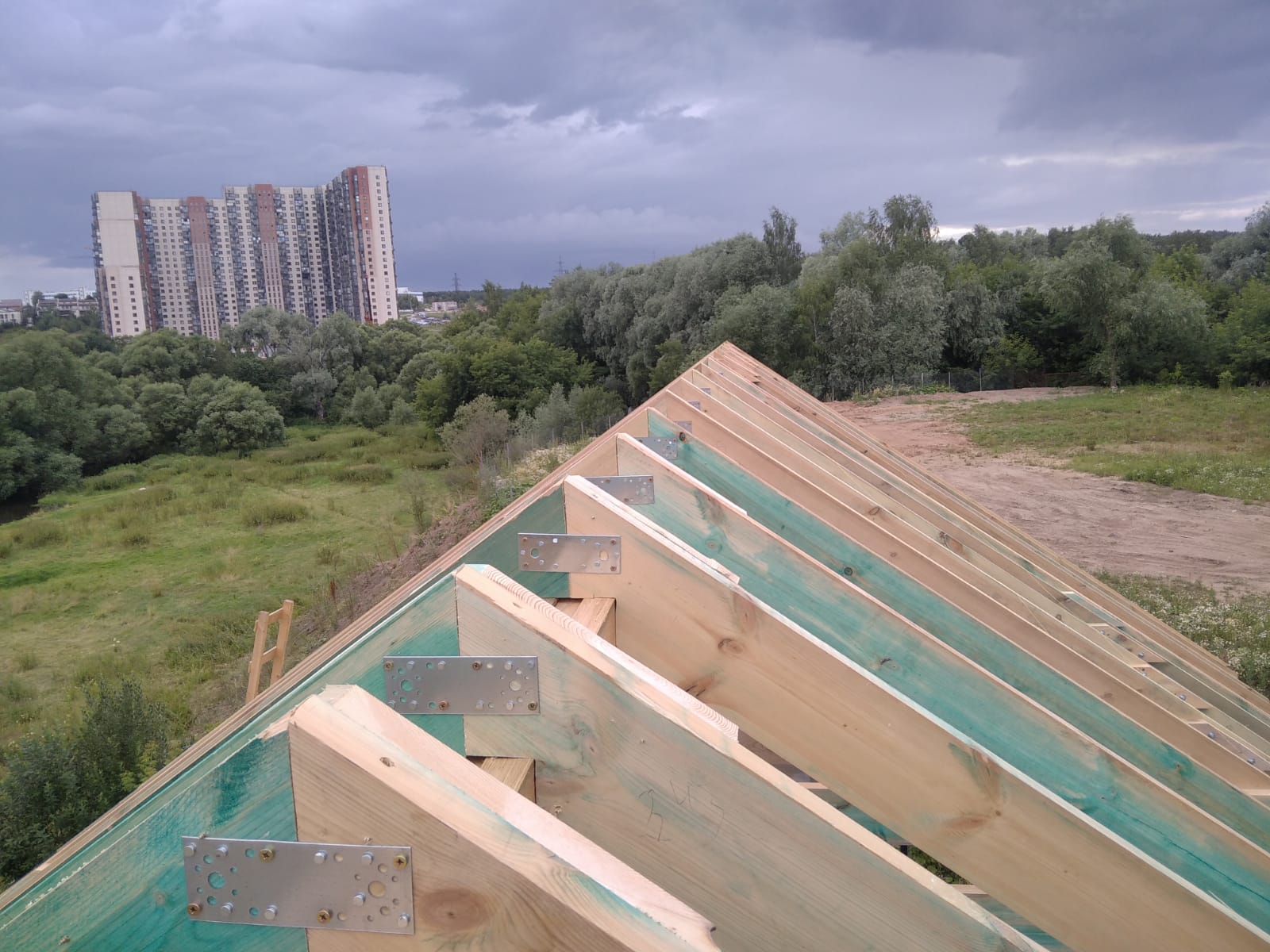

Стропильная система из пиломатериала
$4 423

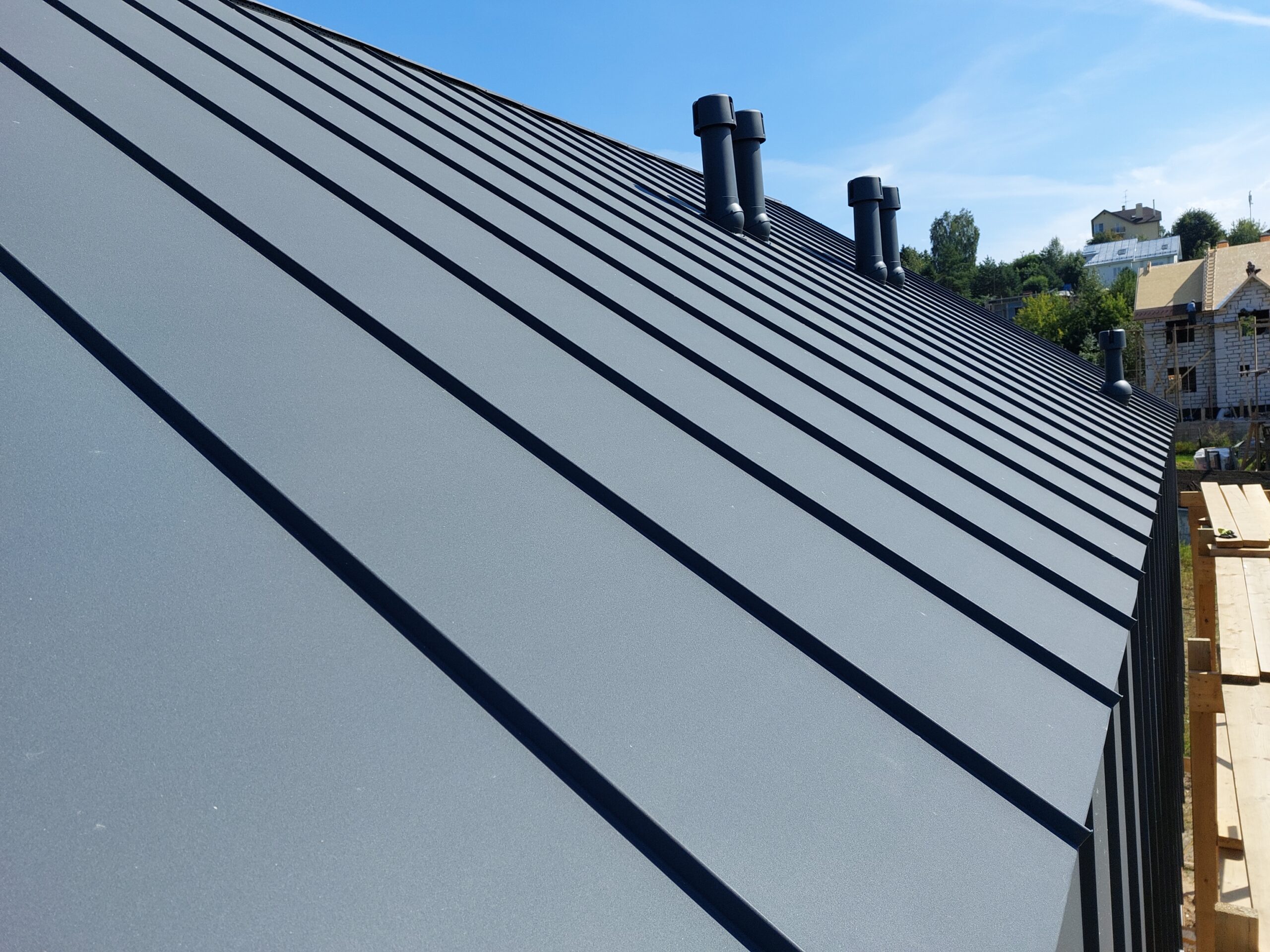

Roofing - metal tile 0.5 mm, polyester 25 µm, Zn 100-140 g/m² and installation. Soft shingles plus 8%
$4 095
PVC windows and doors (if included in the project)
PVC windows and doors (if included in the project)
$3 640
Total for the house kit with installation*
$74 096
What can you save money on?
You should not save on the house kit
0%
Order foundation installation directly from a specialized contractor
30%-40%
Purchase a house kit and install it on your own with the help of our remote author’s (technical) supervision or with installation supervision from a VIRMAK representative
30%-40%
Purchase the house kit, and we will provide a certified crew
30%-40%
Purchase the house kit based on a standard design rather than a custom design
30%-40%

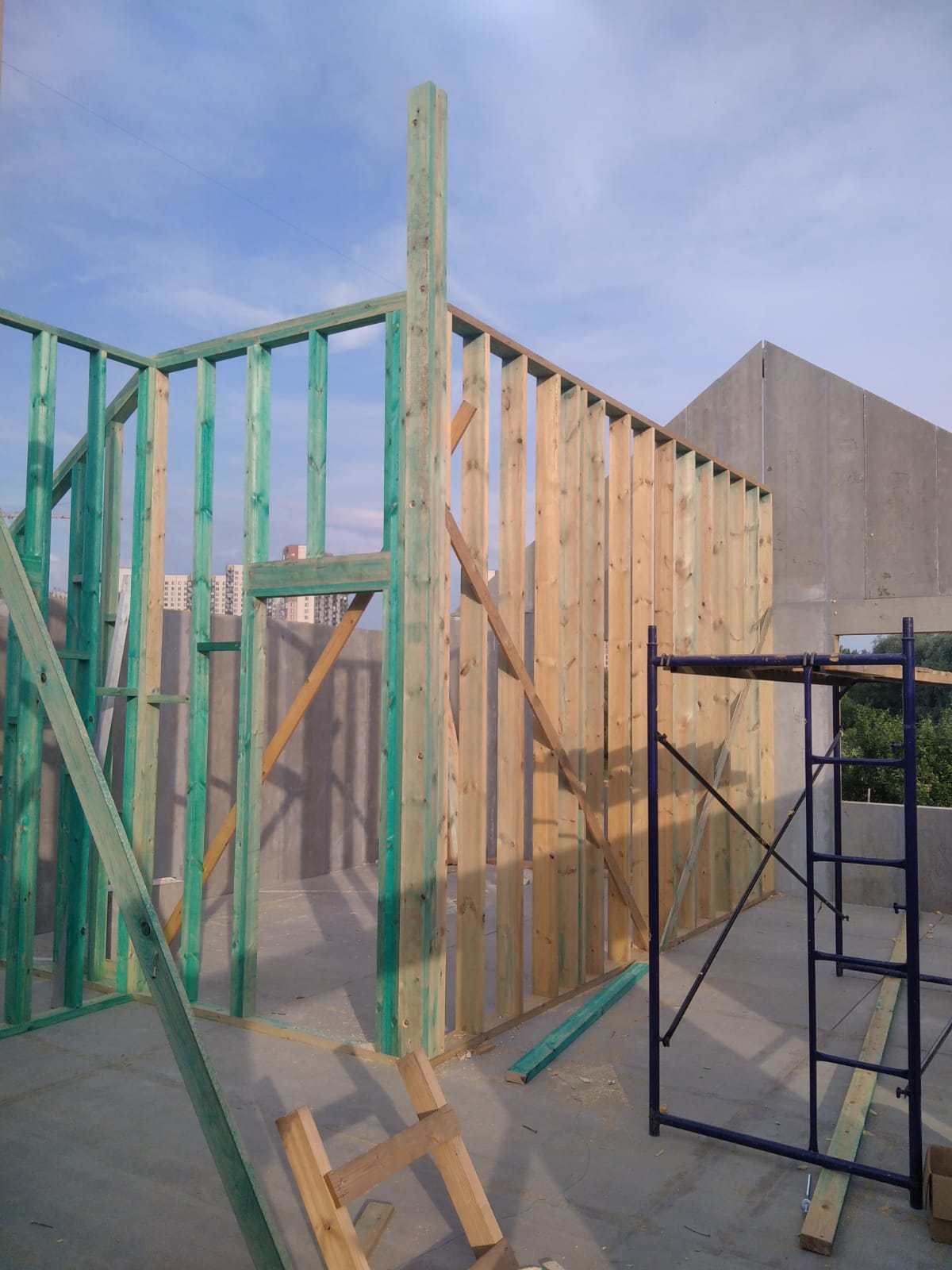

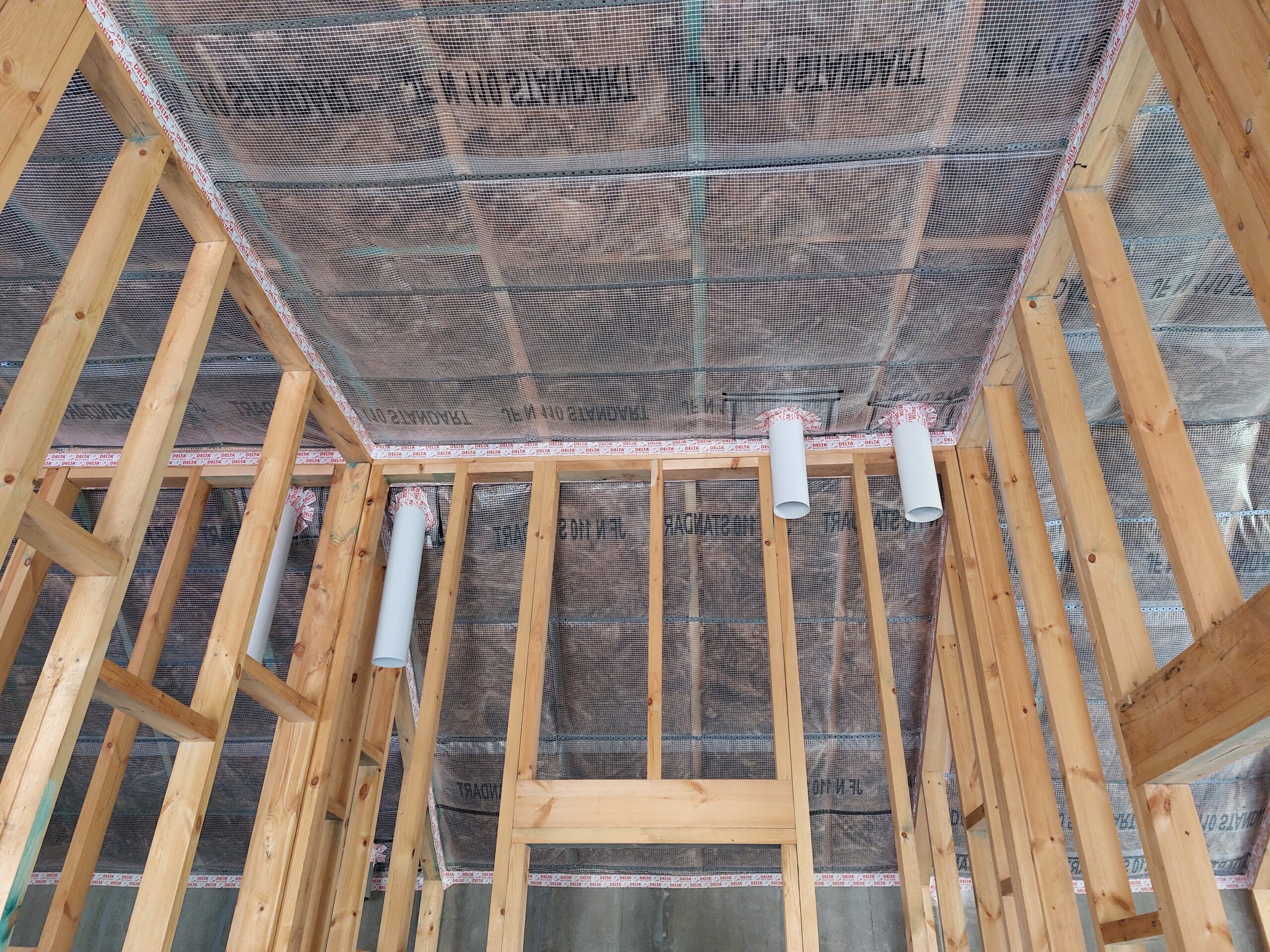

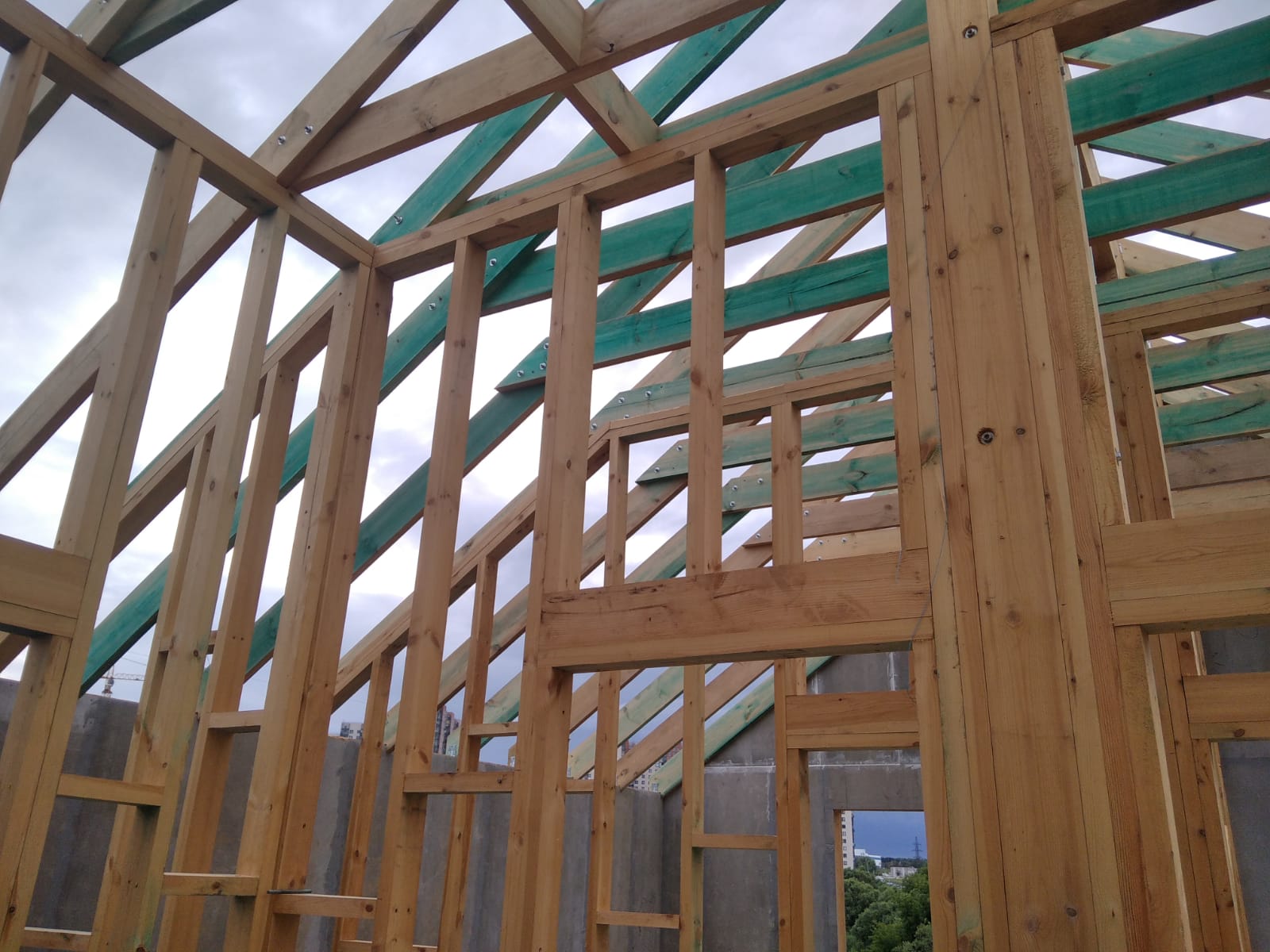

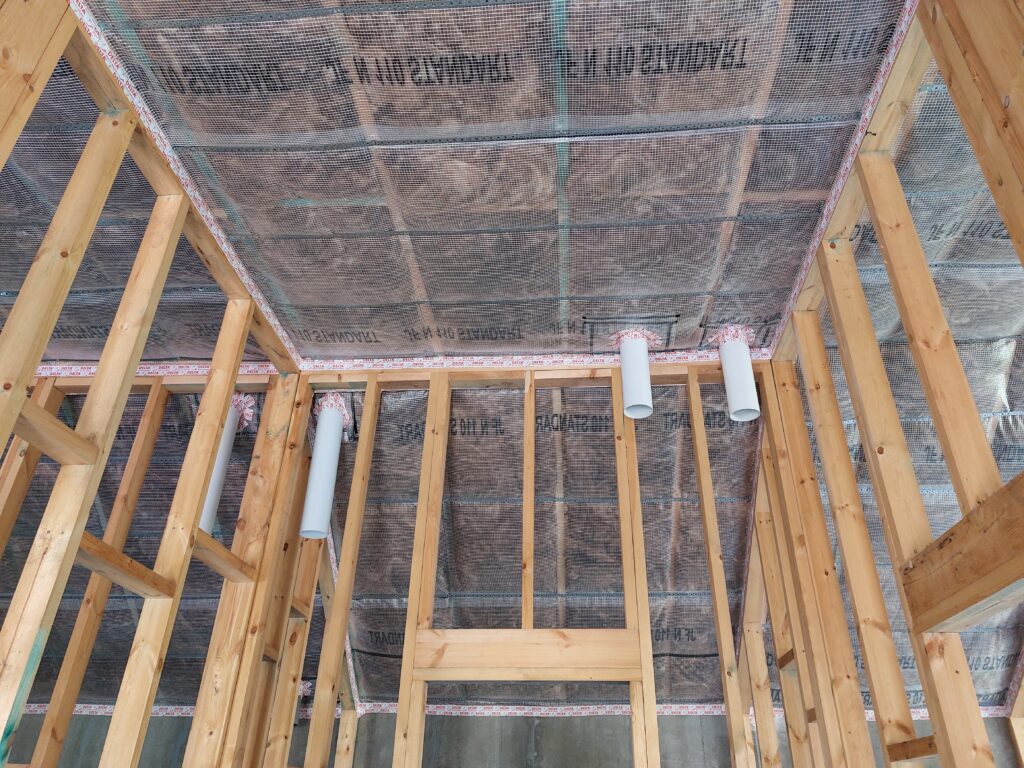

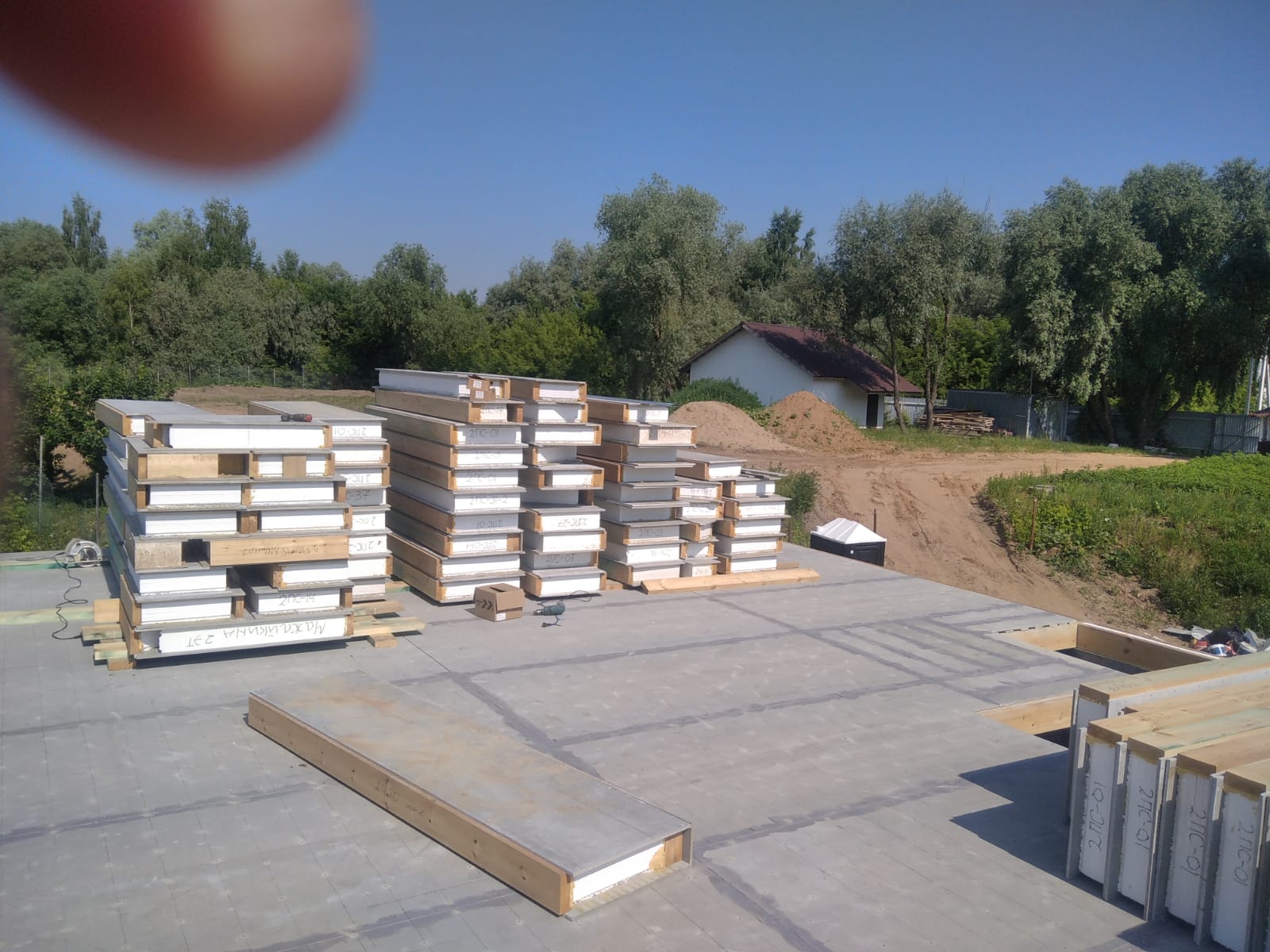

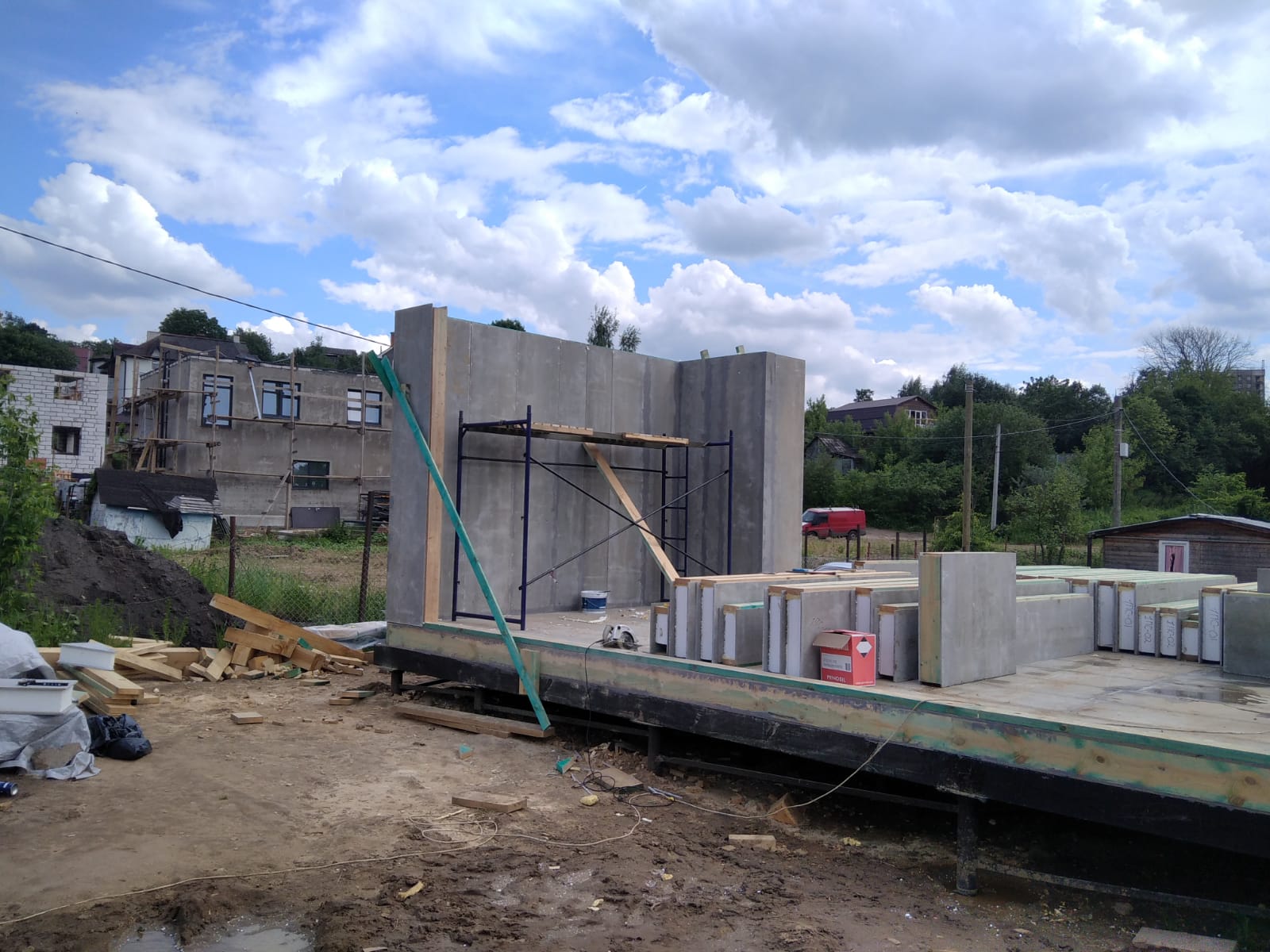

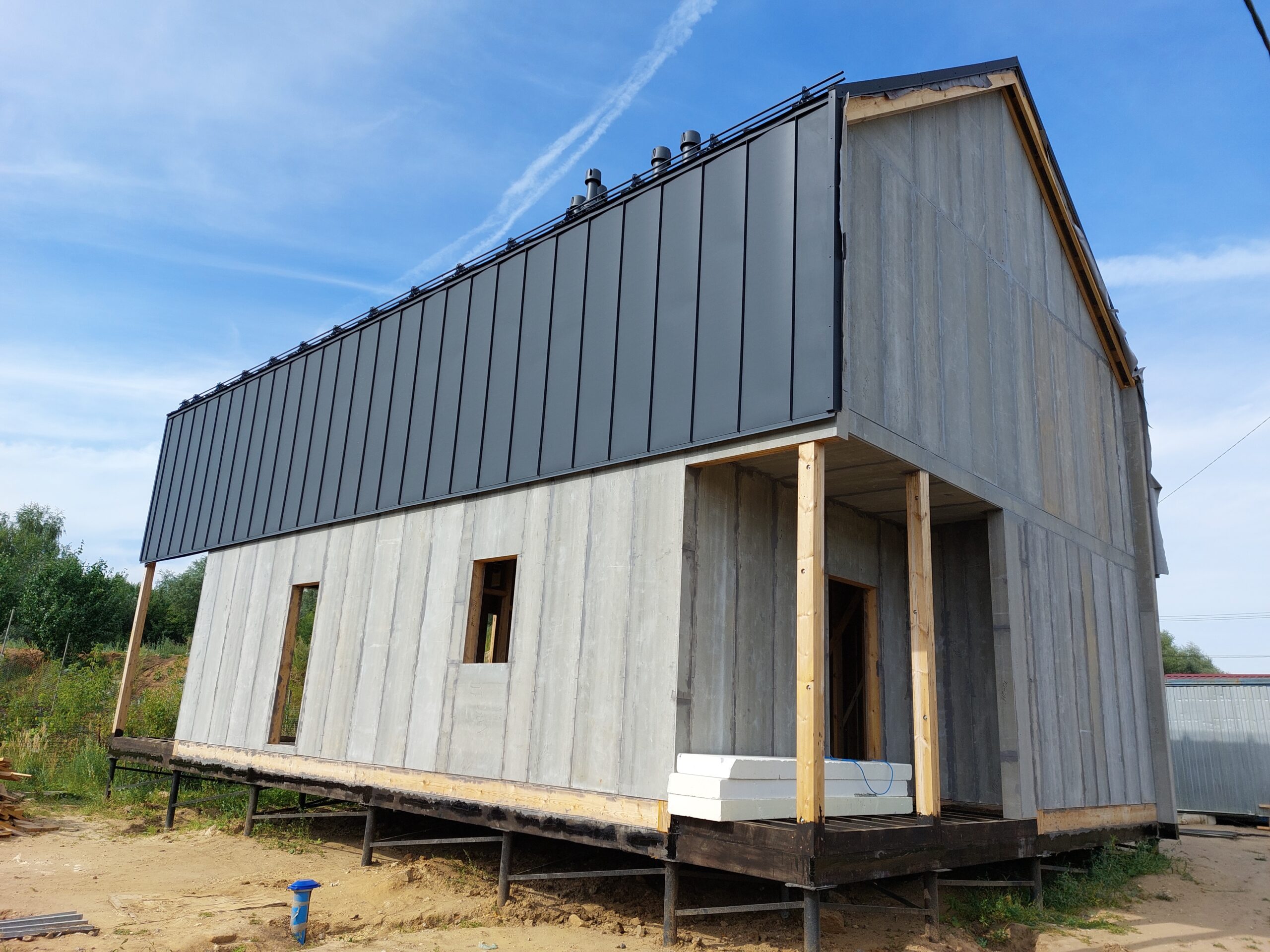

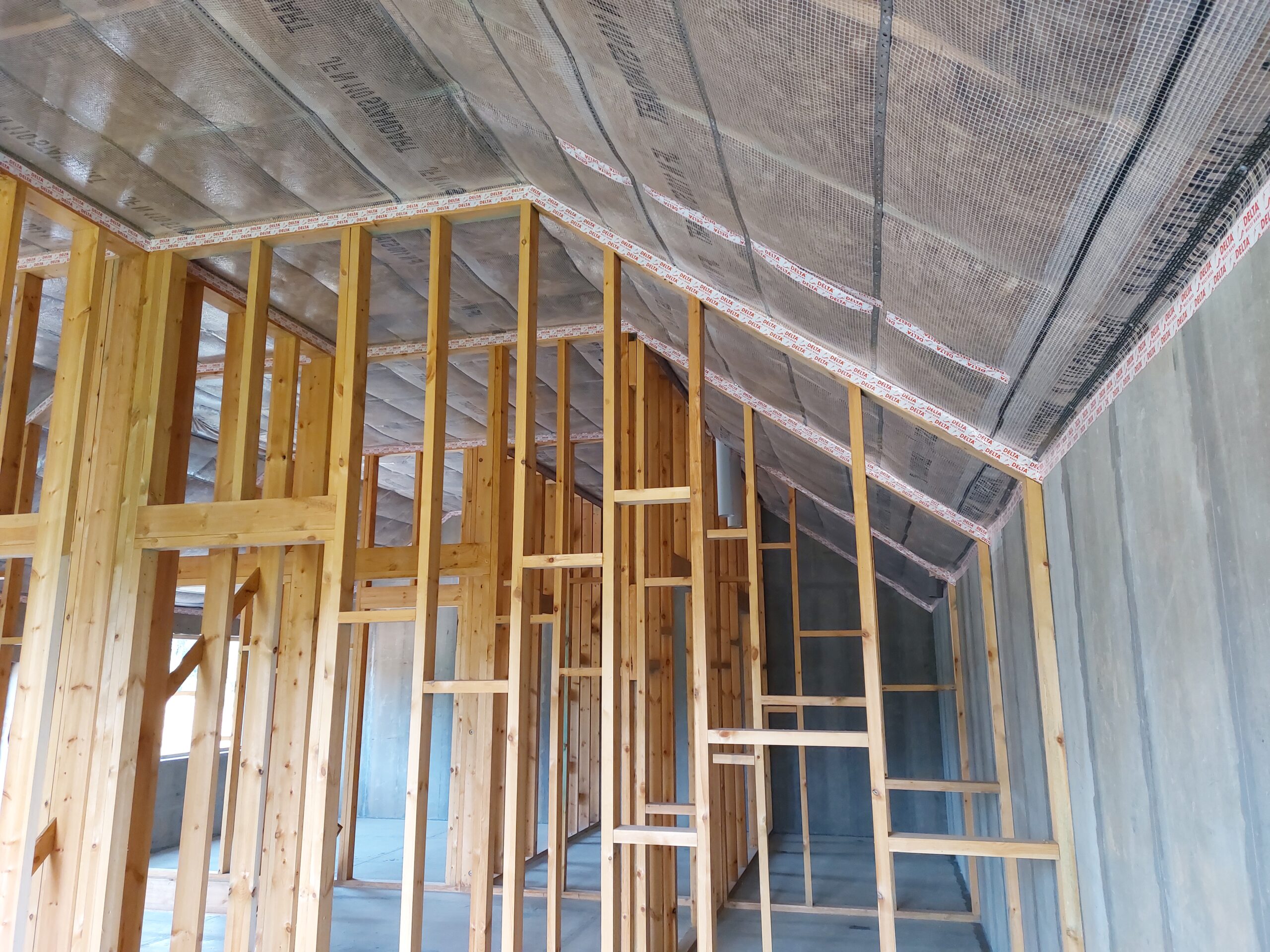

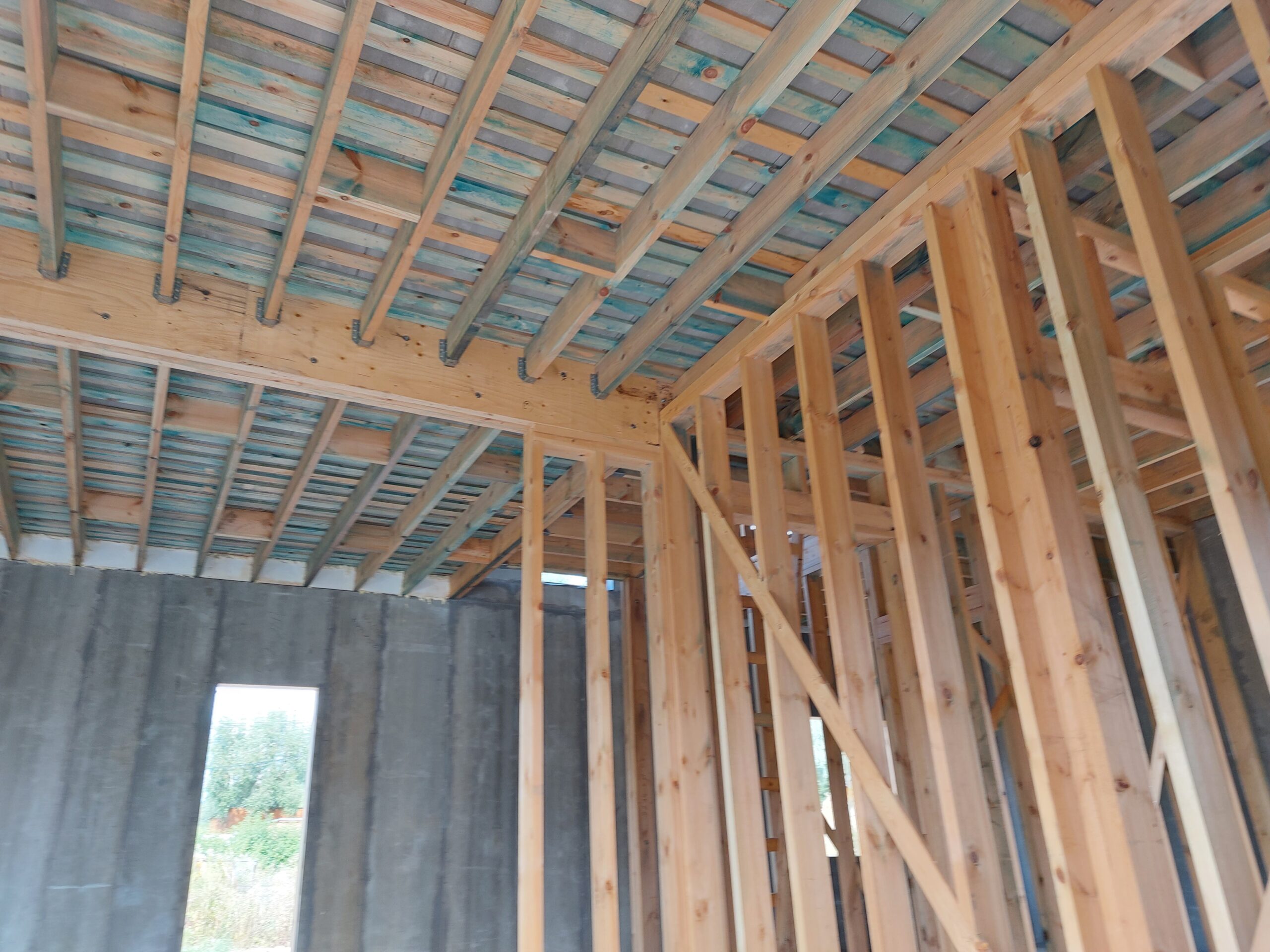

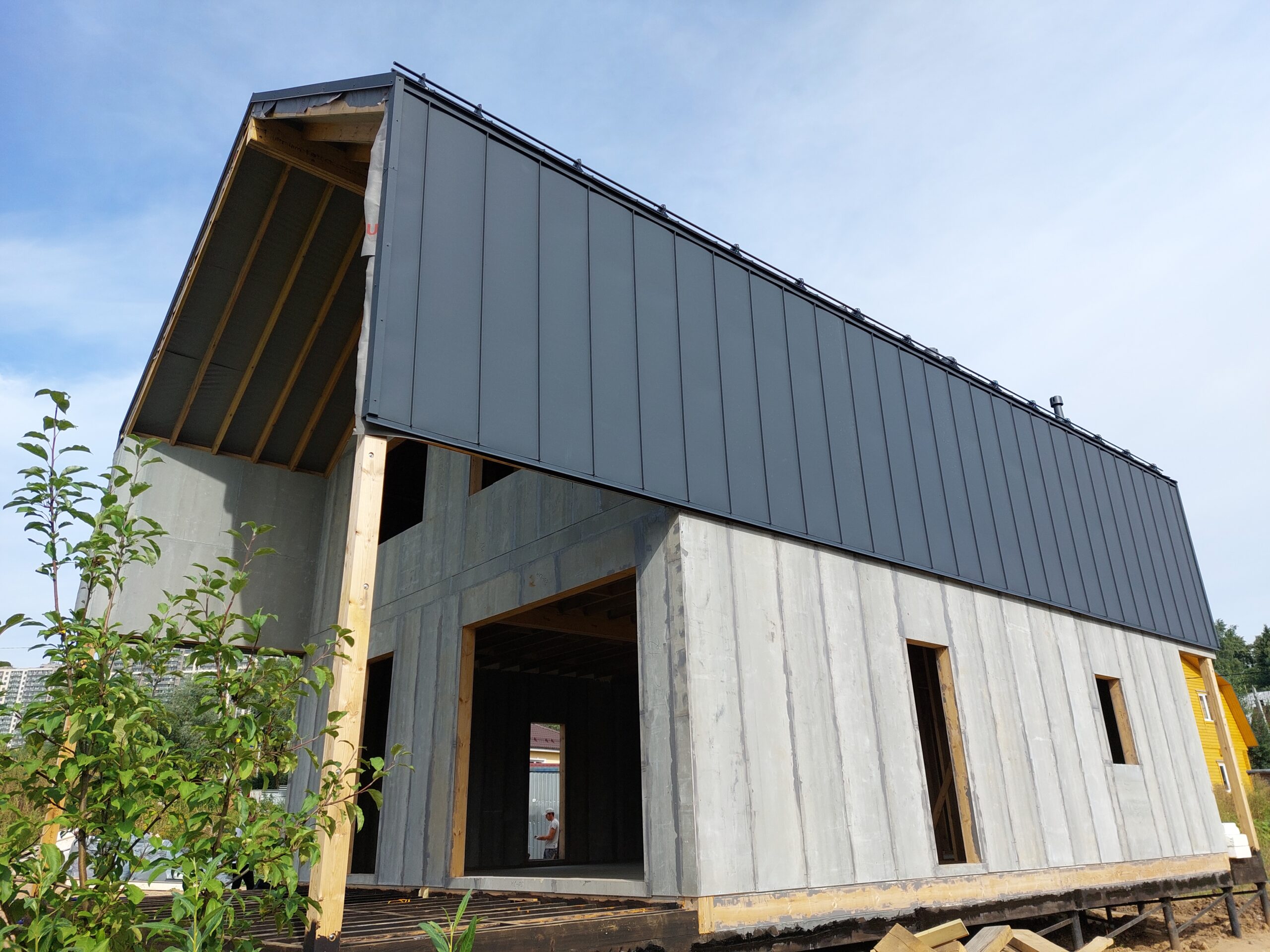

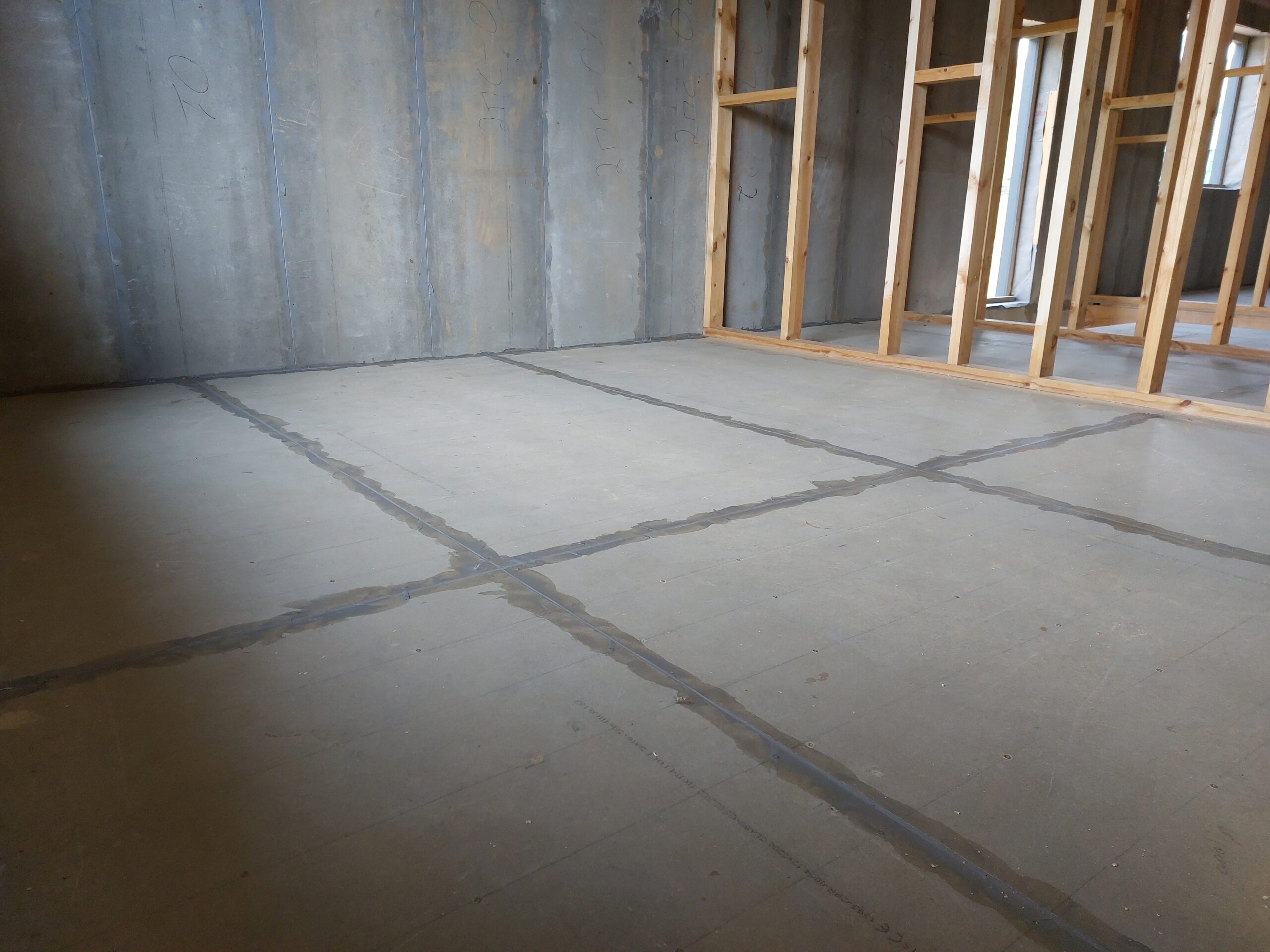

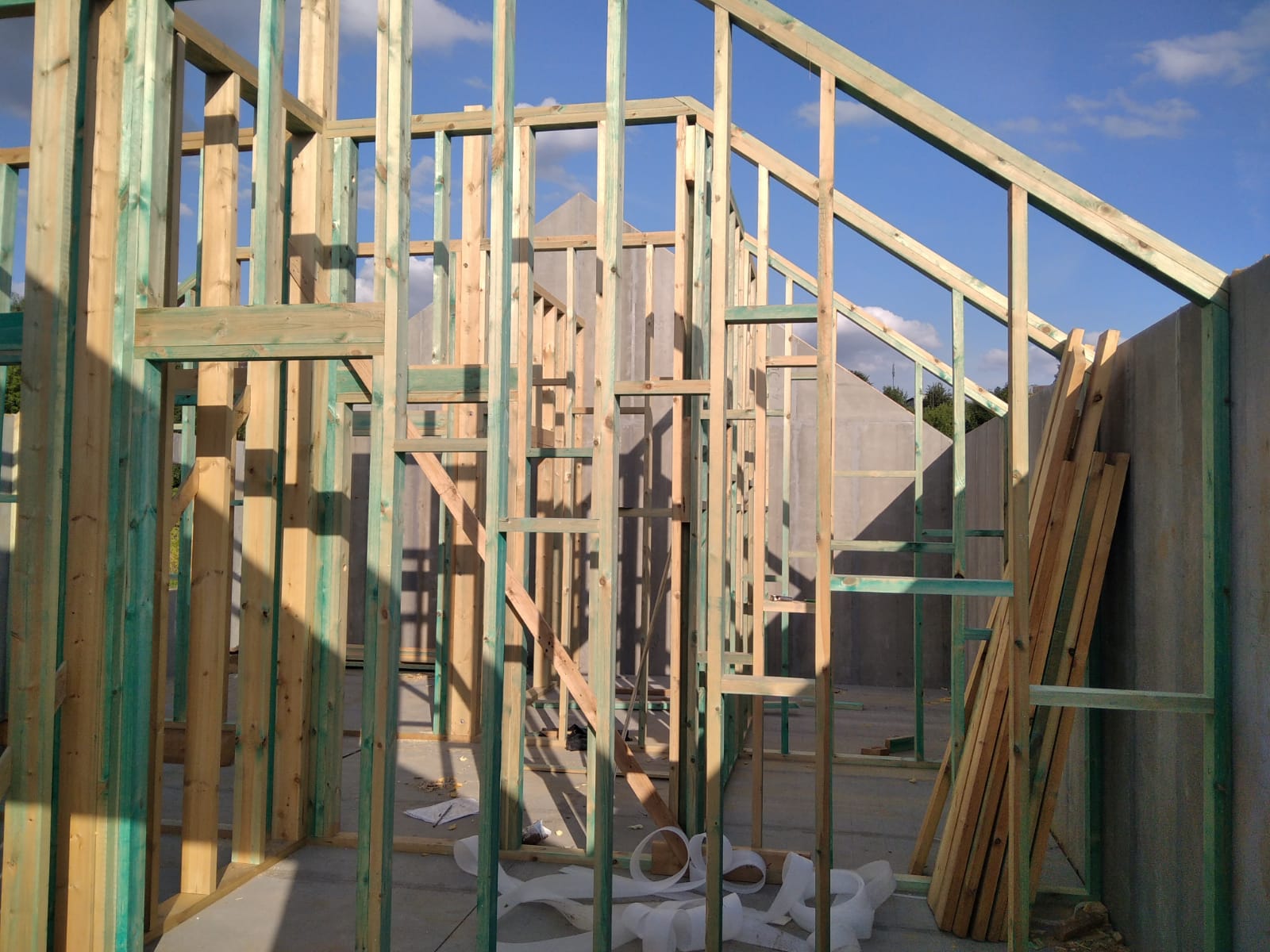

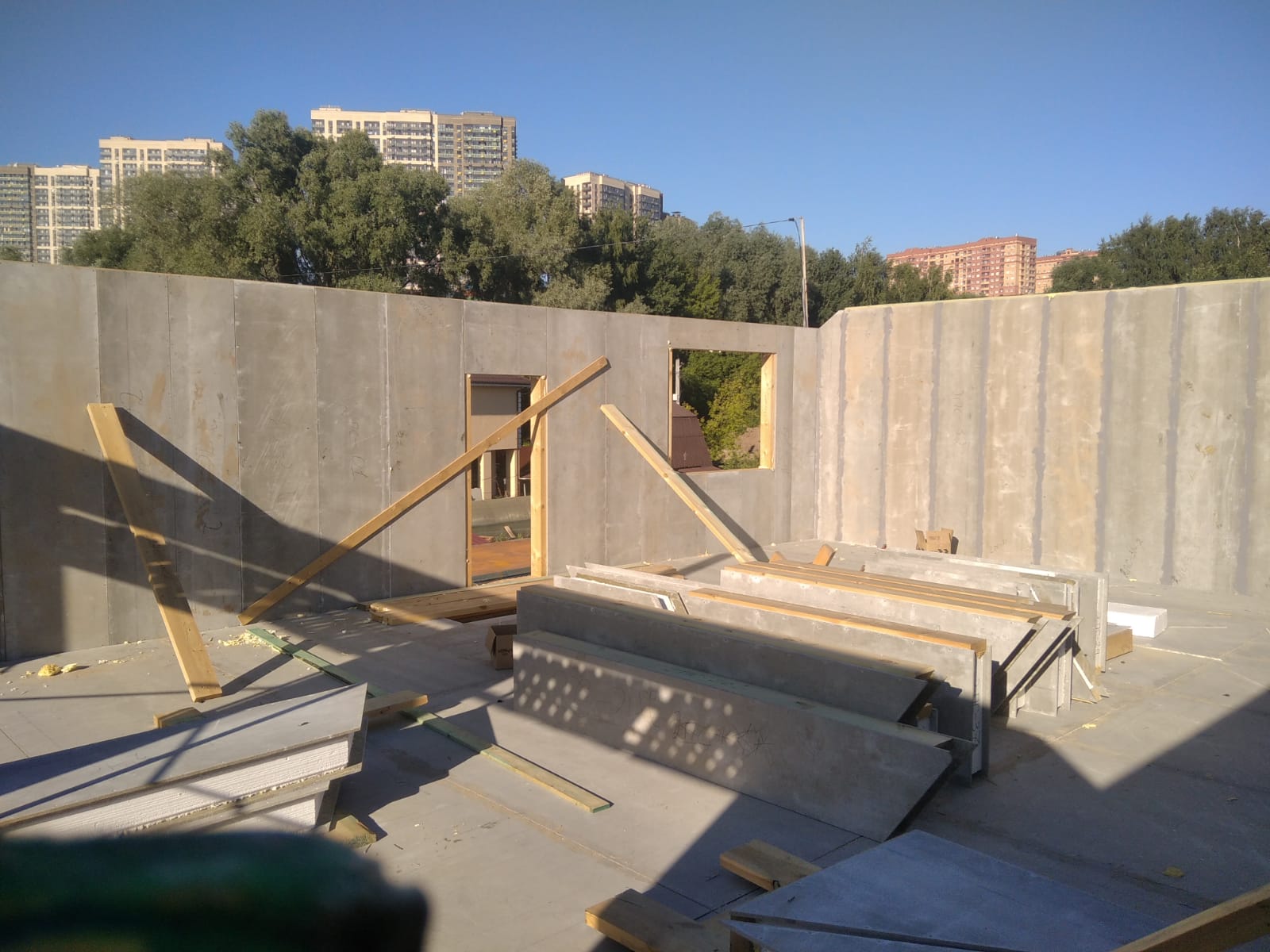

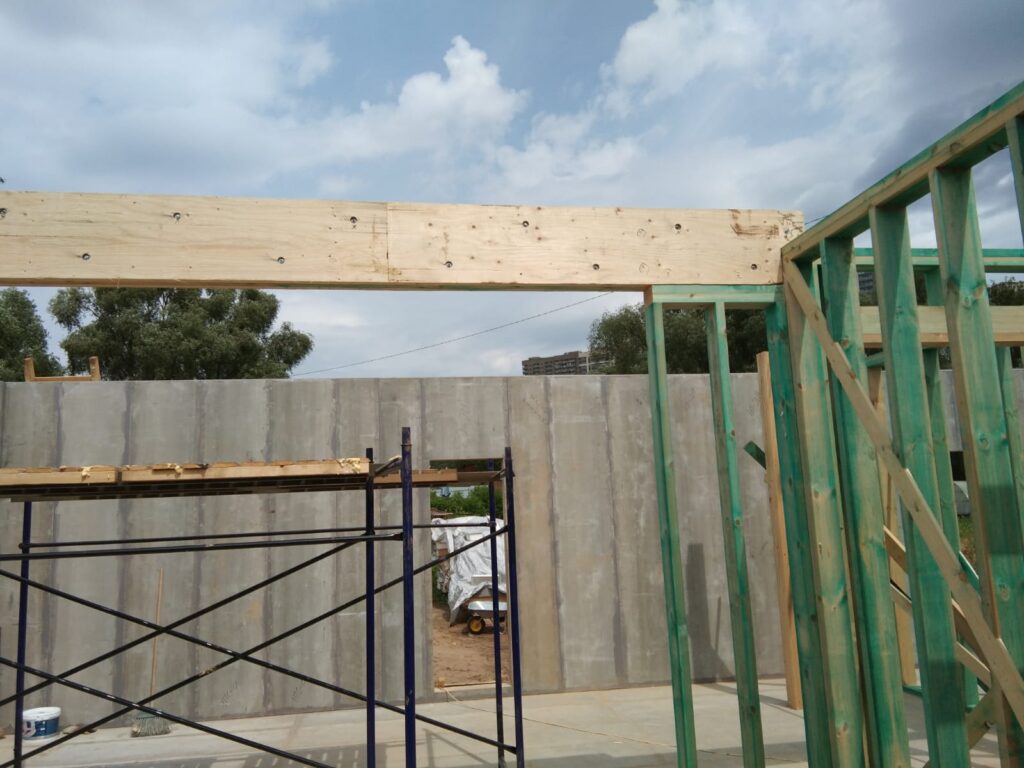

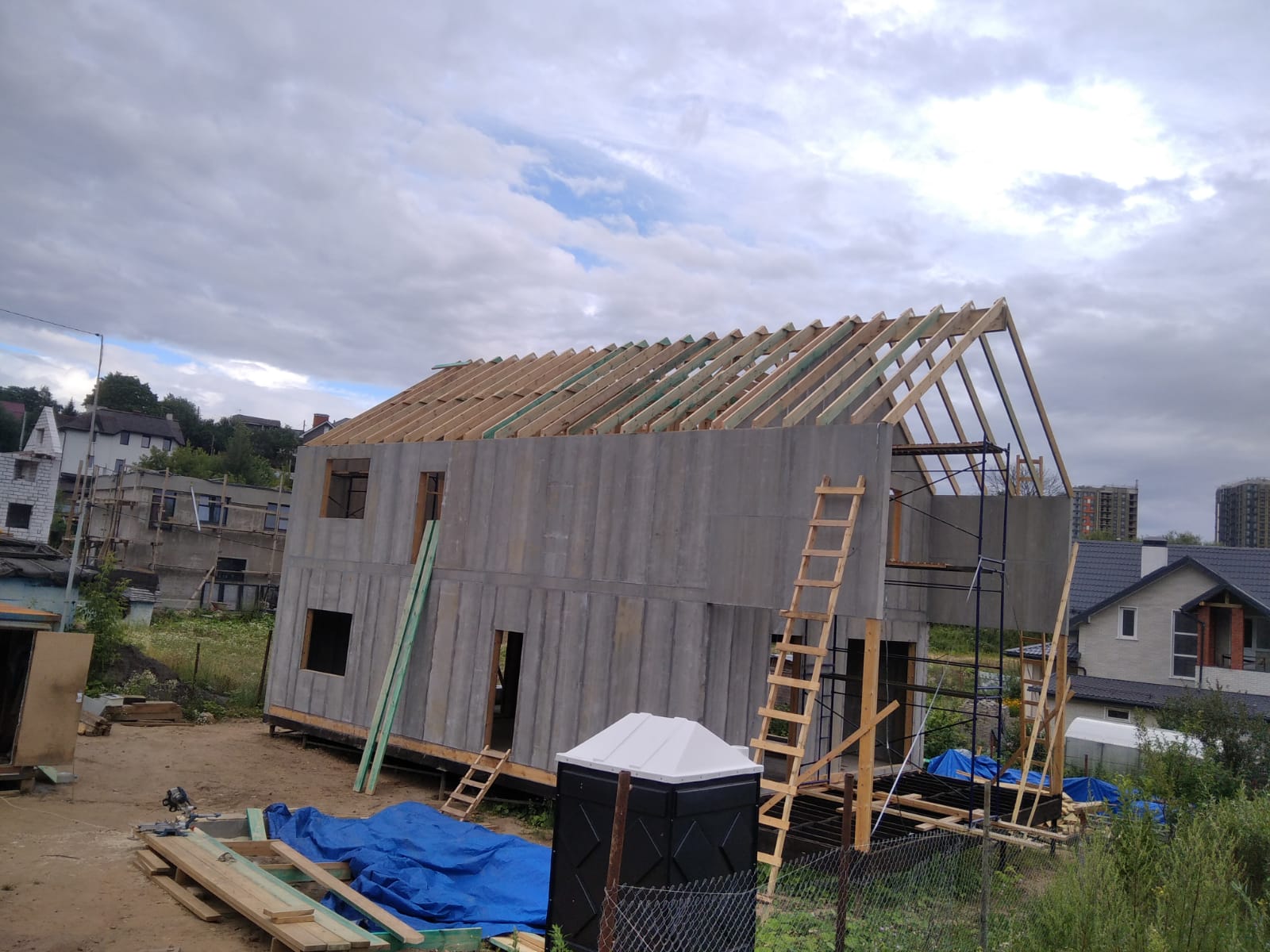

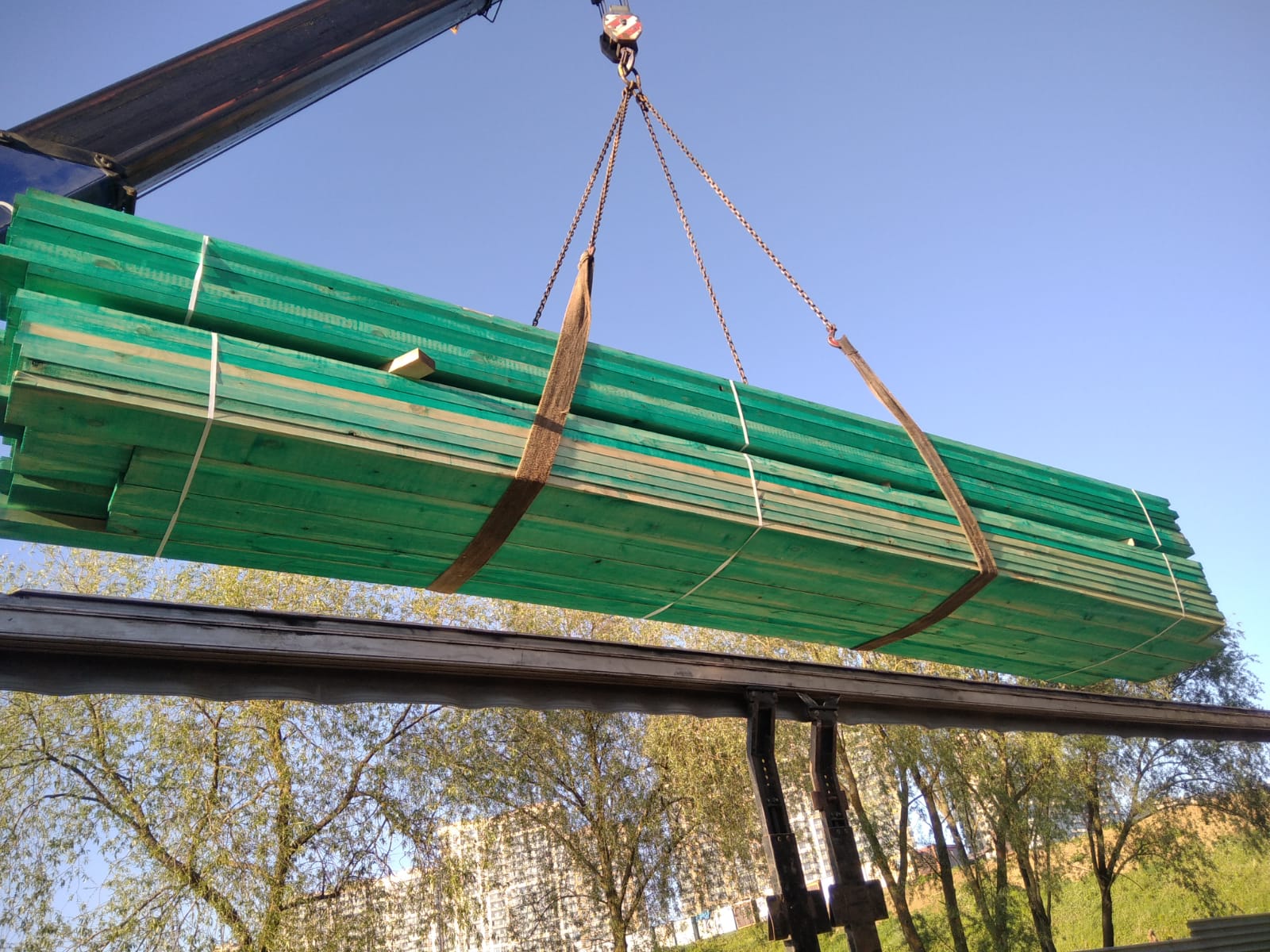

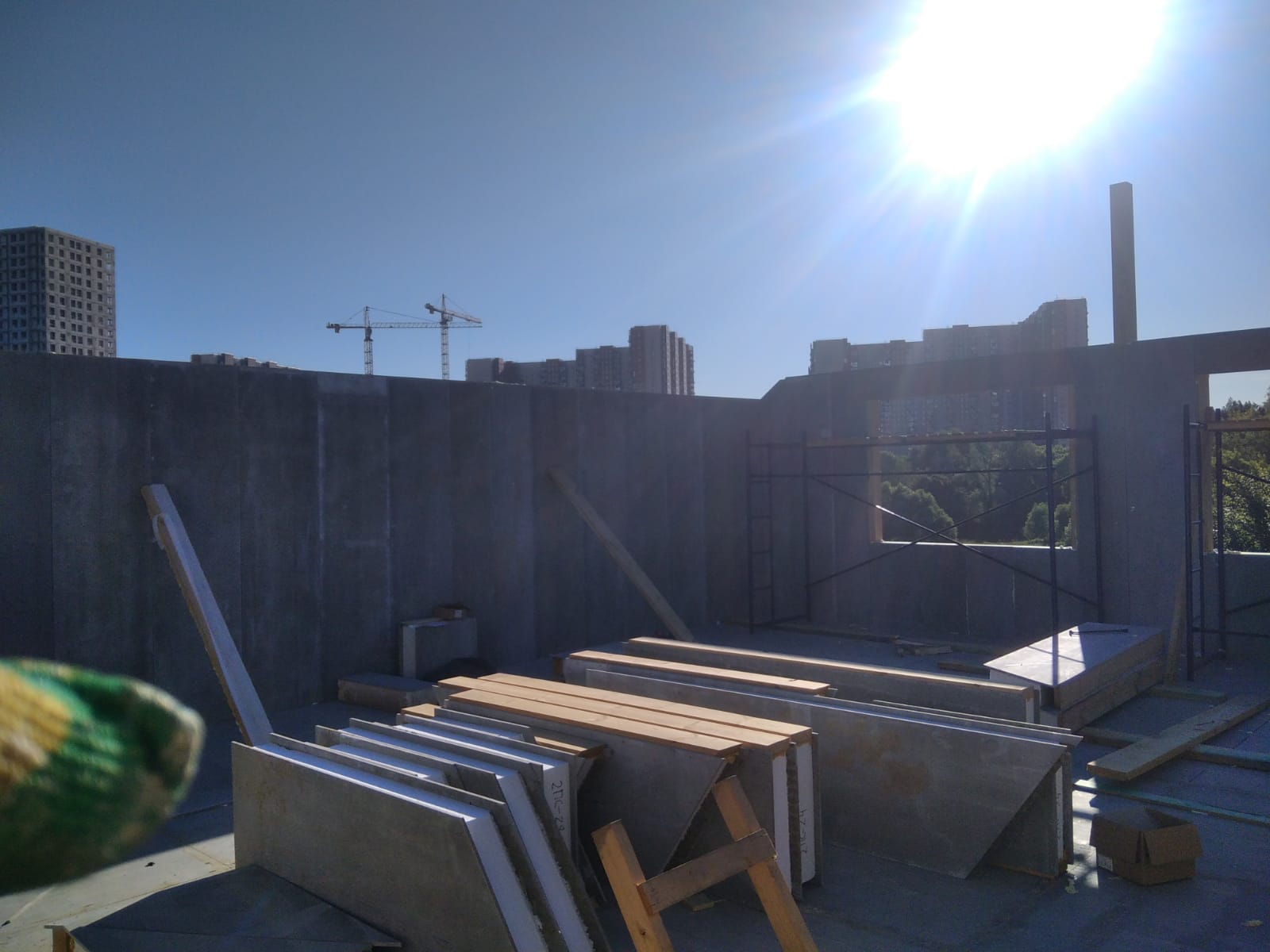

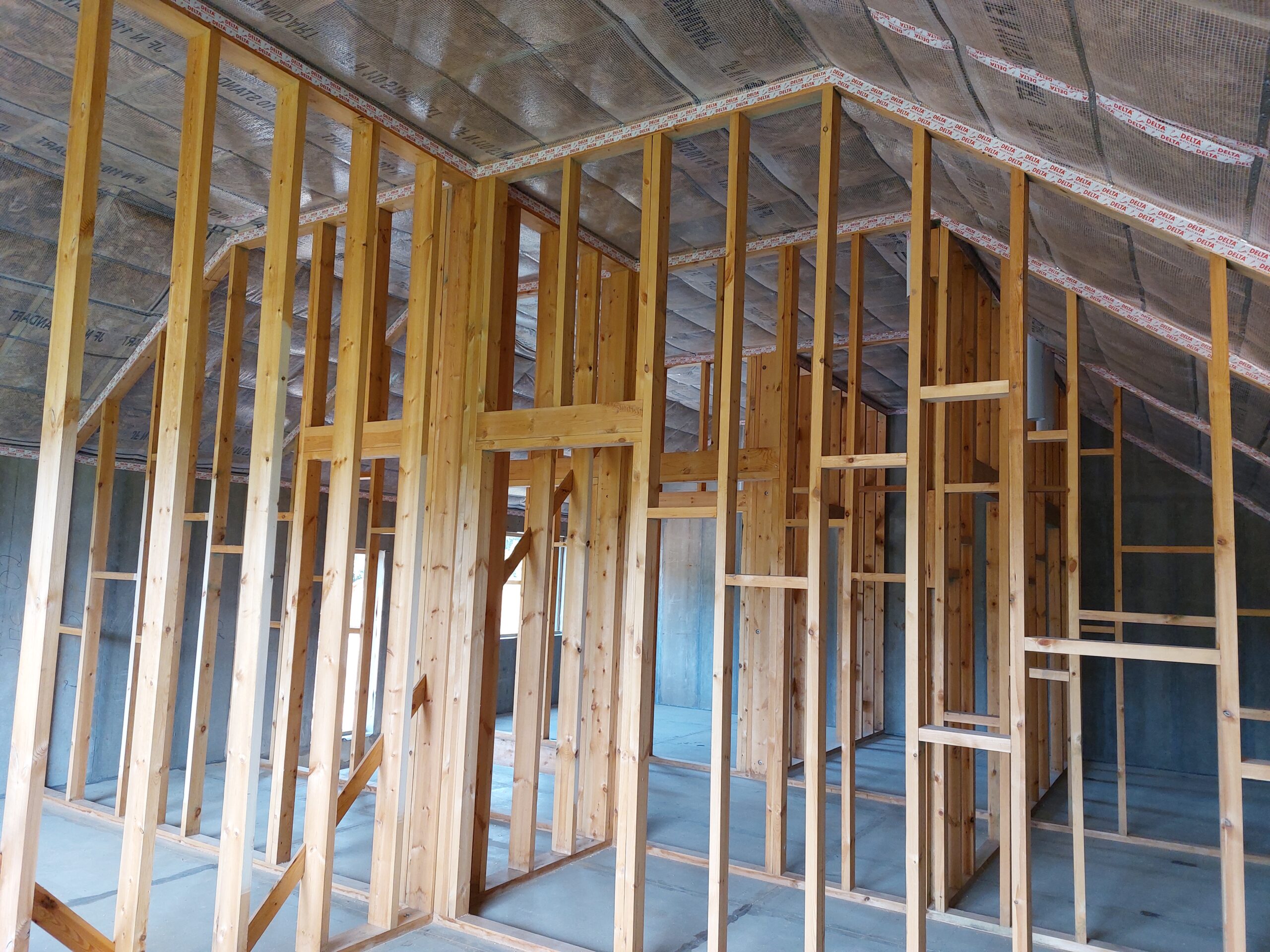

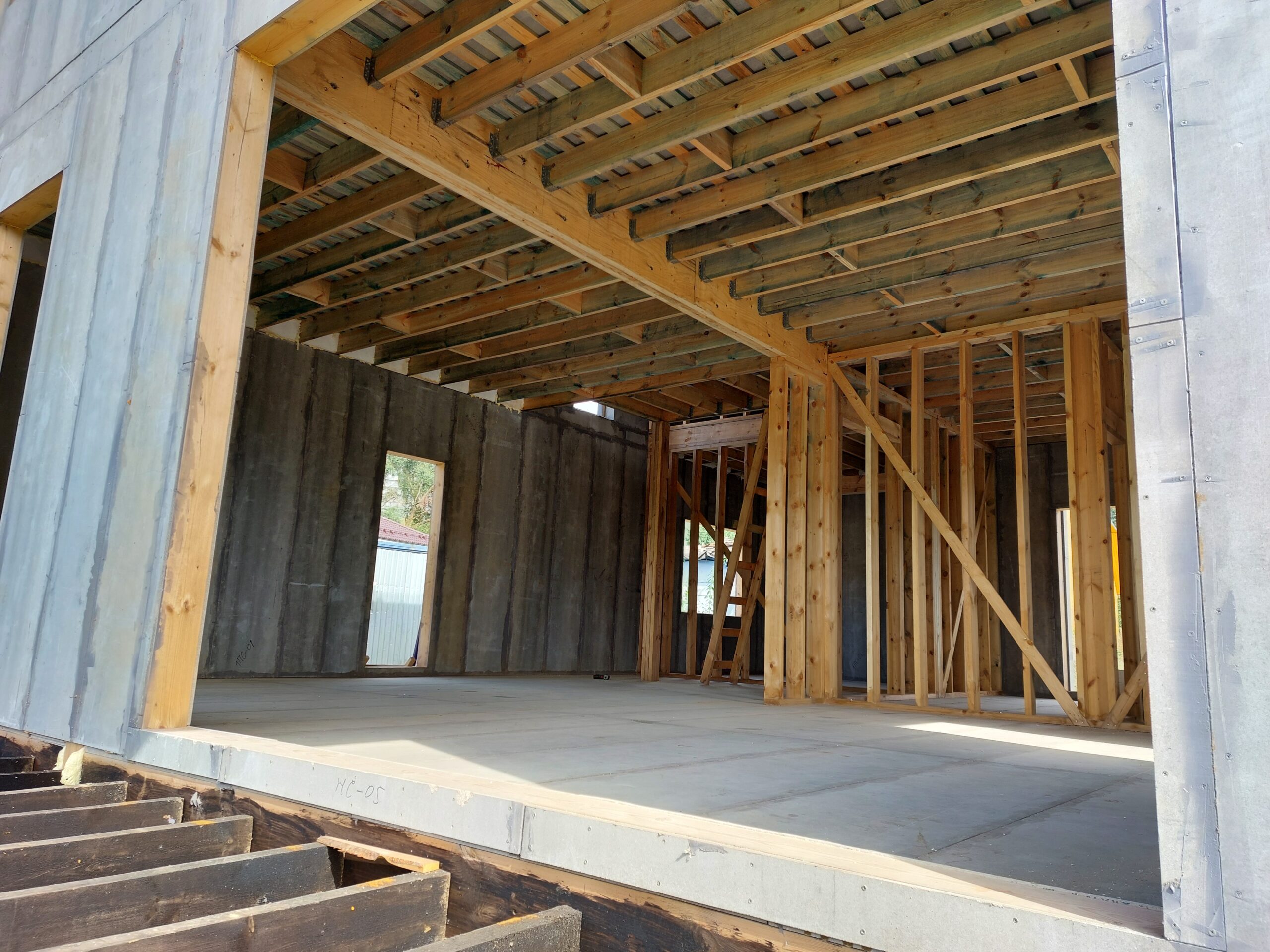

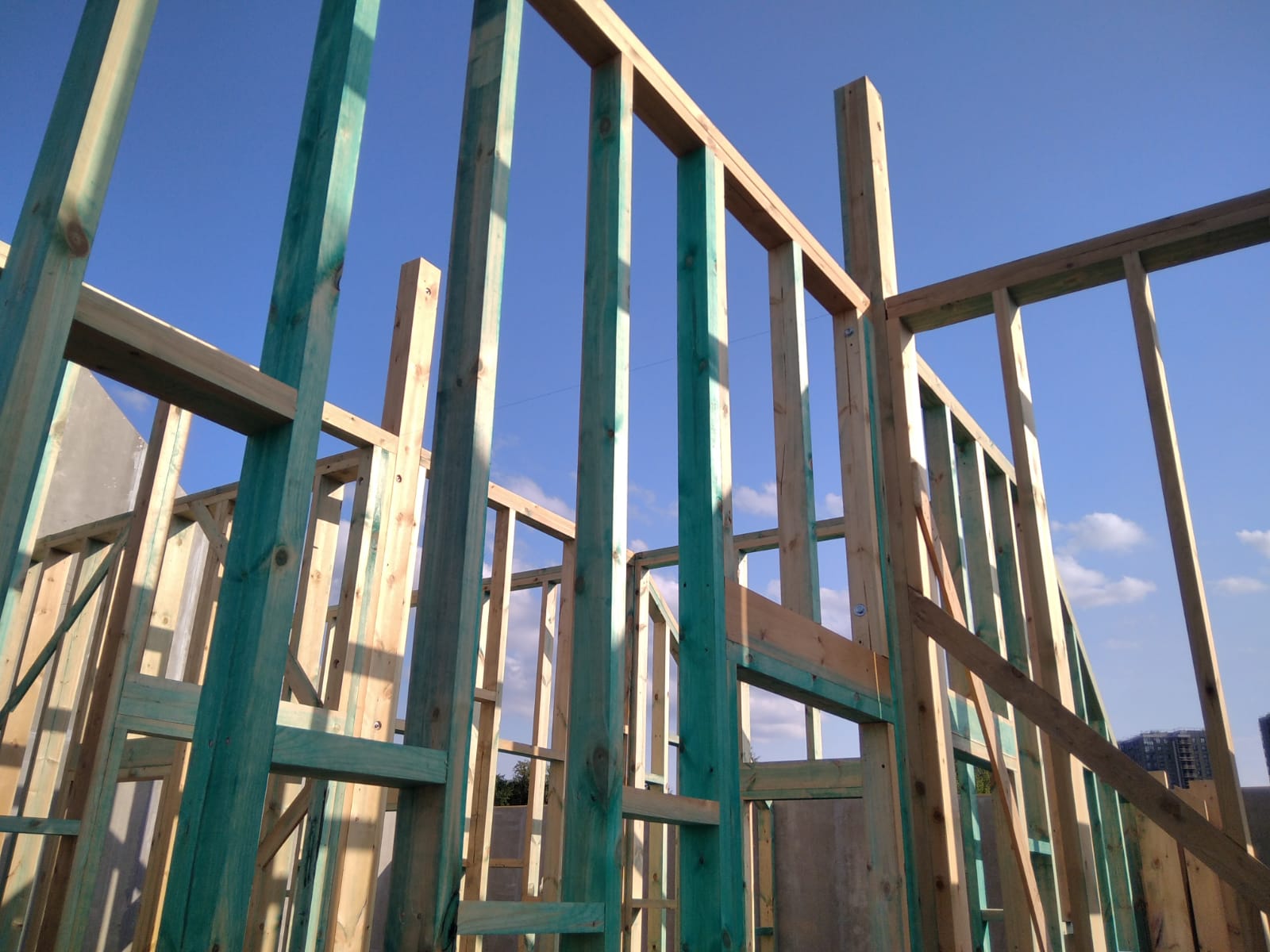

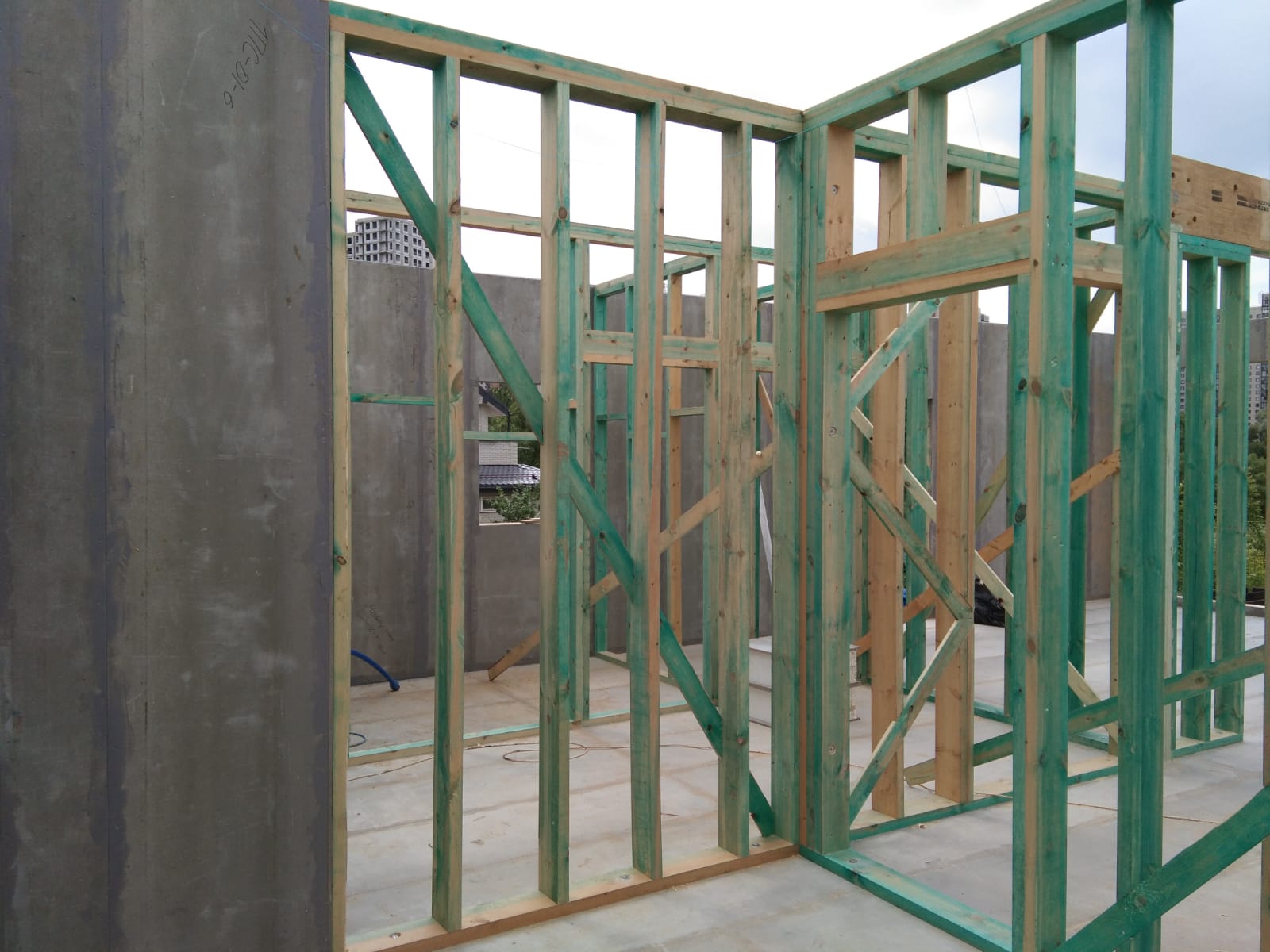

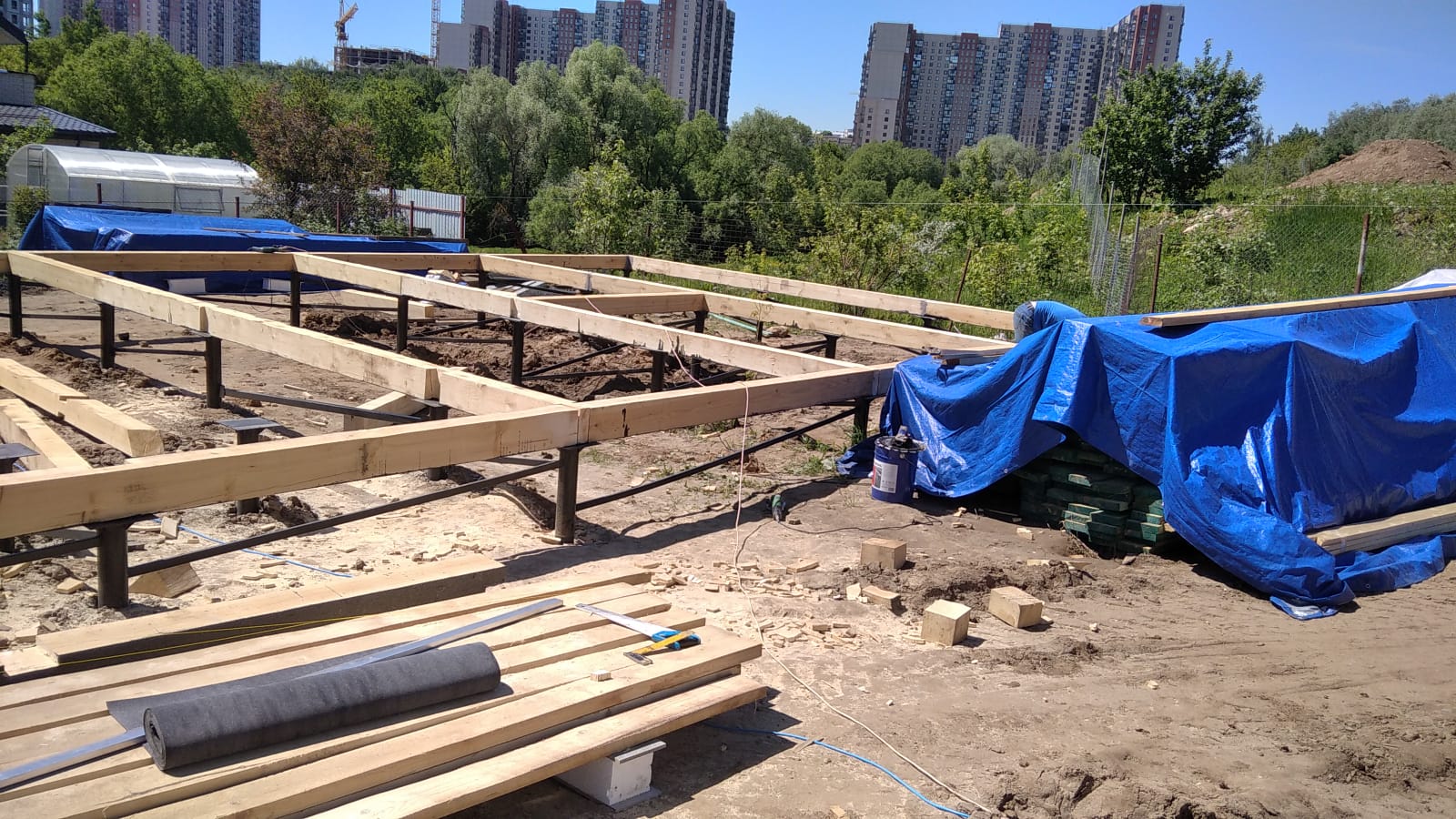

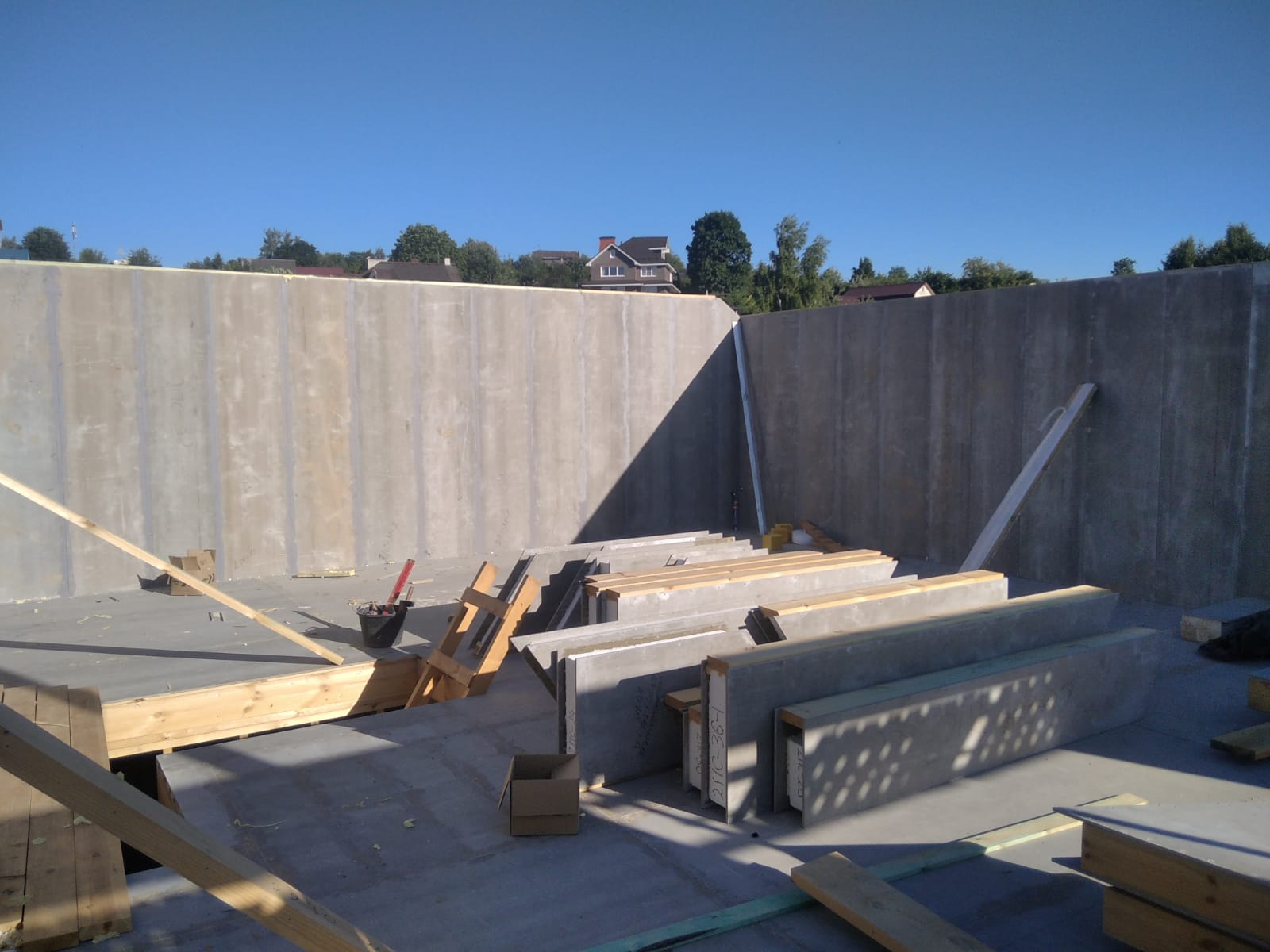

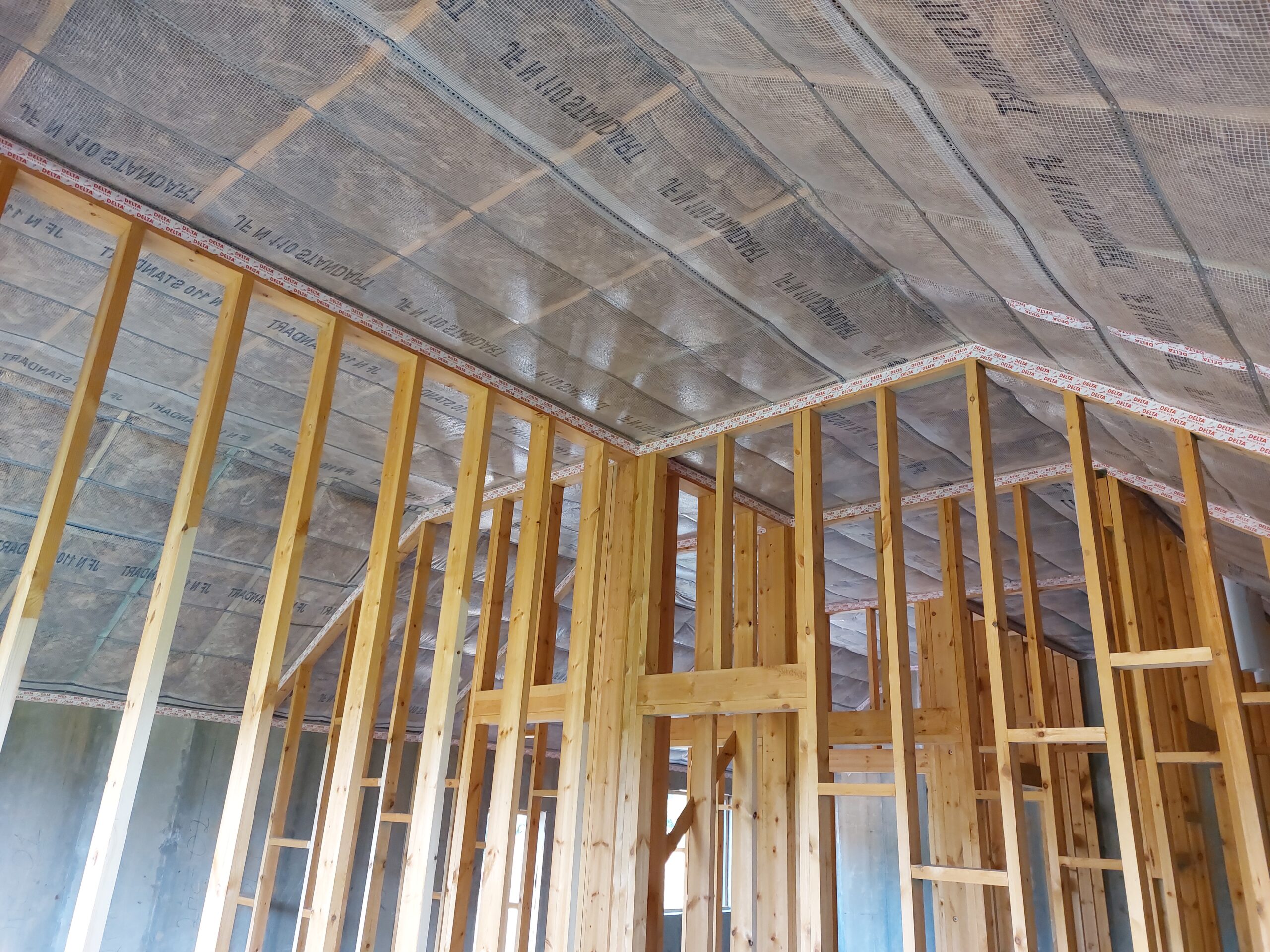

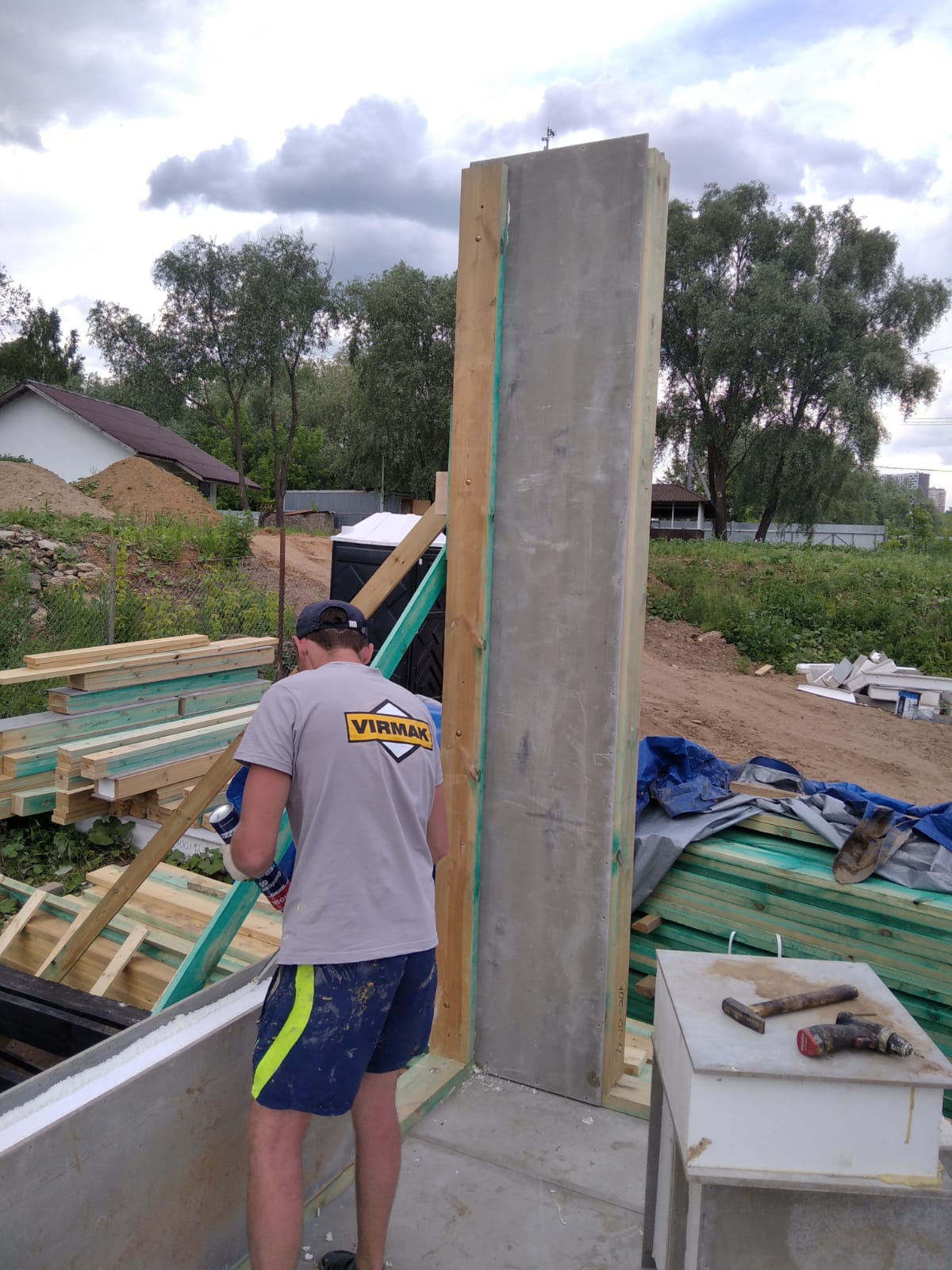

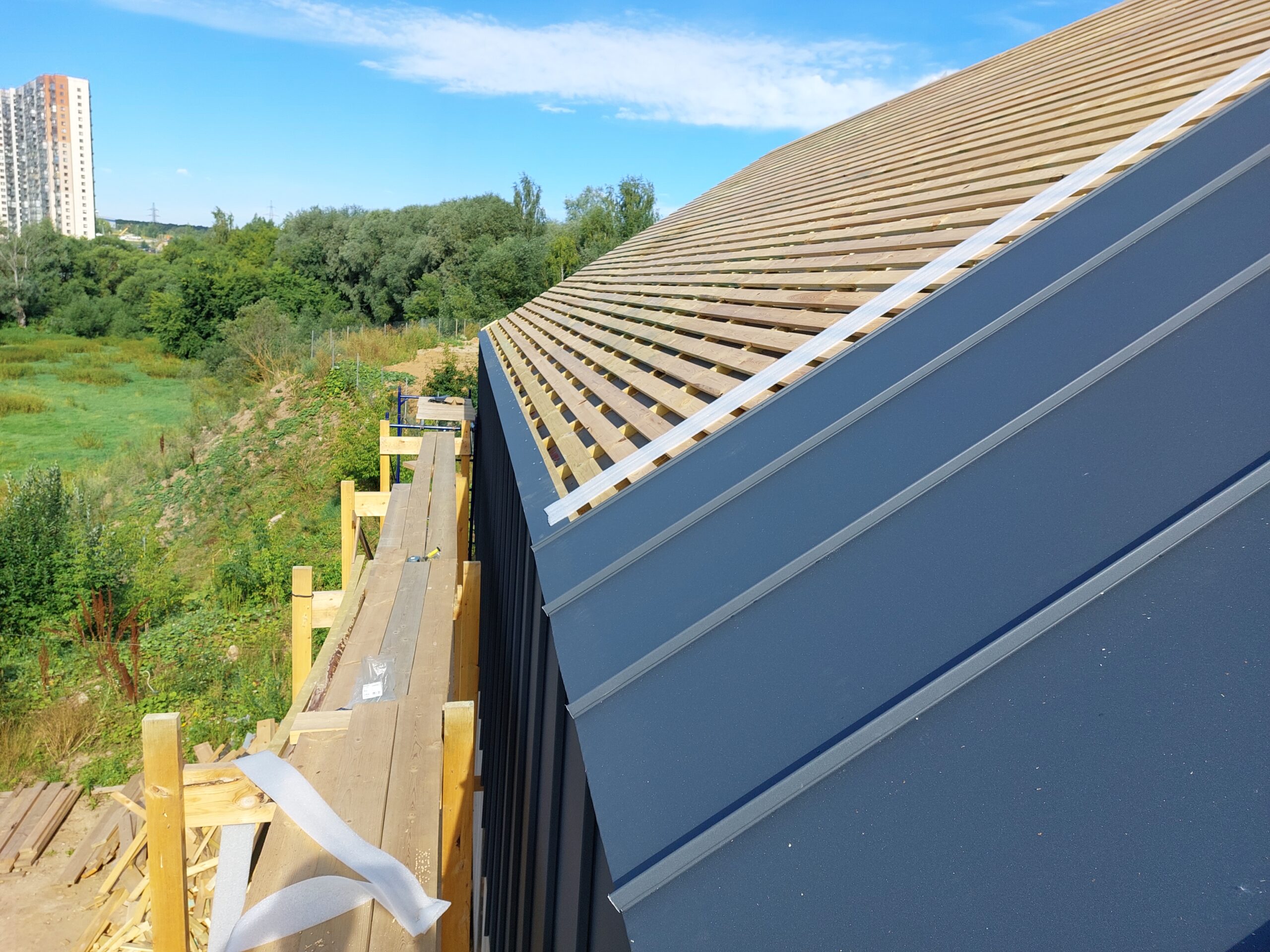

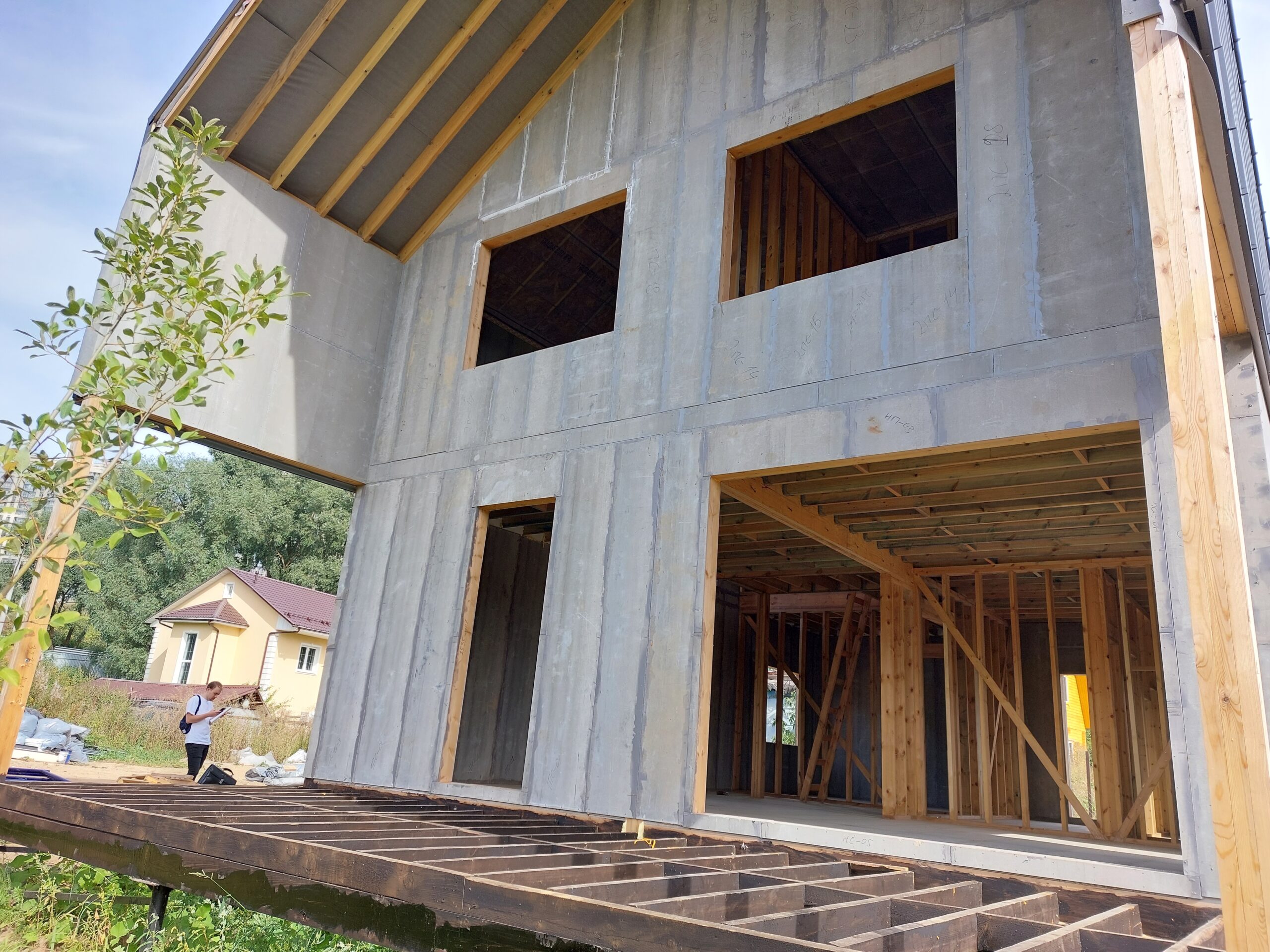

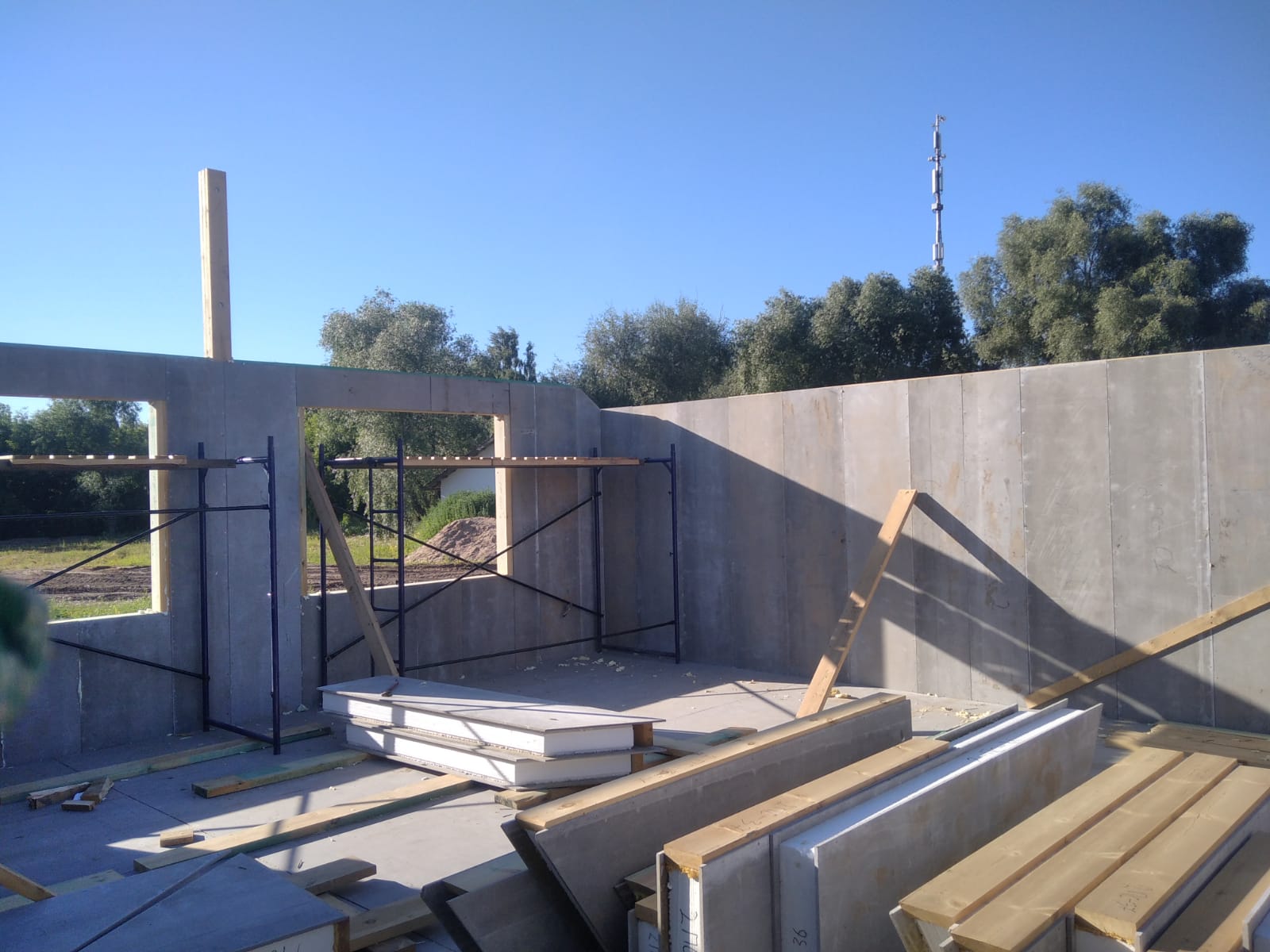

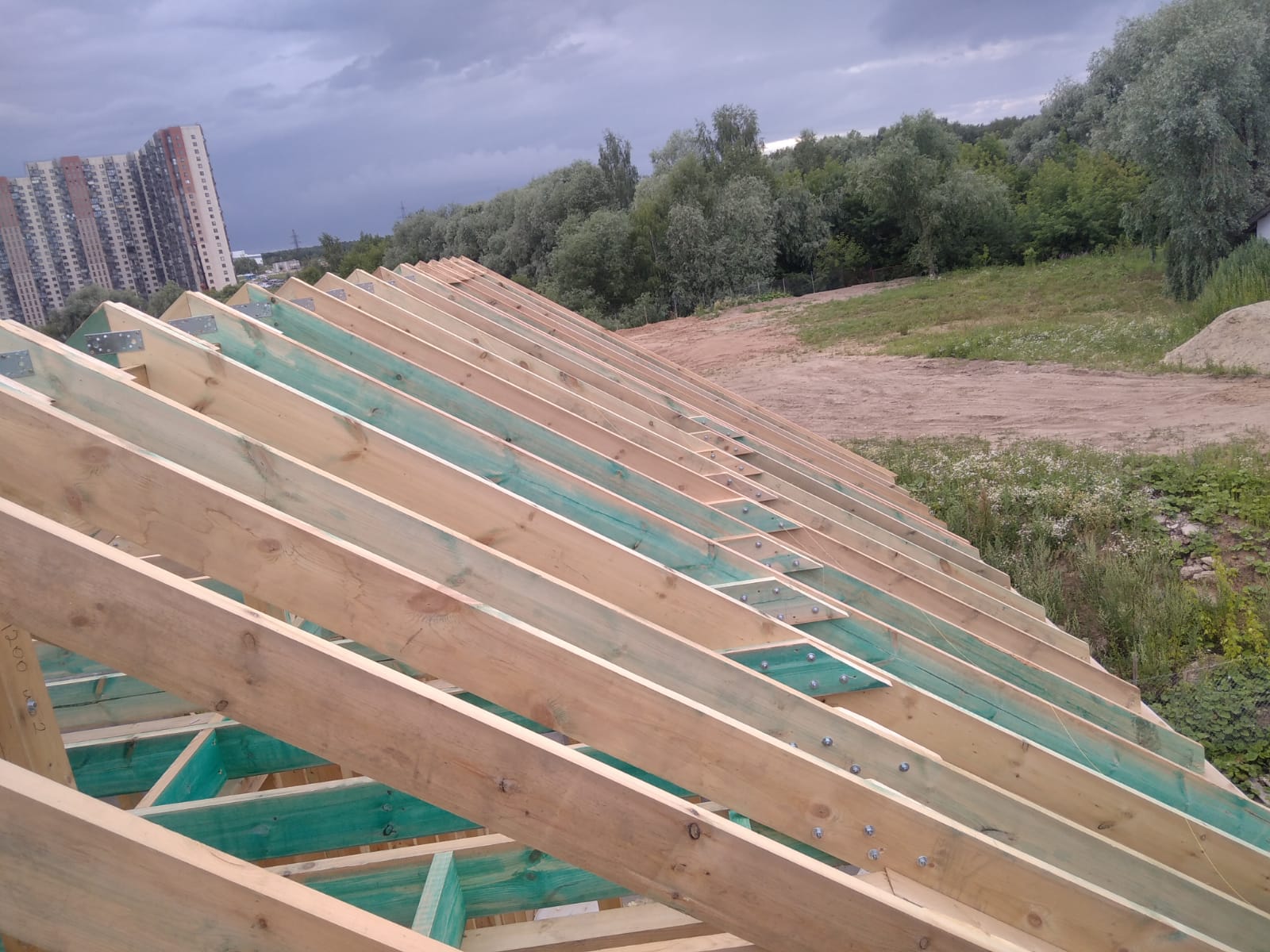

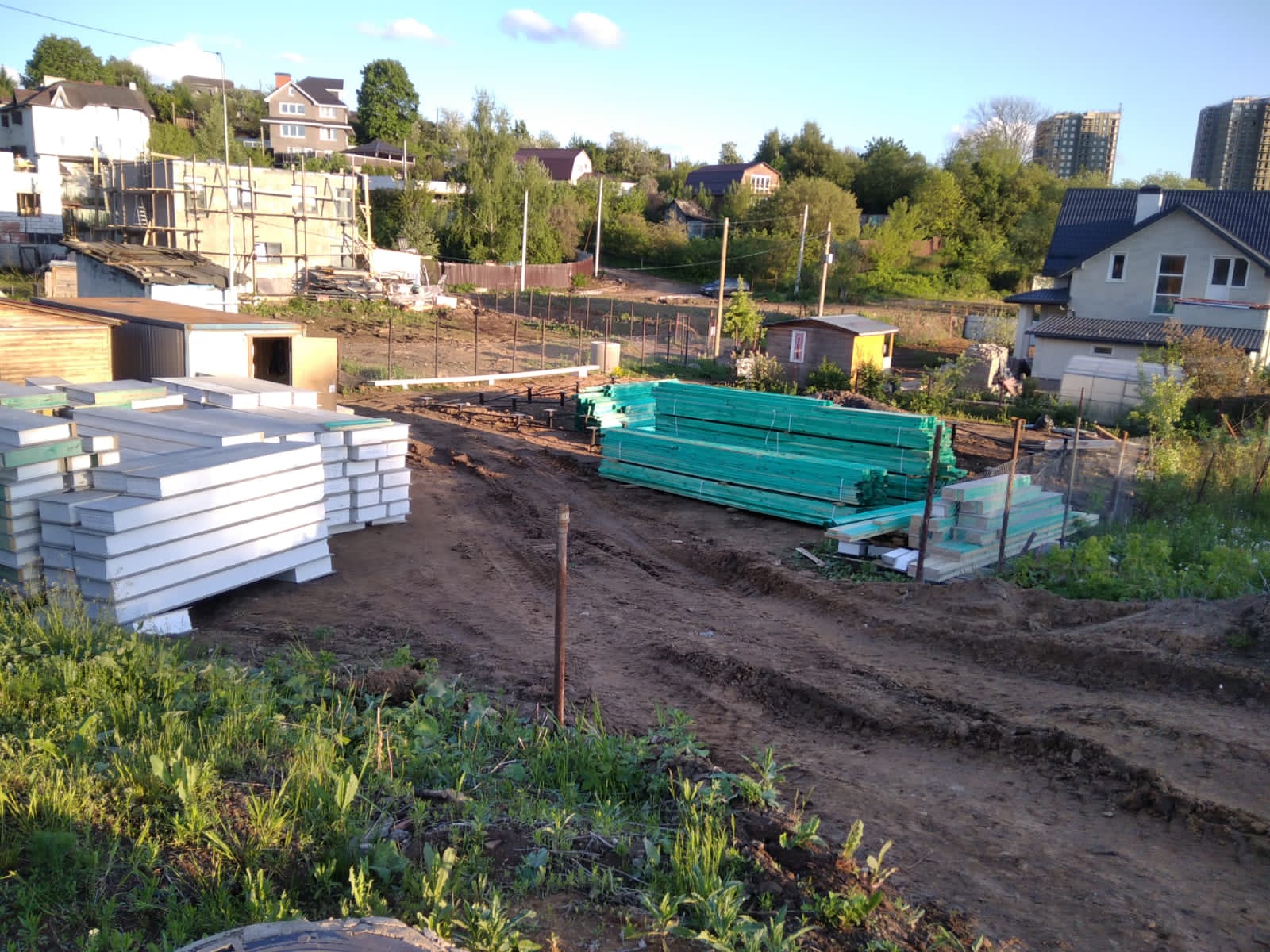

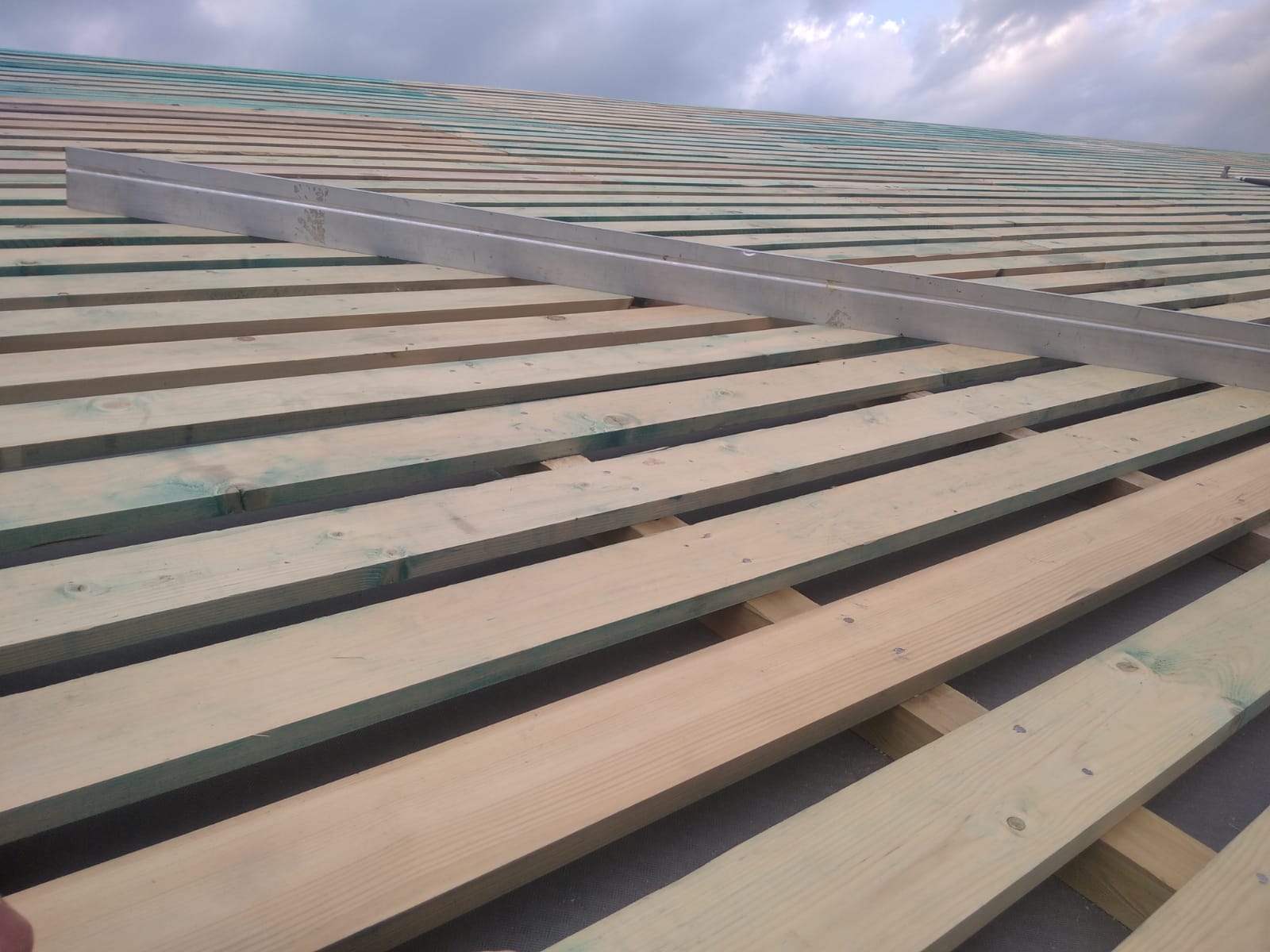

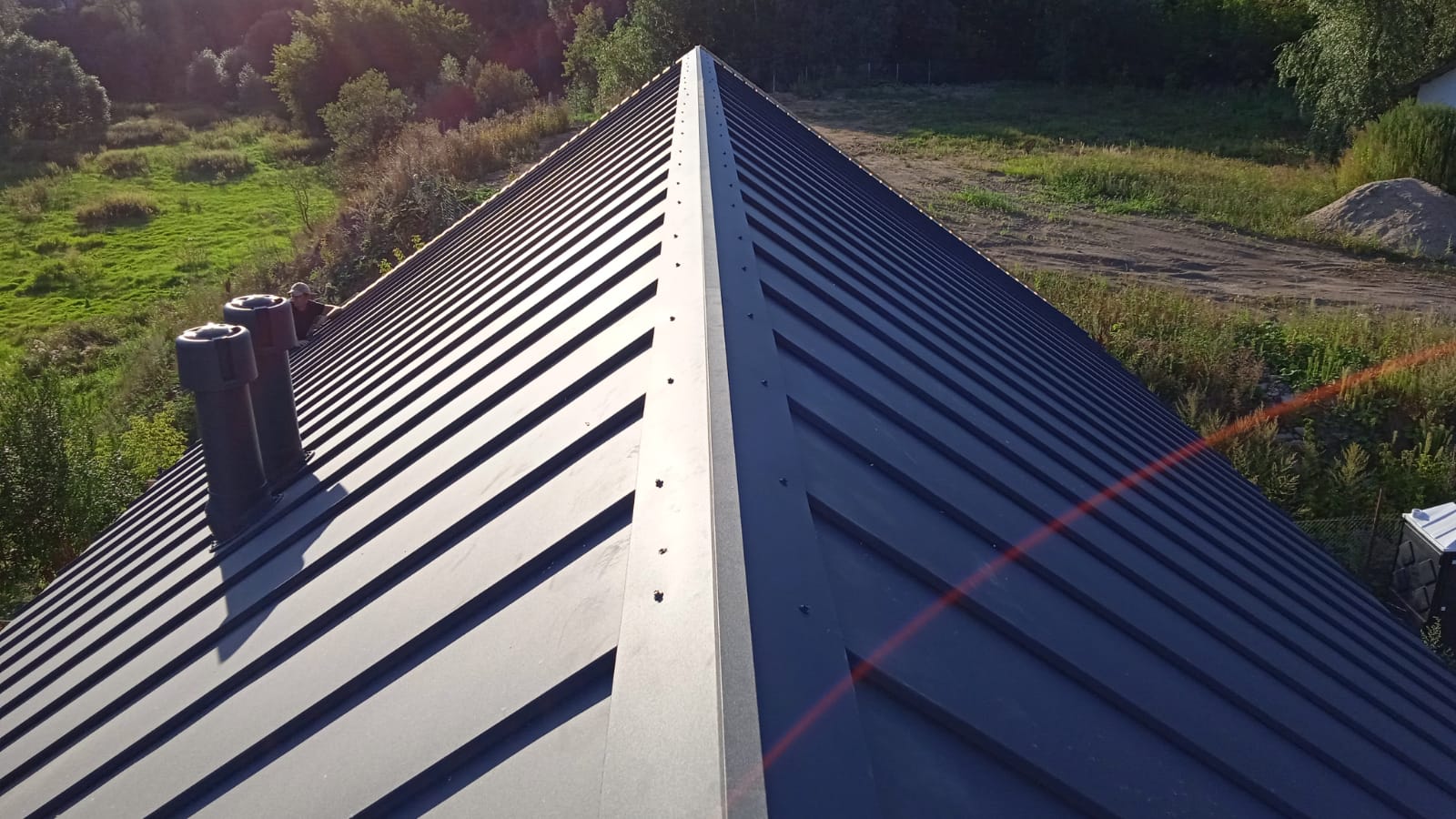

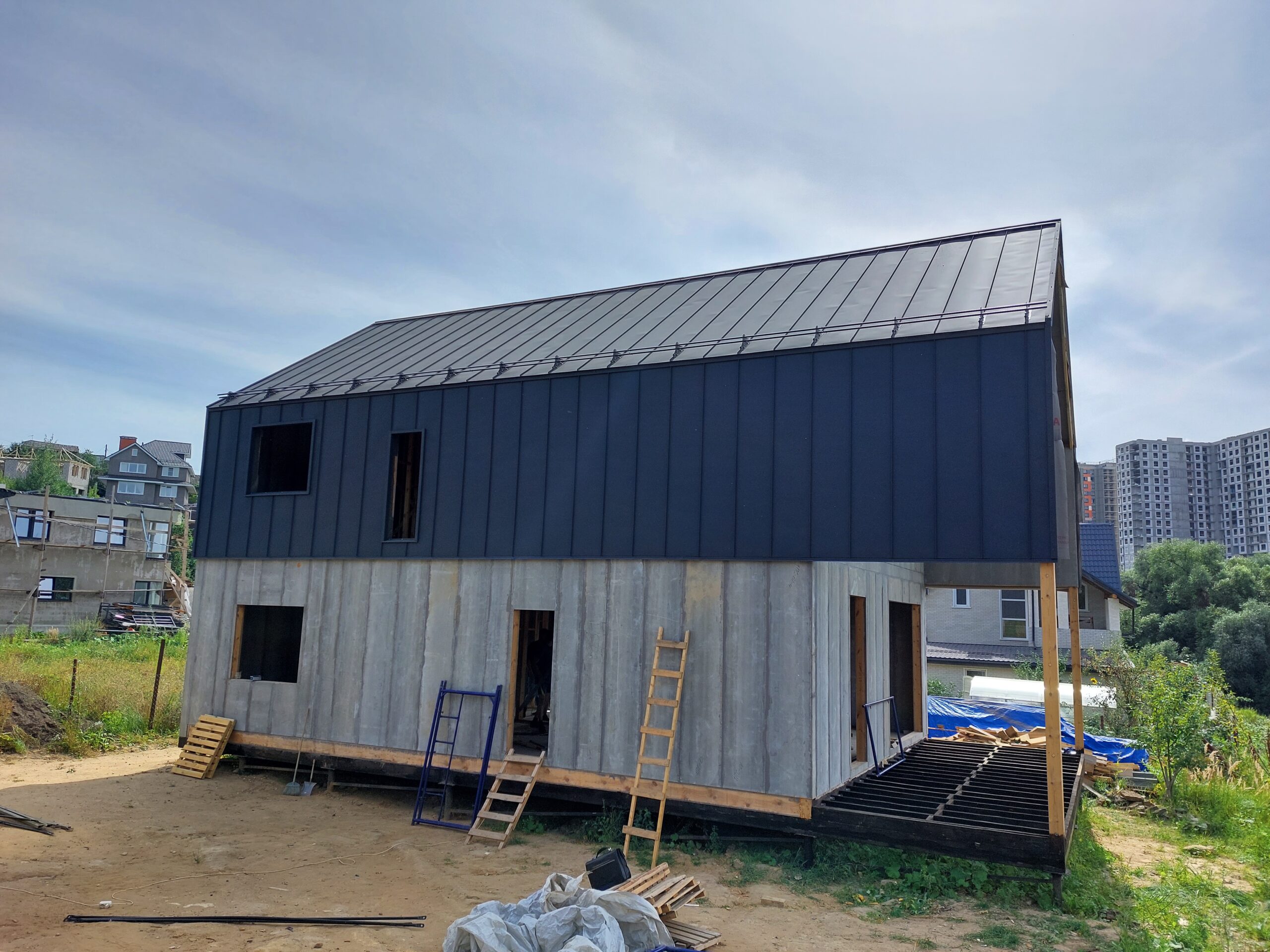

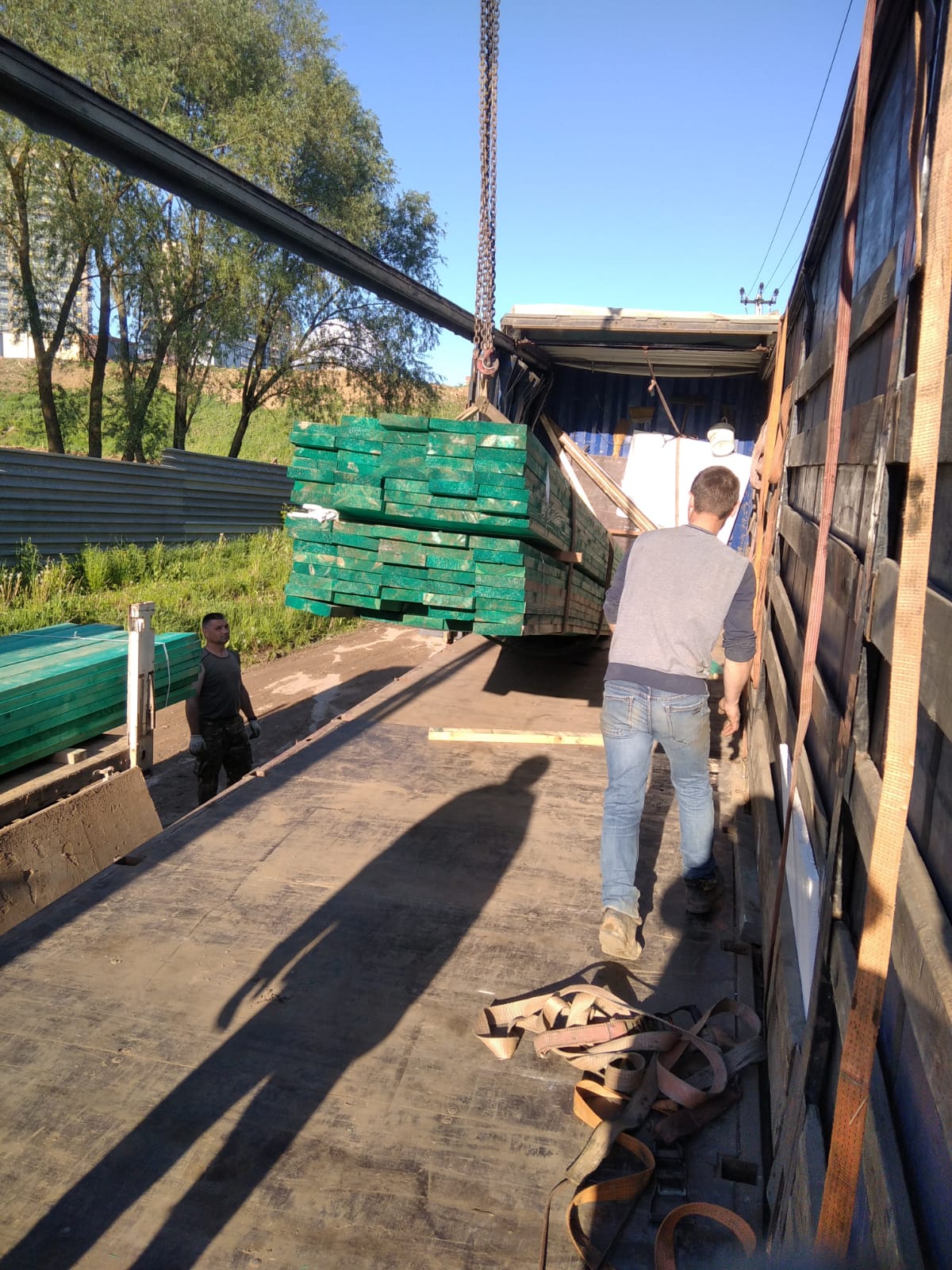

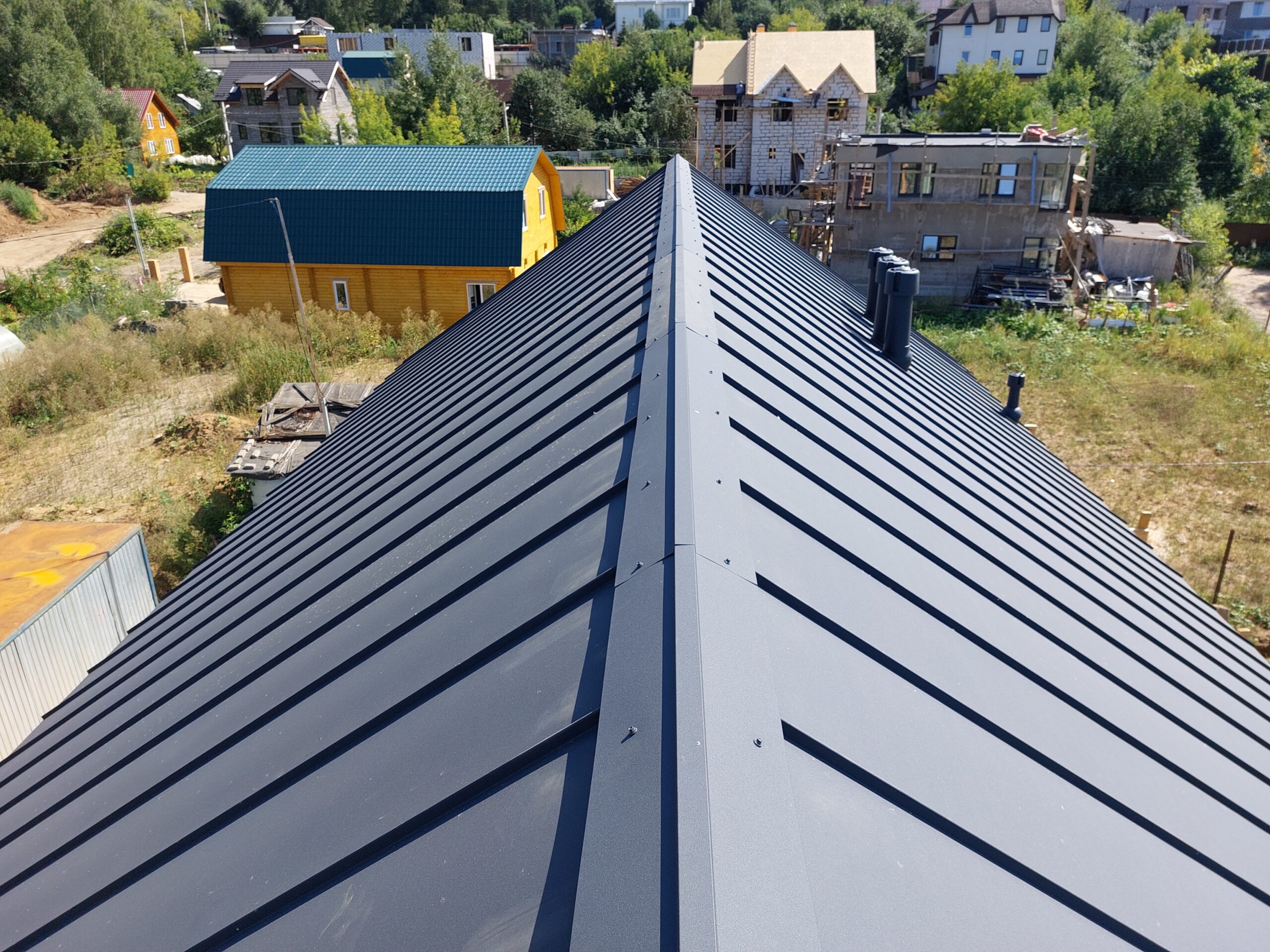

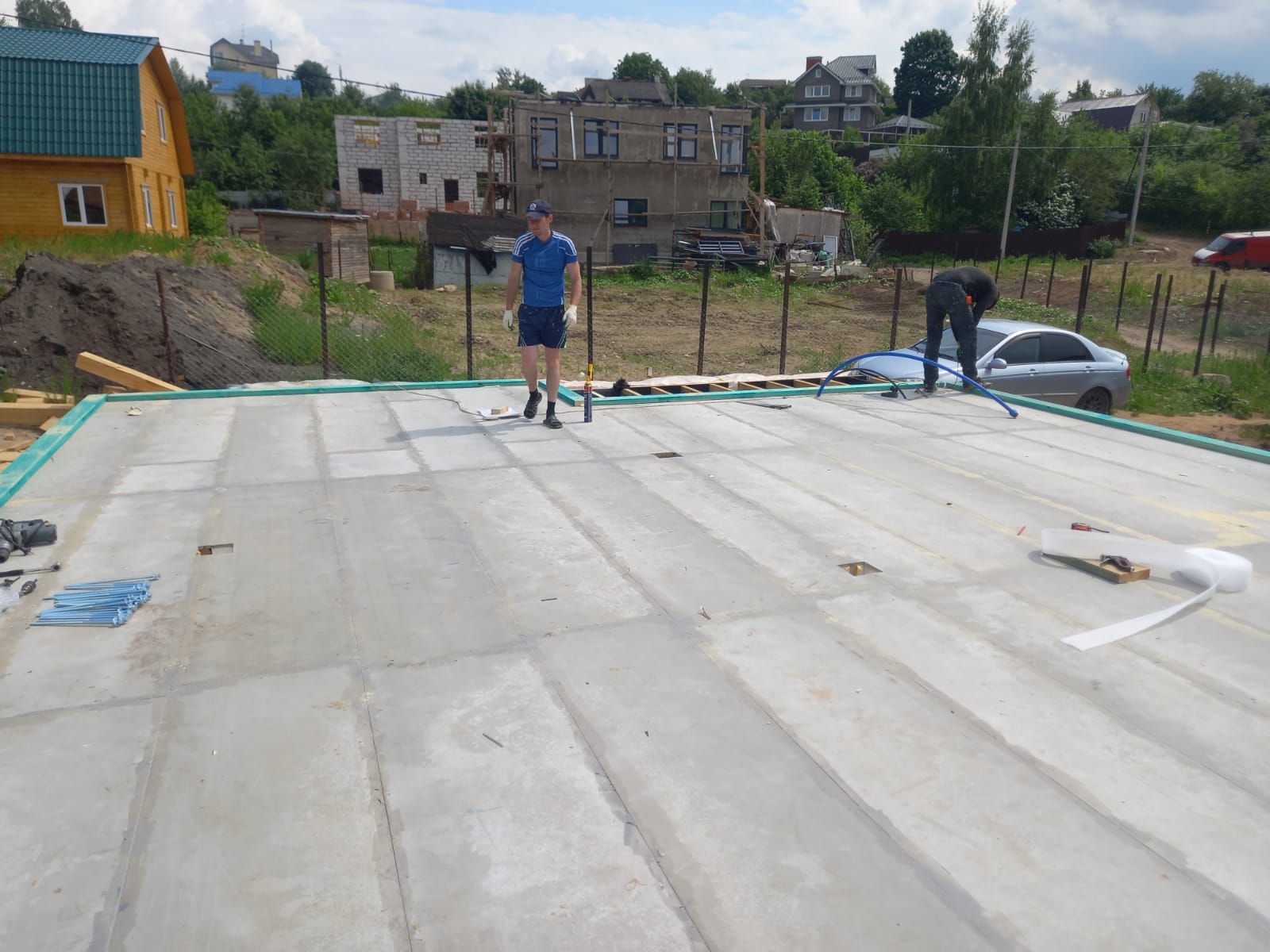

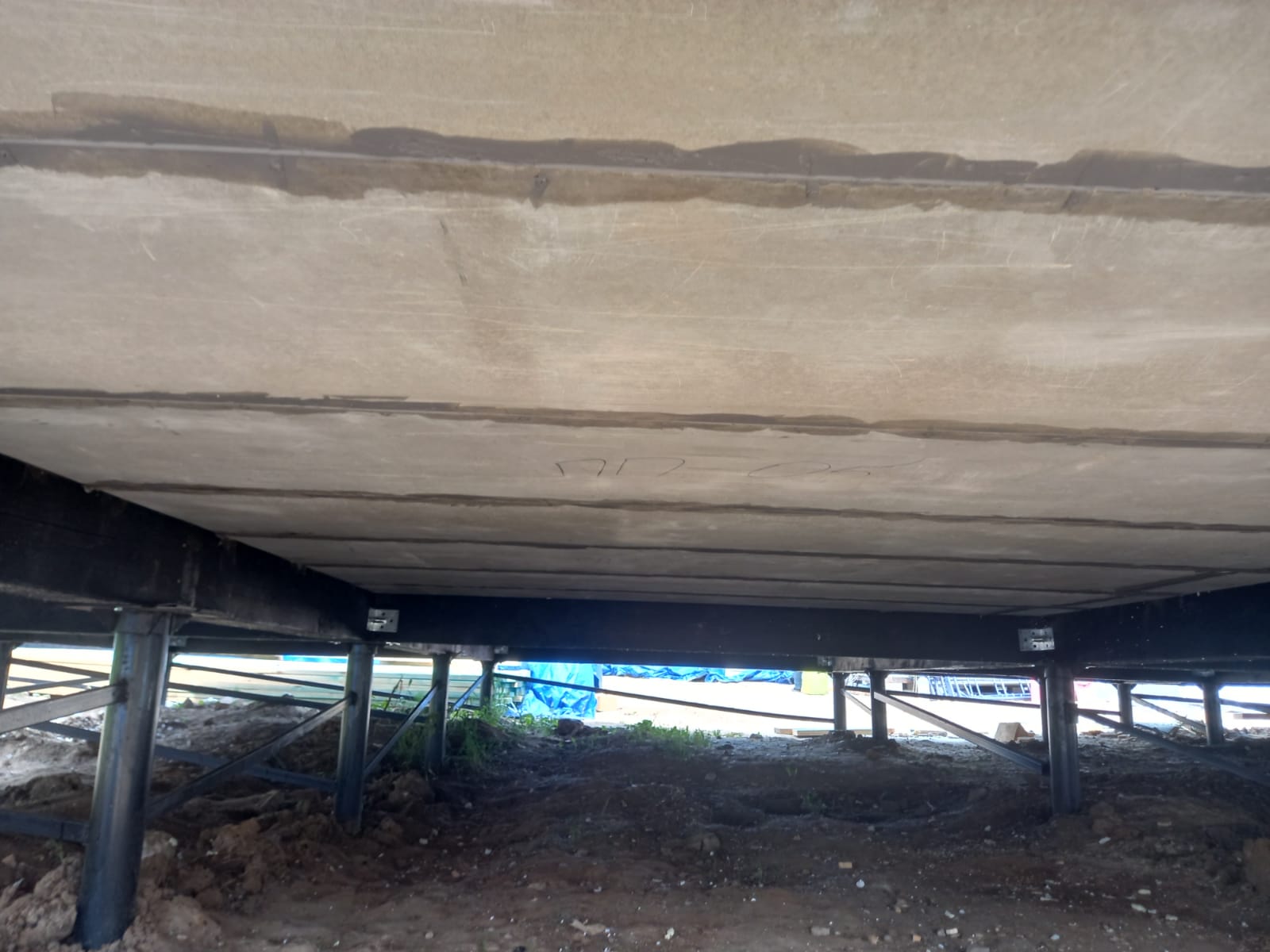

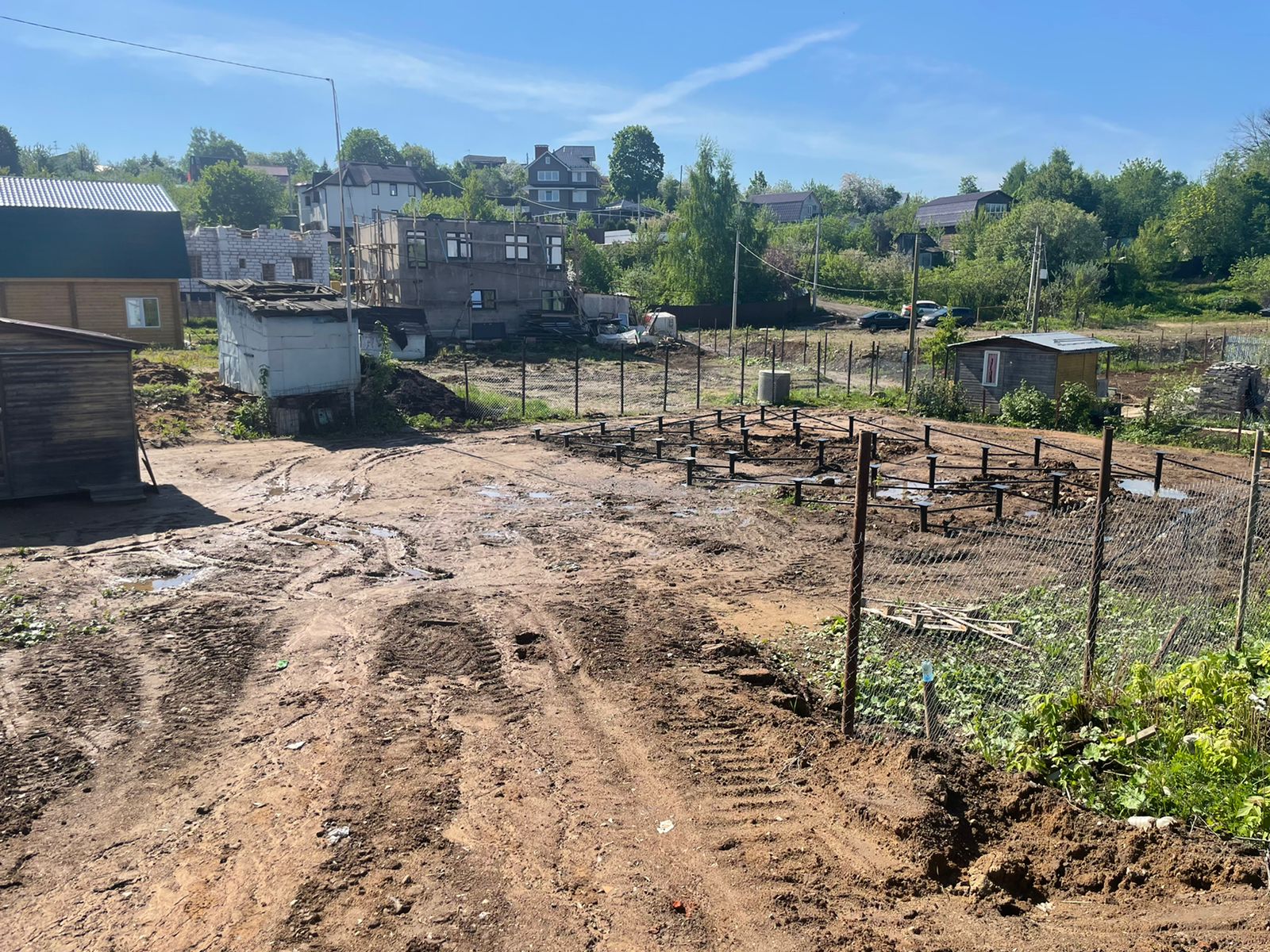

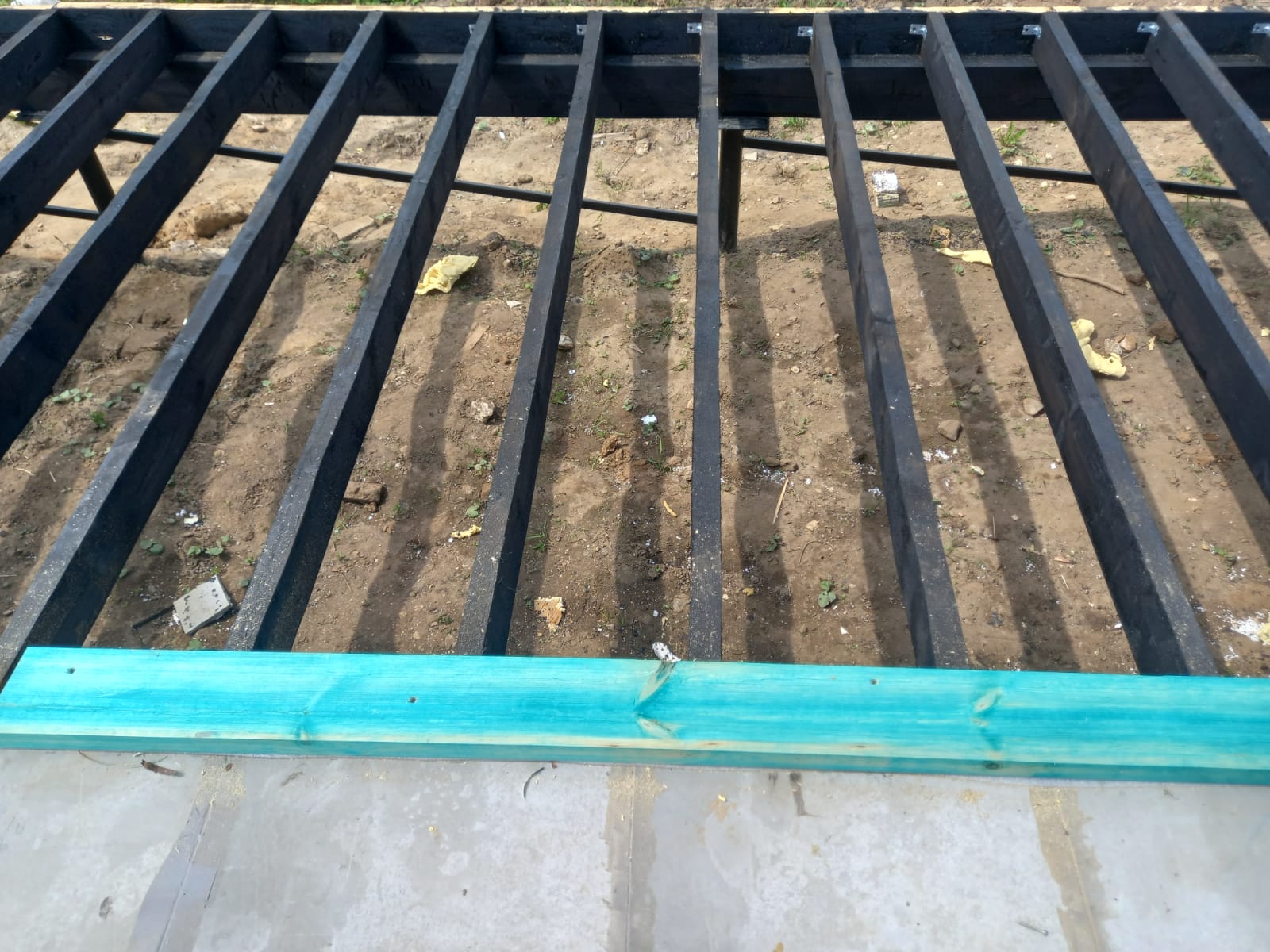

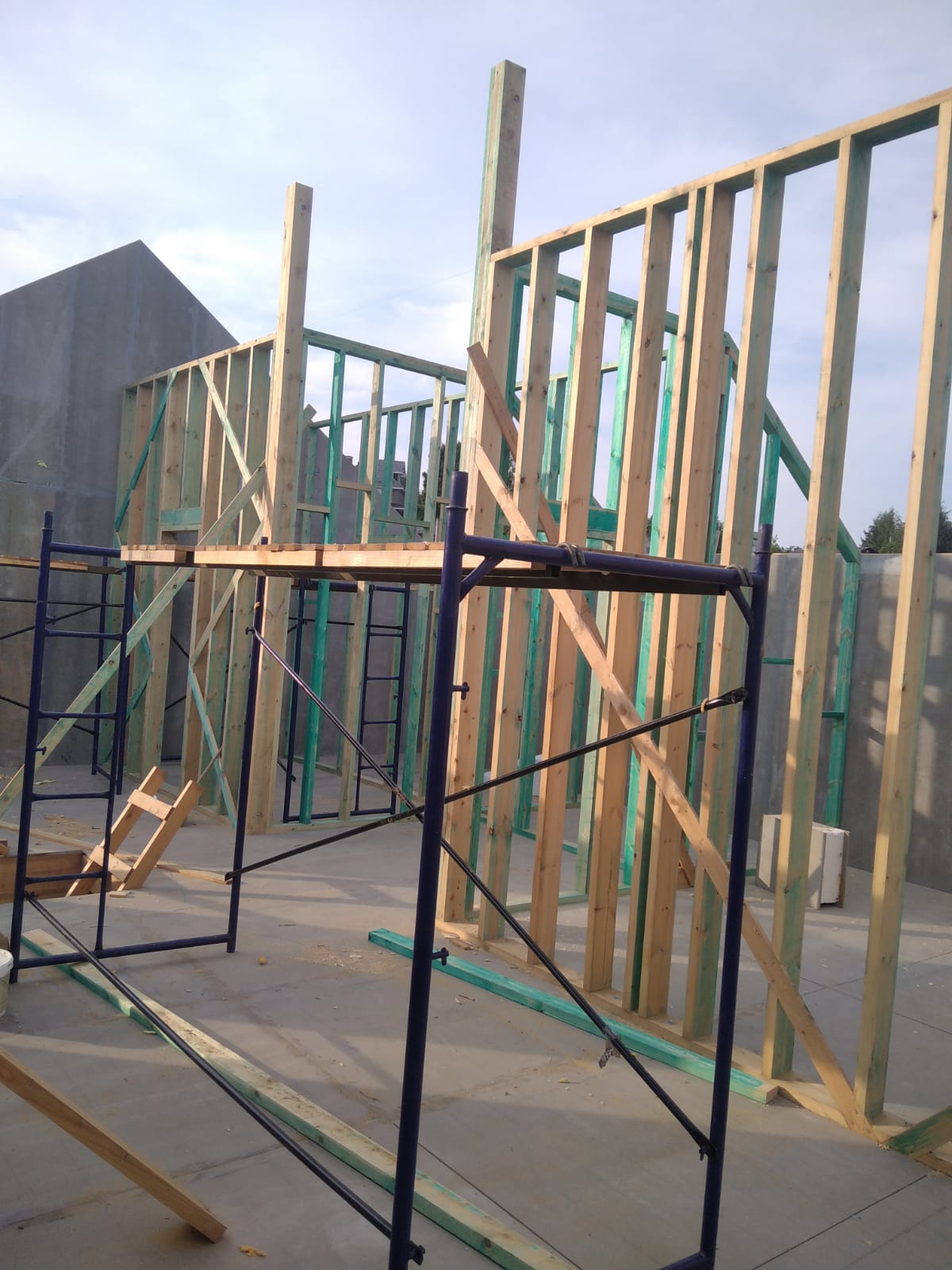

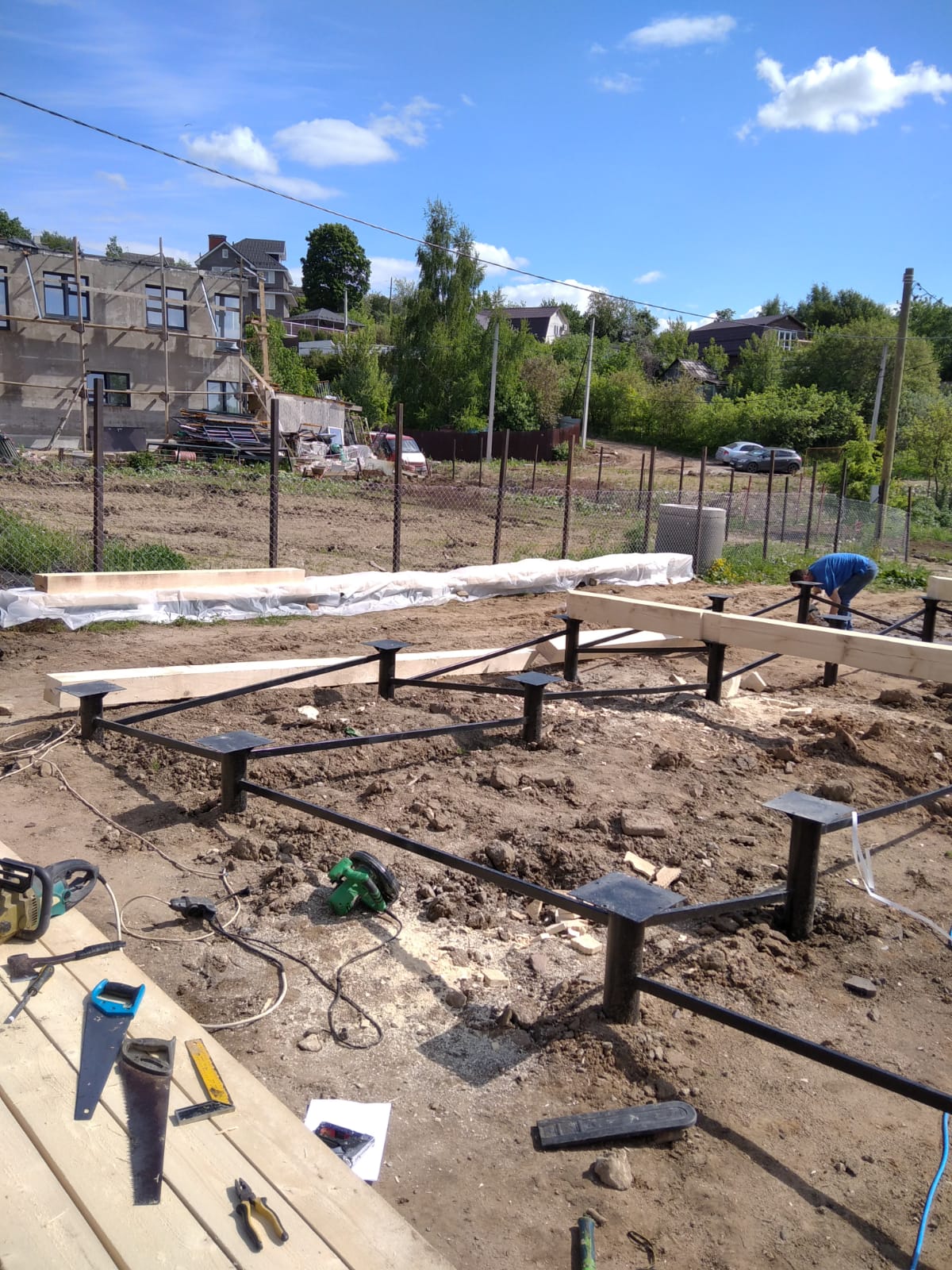

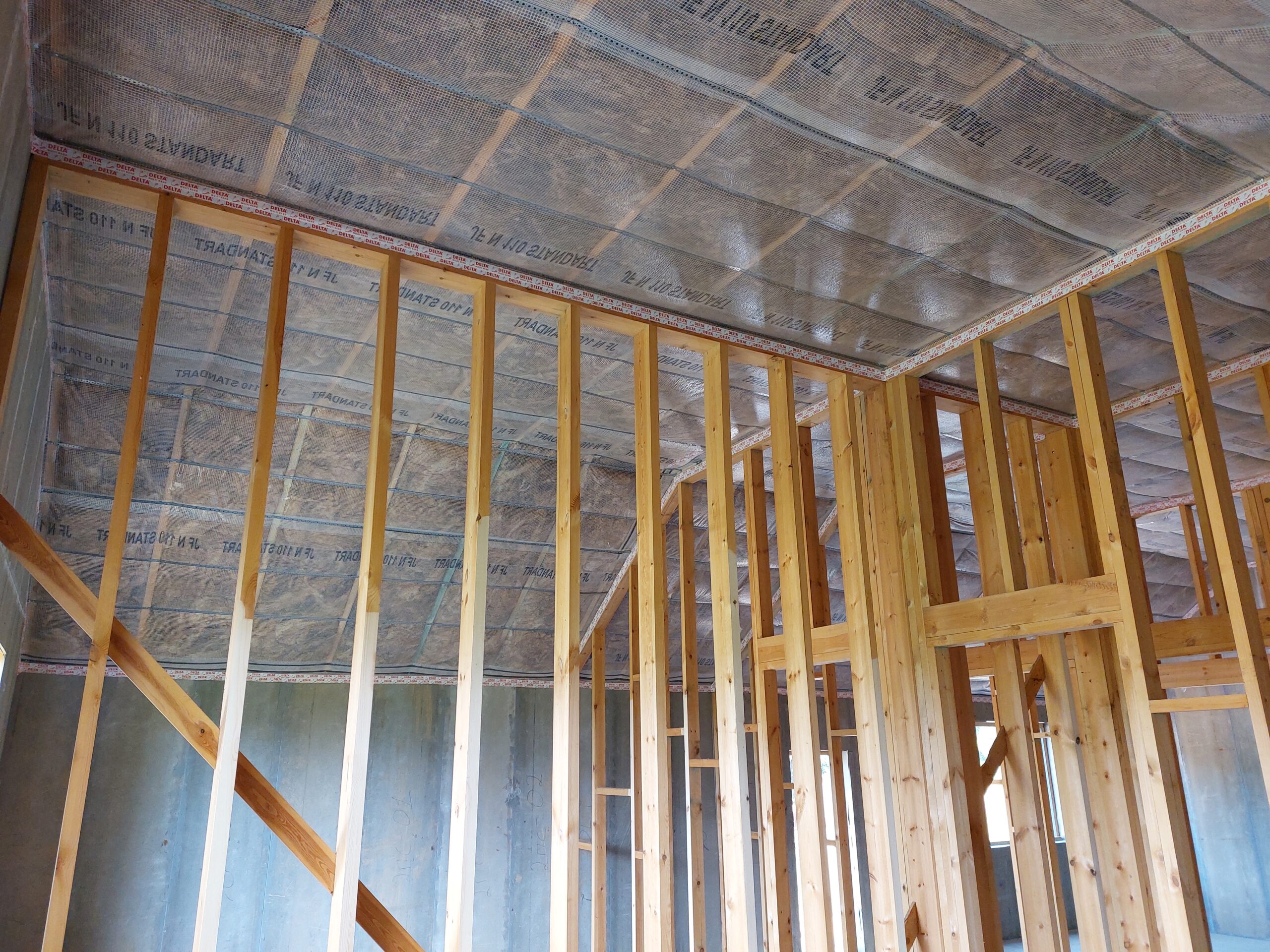

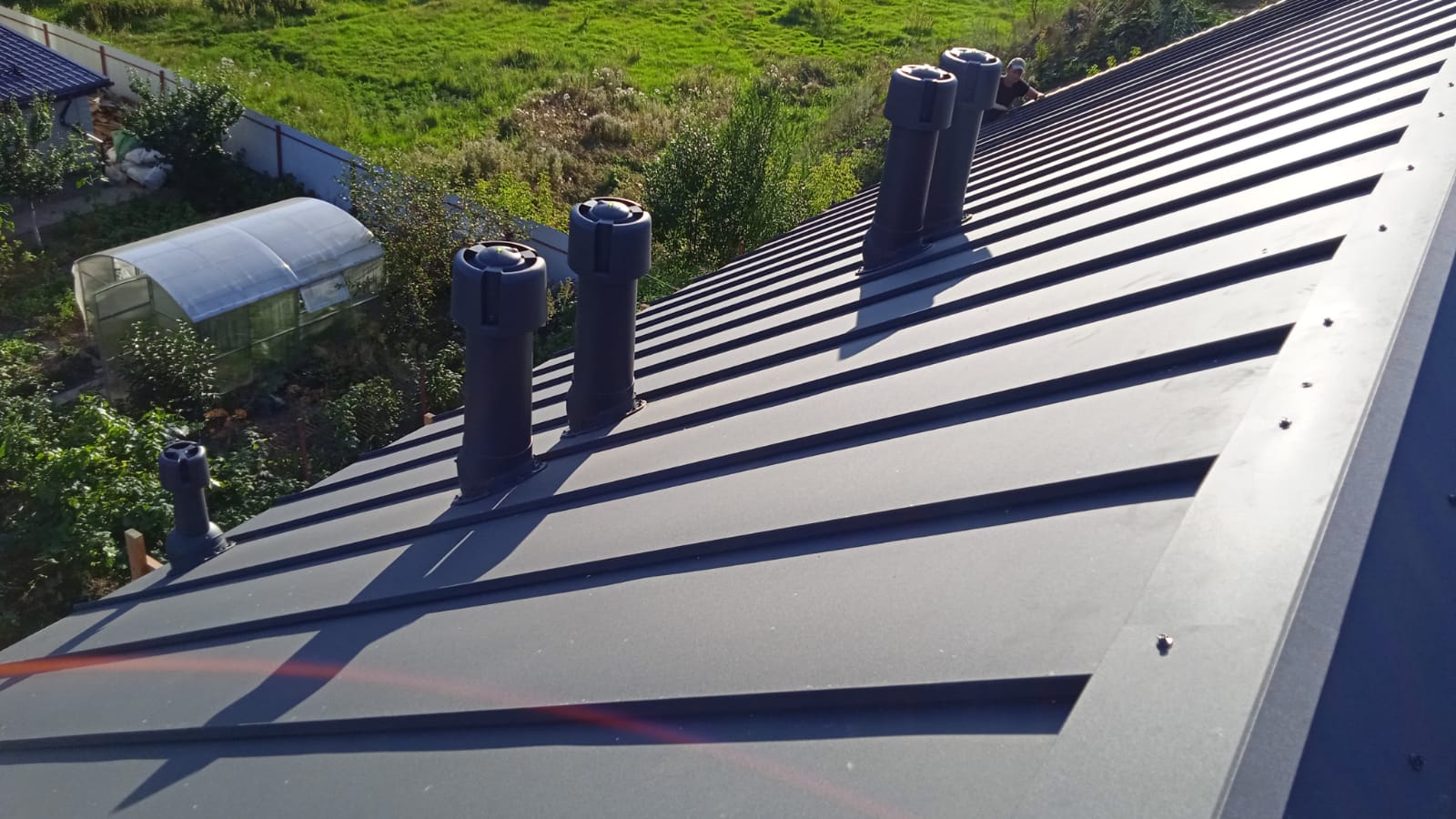

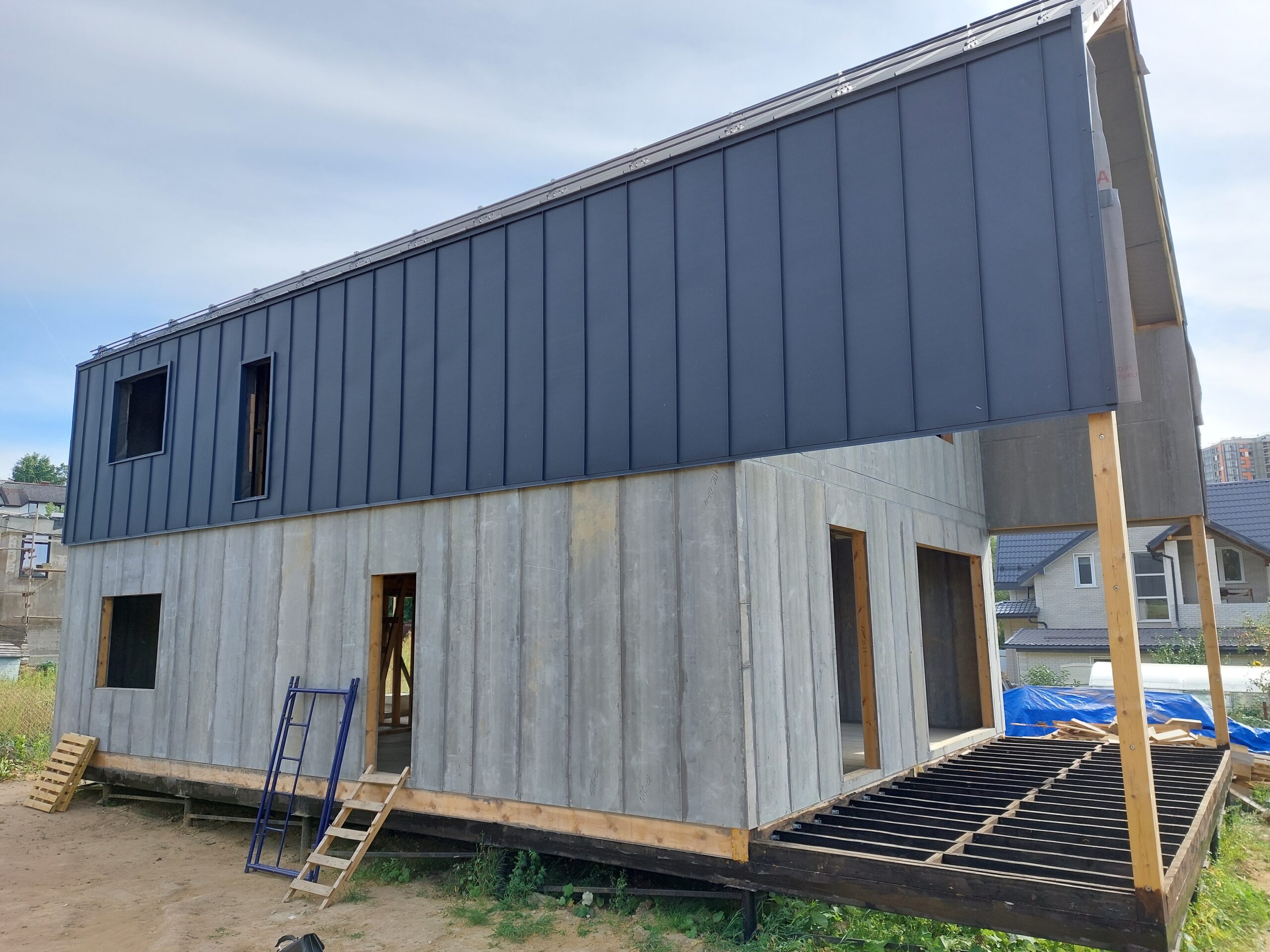

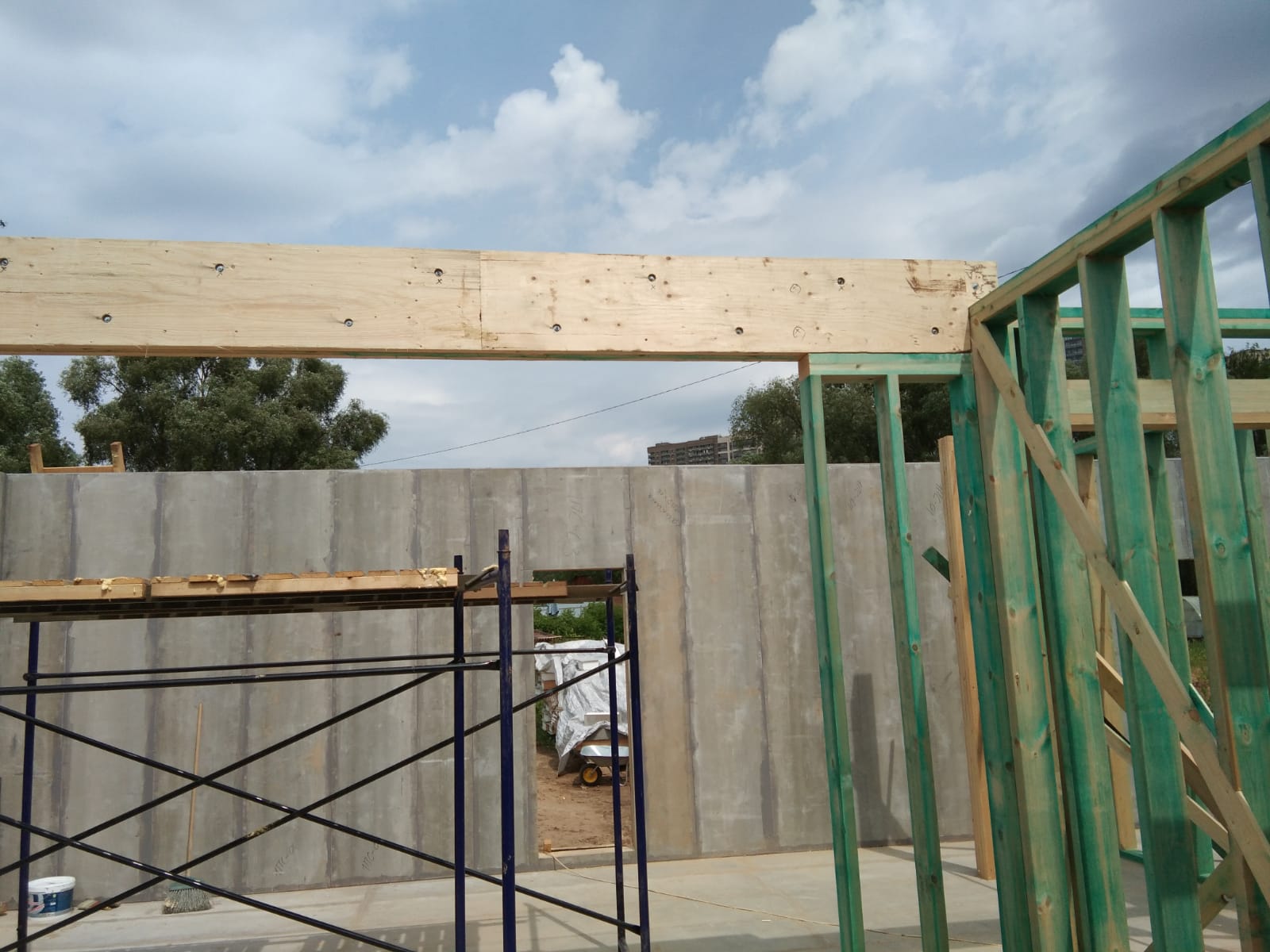

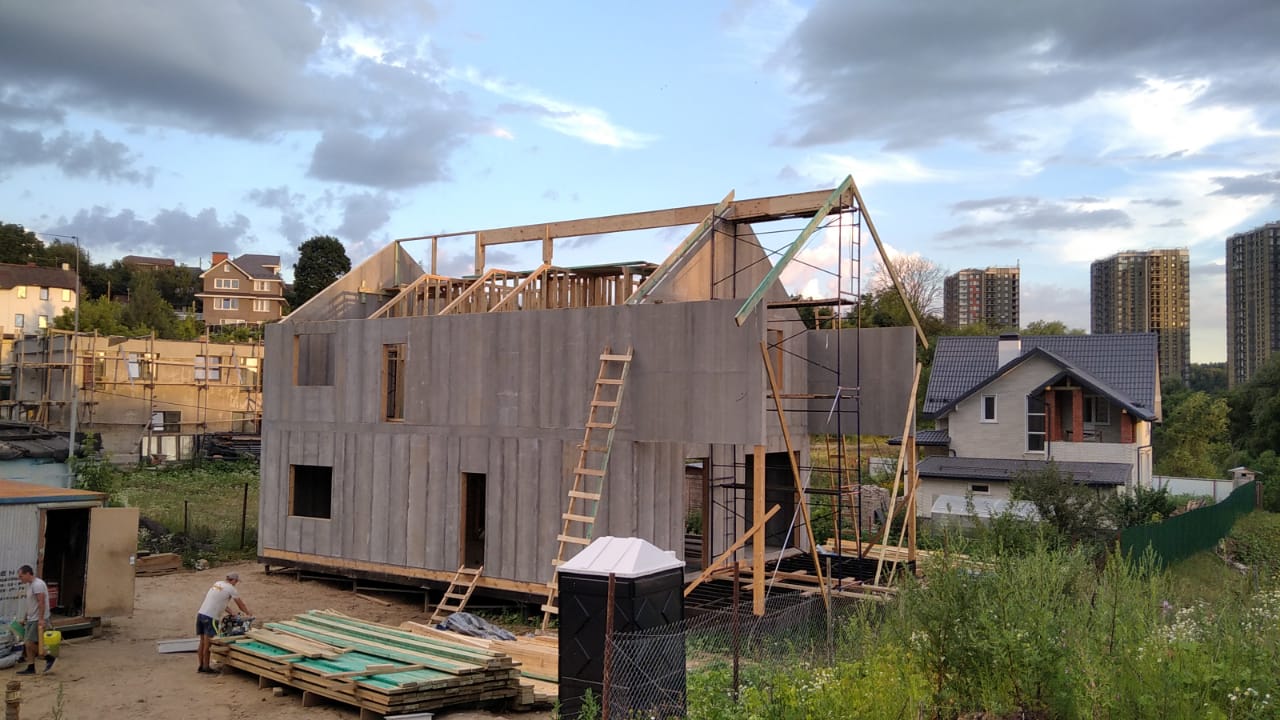

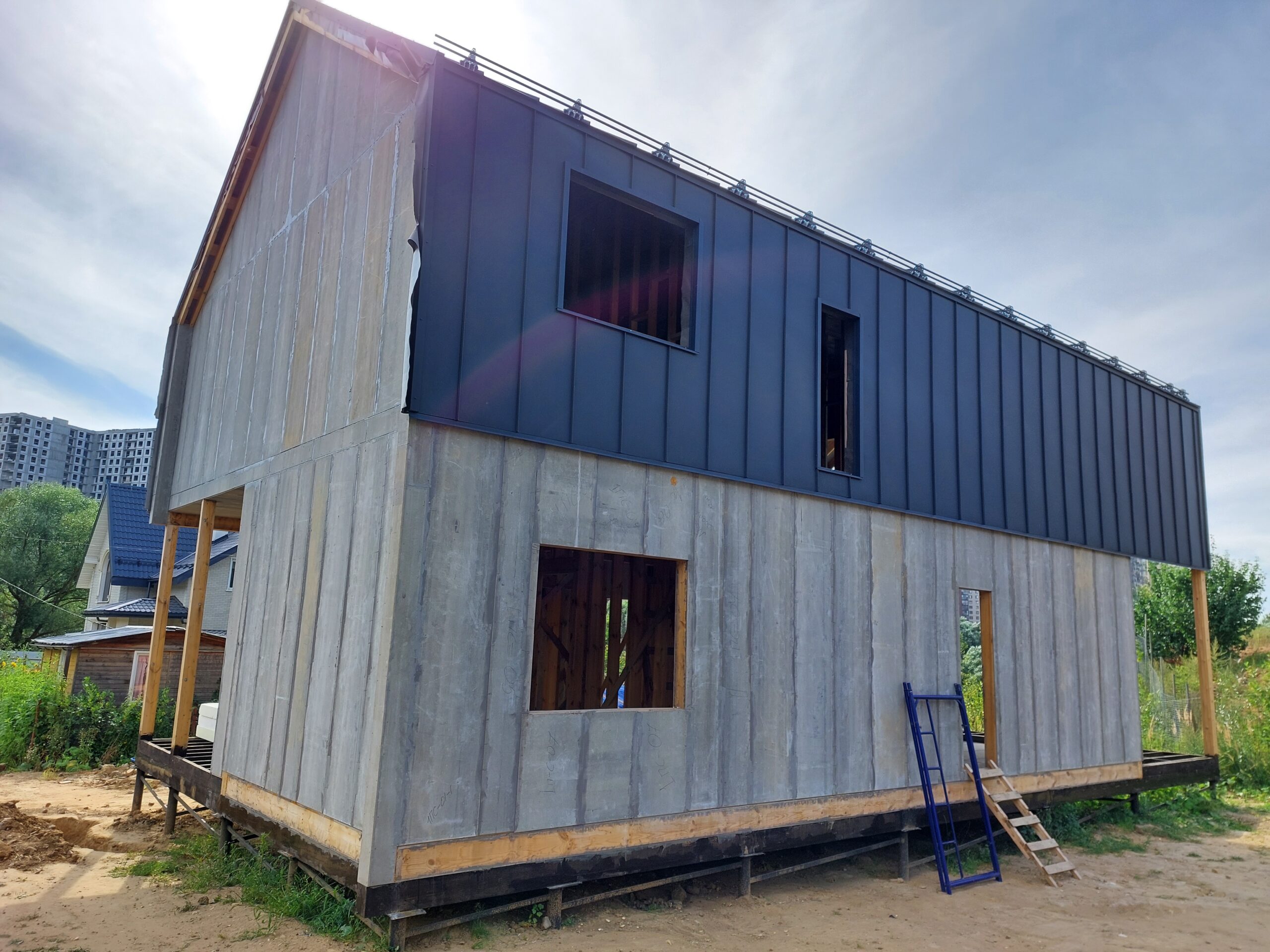

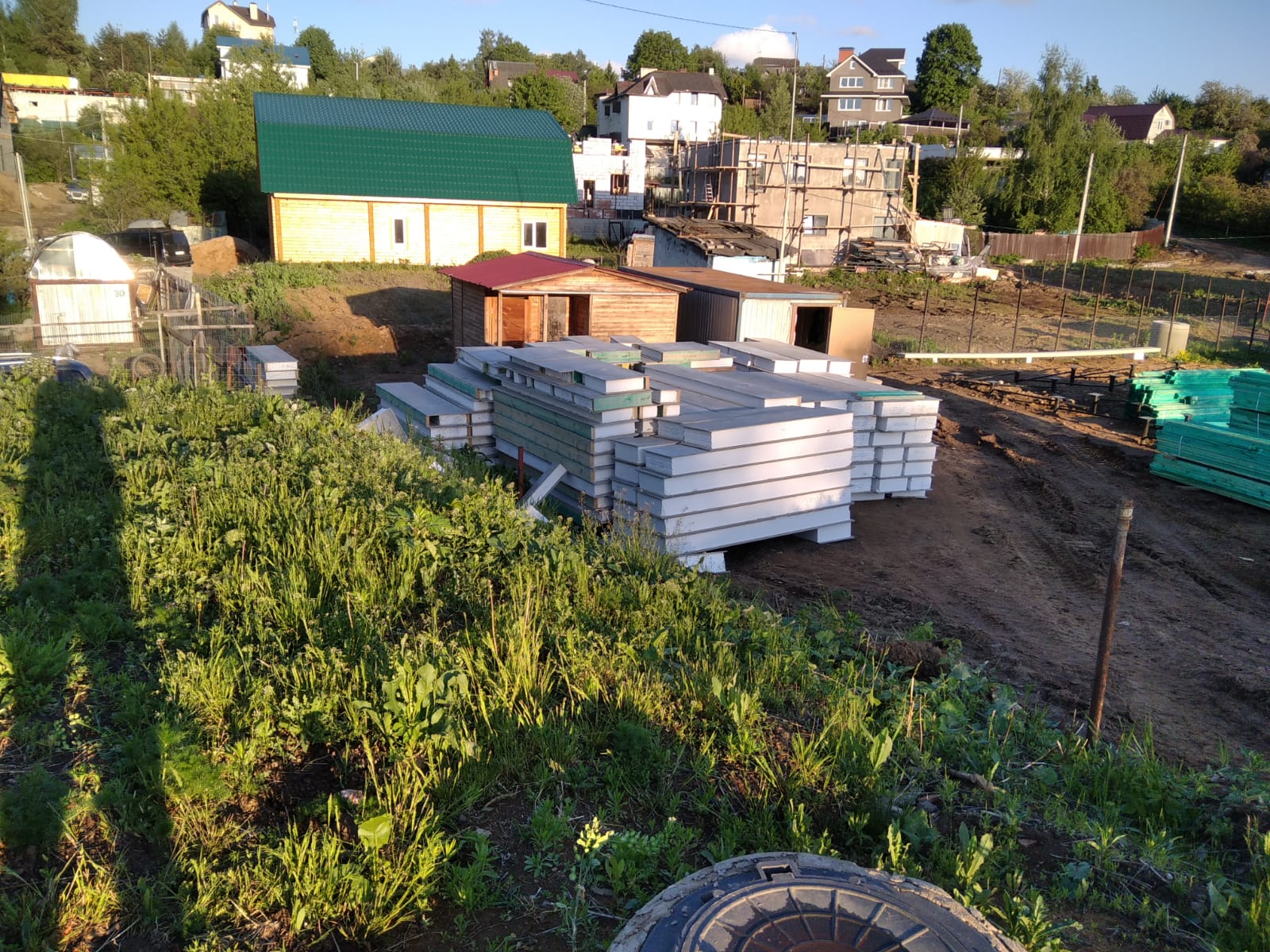

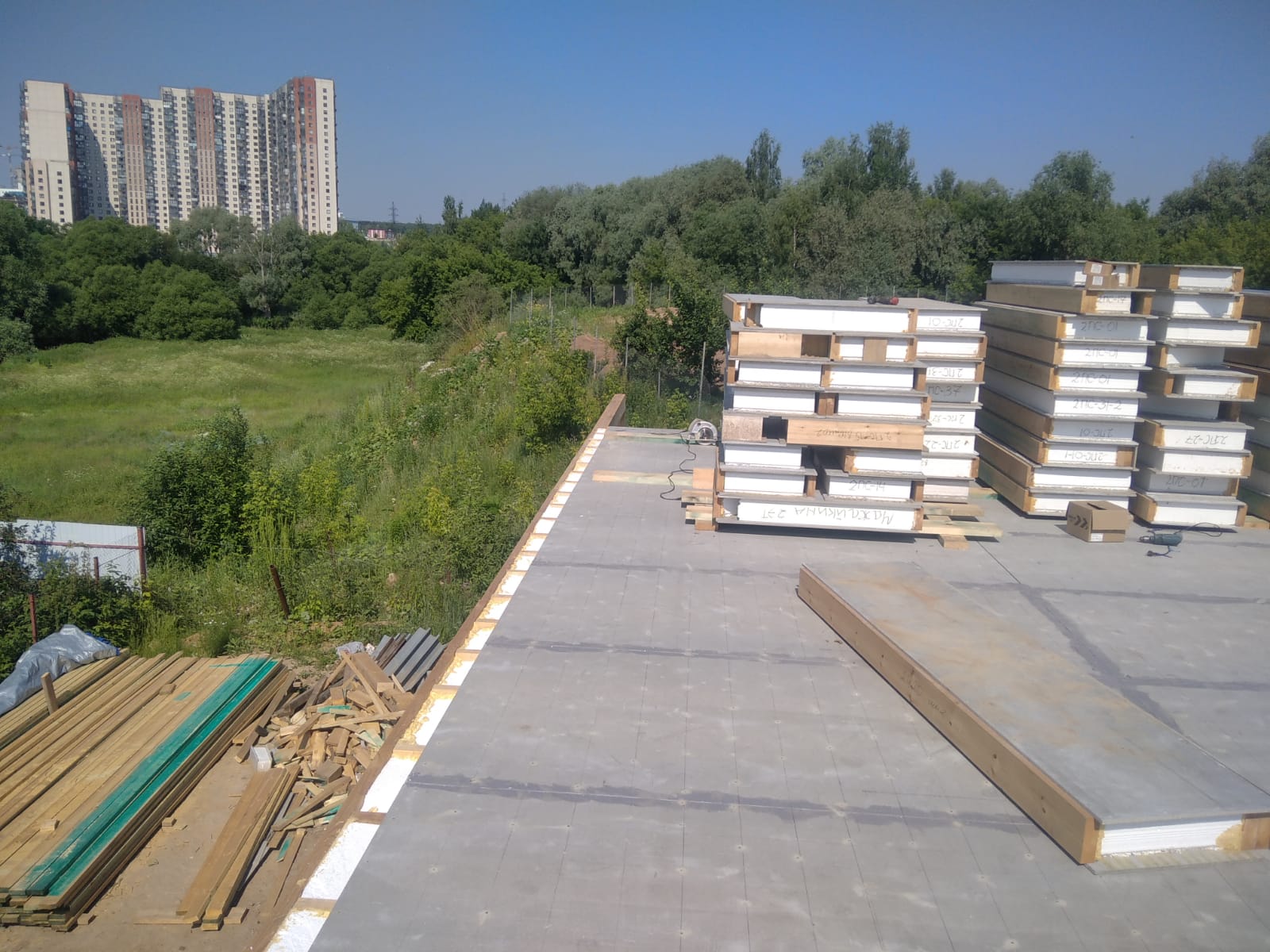

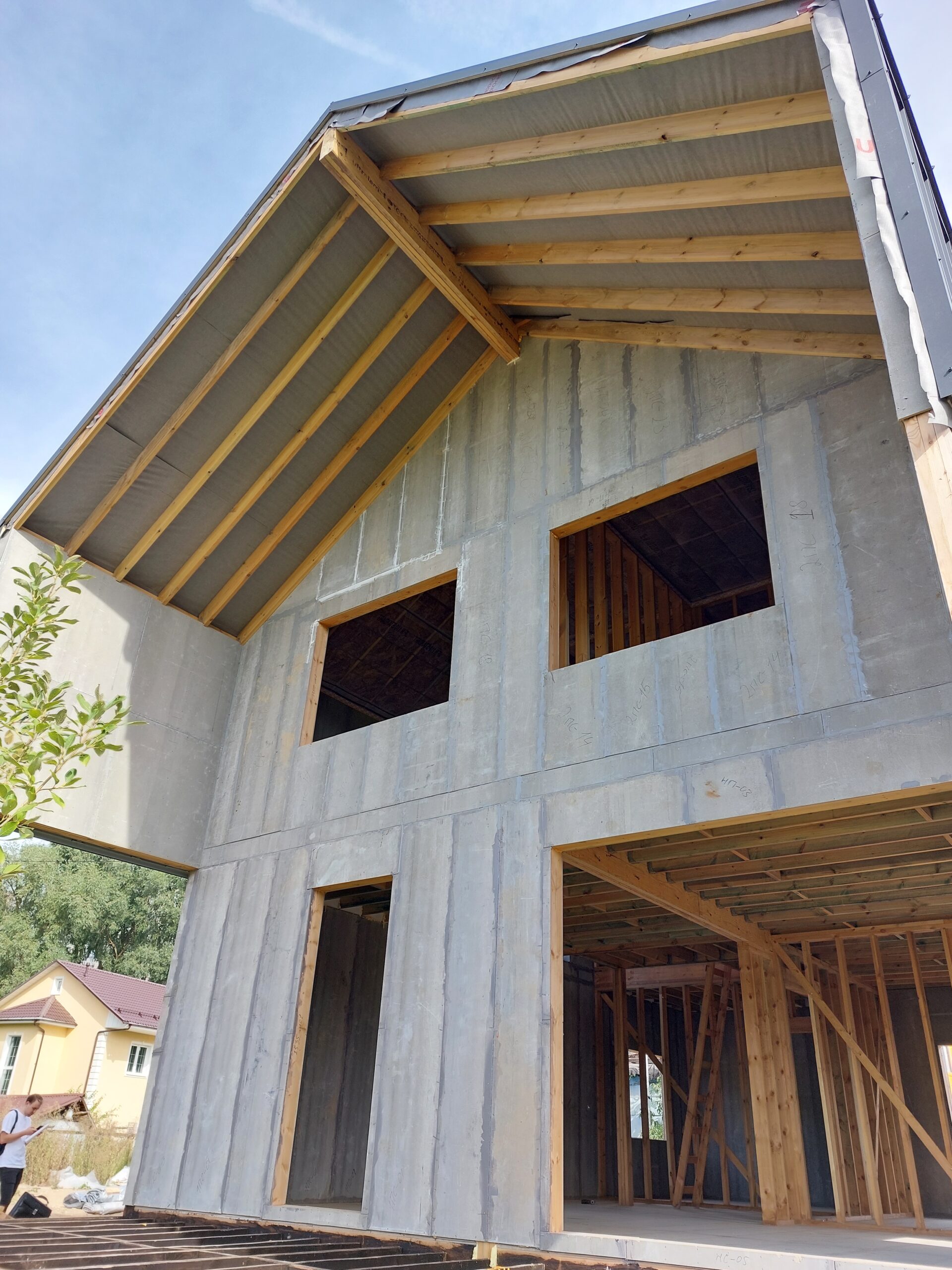

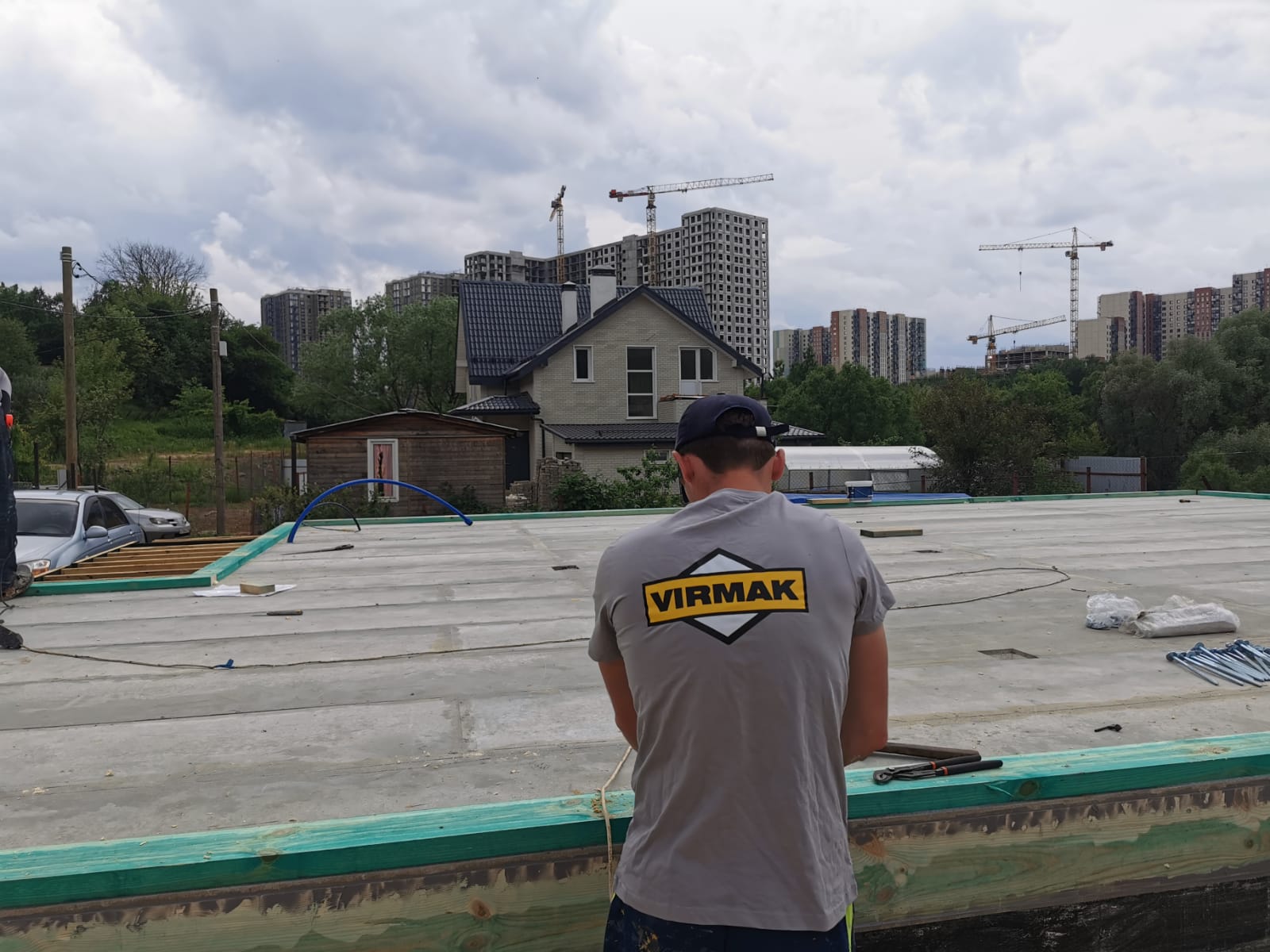

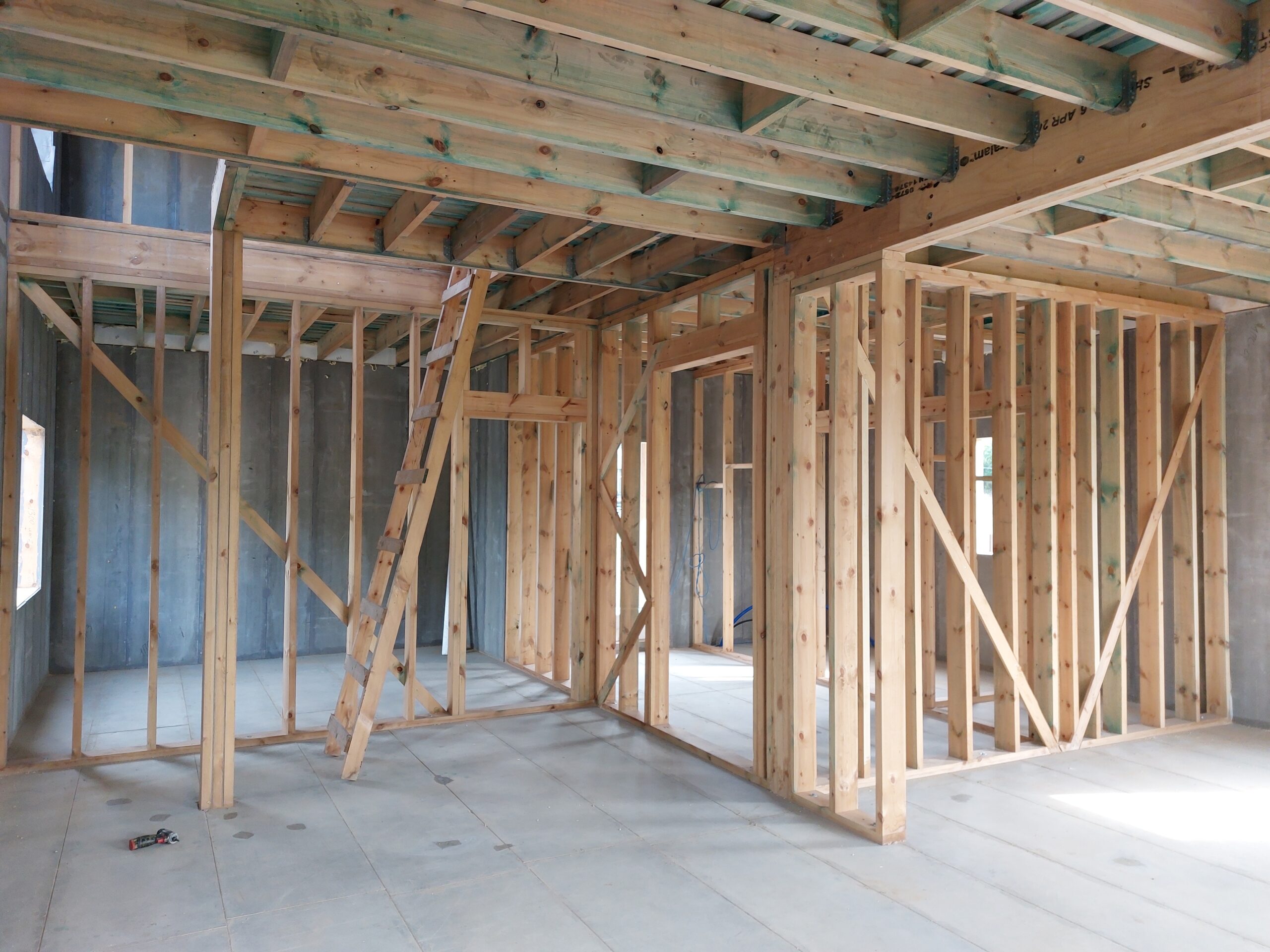

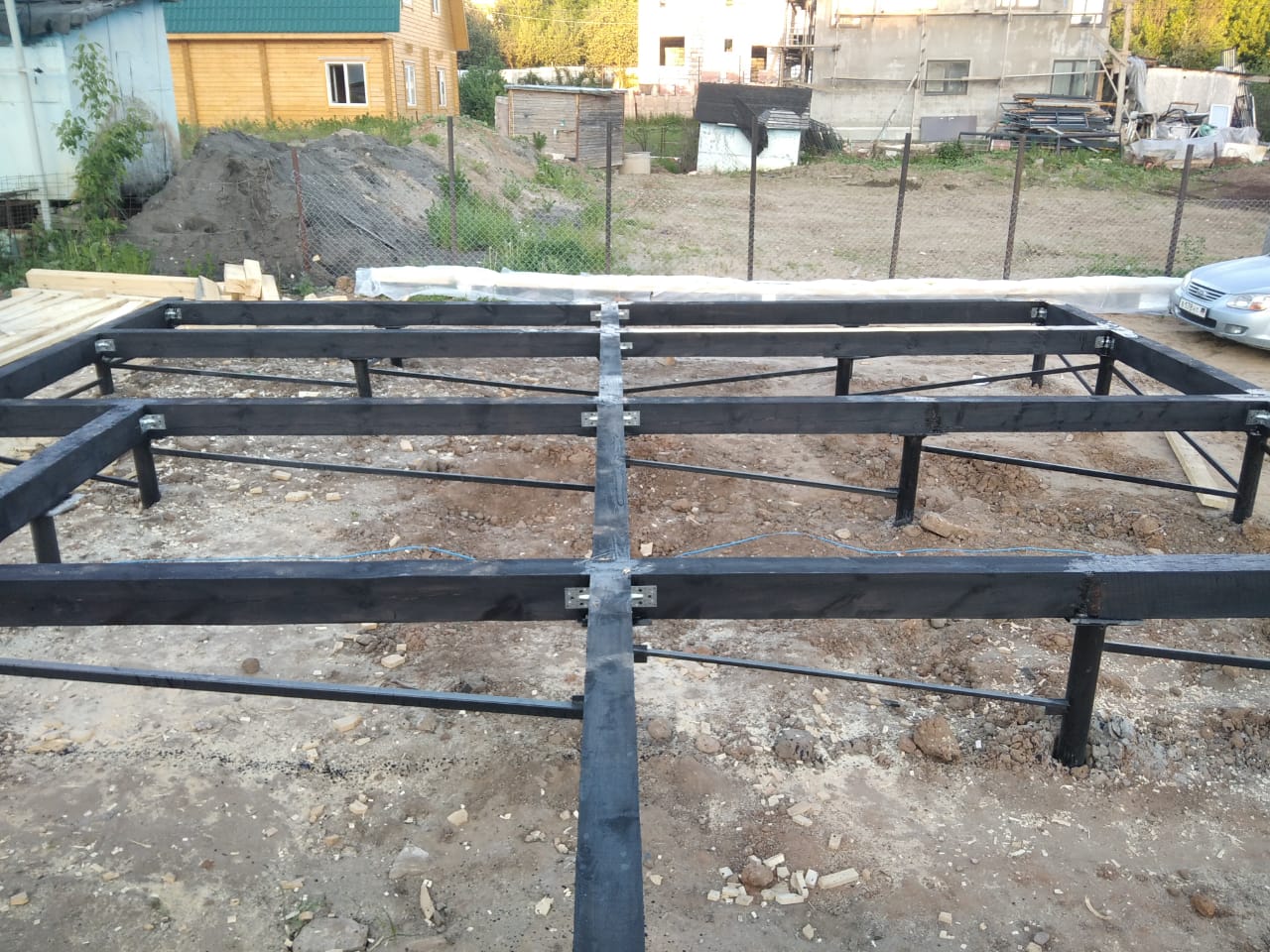

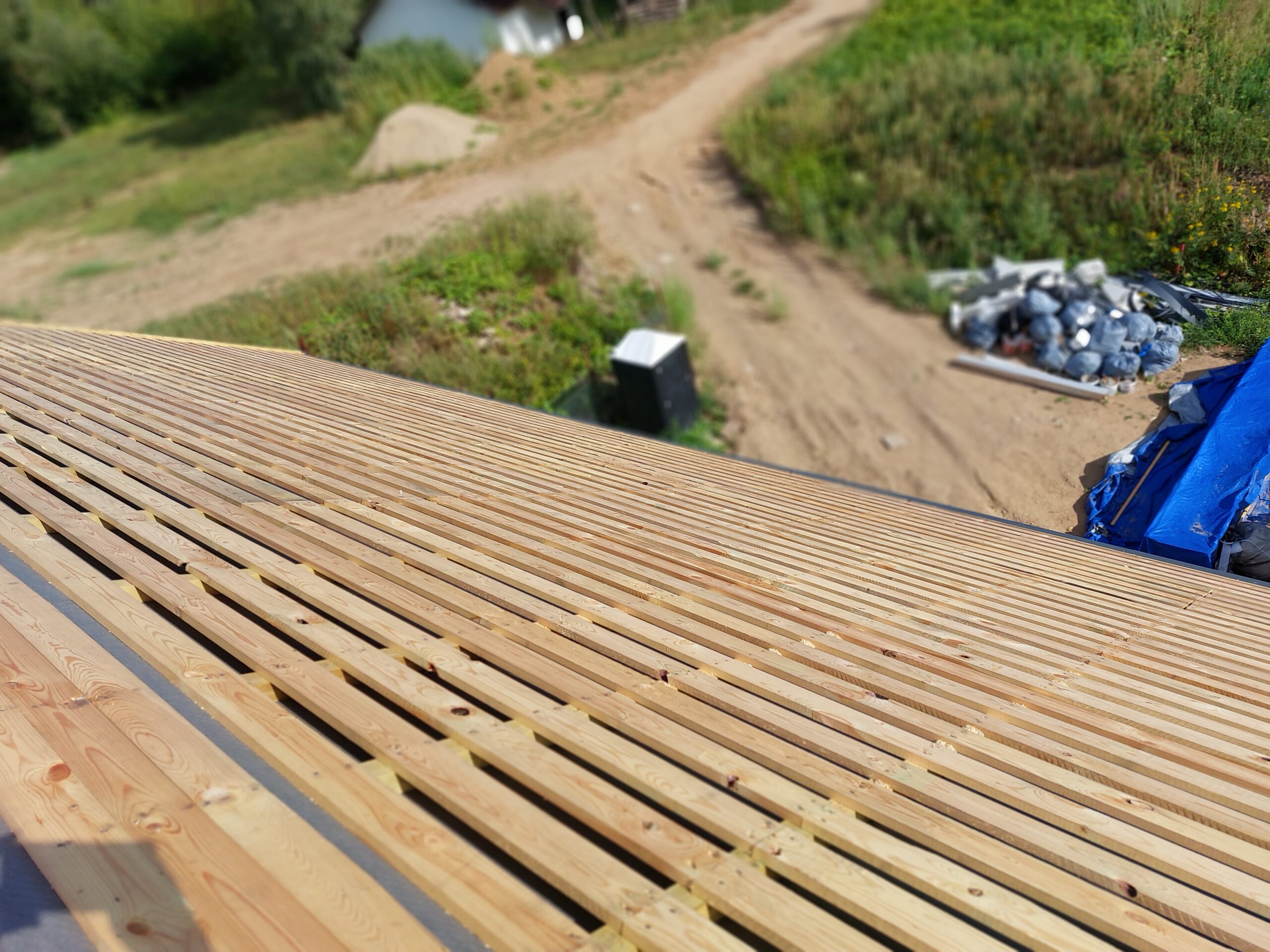

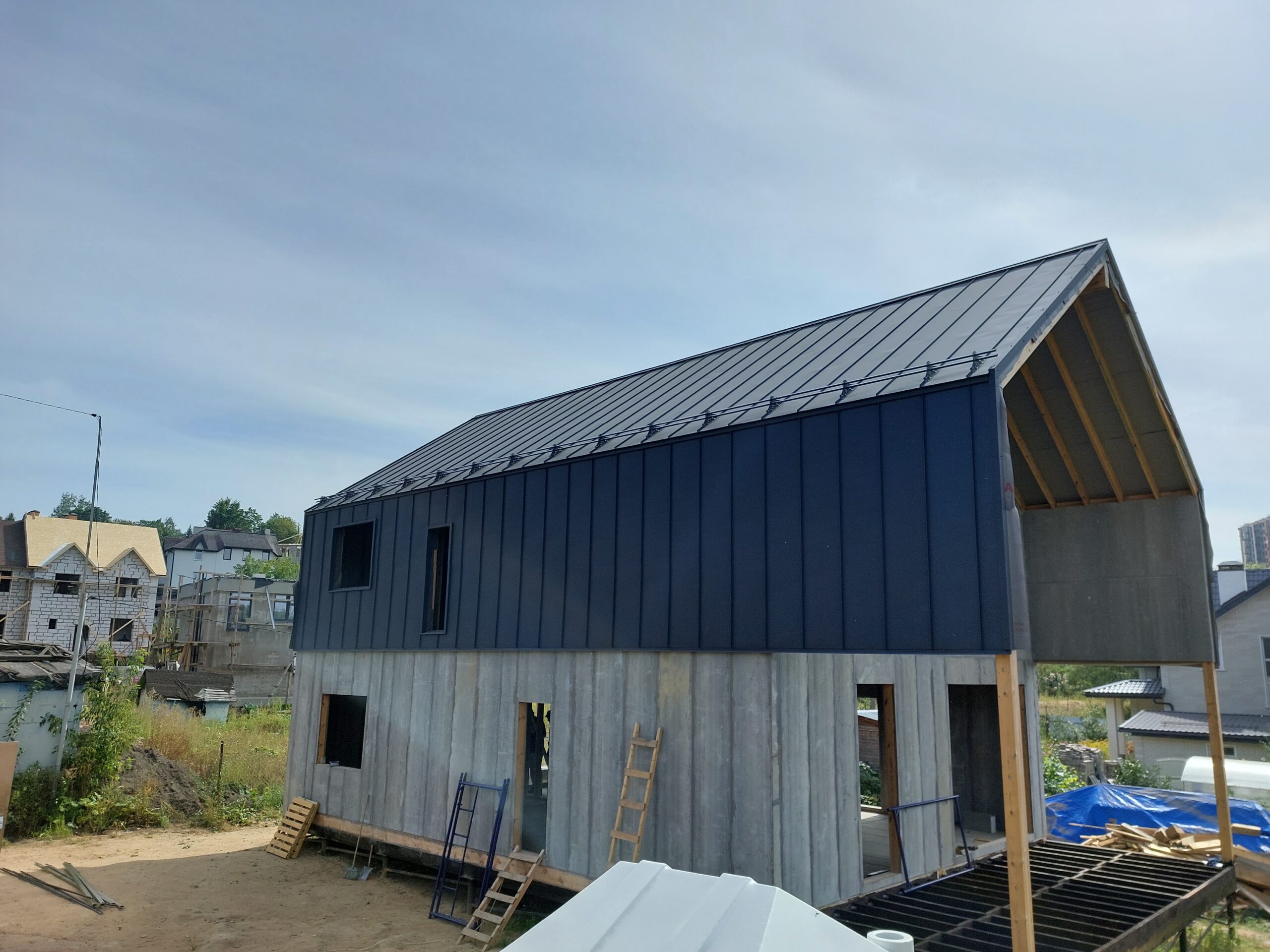

Project Implementation Examples

Important:

The price of the house kit does not include the porch and terrace. Please check the price with our managers.
The information in this project and the list of materials used are relevant for Krasnodar Krai.

Please check the construction cost for other regions of the Russian Federation.

 For any questions, please contact us using the contact details listed on the website (phone numbers, email, etc.).

For a more accurate preliminary estimate, indicate the district (address) of the future construction.

Need a consultation? Call right now or leave a request using the «contact button».

Minor price changes may be caused by: slopes on the site, difficult access roads, lack of electrical power, etc.

All projects posted on the website are schematic and can serve as initial material for creating a project according to your wishes and recommendations.
